  1. Wireshark Daniel Compton, Auburn University

  2. Overview • Wireshark Overview • General Overview and Uses • GUI Introduction • Wireshark Exercise 1: Reading HTTP Traffic from PCAP file • Wireshark Exercise 2: Extracting Images from PCAP file • Defeating Wireshark • Conclusion

  3. Wireshark Overview • Wireshark (originally Ethereal) is an open source packet analyzer • Packets can be captured and analyzed on a live network or saved in PCAP format for later analysis • Useful for network troubleshooting, software and communications protocol development, malware/digital forensics, and education • Also utilized for network snooping and information gathering

  4. Wireshark Overview: GUI

  5. Wireshark Overview: GUI • The capture interfaces panel displays the available network cards capable of capturing/analyzing packets on the network. • The IP, number of packets seen per second, and total number of packets seen on the interfaces are displayed in the far right columns.

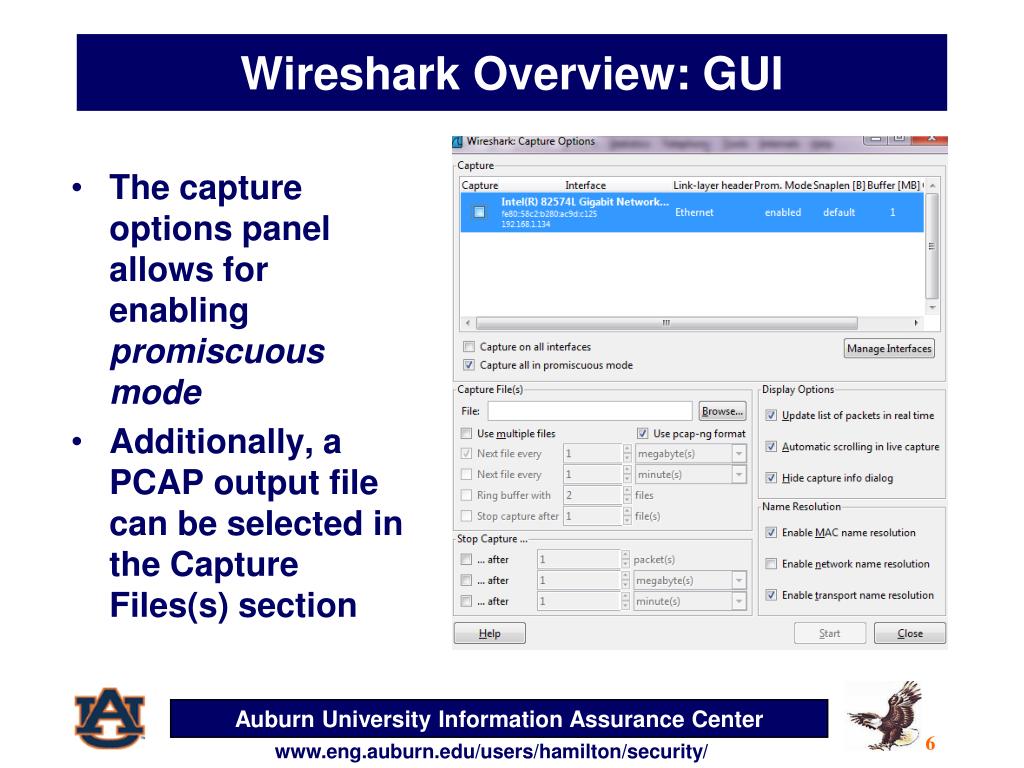

  6. Wireshark Overview: GUI • The capture options panel allows for enabling promiscuous mode • Additionally, a PCAP output file can be selected in the Capture Files(s) section

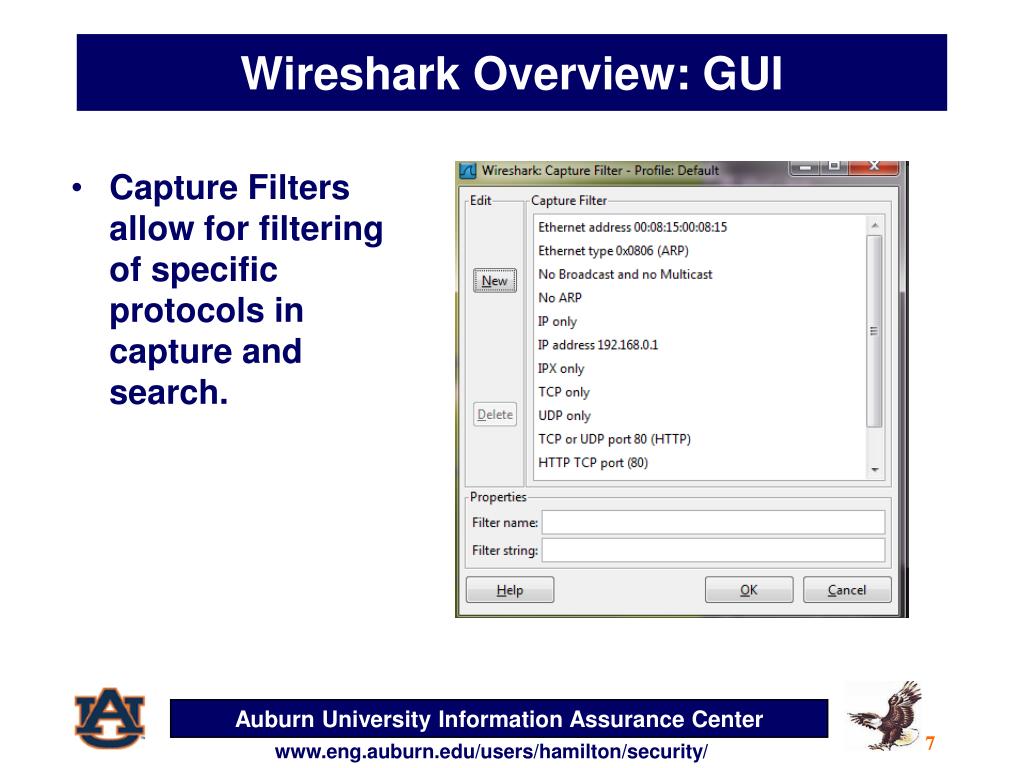

  7. Wireshark Overview: GUI • Capture Filters allow for filtering of specific protocols in capture and search.

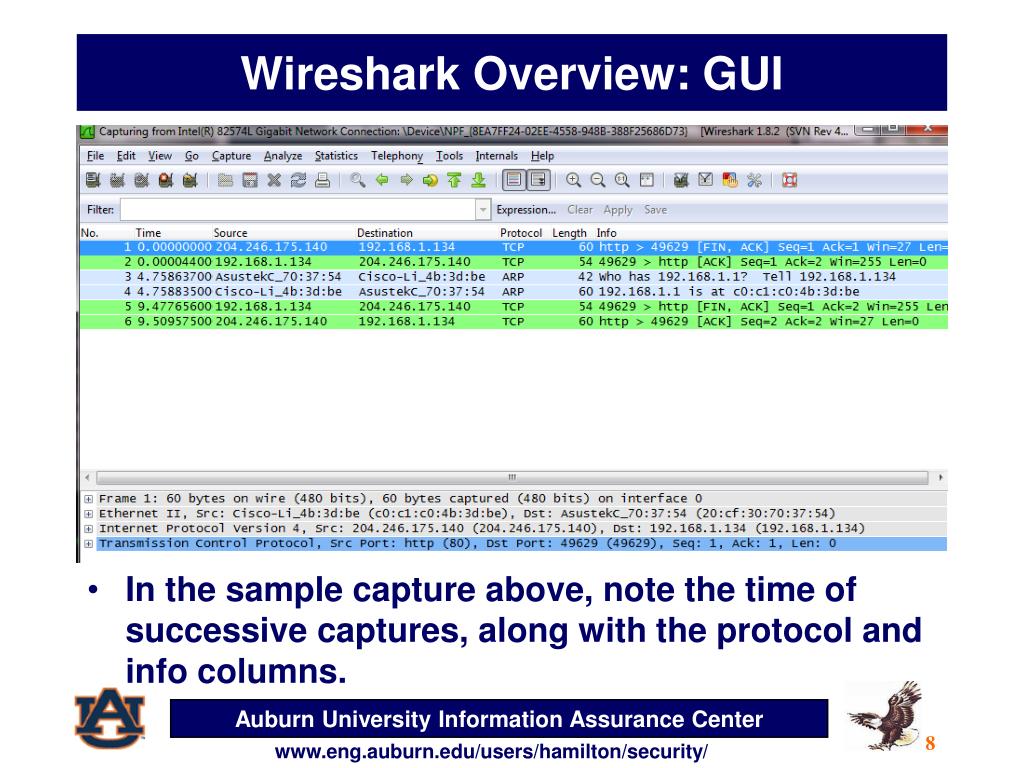

  8. Wireshark Overview: GUI • In the sample capture above, note the time of successive captures, along with the protocol and info columns.

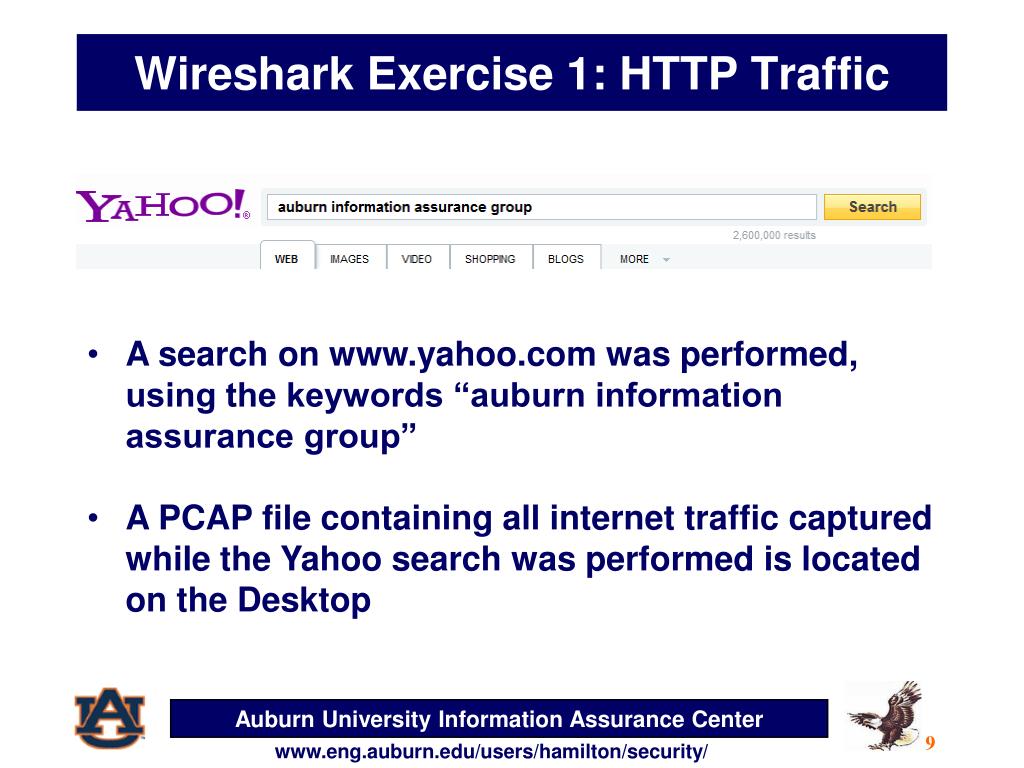

  9. Wireshark Exercise 1: HTTP Traffic • A search on www.yahoo.com was performed, using the keywords “auburn information assurance group” • A PCAP file containing all internet traffic captured while the Yahoo search was performedis located on the Desktop

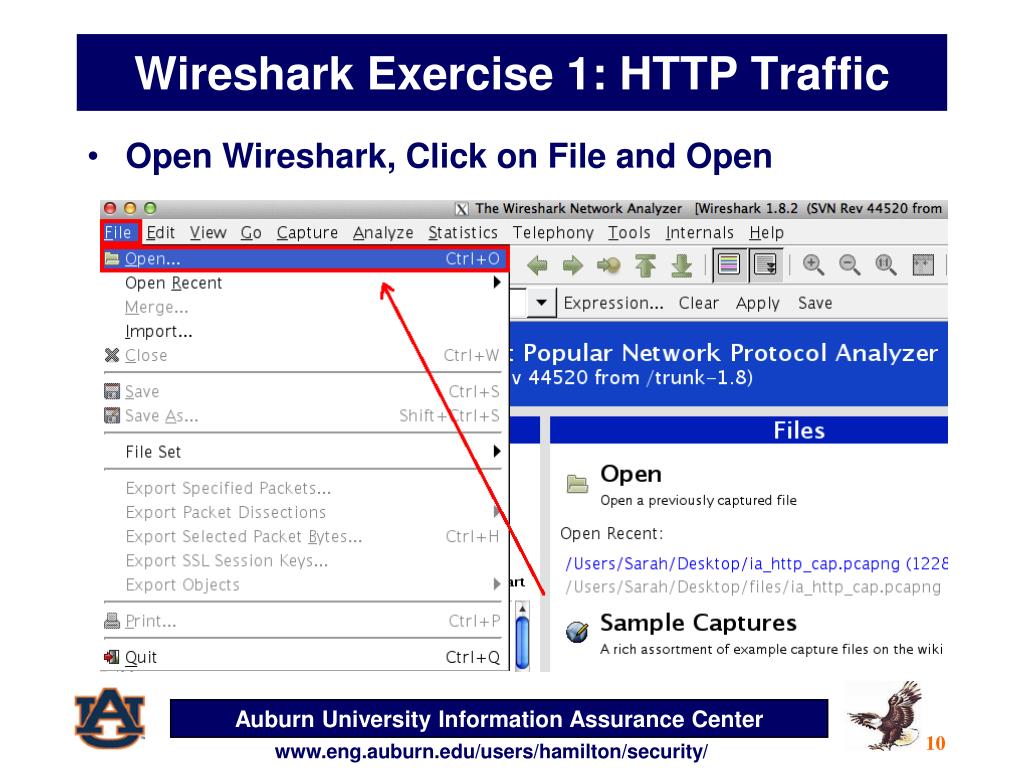

  10. Wireshark Exercise 1: HTTP Traffic • Open Wireshark, Click on File and Open

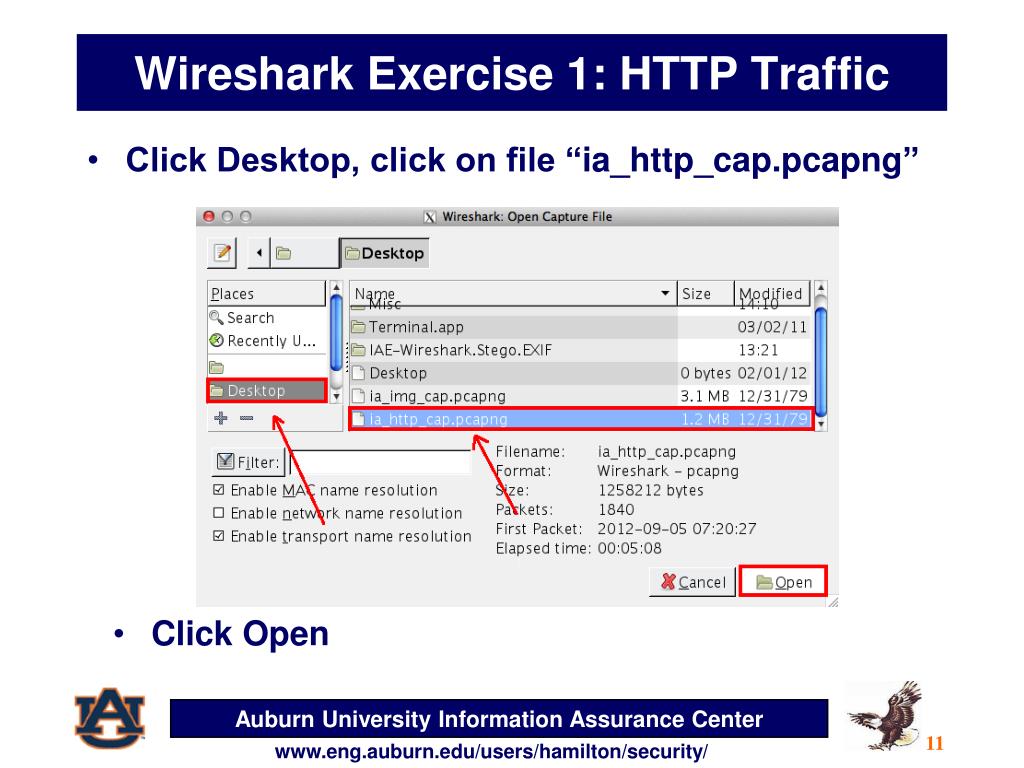

  11. Wireshark Exercise 1: HTTP Traffic • Click Desktop, click on file “ia_http_cap.pcapng” • Click Open

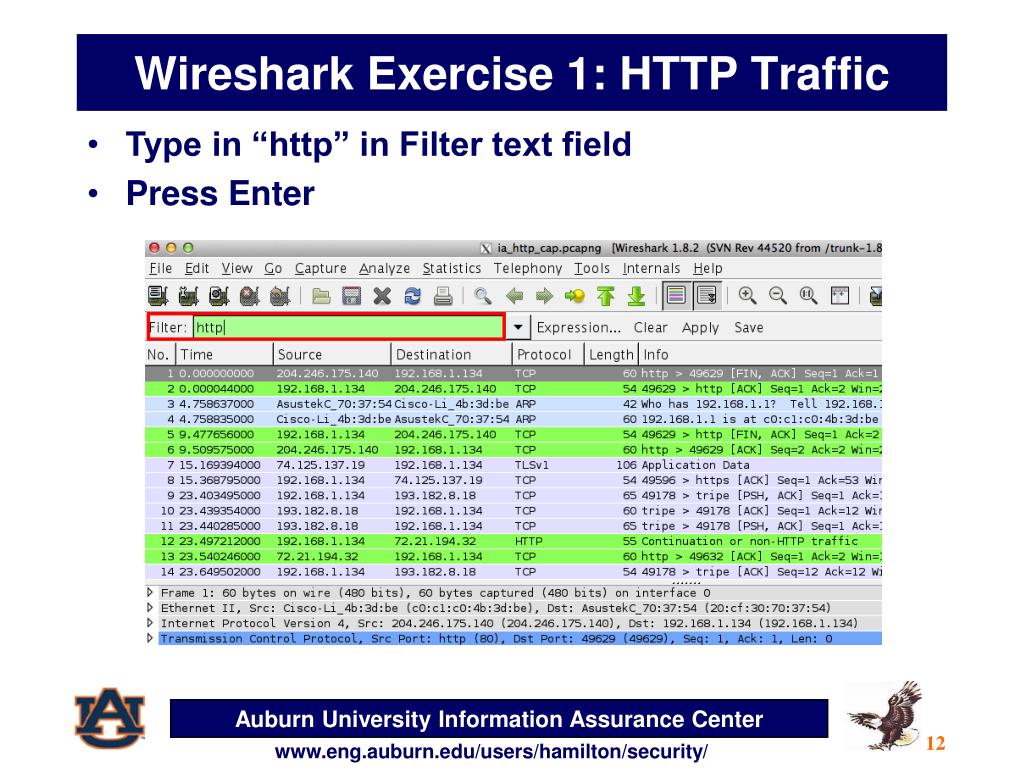

  12. Wireshark Exercise 1: HTTP Traffic • Type in “http” in Filter text field • Press Enter

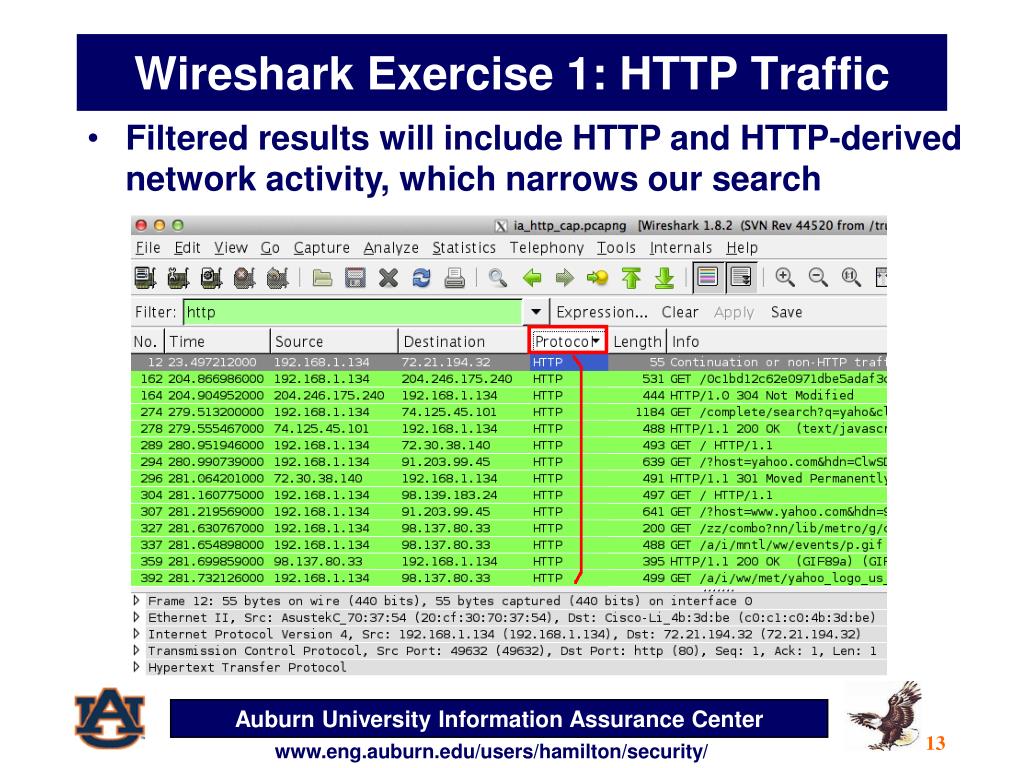

  13. Wireshark Exercise 1: HTTP Traffic • Filtered results will include HTTP and HTTP-derived network activity, which narrows our search

  14. Wireshark Exercise 1: HTTP Traffic • To find the packet containing our Yahoo search • Hold down ‘control’+’f’, Choose String, type “information” • Click on Find

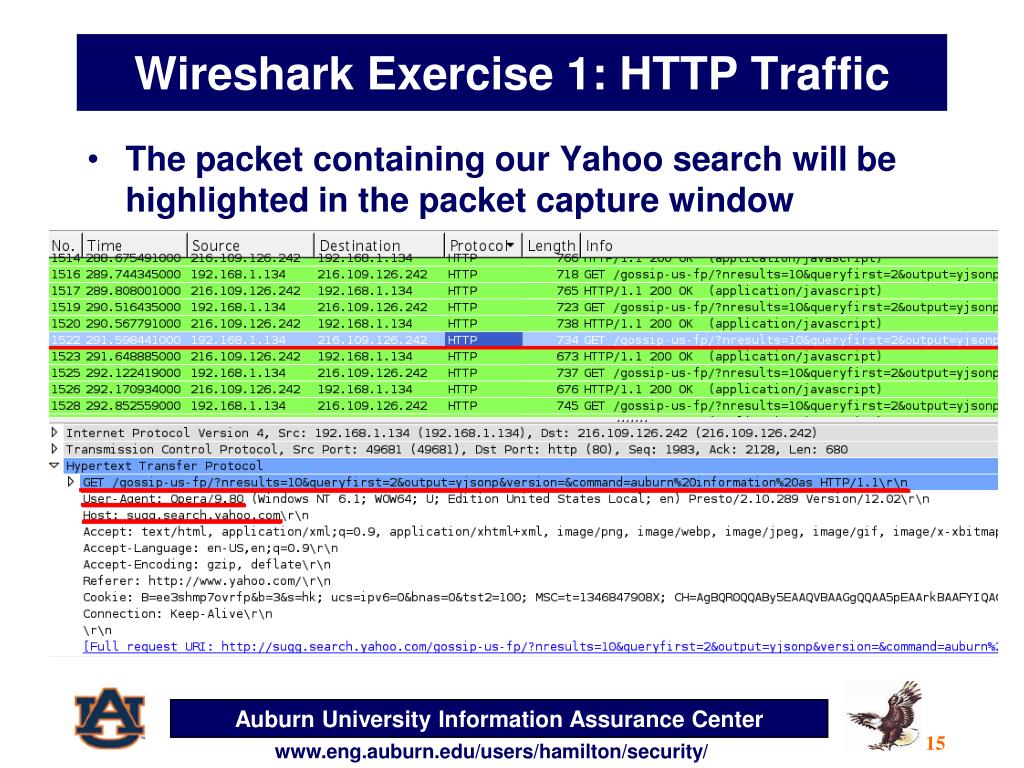

  15. Wireshark Exercise 1: HTTP Traffic • The packet containing our Yahoo search will be highlighted in the packet capture window

  16. Wireshark Exercise 2: JPEG Extraction • When images are transmitted via the HTTP protocol, they are spit up into packets, which form a HTTP stream. • Objects (e.g. JPEG Images) from this stream can be extracted via the Object Extraction Tool, located under “File”, “Export Objects”, “HTTP” • We begin by opening a PCAP file from the Desktop.

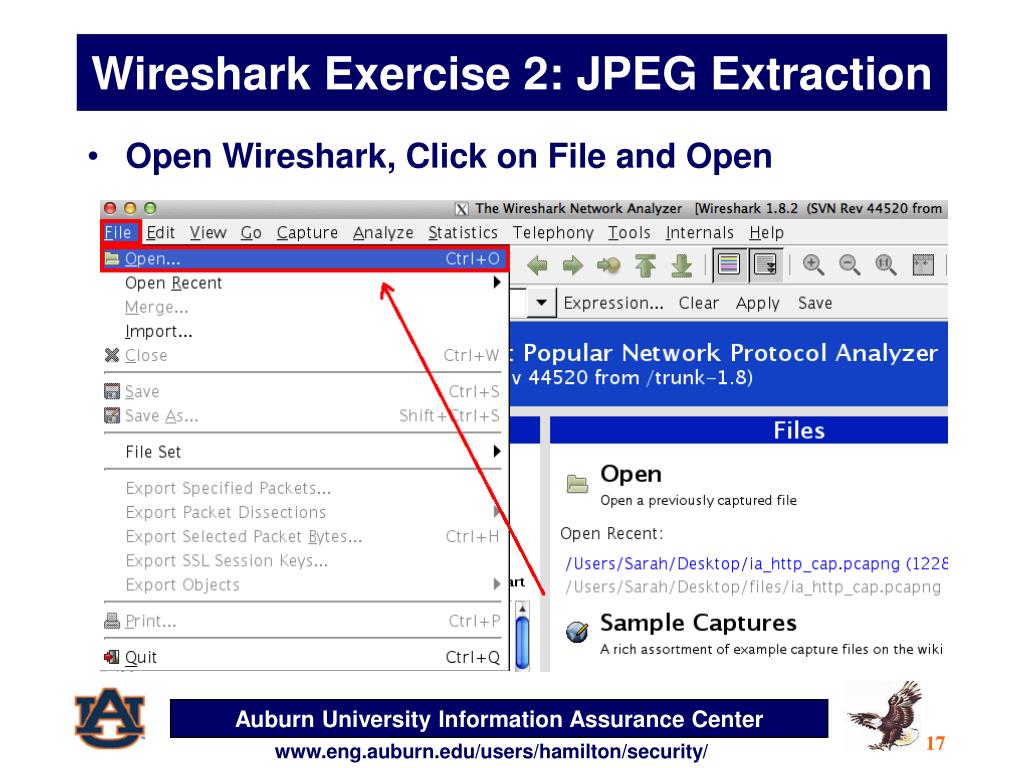

  17. Wireshark Exercise 2: JPEG Extraction • Open Wireshark, Click on File and Open

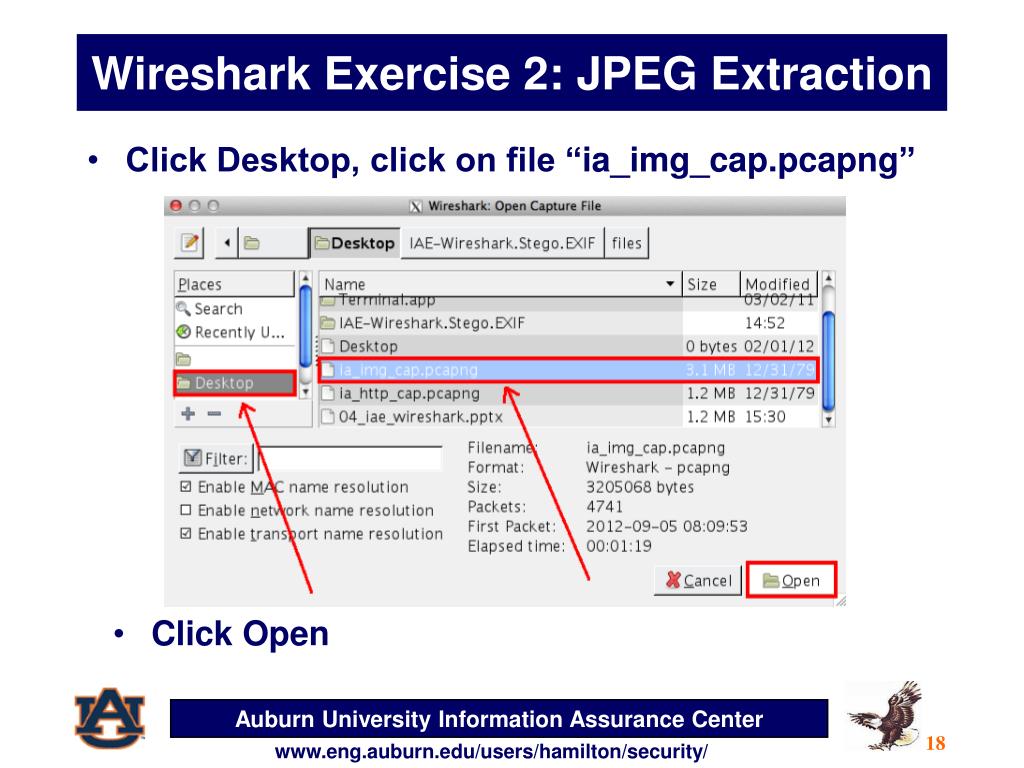

  18. Wireshark Exercise 2: JPEG Extraction • Click Desktop, click on file “ia_img_cap.pcapng” • Click Open

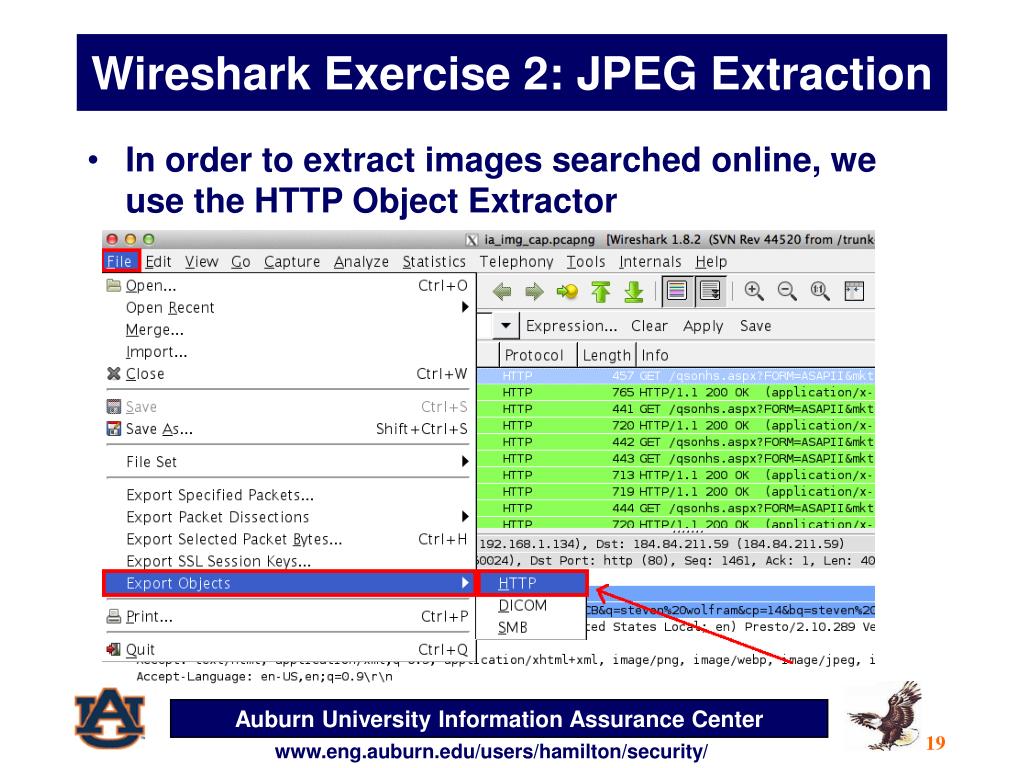

  19. Wireshark Exercise 2: JPEG Extraction • In order to extract images searched online,we use the HTTP Object Extractor • Click Open

  20. Wireshark Exercise 2: JPEG Extraction • Scroll through extracted objects to find Packet #533, which consists of an image/jpeg object

  21. Wireshark Exercise 2: JPEG Extraction • Select Desktop, type in desired file name, • Click on Save

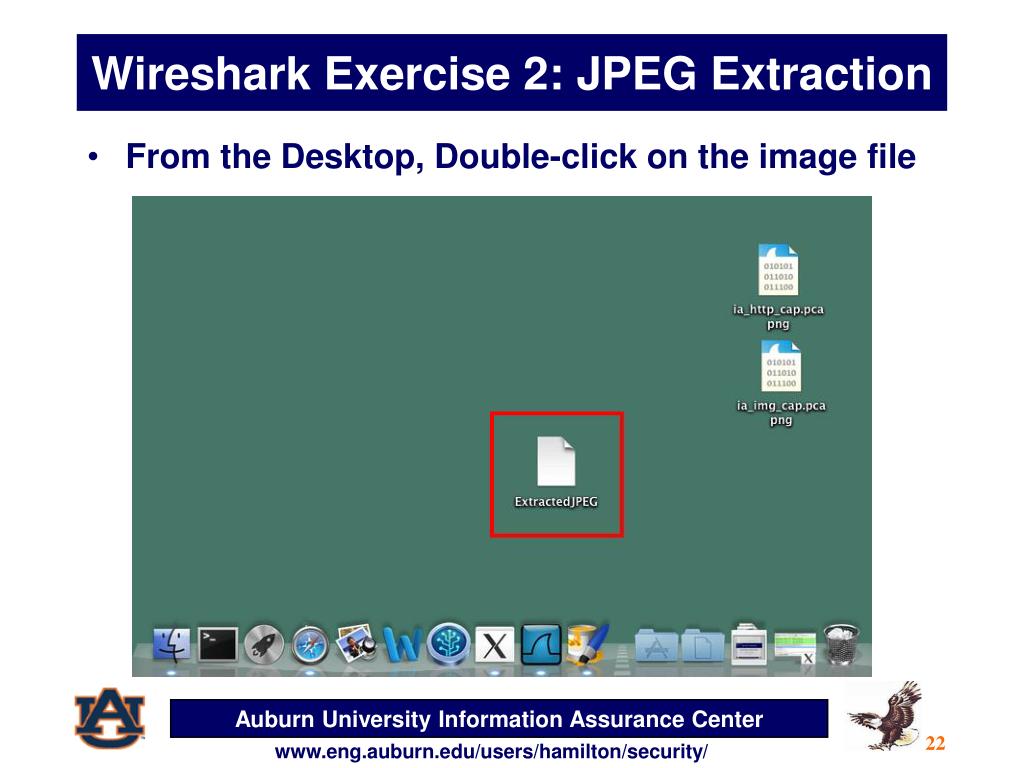

  22. Wireshark Exercise 2: JPEG Extraction • From the Desktop, Double-click on the image file

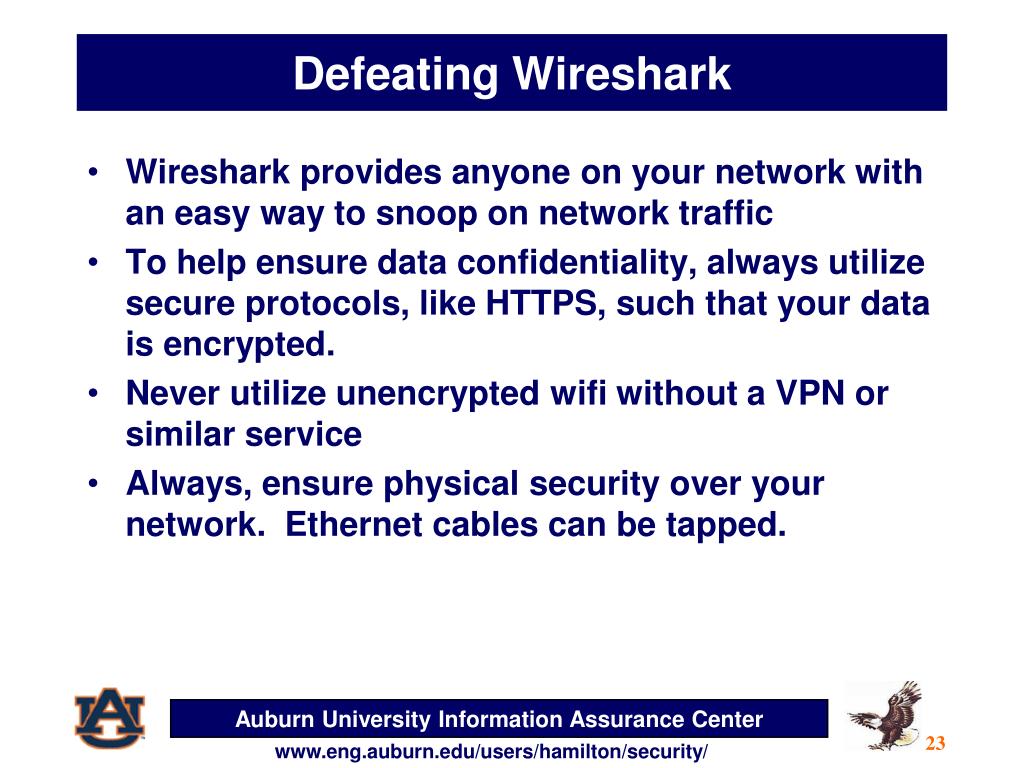

  23. Defeating Wireshark • Wireshark provides anyone on your network with an easy way to snoop on network traffic • To help ensure data confidentiality, always utilize secure protocols, like HTTPS, such that your data is encrypted. • Never utilize unencrypted wifi without a VPN or similar service • Always, ensure physical security over your network. Ethernet cables can be tapped.

  24. Conclusion • Wireshark is a useful tool with a wide range of malicious and non-malicious uses. • Any unencrypted traffic sent on a given network can be sniffed. • Ensure that you utilize secure protocols and/or a VPN service when interacting on questionable networks!

  25. Questions?
