Dashboard & Report Development Process

1. Dashboard & Report Development Process

2. Dashboard Definition • The fundamental challenge of dashboard design is to display all the required information on a single screen: • clearly and without distraction • in a manner that can be quickly examined and understood An Effective Dashboard is a: Visual Display of the Most Important Information needed to achieve one or more objectives which Fits entirely on a single computer screen so it can be Monitored at a glance

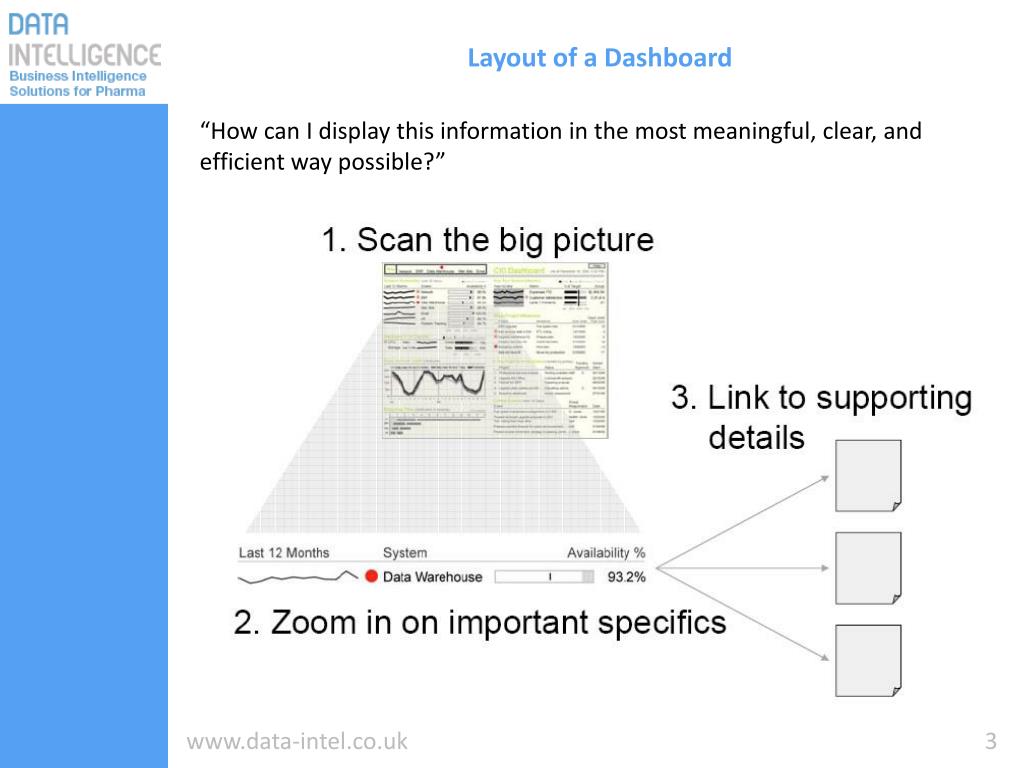

3. Layout of a Dashboard “How can I display this information in the most meaningful, clear, and efficient way possible?”

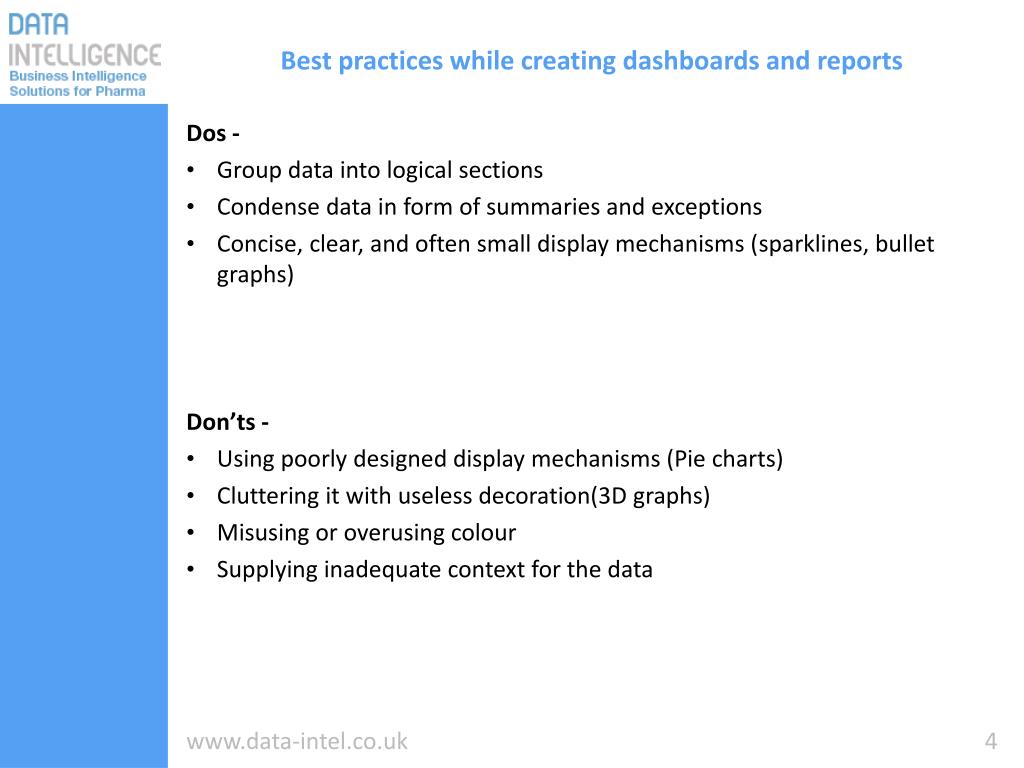

4. Best practices while creating dashboards and reports Dos - • Group data into logical sections • Condense data in form of summaries and exceptions • Concise, clear, and often small display mechanisms (sparklines, bullet graphs) Don’ts - • Using poorly designed display mechanisms (Pie charts) • Cluttering it with useless decoration(3D graphs) • Misusing or overusing colour • Supplying inadequate context for the data

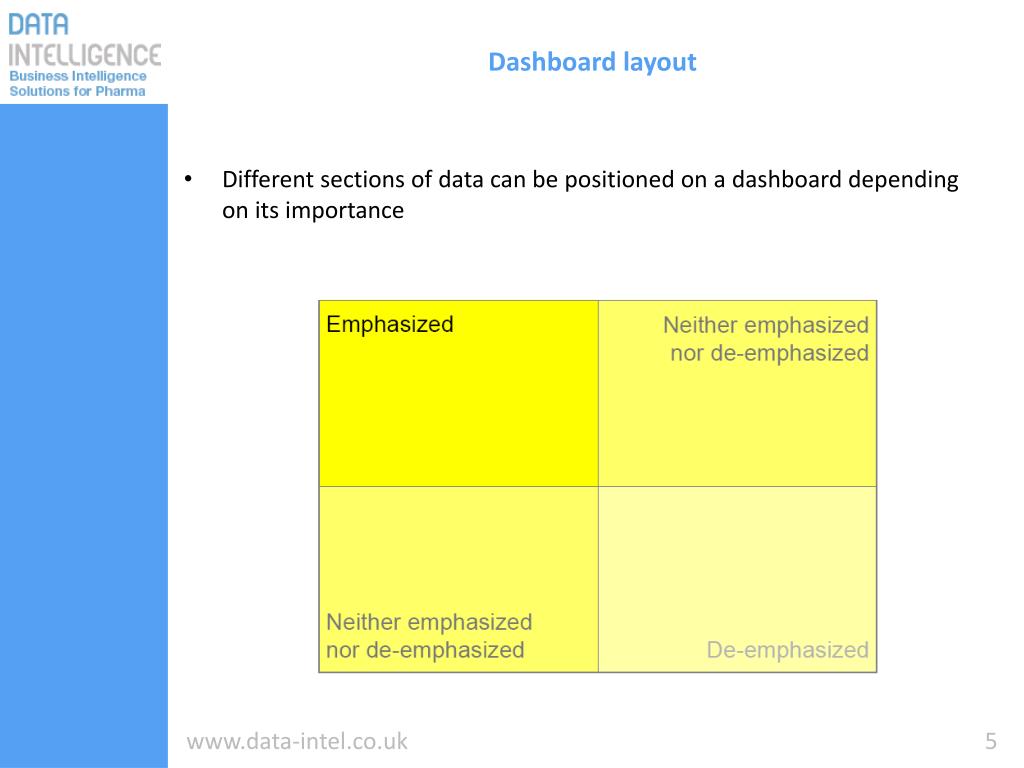

5. Dashboard layout Different sections of data can be positioned on a dashboard depending on its importance

6. Designing Dashboard and Report • Display mediums that can be used in a dashboard or a report are: • Tables – • To look up and compare individual values • Data needs to be precise • To show multiple units of measure • To show both details and summary at the same time • Graphs – • To show patterns and trends • To show relation among multiple values • Icons – • To show any alerts • To highlight urgent or important data

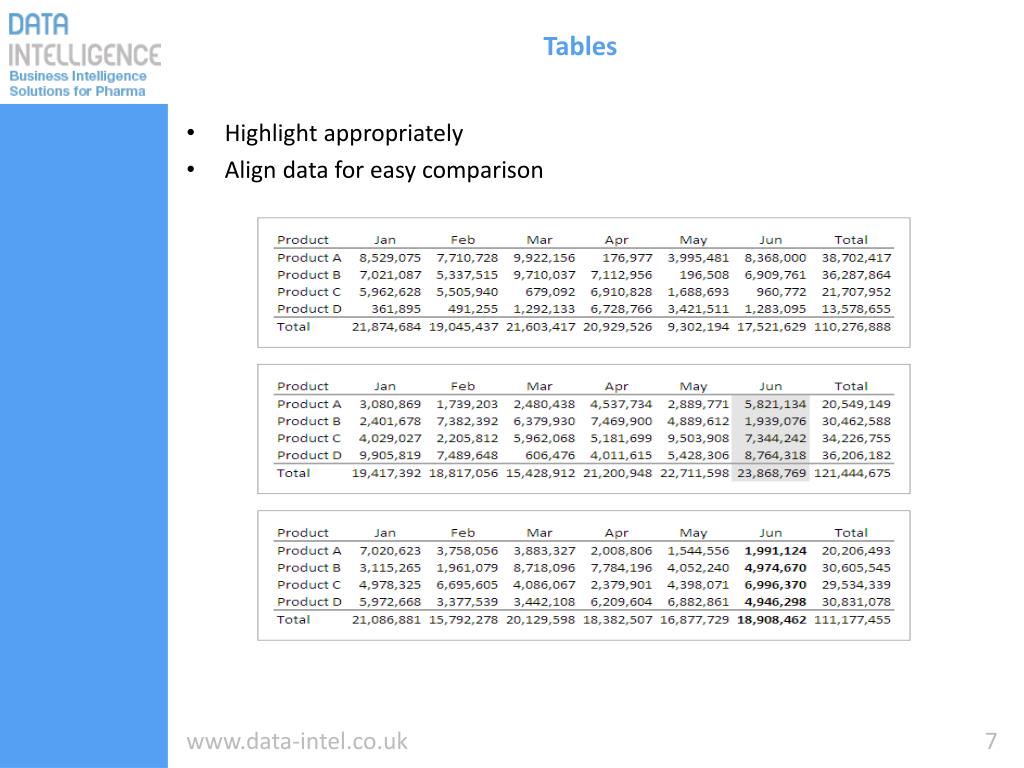

7. Tables Highlight appropriately Align data for easy comparison

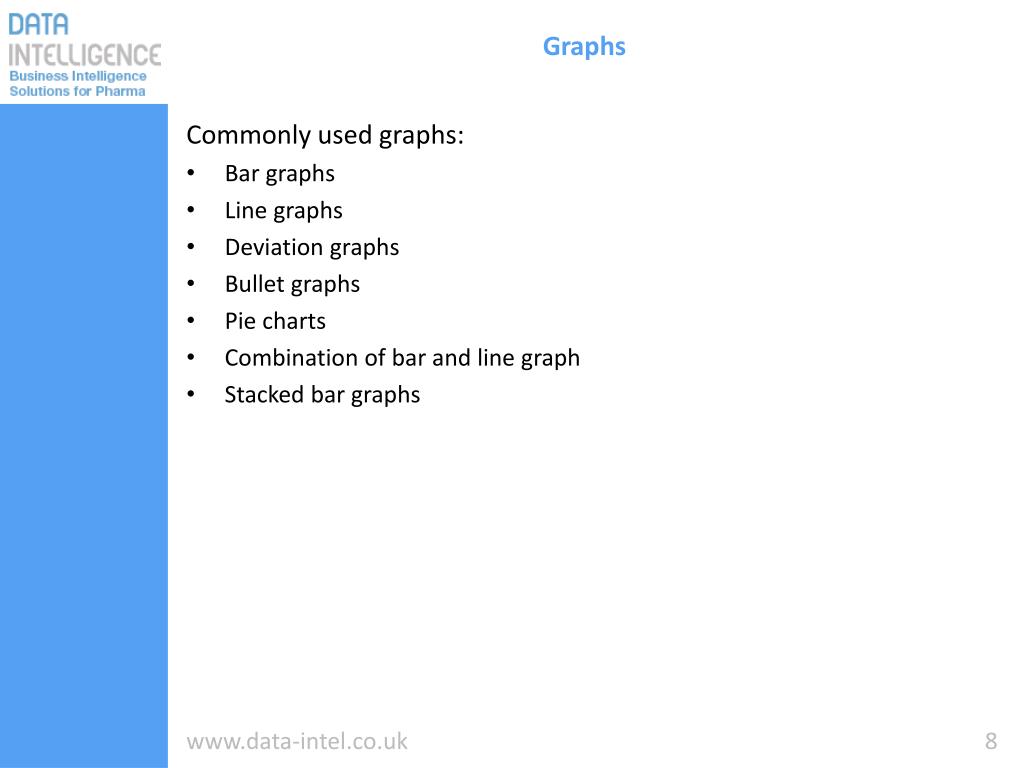

8. Graphs Commonly used graphs: Bar graphs Line graphs Deviation graphs Bullet graphs Pie charts Combination of bar and line graph Stacked bar graphs

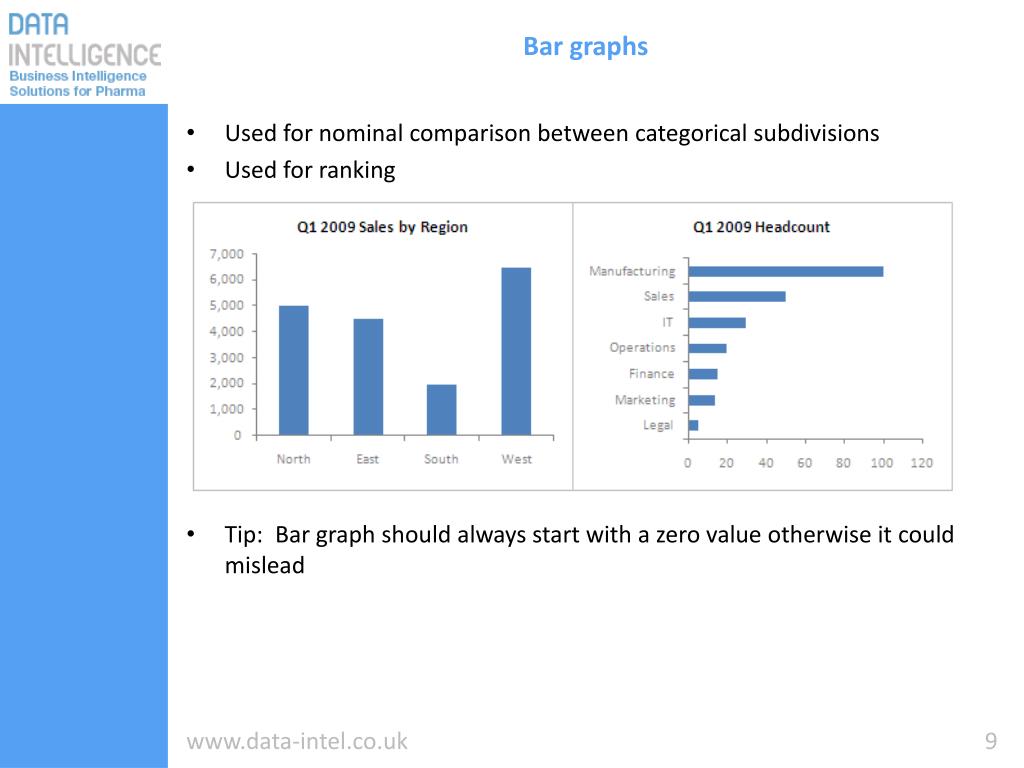

9. Bar graphs Used for nominal comparison between categorical subdivisions Used for ranking Tip: Bar graph should always start with a zero value otherwise it could mislead

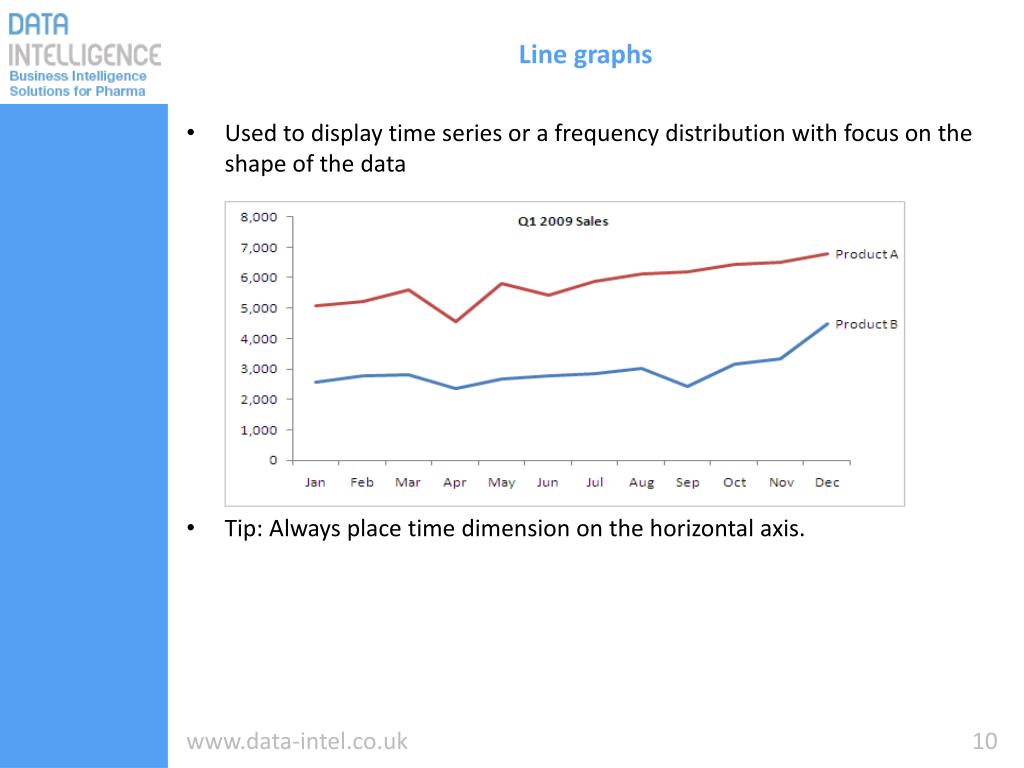

10. Line graphs Used to display time series or a frequency distribution with focus on the shape of the data Tip: Always place time dimension on the horizontal axis.

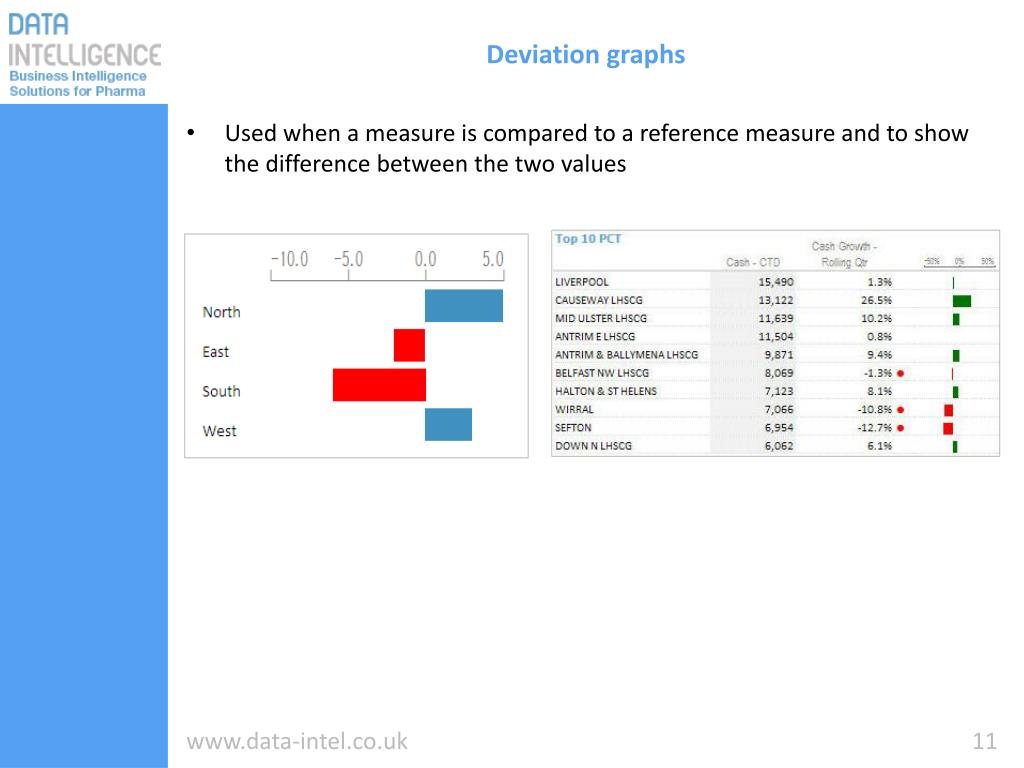

11. Deviation graphs Used when a measure is compared to a reference measure and to show the difference between the two values

12. Bullet graphs Used to display a single quantitative measure compared to one or more related measures (for ex. a target) and optionally with a qualitative scale subdivided into ranges (for ex. good, satisfactory and bad) Tip: Can be used effectively in dashboards to display achievement of target with a qualitative scale of good, satisfactory and bad.

13. Sparklines Used to display a time series with focus on the shape of the data and no need for quantitative precision It is ideal for dashboards as a means to display an historical trend leading up to the current measure, providing useful context in very little space. A sparkline chart can also be used to effectively show historical measures compared to a target, norm, or threshold. Sparklines are richer than trend arrows.

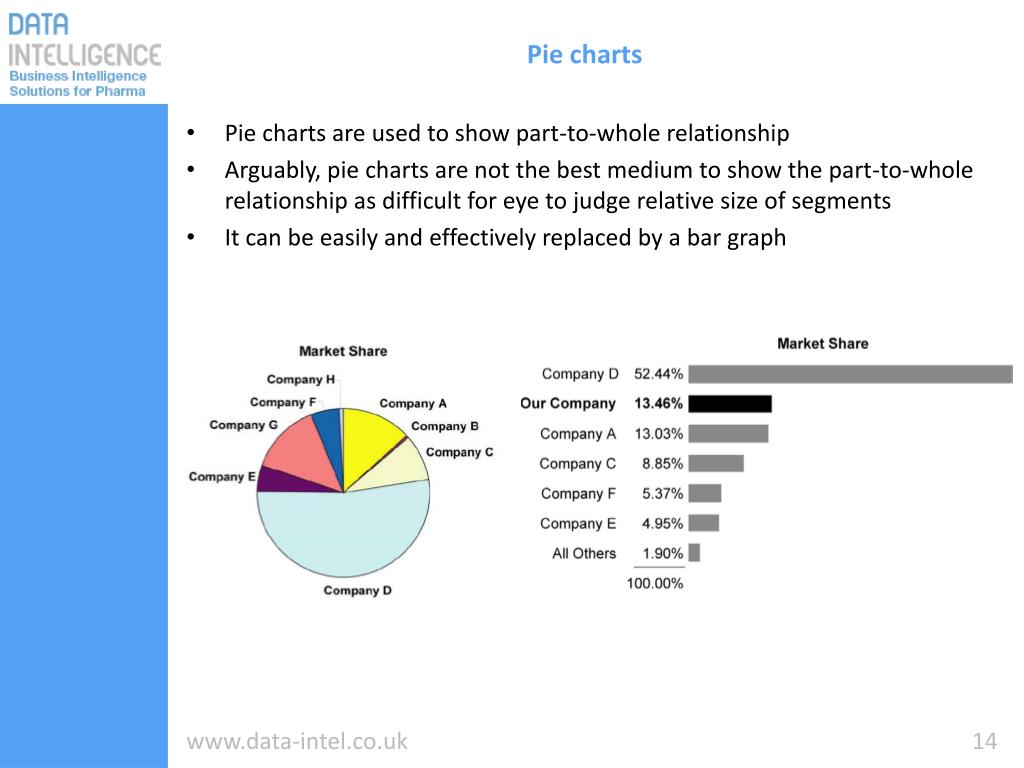

14. Pie charts Pie charts are used to show part-to-whole relationship Arguably, pie charts are not the best medium to show the part-to-whole relationship as difficult for eye to judge relative size of segments It can be easily and effectively replaced by a bar graph

15. Icons Alerts - used to flag information as important or in need of attention. You can include variations of color to indicate different degrees of importance or urgency. Up/Down indicators - used to indicate that a measure is greater than or less than another measure (for ex. a prior measure in time to indicate that it has gone up or down) Note: Do not overuse alerts or icons as this will defy the purpose of using them.

16. Fonts and Colours Choosing a crisp/professional font can have a high impact on the reports. For example: A table using Calibri font A table using Arial font • We prefer to use Calibri font for the content and Segoe UI font for the headings. • If you prefer to use the company’s standard font, that could be used across all the reports. • Further, you might want to consider what colour schemes you want in the reports. For ex. A particular colour for a brand or a country.

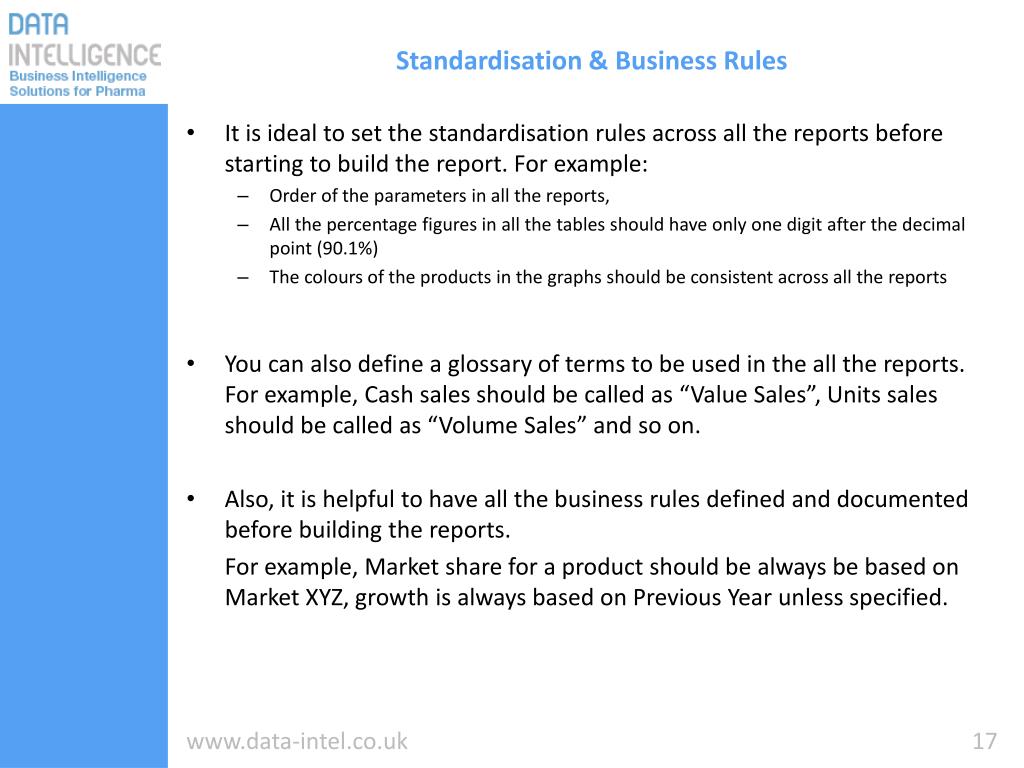

17. Standardisation & Business Rules It is ideal to set the standardisation rules across all the reports before starting to build the report. For example: Order of the parameters in all the reports, All the percentage figures in all the tables should have only one digit after the decimal point (90.1%) The colours of the products in the graphs should be consistent across all the reports You can also define a glossary of terms to be used in the all the reports. For example, Cash sales should be called as “Value Sales”, Units sales should be called as “Volume Sales” and so on. Also, it is helpful to have all the business rules defined and documented before building the reports. For example, Market share for a product should be always be based on Market XYZ, growth is always based on Previous Year unless specified.

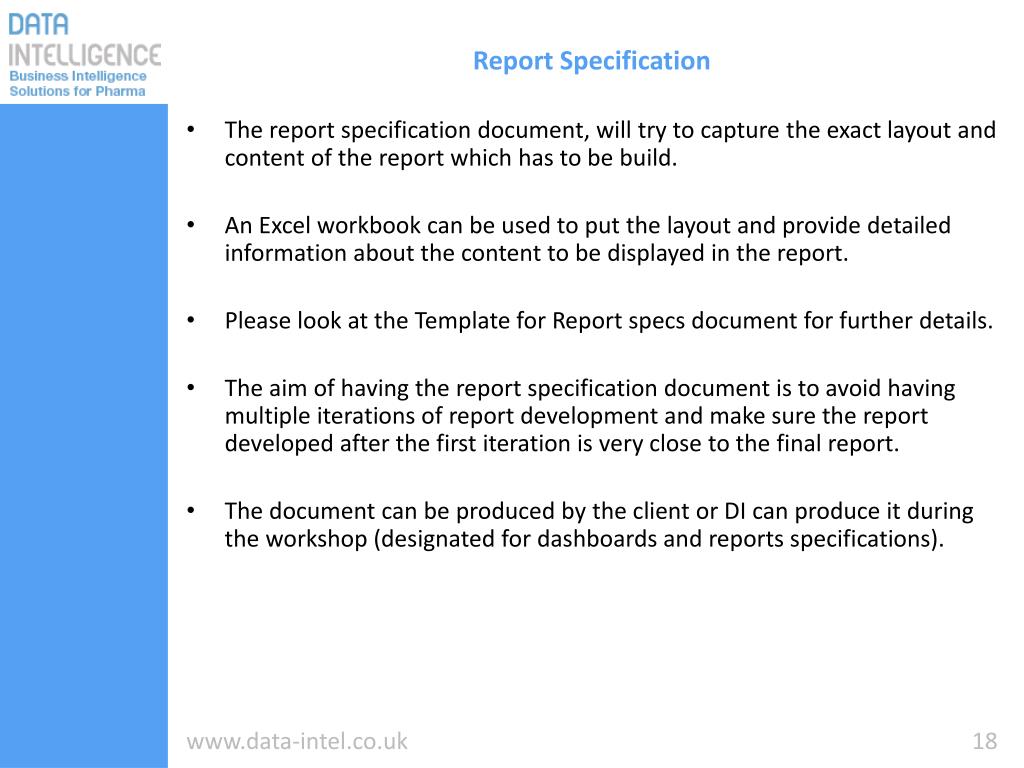

18. Report Specification The report specification document, will try to capture the exact layout and content of the report which has to be build. An Excel workbook can be used to put the layout and provide detailed information about the content to be displayed in the report. Please look at the Template for Report specs document for further details. The aim of having the report specification document is to avoid having multiple iterations of report development and make sure the report developed after the first iteration is very close to the final report. The document can be produced by the client or DI can produce it during the workshop (designated for dashboards and reports specifications).

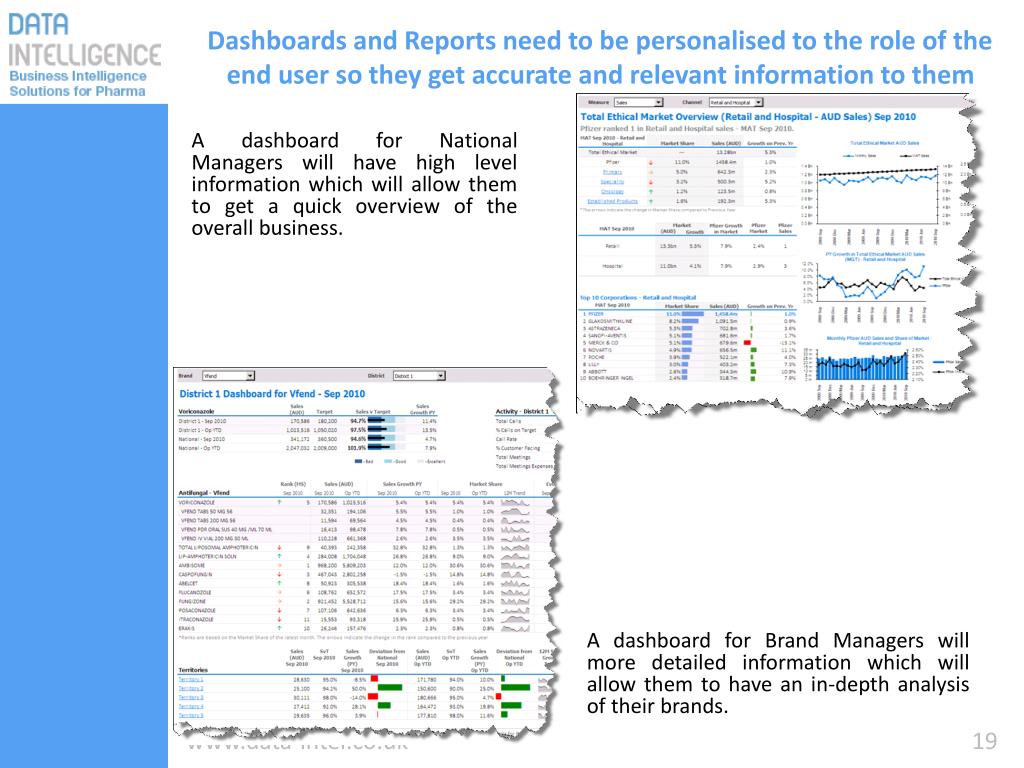

19. Dashboards and Reports need to be personalised to the role of the end user so they get accurate and relevant information to them A dashboard for National Managers will have high level information which will allow them to get a quick overview of the overall business. A dashboard for Brand Managers will more detailed information which will allow them to have an in-depth analysis of their brands.

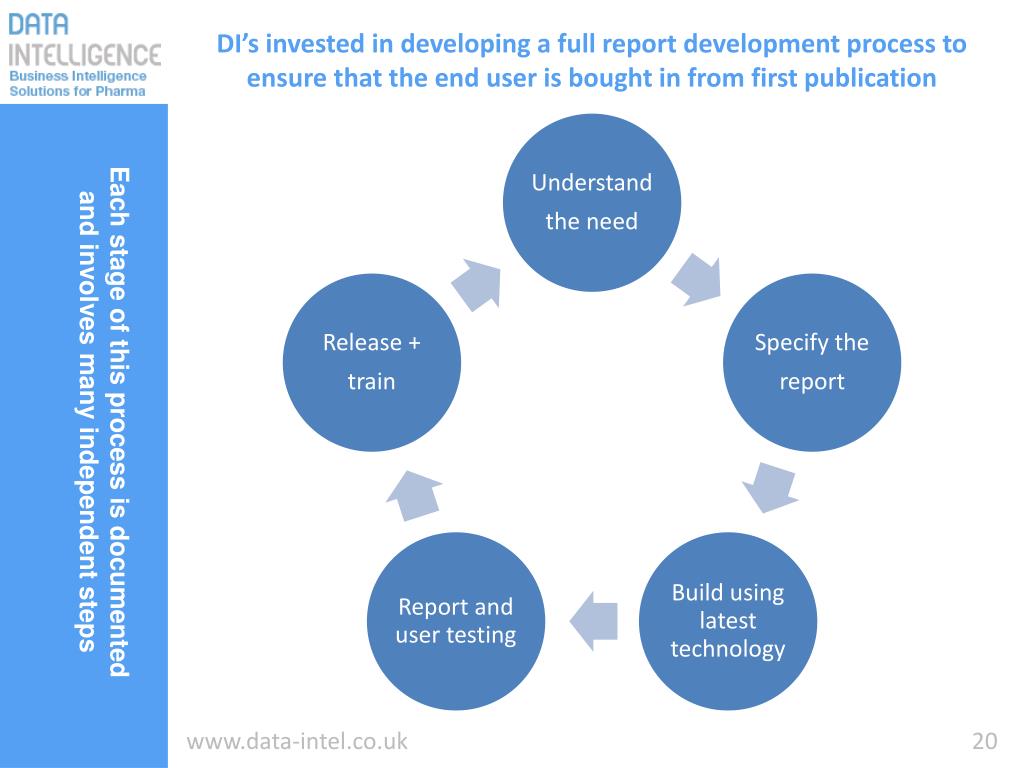

20. DI’s invested in developing a full report development process to ensure that the end user is bought in from first publication Each stage of this process is documented and involves many independent steps

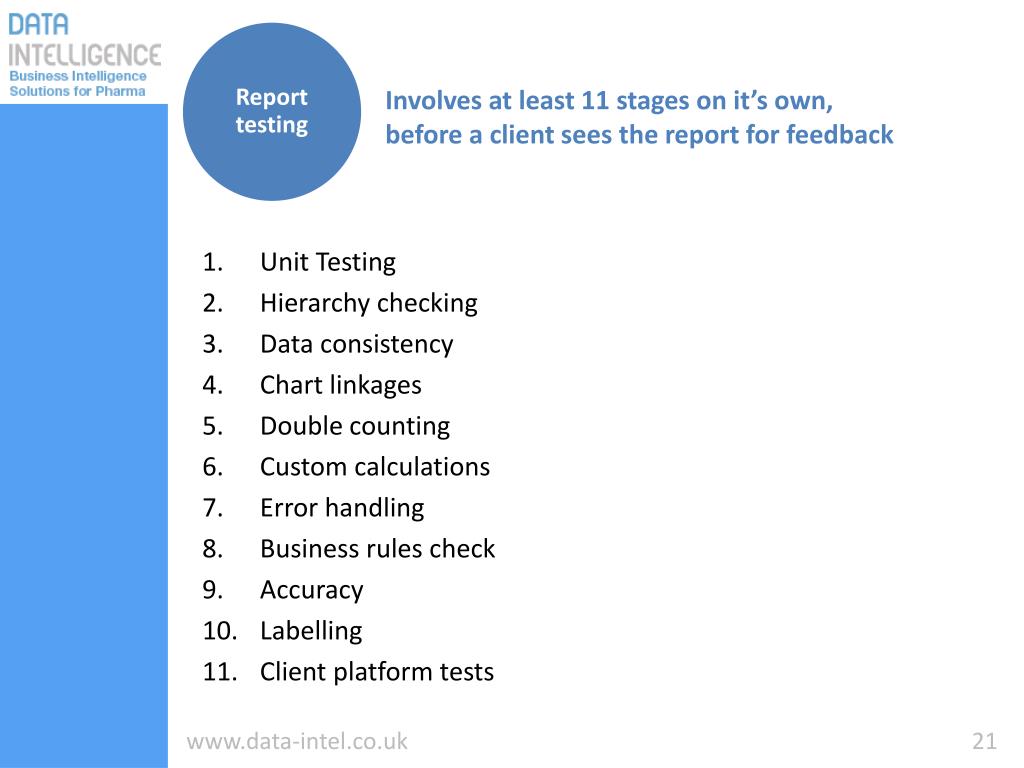

21. Involves at least 11 stages on it’s own, before a client sees the report for feedback Reporttesting • Unit Testing • Hierarchy checking • Data consistency • Chart linkages • Double counting • Custom calculations • Error handling • Business rules check • Accuracy • Labelling • Client platform tests

22. Charts Gallery Ideally, you would want to have very simple and basic charts in the report without much of the effects (like 3D charts). This avoids the user from getting distracted away from the actual data shown in the report.

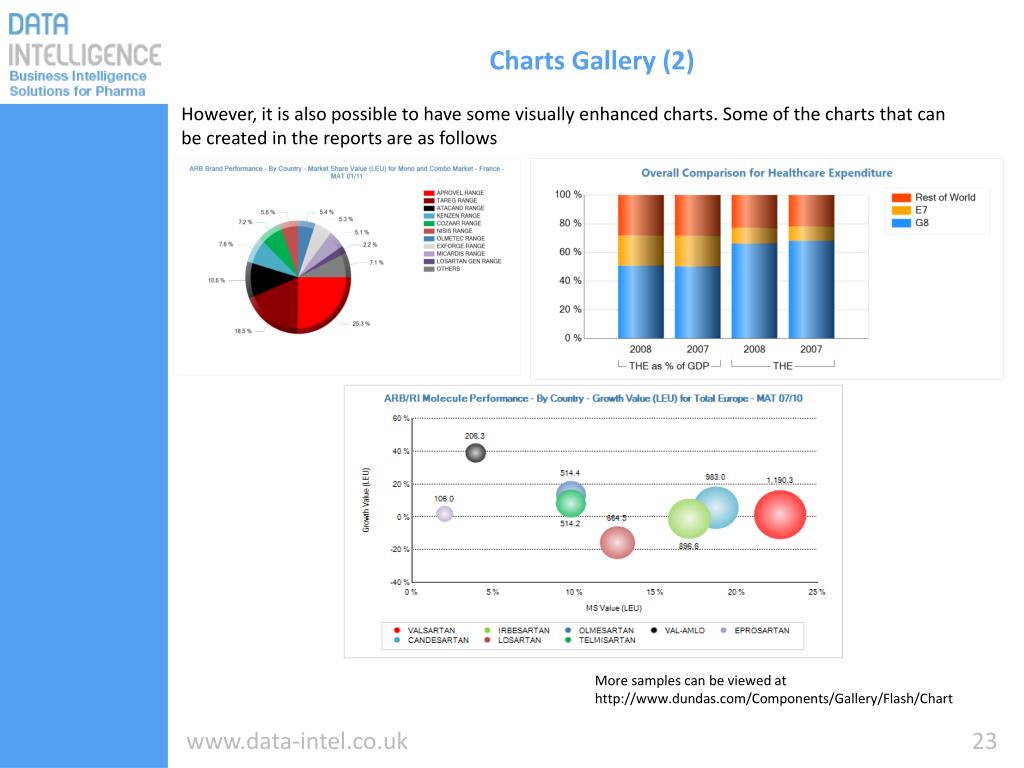

23. Charts Gallery (2) More samples can be viewed at http://www.dundas.com/Components/Gallery/Flash/Chart However, it is also possible to have some visually enhanced charts. Some of the charts that can be created in the reports are as follows

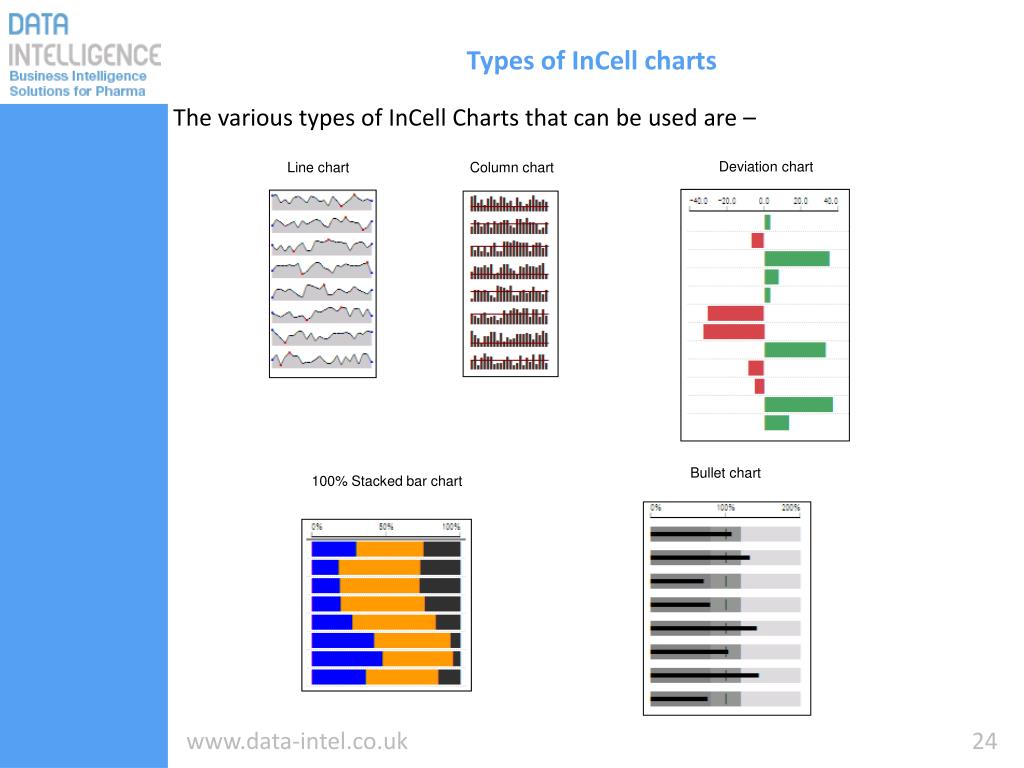

24. Types of InCell charts The various types of InCell Charts that can be used are – Deviation chart Line chart Column chart Bullet chart 100% Stacked bar chart

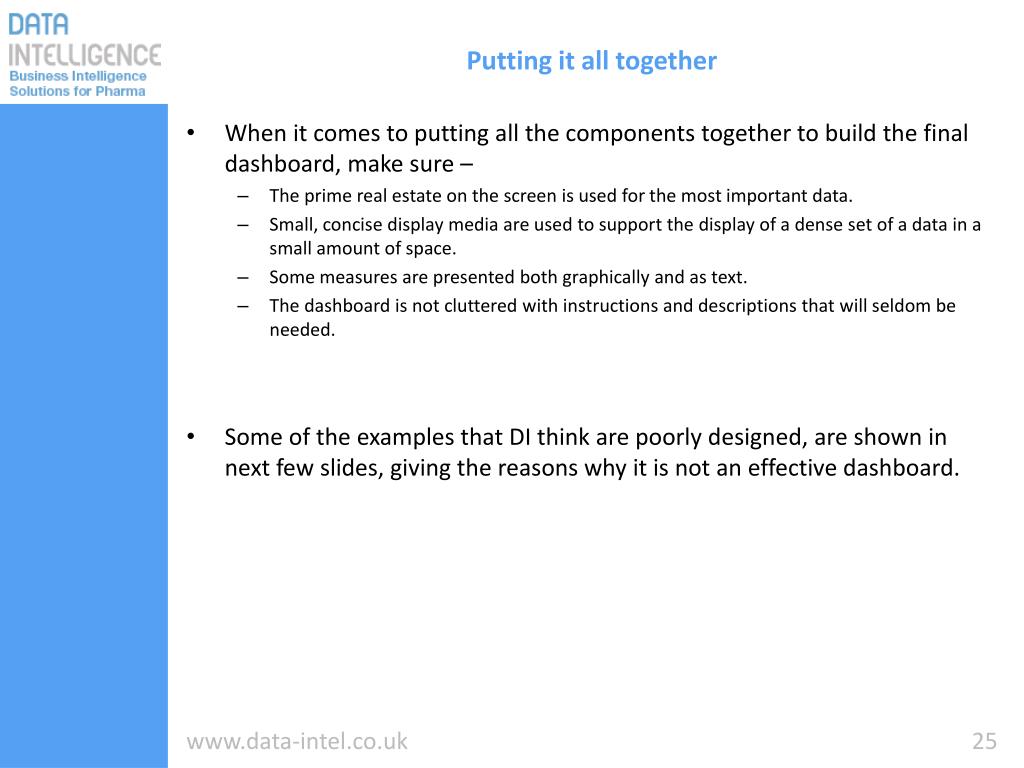

25. Putting it all together • When it comes to putting all the components together to build the final dashboard, make sure – • The prime real estate on the screen is used for the most important data. • Small, concise display media are used to support the display of a dense set of a data in a small amount of space. • Some measures are presented both graphically and as text. • The dashboard is not cluttered with instructions and descriptions that will seldom be needed. • Some of the examples that DI think are poorly designed, are shown in next few slides, giving the reasons why it is not an effective dashboard.

26. Poor Dashboard (1) 1. Unnecessary use of a dark background 2. Use of gauges is not ideal as it takes up relatively big space to show just one number. It can be effectively shown using just a number and an alert

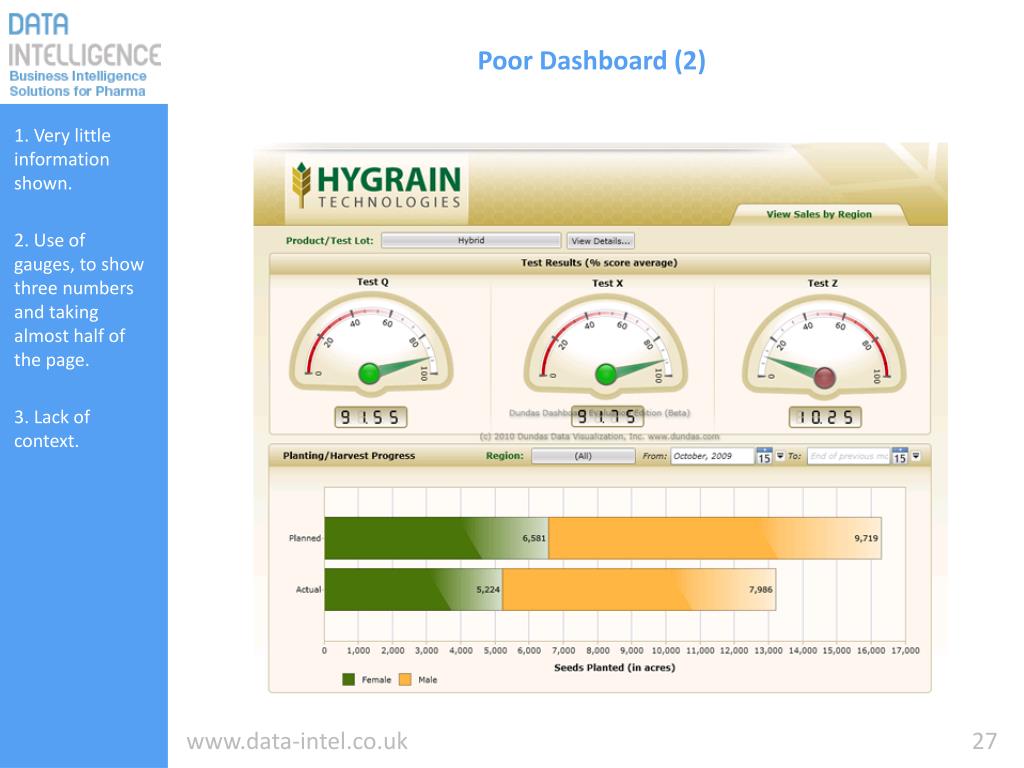

27. Poor Dashboard (2) 1. Very little information shown. 2. Use of gauges, to show three numbers and taking almost half of the page. 3. Lack of context.

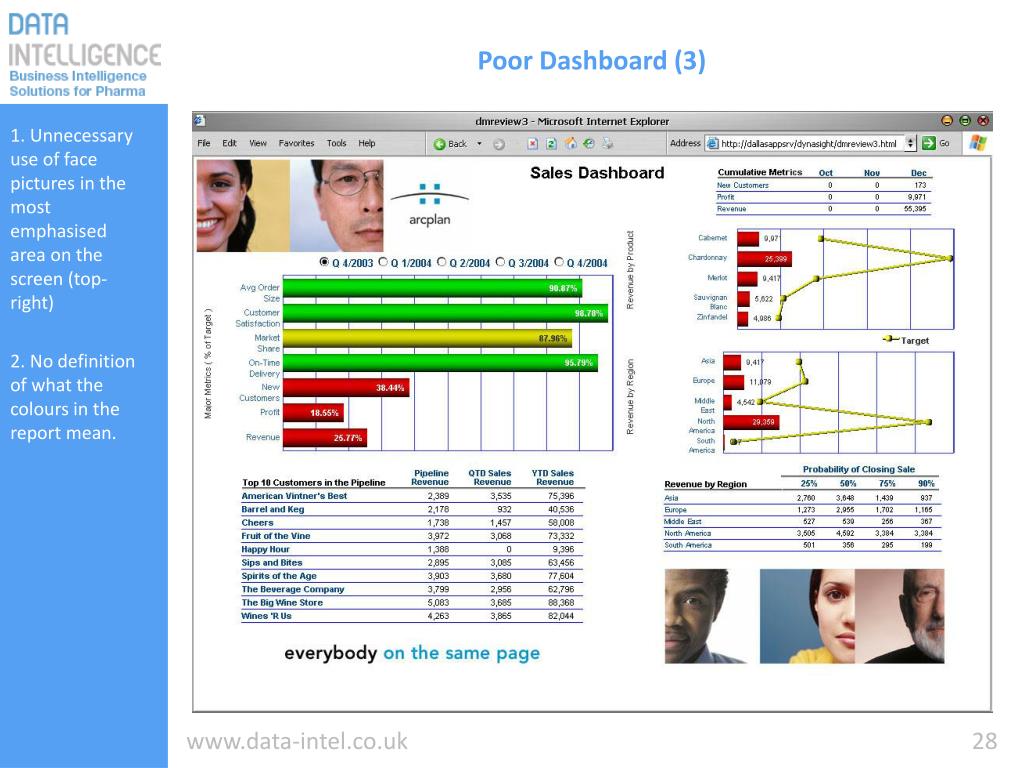

28. Poor Dashboard (3) 1. Unnecessary use of face pictures in the most emphasised area on the screen (top-right) 2. No definition of what the colours in the report mean.

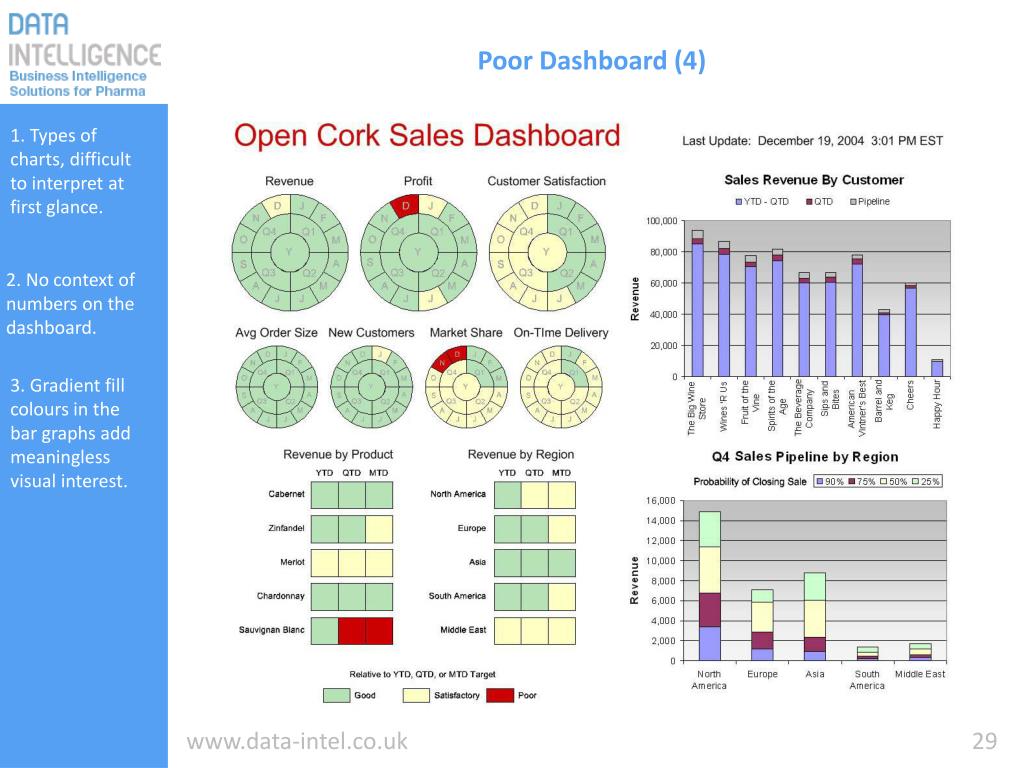

29. Poor Dashboard (4) 1. Types of charts, difficult to interpret at first glance. 2. No context of numbers on the dashboard. 3. Gradient fill colours in the bar graphs add meaningless visual interest.

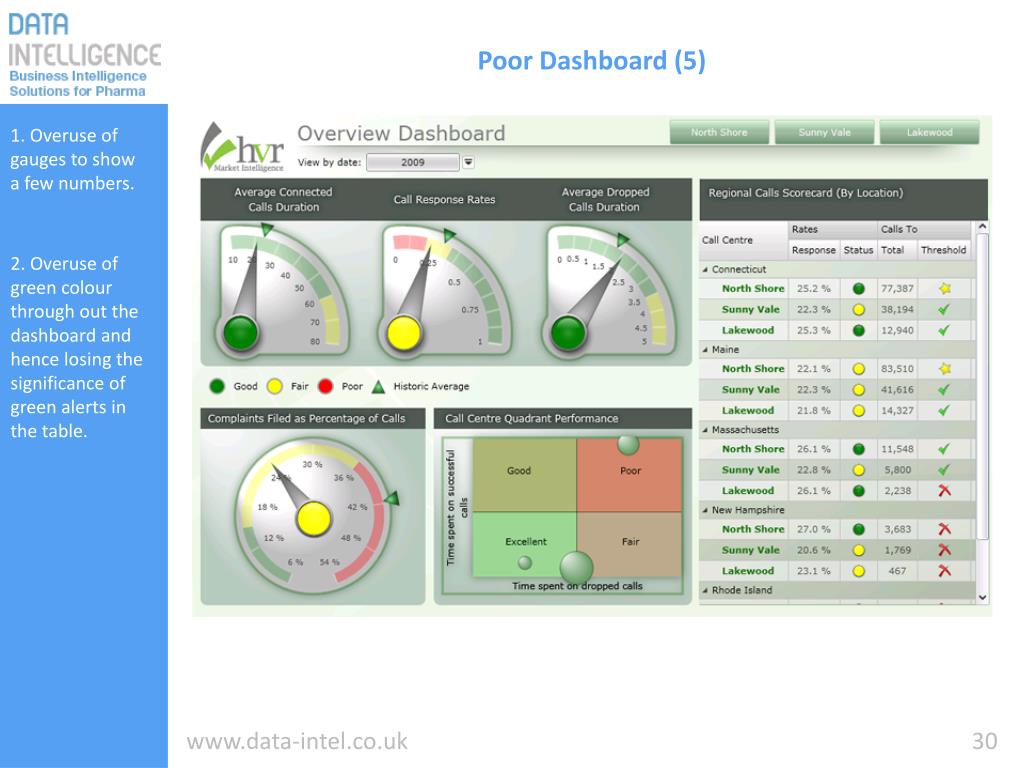

30. Poor Dashboard (5) 1. Overuse of gauges to show a few numbers. 2. Overuse of green colour through out the dashboard and hence losing the significance of green alerts in the table.

31. Effective Dashboards Some of the dashboards that DI think are effective are demonstrated in the following slides. Each dashboard are build for the targeted user and makes the best use of the real estate available to show the relevant and accurate information.

32. Sample 1 - Regional Dashboard A dashboard is a visual display of the most important information needed to achieve one or more objectives; consolidated and arranged on a single screen so the information can be monitored at a glance. Bullet chart shows the performance of the selected region against a set benchmark. It also provides a quantitative scale based on the different colours (eg. bad, satisfactory, good) Deviation chart quickly shows the performance variance compared to the National numbers

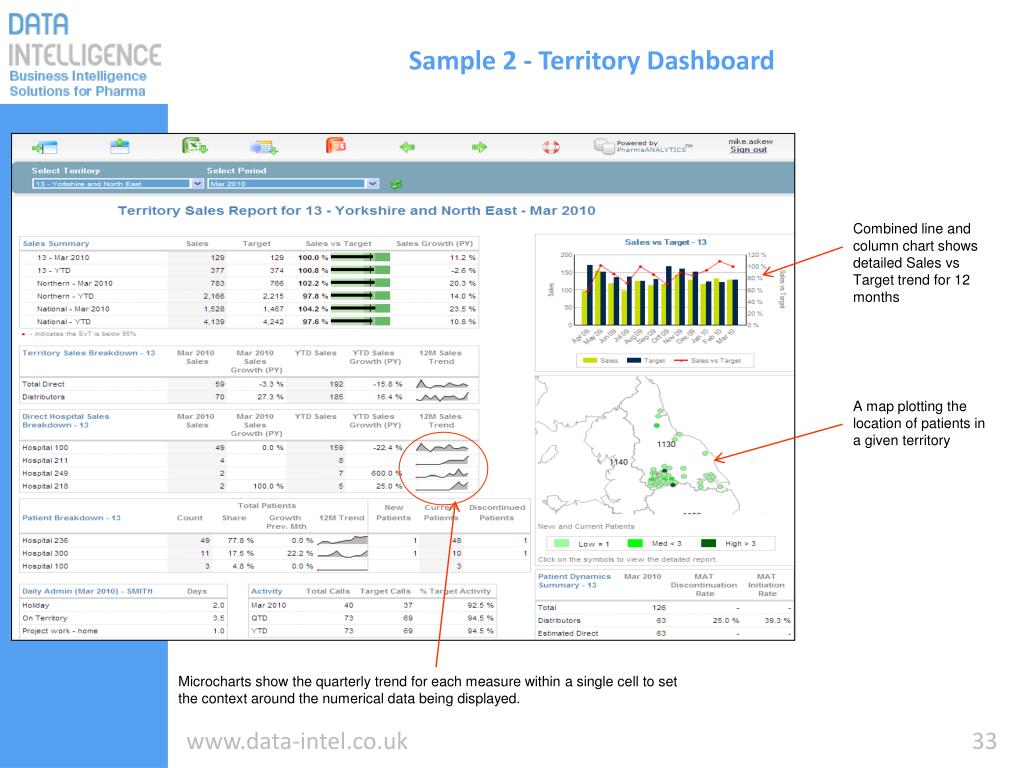

33. Sample 2 - Territory Dashboard Combined line and column chart shows detailed Sales vs Target trend for 12 months A map plotting the location of patients in a given territory Microcharts show the quarterly trend for each measure within a single cell to set the context around the numerical data being displayed.

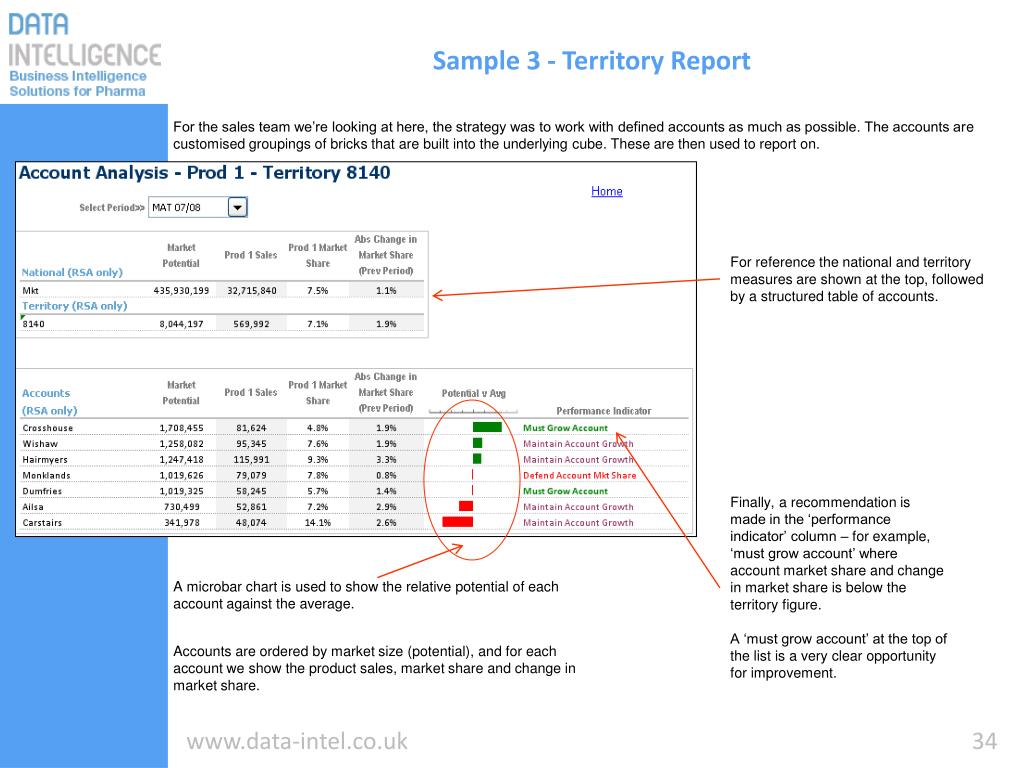

34. Sample 3 - Territory Report For the sales team we’re looking at here, the strategy was to work with defined accounts as much as possible. The accounts are customised groupings of bricks that are built into the underlying cube. These are then used to report on. For reference the national and territory measures are shown at the top, followed by a structured table of accounts. Finally, a recommendation is made in the ‘performance indicator’ column – for example, ‘must grow account’ where account market share and change in market share is below the territory figure. A ‘must grow account’ at the top of the list is a very clear opportunity for improvement. A microbar chart is used to show the relative potential of each account against the average. Accounts are ordered by market size (potential), and for each account we show the product sales, market share and change in market share.
