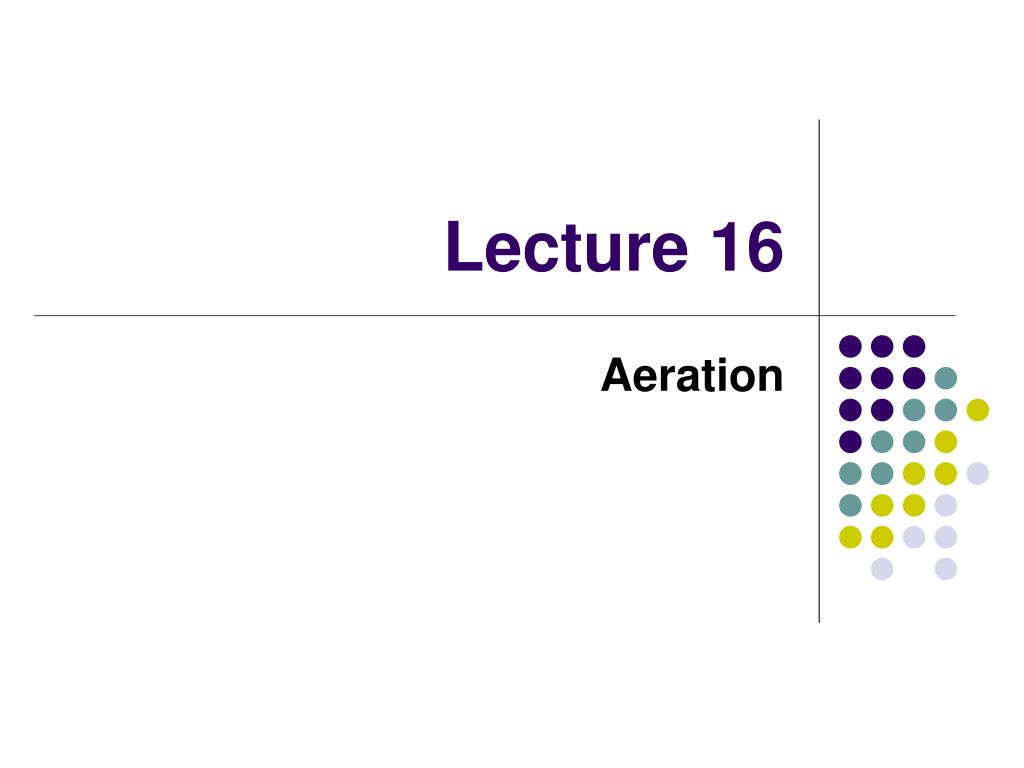

Lecture 16 Aeration
Aeration • Natural air movement issues - moisture, temp • Management Issues • keep center of bin within 10 degrees F of ambient temp • .1 cfm / bushel for bins • .2 cfm / bushel for flat storage • not any lower than 32 degrees F • not any higher than 60 degrees F • Table 5.1
Positive vs. Negative Pressure • pushing adds 2 degrees F • negative prevents condensation • uses solar heat from top of bin • bottom last to cool, difficult to determine when dry • positive requires smaller duct diameters
Air Flow rates • .1 cfm is adequate • if larger fan, then less time • 160 hrs @ .1 — 32 hrs @ .5 • caution - can overdry &/or add moisture

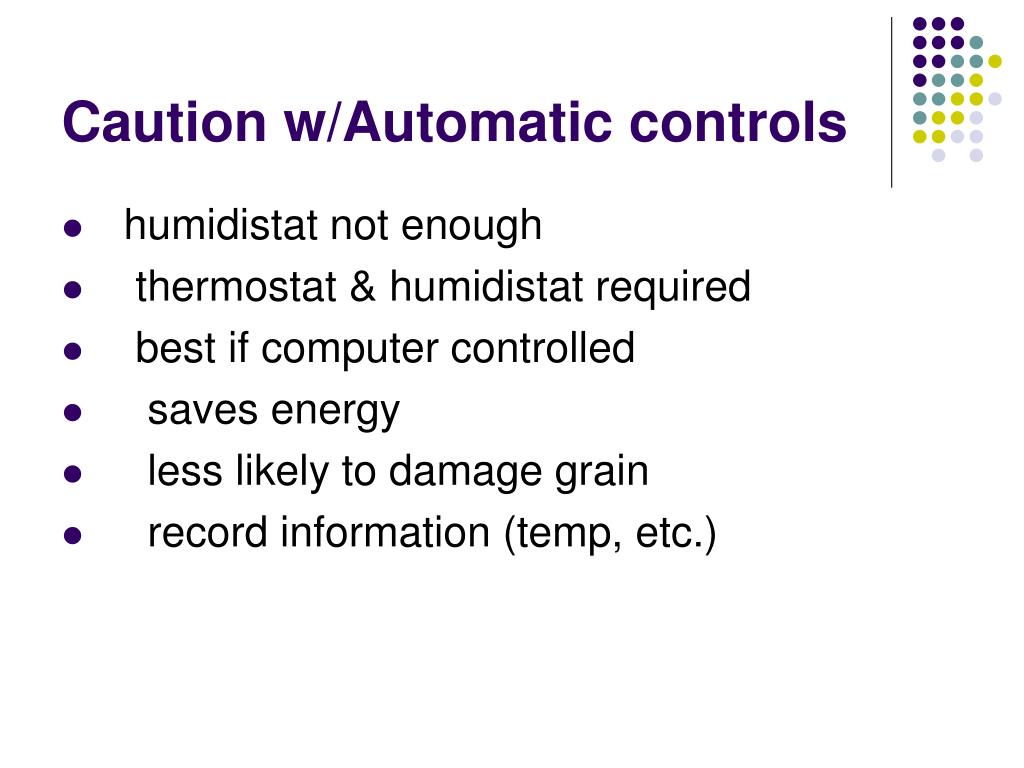

Caution w/Automatic controls • humidistat not enough • thermostat & humidistat required • best if computer controlled • saves energy • less likely to damage grain • record information (temp, etc.)
Duct types Used • plastic, steel • 6" - 36" • round & ½ round • plastic - perforations not as much • plastic - cheaper

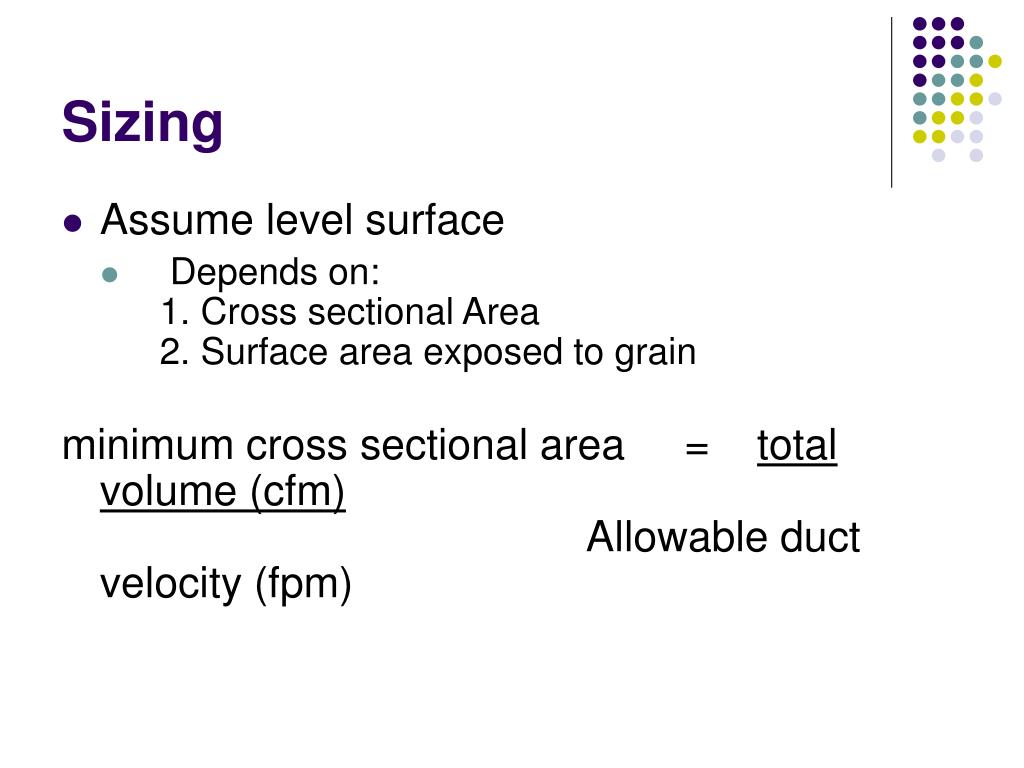

Sizing • Assume level surface • Depends on: 1. Cross sectional Area 2. Surface area exposed to grain minimum cross sectional area = total volume (cfm) Allowable duct velocity (fpm)

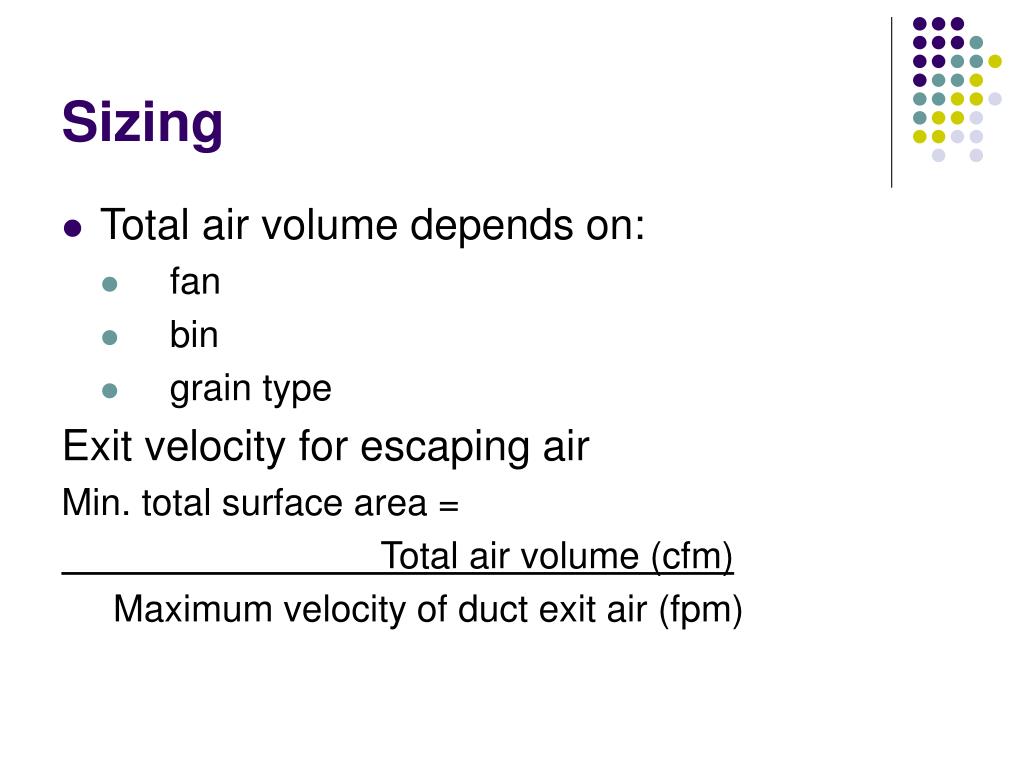

Sizing • Total air volume depends on: • fan • bin • grain type Exit velocity for escaping air Min. total surface area = Total air volume (cfm) Maximum velocity of duct exit air (fpm)
