Biochar Characterization

Using Biochar in Soil. Biochar Characterization. physical & chemical properties. Source Material pH Particle Size Density % carbonization Pore size & density Proximate analysis minerals (ash) PAHs. Standards product identity & integrity Industry National International. click to

duff
Télécharger la présentation

Biochar Characterization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

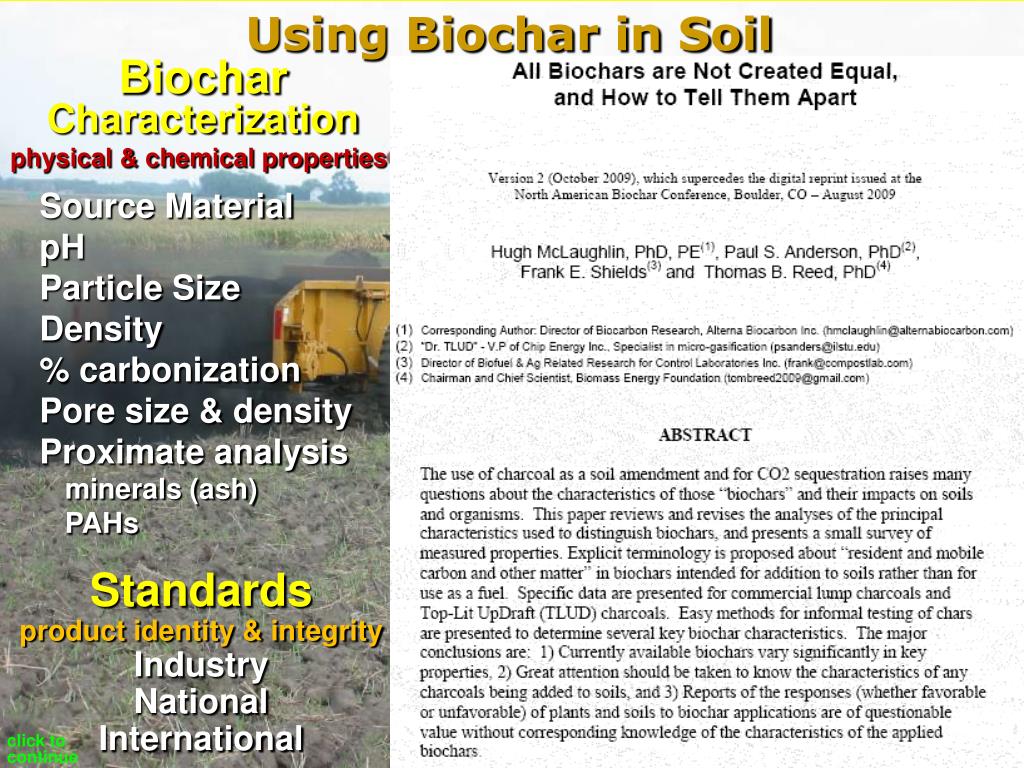

  1. Using Biochar in Soil Biochar Characterization physical & chemical properties Source Material pH Particle Size Density % carbonization Pore size & density Proximate analysis minerals (ash) PAHs Standards product identity & integrity Industry National International click to continue

  2. Using Biochar in Soil Toxicity Tests • Seed Germination • Recommended species: • lettuce, radish, clover • Two (or more) trays • Prepare soil + biochar blend(s) • One tray: soil only • other(s): soil + biochar blend(s) • Spread equal number of seeds on all trays; at least 20/tray • Germinate in uniform conditions • Compare germination rates Earthworm Avoidance More sensitive and reliable Prepare soil + biochar blend Container: half with soil half soil + biochar 10 earthworms introduced After 48 hours: count worms in each half Rigorous test requires replications click to continue

  3. Using Biochar in Soil Biochar Trial Registry International Biochar Initiative (IBI) JOINIBI Field Trial Registry all data provided will be open and accessible to the public 4-page Data Form for the Biochar Trial Registry to record field trial conditions & data Appendix: IBI Guide to Field Trials available soon in electronic form use IBI Data Form for experiments whether you join Registry or not contact: Dr. Julie Major IBI Extension Director julie@biochar-international.org for updates, see IBI website: www.biochar-international.org

  4. Using Biochar in Soil Preparing Biochar Moisture Initially, fresh char is hydrophobic = repels water Quench, sprinkle or spray for safety and reduced particle size Steam – immediately after burn, create live steam Fracture (pop open) micropore matrix = activation Urine (pee) Minerals Cation & Anion adsorption capacity as delivery media Mineral mix tailored to target soil Major Minerals: Ca, P – also N especially trace elements as in sea minerals Micronized Microbial-scale mixing: more than surface area Maximum physical intimacy Microbes Inoculation: seeding fully functional microbial complexes compost, compost tea, BD preps, EM, mycorrhizae, etc. Nitrogen-fixing bacteria Nightsoil (poop) compost toilet instead of water-borne sewage click to continue

  5. Using Biochar in Soil Applying Biochar Rates 9% carbon, 6 feet deep = 10 – 20 tons/acre Practical: 1 to 5 tons/acre Gradual, successive, cumulative applications Strong response with small initial applications Inoculated char: few hundred lbs/acre – VaTech tomatoes 2009 Methods broadcast, band, planting hole, top-dress Blended with other moist materials – especially compost Intimate contact with seedling rootlets & root zone Mixing & Tillage Strive for uniform coverage – esp. with field trials Key is root zone; top 6 inches for vegetables Simple surface broadcast is effective; biochar migrates down Timing Inoculation: seeding fully functional microbial complexes Allow incubation & culturing time: at least two weeks Full ripening & aging may require longer: up to 6 months click to continue

  6. Using Biochar in Soil Handling & Transport Biochar is very light, completely dry, low density, brittle Even if not fine-grained, usually contains a fine powder fraction • Special care required to transport and spread biochar • Risk of accidental ignition with some biochar • Will blow away while you measure, transport, apply, and incorporate • Commercial products moistened before shipping (increases product weight) • Dust problems controlled by adding water, mix with clay slurry, • pellets, agglomerate, prill with binder • Incorporate into soil to minimize wind erosion and runoff after rain • Develop local systems to produce, store and transport biochar biochar blowing off in transport and tillage photos courtesy of Blue Leaf, Inc. St-François-Xavier-de-Brompton, Québec www.blue-leaf.ca click to continue

  7. Using Biochar in Soil Organic Matter Interactions Humic Acids supra-molecules Humus into Humic acids (10–15% of original organic carbon) Super-stable form of carbon: 8 to 10% of soil carbon Indigestible complex carbon molecules Extremely large carbon molecules: tens to hundreds of carbon atoms Held together by subtle inter-atom electromagnetic forces: hydrogen bonds, vander Walls, hydrophobicity Fulvic (alkali) versus Humic acids (acid) Structural and chemical interactions with charred carbon Glomalin mega-structures • Isolated & identified in 1996 by USDA ARS scientist Sara F. Wright • Glomales species of arbuscularmycorrhizal fungi • excretions of hyphal threads, or tubes • Glycoprotein: sugar + amino acid = 30 – 40% carbon • Glue “aggregates” soil particles into larger structures • Super-stable form of carbon: up to 27% of soil carbon • Weighs 2 to 24 times more than humic acids • 7 to 42 year recalcitrance click to continue

  8. Using Biochar in Soil Carbon Sequestration August 2008 “Carbon sequestration in soil has significant potential. “Biochar produced in pyrolysis of residues from crops, forestry and animal wastes can restore soil fertility while storing carbon for centuries to millennia. “Biochar helps soil retain nutrients and fertilizers, reducing GHG emissions such as N2O. “Replacing slash-and-burn agriculture with slash-and-char, using farm and forestry wastes for biochar production can provide CO2 drawdown of ~8 ppm or more in half a century.” Carbon Negative Potential of Biochar Dr. James Hansen leading NOAA Climate Scientist www.GlobalClimateSolutions.org click to continue

  9. are you ready for the next PARADIGM SHIFT? THE END If we produce food labeled “nutrient dense” and “carbon negative” will people buy it? Anybody want to make biochar this winter?
