3-8 四连杆机构 OABO 1 在图示位置平衡,已知 OA=40 cm,O 1 B= 60cm, 作用在曲柄 OA 上的力偶矩大小为 m 1 =1Nm, 不计杆重;求

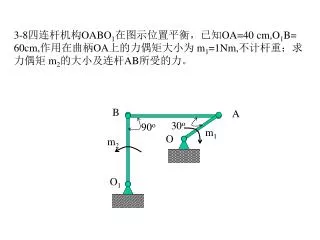

3-8 四连杆机构 OABO 1 在图示位置平衡,已知 OA=40 cm,O 1 B= 60cm, 作用在曲柄 OA 上的力偶矩大小为 m 1 =1Nm, 不计杆重;求 力偶矩 m 2 的大小及连杆 AB 所受的力。. B. A. 30 o. 90 o. m 1. O. m 2. O 1.
