RFSS: Part 3 Lecture 14 Plutonium Chemistry

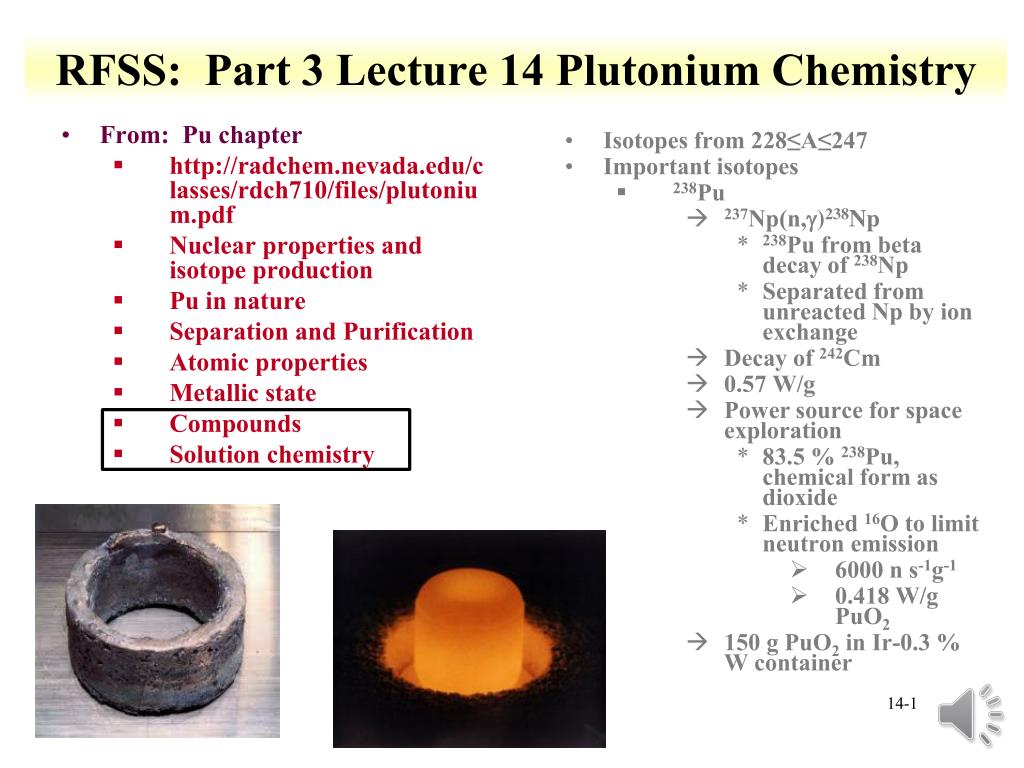

RFSS: Part 3 Lecture 14 Plutonium Chemistry. Isotopes from 228≤A≤247 Important isotopes 238 Pu 237 Np(n, g ) 238 Np 238 Pu from beta decay of 238 Np Separated from unreacted Np by ion exchange Decay of 242 Cm 0.57 W/g Power source for space exploration

duman
Télécharger la présentation

RFSS: Part 3 Lecture 14 Plutonium Chemistry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. RFSS: Part 3 Lecture 14 Plutonium Chemistry • Isotopes from 228≤A≤247 • Important isotopes • 238Pu • 237Np(n,g)238Np • 238Pu from beta decay of 238Np • Separated from unreacted Np by ion exchange • Decay of 242Cm • 0.57 W/g • Power source for space exploration • 83.5 % 238Pu, chemical form as dioxide • Enriched 16O to limit neutron emission • 6000 n s-1g-1 • 0.418 W/g PuO2 • 150 g PuO2 in Ir-0.3 % W container • From: Pu chapter • http://radchem.nevada.edu/classes/rdch710/files/plutonium.pdf • Nuclear properties and isotope production • Pu in nature • Separation and Purification • Atomic properties • Metallic state • Compounds • Solution chemistry

  2. Radiation damage • Decay rate for 239Pu is sufficient to produce radiation damage • Buildup of He and radiation damage within metal • radiation damage is caused mainly by uranium nuclei • recoil energy from decay to knock plutonium atoms from their sites in crystal lattice of metal • Vacancies are produced • Effect can produce void swelling • On microscopic level, vacancies tend to diffuse through metal and cluster to form voids • Macroscopic metal swelling observed

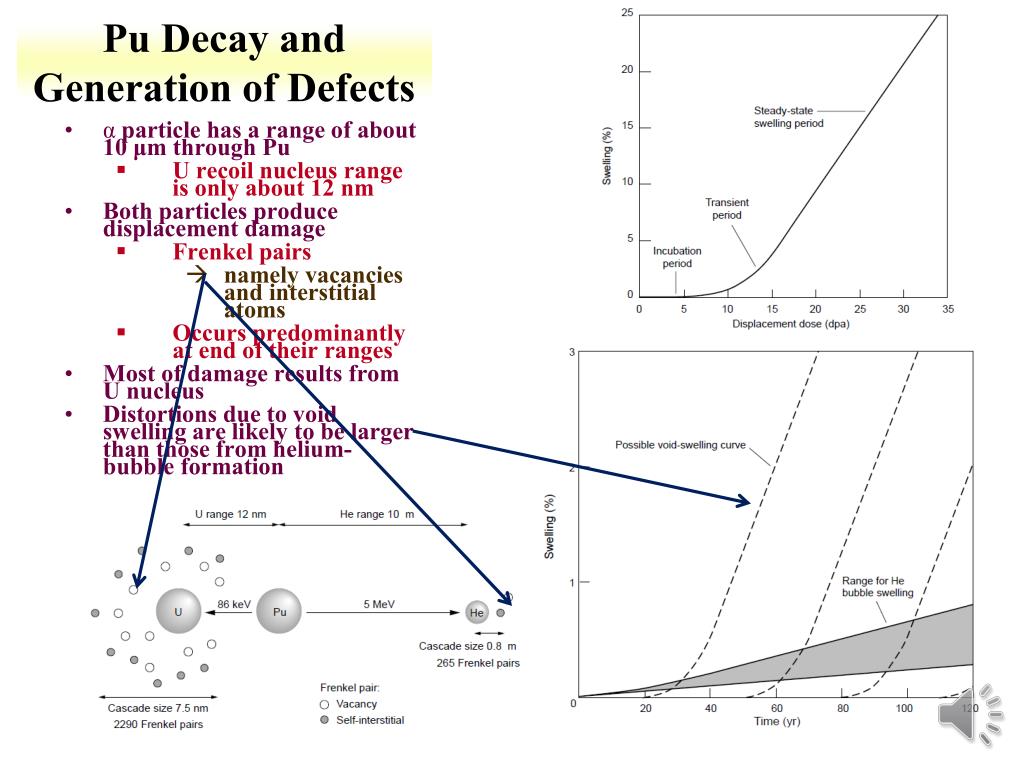

  3. Pu Decay and Generation of Defects • α particle has a range of about 10 μm through Pu • U recoil nucleus range is only about 12 nm • Both particles produce displacement damage • Frenkel pairs • namely vacancies and interstitial atoms • Occurs predominantly at end of their ranges • Most of damage results from U nucleus • Distortions due to void swelling are likely to be larger than those from helium-bubble formation

  4. Pu Compounds • Original difficulties in producing compounds • Amount of Pu • Purity • Aided by advances in microsynthesis and increase in amount of available starting material • Much early effort in characterization by XRD Pu Hydrides • PuHx • x varies from 1.9< x <3.0 • Pu + x/2 H2PuHx • H2 partial pressure used to control exact stoichiometry • Variations and difficulties rooted in desorption of H2 • Pu hydride crystallizes in a fluorite structure • Pu hydride oxidation state • PuH2 implies divalent Pu, • measurements show Pu as trivalent and PuH2 is metallic • Pu(III), 2 H- and1e- in conduction band • Consistent with electrical conductivity measurements • Hydride used to prepare metal (basis of Aries process) • Formation of hydride from metal • Heated to 400 °C under vacuum to release hydrogen • Can convert to oxide (with O2) or nitride (N2) gas addition during heating

  5. Pu carbides • Four known compounds • Pu3C2, PuC1-x, Pu2C3, and PuC2 • PuC exists only as substoichiometric compound • PuC0.6 to PuC0.92 • Compound considered candidate for fuels • Synthesis • At high temperatures elemental C with: • Pu metal, Pu hydrides, Pu oxides • Oxygen impurities present with oxide starting material • High Pu carbides can be used to produce other carbides • PuC1-x from PuH2 and Pu2C3 at 700 °C • Final product composition dependent upon synthesis temperature, atmosphere (vacuum or Ar) and time • Chemical properties • PuC1-x oxidizes in air starting at 200 °C • Slower reaction with N2 • Formation of PuN at 1400 °C • All Pu carbides dissolve in HNO3-HF mixtures • Ternary phases prepared • Pu-U-C and Pu-Th-C • Mixed carbide-nitrides, carbide-oxides, and carbide hydrides

  6. Pu nitride • Only PuN known with certainty • Narrow composition range • Liquid Pu forms at 1500 °C, PuN melting point not observed • Preparation • Pu hydride with N2 between 500 °C and 1000 °C • Can react metal, but conversion not complete • Formation in liquid ammonia • PuI3 + NH3 +3 M+PuN + 3 MI+ 1.5 H2 • Intermediate metal amide MNH2formation, PuN precipitates • Structure • fcc cubic NaCl structure • Lattice 4.905 Å • Data variation due to impurities, self-irradiation • Pu-N 2.45 Å • Pu-Pu 3.47 Å • Properties • High melting point (estimated at 2830 °C) • Compatible with steel (up to 600 °C) and Na (890 °C, boiling point) • Reacts with O2 at 200 °C • Dissolves in mineral acids • Moderately delocalized 5f electrons • Behavior consistent with f5 (Pu3+) • Supported by correlated spin density calculations

  7. Pu oxide • Pu storage, fuel, and power generators • PuO (minor species) • Pu2O3 • Forms on PuO2of d-stabilized metal when heated to 150-200 °C under vacuum • Metal and dioxide fcc, favors formation of fcc Pu2O3 • Requires heating to 450 °C to produce hexagonal form • PuO2 with Pu metal, dry H2, or C • 2PuO2+CPu2O3 + CO • PuO2 • fcc, wide composition range (1.6 <x<2) • Pu metal ignited in air • Calcination of a number of Pu compounds • No phosphates • Rate of heating can effect composition due to decomposition and gas evolution • PuO2 is olive green • Can vary due to particle size, impurities • Pressed and sintered for heat sources or fuel • Sol-gel method • Nitrate in acid injected into dehydrating organic (2-ethylcyclohexanol) • Formation of microspheres • Sphere size effects color

  8. Pu oxide preparation • Hyperstoichiometric sesquioxide (PuO1.6+x) • Requires fast quenching to produce of PuO2 in melt • Slow cooling resulting in C-Pu2O3 and PuO2-x • x at 0.02 and 0.03 • Substoichiometric PuO2-x • From PuO1.61 to PuO1.98 • Exact composition depends upon O2 partial pressure • Single phase materials • Lattice expands with decreasing O

  9. Pu oxide preparation • PuO2 • Pu metal ignited in air • Calcination of a number of Pu compounds • No phosphates • Pu crystalline PuO2 formed by heating Pu(III) or Pu(IV) oxalate to 1000 °C in air • Oxalates of Pu(III) forms a powder, Pu(IV) is tacky solid • Rate of heating can effect composition due to decomposition and gas evolution • PuO2 is olive green • Can vary due to particle size, impurities • Pressed and sintered for heat sources or fuel • Sol-gel method • Nitrate in acid injected into dehydrating organic (2-ethylcyclohexanol) • Formation of microspheres • Sphere size effects color

  10. Pu oxide preparation • PuO2+x, PuO3, PuO4 • Tetravalent Pu oxides are favored • Unable to oxidize PuO2 • High pressure O2 at 400 °C • Ozone • PuO2+x reported in solid phase • Related to water reaction • PuO2+xH2OPuO2+x + xH2 • Final product PuO2.3, fcc • PuO3 and PuO4reported in gas phase • From surface reaction with O2 • PuO4 yield decreases with decreasing O2 partial pressure

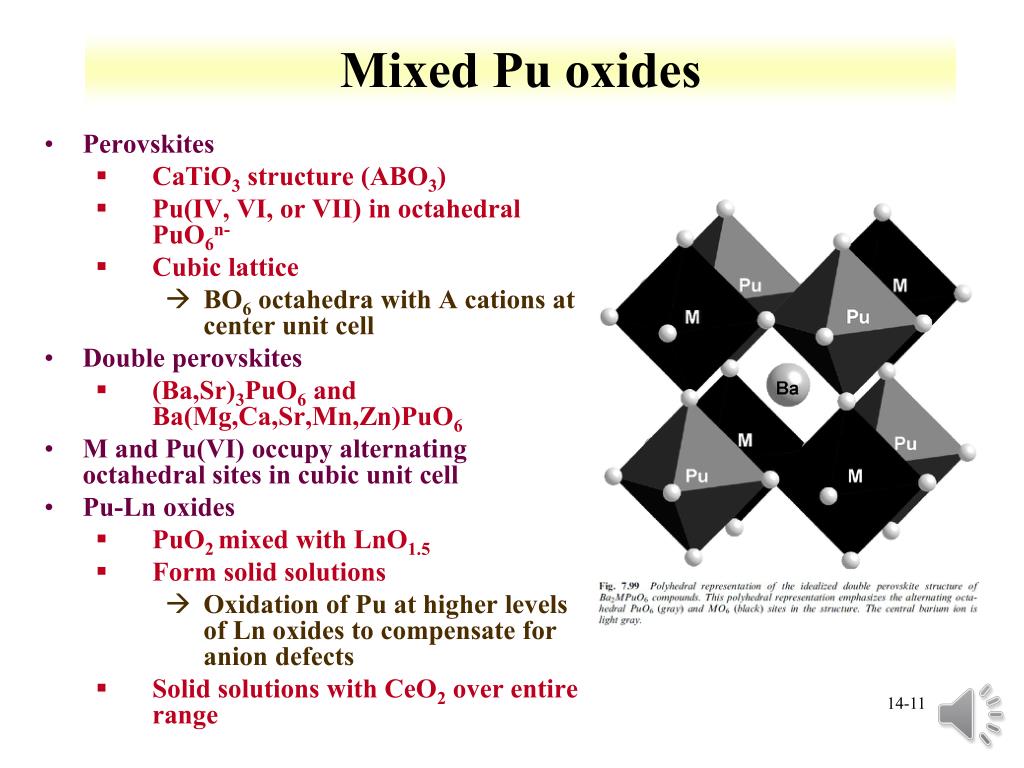

  11. Mixed Pu oxides • Perovskites • CaTiO3 structure (ABO3) • Pu(IV, VI, or VII) in octahedral PuO6n- • Cubic lattice • BO6 octahedra with A cations at center unit cell • Double perovskites • (Ba,Sr)3PuO6 and Ba(Mg,Ca,Sr,Mn,Zn)PuO6 • M and Pu(VI) occupy alternating octahedral sites in cubic unit cell • Pu-Ln oxides • PuO2 mixed with LnO1.5 • Form solid solutions • Oxidation of Pu at higher levels of Ln oxides to compensate for anion defects • Solid solutions with CeO2 over entire range

  12. Pu oxide chemical properties • Thermodynamic parameter available for Pu oxides • Dissolution • High fired PuO2 difficult to dissolve • Rate of dissolution dependent upon temperature and sample history • Irradiated PuO2 has higher dissolution rate with higher burnup • Dissolution often performed in 16 M HNO3 and 1 M HF • Can use H2SiF6 or Na2SiF6 • KrF2 and O2F2 also examined • Electrochemical oxidation • HNO3 and Ag(II) • Ce(IV) oxidative dissolution

  13. Pu fluoride preparation • Used in preparation of Pu metal • 2PuO2 + H2 +6 HF 2 PuF3 + 4 H2O at 600 °C • Pu2(C2O4)3 + 6 HF2 PuF3 + 3 CO + 3 CO2 + 3 H2O at 600 °C • At lower temperature (RT to 150 °C) Pu(OH)2F2 or Pu(OH)F3 forms • PuF3 from HF and H2 • PuF4 from HF and O2 • Other compounds can replace oxalates (nitrates, peroxides) • Stronger oxidizing conditions can generate PuF6 • PuO2 + 3 F2 PuF6 + O2 at 300 °C • PuF4 + F2  PuF6 at 300 °C • PuF3 • Insoluble in water • Prepared from addition of HF to Pu(III) solution • Reduce Pu(IV) with hydroxylamine (NH2OH) or SO2 • Purple crystals • PuF3.0.40H2O

  14. Pu fluoride preparation • PuF4 • Insoluble in H2O • From addition of HF to Pu(IV) solution • Pale pink PuF4.2.5H2O • Soluble in nitric acid solutions that form fluoride species • Zr, Fe, Al, BO33- • Heating under vacuum yields trifluoride • Formation of PuO2 from reaction with water • PuF4+2H2OPuO2+4HF • Reaction of oxide with fluoride • 3PuF4+2PuO24PuF3+O2 • Net: 4PuF4+2H2O4PuF3+4HF+O2 • High vacuum and temperature favors PuF3 formation • Anhydrous forms in stream of HF gas

  15. PuF6 preparation • Formation from reaction of F2 and PuF4 • Fast rate of formation above 300 °C • Reaction rate • Log(rate/mg PuF4 cm-2hr-1=5.917-2719/T) • Faster reaction at 0.8 F2 partial pressure • Condensation of product near formation • Liquid nitrogen in copper condenser near PuF4 • Can be handled in glass Fluorination of PuF4 by fluorine diluted with He/O2 mixtures to produce PuF6 (Steindler, 1963).

  16. Pu fluoride structures • PuF4 • Isostructural with An and Ln tetraflourides • Pu surrounded by 8 F • Distorted square antiprism • PuF6 • Gas phase Oh symmetry absorption spectrum of gaseous PuF6from Steindler and Gunther (1964a)

  17. Pu fluoride properties • PuF3 • Melting point: 1425 °C • Boiling point: decomposes at 2000 °C • PuF4 • Melting point: 1037°C • PuF6 • Melting point: 52°C • Boiling point: 62°C • ΔsublH°=48.65 kJ/mol, ΔfH°=-1861.35 kJ/mol • IR active in gas phase, bending and stretching modes • Isotopic shifts reported for 239 and 242 • Equilibrium constant measured for PuF6PuF4+F2 • ΔG=2.55E4+5.27T • At 275 °C, ΔG=28.36 kJ/s • ΔS=-5.44 J/K mol • ΔH=25.48 kJ/mol

  18. Pu halides • PuF6 decomposition • Alpha decay and temperature • Exact mechanism unknown • Stored in gas under reduced pressure • Higher halide preparation • PuCl3 from hydrochlorination • Pu2(C2O4)3.10H2O+6HCl2PuCl3+3CO2+3CO+13H2O • Reaction of oxide with phosgene (COCl2) at 500 °C • Evaporation of Pu(III) in HCl solution • PuCl4 • PuCl3+0.5Cl2PuCl4 • Gas phase • Identified by peaks in gas phase IR

  19. Ternary halogenoplutonates • Pu(III-VI) halides with ammonia, group 1, group 2, and some transition metals • Preparation • Metal halides and Pu halide dried in solution • Metal halides and PuF4 or dioxide heat 300-600 °C in HF stream • PuF4 or dioxide with NH4Fheated in closed vessel at 70-100 °C with repeated treatment • PuF6 or PuF4 with group 1 or 2 fluorides phase diagram of KCl–PuCl3system

  20. Pu non-aqueous chemistry • Very little Pu non-aqueous and organometallic chemistry • Limited resources • Halides useful starting material • Pu halides insoluble in polar organic solvents • Formation of solvated complexes • PuI3(THF)x from Pu metal with 1,2-diiodoethane in THF • Tetrahydrofuran • Also forms with pyridine, dimethylsulfoxide • Also from reaction of Pu and I2 • Solvent molecules displaced to form anhydrous compounds • Single THF NMR environment at room temperature • Two structures observed at -90 °C

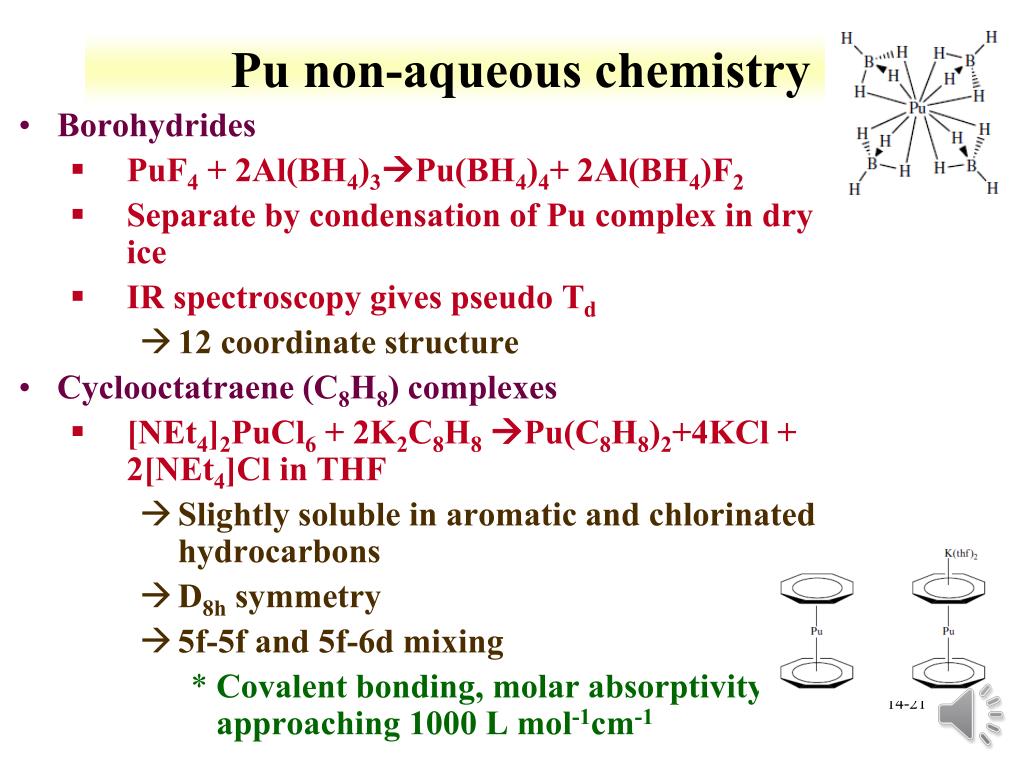

  21. Pu non-aqueous chemistry • Borohydrides • PuF4 + 2Al(BH4)3Pu(BH4)4+ 2Al(BH4)F2 • Separate by condensation of Pu complex in dry ice • IR spectroscopy gives pseudo Td • 12 coordinate structure • Cyclooctatraene (C8H8) complexes • [NEt4]2PuCl6 + 2K2C8H8 Pu(C8H8)2+4KCl + 2[NEt4]Cl in THF • Slightly soluble in aromatic and chlorinated hydrocarbons • D8h symmetry • 5f-5f and 5f-6d mixing • Covalent bonding, molar absorptivity approaching 1000 L mol-1cm-1

  22. Pu non-aqueous chemistry • Cyclopentadienyl (C5H5), Cp • PuCl3 with molten (C5H5)2Be • trisCp Pu • Reactions also possible with Na, Mg, and Li Cp • Cs2PuCl6+ 3Tl(C5H5) in acetonitrile • Formation of Lewis base species • CpPuCl3L2 • From PuCl4L2 complex • Characterized by IR and Vis spectroscopy

  23. Pu electronic structure • Ionic and covalent bonding models • Ionic non-directional electrostatic bonds • Weak and labile in solution • Core 5f • Covalent bonds are stronger and exhibit stereochemical orientation • All electron orbitals need to be considered • Evidence of a range of orbital mixing • PuF6 • Expect ionic bonding • Modeling shows this to be inadequate • Oh symmetry • Sigma and pi bonds • t2g interacts with 6d • t2u interacts with 5f or 6p and 7p for sigma bonding • t1g non-bonding • Range of mixing found • 3t1u 71% Pu f, 3% Pu p, 26% F p characteristics • Spin-orbital coupling splits 5f state • Necessary to understand full MO, simple electron filling does not describe orbital • 2 electrons in 5f orbital • Different arrangements, 7 f states

  24. PuO2n+ electronic structure • Linear dioxo • Pu oxygen covalency • Linear regardless of number of valence 5f electrons • D∞h • Pu oxygen sigma and pi bonds • Sigma from 6pz2 and hybrid 5fz3 with 6pz • Pi 6d and 5f pi orbitals • Valence electrons include non-bonding orbital • d and f higher than pi and sigma in energetics • 5f add to non bonding orbitals • Weak ionic bonds in equatorial plane • Spin-orbital calculations shown to lower bond energy

  25. Review • Nuclear properties and isotope production • Production from 238U • Fissile and fertile isotopes • Pu in nature • Location, levels and how produced • Separation and Purification • Role of redox in aqueous and non-aqueous separations • Metallic state • Phases, alloys, and reactions with gases • Compounds • Preparation and properties • Solution chemistry • Oxidation state • Spectroscopic properties • Structure and coordination chemistry

  26. Questions • Which isotopes of Pu are fissile, why? • How can one produce 238Pu and 239Pu? • How is Pu naturally produced? • How is redox exploited in Pu separation? Describe Pu separation in Purex and molten salt systems. • What are some alloys of Pu? • How does Pu metal react with oxygen, water, and hydrogen? • How can different Pu oxidation states in solution be identified? • Name a stable Pu(VI) compound in solution, provide its structure.

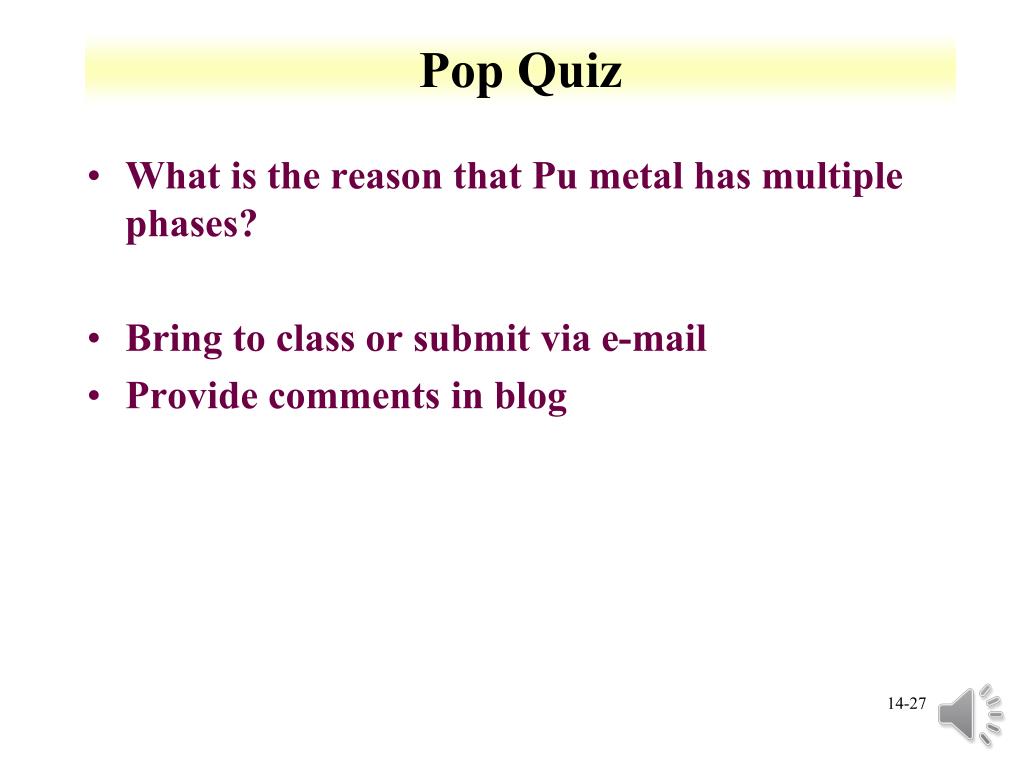

  27. Pop Quiz • What is the reason that Pu metal has multiple phases? • Bring to class or submit via e-mail • Provide comments in blog
