  1. Cryptographic Protocols

  2. Overview • Basic notions of cryptographic (security) protocols • Problems with cryptographic protocols/Design principles for cryptographic protocols • Formal specification and analysis of cryptographic protocols • ) two formalizations • ) proofs about protocols

  3. Basic Notions • A protocol consists of a set of rules (conventions) which determine the exchange of messages between two or more participants. • participants: users, processes machines, ... • called “principals” • Protocol steps n : A  B : M • “A sends M to B according to the n’ th protocol step.” A, B principals, M message • Messages may be structured: M = M1, ... , Mn

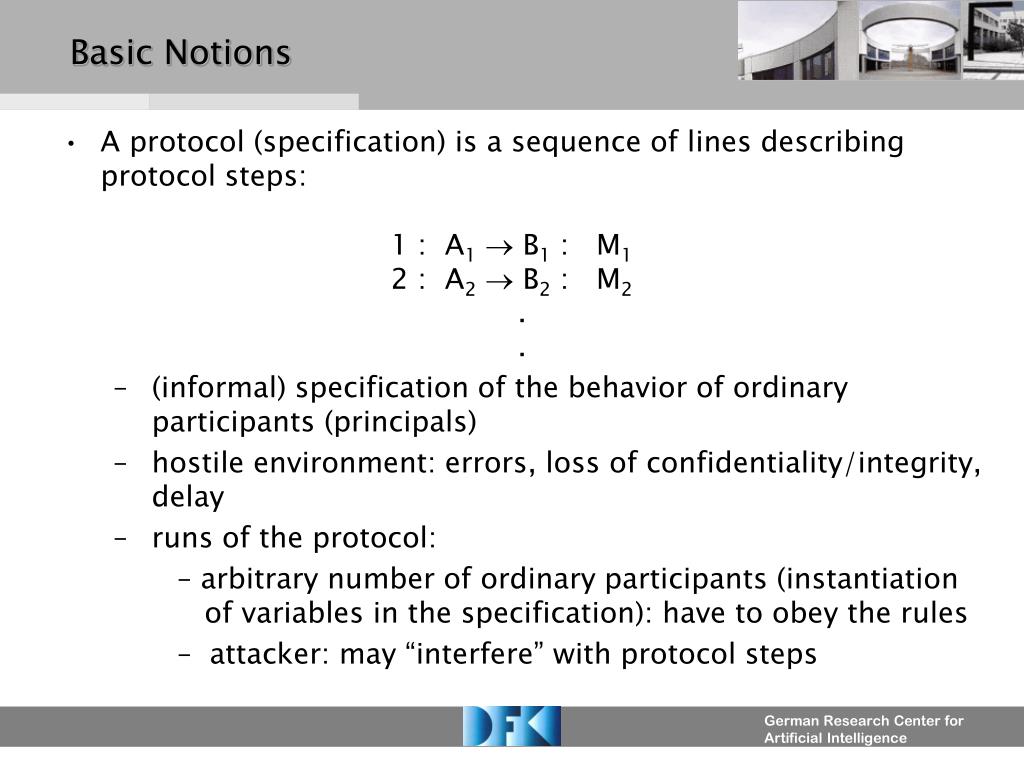

  4. Basic Notions • A protocol (specification) is a sequence of lines describing protocol steps: 1 : A1 B1 : M1 2 : A2 B2 : M2 . . • (informal) specification of the behavior of ordinary participants (principals) • hostile environment: errors, loss of confidentiality/integrity,delay • runs of the protocol: • arbitrary number of ordinary participants (instantiation of variables in the specification): have to obey the rules • attacker: may “interfere” with protocol steps

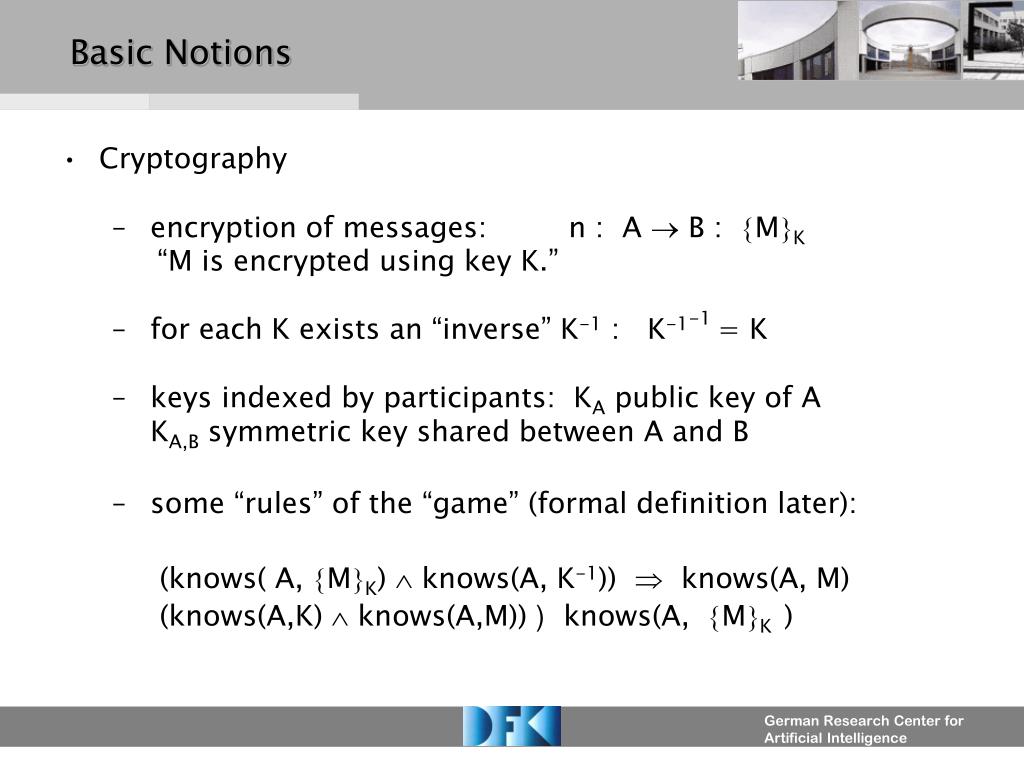

  5. Basic Notions • Cryptography • encryption of messages: n : A  B : MK • “M is encrypted using key K.” • for each K exists an “inverse” K-1 : K-1-1 = K • keys indexed by participants: KA public key of AKA,B symmetric key shared between A and B • some “rules” of the “game” (formal definition later): (knows( A, MK)  knows(A, K-1))  knows(A, M) (knows(A,K)  knows(A,M)) ) knows(A, MK )

  6. Basic Notions • Cryptography (ctd.) • for symmetric encryption : K-1= K • for asymmetric systems (recall asymmetric schemes!): K-1 private key : signatures • K public key: (asymmetric) encryption

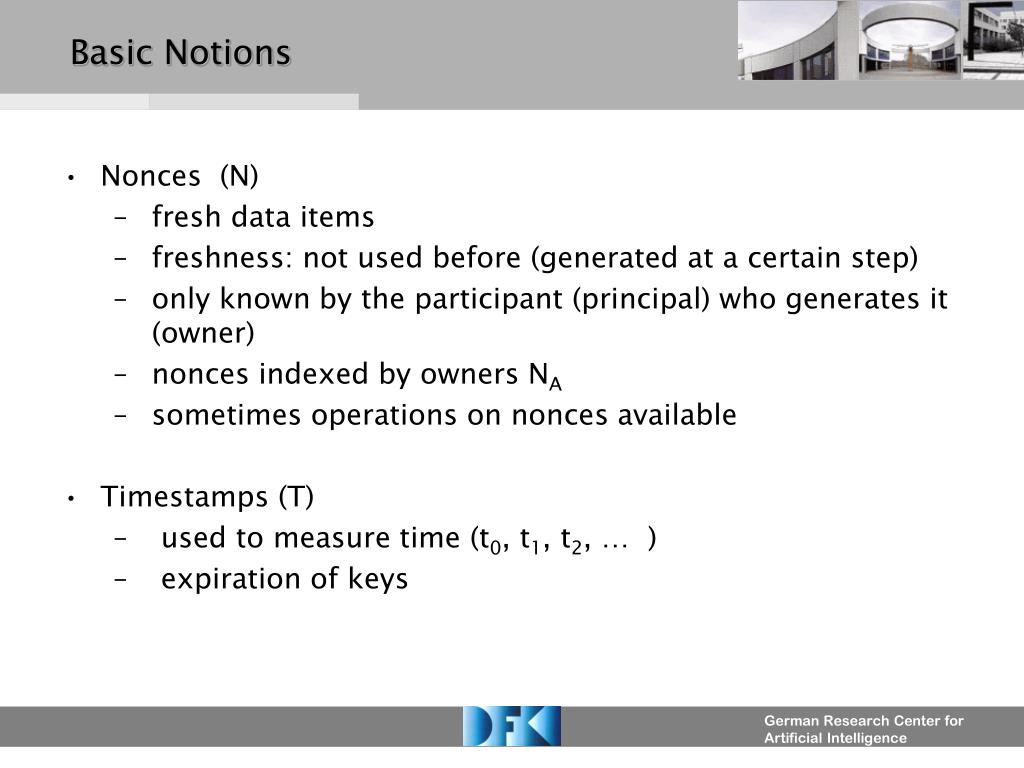

  7. Basic Notions • Nonces (N) • fresh data items • freshness: not used before (generated at a certain step) • only known by the participant (principal) who generates it (owner) • nonces indexed by owners NA • sometimes operations on nonces available • Timestamps (T) • used to measure time (t0, t1, t2, … ) • expiration of keys

  8. A Simple Protocol (in Detail) { A, NA }KB { NA , NB } KA { NB } KB B A • KB = pk(B), KB-1 = sk(B) • KA = pk(A), KA-1 = sk(A) • Needham-Schroeder Public Key Protocol

  9. A Simple Protocol (in Detail) • Specification 1 : A  B : { A, NA }KB • 2 : B  A : { NA , NB } KA • 3: A  B : { NB } KB • The specification defines a set of sequences of communication events (runs). • (up to now) presentation informal • but necessary to “play” with protocols (in an informal way)

  10. Basic Notions (ctd.) • Basic events a  m  b • a sends m to b (caused by a) • a, b sender and receiver, possible instantiations of variables for principals • arbitrary many agents • attacker also generates (sends) messages • sender and receiver are given but not necessarily known to participantsstephan “Hi, I am Dieter Hutter!”  siekmann • similarities/differences with MSC’s in UML • Other events later

  11. Basic Notions • Sequences of events a1 m1  b1a2 m2  b2a3 m3  b3. . • arbitrary finite length • no “liveness” • define admissible (proper) sequences • for ordinary participants • including attacker

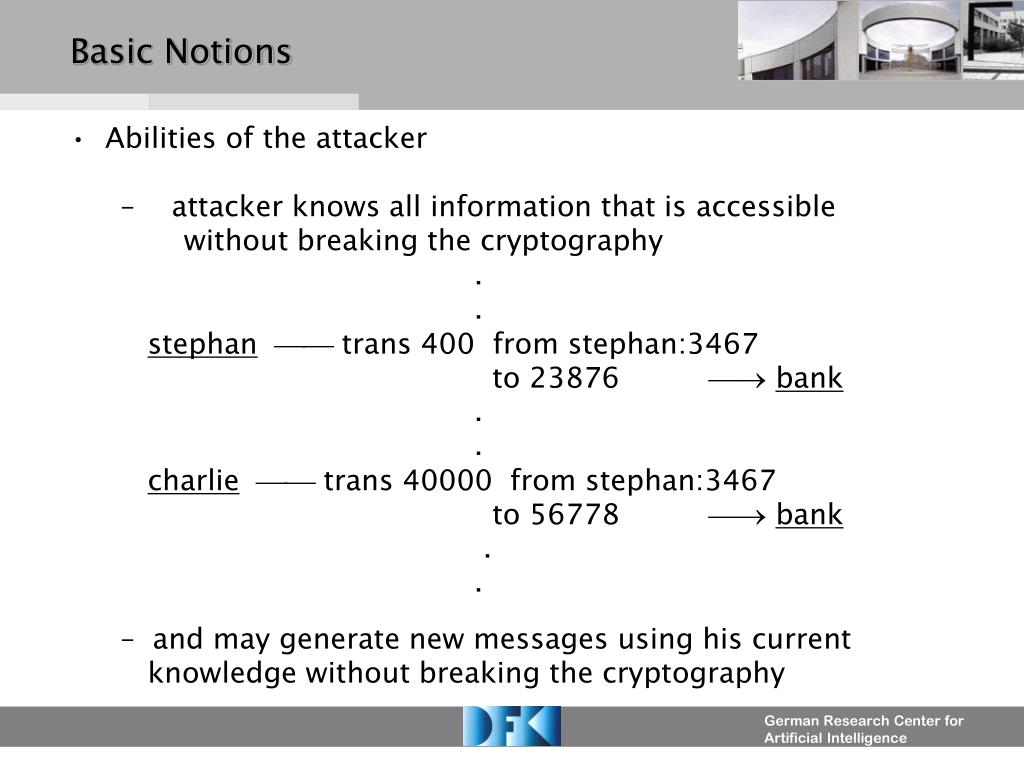

  12. Basic Notions • Abilities of the attacker • attacker knows all information that is accessible without breaking the cryptography . .stephan trans 400 from stephan:3467 to 23876  bank . .charlie trans 40000 from stephan:3467 to 56778  bank. . • and may generate new messages using his current knowledge without breaking the cryptography

  13. Basic Notions • Abilities of the attacker (ctd.) • the attacker cannot read (know) the content of encrypted messages unless he knows the key • the attacker cannot generate encrypted messages unless he knows the message and the key stephan trans 400 from stephan:3467 to 23876k  bank . .charlie trans 40000 from stephan:3467 to 56778k  bank.

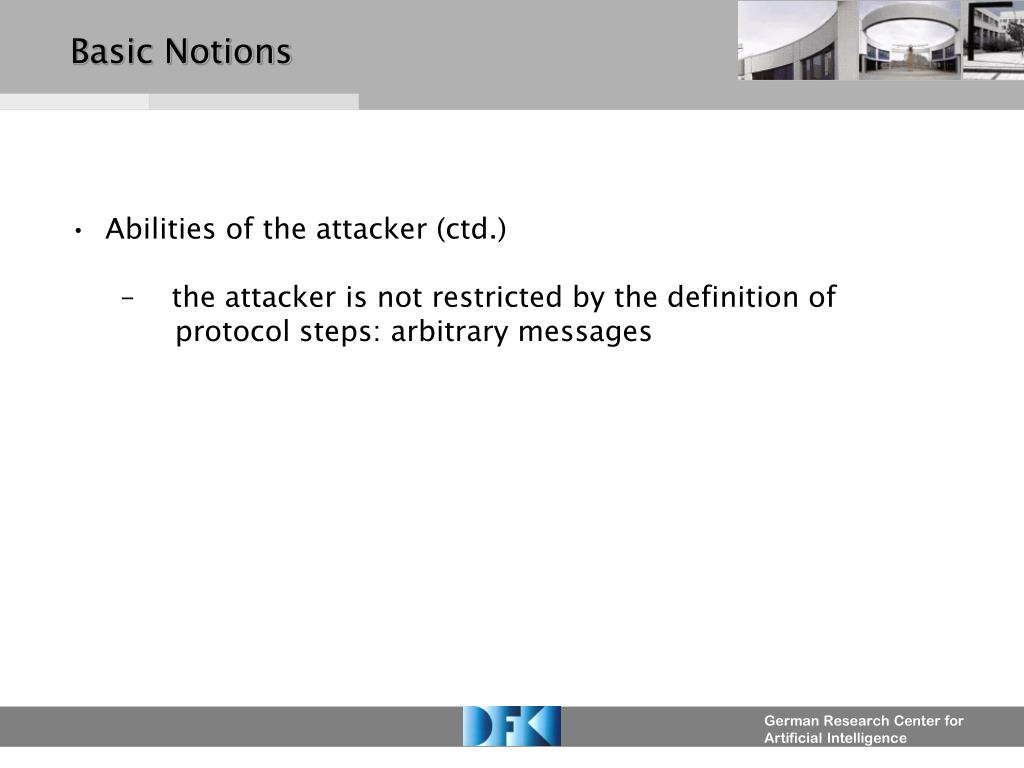

  14. Basic Notions • Abilities of the attacker (ctd.) • the attacker is not restricted by the definition of protocol steps: arbitrary messages

  15. Basic Notions -- A Simple Protocol (ctd.) • The behavior of ordinary participants is given by the protocol specification. • The events have to be possible according to general rules. • Example : event corresponding to the first step of the protocol . .alice { alice, Nalice }Kbob bob • not necessarily the first event: protocol steps of other principals , events caused by the attacker

  16. Basic Notions -- A Simple Protocol (ctd.) • Initial “knowledge” of Alice: • Alice wants to communicate with Bob (knows/holds Bob). • Alice expects certain answers (according to the protocol). • Alice knows the public key of Bob. • Alice knows her private key. • Alice is able to generate nonces (Nalice): Nalice has not appeared in the sequence before. Nalice cannot be generated by other participants.

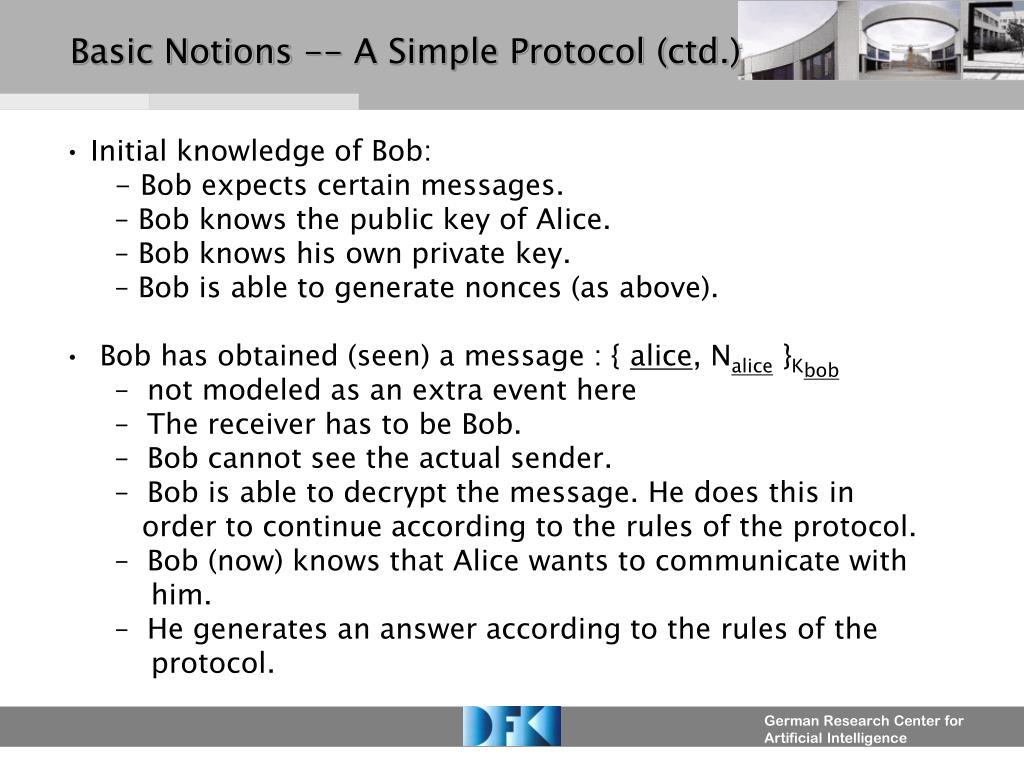

  17. Basic Notions -- A Simple Protocol (ctd.) • Initial knowledge of Bob: • Bob expects certain messages. • Bob knows the public key of Alice. • Bob knows his own private key. • Bob is able to generate nonces (as above). • Bob has obtained (seen) a message : { alice, Nalice }Kbob • not modeled as an extra event here • The receiver has to be Bob. • Bob cannot see the actual sender. • Bob is able to decrypt the message. He does this in order to continue according to the rules of the protocol. • Bob (now) knows that Alice wants to communicate with him. • He generates an answer according to the rules of the protocol.

  18. Basic Notions -- A Simple Protocol (ctd.) • Example : event corresponding to the second step of the protocol . .alice { alice, Nalice }Kbob bob . .bob {Nalice, Nbob }Kalice alice • not necessarily the next event: protocol steps of other principals , events caused by the attacker

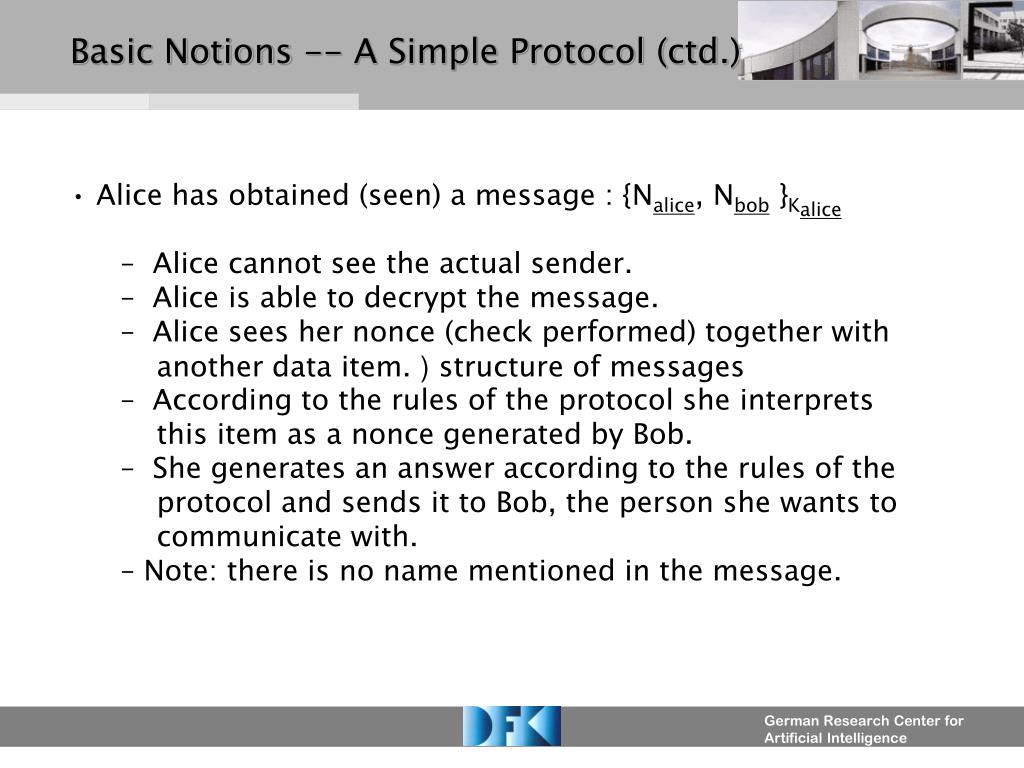

  19. Basic Notions -- A Simple Protocol (ctd.) • Alice has obtained (seen) a message : {Nalice, Nbob }Kalice • Alice cannot see the actual sender. • Alice is able to decrypt the message. • Alice sees her nonce (check performed) together with another data item. ) structure of messages • According to the rules of the protocol she interprets this item as a nonce generated by Bob. • She generates an answer according to the rules of the protocol and sends it to Bob, the person she wants to communicate with. • Note: there is no name mentioned in the message.

  20. Basic Notions -- A Simple Protocol (ctd.) • Example : event corresponding to the third step of the protocol . .alice { alice, Nalice }Kbob bob . .bob {Nalice, Nbob }Kalice alice . .alice { Nbob }Kbob bob . .

  21. Basic Notions -- A Simple Protocol (ctd.) • Example : finalizing the protocol • Bob has obtained a message: { Nbob }Kbob • Bob is able todecrypt the message. • He finds a data item. • According to the rules of the protocol he checks: Is it the nonce (I sent to Alice)? • If the answer is yes, this protocol run was successful.

  22. Basic Notions • Generation of runs: Look at previous messages a principal has sent/received, interpret them according to the protocol specification, and generate an answer message according to the protocol specification. • Initial knowledge assumed. • Consider successful runs. • Interleaving with events generated by other principals (running the protocol) and events generated by an attacker. • problem: selection of messages to react to

  23. Basic Notions -- A Simple Protocol (ctd.) • Up to know: informal semantics of protocol specifications • What do we want to achieve by the protocol? • property that holds for all (successful) runs of a given protocol • example (informal idea) : • This is Alice and I have chosen a new nonce Nalice . • This is Bob, you sent me Nalice . Since I’m able to decrypt I must be Bob. I have chosen a new nonce Nbob. • You sent me Nbob . Since I’m able to decrypt I must be Alice.

  24. A Simple Protocol (in Detail) • Intended effect of each step: • Alice sends a secret (Nalice) to Bob (challenge). Bob knows Nalice. Anything else? • Bob sends Nalice back (response) together with a secret Nbob. Alice knows Nbob. Since Bob and only Bob is able to decrypt the first message and Nalice was Alice’s secret, it was Bob who answered. • Alice send back Nbob. As above Bob concludes that it was Alice who responded. • After a succesful run of the protocol the two nonces are shared only by Alice and Bob. The nonces can be used as keys for an authenticated secure communication. • Is this really true? No!!

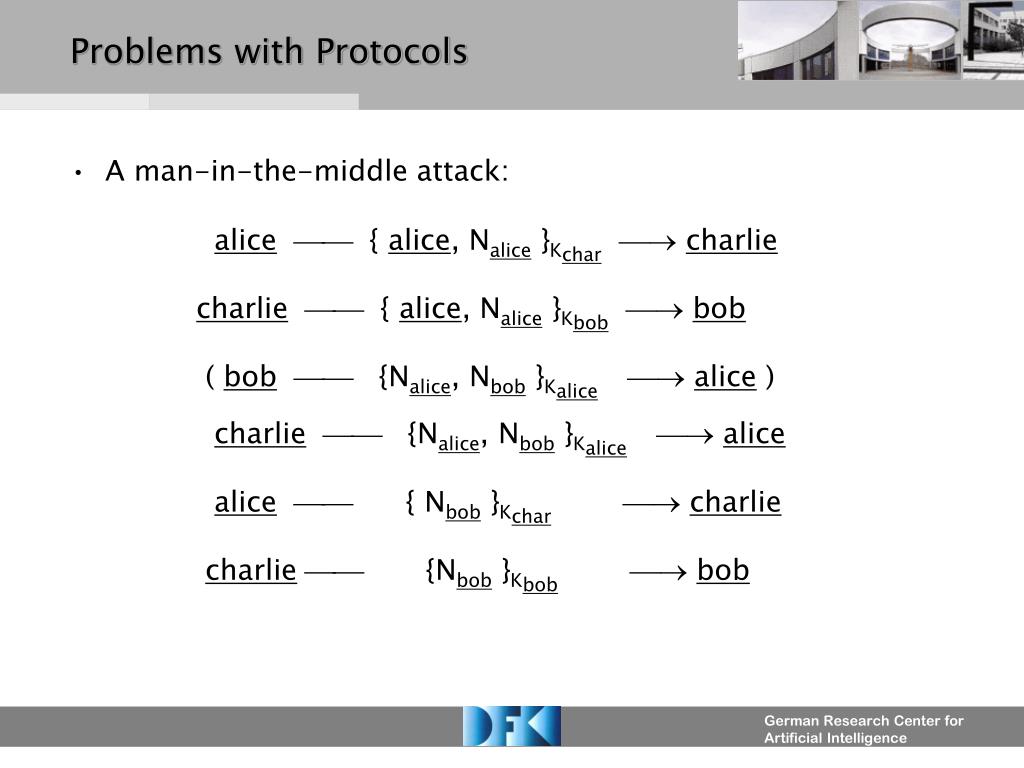

  25. Problems with Protocols • A man-in-the-middle attack:alice { alice, Nalice }Kchar charliecharlie { alice, Nalice }Kbob bob ( bob {Nalice, Nbob }Kalice alice )charlie {Nalice, Nbob }Kalice alicealice { Nbob }Kchar charliecharlie {Nbob }Kbob bob

  26. Problems with Protocols • What’s wrong with the protocol? • Bob believes that he is communicating with Alice. • Problem with second message specification: 2 : B  A : { NA , NB } KAinstantiation in the failed run:bob (charlie)  {Nalice, Nbob }Kalice alice • repair specification 2 : B  A : { B, NA , NB } KAinstantiation: bob {bob, Nalice, Nbob }Kalice alice

  27. Problems with Protocols • Why is this problem solved? • Trying the same attack:alice { alice, Nalice }Kchar charliecharlie { alice, Nalice }Kbob bobbob {bob, Nalice, Nbob }Kalice alicecharlie {bob, Nalice, Nbob }Kalice alice • Alice expects an answer from Charlie (and not from Bob).

  28. Problems with Protocols • SSL allows for the exchange of session keys on the web A previous version of the protocol: A  S : { A, KAS }KSS  A : { NS } KASA  S : { CA, { NS }K-1 A } KAS • Some explanations: • KAS intended to be the session key • S is the server • KS = pk(S) • K-1A = sk(A) , signature of A • CA certificate of A

  29. Problems with Protocols • Intended effect of each step: • A sends a session key KAS and her/his name. • S (server) sends a secret (challenge) encrypted by KAS . • A signs the challenge. • The server assumes that only A knows its private key. • Certificate issued by trusted party (certification authority): (name, public key , .... ) • Aim: authentication of client (A) to server (S). • Is the protocol correct ?

  30. Problems with Protocols • No: Charlie can camouflage Alice.alice {alice, Kac}Kchar charlie • charlie {alice, Kac }Kserv servserv {Nserv }Kac alice • charlie {Nserv}Kac alice • alice {Calice, { Nserv }K -1alice}Kac charliecharlie {Calice, { Nserv} K-1alice}Kac serv

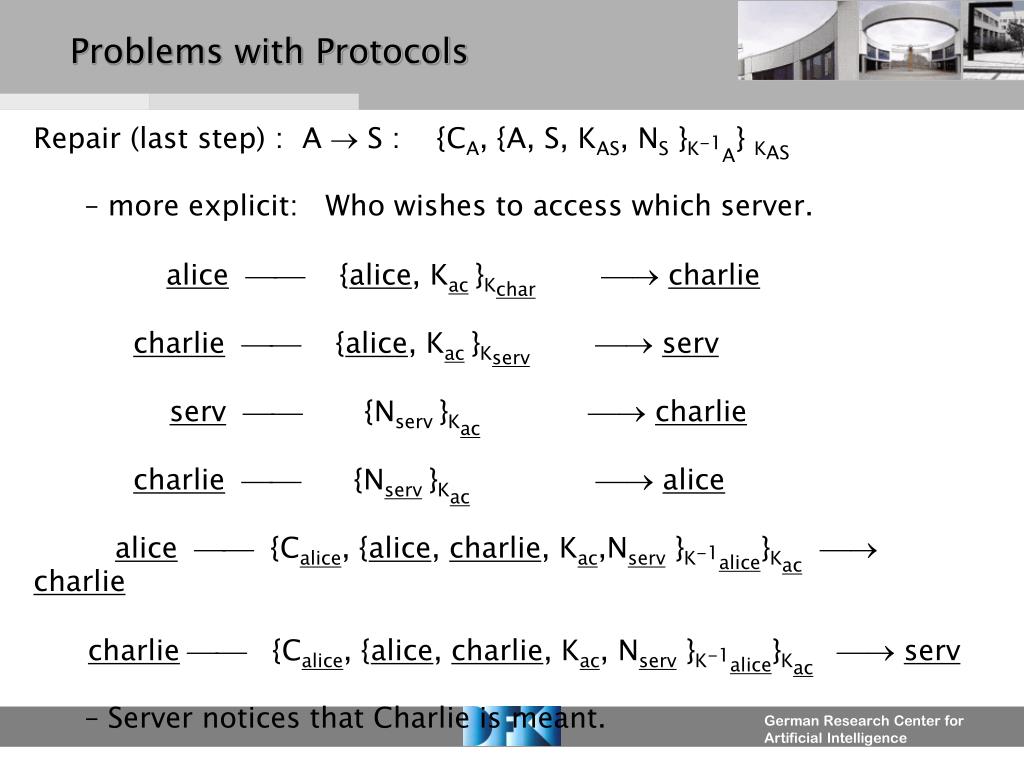

  31. Problems with Protocols • Repair (last step) : A  S : {CA, {A, S, KAS, NS }K-1A} KAS • more explicit: Who wishes to access which server. • alice {alice, Kac}Kchar charlie • charlie {alice, Kac}Kserv servserv {Nserv }Kac charlie • charlie {Nserv}Kac alice • alice {Calice, {alice, charlie, Kac,Nserv }K-1alice}Kac charliecharlie {Calice, {alice, charlie, Kac, Nserv }K-1alice}Kac serv • Server notices that Charlie is meant.

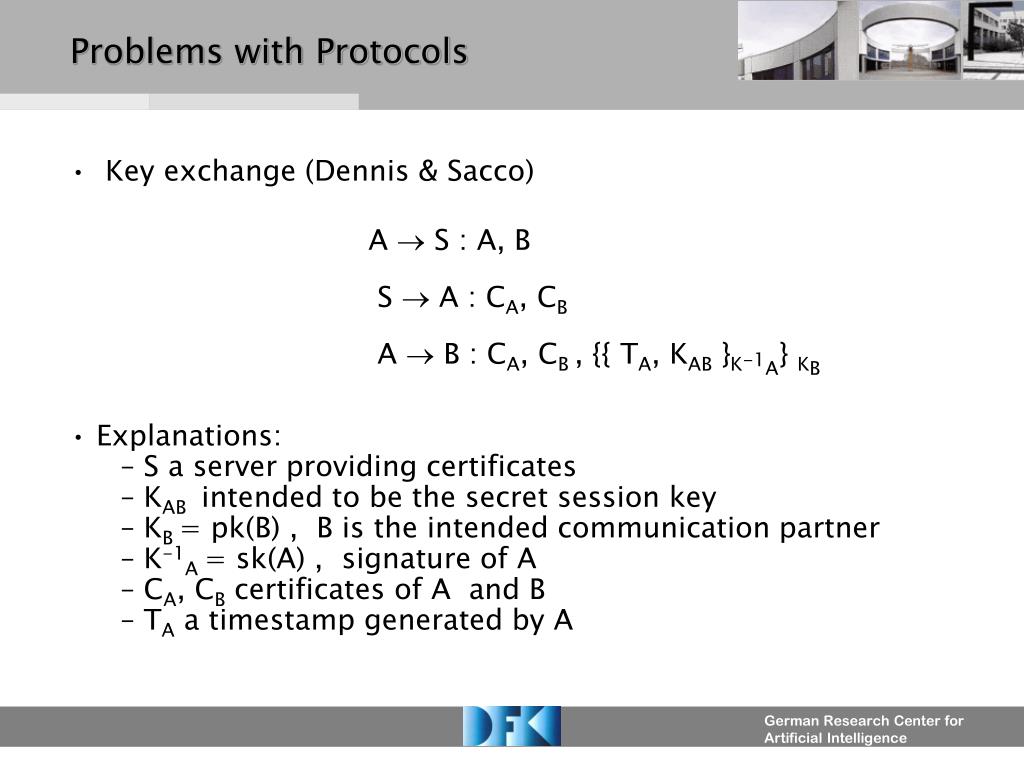

  32. Problems with Protocols • Key exchange (Dennis & Sacco) A  S : A, BS  A : CA, CBA  B : CA, CB , {{ TA, KAB }K-1A} KB • Explanations: • S a server providing certificates • KAB intended to be the secret session key • KB = pk(B) , B is the intended communication partner • K-1A = sk(A) , signature of A • CA, CB certificates of A and B • TA a timestamp generated by A

  33. Problems with Protocols • Intended purpose of this protocol: • KAB is known only to A and B (session key) • B can be sure that it was sent by A: • She/he can check the signature (using the public key KA). • ) KA is bound to A by the certificate. • B knows that the message was intended for her/him because her/his public key is used. • A knows .... ? • Timestamp may limit the use of session key.

  34. Problems with Protocols • The disaster: alice Calice, Ccharlie, { {Talice , Kac } K-1alice} Kcharlie charlie • charlie Calice, Cbob, { {Talice , Kac } K-1alice} Kbob bob • Bob believes that the last message was sent by Alice. • If he communicates with Alice using Kac, then Charlie is able to listen. • Complete run: easy exercise!

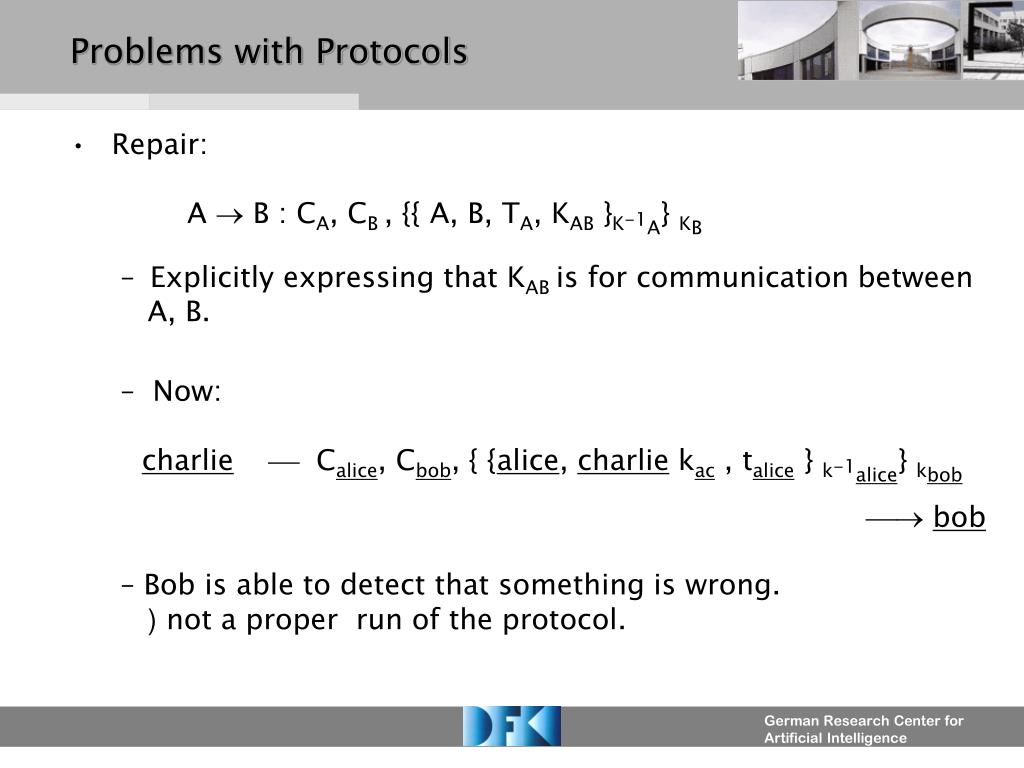

  35. Problems with Protocols • Repair: A  B : CA, CB , {{ A, B, TA, KAB }K-1A} KB • Explicitly expressing that KABis for communication between A, B. • Now: • charlie Calice, Cbob, { {alice, charlie kac , talice } k-1alice} kbob bob • Bob is able to detect that something is wrong. ) not a proper run of the protocol.

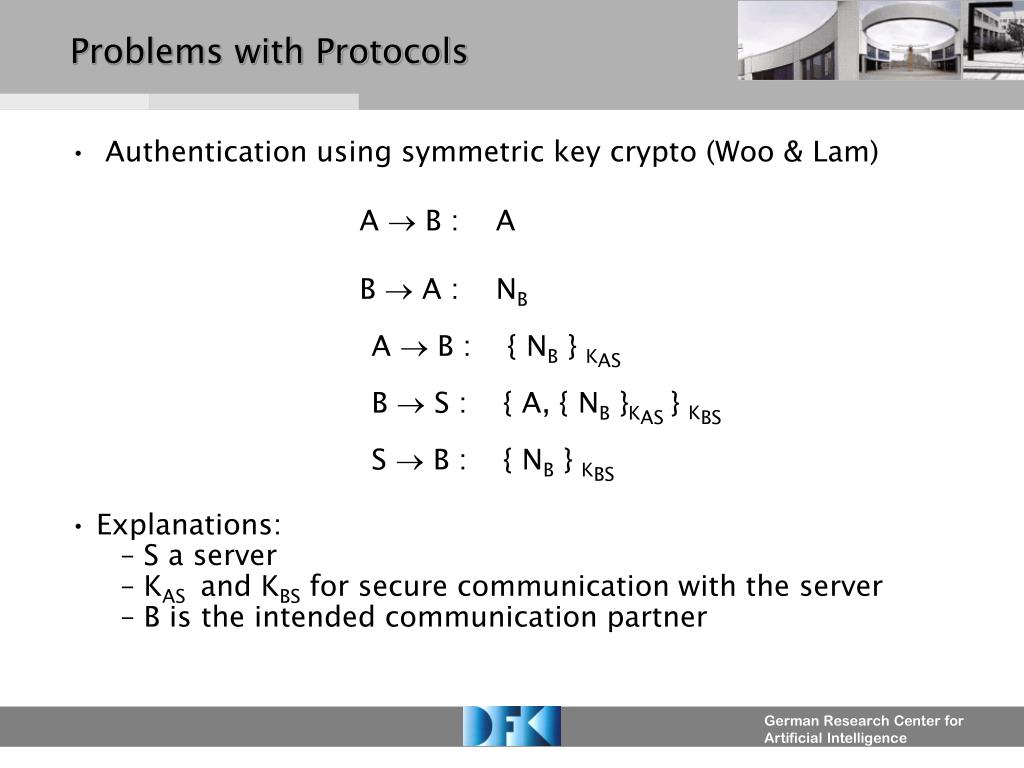

  36. Problems with Protocols • Authentication using symmetric key crypto (Woo & Lam) A  B : A B  A : NBA  B : { NB } KASB  S : { A, { NB }KAS } KBSS  B : { NB } KBS • Explanations: • S a server • KAS and KBS for secure communication with the server • B is the intended communication partner

  37. Problems with Protocols • Intended purpose of this protocol: • A claims her/his identity: “Hi, I am A!” • B provides a nonce as a challenge. • A returns challenge encrypted with KAS . This key is shared only between A and S. • B passes this on to S together with A asking for verification. Again KBS is known only to B and S. A is bound to the second part of the message. • If S sent back { NB } KBS , then B can be sure that actually A has responded to his challenge. • Why?

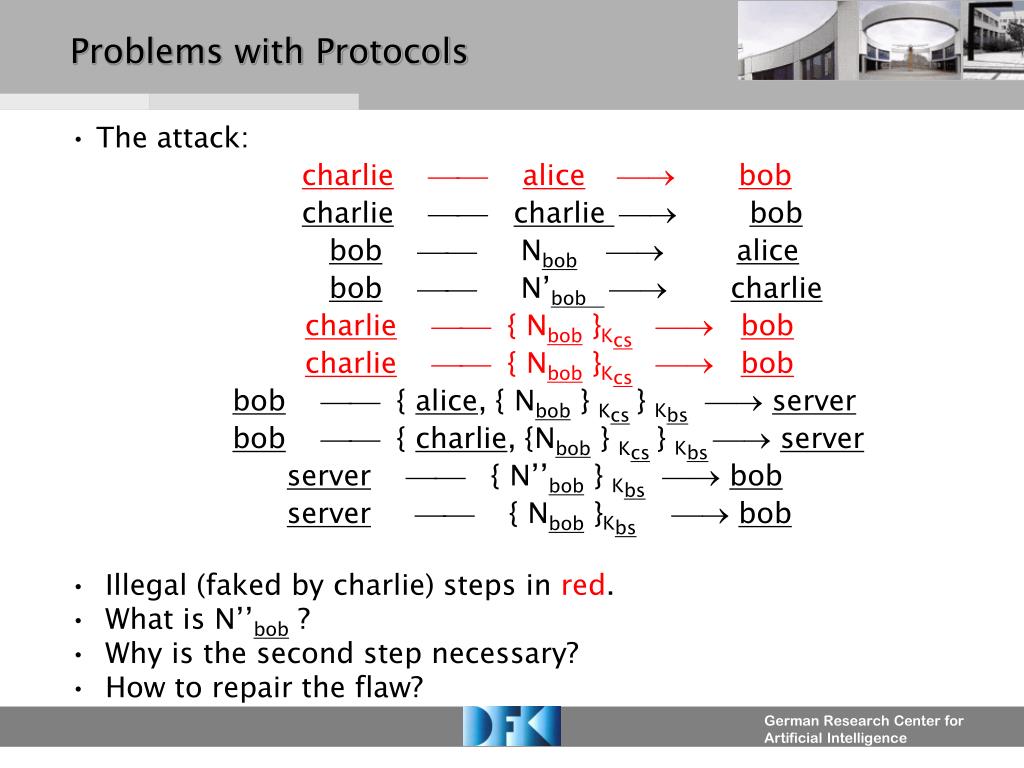

  38. Problems with Protocols • The attack: • charlie alice bob • charlie charlie  bob • bob Nbob alicebob N’bob  charlie • charlie { Nbob }Kcs bobcharlie { Nbob }Kcs bob • bob { alice, { Nbob } Kcs} Kbs server • bob { charlie, {Nbob } Kcs} Kbs server • server { N’’bob } Kbs bob • server { Nbob }Kbs bob • Illegal (faked by charlie) steps in red. • What is N’’bob ? • Why is the second step necessary? • How to repair the flaw?

  39. Problems with Protocols • Authentication (“Wide-Mouthed-Frog”) A  S : {TA, B, KAB }KASS  B : {TS, A, KAB }KBS • Explanations: • S a server providing session keys • KAS and KBS for secret communication with the server • TA and TS are timestamps, server updates TA to TS

  40. Problems with Protocols • Intended purpose of this protocol: • A at a certain point of time wants to communicate with (access) using KAB (as long as KAB is valid). She/he therefore asks a server to pass this request on to B. • Since the server is able to decrypt with KAS it must be A who was sending the message. The server tells B this result. The server also computes a new timestamp and passes the session key to B. After a certain amount of time B will no longer accept this key. • If A wants to continue she/he has to run the protocol again. Makes it easier to revoke keys.

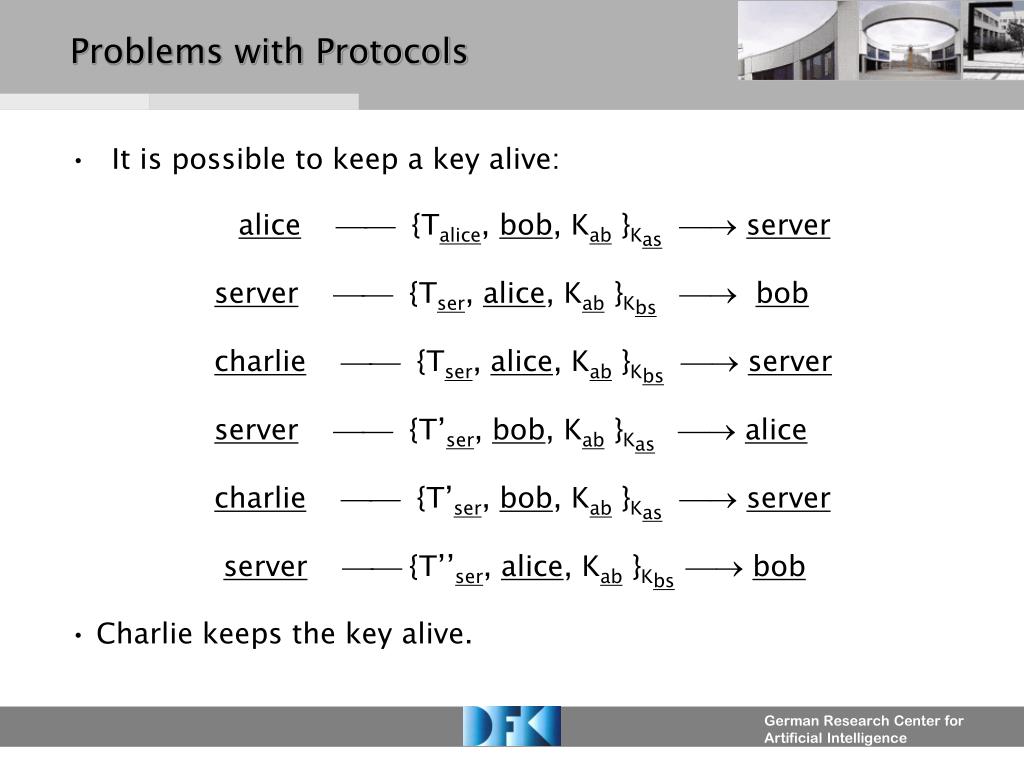

  41. Problems with Protocols • It is possible to keep a key alive: alice {Talice, bob, Kab }Kas server • server {Tser, alice, Kab }Kbs bobcharlie {Tser, alice, Kab }Kbs server • server {T’ser, bob, Kab }Kas alicecharlie {T’ser, bob, Kab }Kas server • server {T’’ser, alice, Kab }Kbs bob • Charlie keeps the key alive.

  42. Principles for Designing Security Protocols • Each message should say what it means (be self contained): • The interpretation of a message should dependonly on the content (and be independent of the context in which it occurs). • expressed by a natural language sentence • The conditions for a message to be acted upon should be clearly set out. • can be checked by a reviewer • Martin Abadi, Roger Needham

  43. Principles for Designing Security Protocols • Aspects related to these principles • names • encryption • timeliness • matching of messages • trust

  44. Naming • Denning and Sacco : A  B : CA, CB, { { KAB , TA }SK(A) }PK(B) should denote that: • A has sent the message because of SK(A) (signature) • B is the intended receiver of the message because of PK(B) • But attack as above • Thus partners of communications should be part of the message: A  B : CA, CB, { { A, B, KAB , TA }SK(A) }PK(B) • „At time TA A says KAB is a key good for communication between A and B.“

  45. Naming • Woo and Lam S  B : { NB } KBS should denote that: • A has responded correctly to the challenge • But attack as above since no connection between query (to server S) and response (as above). • The principal “checked” by the server should be mentioned in the message: S  B : { A, NB } KBS • „In order to check (the identity of) A I was able to obtain NB .”

  46. Naming • SSL (previous version) A  B : { CA, { NB }K-1A } KAB should denote that: • A is able to sign the challenge (nonce) sent to her/him by B • But attack as above • A signs challenge in a certain context: A  B : {CA, {A, B, KAB, NB }K -1A } KAB • „I, A, declare to have proposed KAB as a session key for the communication between me and B in the NB - process (run).” • role of NB ?

  47. Encryption • Clarify the intent of encryption (as a means to convey information ! • Confidentiality: • protection of information: does not convey information • Only the intended recipients are able to recover the information (using the appropriate key). • Authentication (integrity): • Only the proper sender knows the key for encryption. • A message { M } K -1stems from the owner of the secret key K-1 . • Binding of messages: • difference between { X, Y } K -1 and { X } K -1, { Y } K -1 !

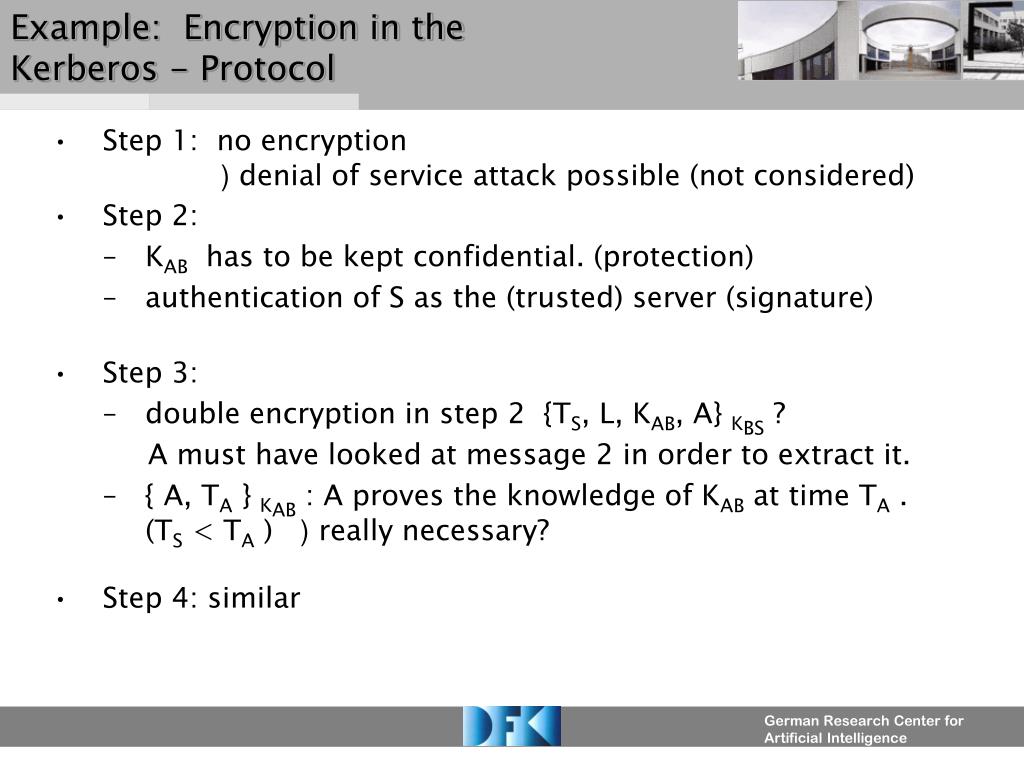

  48. Example: Encryption in the Kerberos - Protocol • The protocol: 1: A  S : A, B 2: S  A : { TS , L, KAB, B, { TS, L, KAB, A} KBS }KAS 3: A  B : { TS, L, KAB, A} KBS , { A, TA } KAB 4: B  A : { TA + 1 } KAB • TS and TA are timestamps, L is their lifetime • purpose: After a successful run (only) A, and B share KAB .

  49. Example: Encryption in the Kerberos - Protocol • Step 1: no encryption) denial of service attack possible (not considered) • Step 2: • KAB has to be kept confidential. (protection) • authentication of S as the (trusted) server (signature) • Step 3: • double encryption in step 2 {TS, L, KAB, A} KBS ? A must have looked at message 2 in order to extract it. • { A, TA } KAB : A proves the knowledge of KAB at time TA .(TS < TA ) ) really necessary? • Step 4: similar

  50. Encryption: Signing of Encrypted Messages • Signing of encrypted messages versus encryption of signed messages • Example (CCITT X.509) : • A  B : A, { TA, NA, B, XA, { YA } KB} KA-1 • XA, YA are data, YA is confidential. • Assured origin and integrity of XA, YA • Problem: not guarantee that A knows YA
