  1. An Analysis of the Skype Peer-to-Peer Internet Telephony Protocol Salman Abdul Baset and Henning Schulzrinne December 15, 2005

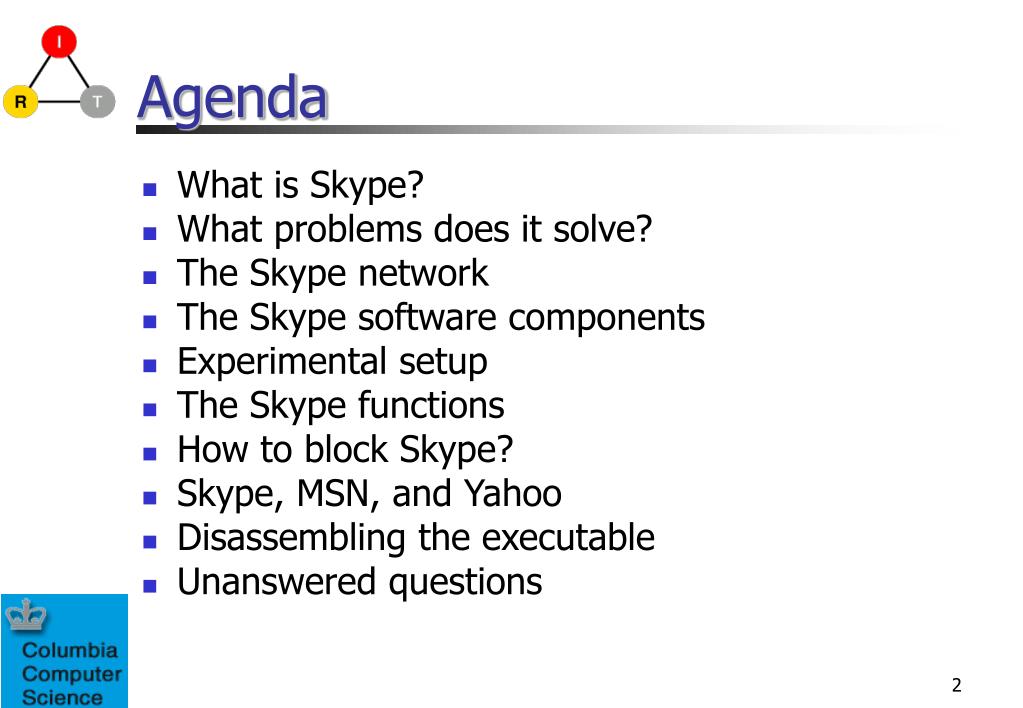

  2. Agenda • What is Skype? • What problems does it solve? • The Skype network • The Skype software components • Experimental setup • The Skype functions • How to block Skype? • Skype, MSN, and Yahoo • Disassembling the executable • Unanswered questions

  3. What is Skype? • Peer-to-peer, pc-to-pc, pc-to-phone, phone-to-pc VoIP client • Developed by people who created KaZaa • First version in September 2003 • 60,000 downloads in first week, 219 million downloads (till yesterday) • Current version: 1.4.0.84 and 2.0 beta • SkypeOut (pc-to-phone) introduced in July 2004 • SkypeOut terms of service: governed by the laws of Luxembourg • SkypeIn, voicemail • OS: Windows, Linux, MacOS, PocketPC

  4. What problems does it solve? • NAT and firewall traversal • Nielsen September 2005 ratings • 61.3% of US home internet users use broadband (http://www.nielsen-netratings.com/pr/pr_050928.pdf) • ‘Most’ users have some kind of NAT • Superior voice quality than MSN or Yahoo IM clients • Phone-to-pc calling, SkypeIn • Yahoo is starting to imitate Skype services

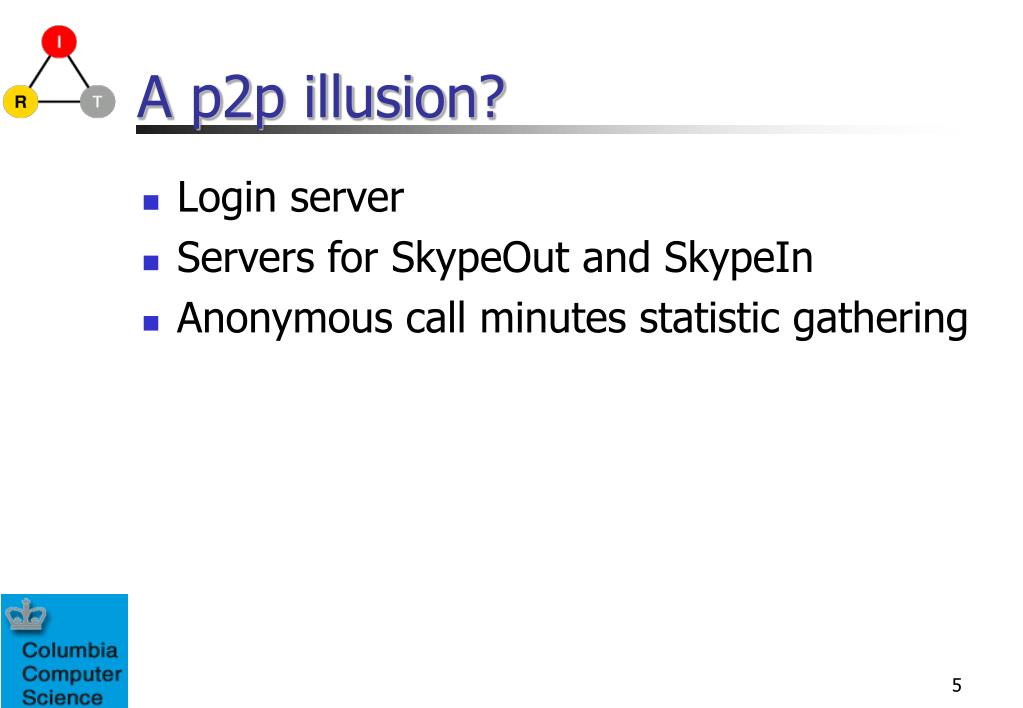

  5. A p2p illusion? • Login server • Servers for SkypeOut and SkypeIn • Anonymous call minutes statistic gathering

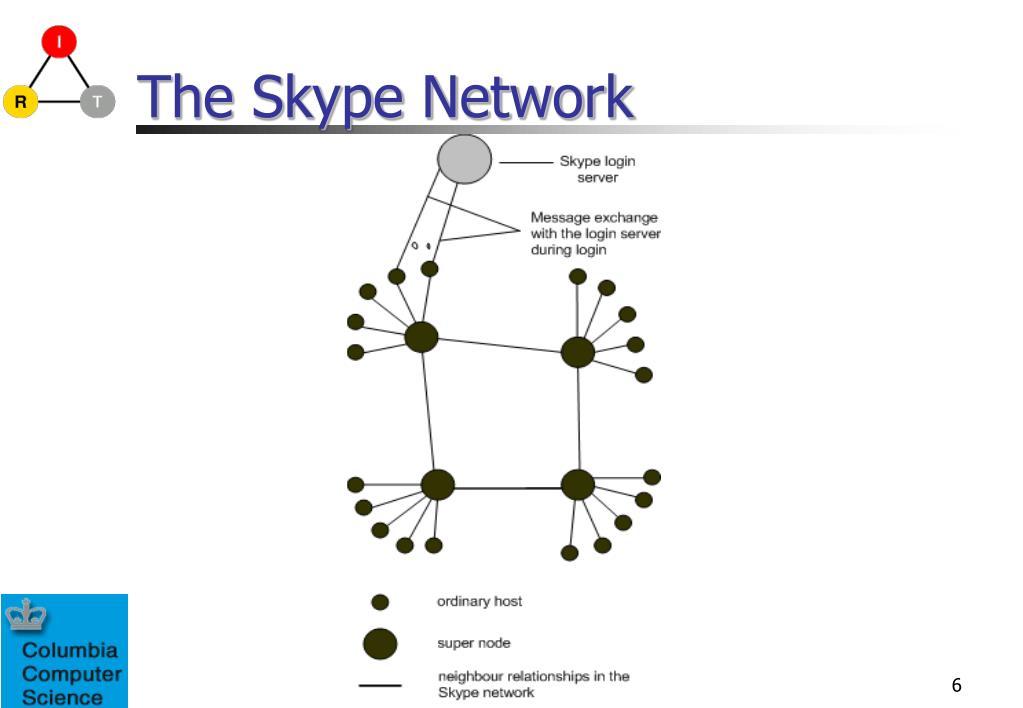

  6. The Skype Network

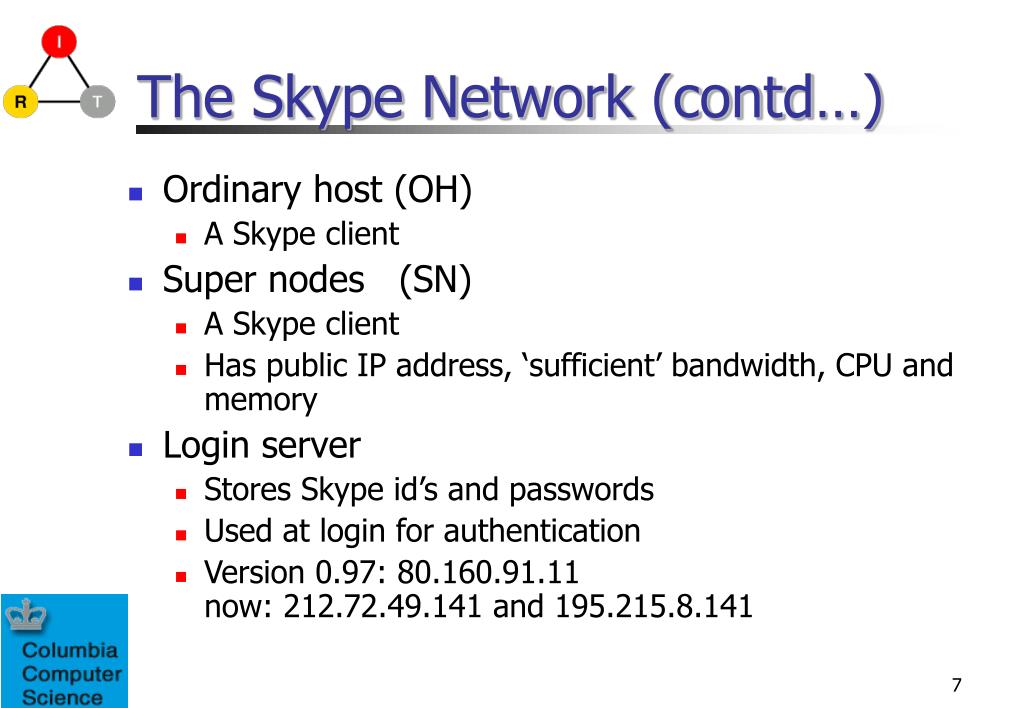

  7. The Skype Network (contd…) • Ordinary host (OH) • A Skype client • Super nodes (SN) • A Skype client • Has public IP address, ‘sufficient’ bandwidth, CPU and memory • Login server • Stores Skype id’s and passwords • Used at login for authentication • Version 0.97: 80.160.91.11 now: 212.72.49.141 and 195.215.8.141

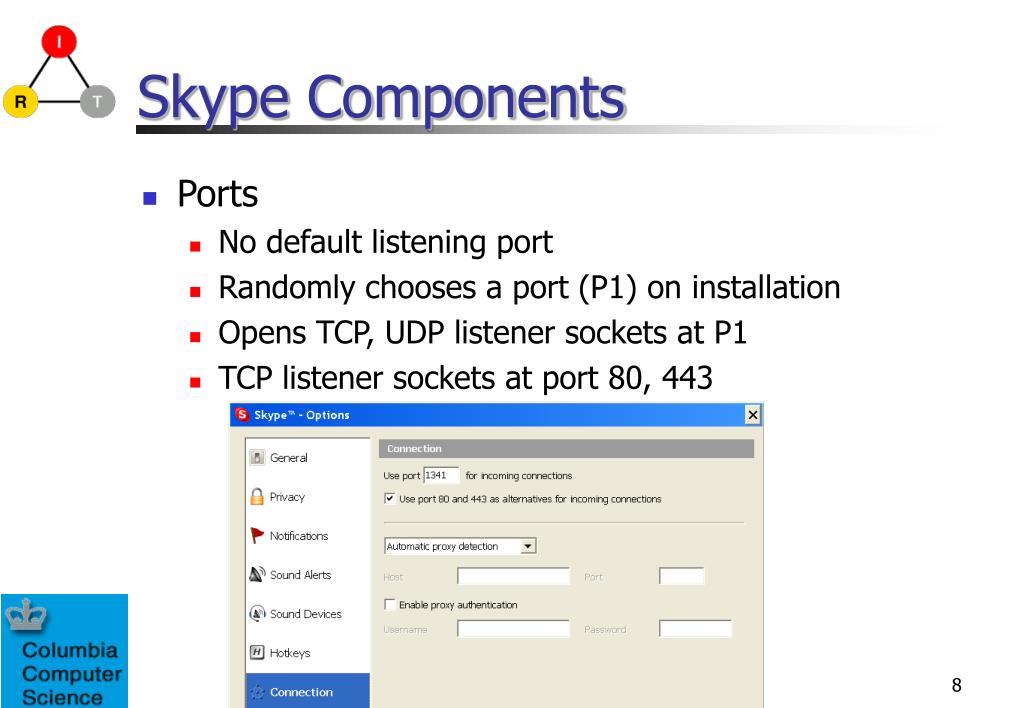

  8. Skype Components • Ports • No default listening port • Randomly chooses a port (P1) on installation • Opens TCP, UDP listener sockets at P1 • TCP listener sockets at port 80, 443

  9. Skype Components (contd…) • Host cache (HC) • IP address and port number of online Skype nodes (SNs) • At least one valid entry must be present in HC • Maximum size: 200 entries • ‘Understanding KaZaa’: 200 entries for ordinary node (ON) • Login server IP address and port number • Stored in Windows registry in version 0.97 • Now present at C:\Documents and Settings\All Users\Application Data\Skype

  10. Skype HC (ver: 0.97)

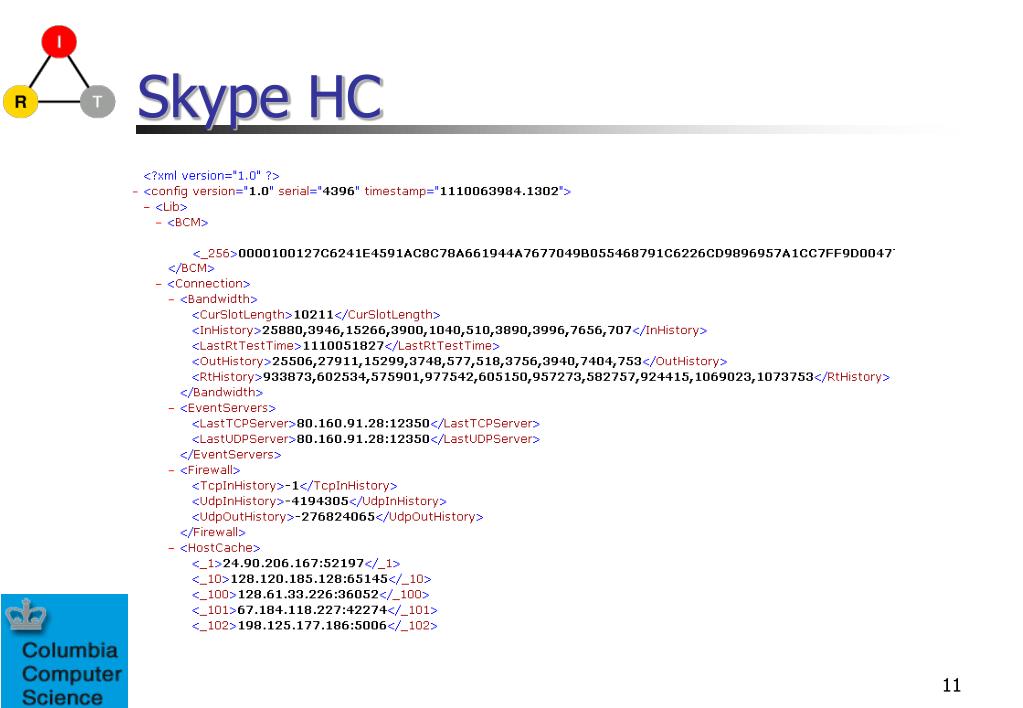

  11. Skype HC

  12. Skype Components (Contd…) • Codecs (GlobalIPSound) • Wide band codecs (50-8,000 Hz) • iLBC (packet size: 20 and 30 ms bitrate: 15.2 kbps and 13.3 kbps) • iSAC (packet size: 30-60 ms bitrate: 10-32 kbps) • G.729 for SkypeOut? • Buddy list • Stored in ‘config.xml’ file • C:\Documents and Settings\<XP user>\Application Data\Skype\<skype user id> <CentralStorage> <LastBackoff>0</LastBackoff> <LastFailure>0</LastFailure> <LastSync>1120325519</LastSync> <NeedSync>0</NeedSync> <SyncSet> <u> <skypebuddy1>f384d3a0:1</skypebuddy1> <skypebuddy2>7d1dafc4:1</skypebuddy2>

  13. Experimental Setup • I have NOT reverse engineered Skype executable but it can be done • Skype version: 0.97.0.6, 1.0, 1.2, 1.4 • Experiments performed between Feb-May 2004, June-July and Nov-Dec 2005. • Tools Used • Ethereal (for packet capture) • NetPeeker (for tuning the bw) • NCH Tone generator(for generating tones of various frequencies) • APIMonitor (for monitoring the sys calls)

  14. Experimental Setup (Contd…)

  15. Skype Functions • Startup • Login • User Search • Call Establishment • Media Transfer • Keep-Alive • NAT and firewall Traversal • Conferencing

  16. Skype Functions: STARTUP • First time startup • GET /ui/0/97/en/installed HTTP/1.1 • Normal startup • GET /ui/0/97/en/getlatestversion?ver=0.97.0.6 HTTP/1.1

  17. Skype Functions: LOGIN • Must establish a TCP connection with SN • HC must contain at least one valid SN • Bootstrap Super Nodes

  18. Skype Functions: LOGIN • Public, NAT • Establish a TCP connection with the SN • Authenticate with the login server • Announce arrival on the network (controlled? flooding) • Determine NAT type? • Firewall • Establish a TCP connection with the SN • Authenticate with the login server

  19. Skype Functions: LOGIN 16 3 1 0 0 17 3 1 0 0 16 3 1 0 0 . . . . 17 3 1 0 0 len . . . .

  20. Skype Functions: LOGIN • 1536 and 2048 (skype account) bit RSA to negotiate symmetric AES keys • Central Server Signing Key SS and Verification Key VS • Client: user name A, password PA, RSA key pair SA and VA • VS embedded in the Skype executable • 256 bit AES session with the login server • Key is chosen at random and encrypted with the public key of the login server • {A, H(PA), VA} VS to login server (msg 3) • {A, VA} SS to client (msg 4) • Source: Tom Berson’s security evaluation

  21. Skype Functions: LOGIN

  22. Skype Functions: LOGIN

  23. Skype Functions: USER SEARCH • From the Skype website • Global Index (GI) Technology • Guaranteed to find a user it exists andlogged in the last 72 hours • Search results are cached at intermediate nodes • Unable to trace messages beyond SN • Cannot force a node to become a SN • Host cache is used for connection establishment and not for SN selection • User does not exist. How does search terminate? • SN searches for a user behind UDP-restricted firewall • Same search query from two different machines initiated at the same time give different results • Wildcard queries supported

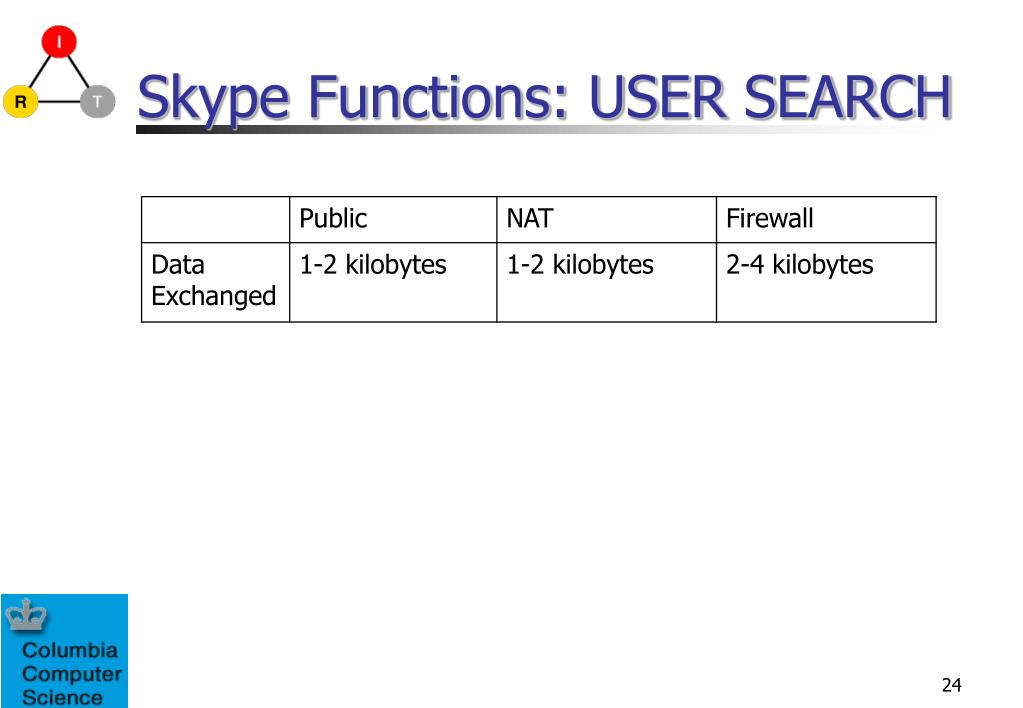

  24. Skype Functions: USER SEARCH

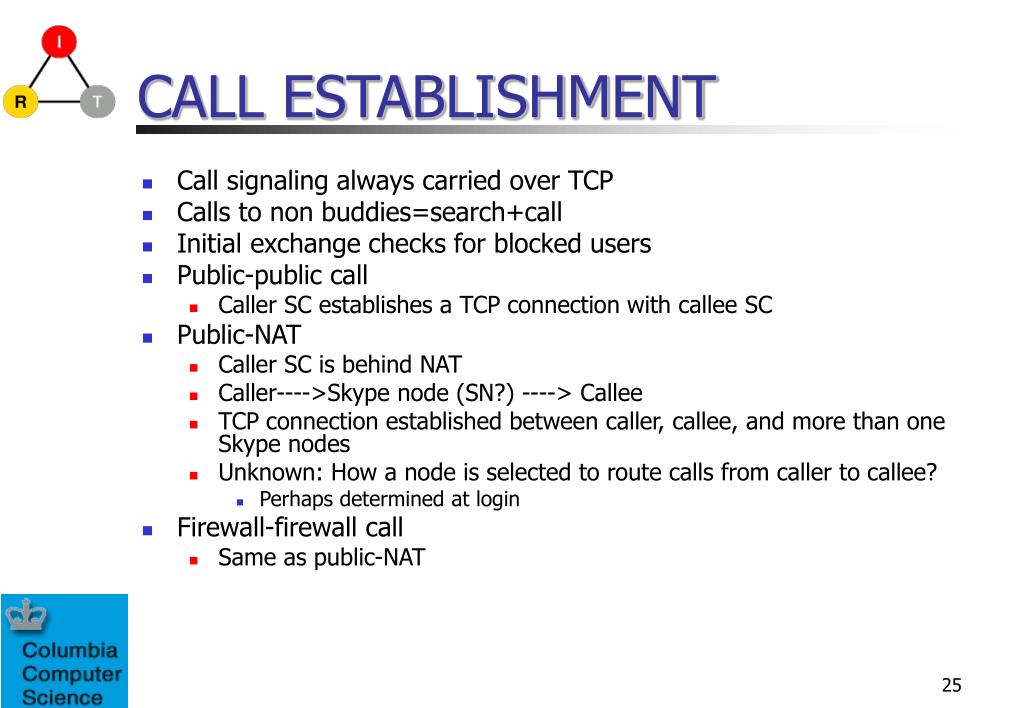

  25. CALL ESTABLISHMENT • Call signaling always carried over TCP • Calls to non buddies=search+call • Initial exchange checks for blocked users • Public-public call • Caller SC establishes a TCP connection with callee SC • Public-NAT • Caller SC is behind NAT • Caller---->Skype node (SN?) ----> Callee • TCP connection established between caller, callee, and more than one Skype nodes • Unknown: How a node is selected to route calls from caller to callee? • Perhaps determined at login • Firewall-firewall call • Same as public-NAT

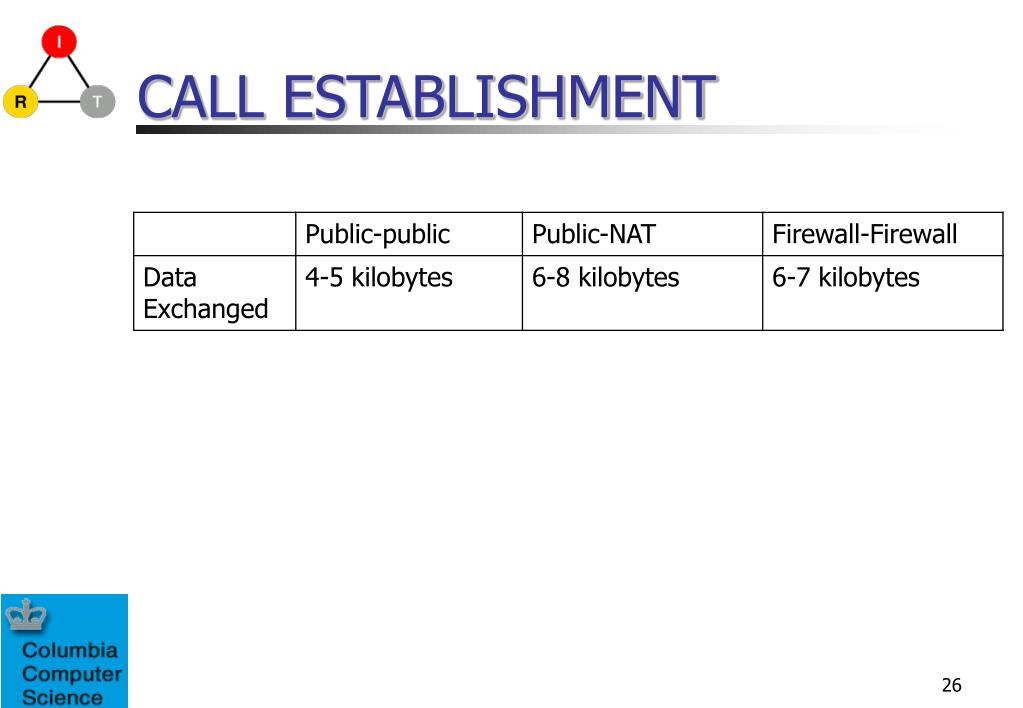

  26. CALL ESTABLISHMENT

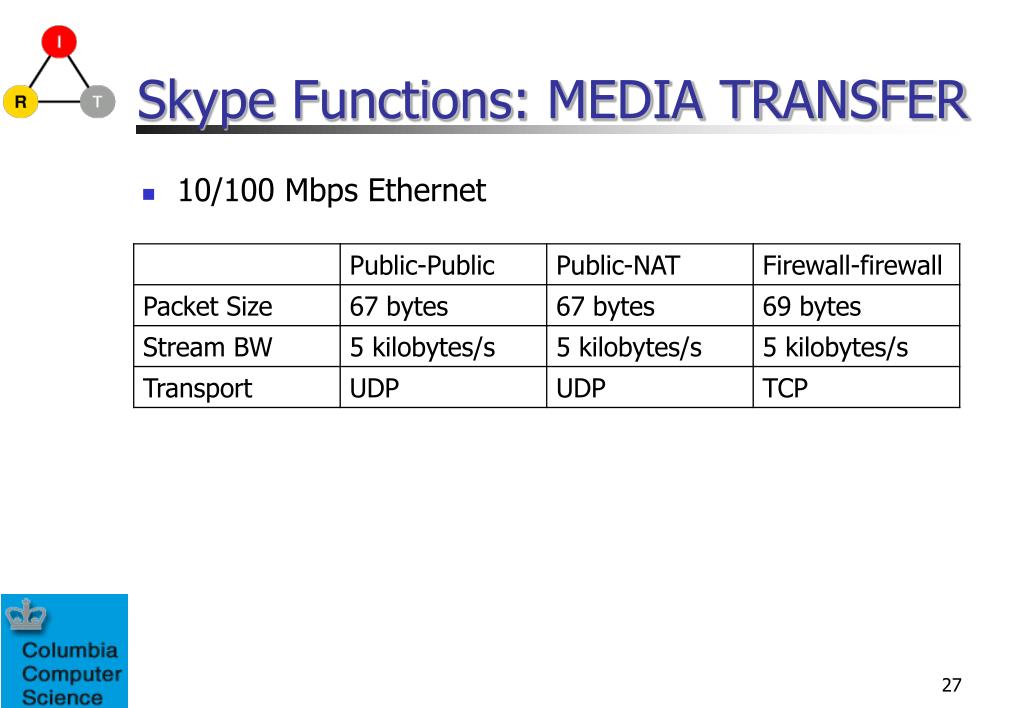

  27. Skype Functions: MEDIA TRANSFER • 10/100 Mbps Ethernet

  28. Skype Functions: MEDIA TRANSFER • No silence suppression • Silence packets are used to • play background noise at the peer • maintain UDP NAT binding • avoid drop in the TCP congestion window • Putting a call on hold • 3 packets/sec to call-peer or Skype node • same reasons as above • Codec frequency range • 50-8,000 Hz (total bw of 3 kilobytes/s) • Reasonable call quality at (4 kilobytes/s)

  29. Skype Functions: KEEP ALIVE • Refresh message over TCP to SN every 60 seconds • Refresh message size: 60 bytes

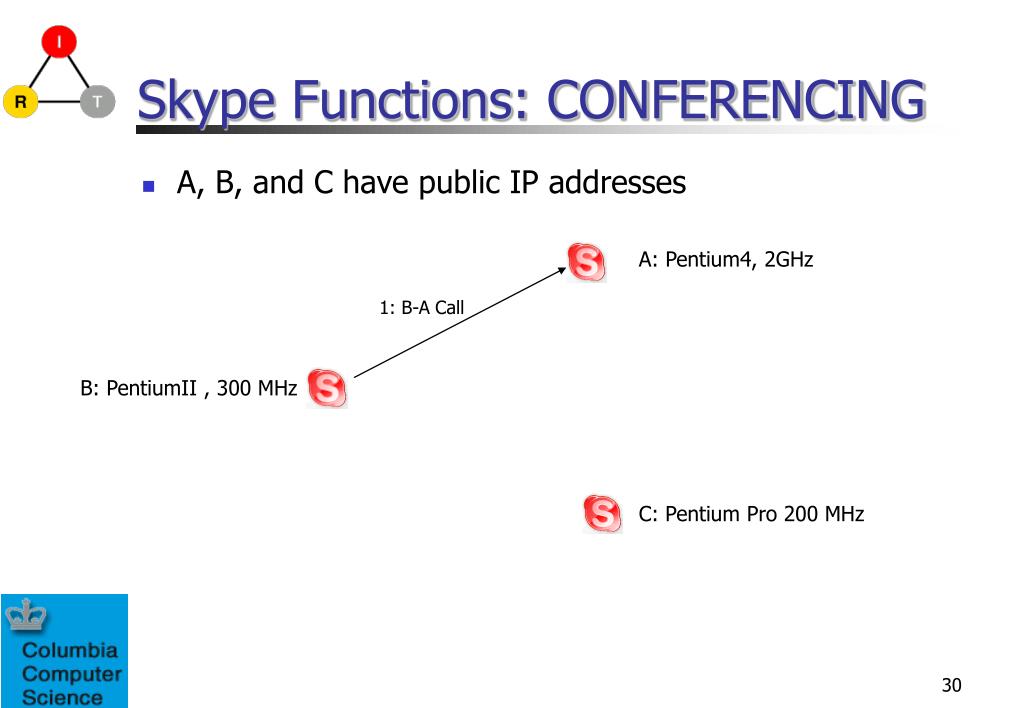

  30. Skype Functions: CONFERENCING • A, B, and C have public IP addresses A: Pentium4, 2GHz 1: B-A Call B: PentiumII , 300 MHz C: Pentium Pro 200 MHz

  31. Skype Functions: CONFERENCING • A, B, and C have public IP addresses A: Pentium4, 2GHz 1: B-A Call B: PentiumII , 300 MHz 2: B-C Call C: Pentium Pro 200 MHz

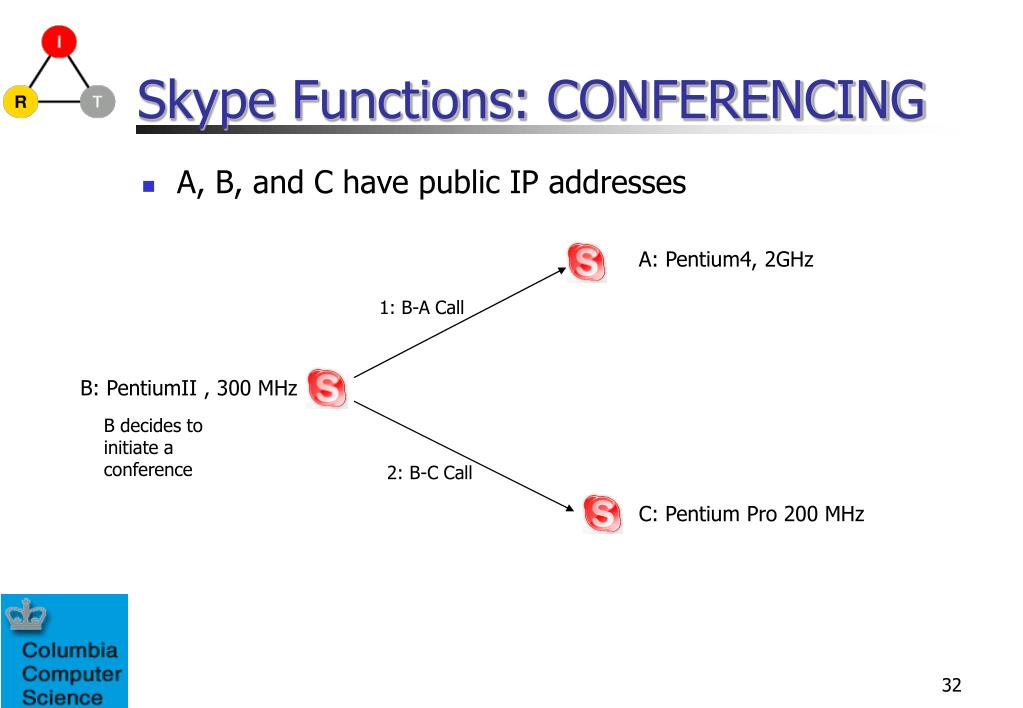

  32. Skype Functions: CONFERENCING • A, B, and C have public IP addresses A: Pentium4, 2GHz 1: B-A Call B: PentiumII , 300 MHz B decides to initiate a conference 2: B-C Call C: Pentium Pro 200 MHz

  33. Skype Functions: CONFERENCING • A, B, and C have public IP addresses A: Pentium4, 2GHz B A+C B: PentiumII , 300 MHz C A+B C: Pentium Pro 200 MHz

  34. Skype Functions: CONFERENCING • B and C are behind NAT. A has public IP addresses B A: Pentium4, 2GHz Online Skype node A 1: B-A Call A B B: PentiumII , 300 MHz C: Pentium Pro 200 MHz

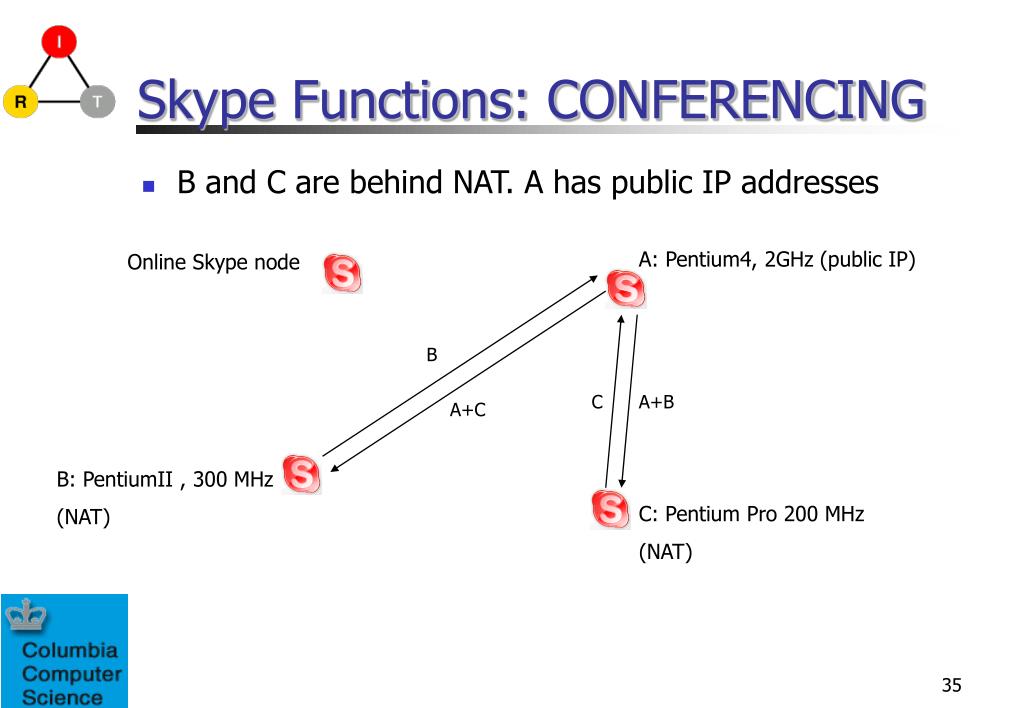

  35. Skype Functions: CONFERENCING • B and C are behind NAT. A has public IP addresses A: Pentium4, 2GHz (public IP) Online Skype node B C A+B A+C B: PentiumII , 300 MHz (NAT) C: Pentium Pro 200 MHz (NAT)

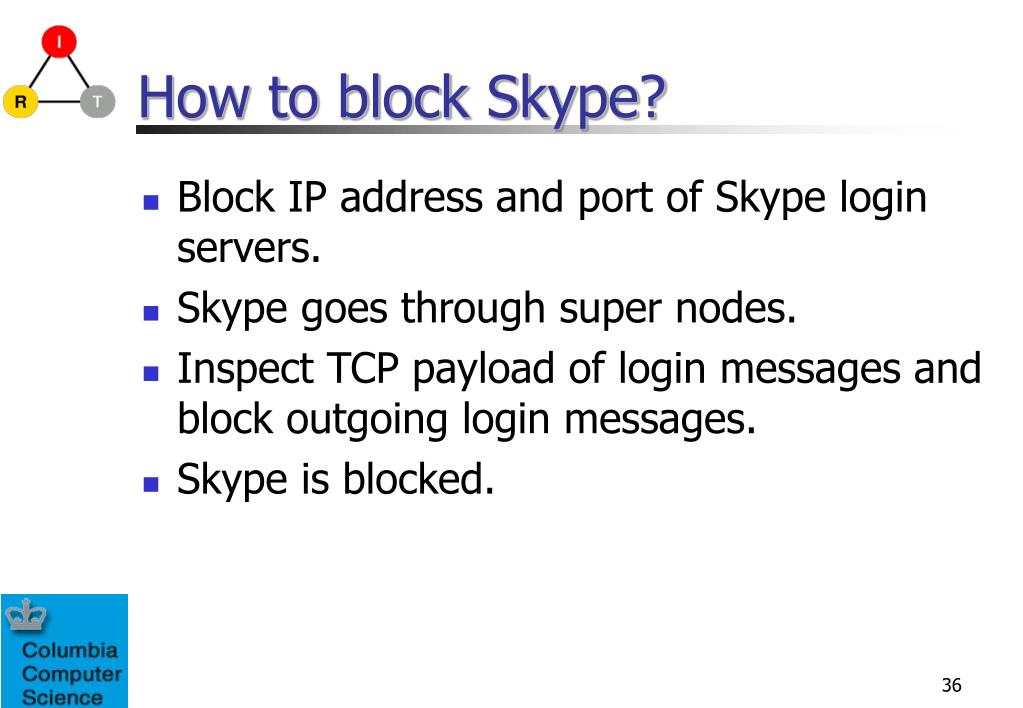

  36. How to block Skype? • Block IP address and port of Skype login servers. • Skype goes through super nodes. • Inspect TCP payload of login messages and block outgoing login messages. • Skype is blocked.

  37. Skype, MSN, and Yahoo

  38. Call / IM Forking • User can login from multiple machines • All Skype instances notified of call arrival • Pickup, cancel at other locations • IMs delivered to all locations

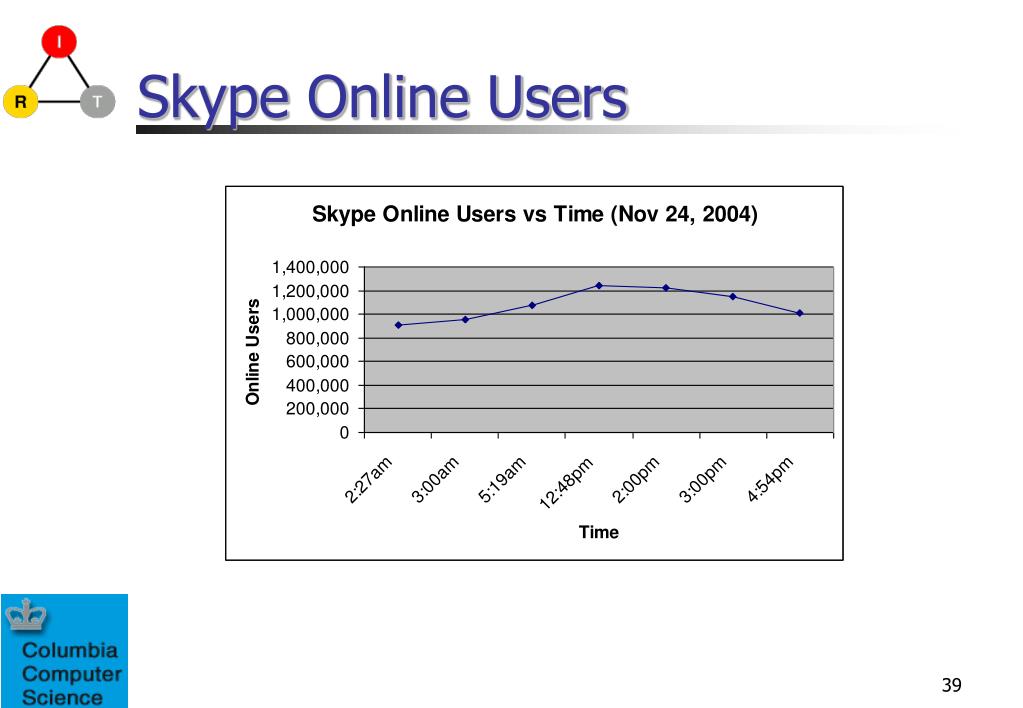

  39. Skype Online Users

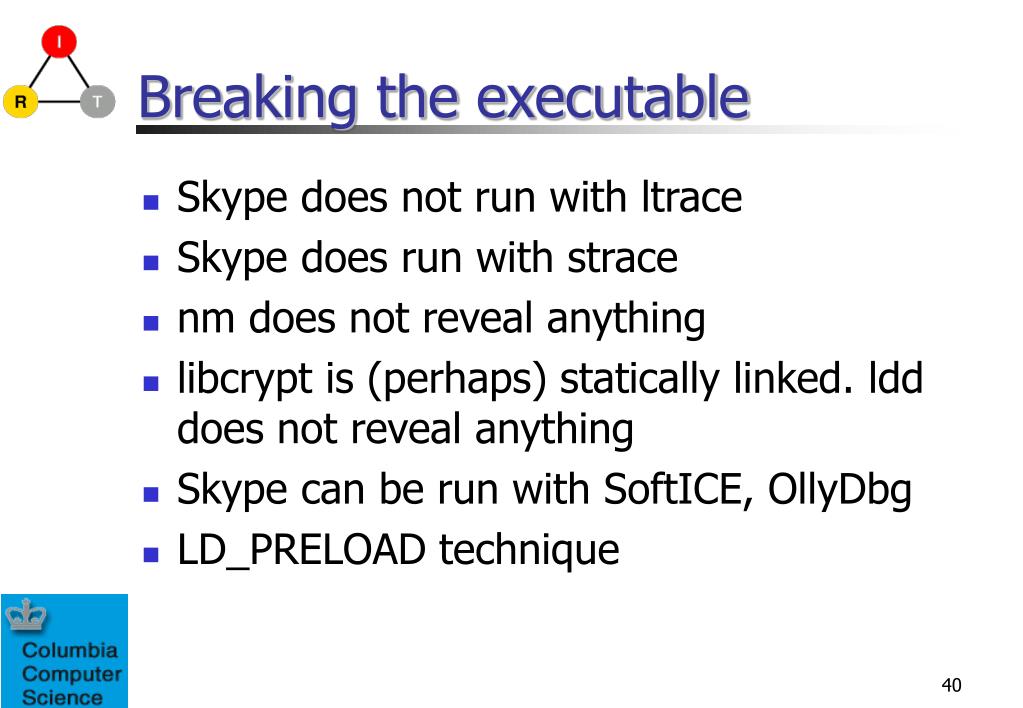

  40. Breaking the executable • Skype does not run with ltrace • Skype does run with strace • nm does not reveal anything • libcrypt is (perhaps) statically linked. ldd does not reveal anything • Skype can be run with SoftICE, OllyDbg • LD_PRELOAD technique

  41. Unanswered questions • How Skype encrypts and decrypts? • SN to SN communication? • One hop or multiple hop media relaying? • How does search terminate if the user is not found?

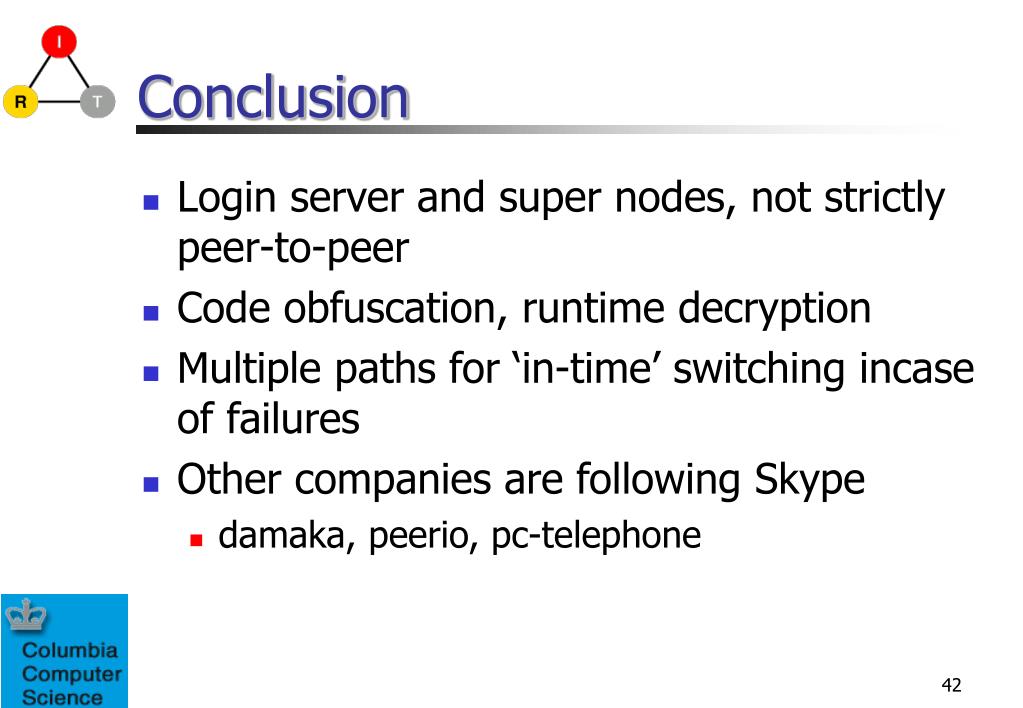

  42. Conclusion • Login server and super nodes, not strictly peer-to-peer • Code obfuscation, runtime decryption • Multiple paths for ‘in-time’ switching incase of failures • Other companies are following Skype • damaka, peerio, pc-telephone

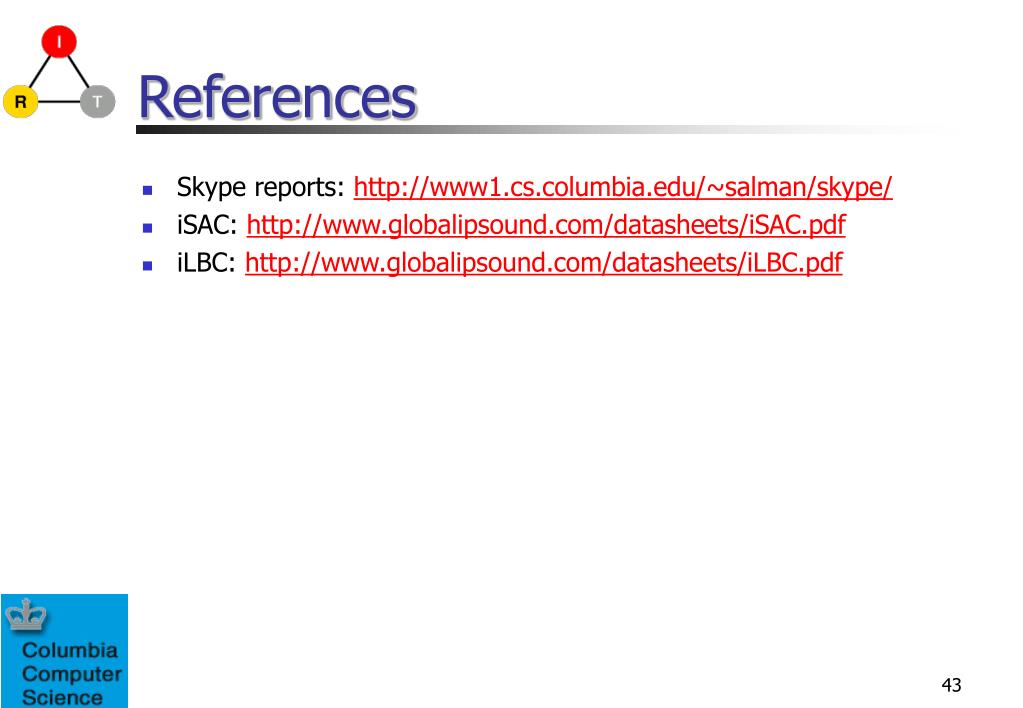

  43. References • Skype reports: http://www1.cs.columbia.edu/~salman/skype/ • iSAC: http://www.globalipsound.com/datasheets/iSAC.pdf • iLBC: http://www.globalipsound.com/datasheets/iLBC.pdf

  44. Questions?
