  1. Thermal-Induced Leakage Power Optimization by Redundant Resource Allocation Min Ni and Seda Ogrenci Memik November 6,2006 EECS Department, Northwestern University, Evanston

  2. Thermal Leakage Coupling • Four main sources of leakage current • Reverse-biased junction leakage current (IREV) • Gate induced drain leakage (IGIDL) • Gate direct tunneling leakage (IG) • Subthreshold (weak inversion) leakage (Isub)

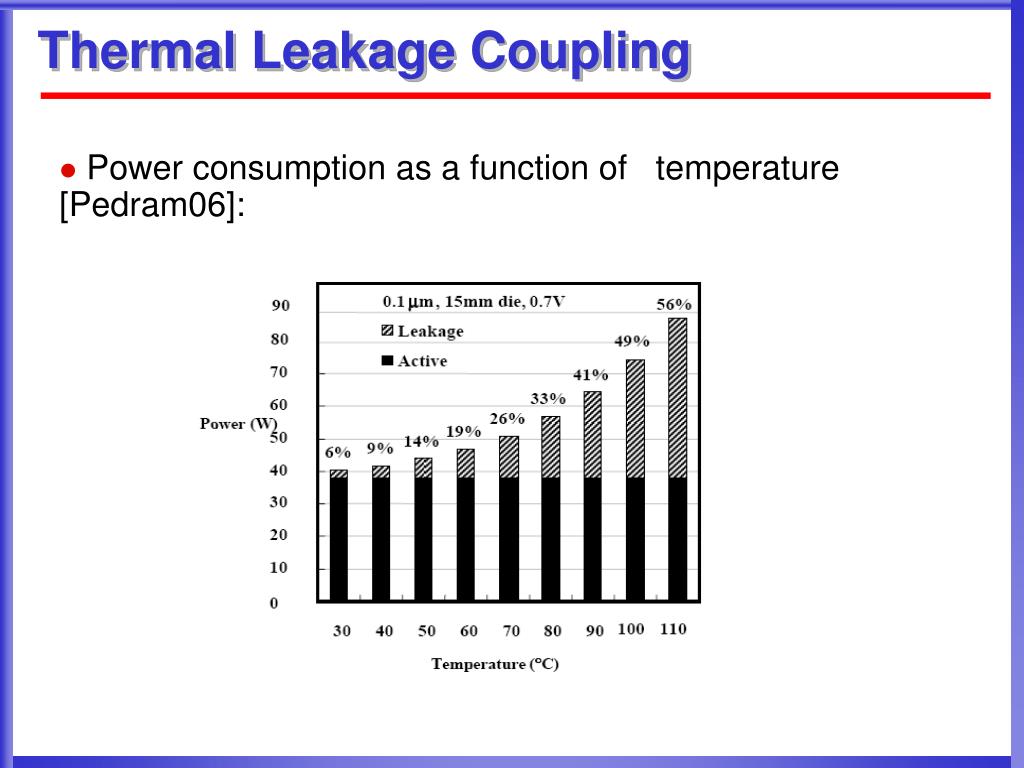

  3. Thermal Leakage Coupling • Power consumption as a function of temperature [Pedram06]:

  4. Previous Work • Low Power Resource Binding • [Chang, DAC95], [Chang, DAC96] • Temperature-aware Resource Binding [Mukherjee, DAC05] • Given Resource Constraint • Given Peak Temperature Constraint

  5. Motivation • Question: how to decide the peak temperature constraint in high-level synthesis? • One possible metric is minimizing the total leakage power • Concept: two-state low power design • Phase one: low leakage power resource allocation • Phase two: low dynamic power resource binding • Modeling: relation between number of resources n, temperature T and total leakage power Pleakage • Solution: find the number of resources, hence, temperature that minimizes the total leakage power

  6. Outline • Leakage estimation model • Curve fitting • Heat transfer for leakage estimation • Redundant resource allocation • Resource dynamic power • Estimating the package properties • Steady state temperature • Experimental results

  7. Leakage Modeling • Analytic Model • Curve fitting • Exact Lagrange’s interpolation:

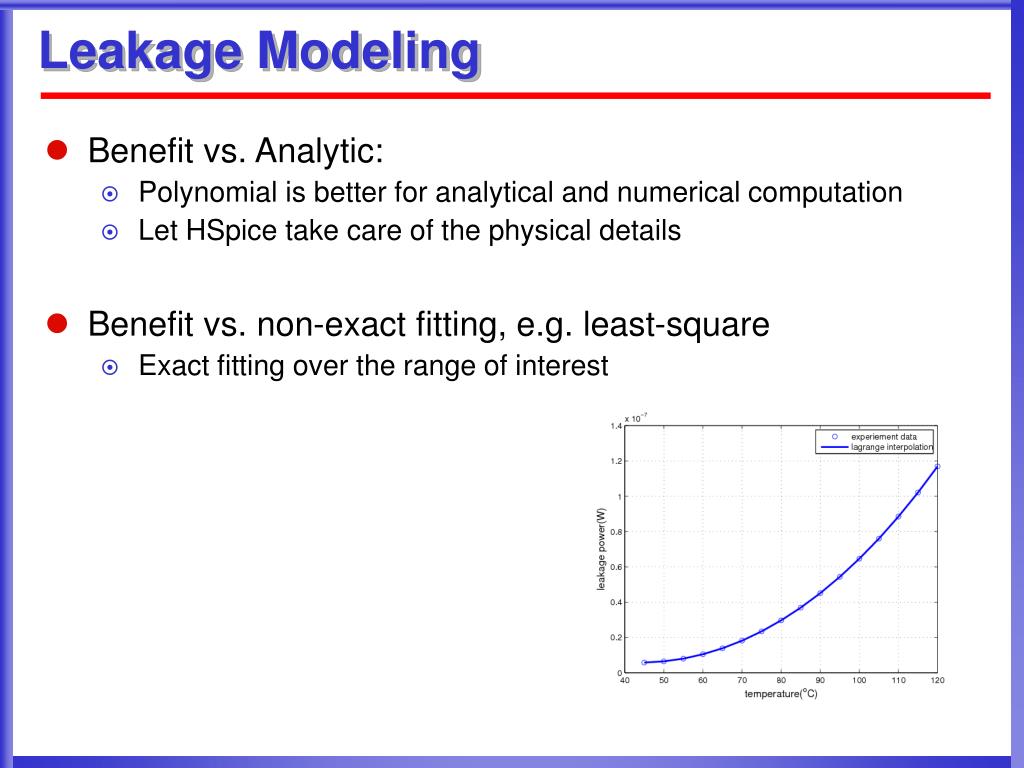

  8. Leakage Modeling • Benefit vs. Analytic: • Polynomial is better for analytical and numerical computation • Let HSpice take care of the physical details • Benefit vs. non-exact fitting, e.g. least-square • Exact fitting over the range of interest

  9. Heat Transfer Modeling • The basic relation between power density, heat transfer coefficient and temperature [Im, IEDM00] • Temperature evaluation based on dynamic power, which assumes to be a constant value

  10. Heat Transfer Modeling • Actual power • The situation becomes more complicated after adding the leakage power • Leakage power scaling based on the area of resource • F = 250 for 16-bit multiplier with area = 2107.54 • F = 80 for 32-bit adder with area = 665.77

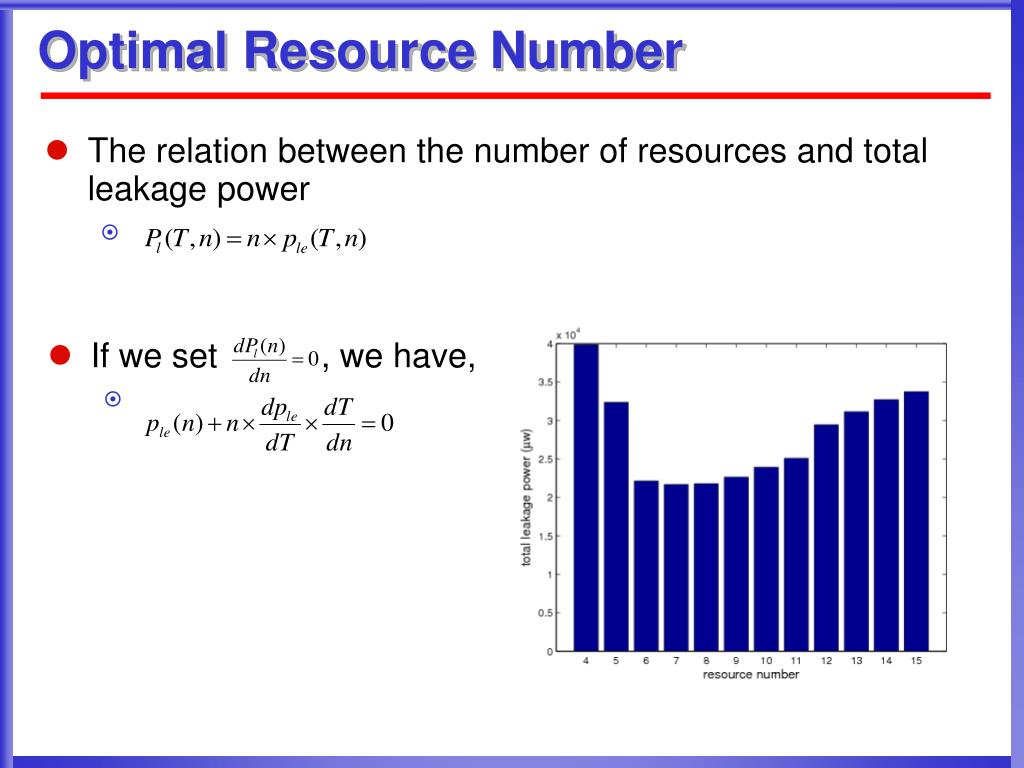

  11. Optimal Resource Number • The relation between the number of resources and total leakage power • If we set , we have,

  12. What’s Next • Given the number of resources n, the subproblem becomes solving the following equation • Here, we still have two unknown values • Dynamic power Pd • Heat transfer coefficient h • Our goal is to decide n, which minimizes the following • Pleakage = n*Lp(Tx)

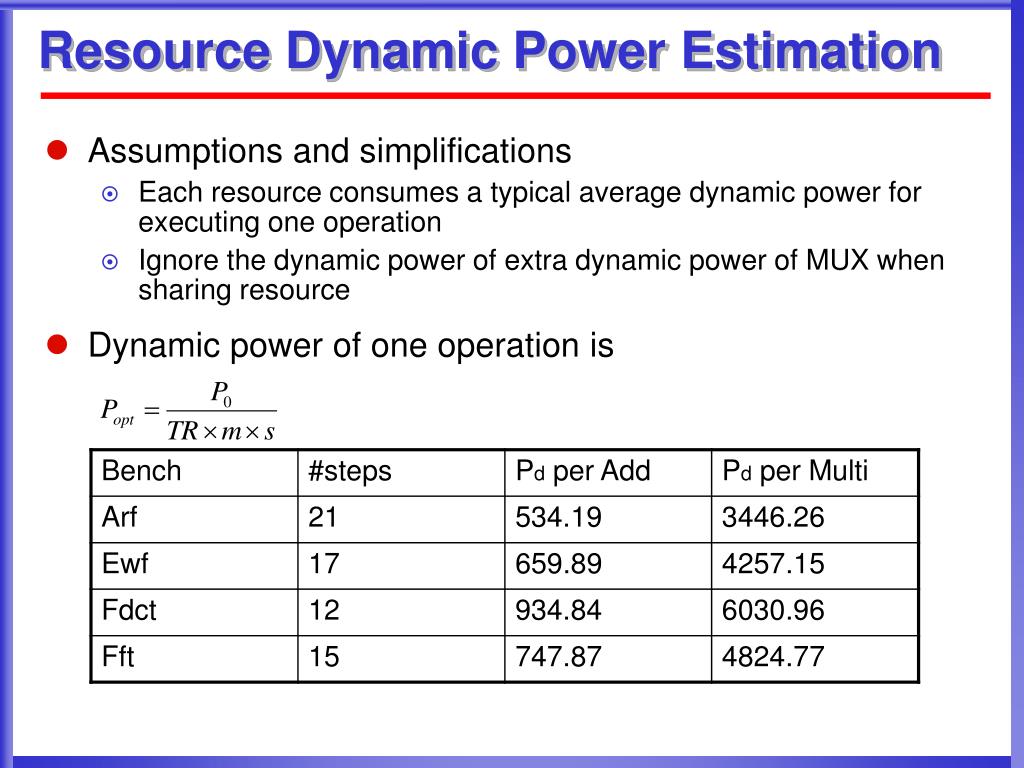

  13. Resource Dynamic Power Estimation • Assumptions and simplifications • Each resource consumes a typical average dynamic power for executing one operation • Ignore the dynamic power of extra dynamic power of MUX when sharing resource • Dynamic power of one operation is

  14. Estimating the Package Properties • Tradeoff between heat transfer coefficient and cost • Thermal runaway • Maximum h (minimum cost) package • Find the maximum h • Binary search • Two Initial points

  15. Steady State Temperature • Solve the following equation by secant method • Secant method, no explicit derivative is needed • Initial point

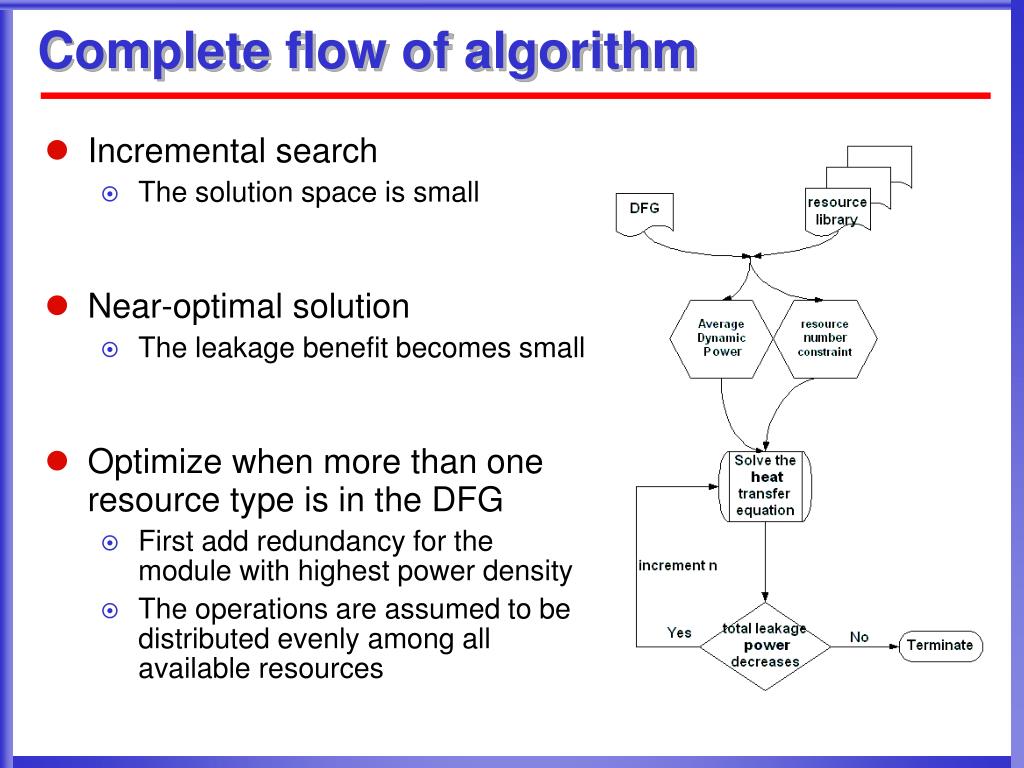

  16. Complete flow of algorithm • Incremental search • The solution space is small • Near-optimal solution • The leakage benefit becomes small • Optimize when more than one resource type is in the DFG • First add redundancy for the module with highest power density • The operations are assumed to be distributed evenly among all available resources

  17. Experiment results • Resources used in the experiments • Scaling from 180nm down to 70nm by full-scale methodology • Benchmarks are popular DSP and multimedia kernels [Mangione-Smith, Micro97], example “arf”,

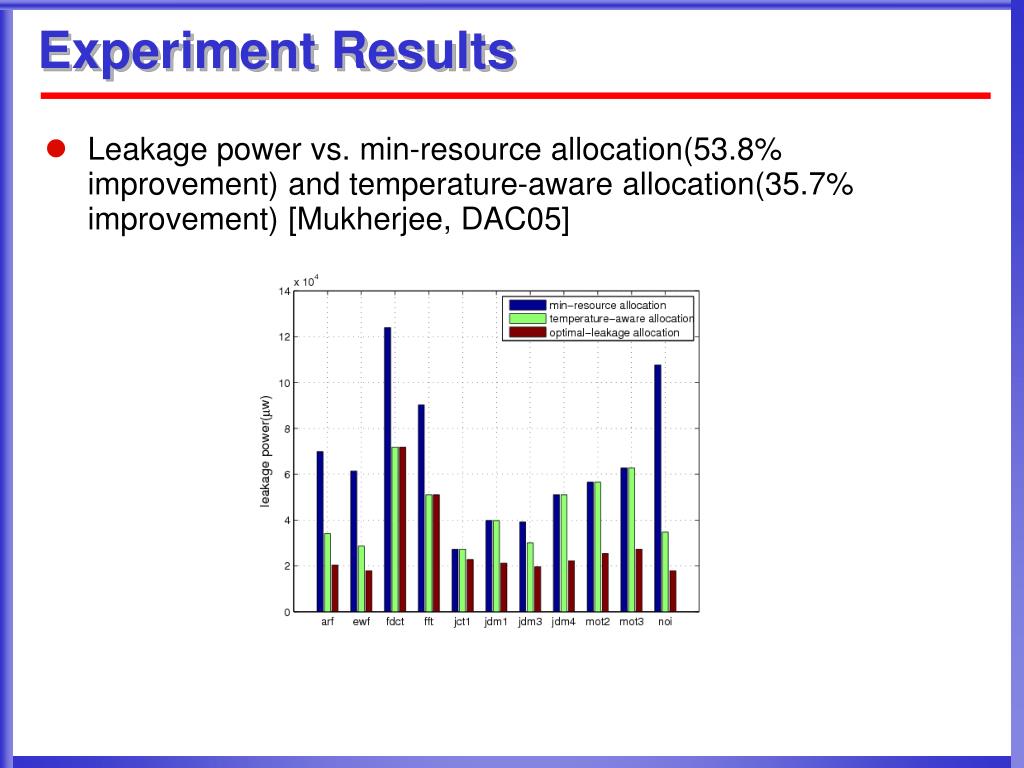

  18. Experiment Results • Leakage power vs. min-resource allocation(53.8% improvement) and temperature-aware allocation(35.7% improvement) [Mukherjee, DAC05]

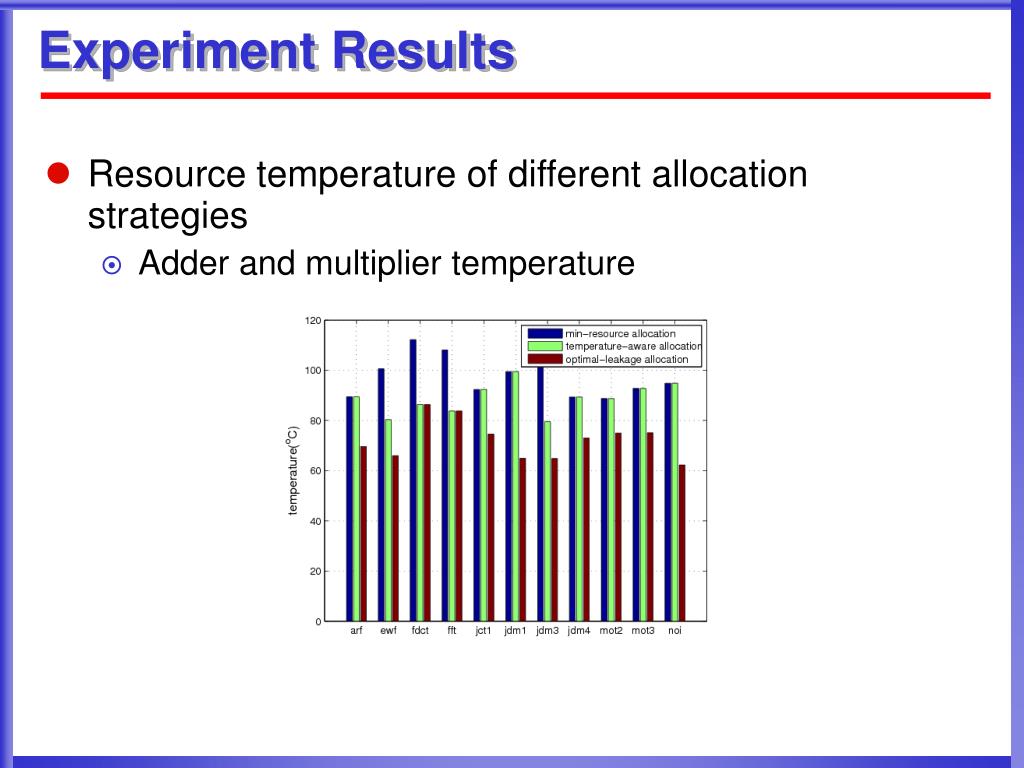

  19. Experiment Results • Resource temperature of different allocation strategies • Adder and multiplier temperature

  20. Conclusions • The contribution of this paper includes: • A paradigm for two-stage low power resource allocation and binding methodology • A simple leakage estimation model in high-level synthesis design phase • A leakage optimizing algorithm trading off resource area with total leakage power Thank you
