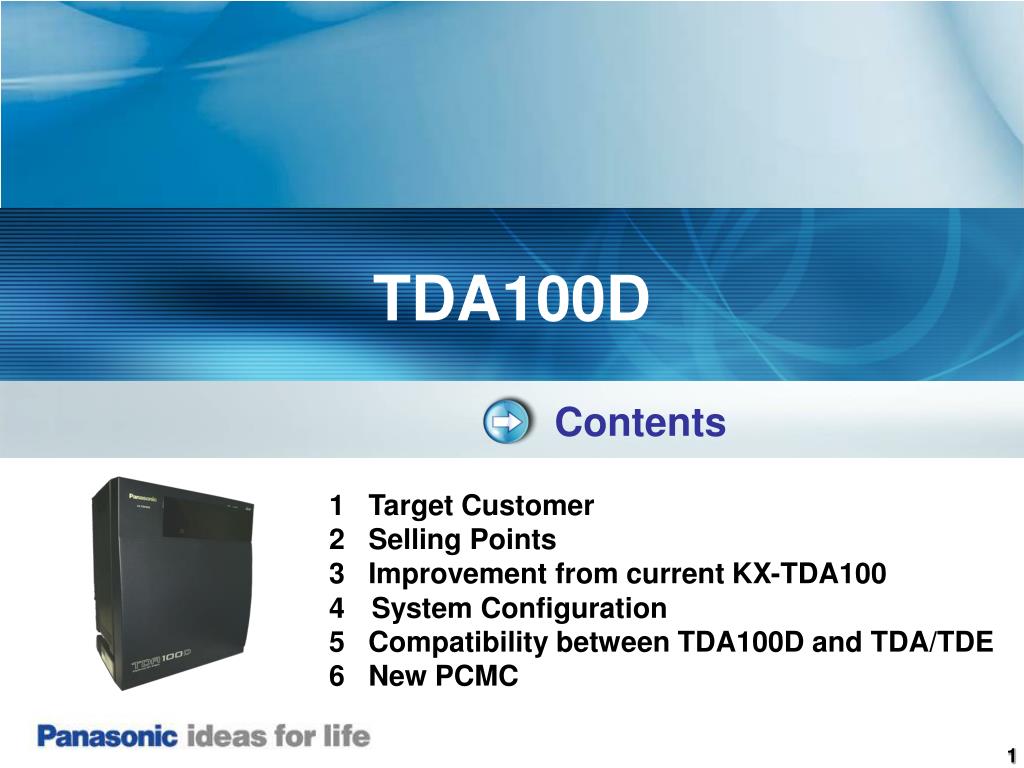

  1. TDA100D Contents 1 Target Customer 2 Selling Points3 Improvement from current KX-TDA1004System Configuration 5 Compatibility between TDA100D and TDA/TDE 6 New PCMC

  2. 1. Target Customer

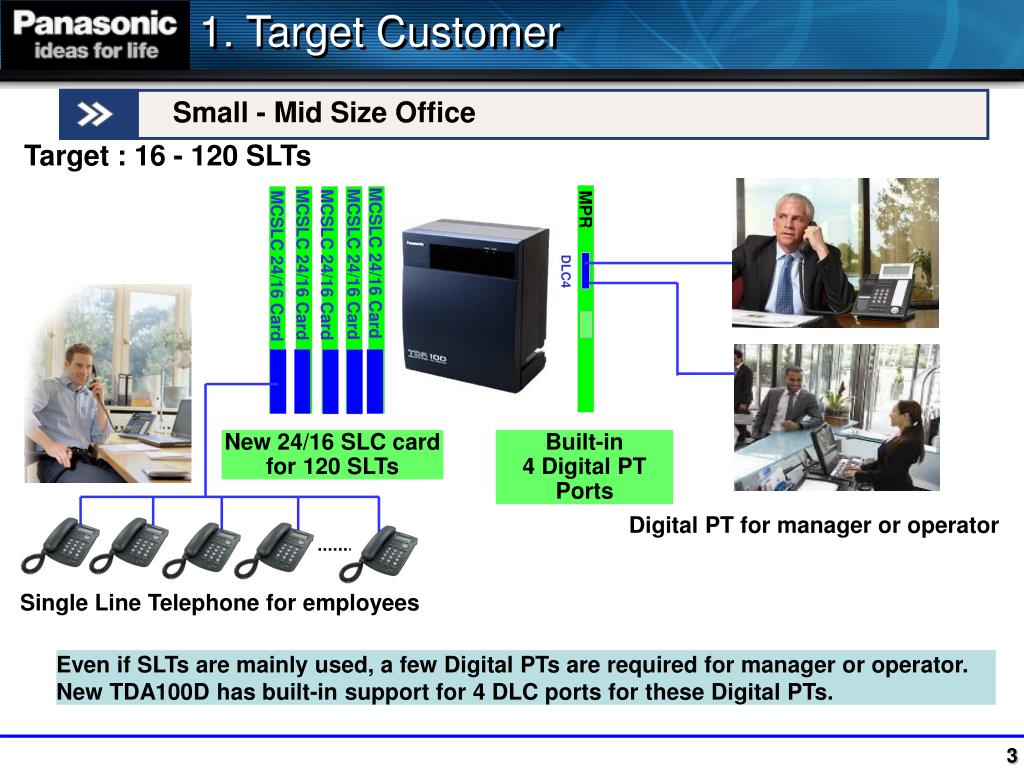

  3. 1. Target Customer Solutions >> Small - Mid Size Office Target : 16 - 120 SLTs MPR MCSLC 24/16 Card MCSLC 24/16 Card MCSLC 24/16 Card MCSLC 24/16 Card MCSLC 24/16 Card DLC4 New 24/16 SLC cardfor 120 SLTs Built-in4 Digital PT Ports Digital PT for manager or operator Single Line Telephone for employees Even if SLTs are mainly used, a few Digital PTs are required for manager or operator.New TDA100D has built-in support for 4 DLC ports for these Digital PTs.

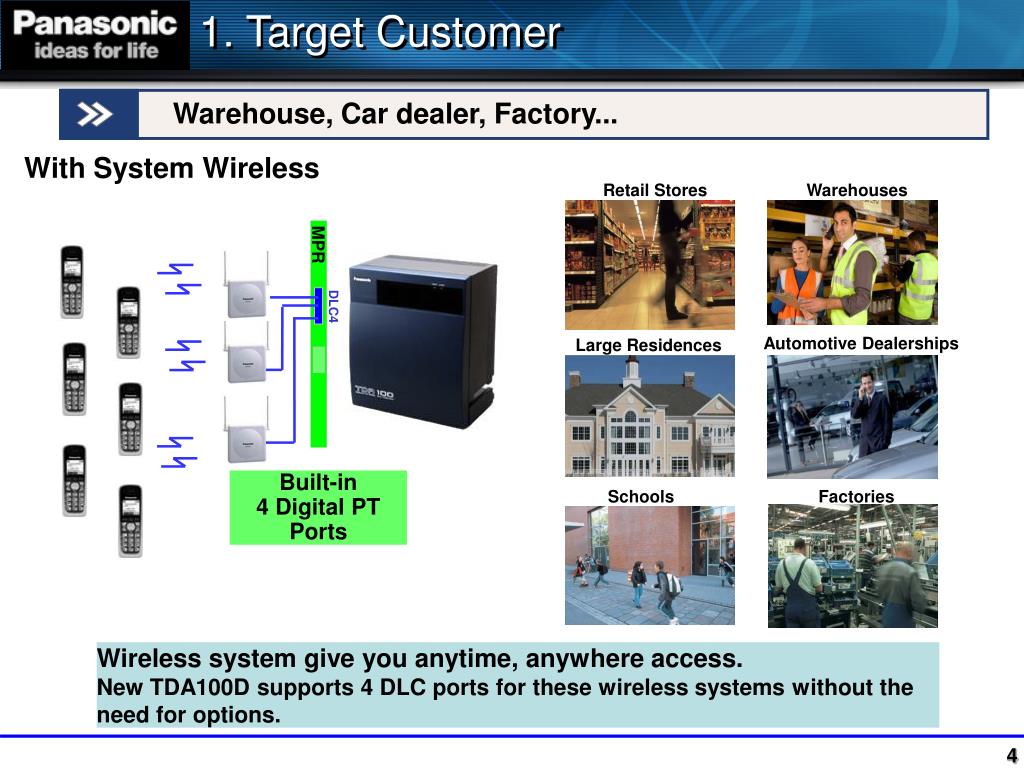

  4. 1. Target Customer Solutions >> Warehouse, Car dealer, Factory... With System Wireless Retail Stores Warehouses MPR DLC4 Automotive Dealerships Large Residences Built-in4 Digital PT Ports Schools Factories Wireless system give you anytime, anywhere access. New TDA100D supports 4 DLC ports for these wireless systems without the need for options.

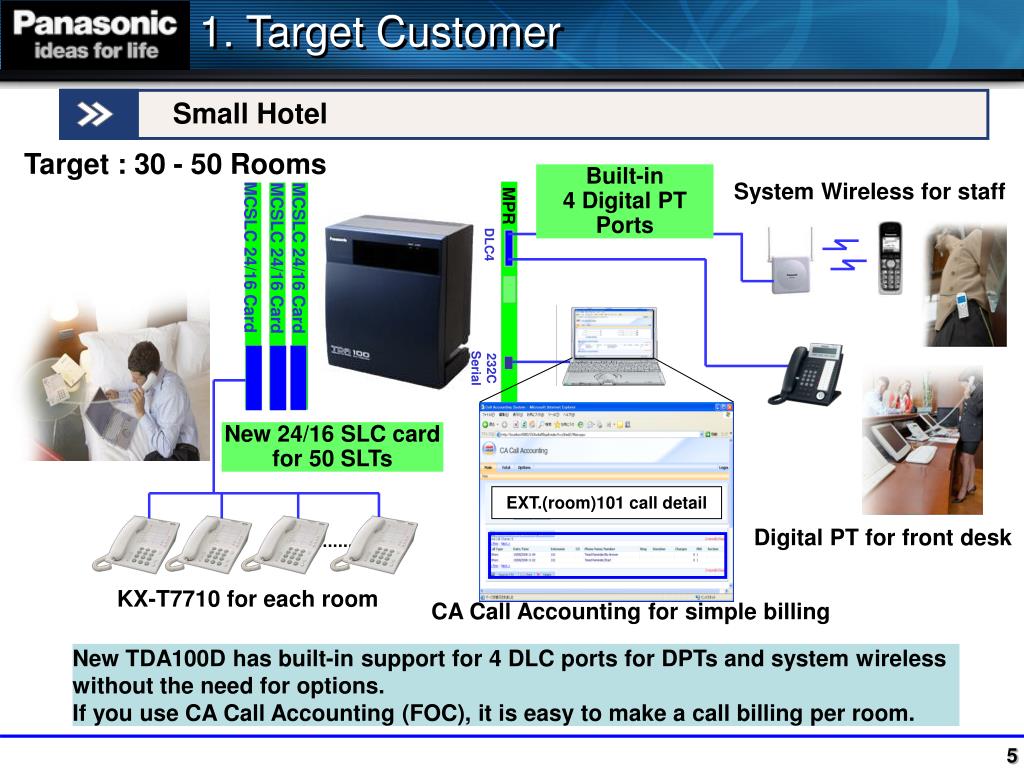

  5. 1. Target Customer Solutions >> Small Hotel Target : 30 - 50 Rooms Built-in4 Digital PT Ports System Wireless for staff MPR DLC4 MCSLC 24/16 Card MCSLC 24/16 Card MCSLC 24/16 Card 232C Serial New 24/16 SLC cardfor 50 SLTs EXT.(room)101 call detail Digital PT for front desk KX-T7710 for each room CA Call Accounting for simple billing New TDA100D has built-in support for 4 DLC ports for DPTs and system wireless without the need for options. If you use CA Call Accounting (FOC), it is easy to make a call billing per room.

  6. 2. Selling Points

  7. 2. Selling Points NO Need New NO Need Solutions >> Simple Installation 【Current TDA100】 【New TDA100D】 Built-in PSU PSU DLC DLC4 For DPITS Programming For Future expansion For Wireless System Provide reasonable wireless system with Built-in DLC and Entry DECT terminal. Built-in DLC4 can be used for DPITS programming without additional DLC. No need for PSU type selection. Built-in New PSU enables future expansion. New Before ProgrammingDPITS Over-Capacity PSU for the Future Expansion. Built-in! CSIF Card DLC Card DLC Card PSU-S SLT Entry DECT

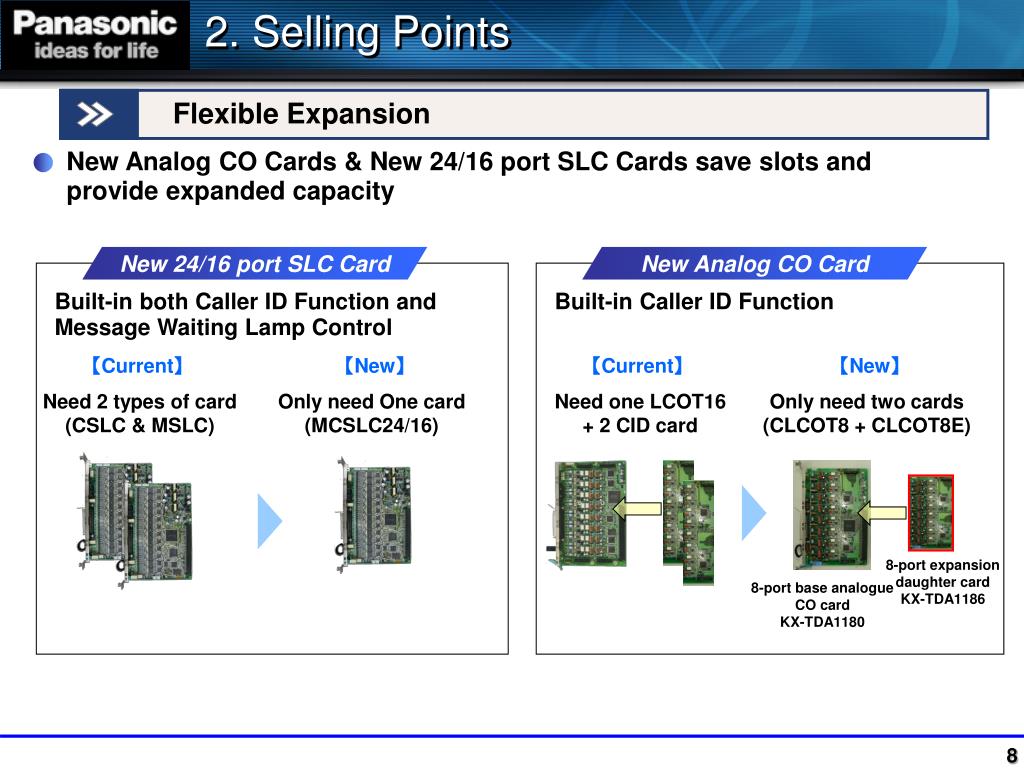

  8. 2. Selling Points Solutions >> Flexible Expansion New Analog CO Cards & New 24/16 port SLC Cards save slots and provide expanded capacity New 24/16 port SLC Card New Analog CO Card Built-in both Caller ID Function and Message Waiting Lamp Control Built-in Caller ID Function 【Current】 【New】 【Current】 【New】 Need 2 types of card (CSLC & MSLC) Only need One card (MCSLC24/16) Need one LCOT16 + 2 CID card Only need two cards (CLCOT8 + CLCOT8E) 8-port expansion daughter cardKX-TDA1186 8-port base analogue CO cardKX-TDA1180

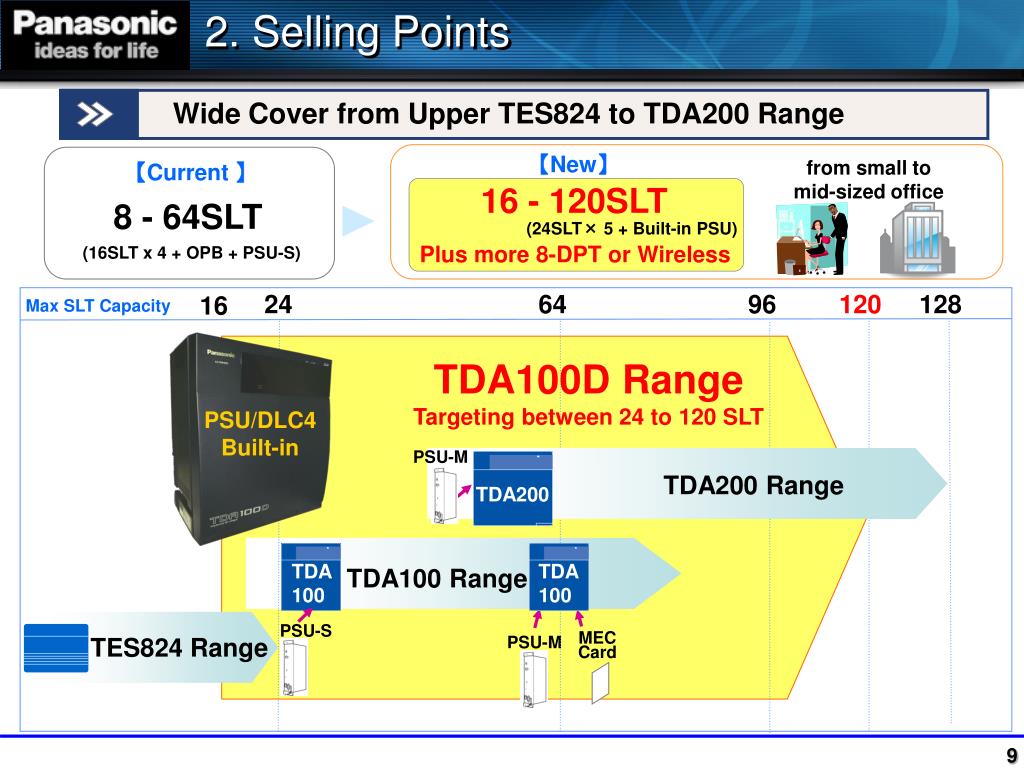

  9. 2. Selling Points Solutions >> Wide Cover from Upper TES824 to TDA200 Range 【New】 from small to mid-sized office 【Current 】 16 - 120SLT 8 - 64SLT (24SLT× 5 + Built-in PSU) Plus more8-DPT or Wireless (16SLT x 4 + OPB + PSU-S) 24 64 96 120 128 16 Max SLT Capacity TDA100D Range Targeting between 24 to 120 SLT PSU/DLC4Built-in PSU-M TDA200 Range TDA200 TDA100 TDA100 TDA100 Range PSU-S TES824 Range PSU-M MECCard

  10. 3. Improvements from Current KX-TDA100

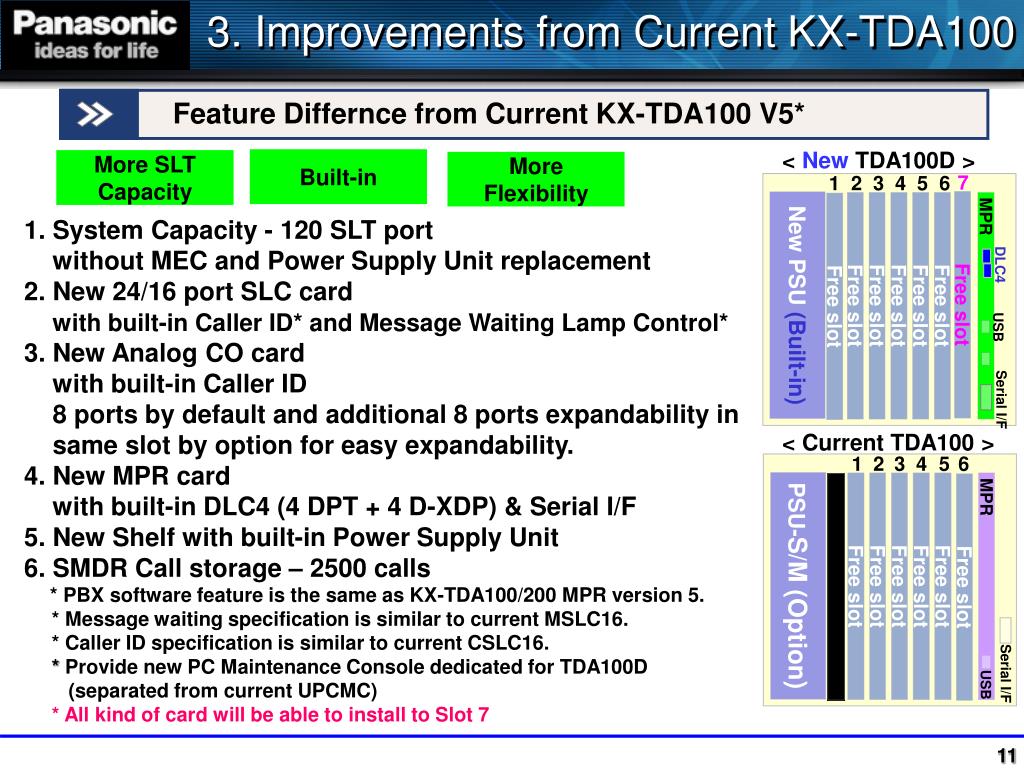

  11. 3. Improvements from Current KX-TDA100 Solutions >> Feature Differnce from Current KX-TDA100 V5* < New TDA100D > Built-in More SLT Capacity MoreFlexibility 7 1 2 3 4 5 6 Free slot New PSU (Built-in) Free slot Free slot Free slot Free slot Free slot MPR Free slot 1. System Capacity - 120 SLT port without MEC and Power Supply Unit replacement 2. New 24/16 port SLC card with built-in Caller ID* and Message Waiting Lamp Control* 3. New Analog CO card with built-in Caller ID 8 ports by default and additional 8 ports expandability in same slot by option for easy expandability. 4. New MPR card with built-in DLC4 (4 DPT + 4 D-XDP) & Serial I/F 5. New Shelf with built-in Power Supply Unit 6. SMDR Call storage – 2500 calls * PBX software feature is the same as KX-TDA100/200 MPR version 5. * Message waiting specification is similar to current MSLC16. * Caller ID specification is similar to current CSLC16. * Provide new PC Maintenance Console dedicated for TDA100D (separated from current UPCMC) * All kind of card will be able to install to Slot 7 DLC4 USB Serial I/F < Current TDA100 > 1 2 3 4 5 6 PSU-S/M (Option) Free slot Free slot Free slot Free slot Free slot MPR Free slot Serial I/F USB

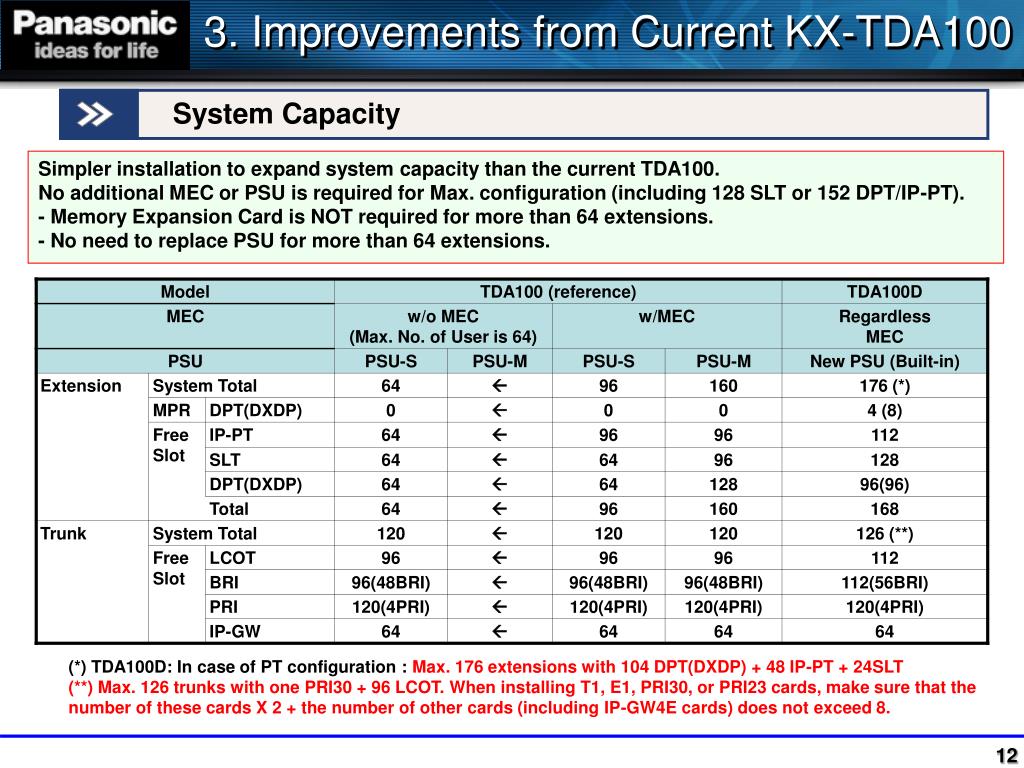

  12. 3. Improvements from Current KX-TDA100 Solutions >> System Capacity Simpler installation to expand system capacity than the current TDA100.No additional MEC or PSU is required for Max. configuration (including 128 SLT or 152 DPT/IP-PT). - Memory Expansion Card is NOT required for more than 64 extensions. - No need to replace PSU for more than 64 extensions. (*) TDA100D: In case of PT configuration : Max. 176 extensions with 104 DPT(DXDP) + 48 IP-PT + 24SLT (**) Max. 126 trunks with one PRI30 + 96 LCOT. When installing T1, E1, PRI30, or PRI23 cards, make sure that the number of these cards X 2 + the number of other cards (including IP-GW4E cards) does not exceed 8.

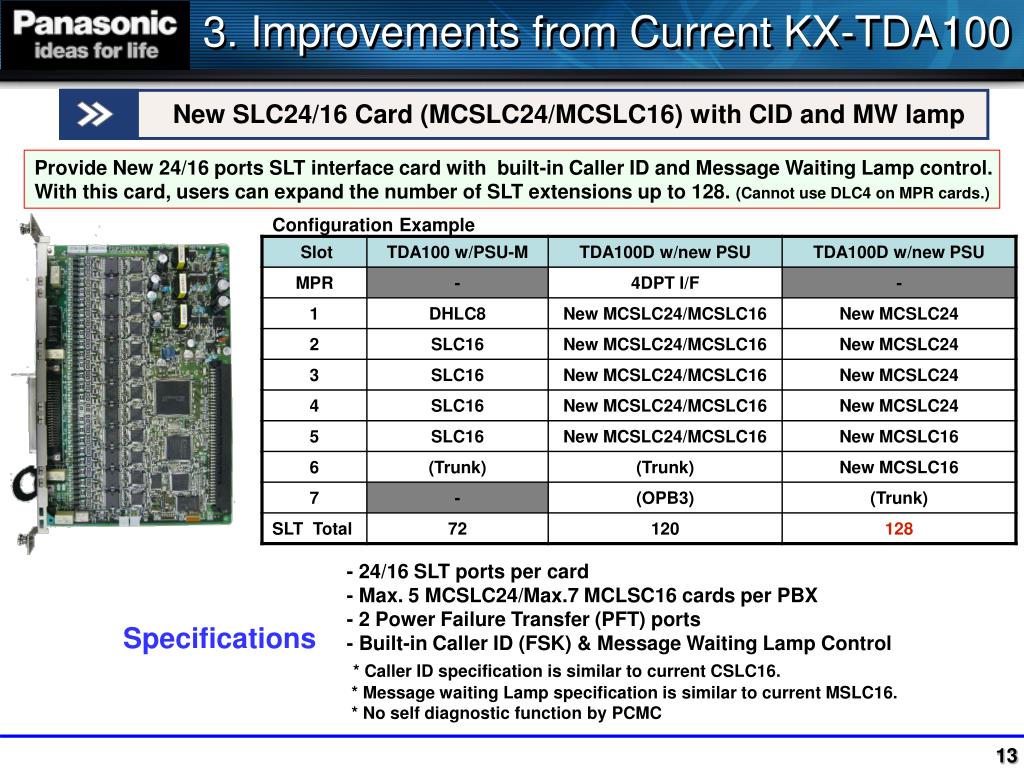

  13. 3. Improvements from Current KX-TDA100 Solutions >> New SLC24/16 Card (MCSLC24/MCSLC16) with CID and MW lamp Provide New 24/16 ports SLT interface card with built-in Caller ID and Message Waiting Lamp control. With this card, users can expand the number of SLT extensions up to 128. (Cannot use DLC4 on MPR cards.) Configuration Example - 24/16 SLT ports per card - Max. 5 MCSLC24/Max.7 MCLSC16 cards per PBX- 2 Power Failure Transfer (PFT) ports - Built-in Caller ID (FSK) & Message Waiting Lamp Control* Caller ID specification is similar to current CSLC16.* Message waiting Lamp specification is similar to current MSLC16. * No self diagnostic function by PCMC Specifications

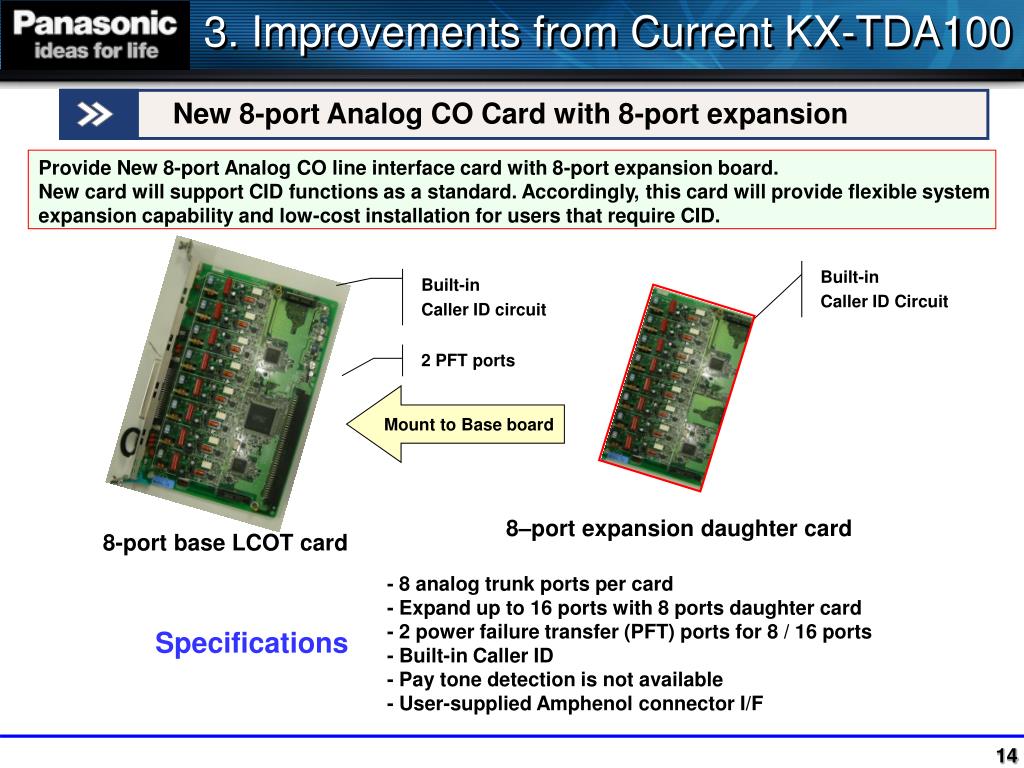

  14. 3. Improvements from Current KX-TDA100 Solutions >> New 8-port Analog CO Card with 8-port expansion Provide New 8-port Analog CO line interface card with 8-port expansion board. New card will support CID functions as a standard. Accordingly, this card will provide flexible system expansion capability and low-cost installation for users that require CID. Built-in Caller ID Circuit Built-in Caller ID circuit 2 PFT ports Mount to Base board 8–port expansion daughter card 8-port base LCOT card - 8 analog trunk ports per card- Expand up to 16 ports with 8 ports daughter card- 2 power failure transfer (PFT) ports for 8 / 16 ports - Built-in Caller ID- Pay tone detection is not available - User-supplied Amphenol connector I/F Specifications

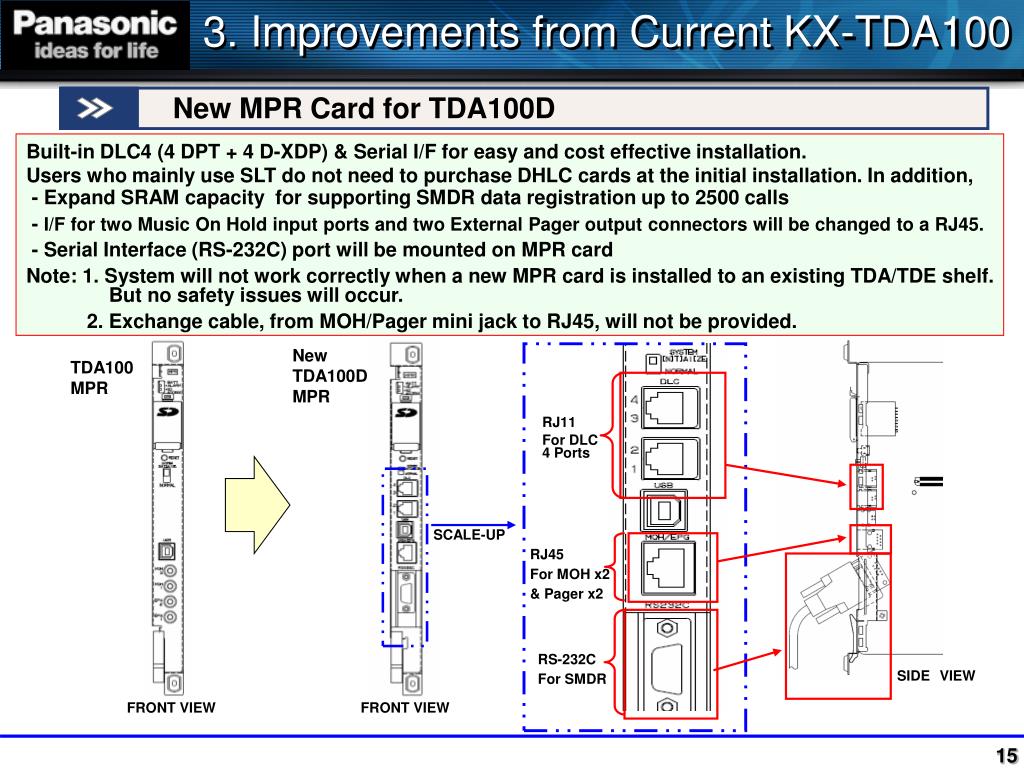

  15. 3. Improvements from Current KX-TDA100 Solutions >> New MPR Card for TDA100D Built-in DLC4 (4 DPT + 4 D-XDP) & Serial I/F for easy and cost effective installation.Users who mainly use SLT do not need to purchase DHLC cards at the initial installation. In addition, - Expand SRAM capacity for supporting SMDR data registration up to 2500 calls - I/F for two Music On Hold input ports and two External Pager output connectors will be changed to a RJ45. - Serial Interface (RS-232C) port will be mounted on MPR card Note: 1. System will not work correctly when a new MPR card is installed to an existing TDA/TDE shelf. But no safety issues will occur. 2. Exchange cable, from MOH/Pager mini jack to RJ45, will not be provided. New TDA100D MPR TDA100 MPR RJ11 For DLC 4 Ports SCALE-UP RJ45 For MOH x2 & Pager x2 RS-232C For SMDR SIDEVIEW FRONT VIEW FRONT VIEW

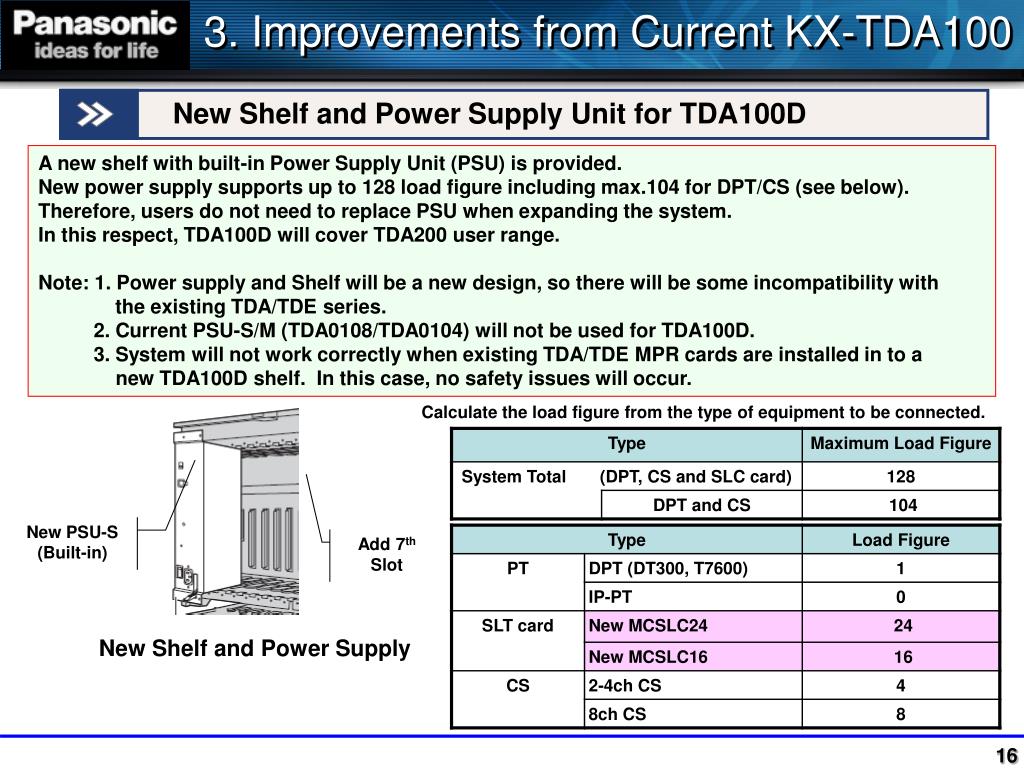

  16. 3. Improvements from Current KX-TDA100 Solutions >> New Shelf and Power Supply Unit for TDA100D A new shelf with built-in Power Supply Unit (PSU) is provided. New power supply supports up to 128 load figure including max.104 for DPT/CS (see below). Therefore, users do not need to replace PSU when expanding the system. In this respect, TDA100D will cover TDA200 user range. Note: 1. Power supply and Shelf will be a new design, so there will be some incompatibility with the existing TDA/TDE series. 2. Current PSU-S/M (TDA0108/TDA0104) will not be used for TDA100D. 3. System will not work correctly when existing TDA/TDE MPR cards are installed in to a new TDA100D shelf. In this case, no safety issues will occur. Calculate the load figure from the type of equipment to be connected. New PSU-S (Built-in) Add 7th Slot New Shelf and Power Supply

  17. 4. System Configuration

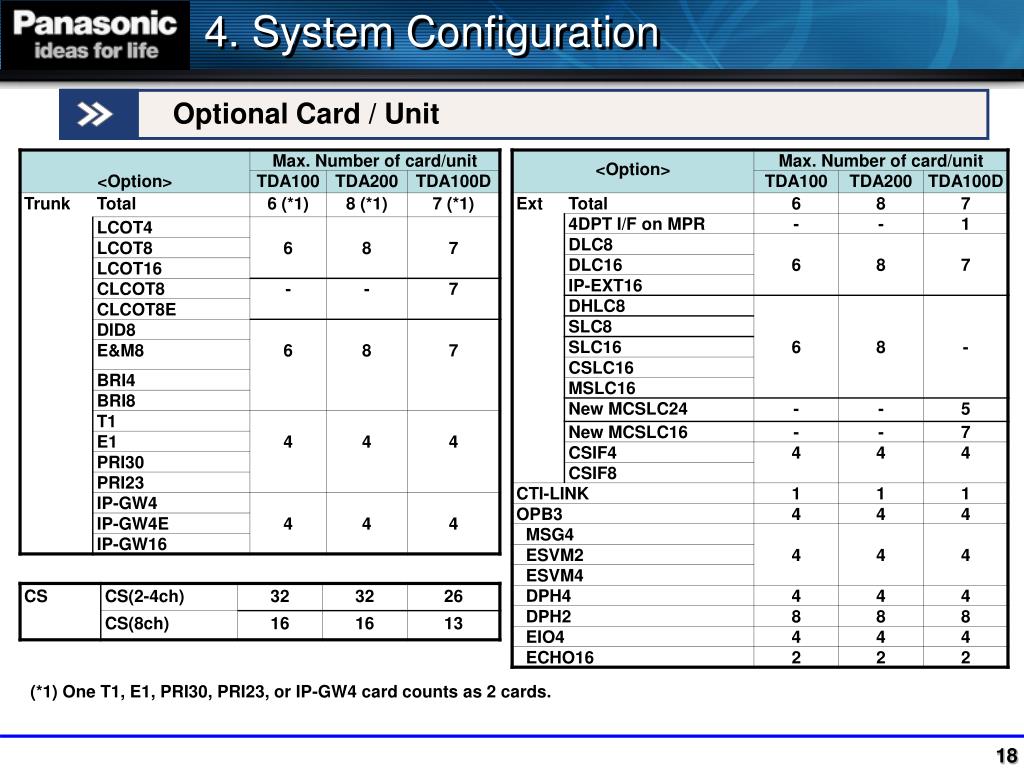

  18. 4. System Configuration Solutions >> Optional Card / Unit (*1) One T1, E1, PRI30, PRI23, or IP-GW4 card counts as 2 cards.

  19. 4. System Configuration Solutions >> SLT Max. Capacity Comparison Analog CO 128 112 96 TDA100 w/ PSU-M & MEC TDA200 w/ PSU-M TDA100 w/ PSU-S 48 Expanded SLT capacity 32 16 SLT 0 64 96 120 128 <CO and SLT capacity chart >

  20. 5. Compatibility between TDA100D and TDA/TDE

  21. 5. Compatibility between TDA100D and TDA/TDE Solutions >> New Cards for existing TDA/TDE system

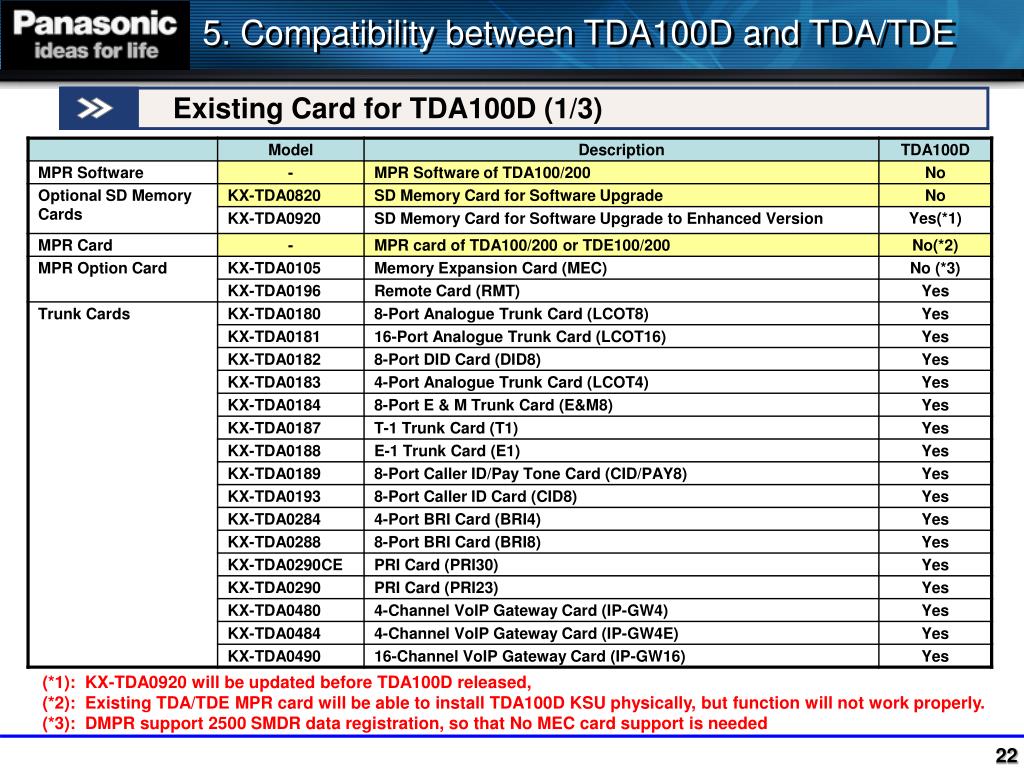

  22. 5. Compatibility between TDA100D and TDA/TDE Solutions >> Existing Card for TDA100D (1/3) (*1): KX-TDA0920 will be updated before TDA100D released, (*2): Existing TDA/TDE MPR card will be able to install TDA100D KSU physically, but function will not work properly. (*3): DMPR support 2500 SMDR data registration, so that No MEC card support is needed

  23. 5. Compatibility between TDA100D and TDA/TDE Solutions >> Existing Card for TDA100D (2/3) (*1): KX-TDA0171,0172 LPR Software will be updated before TDA100D released, so that when users use these existing cards for TDA100D, users must update to new software

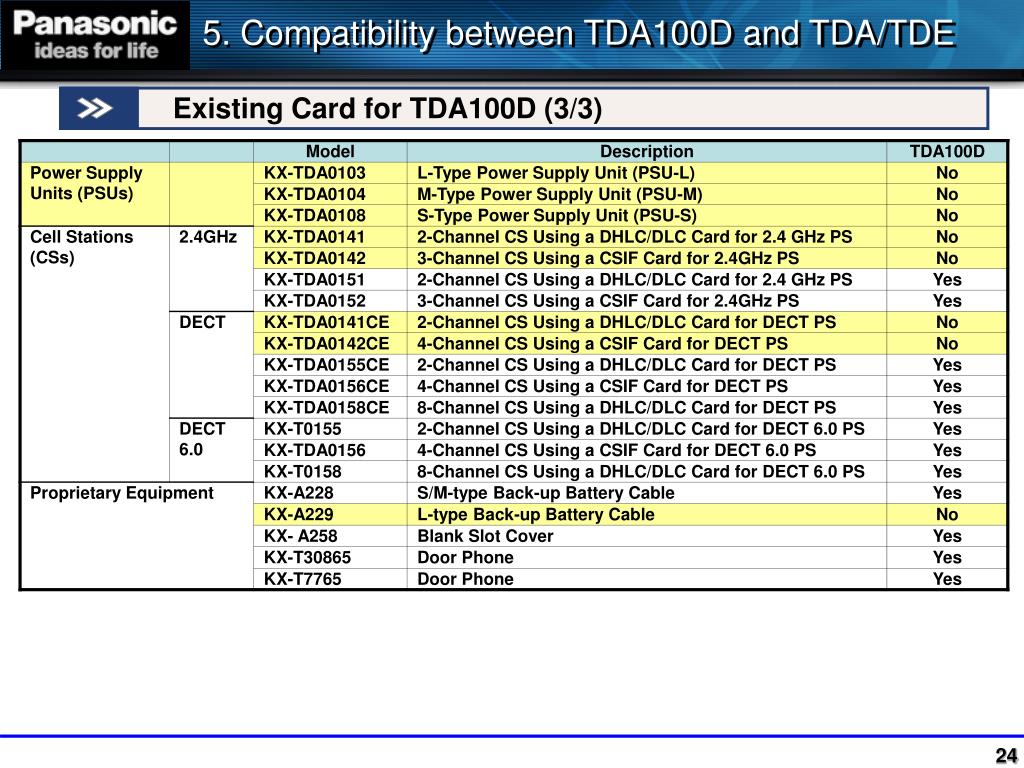

  24. 5. Compatibility between TDA100D and TDA/TDE Solutions >> Existing Card for TDA100D (3/3)

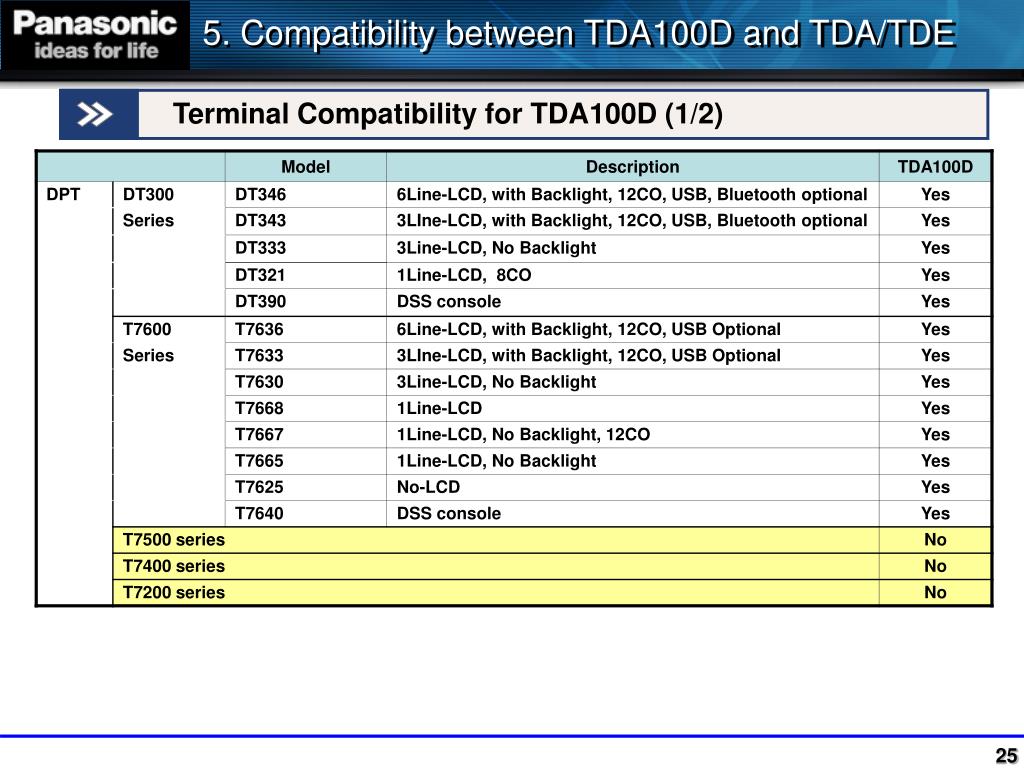

  25. 5. Compatibility between TDA100D and TDA/TDE Solutions >> Terminal Compatibility for TDA100D (1/2)

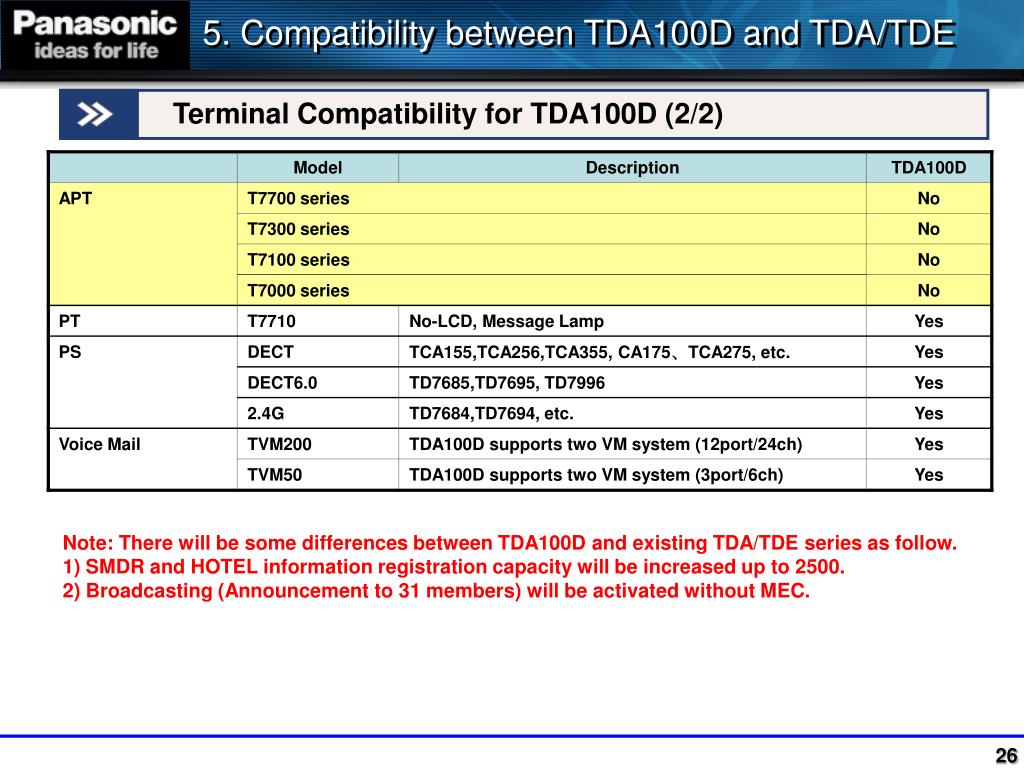

  26. 5. Compatibility between TDA100D and TDA/TDE Solutions >> Terminal Compatibility for TDA100D (2/2) Note: There will be some differences between TDA100D and existing TDA/TDE series as follow. 1) SMDR and HOTEL information registration capacity will be increased up to 2500. 2) Broadcasting (Announcement to 31 members) will be activated without MEC.

  27. 6. New PCMC

  28. 6. New PCMC Solutions >> Dedicated PCMC for TDA100D "Multi-Site PBX Manager“ not supported Displayed only as the "TDA100D" icon in the "New" window.

  29. End of Document
