  1. NFIRS 3 - Structure Fire Module is used for fires in buildings

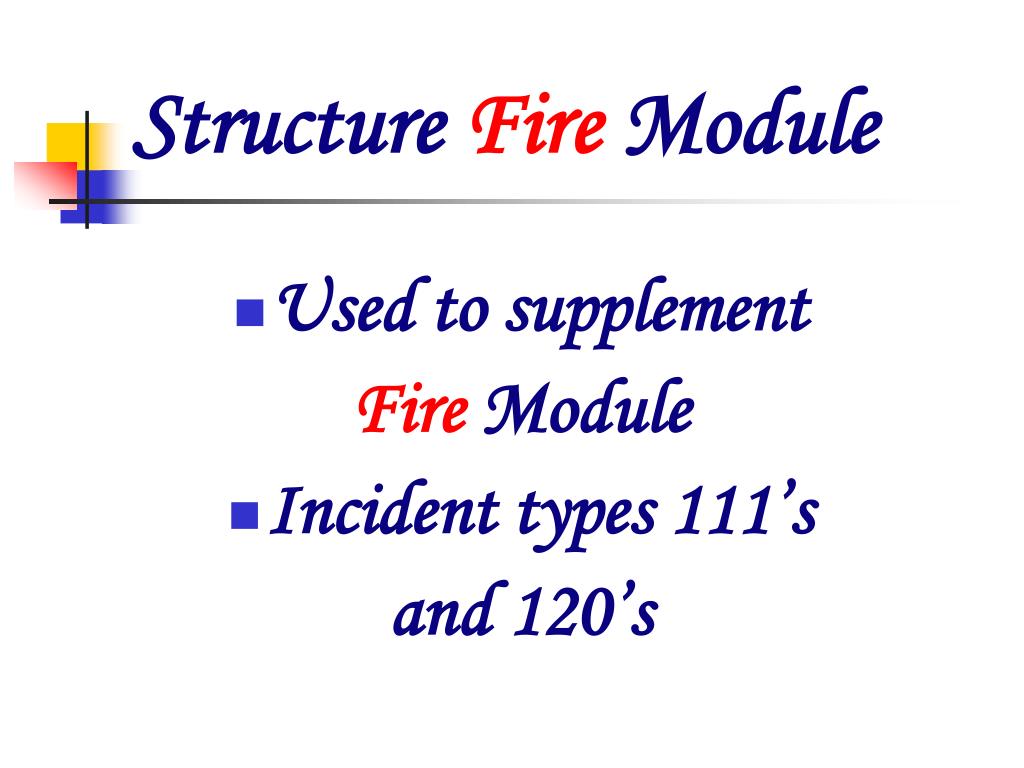

  2. Structure Fire Module • Used to supplement Fire Module • Incident types 111’s and 120’s

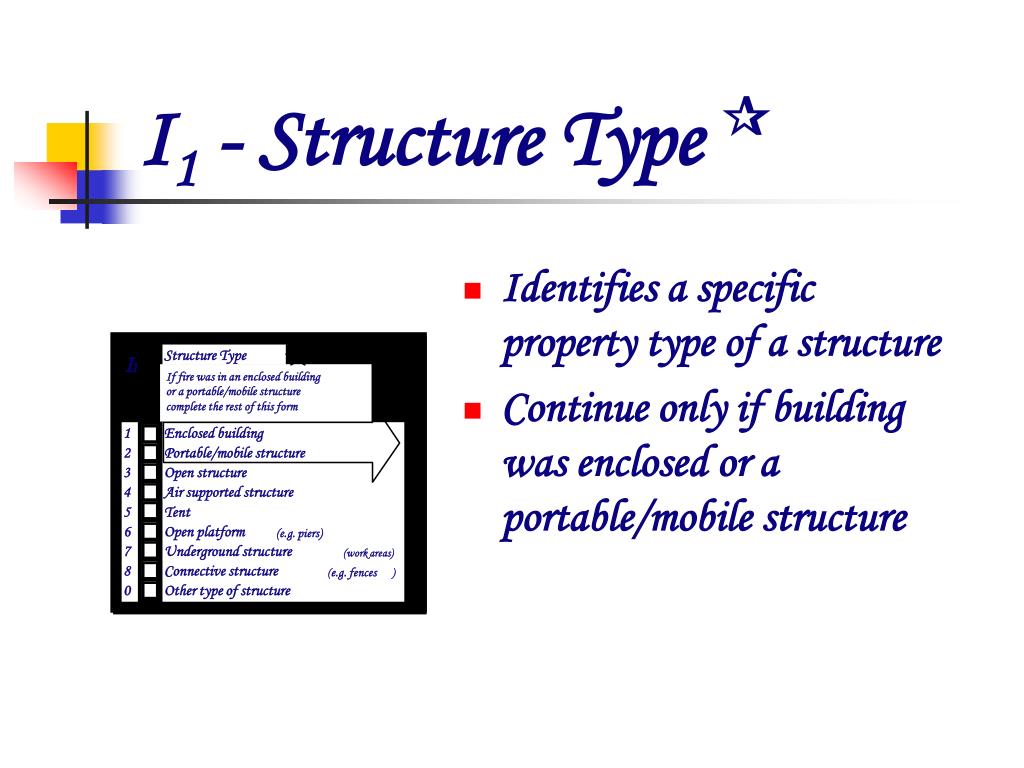

  3. Structure Type I 1 If fire was in an enclosed building or a portable/mobile structure complete the rest of this form 1 Enclosed building 2 Portable/mobile structure 1 3 Open structure 4 Air supported structure 5 Tent 6 Open platform (e.g. piers) 2 7 Underground structure (work areas) 8 Connective structure e.g. fences ( ) 0 Other type of structure I1 - Structure Type  • Identifies a specific property type of a structure • Continue only if building was enclosed or a portable/mobile structure

  4. 1 2 I2 - Building Status  Identifies the operational status of the building at the time of the incident

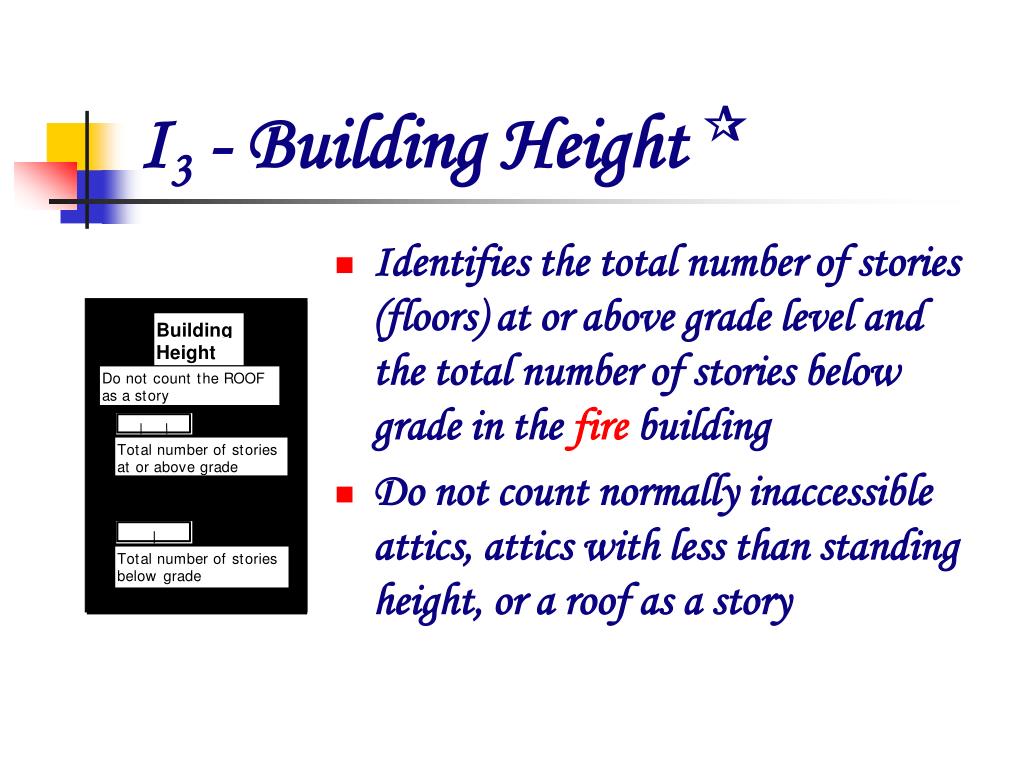

  5. 1 2 I3 - Building Height  • Identifies the total number of stories (floors) at or above grade level and the total number of stories below grade in the fire building • Do not count normally inaccessible attics, attics with less than standing height, or a roof as a story

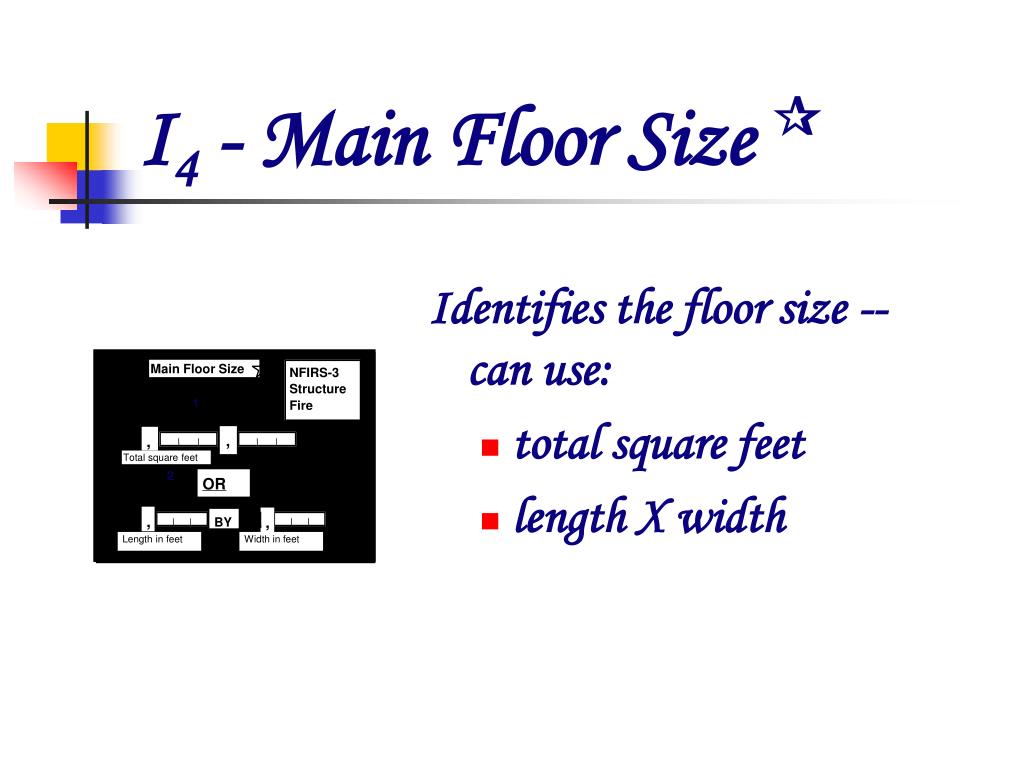

  6. Main Floor Size I NFIRS-3 4 Structure Fire , , Total square feet OR , , BY Length in feet Width in feet 1 2 I4 - Main Floor Size  Identifies the floor size -- can use: • total square feet • length X width

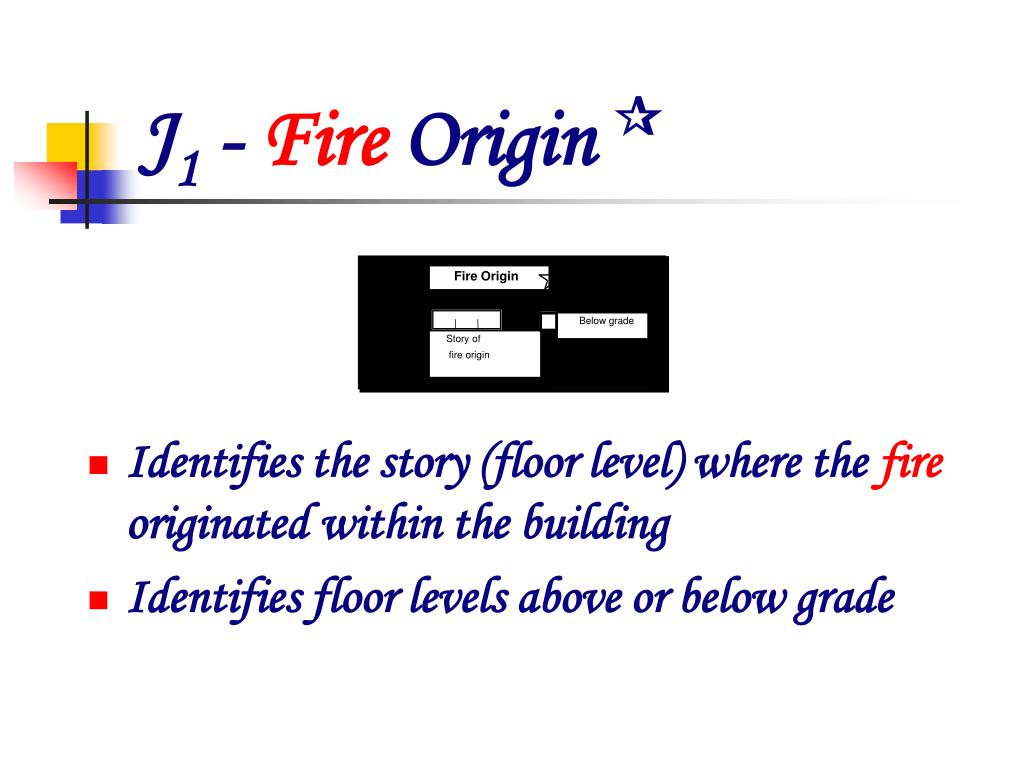

  7. Fire Origin J 1 Below grade Story of fire origin 2 1 Bedroom J1 - Fire Origin  • Identifies the story (floor level) where the fire originated within the building • Identifies floor levels above or below grade

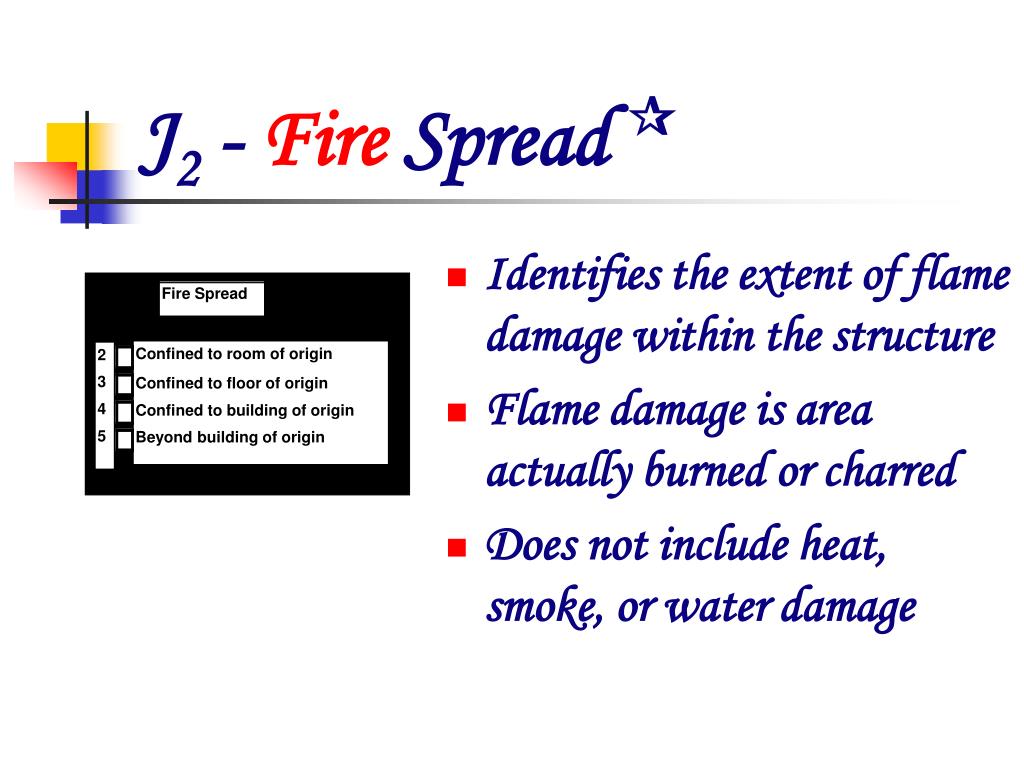

  8. Fire Spread J 2 Confined to room of origin 2 3 Confined to floor of origin 4 Confined to building of origin 5 x Beyond building of origin J2 - Fire Spread  • Identifies the extent of flame damage within the structure • Flame damage is area actually burned or charred • Does not include heat, smoke, or water damage

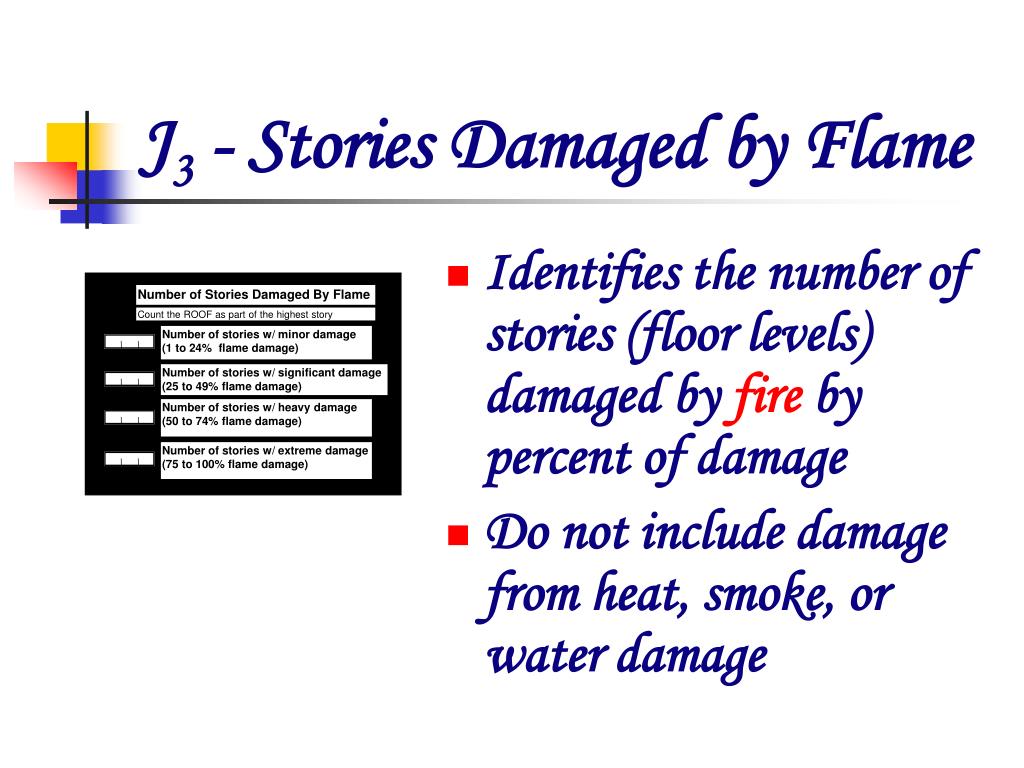

  9. Number of Stories Damaged By Flame J 3 Count the ROOF as part of the highest story Number of stories w/ minor damage (1 to 24% flame damage) Number of stories w/ significant damage (25 to 49% flame damage) Number of stories w/ heavy damage x (50 to 74% flame damage) Number of stories w/ extreme damage (75 to 100% flame damage) J3 - Stories Damaged by Flame • Identifies the number of stories (floor levels) damaged by fire by percent of damage • Do not include damage from heat, smoke, or water damage

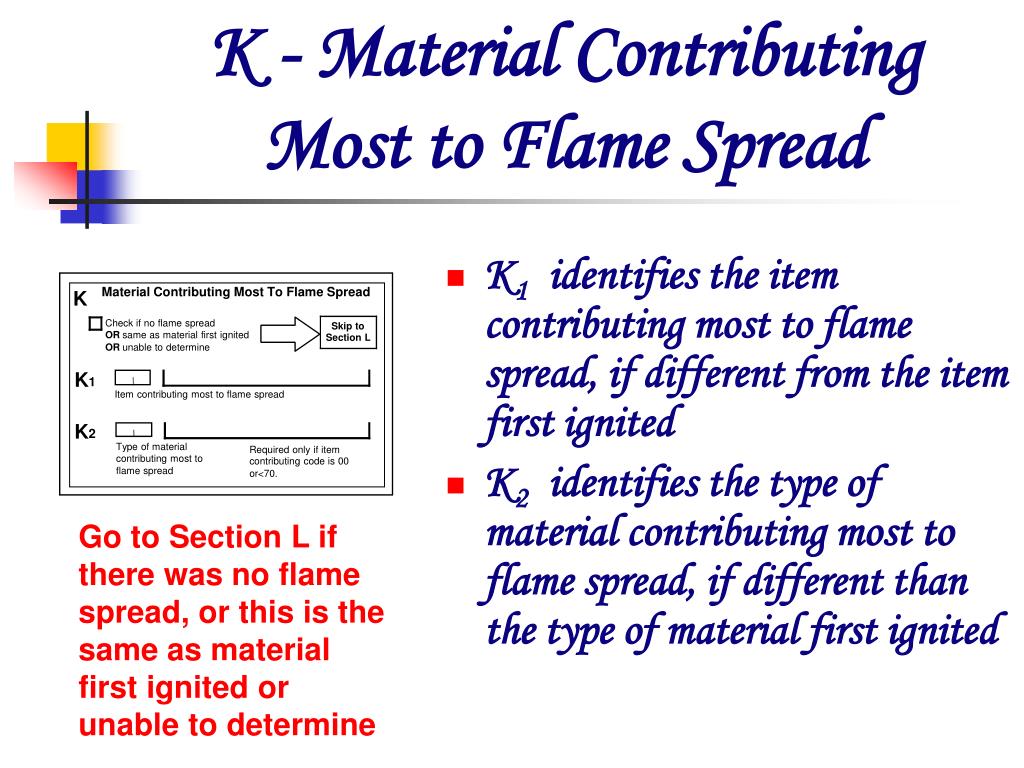

  10. Material Contributing Most To Flame Spread K Check if no flame spread Skip to OR same as material first ignited Section L OR unable to determine K 1 Item contributing most to flame spread K 2 Type of material Required only if item contributing most to contributing code is 00 flame spread or<70. K - Material Contributing Most to Flame Spread • K1 identifies the item contributing most to flame spread, if different from the item first ignited • K2 identifies the type of material contributing most to flame spread, if different than the type of material first ignited Go to Section L if there was no flame spread, or this is the same as material first ignited or unable to determine

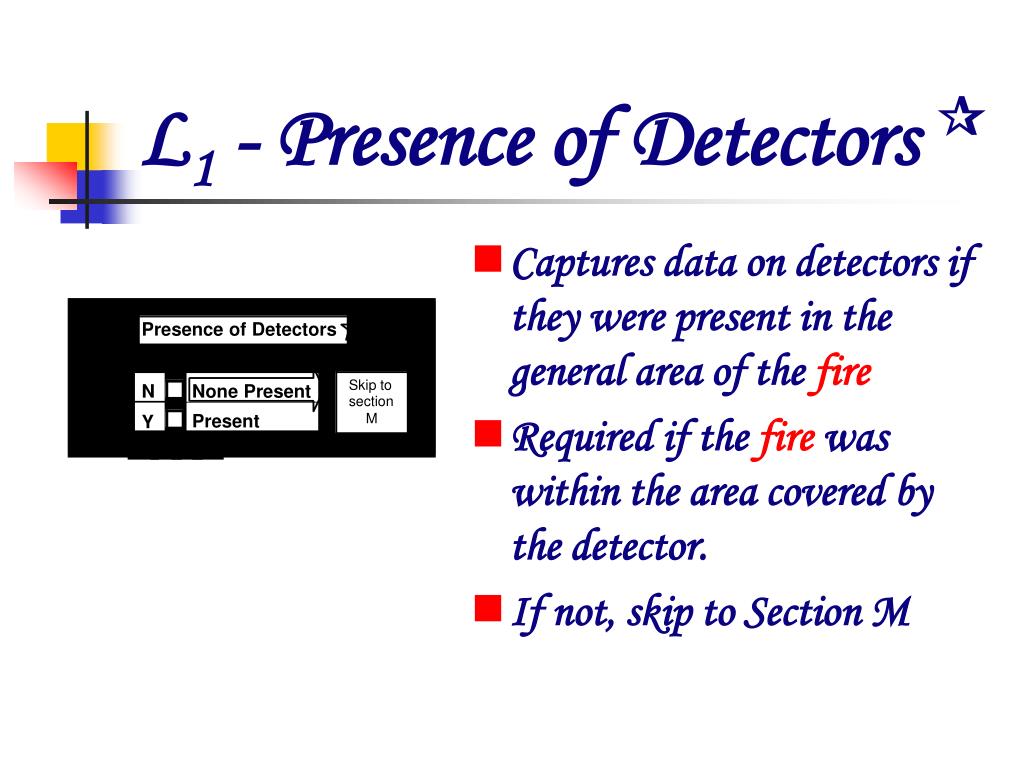

  11. Presence of Detectors L 1 Skip to N None Present section Present M Y 6 3 2 Hot Plate XRS 130 34-2345 1 9 8 5 L1 - Presence of Detectors  • Captures data on detectors if they were present in the general area of the fire • Required if the fire was within the area covered by the detector. • If not, skip to Section M

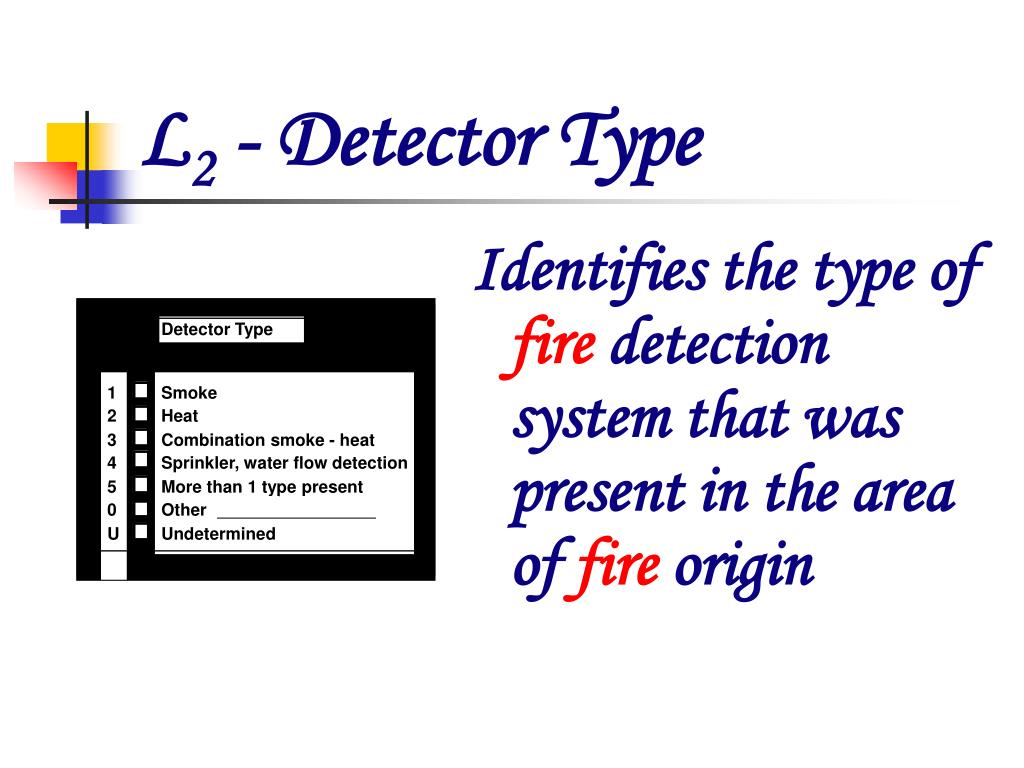

  12. Detector Type L 2 1 Smoke 2 Heat 3 Combination smoke - heat 4 Sprinkler, water flow detection 5 More than 1 type present 0 Other U Undetermined 6 3 2 Hot Plate XRS 130 34-2345 1 9 8 5 L2 - Detector Type Identifies the type of fire detection system that was present in the area of fire origin

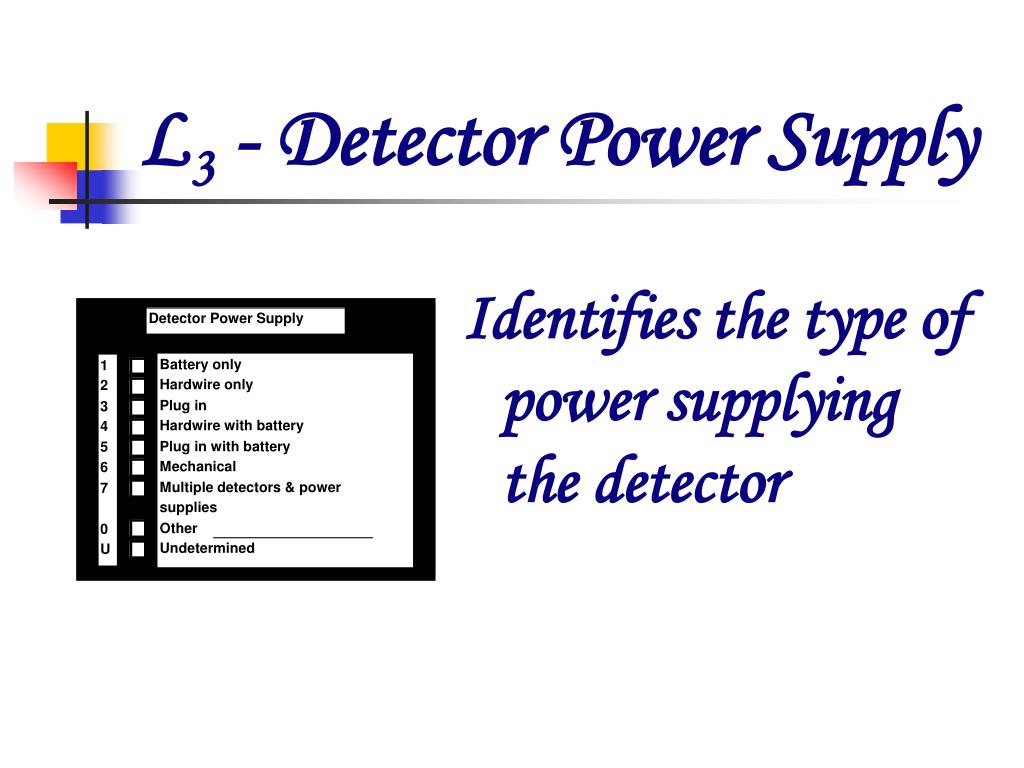

  13. Detector Power Supply L 3 Battery only 1 Hardwire only 2 Plug in 3 Hardwire with battery 4 Plug in with battery 5 Mechanical 6 Multiple detectors & power 7 supplies Other 0 Undetermined U 6 3 2 Hot Plate XRS 130 34-2345 1 9 8 5 L3 - Detector Power Supply Identifies the type of power supplying the detector

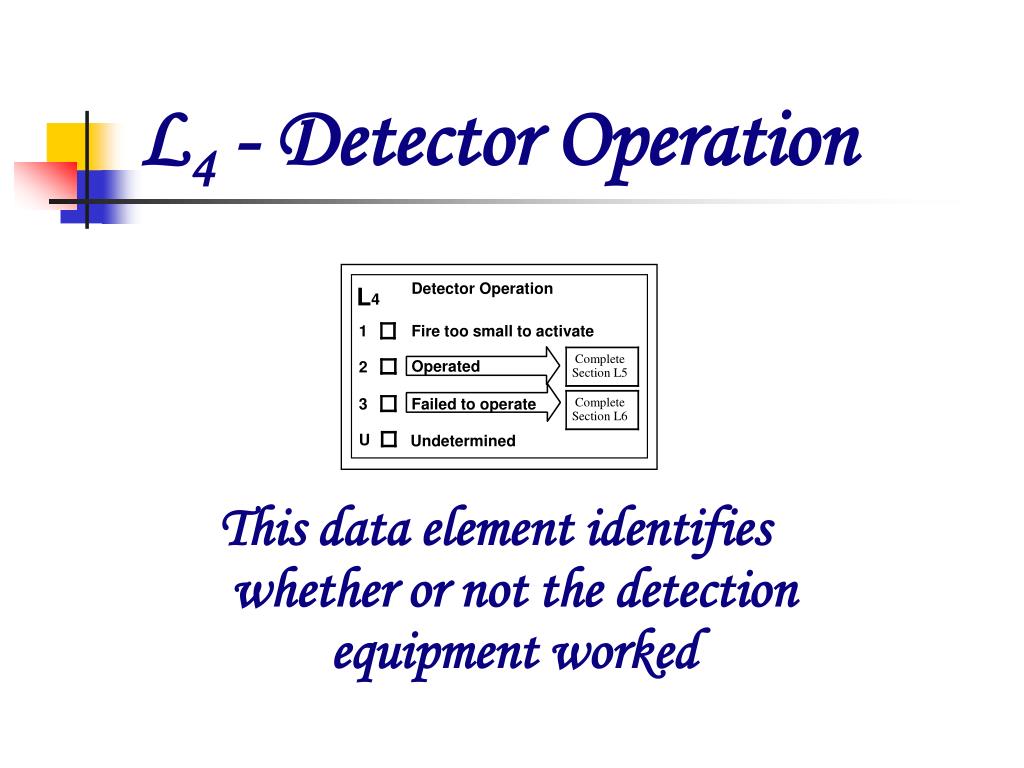

  14. Detector Operation L 4 1 Fire too small to activate Complete Operated 2 Section L5 3 Failed to operate Complete Section L6 U Undetermined L4 - Detector Operation This data element identifies whether or not the detection equipment worked

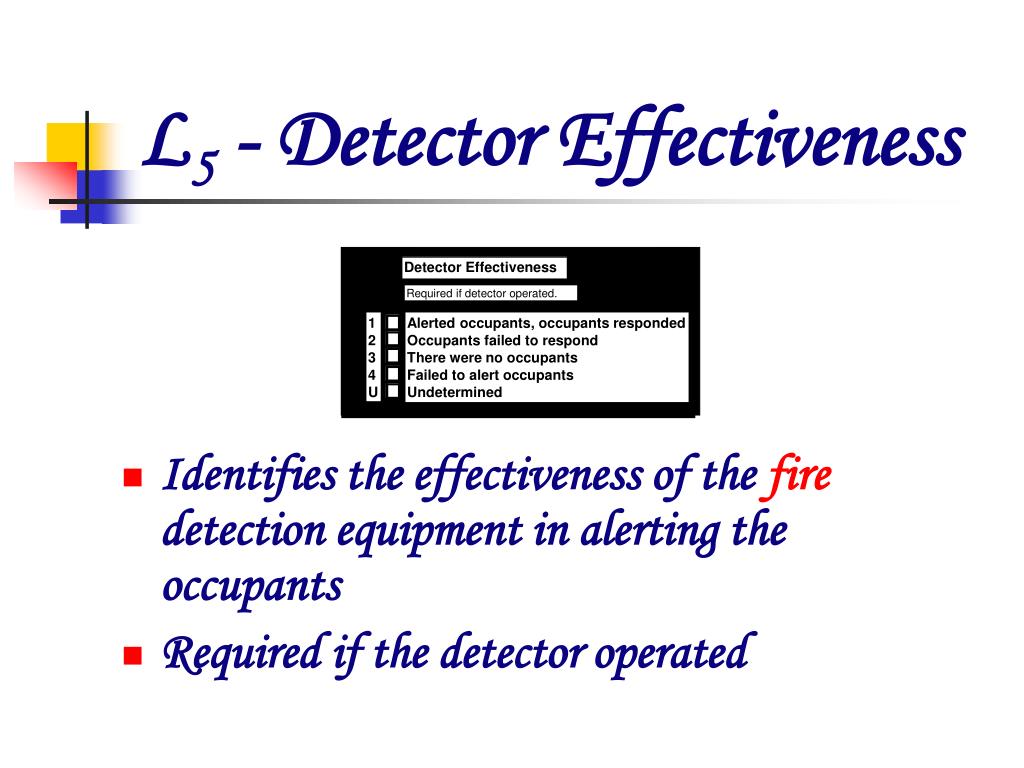

  15. Detector Effectiveness L 5 Required if detector operated. 1 Alerted occupants, occupants responded 2 Occupants failed to respond 3 There were no occupants 4 Failed to alert occupants U Undetermined X L5 - Detector Effectiveness • Identifies the effectiveness of the fire detection equipment in alerting the occupants • Required if the detector operated

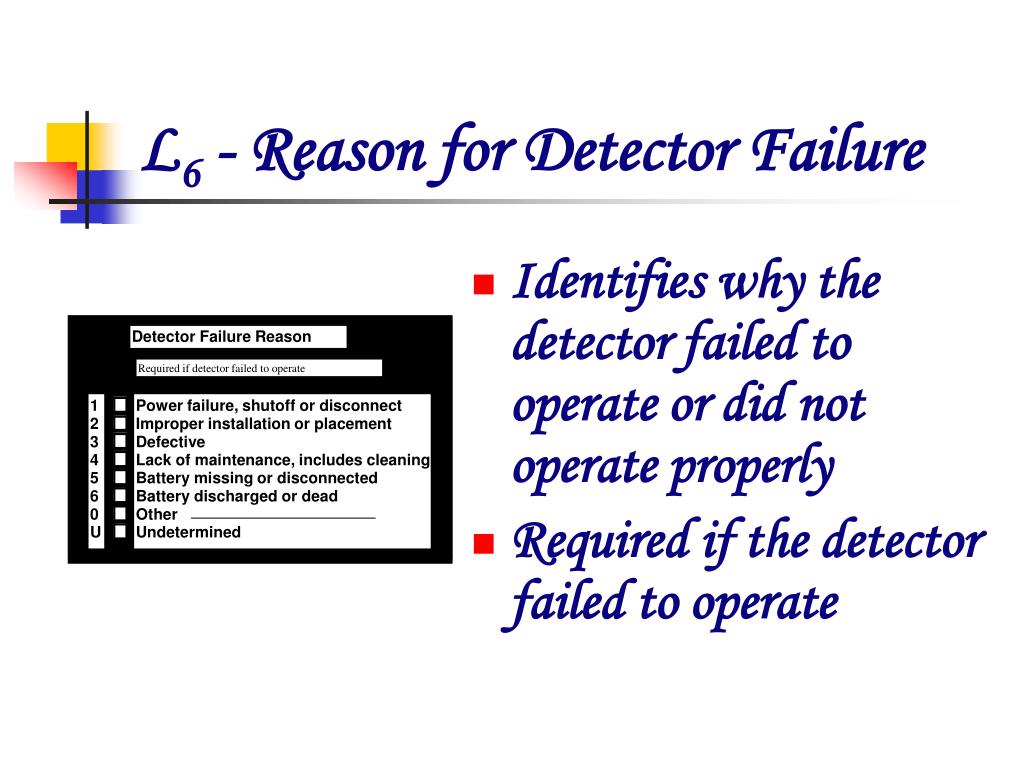

  16. Detector Failure Reason L 6 Required if detector failed to operate 1 Power failure, shutoff or disconnect 2 Improper installation or placement 3 Defective 4 Lack of maintenance, includes cleaning 5 Battery missing or disconnected 6 Battery discharged or dead 0 Other U Undetermined 6 3 2 Hot Plate XRS 130 34-2345 1 9 8 5 L6 - Reason for Detector Failure • Identifies why the detector failed to operate or did not operate properly • Required if the detector failed to operate

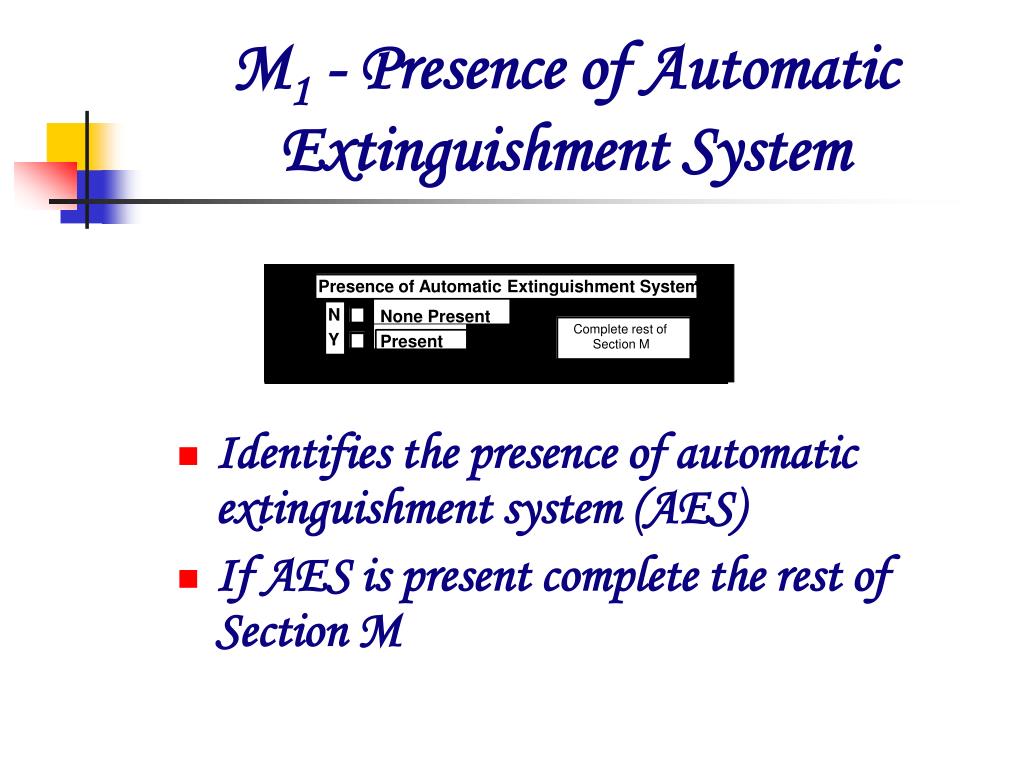

  17. Presence of Automatic Extinguishment System M 1 N None Present Complete rest of Y Present Section M X M1 - Presence of Automatic Extinguishment System • Identifies the presence of automatic extinguishment system (AES) • If AES is present complete the rest of Section M

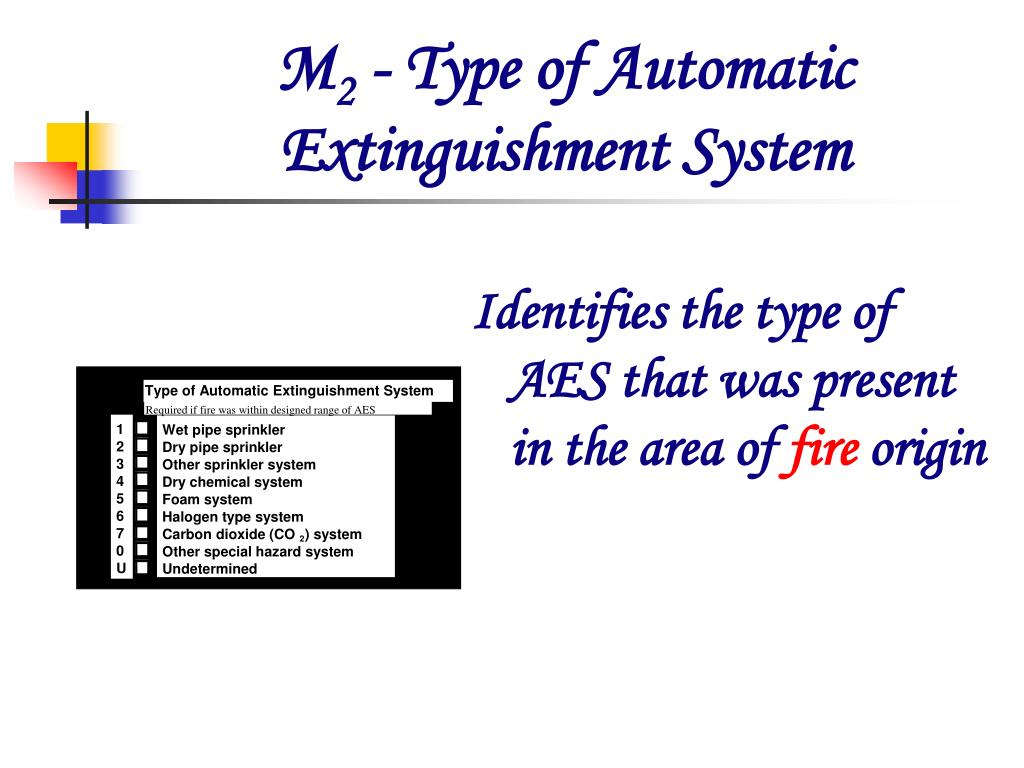

  18. Type of Automatic Extinguishment System M 2 Required if fire was within designed range of AES 1 Wet pipe sprinkler 2 Dry pipe sprinkler 3 Other sprinkler system 4 Dry chemical system 5 Foam system 6 Halogen type system 7 Carbon dioxide (CO ) system 2 0 Other special hazard system U Undetermined 6 3 2 Hot Plate XRS 130 34-2345 1 9 8 5 M2 - Type of Automatic Extinguishment System Identifies the type of AES that was present in the area of fire origin

  19. Automatic Extinguishment M 3 System Operation Required if fire was within designed range 1 Operated & effective (go to M4) 2 Operated & not effective (M4) 3 Fire too small to activate 4 Failed to operate (go to M5) 0 Other U Undetermined 6 3 2 Hot Plate XRS 130 34-2345 1 9 8 5 M3 - Automatic Extinguishment System Operation Identifies the operation and effectiveness of AES in the area of fire origin

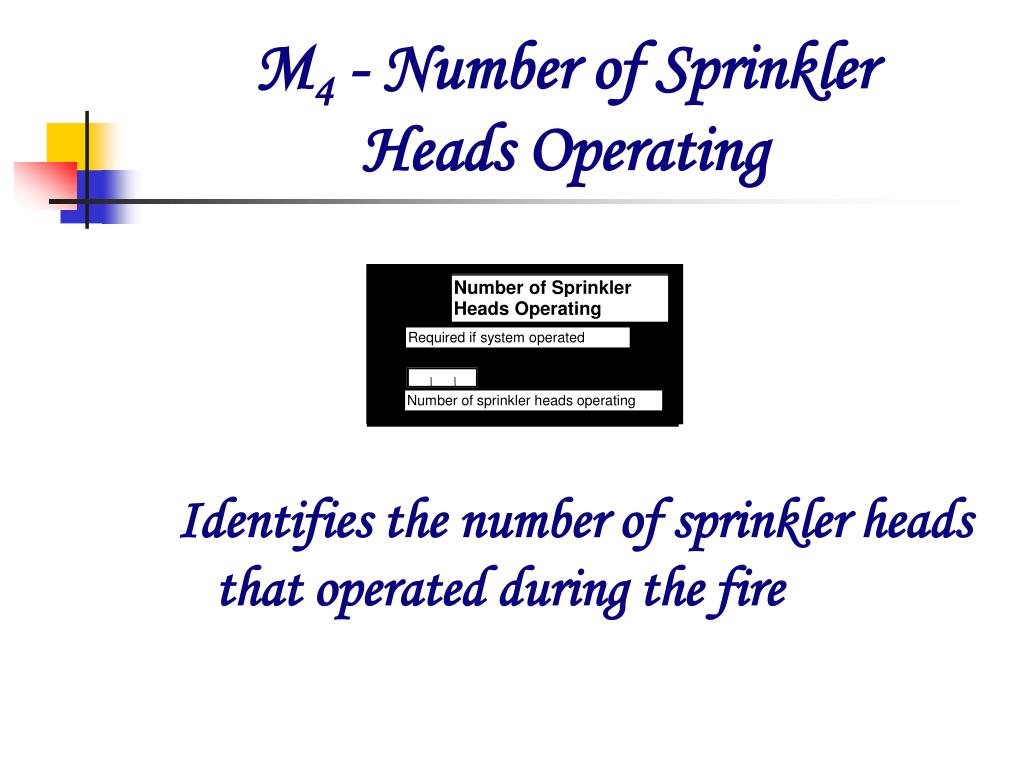

  20. Number of Sprinkler M 4 Heads Operating Required if system operated Number of sprinkler heads operating X M4 - Number of SprinklerHeads Operating Identifies the number of sprinkler heads that operated during the fire

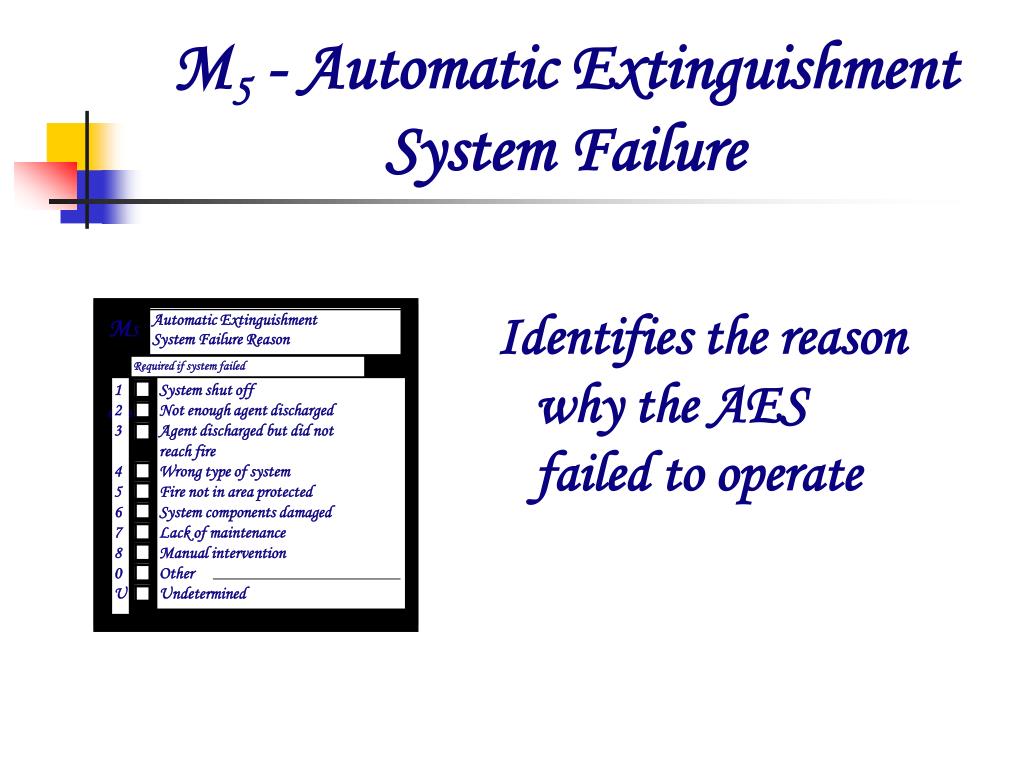

  21. Automatic Extinguishment M 5 System Failure Reason Required if system failed 1 System shut off 2 Not enough agent discharged 3 Agent discharged but did not reach fire 4 Wrong type of system 5 Fire not in area protected 6 System components damaged 7 Lack of maintenance 8 Manual intervention 6 3 2 Hot Plate 0 Other U Undetermined XRS 130 34-2345 1 9 8 5 M5 - Automatic Extinguishment System Failure Identifies the reason why the AES failed to operate

  22. Summary • The Structure Fire Module (NFIRS 3) is used in conjunction with the Fire Module to gather information about larger fire incidents which involve buildings • The Structure Fire Module clarifies information about: • the buildings involved in the fire • how the fire started • detection and automatic suppression equipment
