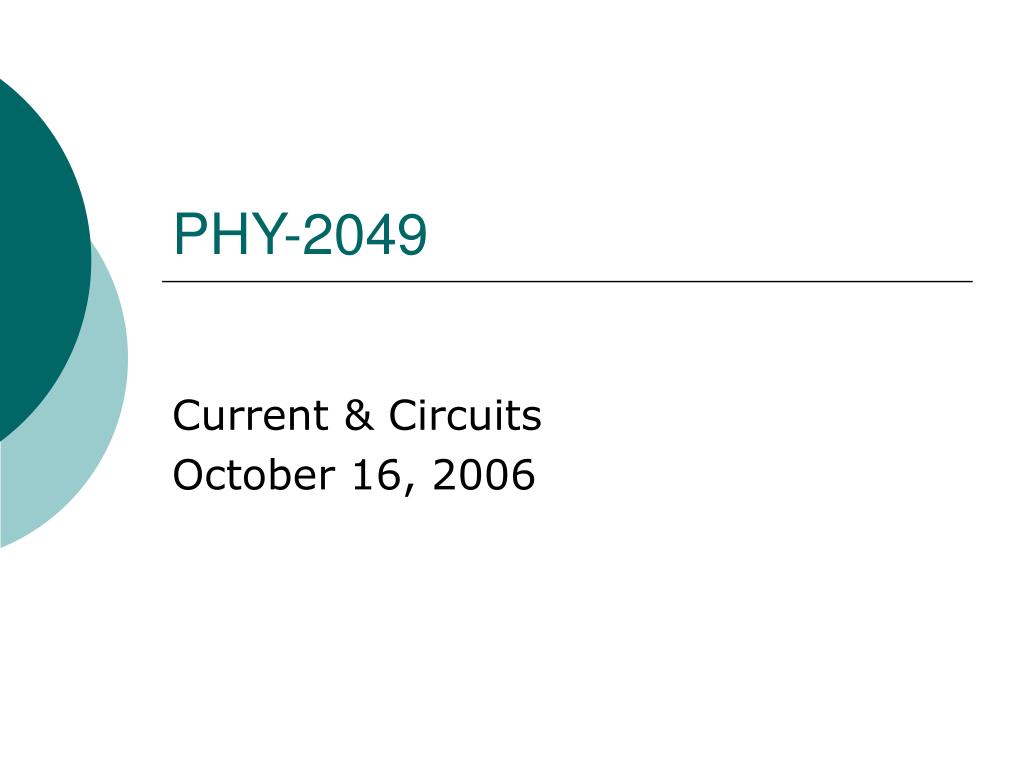

  1. PHY-2049 Current & Circuits October 16, 2006

  2. This is the week that will be • Monday, Wednesday • Introduction to DC circuits • Brief discussion of not so DC circuits. • Friday • 7:30 AM Review Session • Quiz • More on DC.

  3. Prelude to DC Circuits

  4. A B Which is brighter? • A • B • Both the same

  5. Which is Brighter? • A • B • Same

  6. B Brighter? A • A is brighter • B is brighter • Both are the same

  7. Last week ... J and E

  8. copper 12 volts 0 volts The figure below gives the electrical potential V(x) along a copper wire carrying a uniform current, from a point at higher potential (x=0m) to a point at a lower potential (x=3m). The wire has a radius of 2.45 mm. What is the current in the wire? What does the graph tell us?? *The length of the wire is 3 meters. *The potential difference across the wire is 12 m volts. *The wire is uniform. Let’s get rid of the mm radius and convert it to area in square meters: A=pr2 = 3.14159 x 2.452 x 10-6 m2 or A=1.9 x 10-5 m 2 Material is Copper so resistivity is (from table) = 1.69 x 10-8 ohm meters

  9. We have all we need….

  10. Let’s add resistors …….

  11. R1 R2 V1 V2 V i i Series Combinations SERIES Resistors

  12. R1, I1 R2, I2 V Parallel Combination??

  13. What’s This??? In Fig. 28-39, find the equivalent resistance between points (a) F and H and [2.5](b) F and G. [3.13] ?

  14. (a) Find the equivalent resistance between points a and b in Figure P28.6. (b) A potential difference of 34.0 V is applied between points a and b. Calculate the current in each resistor.

  15. Power Source in a Circuit The ideal battery does work on charges moving them (inside) from a lower potential to one that is V higher.

  16. V By the way …. this is called a circuit! A REAL Power Sourceis NOT an ideal battery Internal Resistance EorEmf is an idealized device that does an amount of work E to move a unit charge from one side to another.

  17. A Physical (Real) Battery Internal Resistance

  18. Which is brighter?

  19. Represents a charge in space Back to Potential Change in potential as one circuits this complete circuit is ZERO!

  20. Consider a “circuit”. This trip around the circuit is the same as a path through space. THE CHANGE IN POTENTIAL FROM “a” AROUND THE CIRCUIT AND BACK TO “a” is ZERO!!

  21. To remember • In a real circuit, we can neglect the resistance of the wires compared to the resistors. • We can therefore consider a wire in a circuit to be an equipotential – the change in potential over its length is slight compared to that in a resistor • A resistor allows current to flow from a high potential to a lower potential. • The energy needed to do this is supplied by the battery.

  22. NEW LAWS PASSED BY THIS SESSION OF THE FLORIDUH LEGISLATURE. • LOOP EQUATION • The sum of the voltage drops (or rises) as one completely travels through a circuit loop is zero. • Sometimes known as Kirchoff’s loop equation. • NODE EQUATION • The sum of the currents entering (or leaving) a node in a circuit is ZERO

  23. i R1 R2 V1 V2 V TWO resistors again

  24. A single “real” resistor can be modeledas follows: R b a V position ADD ENOUGH RESISTORS, MAKING THEM SMALLER AND YOU MODEL A CONTINUOUS VOLTAGE DROP.

  25. We start at a point in the circuit and travel around until we get back to where we started. • If the potential rises … well it is a rise. • If it falls it is a fall OR a negative rise. • We can traverse the circuit adding each rise or drop in potential. • The sum of all the rises around the loop is zero. A drop is a negative rise. • The sum of all the drops around a circuit is zero. A rise is a negative drop. • Your choice … rises or drops. But you must remain consistent.

  26. Consider voltage DROPS: -E +ir +iR = 0 or E=ir + iR rise Take a trip around this circuit.

  27. Circuit Reduction i=E/Req

  28. Multiple Batteries Watch the DIRECTION !!

  29. Reduction Computes i

  30. PARALLEL Another Reduction Example

  31. NOTICE ASSUMED DIRECTION OF Currents Voltage Drops: -E1 –i1R1 + i2R2 + E2 +i1R1 = 0 From “a” -i3R1 + E2 – E2 –i2R2 =0 NODE i3 +i2 = i1

  32. In the figure, all the resistors have a resistance of 4.0 W and all the (ideal) batteries have an emf of 4.0 V. What is the current through resistor R?

  33. The Unthinkable …. Resistors and Capacitors in the same circuit?? Is this cruel or what??

  34. Initially, no current through the circuit Close switch at (a) and current begins to flow until the capacitor is fully charged. If capacitor is charged and switch is switched to (b) discharge will follow. RC Circuit How Fast ?

  35. What do you think will happen when we close the swutch? Close the Switch I need to use E for E Note RC = (Volts/Amp)(Coul/Volt) = Coul/(Coul/sec) = (1/sec)

  36. Really Close the Switch I need to use E for E Note RC = (Volts/Amp)(Coul/Volt) = Coul/(Coul/sec) = (1/sec)

  37. This is a differential equation. • To solve we need what is called a particular solution as well as a general solution. • We often do this by creative “guessing” and then matching the guess to reality. • You may or may not have studied this topic … but you WILL!

  38. Math !

  39. Time Constant

  40. Result q=CE(1-e-t/RC)

  41. q=CE(1-e-t/RC) and i=(CE/RC) e-t/RC

  42. Discharging a Capacitor qinitial=CE BIG SURPRISE! (Q=CV) i iR+q/C=0

  43. In Fig. (a), a R = 21, Ohma resistor is connected to a battery. Figure (b) shows the increase • of thermal energy Eth in the resistor as a function of time t. • What is the electric potential across the battery? (60) • If the resistance is doubled, what is the POWER dissipated by the circuit? (39) • Did you put your name on your paper? (1) Looking at the graph, we see that the resistor dissipates 0.5 mJ in one second. Therefore, the POWER =i2R=0.5 mW

  44. If the resistance is doubled what is the power dissipated by the circuit?
