Custom 14-Bit, 125MHz ADC/Data Processing Module for the KL Experiment at J-Parc

Custom 14-Bit, 125MHz ADC/Data Processing Module for the KL Experiment at J-Parc. M. Bogdan, J. Ma, H. Sanders, Y. Wah The University of Chicago. Custom 14-Bit, 125MHz ADC DAQ - Block Diagram.

dustin-flowers
Télécharger la présentation

Custom 14-Bit, 125MHz ADC/Data Processing Module for the KL Experiment at J-Parc

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

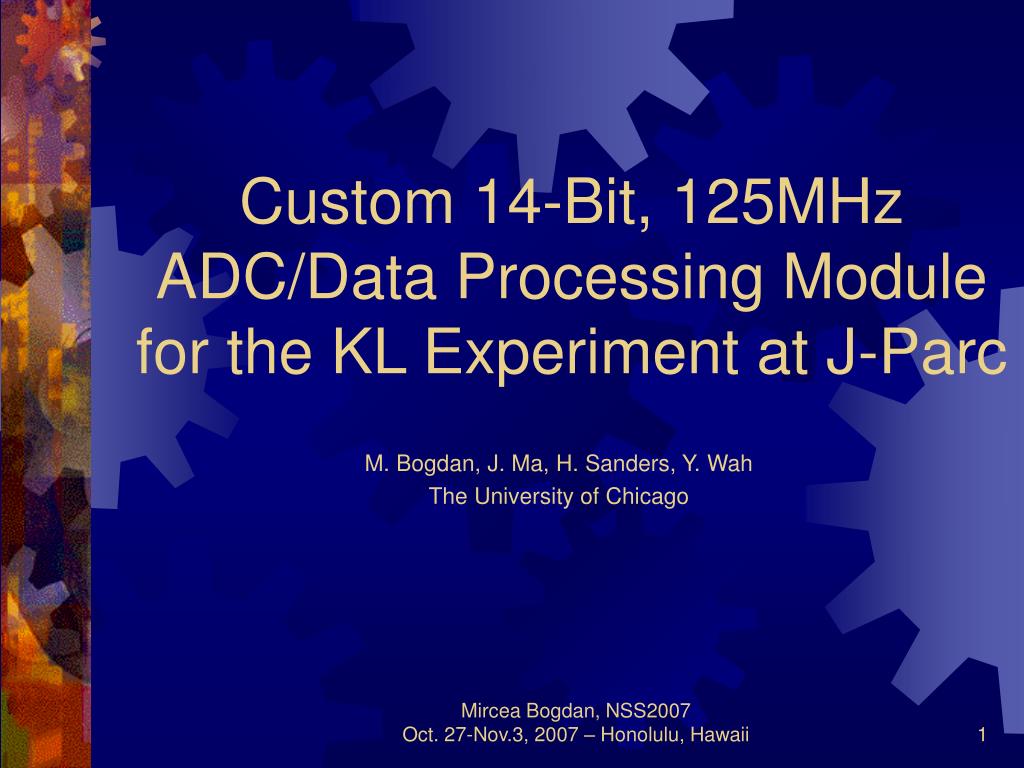

  1. Custom 14-Bit, 125MHz ADC/Data Processing Module for the KL Experiment at J-Parc M. Bogdan, J. Ma, H. Sanders, Y. Wah The University of Chicago Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  2. Custom 14-Bit, 125MHz ADC DAQ - Block Diagram DAQ designed for an International High Energy Physics Experiment (to study CP Violation) at the new Japanese Accelerator Complex. • CsI DAQ up to 2,816 Ch 14Bit/125 MHz; • Veto DAQ up to 512 Ch 14Bit/125 MHz; • BHPV DAQ up to 100 Ch 12Bit/500 MHz. Custom Boards: - 14-Bit ADC-125MHz, - 12-Bit FADC-500MHz, - Crate Traffic Control Module, - System Trigger Module. Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  3. Custom 14-Bit, 125MHz ADC CsI Crate - Block Diagram • 6U VME Crates; • 16 ADC Boards/Crate; • Local Processing; • Continuous Readout; • Simultaneous Sampling. Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  4. Custom 14-Bit, 125MHz ADC Module Block Diagram • Each ADC channel - one AD9254 chip: 14 bits/125MHz; • 10-Pole Filter/Shaper Included on Board; • One STRATIX II FPGA EP2S60F1020 for 16 ADC channels: • Trigger rate: 10kHz, 32 samples/trigger (256ns); • Input Pipeline: ~25us depth (3,200 samples); • Two VME readout buffers - max 128 triggers, (10 ms). Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  5. Custom 14-Bit, 125MHz ADC Module Schematic – Top Level LVDS Inputs: • 8-Bit Parallel; LVDS Outputs: • 16-Bit Parallel; • 12-Bit Serialized; Readout: • VME32/64 with CBLT; • GLINK/SLINK if needed. Actual Module Schematic – DA/Mentor Graphics Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  6. Custom 14-Bit, 125MHz ADC Analog Channel Analog Channel Schematic Filter/Shaper Simulation Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  7. Custom 14-Bit, 125MHz ADC Hardware • 16 Channel, 14 bits, 125 MSPS ADC; • 10 pole input filter – configurable; • Powerful local processing with FPGA; • Low cost, 6U VME64 with CBLT. Built and tested 2 prototypes: • Full-Scale Input ~ 250mV/50Ohm; • Input noise ~ 35 uV RMS; Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii

  8. 14-Bit, 125MHz ADC Board Preliminary Testing Results Simulation - Shaper In and Out VME Acquisitions with new ADC Board Scope Plots - Shaper In and Out Mircea Bogdan, NSS2007 Oct. 27-Nov.3, 2007 – Honolulu, Hawaii
