CatalogVersion Tool for Database Change Management

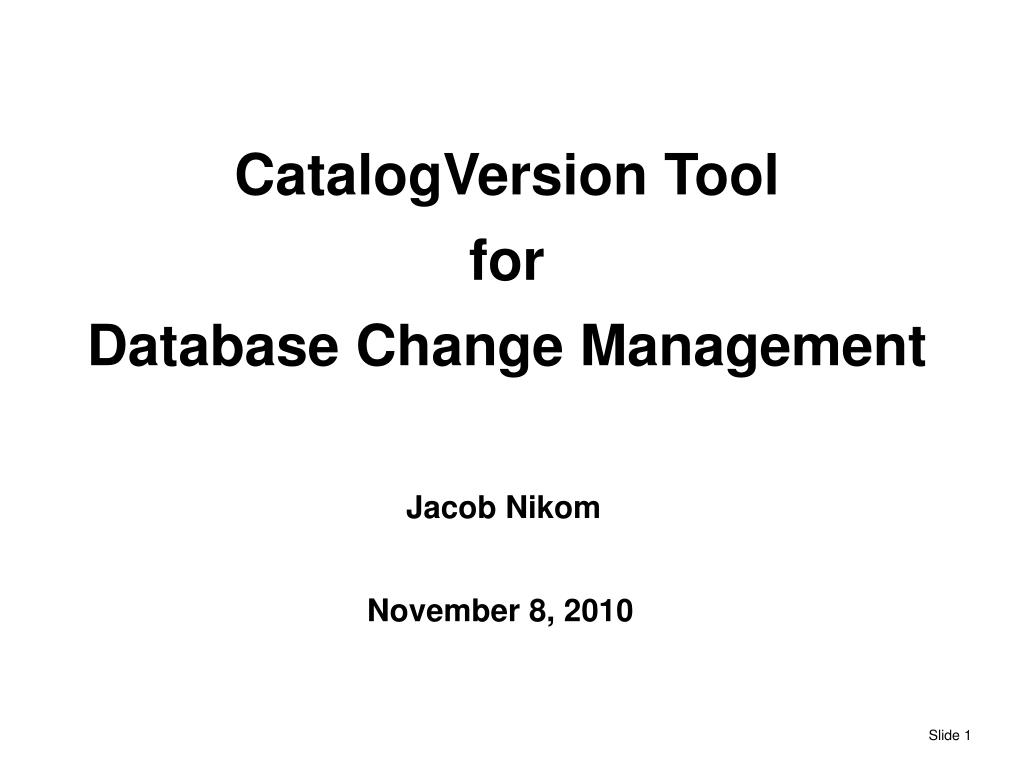

1. CatalogVersion Tool forDatabase Change Management Jacob Nikom November 8, 2010

2. Outline • Revision Control System Basics • How software developers track changes in their source code • Major Revision Control operations • Intro into Database Change Management • Version Control of Database Changes • Table ‘catalog_version.version_files’ • Table ‘catalog_version.revision’ • Database Delta Scripts • CatalogVersion Program • CatalogVersion Tool Command • CatalogVersion Tool Design • Why not to use Java Runtime.exec() method? • CatalogVersion Source Code • Summary

3. Revision Control System Basics How software developers track changes in their source code Checkins: The simplest scenario is checking in a file (list.txt) and modifying it over time File list.txt

4. How software developers track changes in their source code Checkouts and Editing: I may have to check out, edit and check in

5. How software developers track changes in their source code Diffs or Deltas: The trunk has a history of changes as a file evolves. Diffs or Deltas are the changes I made while editing

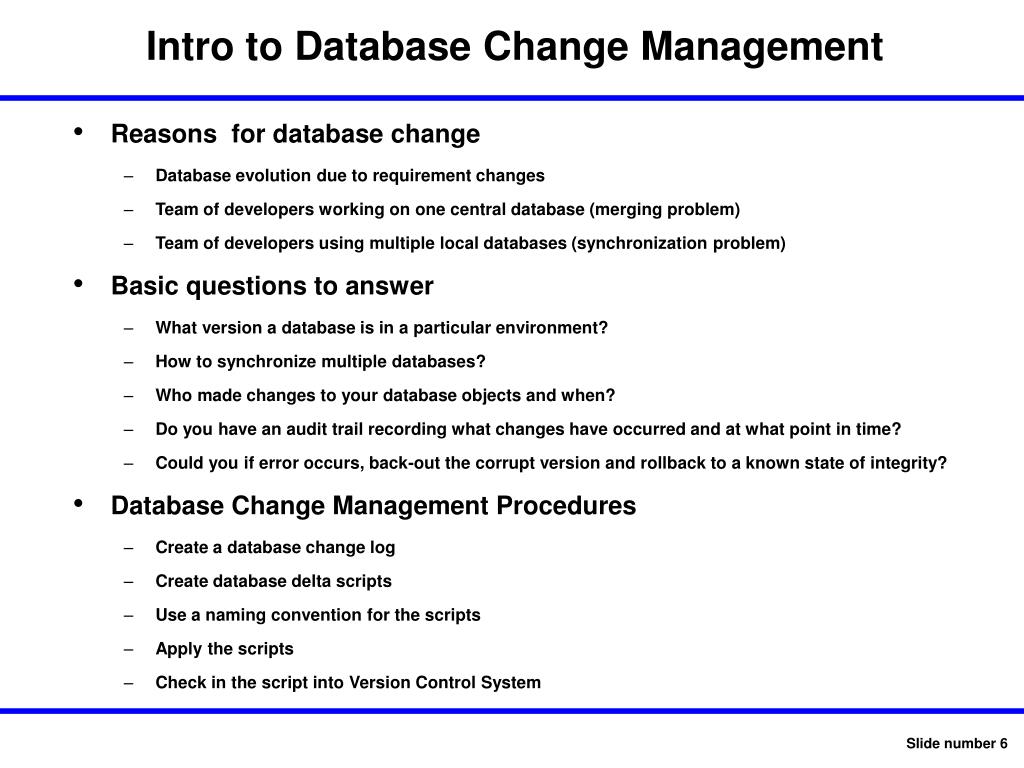

6. Intro to Database Change Management • Reasons for database change • Database evolution due to requirement changes • Team of developers working on one central database (merging problem) • Team of developers using multiple local databases (synchronization problem) • Basic questions to answer • What version a database is in a particular environment? • How to synchronize multiple databases? • Who made changes to your database objects and when? • Do you have an audit trail recording what changes have occurred and at what point in time? • Could you if error occurs, back-out the corrupt version and rollback to a known state of integrity? • Database Change Management Procedures • Create a database change log • Create database delta scripts • Use a naming convention for the scripts • Apply the scripts • Check in the script into Version Control System

7. Version Control of Database Changes Volume serial number is 00350032 1C00:4ED7 C:. ├───1.0 │ |-aaa_install_sequence_1.0.txt │ |-mysql_user_flush_privs.sql ……………………………………………………… │ |-nops_update_patch_v1.1.1.sql │ `-nops_update_patch_v1.1.2.sql ├───1.1 │ |-aaa_install_sequence_1.1.txt │ │-cybs_00300_ddl_otf_alter_table_mpi_order.sql ………………………………………………………. │ `- cybs_01000_ddl_dmce_alter_table_content.sql ├───1.2 │ │-aaa_install_sequence_1.2.txt │ │-nokia_policy_02-18-2010.sql ……………………………………………………… │ │-redb_policy_02-18-2010.sql │ `-reuser_ddl_add_reuser_and_privileges.sql │ ├───1.3 │ │-aaa_install_sequence_1.3.txt │ │-otf_ddl_callbackserver_config1.sql …………………………………………………….. │ │-otf_dml_mpi_ignore_config.sql │ `otf_dml_mpi_ignore_data_delete.sql CatalogVersion table Repository CatalogVersion tool Revision-controlled SQL script directory This is compact, precise and revision controlled representation of the database state

8. Table ‘catalog_version.version_files’ Each SQL script is delta CatalogVerion tool does not overrides existing files This feature allows to build new data on the top of old ones

9. Table ‘catalog_version.revision’ CatalogVersion tables Repository One-to-one mapping between database state and source code state Source code CatalogVersion tool Every time when source code changes, CatalogVersion tool runs using existing list of SQL scripts

10. Database Delta Scripts Content explanation Execution order number Schema or product name Creation date Content category File name convention redb_00300_dml_insert_data_into_all_redb_tables_10_23_2010.sql 1. Schema or product name • cybx – Cybersource – related file. It affects NOPS 1.0 schemata and tables • redb – files affecting NOPS 1.2 schema, tables, columns, foreign keys and other constraints. Also deal with stored function in NOPS 1.2 2. Execution order number • Through order of the SQL scripts execution. It is incremented in hundreds allowing to insert additional numbers. 3. Content category or sql file classification • dcl – file affecting users and their privileges (Data Control Language) • ddl – file affecting schema, tables, columns, foreign keys and other constraints. Also deals with stored procedures, stored functions, triggers and indexes (Data Definition Language) • dml – file affecting the data (static or lookout data) (Data Manipulation Language) • dtl – file affecting the transactional data (Data Manipulation Language)

11. CatalogVersion Program • CatalogVersion tool is Java program (JDK 1.4 and better) • Applies SQL scripts to the MySQL server • Registers SQL script in the catalog_version schema (unique name) • Needs four JAR files to run

12. CatalogVersion Tool Command To run the CatalogVersion tool use the command: java -jar CatalogVersion.jar -u username -p password -h serverIP -f sql_file_name -c “Comments”

13. CatalogVersion Tool Command (cont.) File update_local_server_sql_files_10_25_2010_dfile.bat content: java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/1.0/install_sequence_1.0.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/1.1/install_sequence_1.1.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/1.2/install_sequence_1.2.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/seed/install_sequence_seed.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/1.3/install_sequence_1.3.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/MIDScripts/install_sequence_mid.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 –f ./DBCreate_10_25_2010/index_scripts/install_sequence_index.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/utf8_conversion/install_sequence_utf8.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/1.4/install_sequence_1.4.txt java -Dfile.encoding=UTF-8 -cp .;./log4j-1.2.15.jar; -jar CatalogVersion.jar -u root -p password -h 10.48.92.153 -f ./DBCreate_10_25_2010/2.0/install_sequence_2.0.txt File install_sequence_1.2.txt content: # These are SQL files for execution reuser_ddl_add_reuser_and_privileges.sql redb_00200_ddl_create_all_redb_tables.sql redb_00400_dcl_add_execution_permission.sql redb_00500_dml_set_receipt_number_to_zero.sql redb_00600_ddl_function_get_next_receipt_number.sql redb_02500_ddl_payment_provider_create_unique_key_01_19_2010_01.sql redb_03500_ddl_payment_method_include_add_column_01_22_2010.sql redb_04200_ddl_payment_provider_receipt_suffix_country_02_03_2010_02.sql redb_policy_02-18-2010.sql nokia_policy_02-18-2010.sql

14. CatalogVersion Tool Design Five Java files CatalogVersion.java – main driver DbmsConfig.java – command linhe parsing, static data repository DbmsConnector.java – manages database connection DbmsInitializer.java – initializes tables and verifies their structure SqlScriptRunner.java – parses and executes SQL scripts VersionFilesTable.java – manages tables data 3350 lines of source code Why not to use Java Runtime.exec() method? String commandString = “mysql –u root –ppassword < sql_script.sql”; Process process = Runtime.getRuntime().exec(commandString); You have to provide all execution environment and catch up standard and error output Parsing SQL is easier and more reliable

15. CatalogVersion Source Code try { // Get the file reader LineNumberReader lineReader = new LineNumberReader(reader); // Start of the file reading loop (line by line) while ((line = lineReader.readLine()) != null) { // restart the number of executions for each command executeCount = 0; if (command == null) { command = new StringBuffer(); } // handling the delimiter. It plays different roles inside the function // and outside one. The alternative delimiter separates function's SQL code // from the rest of the SQL code. // The default delimiter separates sentences inside the "normal" SQL code // The word "DELIMITER" should not be executed by Java - it is not SQL // ligitimate word, so it should be skipped if (line.startsWith("DELIMITER")) { if (delimiterCount == 0) { setDelimiter(ALTERNATIVE_DELIMITER, true); // met delimiter 1st time delimiterCount = 1; // increment the delimiterCount } else if (delimiterCount == 1) { setDelimiter(DEFAULT_DELIMITER, false); // met delimiter 2nd time // restore the initial condition delimiterCount = 0; // reset the delimiterCount } } // Got clean string String trimmedLine = line.trim(); m_logger.debug("SqlScriptRunner::runScript2: trimLine = "+trimmedLine); // Actual parsing if (trimmedLine.startsWith("--")) { // println(trimmedLine); m_logger.debug("SqlScriptRunner::runScript2: trimmedLine = "+trimmedLine); } else if (trimmedLine.startsWith("DELIMITER")) // Hardcoded work in MySQL dialect { m_logger.debug("SqlScriptRunner::runScript2: trimmedLine = "+trimmedLine); } else if (trimmedLine.length() < 1 || trimmedLine.startsWith("//")) { // Do nothing } else if (trimmedLine.length() < 1 || trimmedLine.startsWith("--")) { // Do nothing } else if (!fullLineDelimiter && trimmedLine.endsWith(getDelimiter()) || fullLineDelimiter && trimmedLine.equals(getDelimiter())) { command.append(line.substring(0, line.lastIndexOf(getDelimiter()))); command.append(" "); Statement stmt = conn.createStatement();

16. Summary • Database server evolution requires database change management • CatalogVersion Tool has been developed to implements necessary functionality • The tool allows to update multiple servers • Synchronize different servers • Organizes database changes in a manageable manner • Major drawback – lack of transactionality (will work it out) • CatalogVersion Tool easy to use, it is very efficient and it is free
