  1. Geometry 5.7 The Pythagorean Theorem

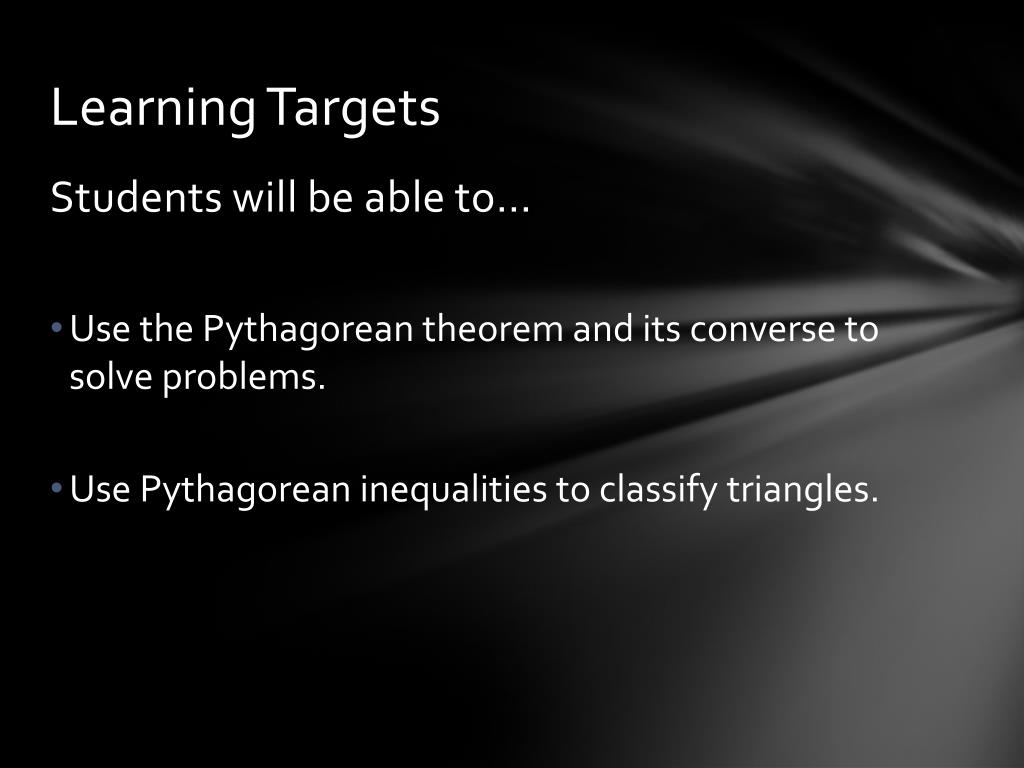

  2. Learning Targets • Students will be able to… • Use the Pythagorean theorem and its converse to solve problems. • Use Pythagorean inequalities to classify triangles.

  3. Warm-up

  4. Homework Check

  5. Homework Check

  6. Vocabulary c a b

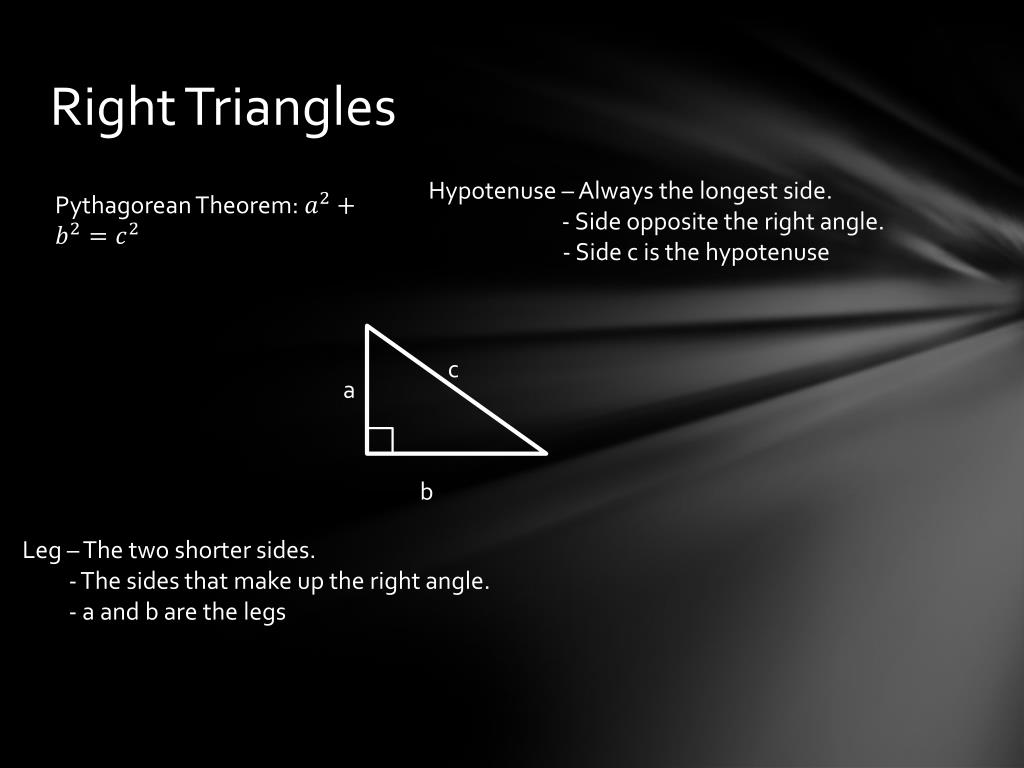

  7. Right Triangles Hypotenuse – Always the longest side. - Side opposite the right angle. - Side c is the hypotenuse Pythagorean Theorem: c a b Leg – The two shorter sides. - The sides that make up the right angle. - a and b are the legs

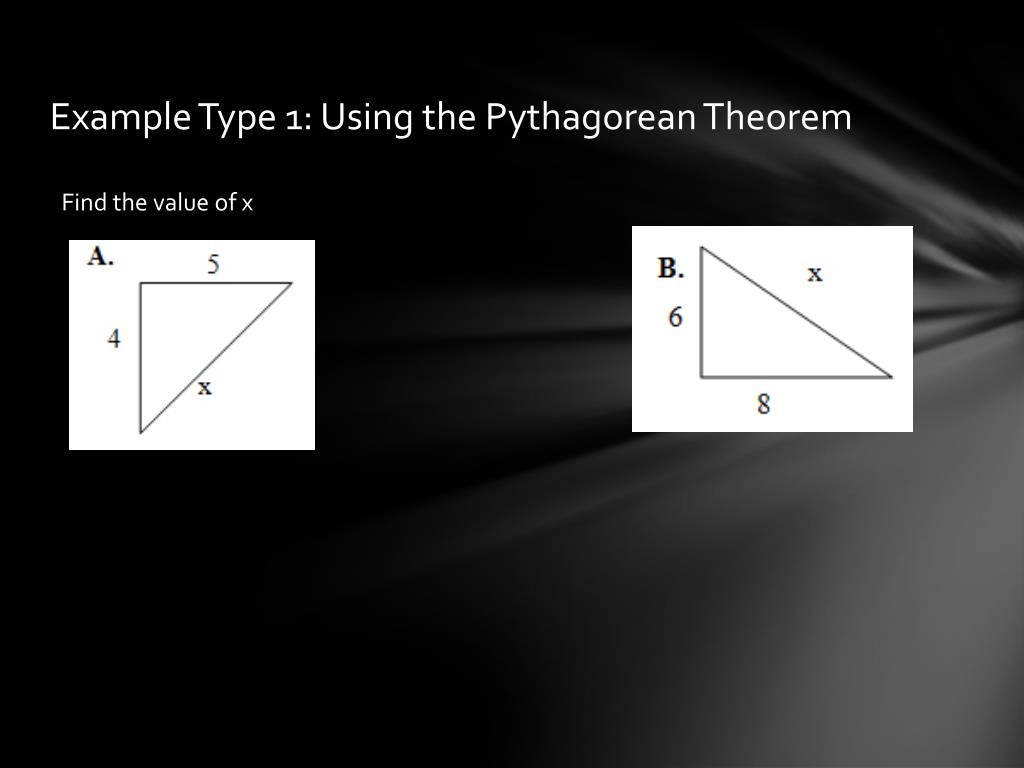

  8. Example Type 1: Using the Pythagorean Theorem Find the value of x

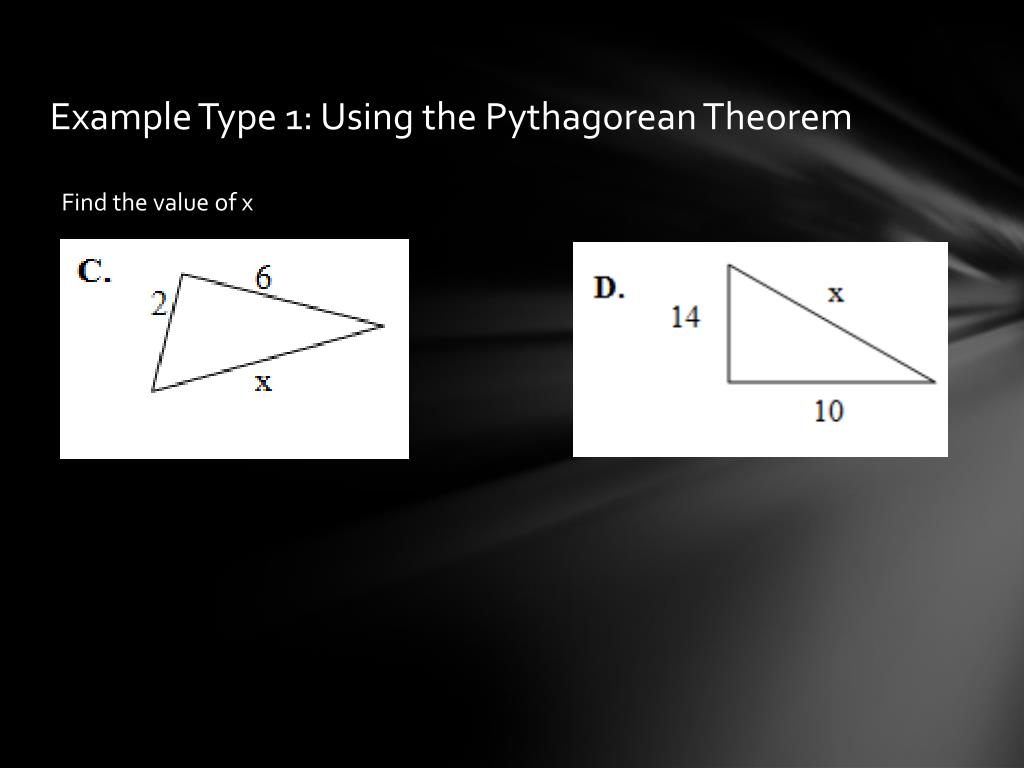

  9. Example Type 1: Using the Pythagorean Theorem Find the value of x

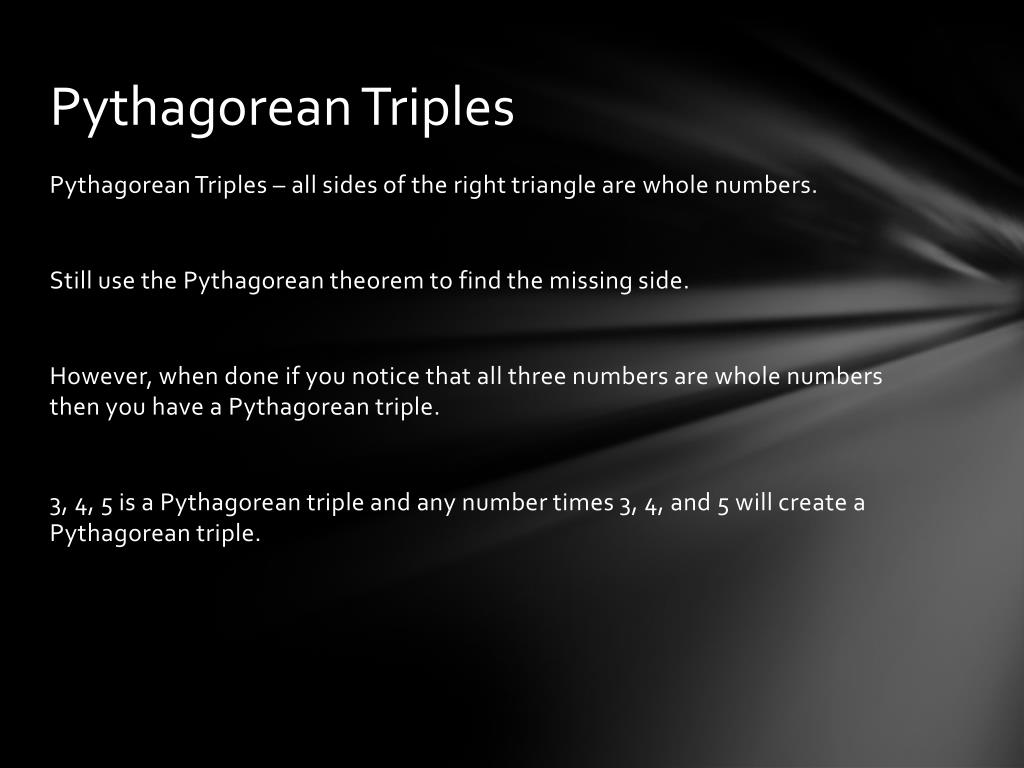

  10. Pythagorean Triples • Pythagorean Triples – all sides of the right triangle are whole numbers. • Still use the Pythagorean theorem to find the missing side. • However, when done if you notice that all three numbers are whole numbers then you have a Pythagorean triple. • 3, 4, 5 is a Pythagorean triple and any number times 3, 4, and 5 will create a Pythagorean triple.

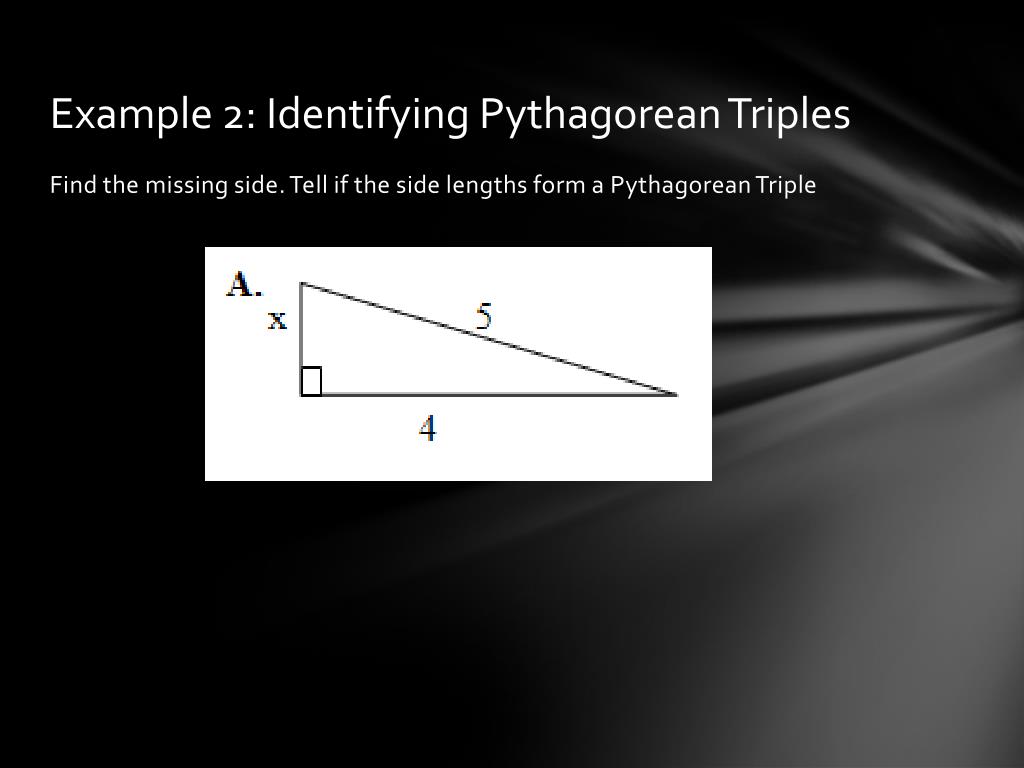

  11. Example 2: Identifying Pythagorean Triples • Find the missing side. Tell if the side lengths form a Pythagorean Triple

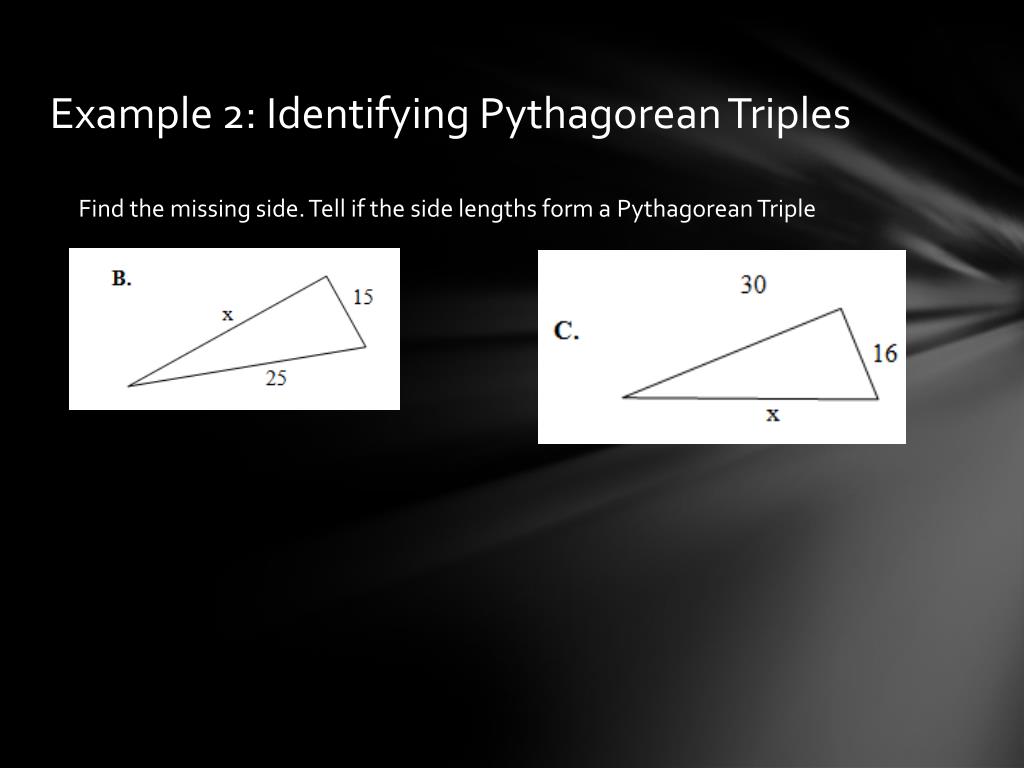

  12. Example 2: Identifying Pythagorean Triples Find the missing side. Tell if the side lengths form a Pythagorean Triple

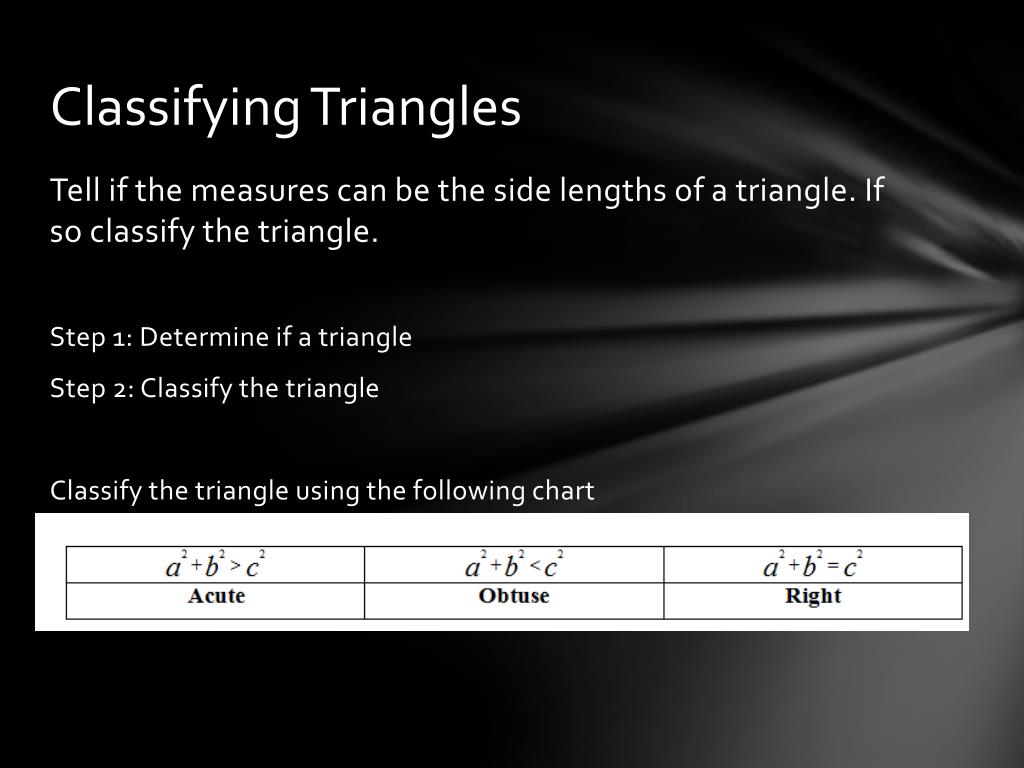

  13. Classifying Triangles • Tell if the measures can be the side lengths of a triangle. If so classify the triangle. • Step 1: Determine if a triangle • Step 2: Classify the triangle • Classify the triangle using the following chart

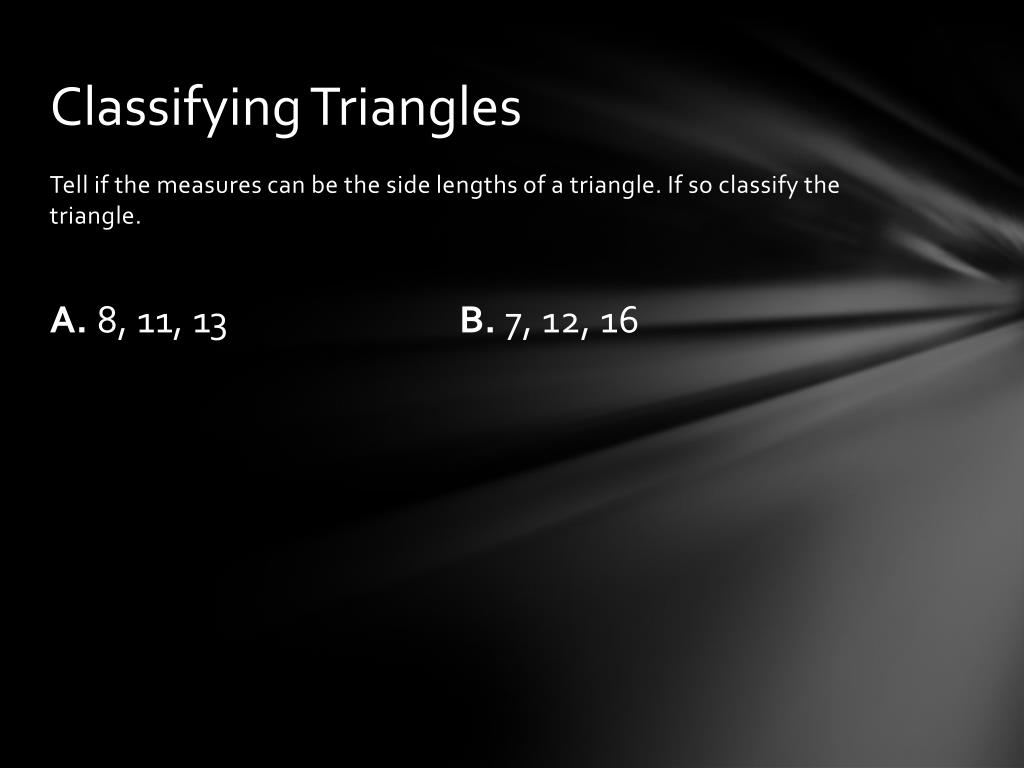

  14. Classifying Triangles • Tell if the measures can be the side lengths of a triangle. If so classify the triangle. • A. 8, 11, 13 B. 7, 12, 16

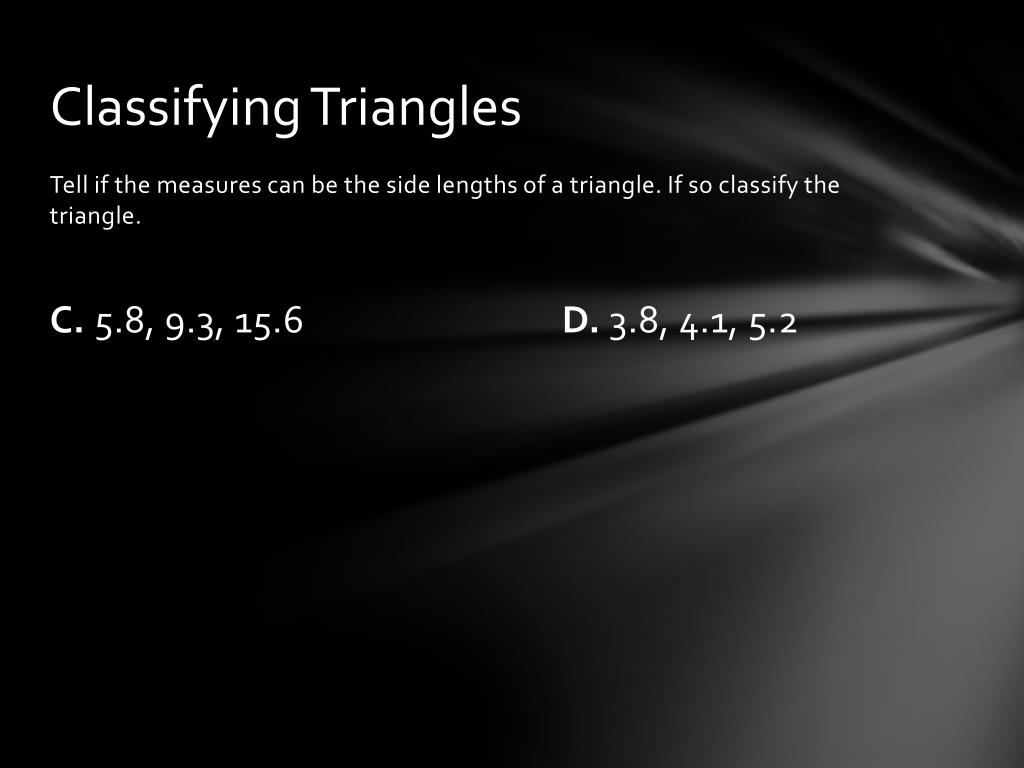

  15. Classifying Triangles • Tell if the measures can be the side lengths of a triangle. If so classify the triangle. • C. 5.8, 9.3, 15.6 D. 3.8, 4.1, 5.2

  16. Classifying Triangles • Tell if the measures can be the side lengths of a triangle. If so classify the triangle. • E. 5, 7, 10 F. 11, 18, 34

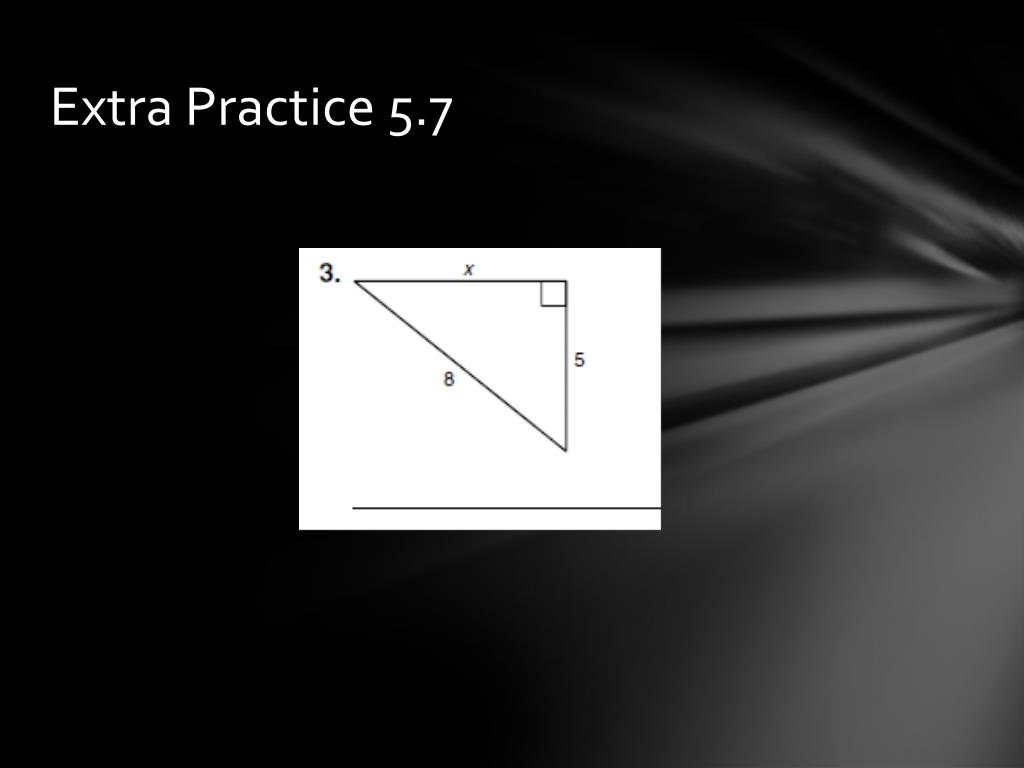

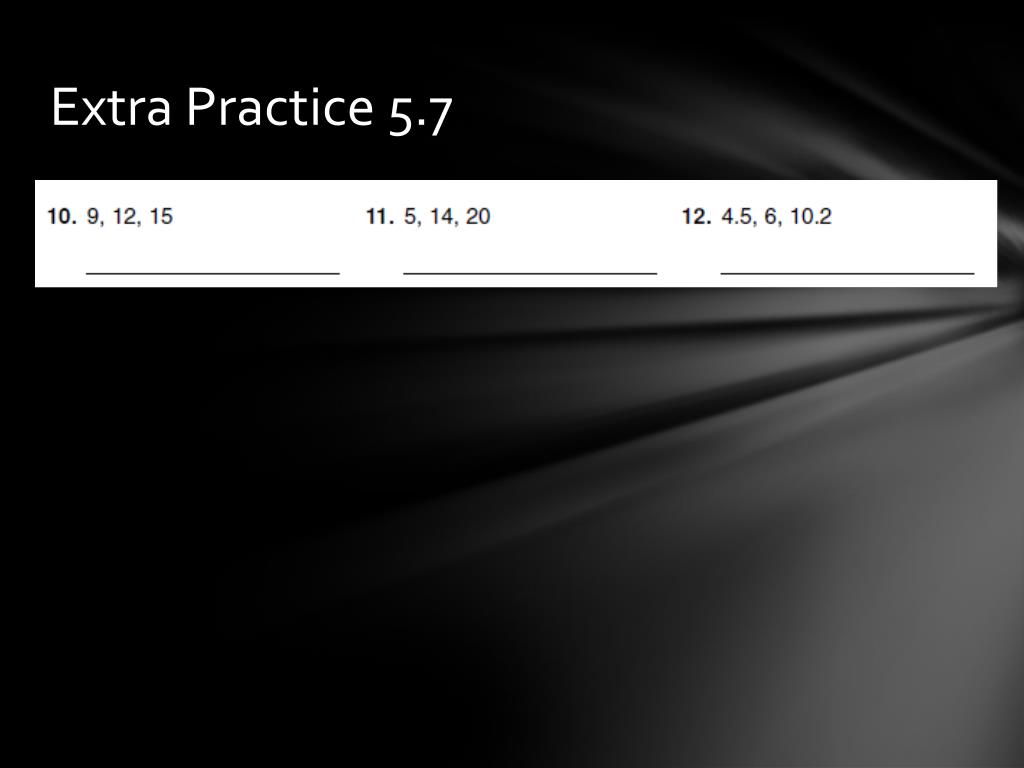

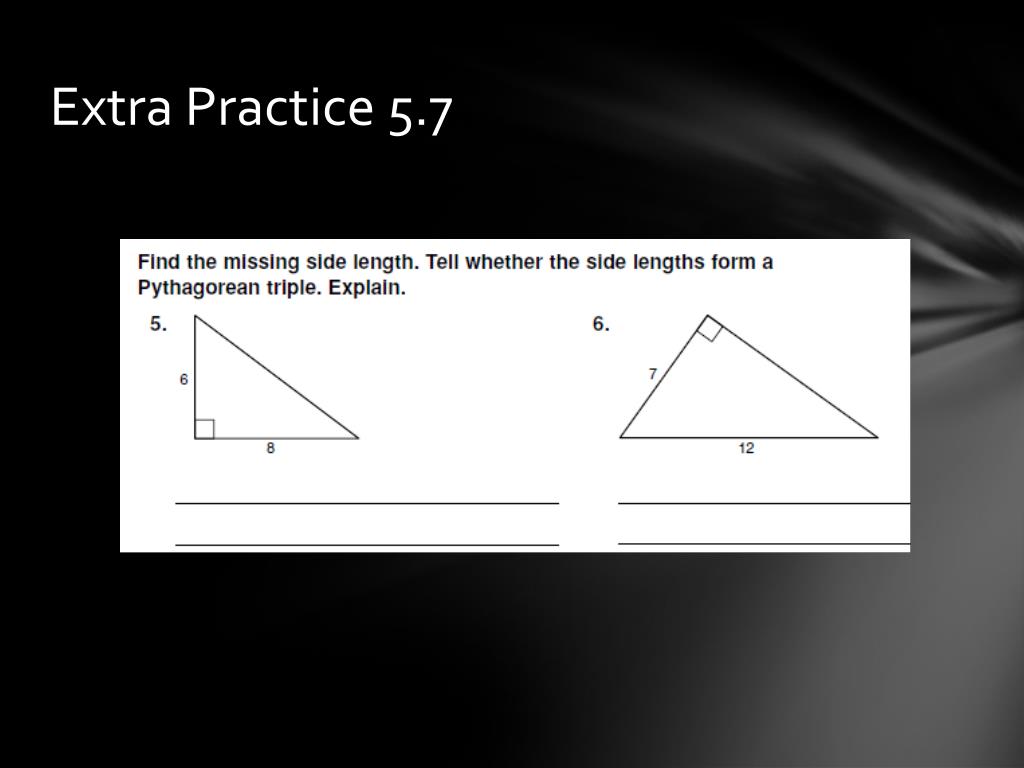

  17. Extra Practice 5.7

  18. Extra Practice 5.7

  19. Extra Practice 5.7

  20. Extra Practice 5.7

  21. Extra Practice 5.7
