  1. The Group of Companies “ND”specialized presentation: “Fueldispensers under the brand “ND-DISPENSER”. Кyiv, 2013

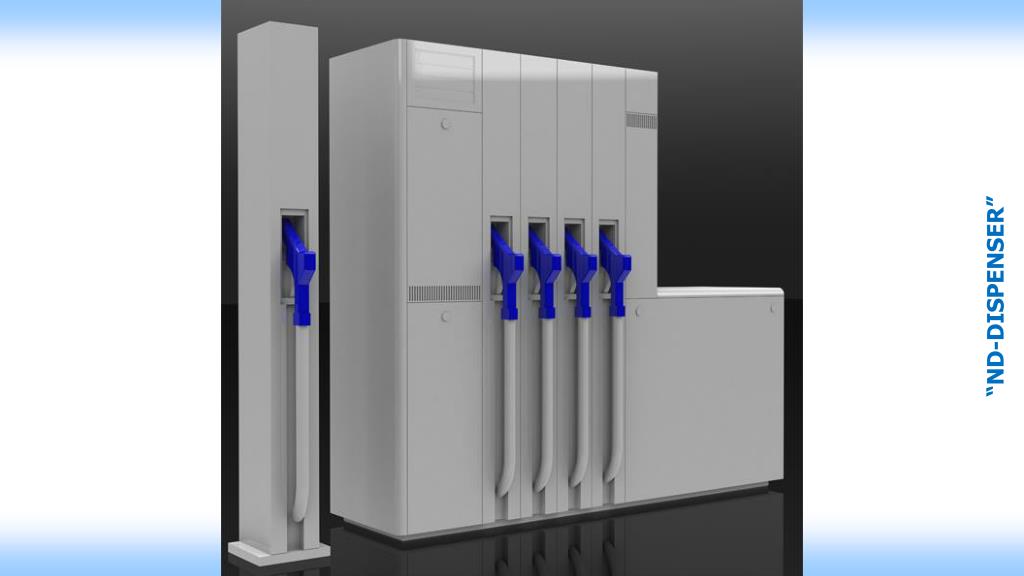

  2. “ND-DISPENSER”

  3. Contents • Presentation ofthe manufacturerof fuel dispensers “ND-DISPENSER” • Description of models andvarieties offuel dispensers “ND-DISPENSER” • Functional characteristics of fuel dispensers “ND-DISPENSER” • The main parameters and indicators of fuel-dispensing units: • - electricalcharacteristics; • - design features; • - mass-and-dimensioningdata onmodels; • - metrologicalparameters; • - safety and vandal-resistant parameters; • - reliabilityanddurabilityparameters; • 5. Characteristic features of the used constituent parts • 6. Technical exploitationadvantages of fuel dispensers • 7. Characteristic features ofexternal design offuel dispensers • 8. Built-in inside the fuel dispensers payment terminals “ND SELF-POS” • 9. Dispensers in the System oftheinformation integration “ND-OFFICE” The Group of Companies “ND”, 2013

  4. Presentation of the manufacturer of fuel dispensers “ND-DISPENSER” • Fuel dispenser“ND-DISPENSER”is developed byconstructiondepartmentoftheenterprisesoftheGroup of Companies «ND». Fuel dispenser is produced onproductioncapacitiesof «NDTECHNOLOGY» company. • In the structure of fuel dispenserconstituent parts of all enterprises of GC «ND» are used. In the course of development whole accumulated for 20 years work experience in development and maintenance of radio-technical and mechanical decisions for filling stations and petroleum storage depots has been used. • In construction, development, designingand production of fuel dispenser“ND-DISPENSER”the following companies are taken part: • «NEFTEGAZ ТECH», • «ND TECHNOLOGY», • «ND DATECS», • «ARGUS– SECURITY SYSTEMS», • «SERVICE-NS». • Warranty and post-warranty technical maintenance can be carried outby service network from more than 50 representative Centers of service maintenance (CSM) on the territory of Ukraine and others countries. • Specializedreliablewarranty and post-warrantyservice is provided including own service companies, which are members of the Group of Companies «ND»: • «SERVICE-CRIMEA», • «SERVICE-ZAHID», • «SERVICE-GALYCHYNA», • «SERVICE-DNEPR», • «SERVICE-VOSTOK», • «SERVICE-SAMARA», • «SERVICE-BUG». • Together with fuel dispensers“ND-DISPENSER”cash registers and management systems of all Ukrainian and majority of world manufacturers can be exploited. The Group of Companies “ND”, 2013

  5. Model line of fuel dispensers “ND-DISPENSER” • Allwithoutexceptionmodels of fuel dispensers“ND-DISPENSER”relate topremium-class, i.е. do not relate to“Low-Cost”sector. Depending onfunctional purpose and type of filling stations, on which fuel-dispensing units will be exploited, fuel dispensers are supplied in threeperformances: • “ND-DISPENSER-MINIMA”: • - performance of basic functionson fuel release; • - newfour-line display panels of the client; • - work according to“ND” protocols with management systems and cash registers; • - appropriatefor easy clients; • 2. “ND-DISPENSER-STANDART”: • - performance of standard functionson fuel release; • - integrated client panel with visual representation of additional information on fuel types, advertising field («roll captions»), with other multimedia functions; • - delivery possibility under different types of control protocols; • - the best decision for popularnetworks offilling stations; • 3. “ND-DISPENSER-ULTRA”: • - distinguishedwith improved design, “voicing”of client actions; • - multimedia screen for the client, delivery is possible with different systems ofself-service in one- andtwo-sidevariants; • - supplied withhydraulicaggregates of advanced reliability. The Group of Companies “ND”, 2013

  6. Description of fuel dispensers “ND-DISPENSER”with satellite The Group of Companies “ND”, 2013

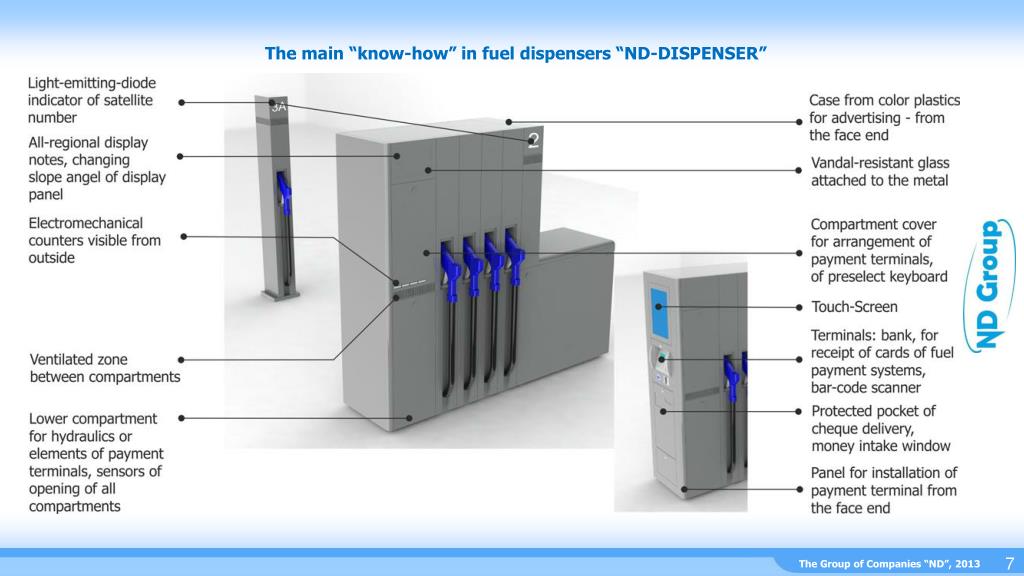

  7. The main“know-how”in fuel dispensers “ND-DISPENSER” The Group of Companies “ND”, 2013

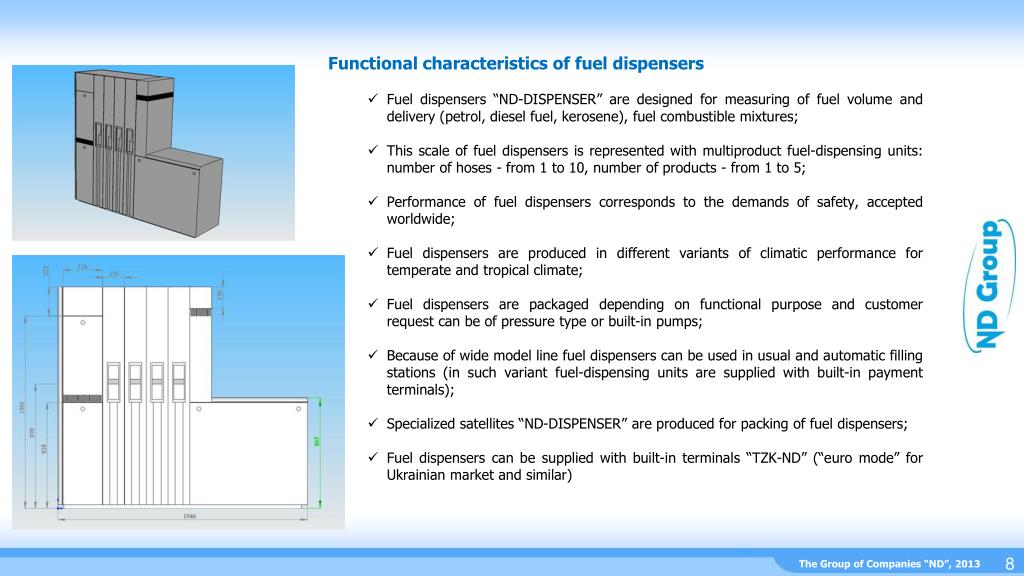

  8. Functional characteristics of fuel dispensers • Fuel dispensers “ND-DISPENSER”are designed for measuring of fuel volume and delivery (petrol, dieselfuel, kerosene), fuel combustible mixtures; • This scale of fuel dispensersis represented withmultiproductfuel-dispensing units: number of hoses - from 1 to 10, number of products - from 1 to 5; • Performance of fuel dispenserscorrespondsto the demands of safety, accepted worldwide; • Fuel dispensersare produced in different variants of climatic performancefortemperateandtropicalclimate; • Fuel dispensersare packaged depending on functional purpose and customer request can be of pressure type orbuilt-in pumps; • Because of wide model line fuel dispenserscan be used in usual and automatic filling stations (in such variant fuel-dispensing units are supplied with built-in payment terminals); • Specialized satellites“ND-DISPENSER” are produced for packing of fuel dispensers; • Fuel dispenserscan be supplied with built-in terminals“TZK-ND” (“euro mode” for Ukrainian market and similar) The Group of Companies “ND”, 2013

  9. The main parameters andindicators of fuel dispensers • Electrical characteristics: • Power of electric motors ofhydraulicaggregates– from circuit 220Vor 380V 50…60hz; • Consumed power – less than 6kW; • Power supply of inner electric systems - +5, +12, +24V; • Earthingisrequiredfortheequipment; • Connection interface of electronics withcontrol systems and cash registers – RS-485; • Design features: • Housing from metal, stainlesssteel; • Anticorrosion coating ofstructuralcomponents; • Performance of electronic blocksandactuatingmechanisms – for temperate climate ortropics; • Inner system for providing of microclimate; • Mass-and-dimensioning data (4 fuel types)*: • Boundary dimensions of dispensing unit - 1946х520х1730; • Boundary dimensions of satellite - 170(250)х250х1730; • Mass of dispensing unit – less than 800 kg; • Cargo weight – less than 1200 kg; • * Boundary andcouplingsizesoffuel dispenserswith different numberofproducts/valvesare introduced in technical documentation of the manufacturer • Metrological parameters: • Accuracy of fuel release ±0,25%; • Minimal dose of fuelorder – 2 liters; • Productivity of dispensing unit – 40…80 l/min.; • Reliability and durabilityparameters: • Owncertified productionareas; • Use of high-quality materials; • Equipment has certificates of international pattern; • Constituent parts of leading European manufacturers; • Productionstandards, proved with time and projects; • Quality management systemISO9001:2008; • Safety and vandal-resistant parameters: • All elements ofhydraulic aggregates haveexplosion-resistant performance; • Steam recuperation system is used (option functional); • Electronic module for monitoring of safety and telemetry (optionally), inner time of fuel dispensersare proposed; • Structure of the housing foresees maximumnecessaryresistancetoexternalphysicaleffects – vandal-resistnace; • Shock-protectedglassesandplasticelementsoftheplateareused. The Group of Companies “ND”, 2013

  10. Characteristic features of the used constituent parts • High-qualityhydromodulesBennett T-75and dosemetersSB-100*; • Delay valves foradvancepayment – ofDanfoss production; • Inletnon-expendablefilterswithback valves; • Electronic and electromechanicalcounters to every kind of fuel; • Flexible bellowsfor connection of fuel-dispensing units to pipelines; • Safety valvesOPWunder fuel-dispensing units – for pressure dispensing units; • Automaticfilling pistols ZVAwith switch-off function; • Freeze-resistanthosesElaflex; cut-off clutchOPW; • LCD andTFT-displays withelectronic display notes on programmed languages; • Electronics and production management blocks of the“ND TECHNOLOGY” company; • Built-in payment terminals of the production company “NEFTEGAZ TECH”. • * Essential requirementofthemanufacturer: fuel dispensersrelates to premium-class, that is whythe installation of the constituent parts of doubtful origin for decreasing of costs or in other reasons is not provided. The Group of Companies “ND”, 2013

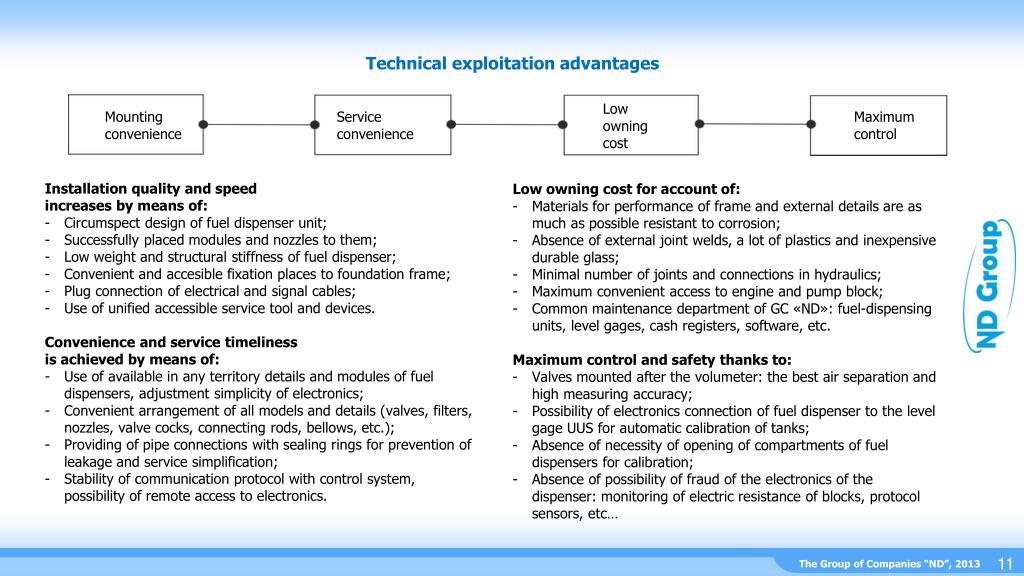

  11. Technical exploitation advantages Low owning cost Mounting convenience Service convenience Maximum control • Installation quality and speed • increases by means of: • Circumspect designof fuel dispenser unit; • Successfully placed modules and nozzles to them; • Low weightandstructuralstiffnessoffuel dispenser; • Convenient and accesible fixation places to foundation frame; • Plug connectionofelectricalandsignalcables; • Use of unifiedaccessibleservicetoolanddevices. • Convenience andservice timeliness • isachievedbymeansof: • Use ofavailable in anyterritorydetailsandmodulesoffuel dispensers, adjustmentsimplicityofelectronics; • Convenientarrangement of all models and details (valves, filters, nozzles, valve cocks, connectingrods, bellows, etc.); • Providing ofpipe connections with sealing ringsfor prevention of leakage and service simplification; • Stability of communication protocol with control system, possibility of remote access to electronics. • Low owning cost for account of: • Materials for performanceof frame and external details are as much as possible resistant to corrosion; • Absence of externaljointwelds, a lot of plastics andinexpensive durable glass; • Minimal number ofjoints andconnections in hydraulics; • Maximum convenient access to engine and pump block; • Common maintenancedepartmentof GC «ND»: fuel-dispensing units, level gages, cash registers, software, etc. • Maximum control and safetythanks to: • Valves mounted after the volumeter: the bestair separation andhigh measuring accuracy; • Possibility of electronics connection of fuel dispenser to the level gageUUSforautomatic calibration of tanks; • Absence of necessity of opening of compartments of fuel dispensers for calibration; • Absence of possibility of fraud of the electronics of the dispenser: monitoring of electric resistance of blocks, protocol sensors, etc… The Group of Companies “ND”, 2013

  12. Characteristic features of external design of fuel dispensers • For painting modernpaintmaterials, resistanttoattrition and little scratch are used; • Coatings provide protection of metal details from action of atmosphere factorsin whole range of working temperatures and moisture to 100%; • Increased resistance to the ultraviolet will allow retaining of colors of fuel dispensers always bright; • Before coating of paint all surfaces are additionally treated with ZRC (zinc-rich compositions); • In the basis of proposed anticorrosion compositions principles are lying, used in construction of systems of protection coatings of increased safety, widely used in world practice(ISO12944-5:1998). • Additional services at delivery of fuel dispensers “ND-DISPENSER”: • Painting in colorsRALoptionally; • Decoration in corporate design; • Decoration withORACAL pellicle*; • Designing and production ofdecoration elements • (plastic, metal); • Further development of designof housing • elements. • * Structure of pillar underelectronics of fuel • dispenser allows realizing not used previously • original interesting color decisions. The Group of Companies “ND”, 2013

  13. Payment terminals in fuel dispensers “ND-DISPENSER” • Fuel dispensers are produced in classical performance and with built-in inside the housingcontrol/payment terminals. Models“ND-DISPENSER-STANDART”and“ND-DISPENSER-ULTRA” can be equipped with terminals. • The most popular built-in inside the fuel dispensers terminals: • Preselectionkeyboardofdose or sum of order (standard functional of fuel dispensers); • Keyboard of choosing of payment type for fuel (cash/coupons, works together with cash register or control system); • Terminal for fuelling startTZK-ND (choice of one of 5 types of payment, reading of cards of service station attendants for permission of fuel release from fuel-dispensing unit, arrangement of terminal on each side of fuel dispensers, works together with cash register or control system); • TerminalGPS-797for maintenance of bank cards or cards of fuel payment systems (noncontact cards, arrangementof terminal on eachsideoffuel dispensers lowercompartmentwithelectronics, works together with cash register or control system); • Terminal forfuel quotaredeem (can be fixed from the face end of fuel dispensers or on the sides,works autonomously or together with control system); • Automatic payment terminal “ND SELF-POS”with maximum set of functional possibilities, acceptance of all existing in the country types of payment(including, cash paper money), output of electronic odd money, built-in video observation and telemetry systems, mounted in one fuel dispenser terminal can control all dispensers on the said filling station, joint work with other types of built-in terminals on the other fuel dispensers and together with stationary cash registers in operator’s room is possible. The Group of Companies “ND”, 2013

  14. Delivery of fuel dispensers “ND-DISPENSER”together with box“ND ECO-BOX” The Group of Companies “ND”, 2013

  15. Fuel dispensers “ND-DISPENSER”in the System of information integration“ND-OFFICE” • Enterprises of Group of Company «ND» are suppliers of technical and technological decisions for complex automation of business processes fuel work. • GC «ND» has started its activity from creation and introduction of cash equipment, then software and hardware complex“ND-OFFICE” has been produced, after that ultrasonic level gage-signalling device UUS-01 has been developed and started to produce, and hardware complex“ND-OIL” has been developed for automation of petroleum storage depots… • From the beginning of 2013 enterprises of GC «ND» logically continued line of produced equipment. Fuel dispenser of premium-class “ND-DISPENSER” has been developed. Dispenser absorbed experience and results, whichGC «ND» has been gathering during 20 years. • Thanks todesigned functional and technical characteristics, fuel dispenser is harmonically fall intogeneralconceptionofcomplexautomationoffillingbusinessbymeans, proposedby «ND» developers. • In production of fuel dispensers only the most reliable constituent parts and modules are used.The special attention is paid in order that addition fund will be unified and accessible in any country of the world, that existing service centerseasilyswitch on serviceofnewequipment. • We hope that new fuel dispenser please all users! The Group of Companies “ND”, 2013

  16. СПАСИБО ЗА ВНИМАНИЕ! www.nd.ua
