  1. DPRMA(Distributed Packet Reservation Multiple Access) 2007. 5. 23 (수) 김 희 준 icemichy@hufs.ac.kr

  2. Contents • Abstract • Introduction • Principle of DPRMA • Approximate Performance Analysis • Numerical Examples and Discussion • Conclusion

  3. Abstract • Apply MAC scheme like TDMA for mobile ad hoc networks with emphasis on voice application support • Major Effects • simple slot reservation mechanism for voice traffic without relying on any central entity • simple solution for the hidden and exposed terminal problems uniquely present in wireless ad hoc environments • Performance test • investigated by analysis and computer simulations in comparison with IEEE 802.11 • The results show that D-PRMA is much more suitable than IEEE 802.11 for voice application

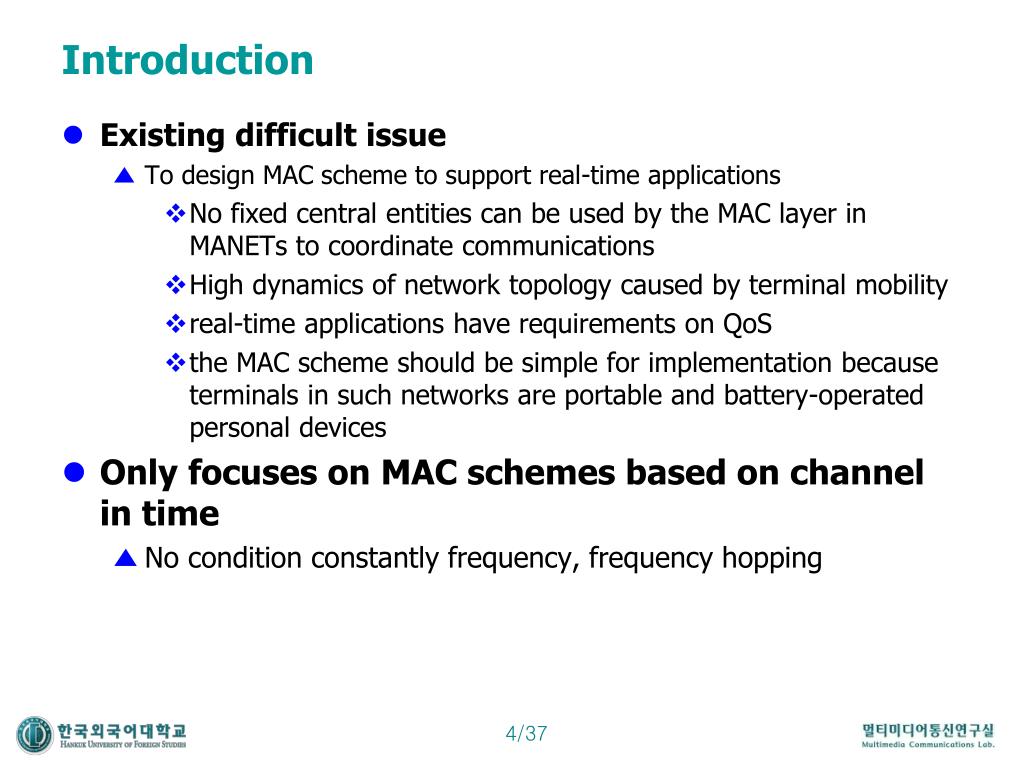

  4. Introduction • Existing difficult issue • To design MAC scheme to support real-time applications • No fixed central entities can be used by the MAC layer in MANETs to coordinate communications • High dynamics of network topology caused by terminal mobility • real-time applications have requirements on QoS • the MAC scheme should be simple for implementation because terminals in such networks are portable and battery-operated personal devices • Only focuses on MAC schemes based on channel in time • No condition constantly frequency, frequency hopping

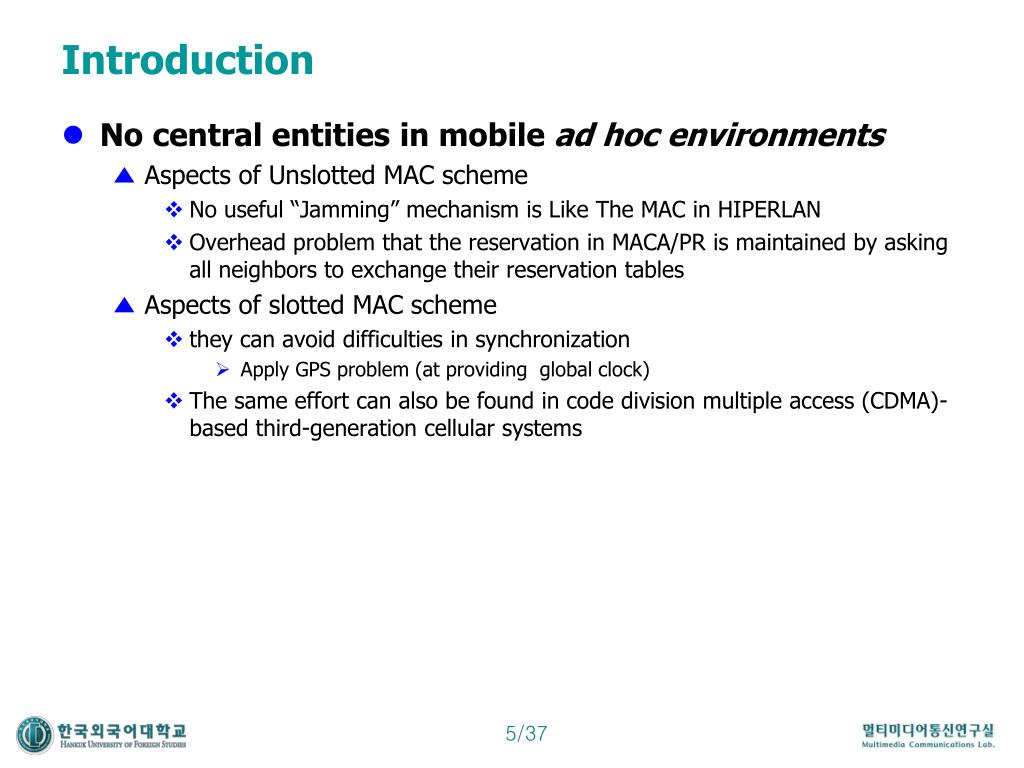

  5. Introduction • No central entities in mobile ad hoc environments • Aspects of Unslotted MAC scheme • No useful “Jamming” mechanism is Like The MAC in HIPERLAN • Overhead problem that the reservation in MACA/PR is maintained by asking all neighbors to exchange their reservation tables • Aspects of slotted MAC scheme • they can avoid difficulties in synchronization • Apply GPS problem (at providing global clock) • The same effort can also be found in code division multiple access (CDMA)-based third-generation cellular systems

  6. Introduction • Slotted-channel-based MAC schemes • a successful contention process (FPRP / E-TDMA) • a long access delay for real-time applications if a slot is reserved by a terminal at the “talkspurt” level • In the TDMA/FDD-based scheme • a slot is reserved for a voice terminal until the end of a call • PRMA • a centralized and slotted MAC scheme • providing a mechanism for slot reservation at the “talkspurt” level for voice and data applications • with a base station as the fixed entity for the MAC operation • So, Author discuss a simple extension of PRMA, termed “distributed PRMA” (D-PRMA) • with emphasis on voice application support in mobile ad hoc environments

  7. PRINCIPLE OF D-PRMA • PRINCIPLE OF D-PRMA • Slot Reservation Scheme • Solution for the Hidden and Exposed Terminal Problems

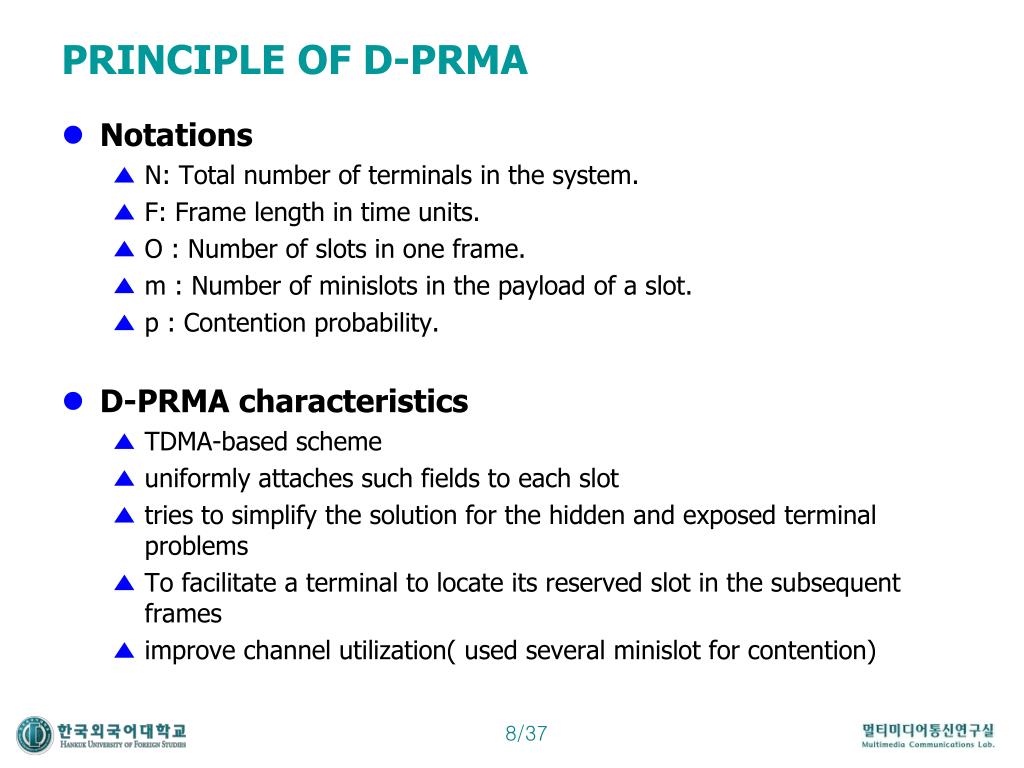

  8. PRINCIPLE OF D-PRMA • Notations • N: Total number of terminals in the system. • F: Frame length in time units. • O : Number of slots in one frame. • m : Number of minislots in the payload of a slot. • p : Contention probability. • D-PRMA characteristics • TDMA-based scheme • uniformly attaches such fields to each slot • tries to simplify the solution for the hidden and exposed terminal problems • To facilitate a terminal to locate its reserved slot in the subsequent frames • improve channel utilization( used several minislot for contention)

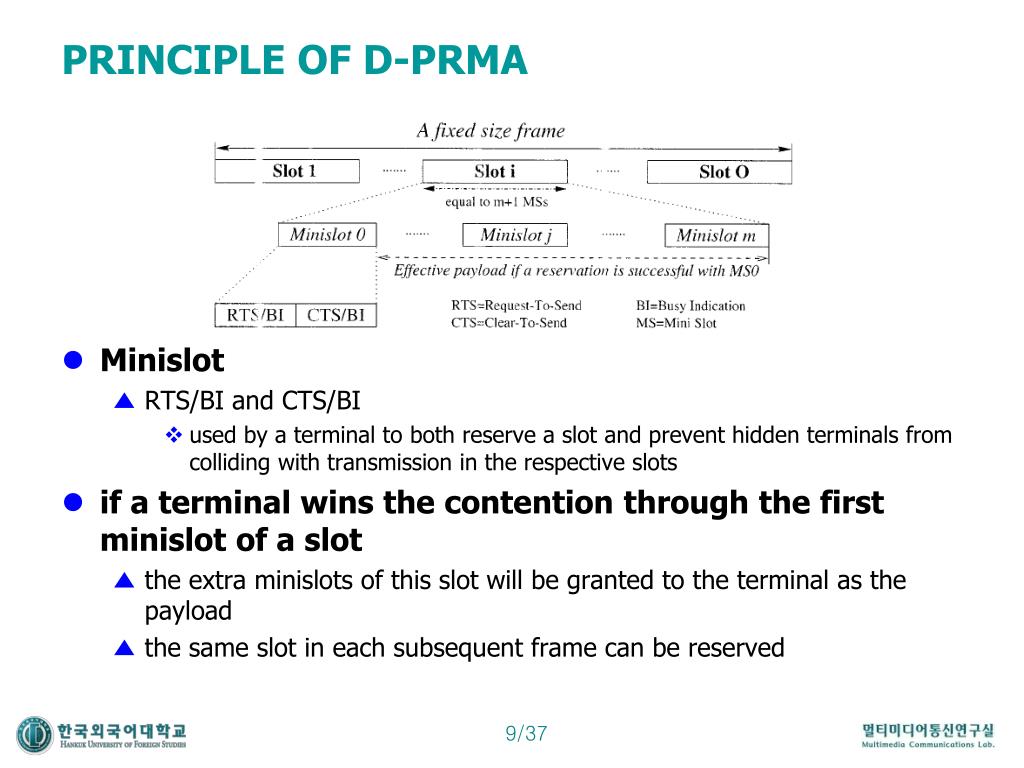

  9. PRINCIPLE OF D-PRMA • Minislot • RTS/BI and CTS/BI • used by a terminal to both reserve a slot and prevent hidden terminals from colliding with transmission in the respective slots • if a terminal wins the contention through the first minislot of a slot • the extra minislots of this slot will be granted to the terminal as the payload • the same slot in each subsequent frame can be reserved

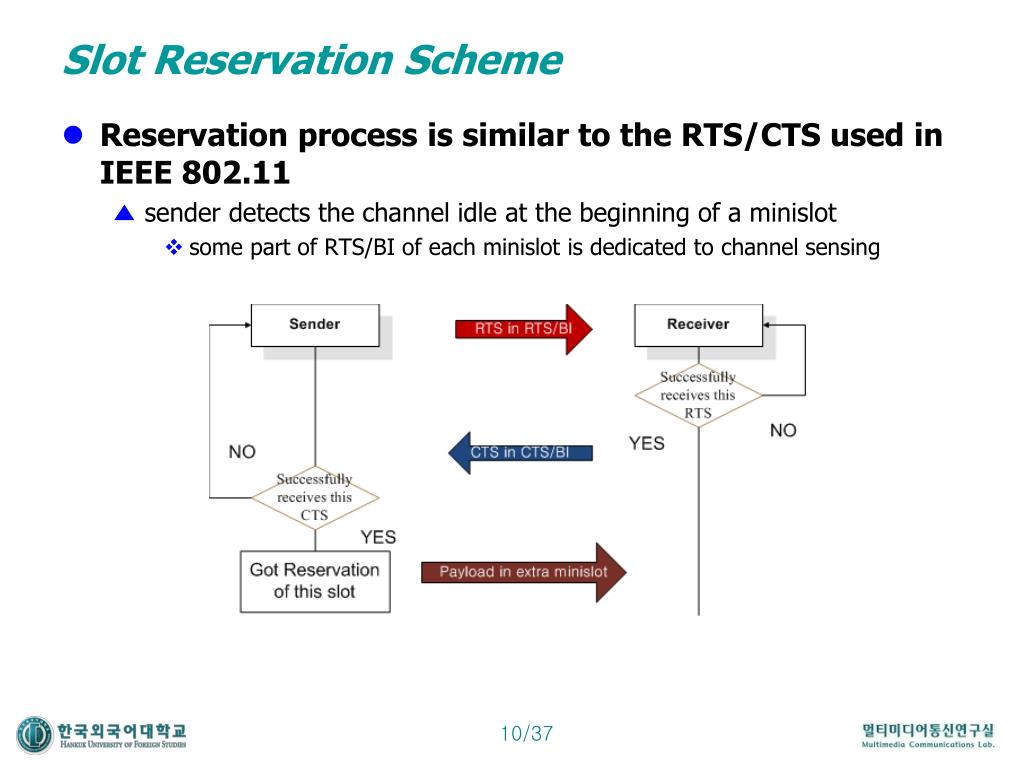

  10. Slot Reservation Scheme • Reservation process is similar to the RTS/CTS used in IEEE 802.11 • sender detects the channel idle at the beginning of a minislot • some part of RTS/BI of each minislot is dedicated to channel sensing

  11. Slot Reservation Scheme • Guarantee voice traffic • Define rule to prioritize voice terminals • voice terminals start the contention from minislot 0 with probability p=1 (data terminals p < 1) • Give same probability(p<1) through m extra minislots contention • to avoid unnecessary slot reservation • the winner of a voice terminal can reserve the same slot in each subsequent frame until the end of the packet transmission • data terminal can only use one slot

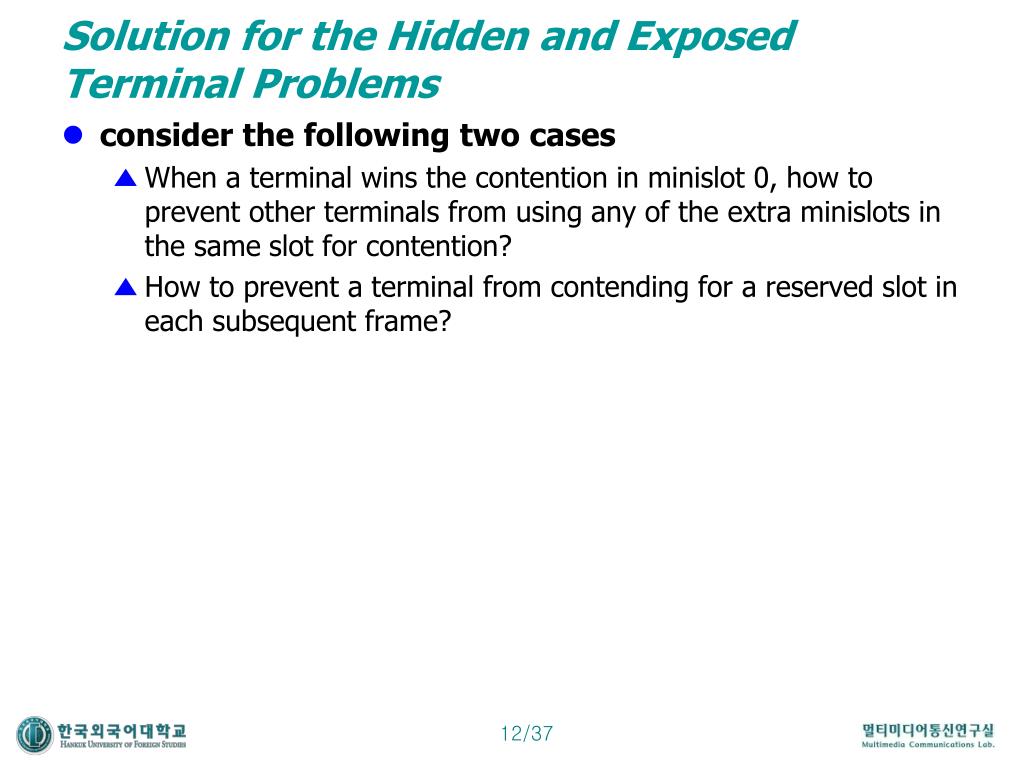

  12. Solution for the Hidden and Exposed Terminal Problems • consider the following two cases • When a terminal wins the contention in minislot 0, how to prevent other terminals from using any of the extra minislots in the same slot for contention? • How to prevent a terminal from contending for a reserved slot in each subsequent frame?

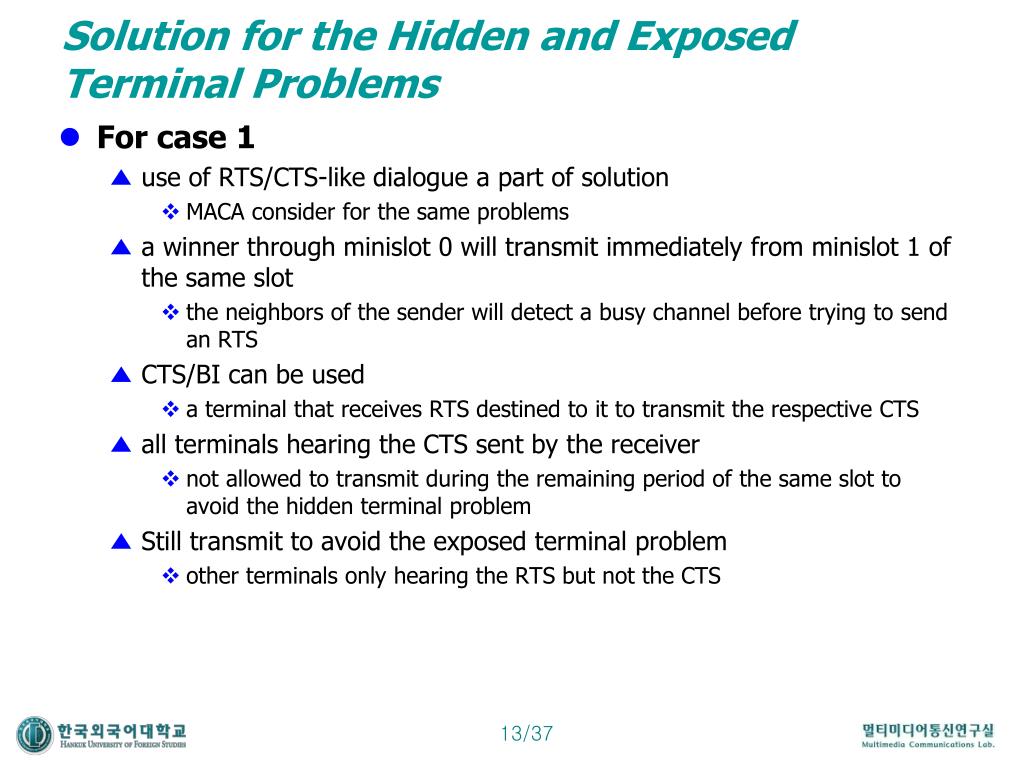

  13. Solution for the Hidden and Exposed Terminal Problems • For case 1 • use of RTS/CTS-like dialogue a part of solution • MACA consider for the same problems • a winner through minislot 0 will transmit immediately from minislot 1 of the same slot • the neighbors of the sender will detect a busy channel before trying to send an RTS • CTS/BI can be used • a terminal that receives RTS destined to it to transmit the respective CTS • all terminals hearing the CTS sent by the receiver • not allowed to transmit during the remaining period of the same slot to avoid the hidden terminal problem • Still transmit to avoid the exposed terminal problem • other terminals only hearing the RTS but not the CTS

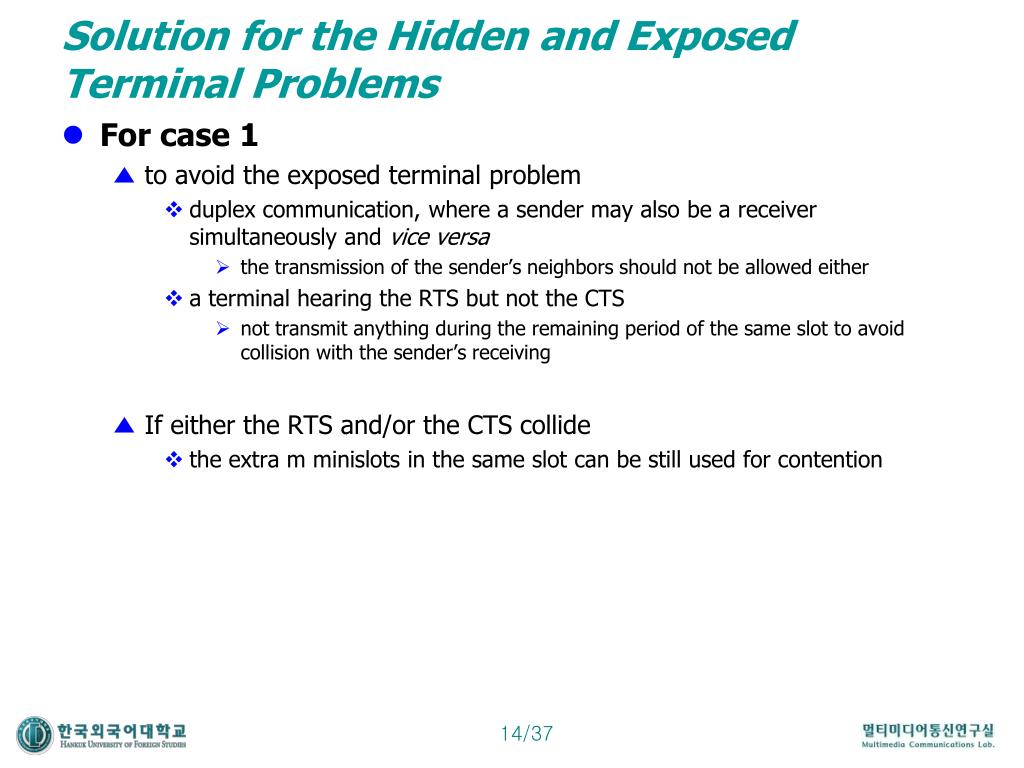

  14. Solution for the Hidden and Exposed Terminal Problems • For case 1 • to avoid the exposed terminal problem • duplex communication, where a sender may also be a receiver simultaneously and vice versa • the transmission of the sender’s neighbors should not be allowed either • a terminal hearing the RTS but not the CTS • not transmit anything during the remaining period of the same slot to avoid collision with the sender’s receiving • If either the RTS and/or the CTS collide • the extra m minislots in the same slot can be still used for contention

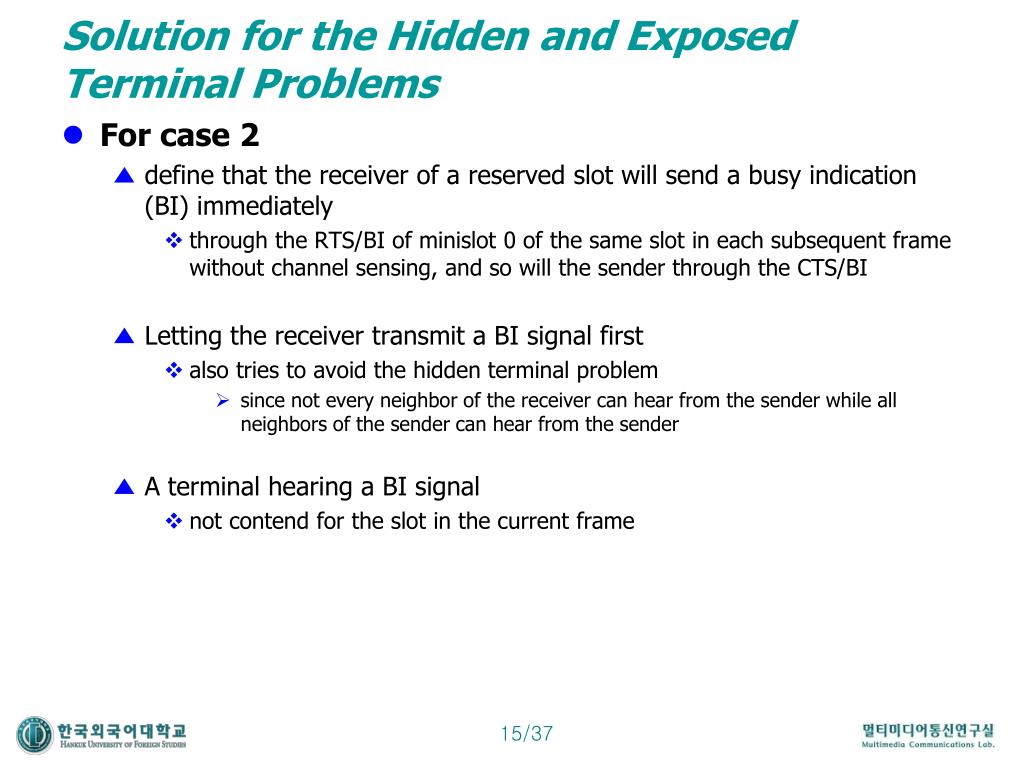

  15. Solution for the Hidden and Exposed Terminal Problems • For case 2 • define that the receiver of a reserved slot will send a busy indication (BI) immediately • through the RTS/BI of minislot 0 of the same slot in each subsequent frame without channel sensing, and so will the sender through the CTS/BI • Letting the receiver transmit a BI signal first • also tries to avoid the hidden terminal problem • since not every neighbor of the receiver can hear from the sender while all neighbors of the sender can hear from the sender • A terminal hearing a BI signal • not contend for the slot in the current frame

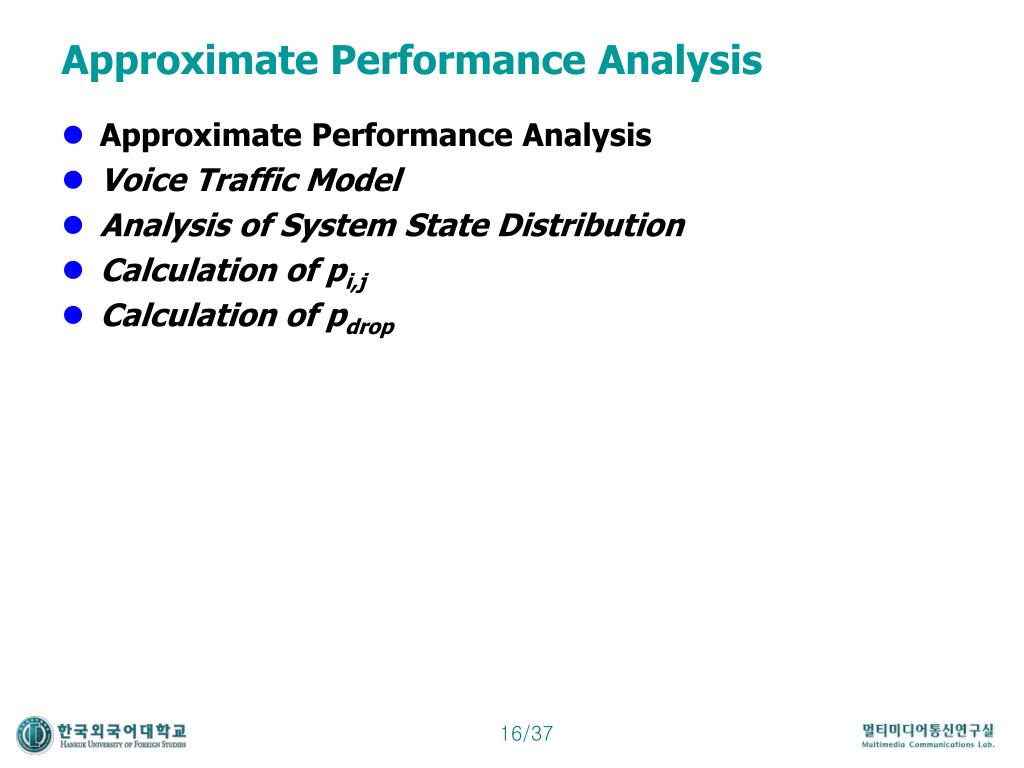

  16. Approximate Performance Analysis • Approximate Performance Analysis • Voice Traffic Model • Analysis of System State Distribution • Calculation of pi,j • Calculation of pdrop

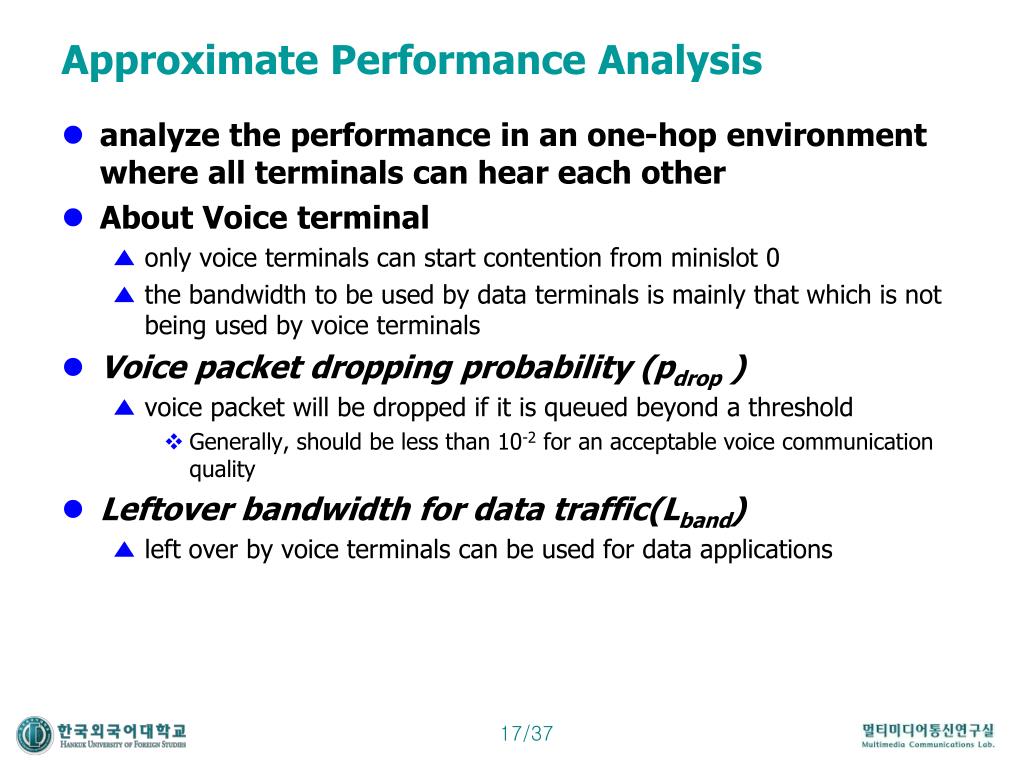

  17. Approximate Performance Analysis • analyze the performance in an one-hop environment where all terminals can hear each other • About Voice terminal • only voice terminals can start contention from minislot 0 • the bandwidth to be used by data terminals is mainly that which is not being used by voice terminals • Voice packet dropping probability (pdrop ) • voice packet will be dropped if it is queued beyond a threshold • Generally, should be less than 10-2 for an acceptable voice communication quality • Leftover bandwidth for data traffic(Lband) • left over by voice terminals can be used for data applications

  18. Voice Traffic Model • Voice terminal • generates a pattern of talkspurt and silence periods as classified by its voice activity detector • A terminal’s vocoder digitizes talkspurts into packets and suppresses silence periods • digitized packets have a fixed length • Model for voice traffic described Markov process • exponentially distributed talkspurt periods / silence periods

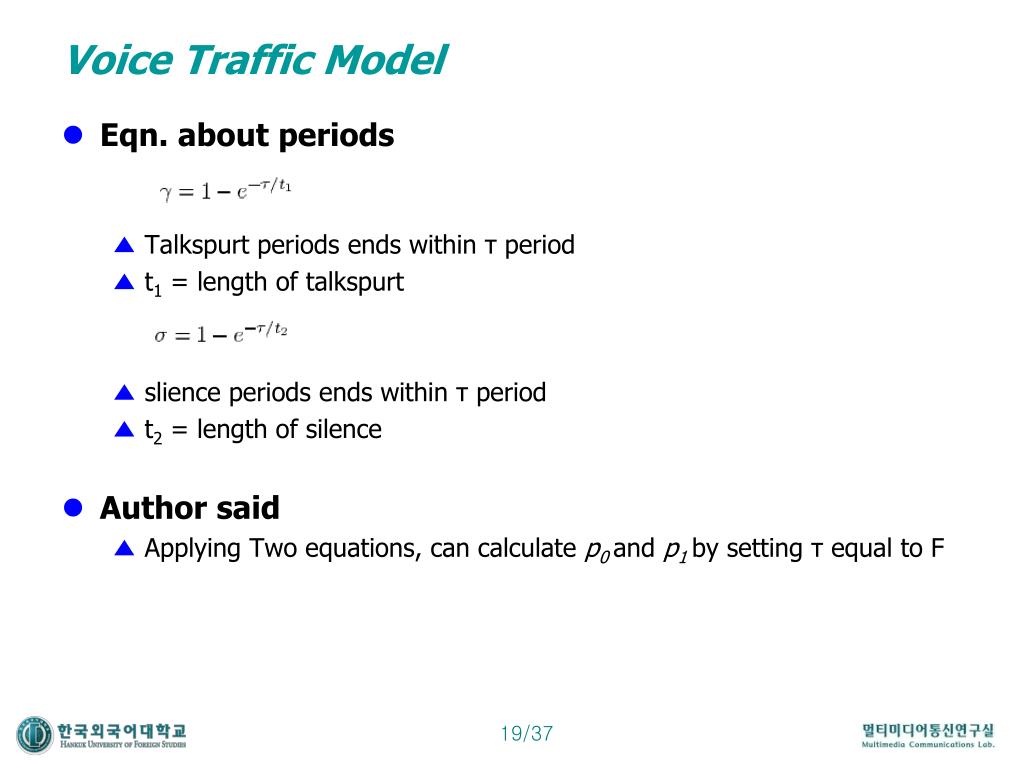

  19. Voice Traffic Model • Eqn. about periods • Talkspurt periods ends within τ period • t1 = length of talkspurt • slience periods ends within τ period • t2 = length of silence • Author said • Applying Two equations, can calculate p0 and p1 by setting τ equal to F

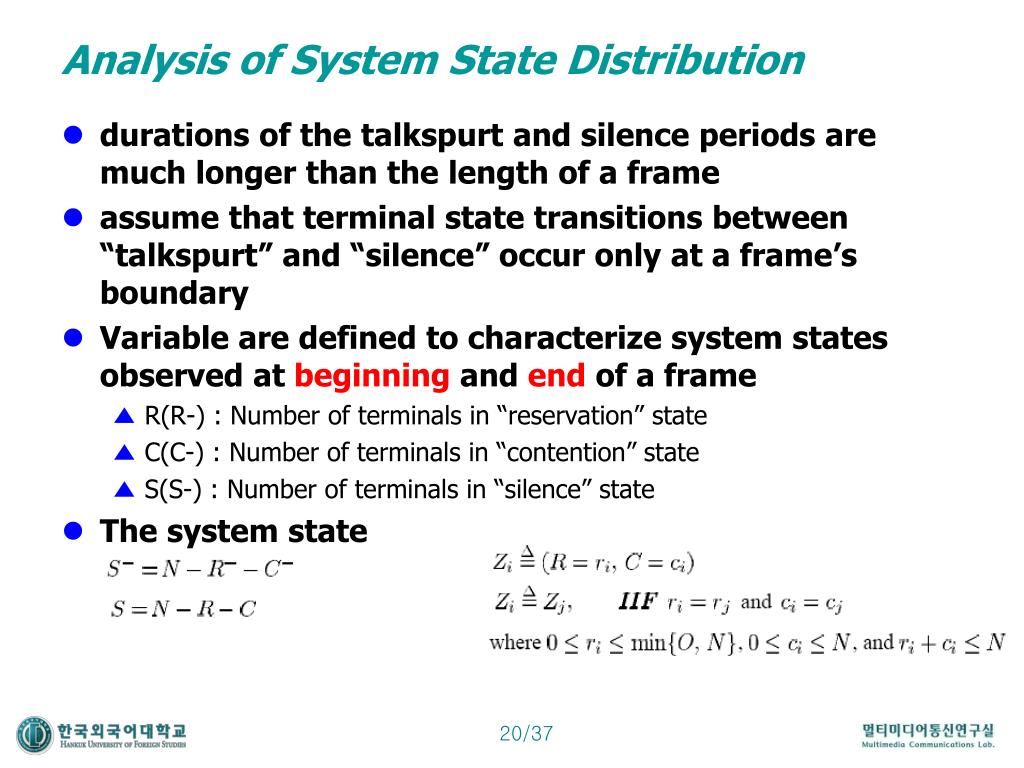

  20. Analysis of System State Distribution • durations of the talkspurt and silence periods are much longer than the length of a frame • assume that terminal state transitions between “talkspurt” and “silence” occur only at a frame’s boundary • Variable are defined to characterize system states observed at beginning and end of a frame • R(R-) : Number of terminals in “reservation” state • C(C-) : Number of terminals in “contention” state • S(S-) : Number of terminals in “silence” state • The system state

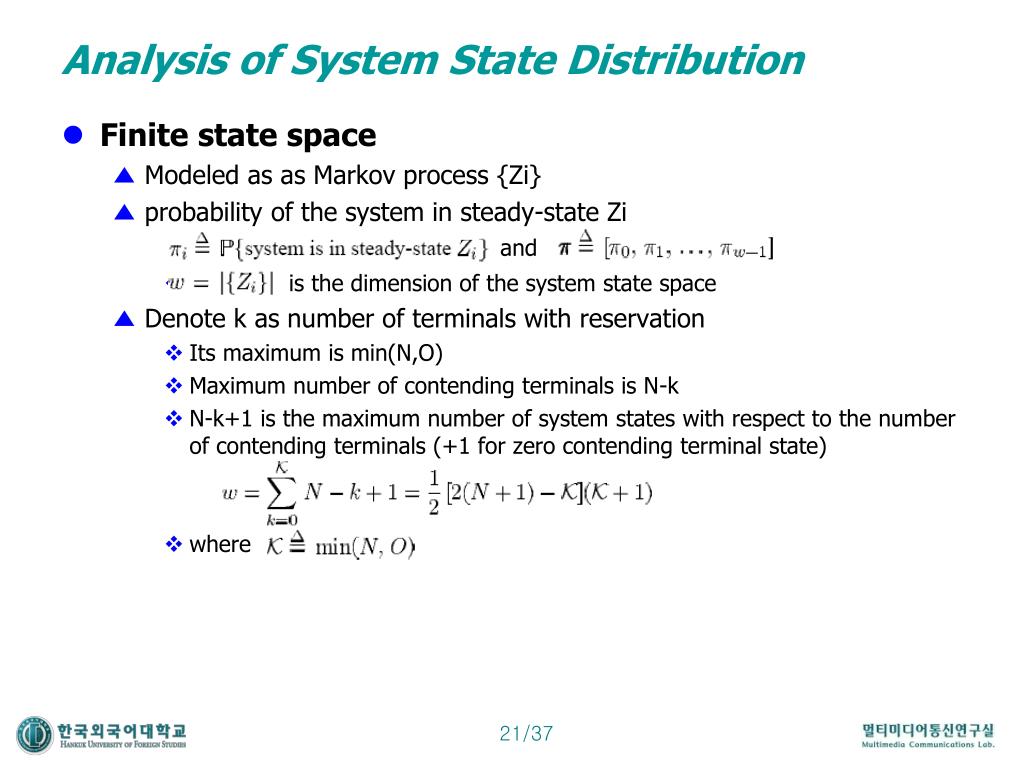

  21. Analysis of System State Distribution • Finite state space • Modeled as as Markov process {Zi} • probability of the system in steady-state Zi • is the dimension of the system state space • Denote k as number of terminals with reservation • Its maximum is min(N,O) • Maximum number of contending terminals is N-k • N-k+1 is the maximum number of system states with respect to the number of contending terminals (+1 for zero contending terminal state) • where and

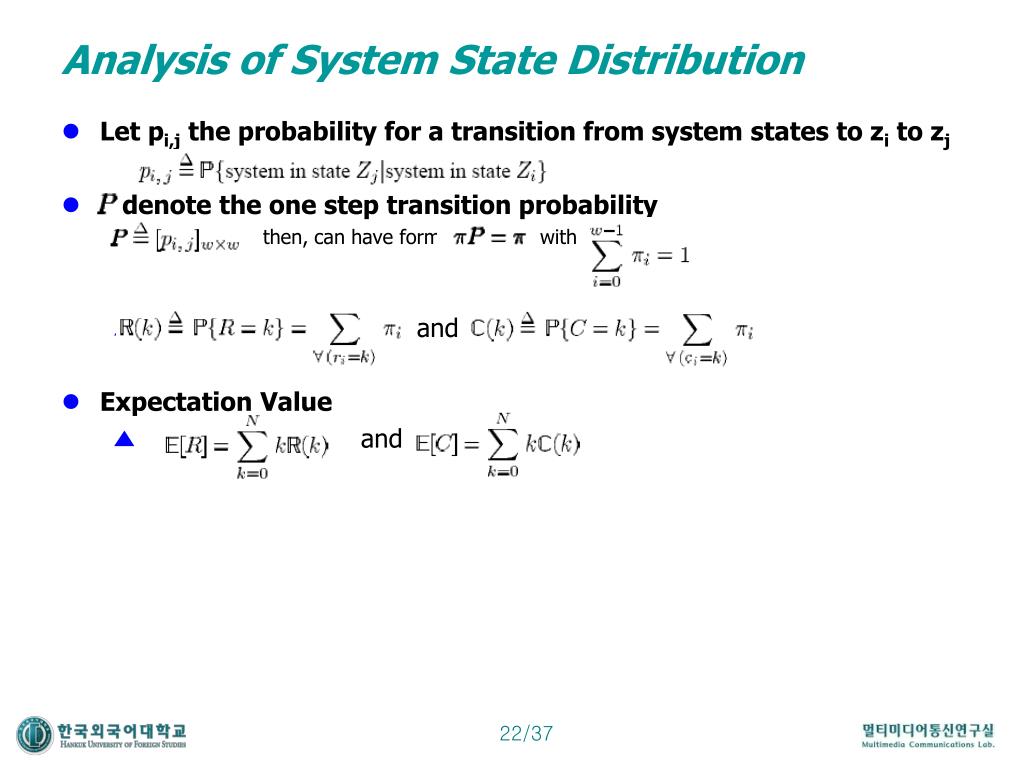

  22. Analysis of System State Distribution • Let pi,j the probability for a transition from system states to zi to zj • denote the one step transition probability • then, can have form with • and • Expectation Value • and

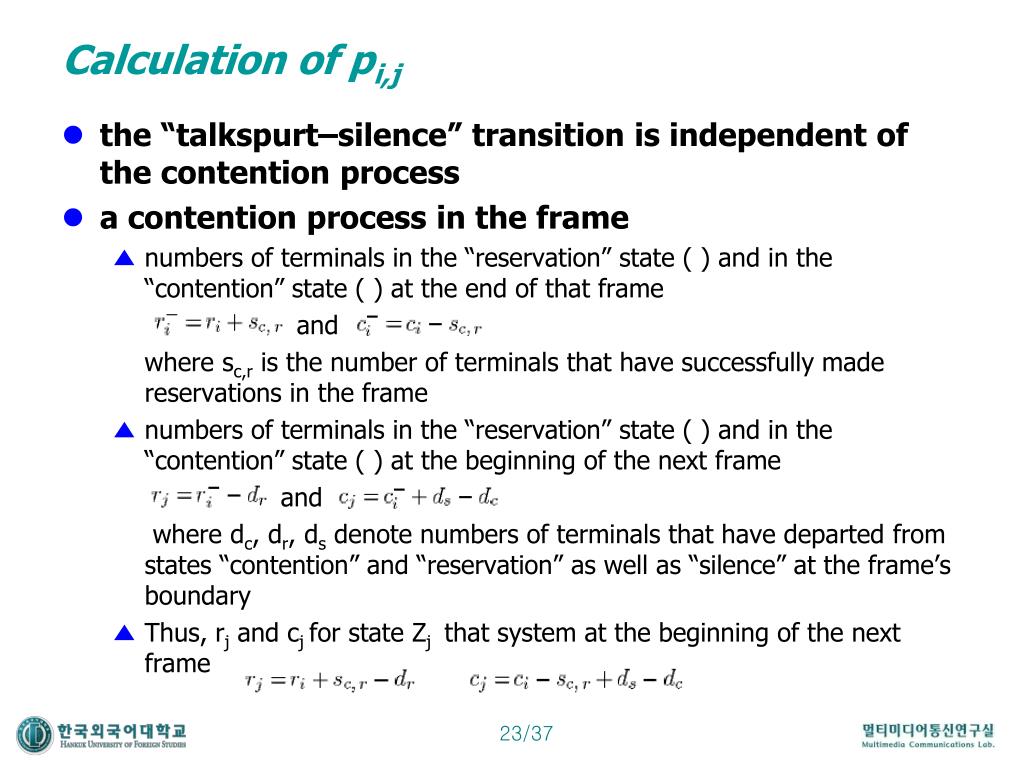

  23. Calculation of pi,j • the “talkspurt–silence” transition is independent of the contention process • a contention process in the frame • numbers of terminals in the “reservation” state ( ) and in the “contention” state ( ) at the end of that frame and where sc,r is the number of terminals that have successfully made reservations in the frame • numbers of terminals in the “reservation” state ( ) and in the “contention” state ( ) at the beginning of the next frame and where dc, dr, ds denote numbers of terminals that have departed from states “contention” and “reservation” as well as “silence” at the frame’s boundary • Thus, rj and cj for state Zj that system at the beginning of the next frame

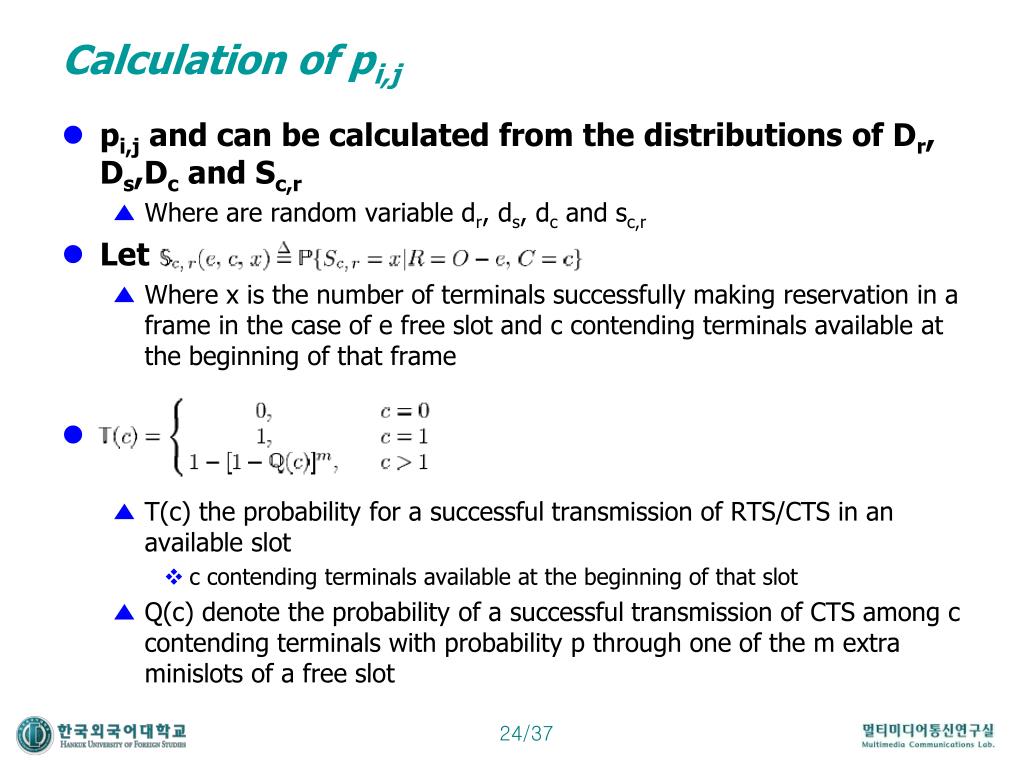

  24. Calculation of pi,j • pi,j and can be calculated from the distributions of Dr, Ds,Dc and Sc,r • Where are random variable dr, ds, dc and sc,r • Let • Where x is the number of terminals successfully making reservation in a frame in the case of e free slot and c contending terminals available at the beginning of that frame • aa • T(c) the probability for a successful transmission of RTS/CTS in an available slot • c contending terminals available at the beginning of that slot • Q(c) denote the probability of a successful transmission of CTS among c contending terminals with probability p through one of the m extra minislots of a free slot

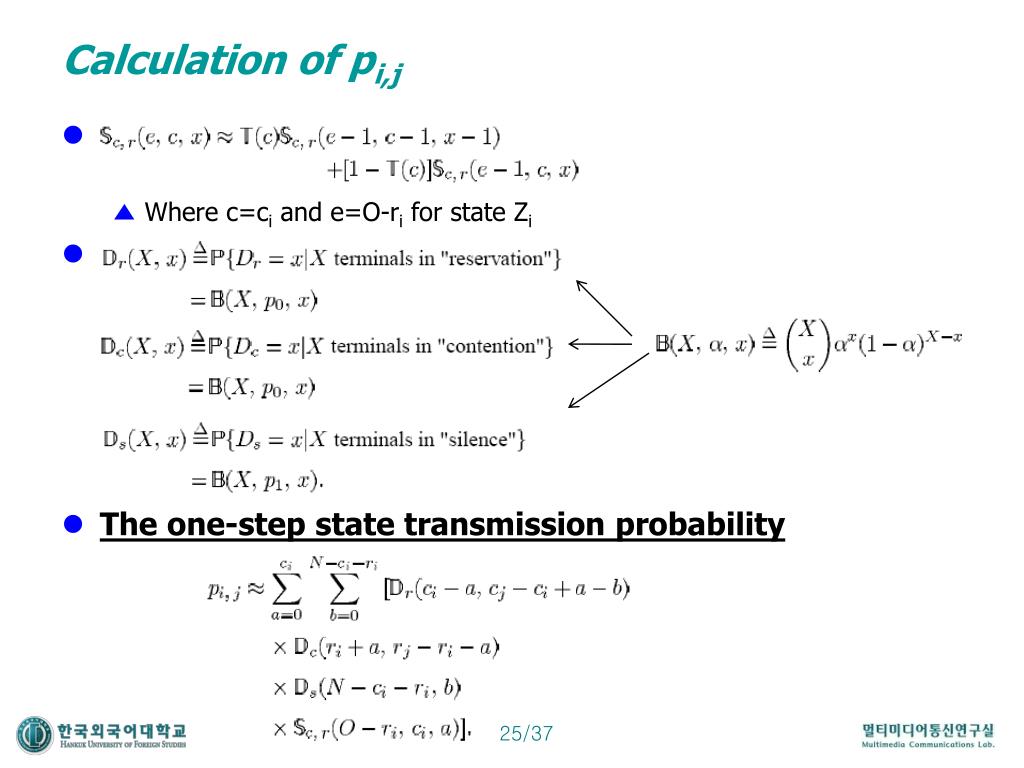

  25. Calculation of pi,j • dd • Where c=ci and e=O-ri for state Zi • d • The one-step state transmission probability

  26. Calculation of pdrop • d • d • Where S’c,r is the random variable for the number of terminals • Terminals that obtain reservations in minislot 0 of a frame • computed as the ratio of the average number of voice packets dropped in a frame to the average number of packets generated per frame • In the design, the frame length can be set to the queuing delay threshold for voice packets • The average number of packets dropped per frame • equal to the average number of contending terminals at the beginning of a frame minus the number of terminals that obtain reservation through minislot 0 in a frame

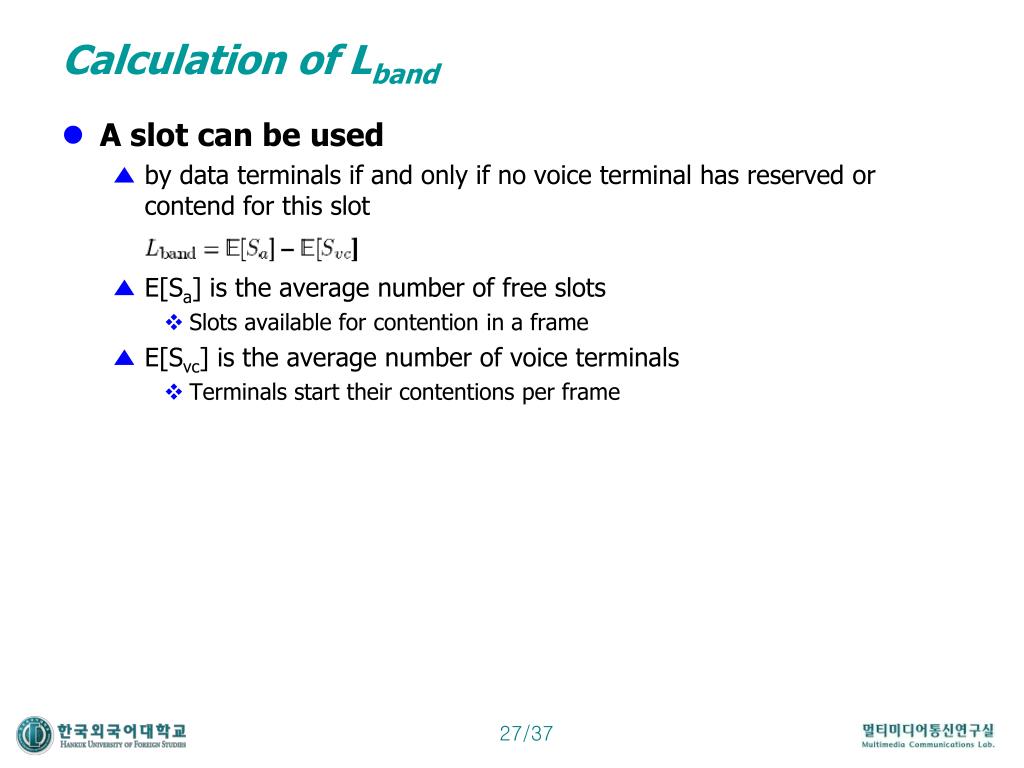

  27. Calculation of Lband • A slot can be used • by data terminals if and only if no voice terminal has reserved or contend for this slot • E[Sa] is the average number of free slots • Slots available for contention in a frame • E[Svc] is the average number of voice terminals • Terminals start their contentions per frame

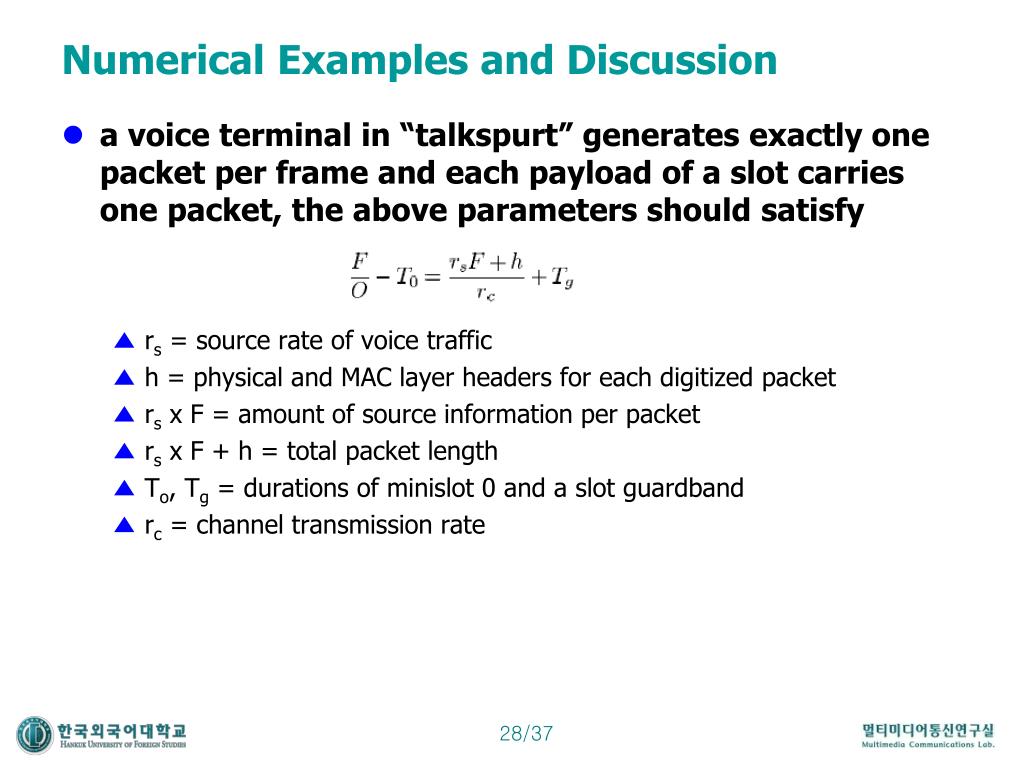

  28. Numerical Examples and Discussion • a voice terminal in “talkspurt” generates exactly one packet per frame and each payload of a slot carries one packet, the above parameters should satisfy • rs = source rate of voice traffic • h = physical and MAC layer headers for each digitized packet • rs x F = amount of source information per packet • rs x F + h = total packet length • To, Tg = durations of minislot 0 and a slot guardband • rc = channel transmission rate

  29. Numerical Examples and Discussion • Rx/Tx and Processing overhead set to zero • Nv,Nd = The number of voice terminals and data terminals are denoted • Pv, Pd = the contending probability of voice and data terminals are denoted

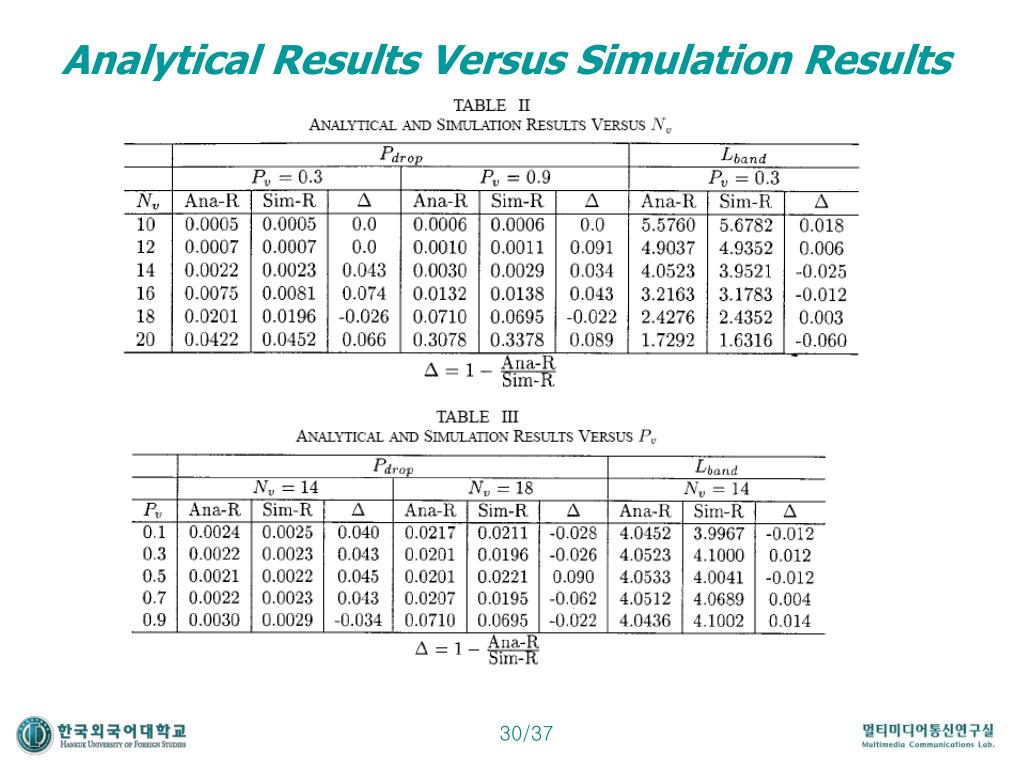

  30. Analytical Results Versus Simulation Results

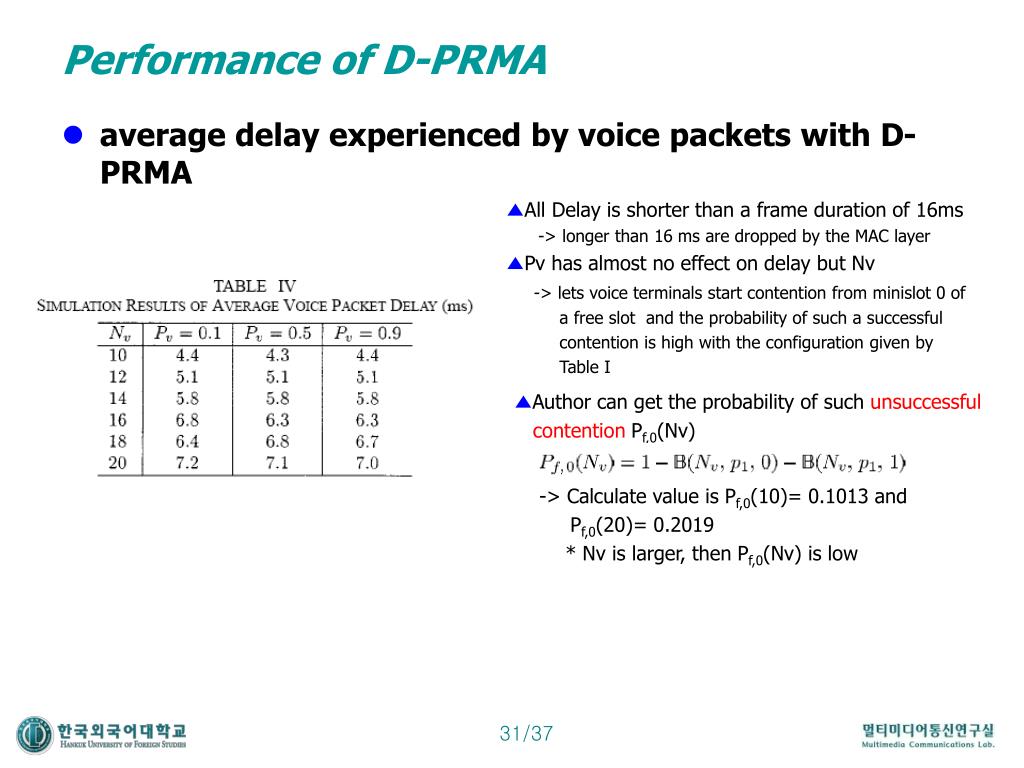

  31. Performance of D-PRMA • average delay experienced by voice packets with D-PRMA • All Delay is shorter than a frame duration of 16ms -> longer than 16 ms are dropped by the MAC layer • Pv has almost no effect on delay but Nv -> lets voice terminals start contention from minislot 0 of a free slot and the probability of such a successful contention is high with the configuration given by Table I • Author can get the probability of such unsuccessful contention Pf,0(Nv) -> Calculate value is Pf,0(10)= 0.1013 and Pf,0(20)= 0.2019 * Nv is larger, then Pf,0(Nv) is low

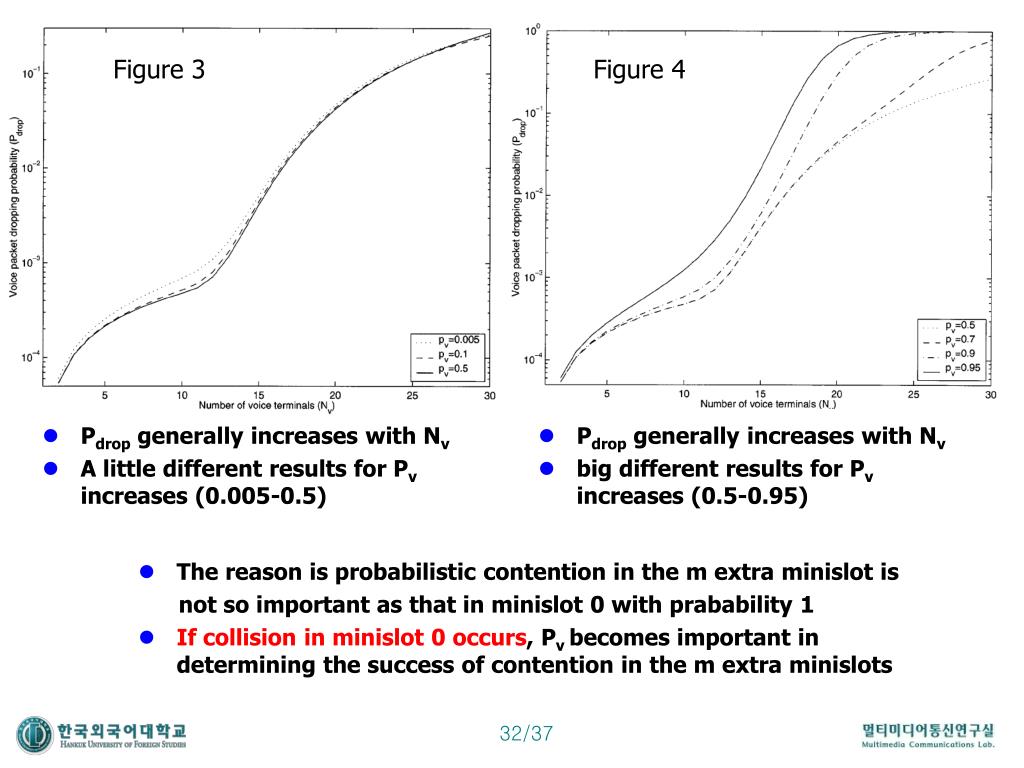

  32. Performance of D-PRMA Figure 3 Figure 4 • Pdrop generally increases with Nv • A little different results for Pv increases (0.005-0.5) • Pdrop generally increases with Nv • big different results for Pv increases (0.5-0.95) • The reason is probabilistic contention in the m extra minislot is not so important as that in minislot 0 with prabability 1 • If collision in minislot 0 occurs, Pv becomes important in determining the success of contention in the m extra minislots

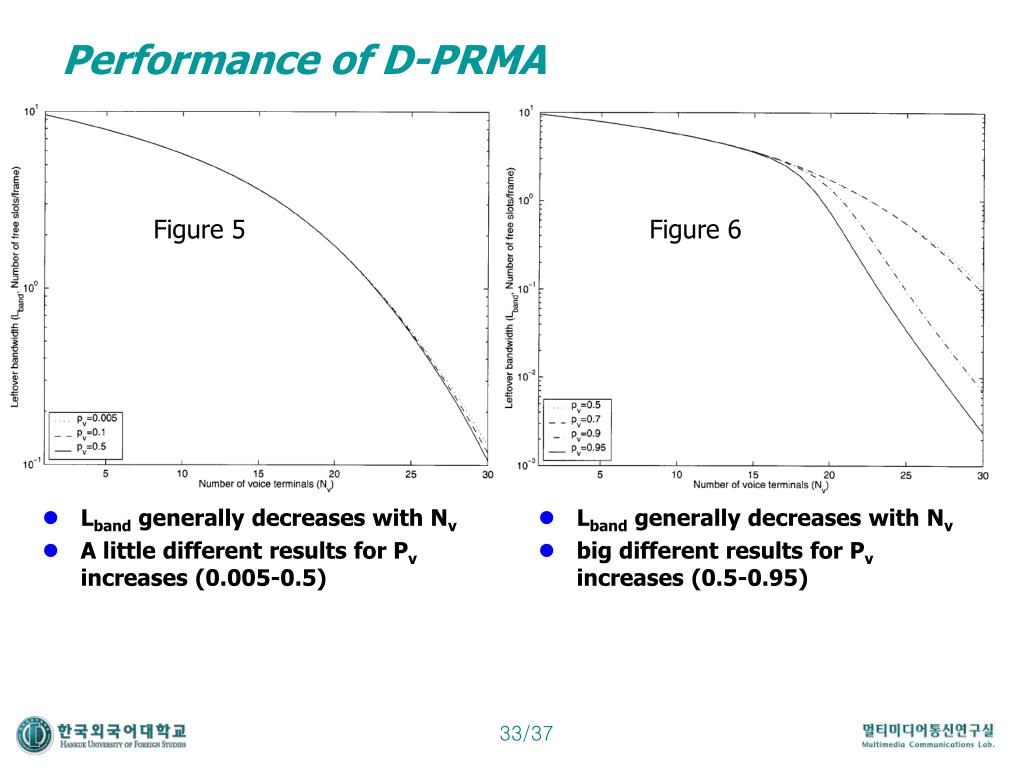

  33. Performance of D-PRMA Figure 5 Figure 6 • Lband generally decreases with Nv • A little different results for Pv increases (0.005-0.5) • Lband generally decreases with Nv • big different results for Pv increases (0.5-0.95)

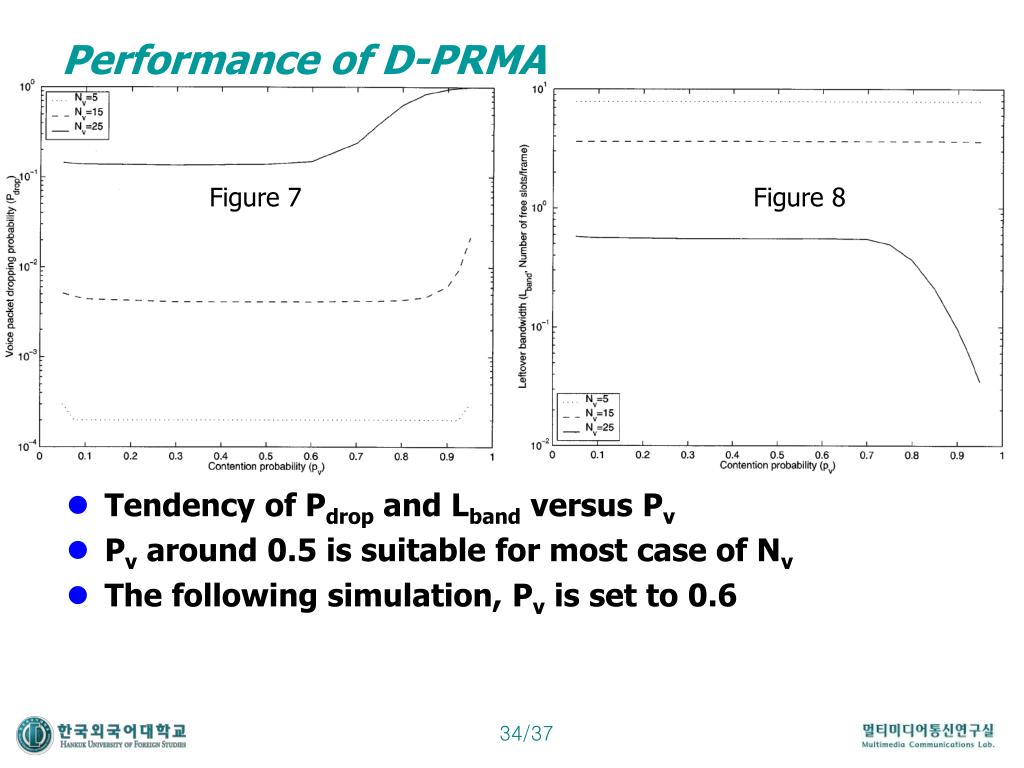

  34. Performance of D-PRMA • Tendency of Pdrop and Lband versus Pv • Pv around 0.5 is suitable for most case of Nv • The following simulation, Pv is set to 0.6 Figure 7 Figure 8

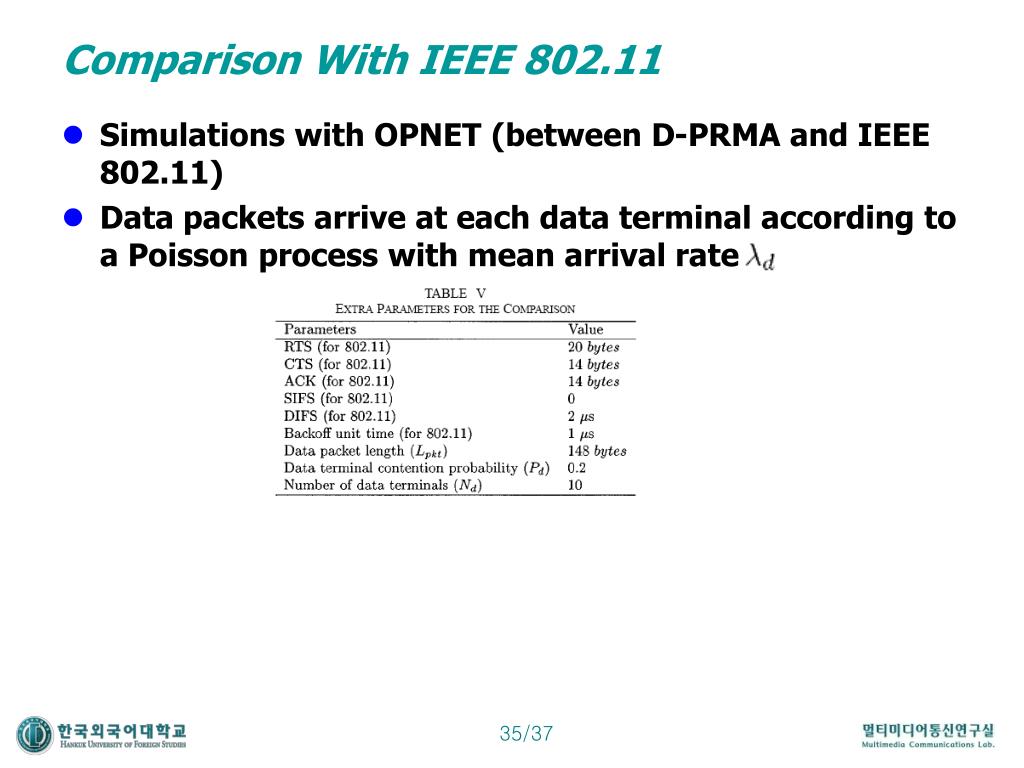

  35. Comparison With IEEE 802.11 • Simulations with OPNET (between D-PRMA and IEEE 802.11) • Data packets arrive at each data terminal according to a Poisson process with mean arrival rate

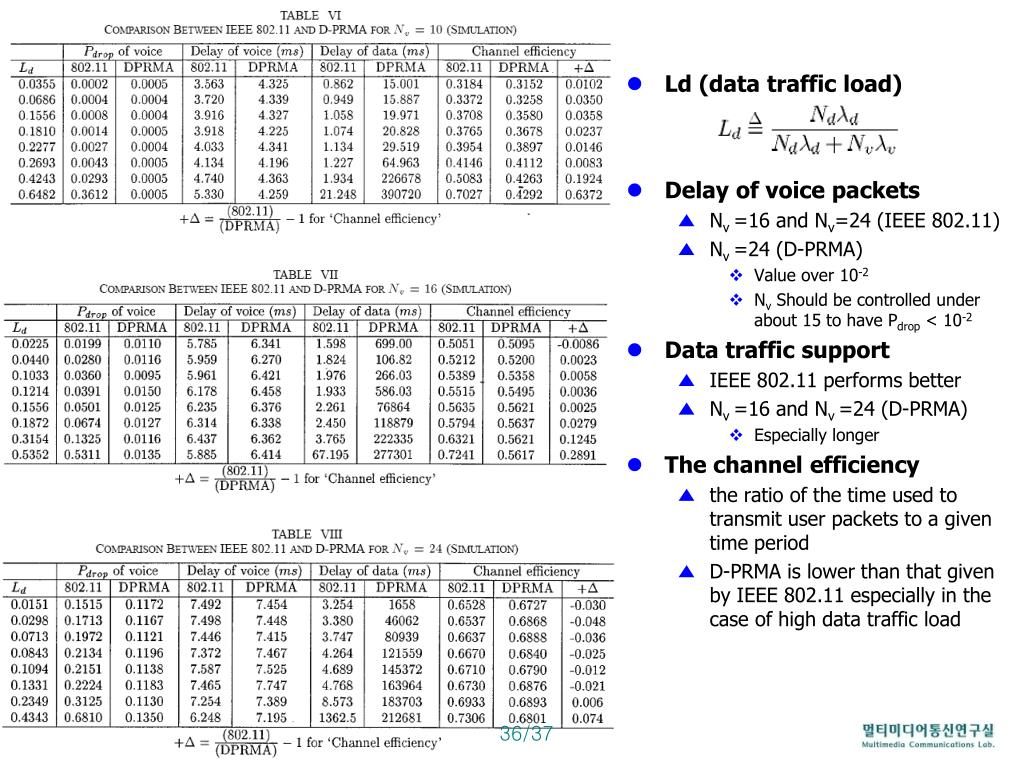

  36. Ld (data traffic load) • Delay of voice packets • Nv =16 and Nv=24 (IEEE 802.11) • Nv =24 (D-PRMA) • Value over 10-2 • Nv Should be controlled under about 15 to have Pdrop < 10-2 • Data traffic support • IEEE 802.11 performs better • Nv =16 and Nv =24 (D-PRMA) • Especially longer • The channel efficiency • the ratio of the time used to transmit user packets to a given time period • D-PRMA is lower than that given by IEEE 802.11 especially in the case of high data traffic load

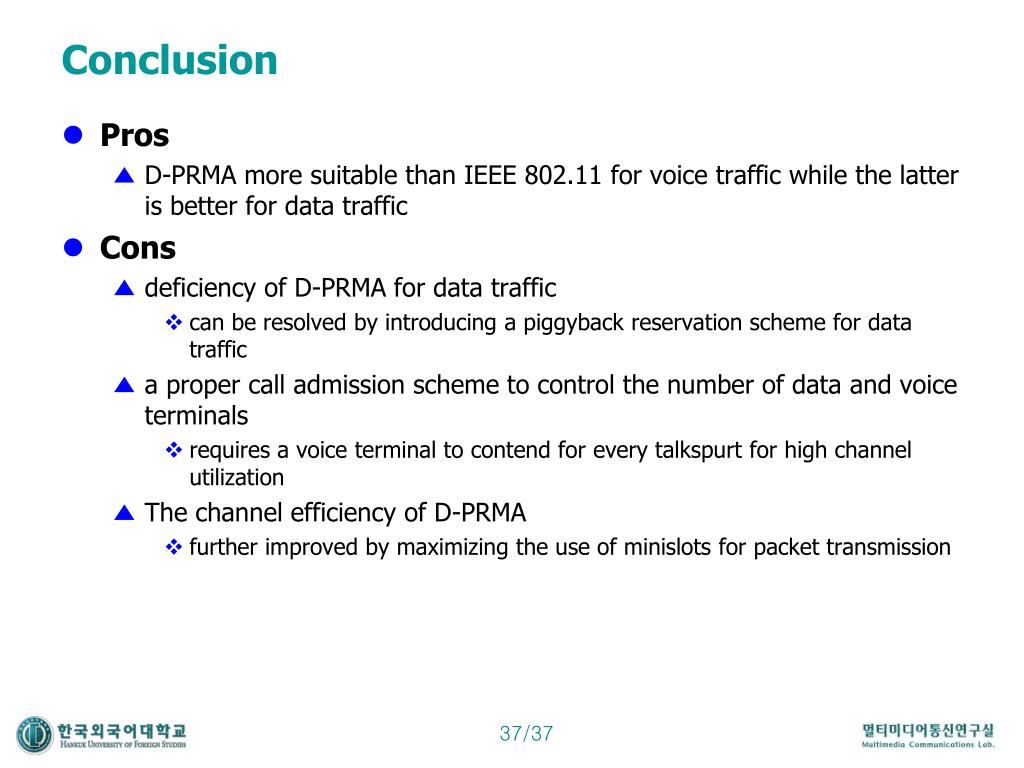

  37. Conclusion • Pros • D-PRMA more suitable than IEEE 802.11 for voice traffic while the latter is better for data traffic • Cons • deficiency of D-PRMA for data traffic • can be resolved by introducing a piggyback reservation scheme for data traffic • a proper call admission scheme to control the number of data and voice terminals • requires a voice terminal to contend for every talkspurt for high channel utilization • The channel efficiency of D-PRMA • further improved by maximizing the use of minislots for packet transmission
