  1. Embedded Zero Tree Wavelet Coding

  2. Compare the two matrices

  3. Wavelet Transform A Multi-resolution Analysis Example

  4. HL2 LL2 HL1 HL1 LL1 HH2 LH2 LH1 HH1 LH1 HH1 First stage Second stage Discrete Wavelet Transform • Sub bands arise from separable application of filters

  5. Embedded Zero tree Wavelet algorithm (EZW) • A simple, yet remarkable effective, image compression algorithm, having the property that the bits in the bit stream are generated in order of importance, giving a fully embedded (progressive) code. • The compressed data stream can have any bit rate desired. Any bit rate is only possible if there is information loss somewhere so that the compressor is lossy. However, lossless compression is also possible with less spectacular results.

  6. EZW - observations Natural images in general have a low pass spectrum, so the wavelet coefficients will, on average, be smaller in the higher subbands than in the lower subbands. This shows that progressive encoding is a very natural choice for compressing wavelet transformed images, since the higher subbands only add detail. 2. Large wavelet coefficients are more important than smaller wavelet coefficients. 631 54486 10 -7 29 55 -54 730 655-13 30 -12 44 41 32 19 23 37 17 -4 –13 -13 39 25 -49 32 -4 9 -23 -17 -35 32 -10 56 -22 -7 -25 40 -10 6 34 -44 4 13 -12 21 24 -12 -2 -8 -24 -42 9 -21 45 13 -3 -16 -15 31 -11 -10 -17 typical wavelet coefficients for a 8*8 block in a real image 6

  7. Zero Tree Coding

  8. Parent – Child relationship coefficients that are in the same spatial location consist of a quad-tree.

  9. EZW Algorithm

  10. EZW Algorithm contd..

  11. Scanning order of sub bands

  12. EZW - example

  13. EZW – Example contd..

  14. Contd..

  15. Contd..

  16. Contd..

  17. EZW - example 18

  18. Set Partitioning in Hierarchical Trees (SPIHT) Algorithm

  19. SPIHT

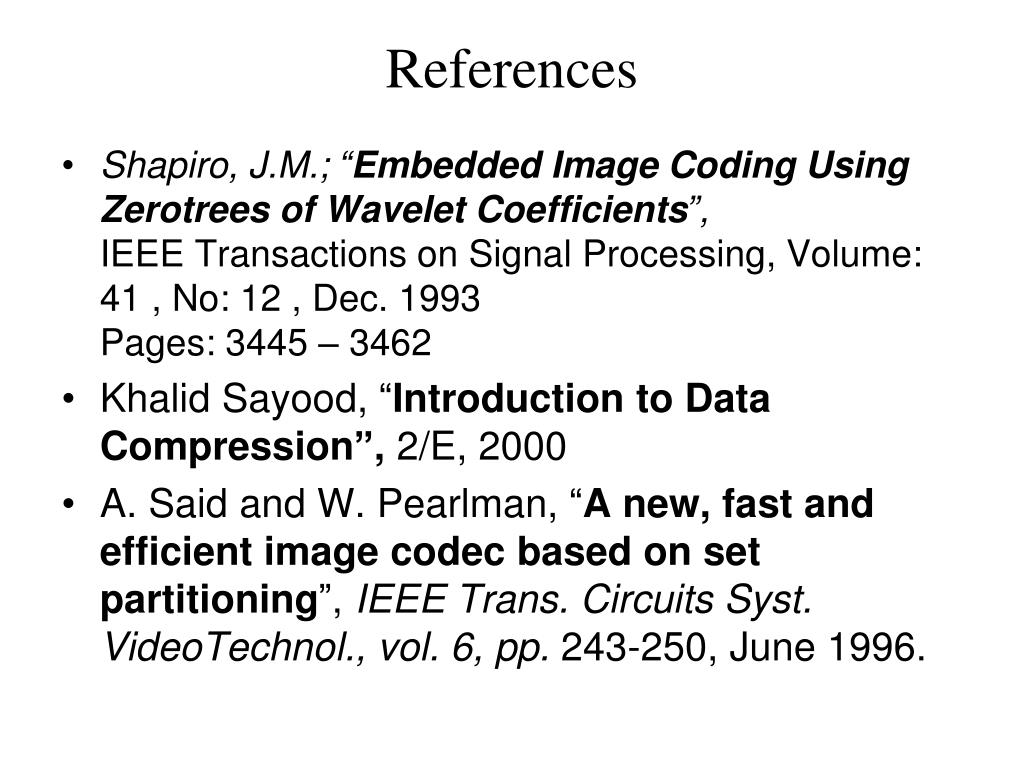

  20. References • Shapiro, J.M.; “Embedded Image Coding Using Zerotrees of Wavelet Coefficients”, IEEE Transactions on Signal Processing, Volume: 41 , No: 12 , Dec. 1993 Pages: 3445 – 3462 • Khalid Sayood, “Introduction to Data Compression”, 2/E, 2000 • A. Said and W. Pearlman, “A new, fast and efficient image codec based on set partitioning”, IEEE Trans. Circuits Syst. VideoTechnol., vol. 6, pp. 243-250, June 1996.
