  1. Informix Chat with the Lab- Jerry Keesee, Director of the Informix Lab- Jonathan Leffler, Informix Database Engineering

  2. IBM Informix Dynamic Server 9.40Time to Upgrade! Jonathan Leffler IBM Informix Database Engineering

  3. Agenda • Key New Features • Big Chunks • ER and HDR coexisting • Encrypted communications • Performance • Dynamic Locks and Logs • Miscellaneous Features • Upgrade and Reversion Process • Application Features • Questions and Answers

  4. Database Servers Investment Areas... • Performance, Availability, Scalability • Manageability • Development Productivity • Integrated Information • Informix Compatibility & Enhancements • Business Intelligence • Stability Dynamic Server

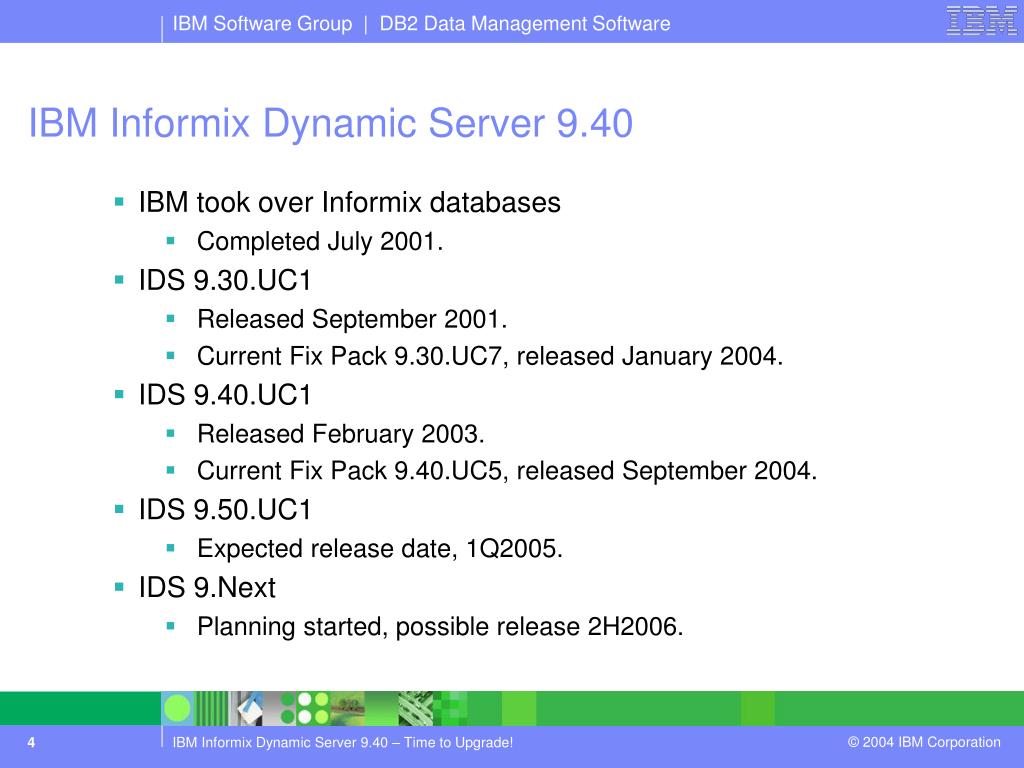

  5. IBM Informix Dynamic Server 9.40 • IBM took over Informix databases • Completed July 2001. • IDS 9.30.UC1 • Released September 2001. • Current Fix Pack 9.30.UC7, released January 2004. • IDS 9.40.UC1 • Released February 2003. • Current Fix Pack 9.40.UC5, released September 2004. • IDS 9.50.UC1 • Expected release date, 1Q2005. • IDS 9.Next • Planning started, possible release 2H2006.

  6. IBM Dynamic Server 7.31 • IDS 7.30 introduced in April 1998. • IDS 7.31 introduced in February 1999. • IDS 7.31.UD8 released March 2004. • Continued support announced through 2009. • No new features. • Bug fixes and upgraded platforms as necessary.

  7. Informix Dynamic Server 9.40 • Feature Enhancements

  8. Major Features • Big Chunks • Coexistence of HDR and ER • Encrypted communications • Performance • Dynamic Locks and Logs

  9. Big Chunks • Prior to IDS 9.40, the maximum size of a chunk was 2 GB. • This limit was too painful, so we removed it. • In IDS 9.40, each chunk can be up to 4 TB. • And an IDS instance can now have up to 32,767 chunks. • The new upper limit on the size of an IDS instance is: • 128 petabytes (roughly 144 * 1015 bytes) • How big is 128 PB? • You would need more than 570,000 x 250 GB drives ($60M+). • At a load rate of 1 GB per minute, it would take over 250 years to fill it. • Very Big!

  10. Big Chunks • Chunk sizes and offsets now 64-bit values. • Utilities all compiled to handle large files. • dbimport, dbexport, dbload, dbaccess • onunload, onload • onspaces • oncheck • ontape • High Performance Loader

  11. ER and HDR Coexistence • In IDS versions prior to 9.40: • You can use HDR (High Availability Data Replication) • For automatic failover. • Between two substantially identical systems. • You can use ER (Enterprise Replication) • For controlled replication of subsets of data. • Between many heterogeneous systems. • But you cannot use both at once.

  12. ER and HDR Coexistence • In IDS 9.40 • HDR systems can participate in ER systems too. • Some root nodes in the ER system would be HDR pairs. • Systems communicating with such nodes must be running IDS 9.40. • Hence, all root nodes have to be running 9.40 before using HDR. • ER systems normally contact the HDR primary server: • Automatically contact the secondary if the primary fails.

  13. Other ER and HDR Improvements • HDR supports extensible data types: • Replicates logged smart blob spaces. • Logged smart-large-objects (BLOB and CLOB) • BOOLEAN • LVARCHAR • complex types: row types, collections (LIST, SET, etc.) • ER now supports extensible data types. • ER has faster queue recovery from IDS 9.30. • Using dynamic logs feature of IDS 9.30. • ER event class identifiers and messages for ALARMPROGRAM.

  14. Encrypted Communications • Prior to IDS 9.40, password encryption only: • Using CSS/CSM technology. • From IDS 9.40, encrypt all conversations from client to server: • Also using CSS/CSM technology. • Using cryptography libraries from OpenSSL. • Not using OpenSSL directly because of design of ASF. • Configurable via sqlhosts file. • Optionally encrypt ER traffic: • Often sent over long-haul networks. • Protects data sent over Internet. • Not available for HDR in initial release.

  15. Improved Performance • During development of IDS 9.40: • Performance testing of most nightly builds. • Aggressively attacking performance issues. • Internal benchmarking of IDS 9.40 shows: • 8-15% improvement over 7.3x. • IDS 9.30 performance roughly the same as IDS 7.31. • Using variety of benchmarks: • TPC-C (not fully scaled – results not auditable by TPPC). • Vendor benchmarks.

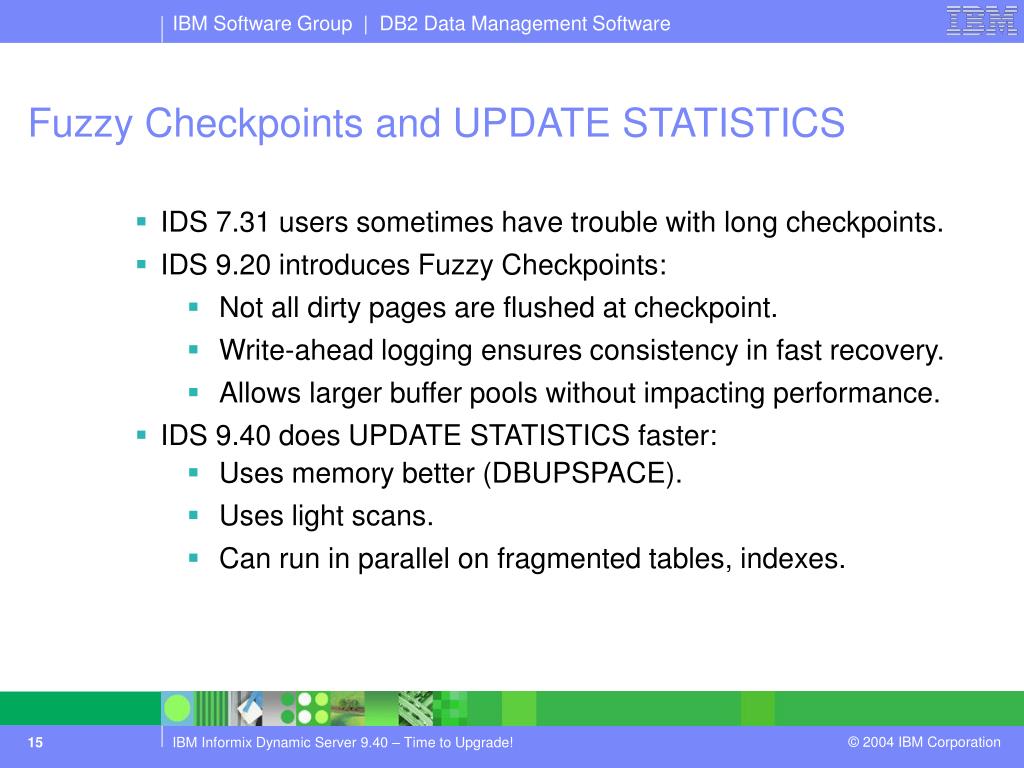

  16. Fuzzy Checkpoints and UPDATE STATISTICS • IDS 7.31 users sometimes have trouble with long checkpoints. • IDS 9.20 introduces Fuzzy Checkpoints: • Not all dirty pages are flushed at checkpoint. • Write-ahead logging ensures consistency in fast recovery. • Allows larger buffer pools without impacting performance. • IDS 9.40 does UPDATE STATISTICS faster: • Uses memory better (DBUPSPACE). • Uses light scans. • Can run in parallel on fragmented tables, indexes.

  17. Shared Statement Cache • Query plans shared between connections • Big benefits for sites with lots of users and often repeated SQL statements SELECT F.First, B.Second FROM Foo F, Bar B WHERE F.A = B.A AND F.C = :C1 AND B.C = :C2; CPU-VP Plan (C1, C2) { } SELECT F.First, B.Second FROM Foo F, Bar B WHERE F.A = B.A AND F.C = :C1 AND B.C = :C2; Informix Dynamic Server 9.2 and later

  18. Dynamic Locks and Logs • Dynamic Locks • Prior to IDS 9.20: • Running out of locks was bad news. • With IDS 9.20 and above: • Server can dynamically add locks if lock table overflows. • Prevents application hangs. • Dynamic Logs • Prior to IDS 9.30: • Running out of space in logical logs was catastrophic. • So LTXHWM and LTXEHWM parameters were set low. • With IDS 9.30 and above: • Server dynamically adds extra logical logs as necessary.

  19. Miscellaneous Features • Rewritten B-Tree cleaning algorithms • Revised buffer priority management • Fractional percentages for LRU_MIN_DIRTY and LRU_MAX_DIRTY • Use full size of tape devices • Rename chunk devices during restore • No libraries installed in /usr/lib by default • Add chunks when first chunk full • Restartable fast recovery

  20. Prior to IDS 9.40: Single-threaded B-Tree cleaner. Could get overwhelmed by amount of work. Replaced by B-Tree Scanner: Prioritized workload. Multiple scanner threads possible. Alternative algorithms available. Controlled by onmode –C. Monitored by onstat –C. B-Tree scanner is tunable: By default, B-Tree scanner threads run at low priority. Set priority high if they are falling behind. Don’t increase number of low priority cleaner threads. Rewritten B-Tree Cleaning

  21. Buffer Priority Management • Prior to IDS 9.40, buffer manager: • Gave priority to memory-resident tables and index pages. • Had four tier priority system. • Simplified and streamlined for 9.40. • Two priority categories instead of four: • HIGH - managed by FIFO queue. • LOW - managed by LRU queues. • Classification of buffer priority is dynamic: • Based solely on observed access frequencies. • Maximum size of HIGH priority band fixed: • HIGH priority buffers can no longer consume buffer pool.

  22. Fractional Percentages for LRU Dirtiness • IDS 9.40 allows fractional LRU_MIN_DIRTY, LRU_MAX_DIRTY. • Old: setting LRU max/min values to 2/1 on 300,000 buffers • LRU writes start at 6,000 dirty buffers, stop at 3,000 dirty buffers. • Checkpoint has maximum of 6,000 buffers to write. • New: setting LRU max/min values to 0.5/0.1 on 300,000 buffers • LRU writes start at 1,500 dirty buffers, stop at 300 dirty buffers. • Checkpoint has maximum of 1,500 buffers to write. • Helps minimize checkpoint times: • Increases writes between checkpoints. • These are ‘wasted’ if a crash occurs. • Decreases writes at checkpoint.

  23. Use Full Size of Tape Devices • Prior to IDS 9.40, must specify actual size of tape: • Difficult to estimate capacity of tapes with compression. • Error if specified size too big – wasted space when too small. • From IDS 9.40, tape size of zero means: • Write until no room left on tape (or disk). • No more guessing how much compression you’ll get. • Can use different size tapes during backup. • Changed utilities include: • dbexport, dbimport • onunload, onload • ontape

  24. Rename Chunks During Restore • Map chunk device names during cold restore: • Not available during warm restore. • All chunk device names. • Mapping on command line or in file. • Primary and mirror chunks can be renamed too. • Allows recovery on similar systems: • The sets of disk devices do not have to be identical. • Replacement disk devices after a disk crash. • Can fix mistakes in device naming: • Inappropriate use of version in pathname: • /ifmx/v713/sbspace03 • Direct use of device names instead of symbolic links. • Do a level 0 archive after recovery

  25. No Libraries Installed in /usr/lib • IDS 9.40 does not place any libraries in /usr/lib. • Except for Java libraries under /usr/lib/informix on HP-UX. • Optical library specified by new parameter: • OPTICAL_LIB_PATH in ONCONFIG file. • HPL library specified by new parameter: • HPL_DYNAMIC_LIB_PATH in PLCONFIG file. • Default: $INFORMIXDIR/lib/ipldd09a.so • ON-Bar library specified by new parameter: • XBSA_LIBRARY_PATH in ONCONFIG. • Removed support for Smart Disks (ismdd09a.so) • Simplifies un-install of IDS . • Simplifies installation of multiple versions of IDS. • Don’t forget to clean up old Informix libraries.

  26. Add Chunks When First Chunk Full • Prior to IDS 9.40 • All chunk information only in first chunk of root dbspace. • If first chunk full, not possible to add new disk space. • With IDS 9.40 • If there is no space left in first chunk of rootdbs. • Extra chunk information can be added to other chunks in root dbspace. • Helps prevent conversion failures. • Helps support 32,767 chunks.

  27. Restartable Fast Recovery • Prior to IDS 9.40: • Crashes during fast recovery could corrupt the system. • No fast recovery possible. • Restore from archive was necessary. • In IDS 9.40: • Physical logging is enabled during fast recovery: • Allows recovery to occur multiple times if necessary. • Physical log could overflow during recovery. • PLOG_OVERFLOW_PATH specifies where overflow goes. • Default: $INFORMIXDIR/tmp

  28. Upgrade Considerations • New reserved words have been added. • Direct migrations to IDS 9.40: • IDS 7.24, 7.30, 7.31, 9.14, 9.20, 9.21, and 9.30 upgrade directly. • Indirect migrations to IDS 9.40: • IDS 7.20 through 7.23 require an interim upgrade to IDS 7.31. • All other migrations will require dbexport, dbimport. • Migrating from 32-bit to 64-bit uses same process. • Migrating to a different operating system requires export and import.

  29. Space Required for Upgrade • Root Chunk (Chunk 0) needs 10% free. • 3000 free pages of logical log space to rebuild sysmaster database. • 2000 KB of free space per database is needed for each dbspace. • Partition headers should not be full: • Use oncheck –me to compress extents.

  30. Upgrade Process • Save copies of configuration files: • ONCONFIG, sqlhosts, etc. • Save copies of storage manager files. • Remove outstanding in-place alters. • Close all transactions. • Shutdown the source database server. • Check for any open transactions. • Verify the integrity of the data with oncheck.

  31. Upgrade Process • Verify the server is in quiescent mode. • Disable HDR. • Make a final backup of the source database server. • Verify that the source database server is offline. • On UNIX or Linux, modify kernel parameters. • Install IBM Informix Dynamic Server 9.40. • Set environment variables. • Customize configuration files. • Add any communications support modules.

  32. Upgrade Process • Install and configure any DataBlade modules. • Initialize IBM Informix Dynamic Server 9.40. • Monitor the conversion complete status. • For ON-Bar, rename the sm_versions.std file. • Run UPDATE STATISTICS. • Verify the integrity of the data. • Make an initial backup of IDS 9.40. • Tune IDS 9.40 for performance. • Enable HDR.

  33. Application Features • DESCRIBE INPUT • ORDER BY values not in select-list • Sequence objects • Triggers on views • SQL-99 RIGHT OUTER JOIN • UNION in sub-queries • Names for return values • Multiple OUT parameters • Iterator functions in FROM clause • Hold cursors and PDQ • Character storage • Relaxing limit on functional index parameters • Costing R-Tree index usage • Unicode support

  34. http://www.ibm.com/software/data/informix

  35. http://www.ibm.com/software/data/informix
