  1. Chapter 3 States of Matter

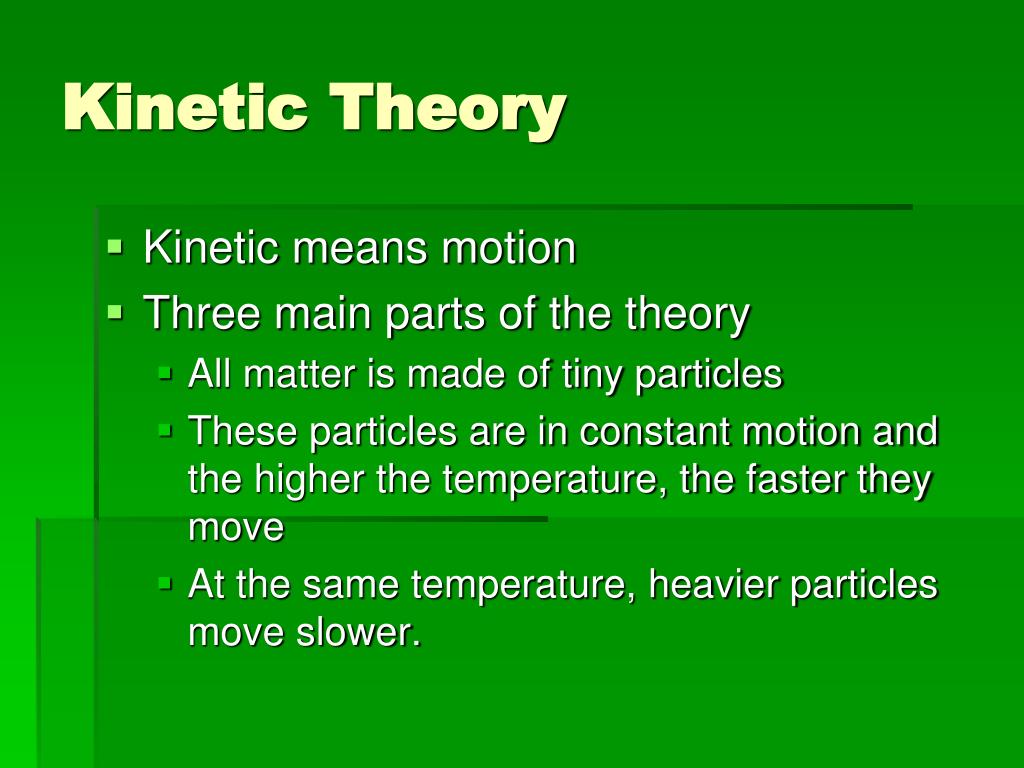

  2. Kinetic Theory • Kinetic means motion • Three main parts of the theory • All matter is made of tiny particles • These particles are in constant motion and the higher the temperature, the faster they move • At the same temperature, heavier particles move slower.

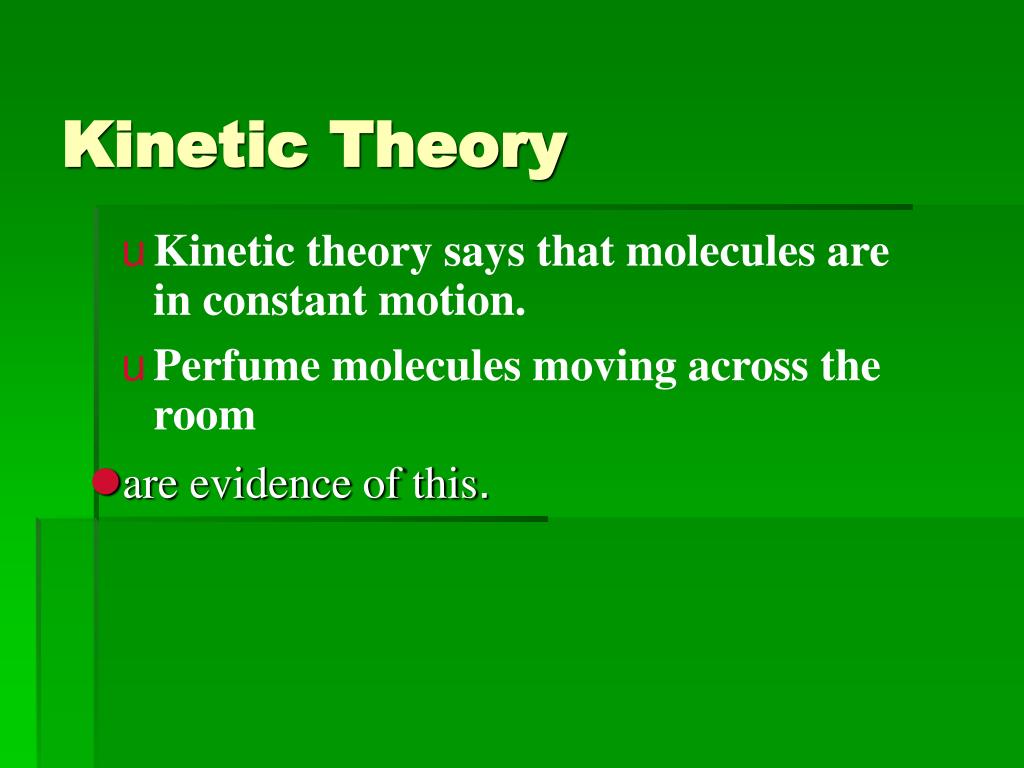

  3. Kinetic Theory lare evidence of this. • Kinetic theory says that molecules are in constant motion. • Perfume molecules moving across the room

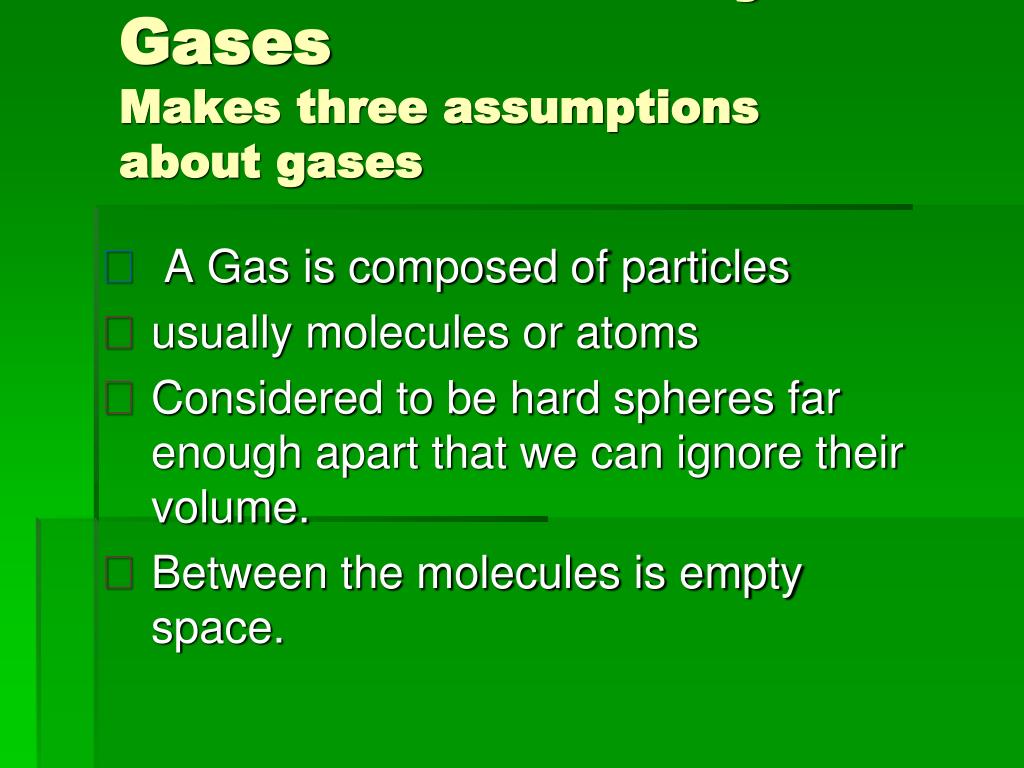

  4. The Kinetic Theory of GasesMakes three assumptions about gases • A Gas is composed of particles • usually molecules or atoms • Considered to be hard spheres far enough apart that we can ignore their volume. • Between the molecules is empty space.

  5. The particles are in constant random motion. • Move in straight lines until they bounce off each other or the walls. • All collisions are perfectly elastic

  6. The Average speed of an oxygen molecule is 1656 km/hr at 20ºC • The molecules don’t travel very far without hitting each other so they move in random directions.

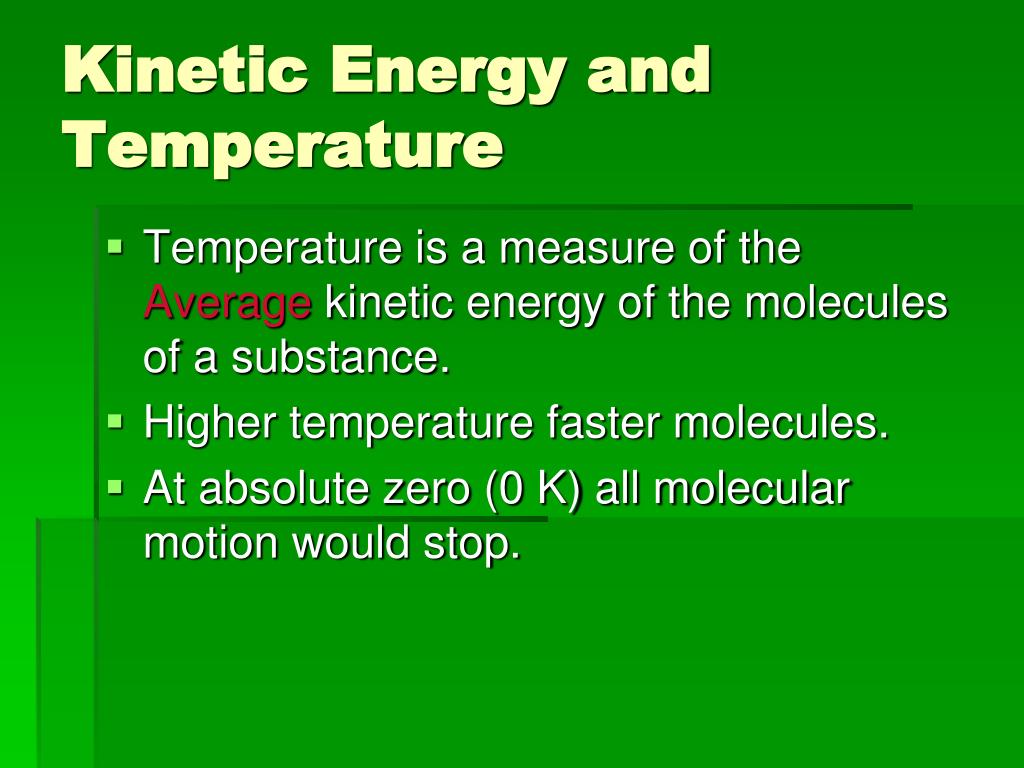

  7. Kinetic Energy and Temperature • Temperature is a measure of the Average kinetic energy of the molecules of a substance. • Higher temperature faster molecules. • At absolute zero (0 K) all molecular motion would stop.

  8. States of Matter • Solid- matter that has a definite shape and volume • Liquid- matter that flows and has a fixed volume • Gas- matter that takes up both the shape and volume of a container • Vapor- a substance that is currently a gas but normally is a liquid or solid at room temperature. • Plasma- matter consisting of a gaseous mixture of electrons and positive ions. Not found on Earth

  9. States of Matter • Solid • Particles are tightly packed • Stuck to each other in a pattern • Vibrate in place • Can’t flow • Constant volume

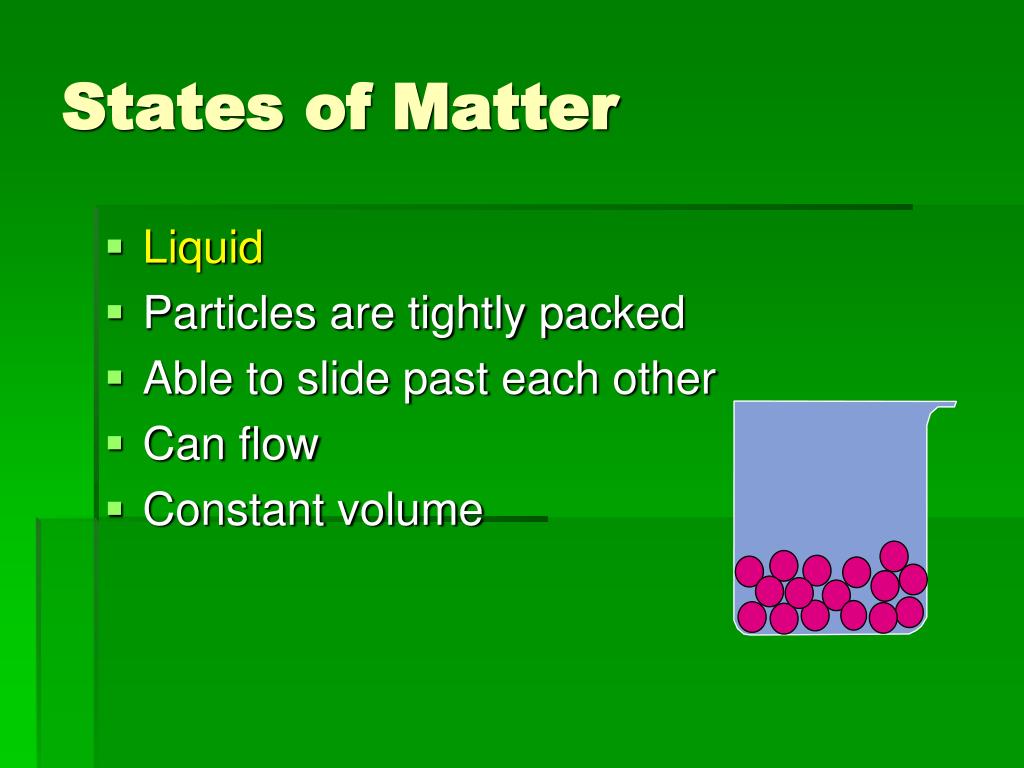

  10. States of Matter • Liquid • Particles are tightly packed • Able to slide past each other • Can flow • Constant volume

  11. Liquids • Spread out on their own • Fluids- gases and liquids both flow • Viscosity- the resistance to flow • The better the molecules stick to each other, the more resistance

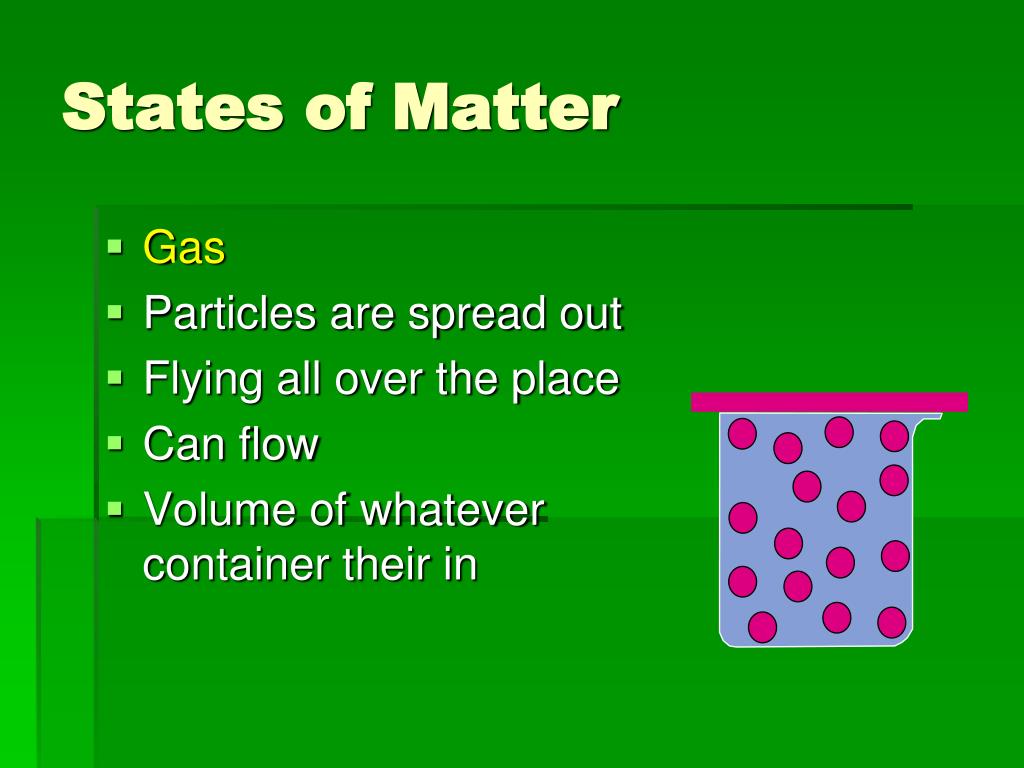

  12. States of Matter • Gas • Particles are spread out • Flying all over the place • Can flow • Volume of whatevercontainer their in

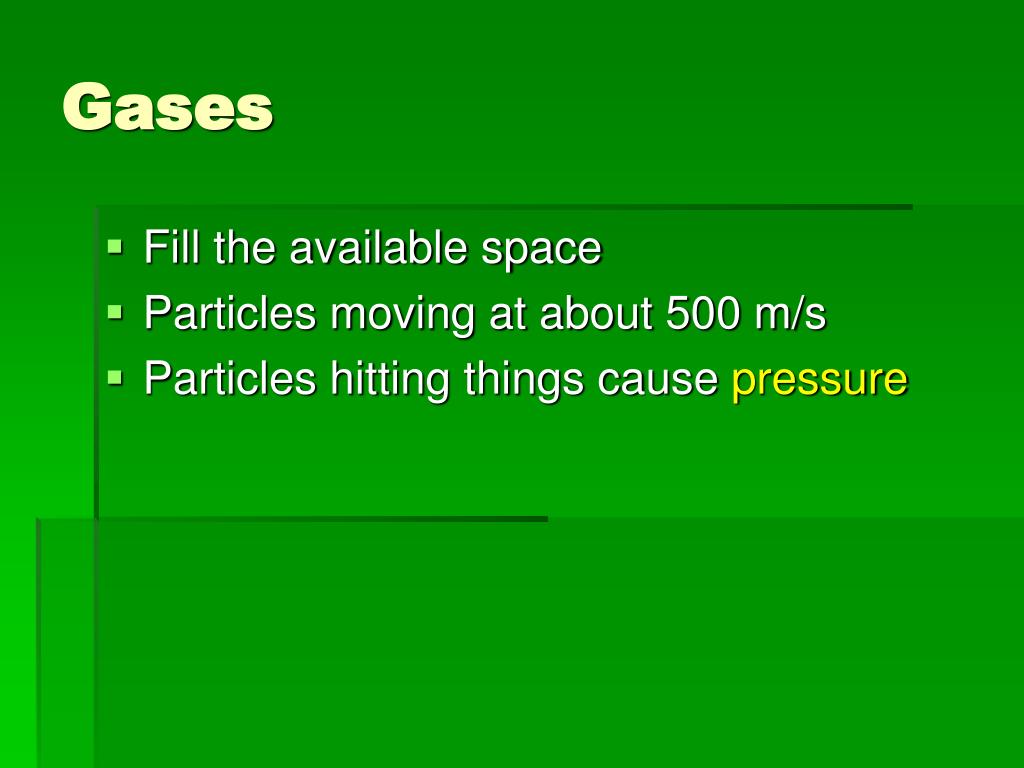

  13. Gases • Fill the available space • Particles moving at about 500 m/s • Particles hitting things cause pressure

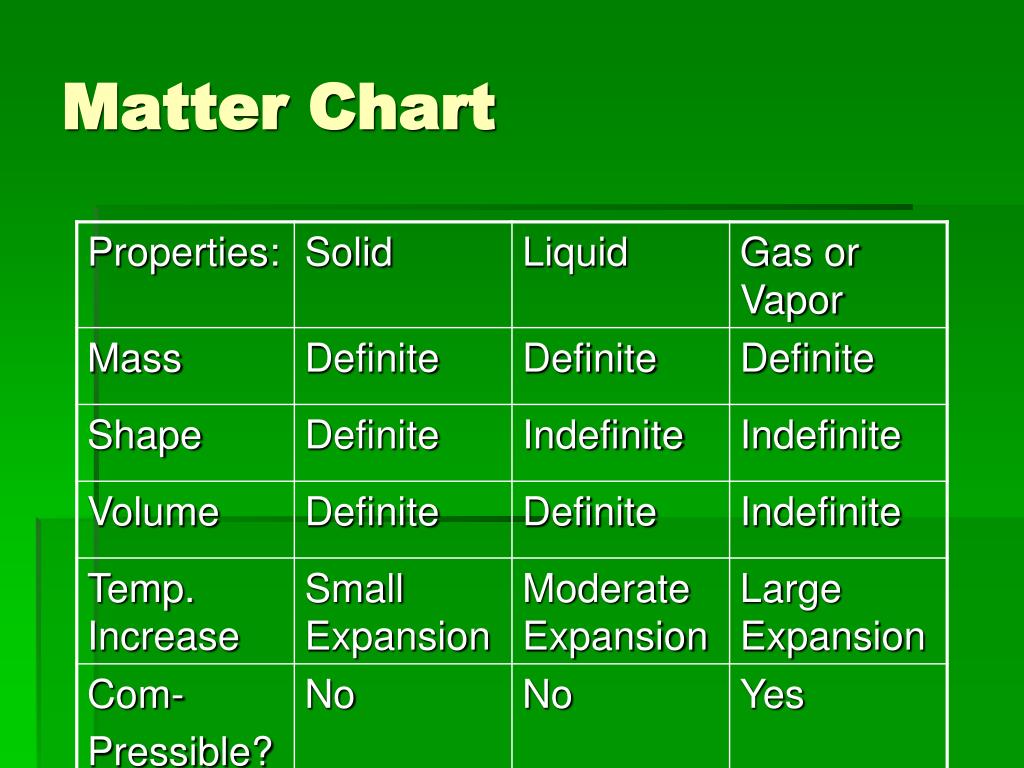

  14. Matter Chart

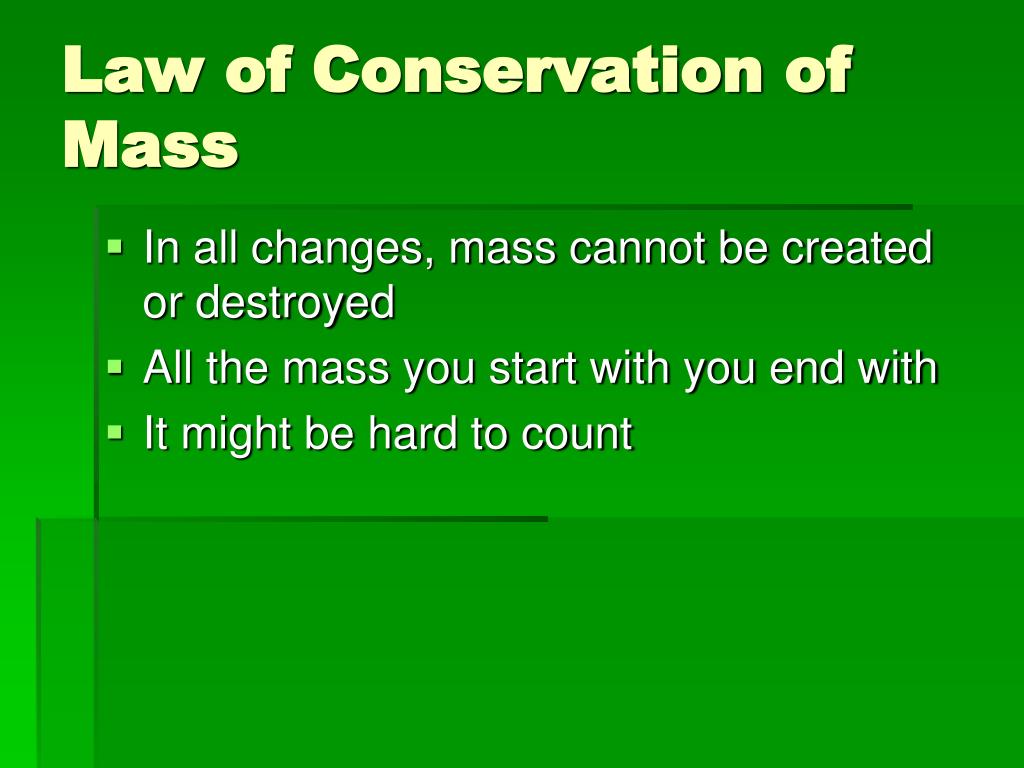

  15. Law of Conservation of Mass • In all changes, mass cannot be created or destroyed • All the mass you start with you end with • It might be hard to count

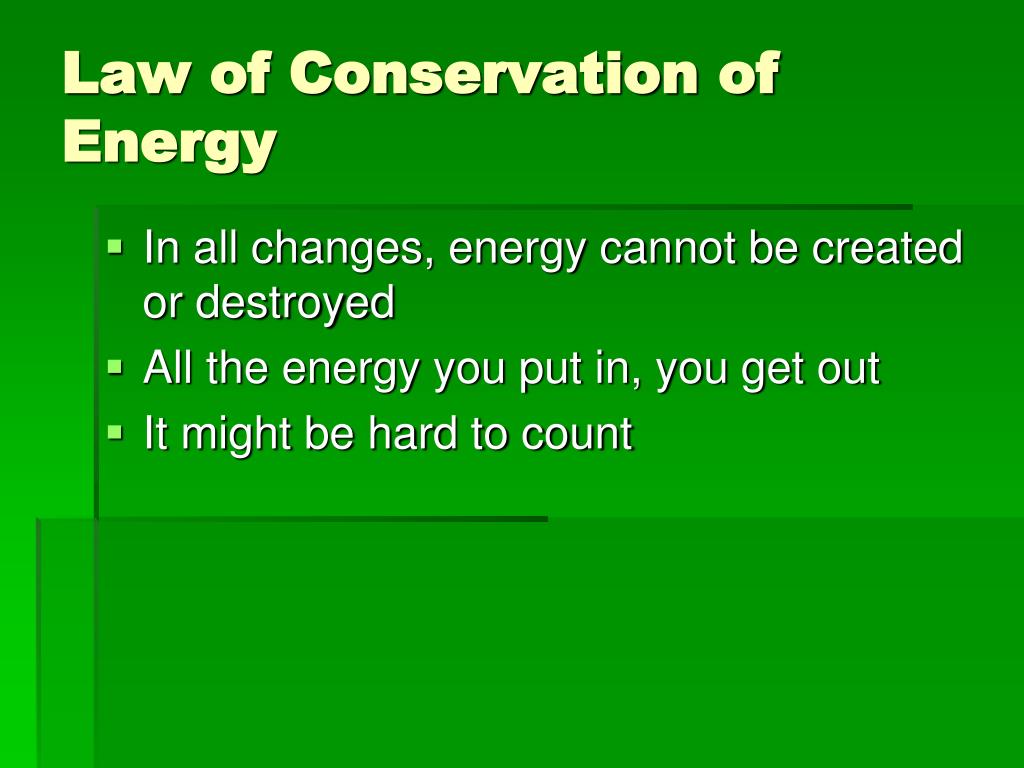

  16. Law of Conservation of Energy • In all changes, energy cannot be created or destroyed • All the energy you put in, you get out • It might be hard to count

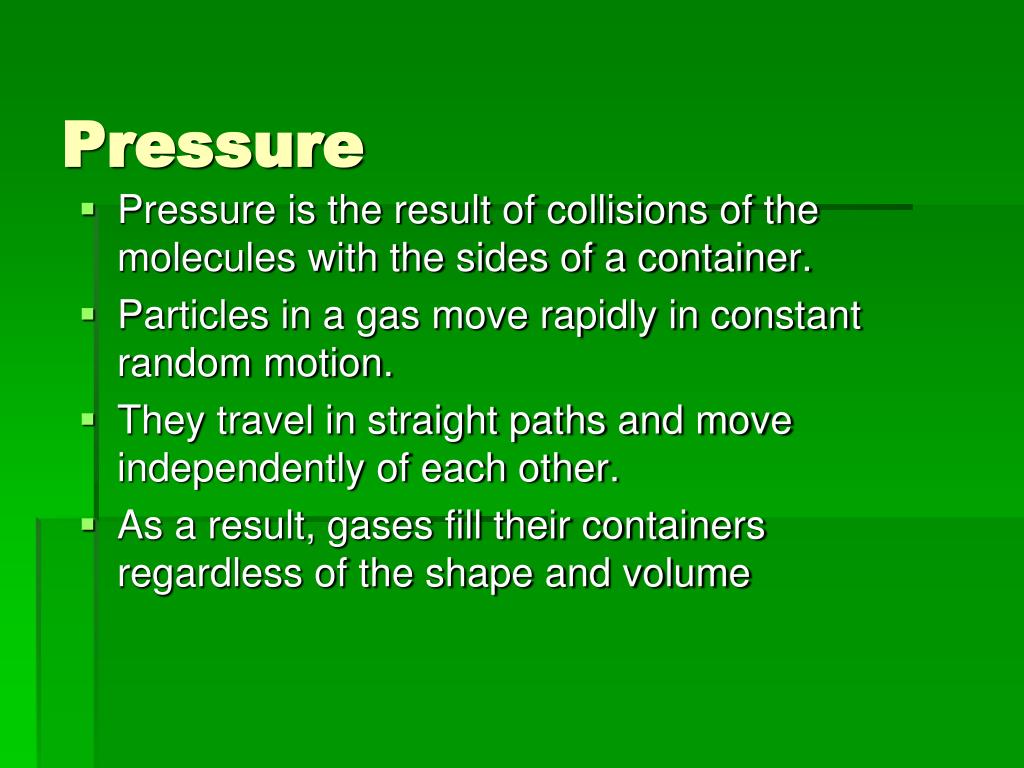

  17. Pressure • Pressure is the result of collisions of the molecules with the sides of a container. • Particles in a gas move rapidly in constant random motion. • They travel in straight paths and move independently of each other. • As a result, gases fill their containers regardless of the shape and volume

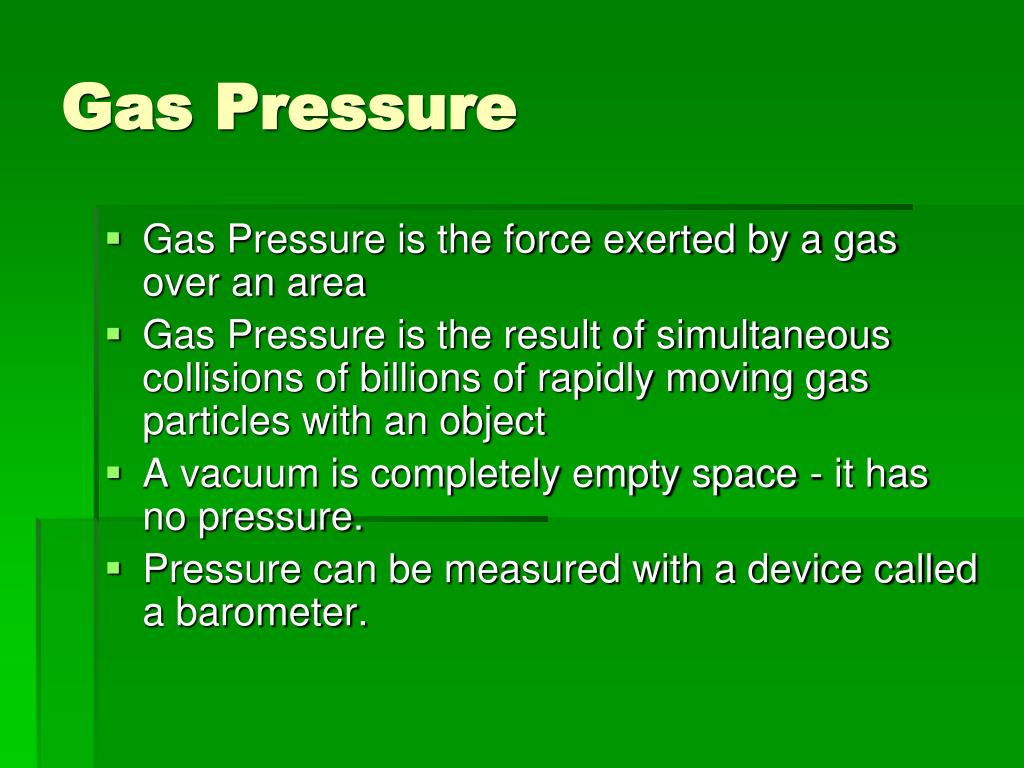

  18. Gas Pressure • Gas Pressure is the force exerted by a gas over an area • Gas Pressure is the result of simultaneous collisions of billions of rapidly moving gas particles with an object • A vacuum is completely empty space - it has no pressure. • Pressure can be measured with a device called a barometer.

  19. Barometer • At one atmosphere pressure a column of mercury 760 mm high. 1 atm Pressure Column of Mercury Dish of Mercury

  20. Barometer • At one atmosphere pressure a column of mercury 760 mm high. • A second unit of pressure is mm Hg • 1 atm = 760 mm Hg 1 atm Pressure 760 mm

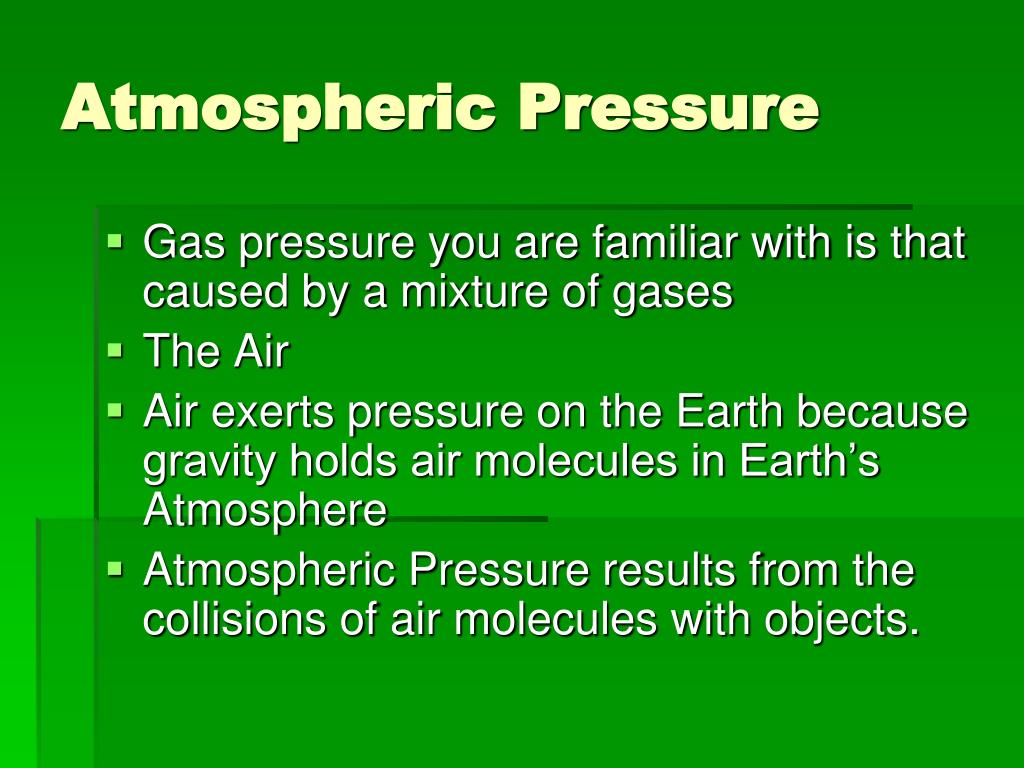

  21. Atmospheric Pressure • Gas pressure you are familiar with is that caused by a mixture of gases • The Air • Air exerts pressure on the Earth because gravity holds air molecules in Earth’s Atmosphere • Atmospheric Pressure results from the collisions of air molecules with objects.

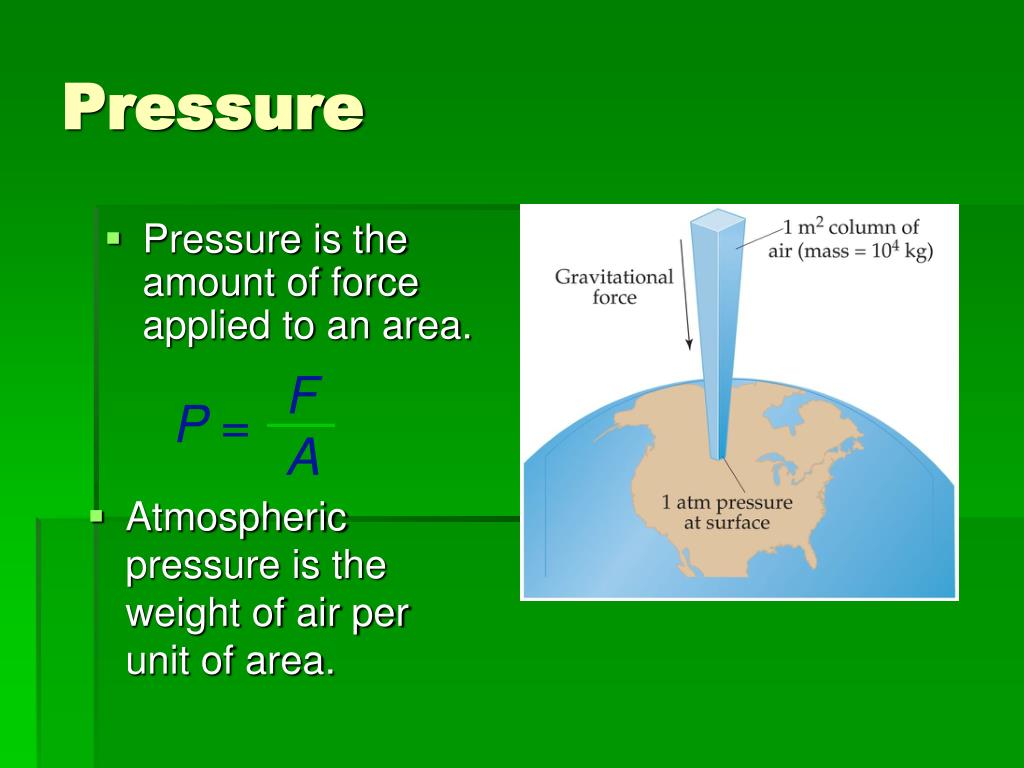

  22. F A P = Pressure • Pressure is the amount of force applied to an area. • Atmospheric pressure is the weight of air per unit of area.

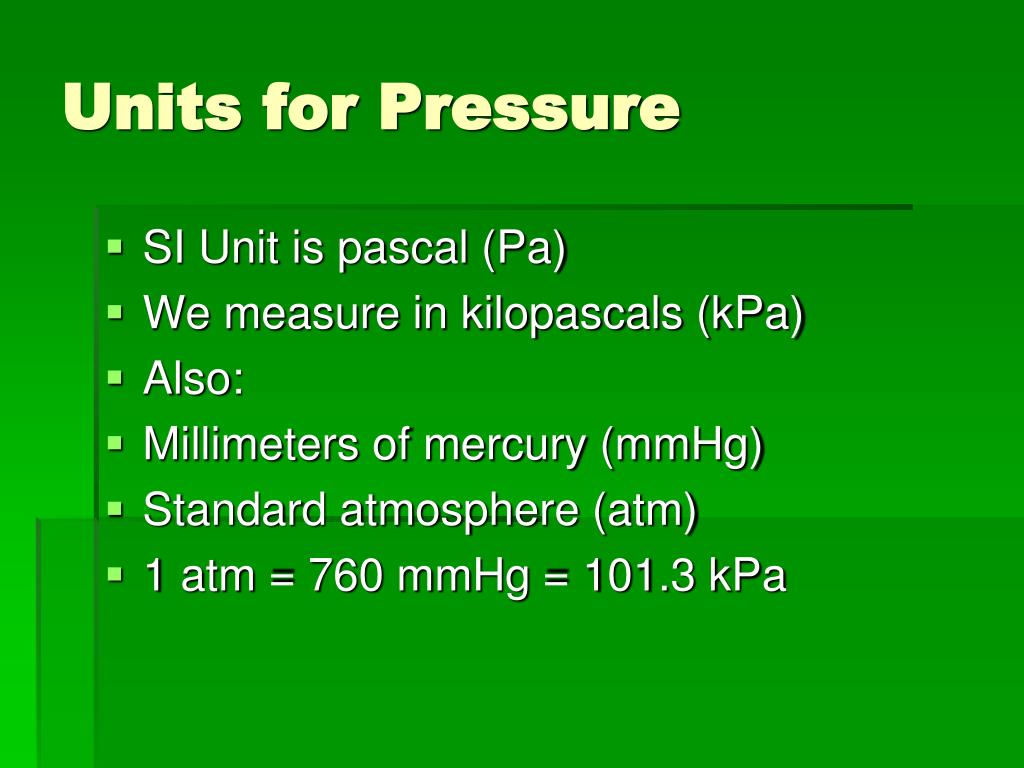

  23. Units for Pressure • SI Unit is pascal (Pa) • We measure in kilopascals (kPa) • Also: • Millimeters of mercury (mmHg) • Standard atmosphere (atm) • 1 atm = 760 mmHg = 101.3 kPa

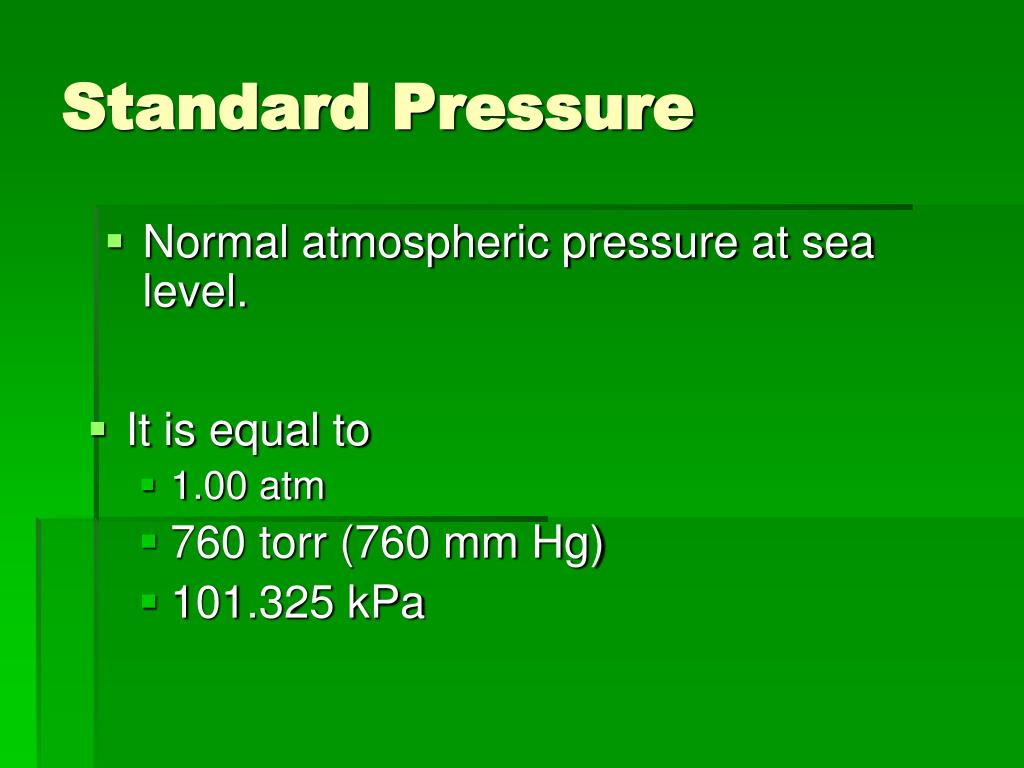

  24. Standard Pressure • Normal atmospheric pressure at sea level. • It is equal to • 1.00 atm • 760 torr (760 mm Hg) • 101.325 kPa

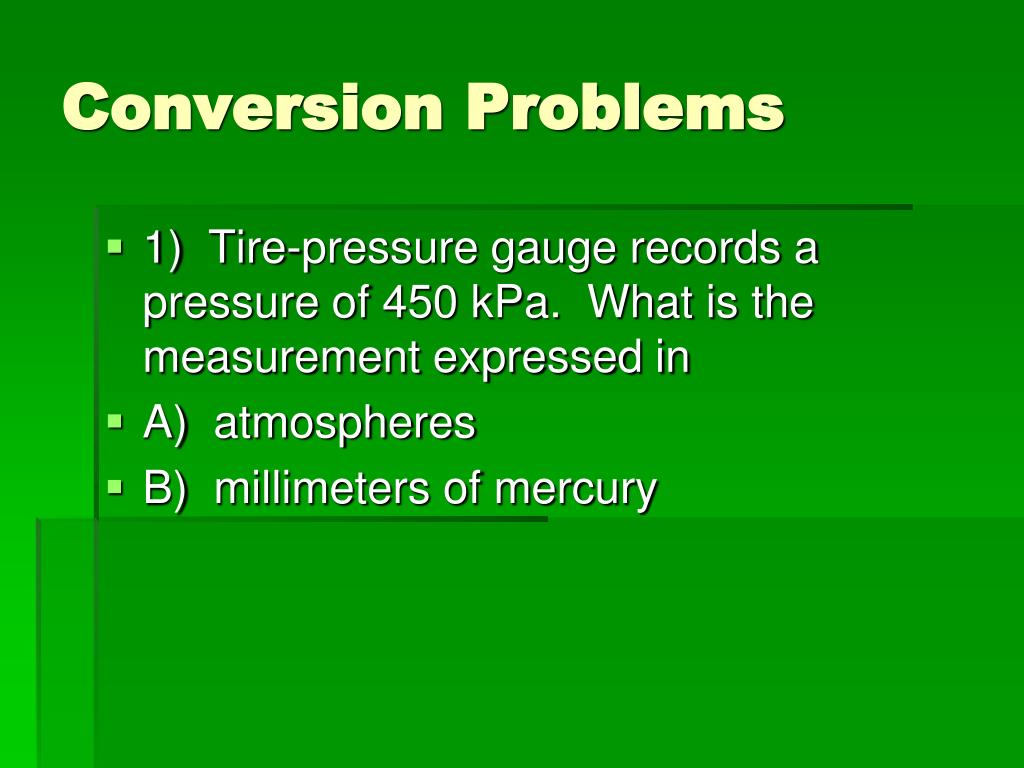

  25. Conversion Problems • 1) Tire-pressure gauge records a pressure of 450 kPa. What is the measurement expressed in • A) atmospheres • B) millimeters of mercury

  26. Conversion Problem #2 • What is the pressure in Kilopascals and in atmospheres, does a gas exert at 385 mm Hg?

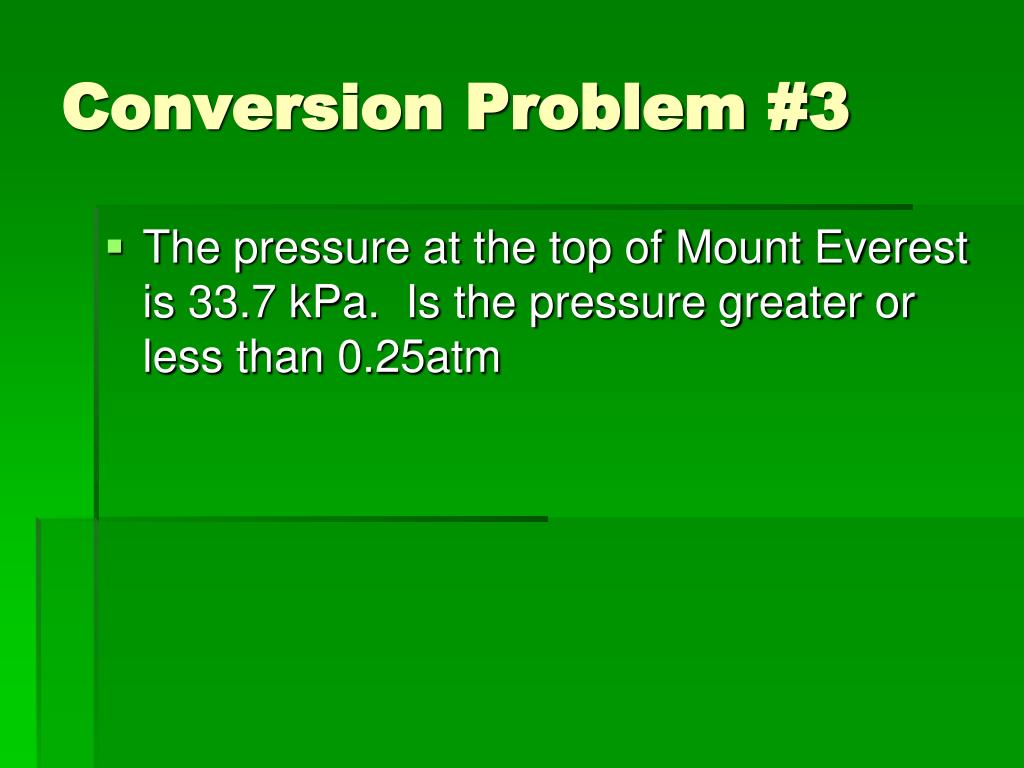

  27. Conversion Problem #3 • The pressure at the top of Mount Everest is 33.7 kPa. Is the pressure greater or less than 0.25atm

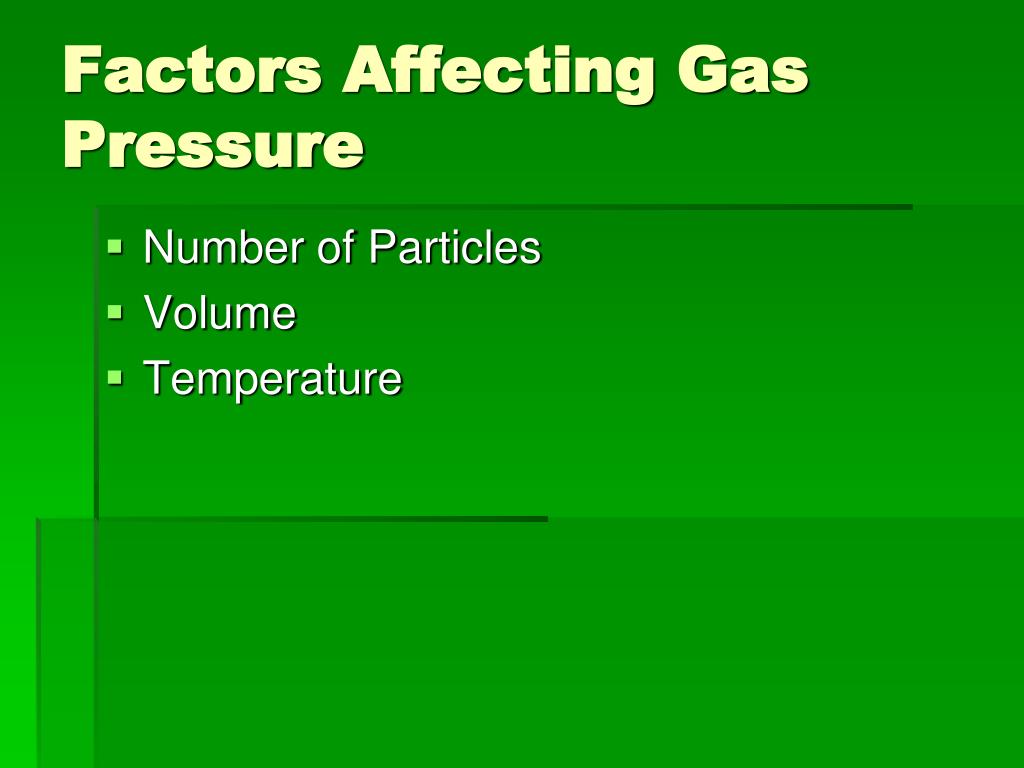

  28. Factors Affecting Gas Pressure • Number of Particles • Volume • Temperature

  29. Number of Particles • Increasing the number of particles will increase the pressure of a gas if the temperature and the volume are constant • Tire is inflated, volume is fairly constant • Adding more air will increase the pressure • More particles with same volume, greater number of collisions • Greater the pressure • Tire Explodes

  30. Volume • Reducing the volume of a gas increases its pressure if the temperature of the gas and the number of particles are constant. • Relationship between volume and pressure happens when you breathe

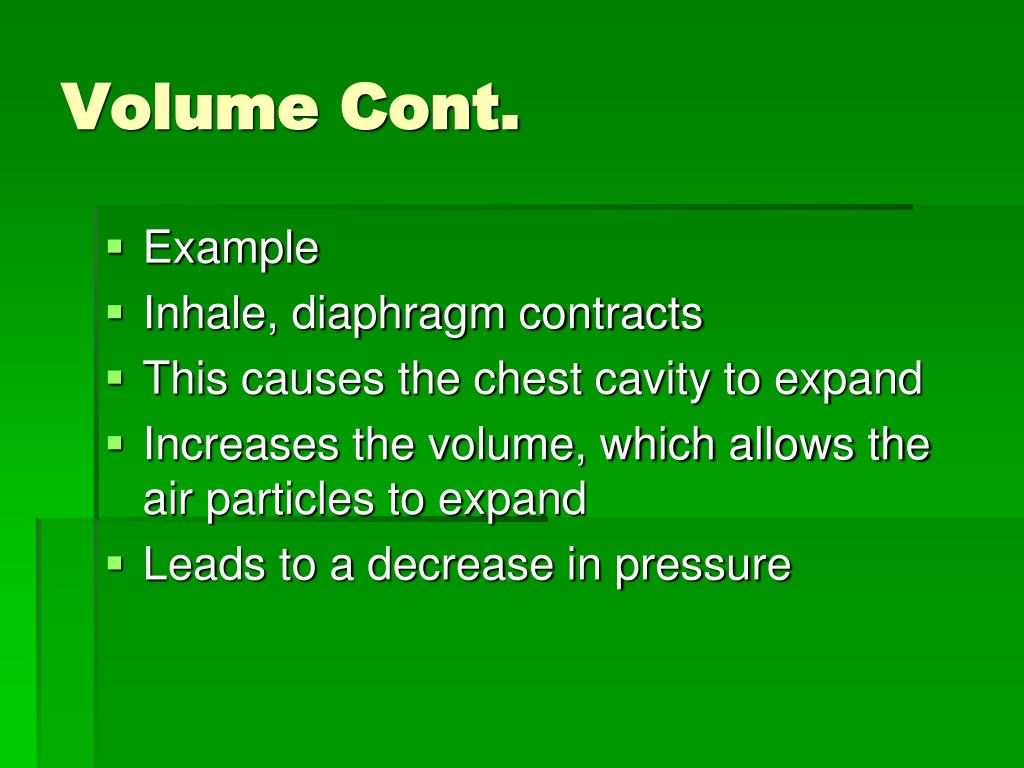

  31. Volume Cont. • Example • Inhale, diaphragm contracts • This causes the chest cavity to expand • Increases the volume, which allows the air particles to expand • Leads to a decrease in pressure

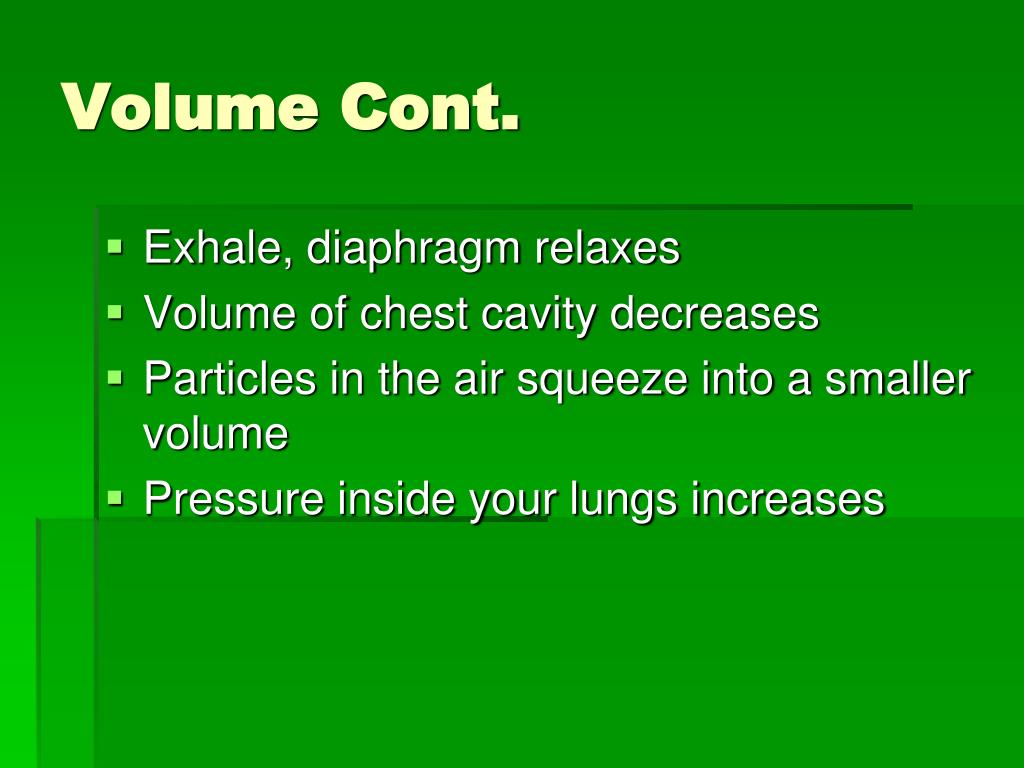

  32. Volume Cont. • Exhale, diaphragm relaxes • Volume of chest cavity decreases • Particles in the air squeeze into a smaller volume • Pressure inside your lungs increases

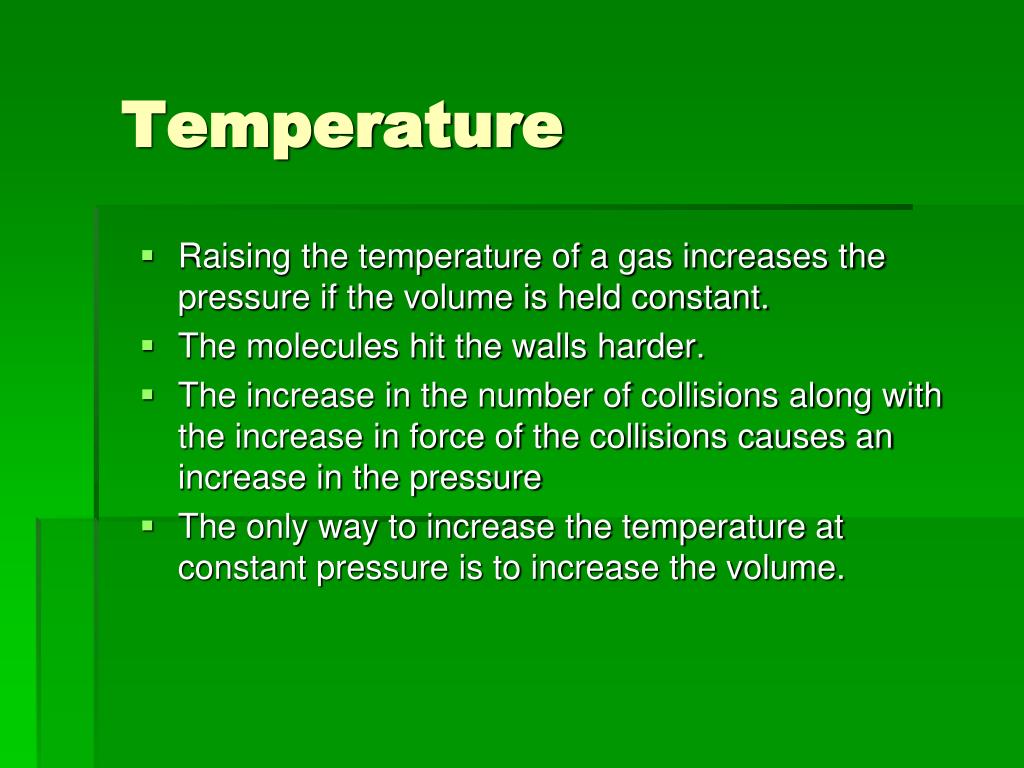

  33. Temperature • Raising the temperature of a gas increases the pressure if the volume is held constant. • The molecules hit the walls harder. • The increase in the number of collisions along with the increase in force of the collisions causes an increase in the pressure • The only way to increase the temperature at constant pressure is to increase the volume.

  34. Calculating Gas Laws • Boyle’s Law • Charles’s Law • Combined Gas Law

  35. Boyle’s Law • At a constant temperature pressure and volume are inversely related. • As one goes up the other goes down • P x V = K (K is some constant) • Easier to use P1 x V1=P2 x V2

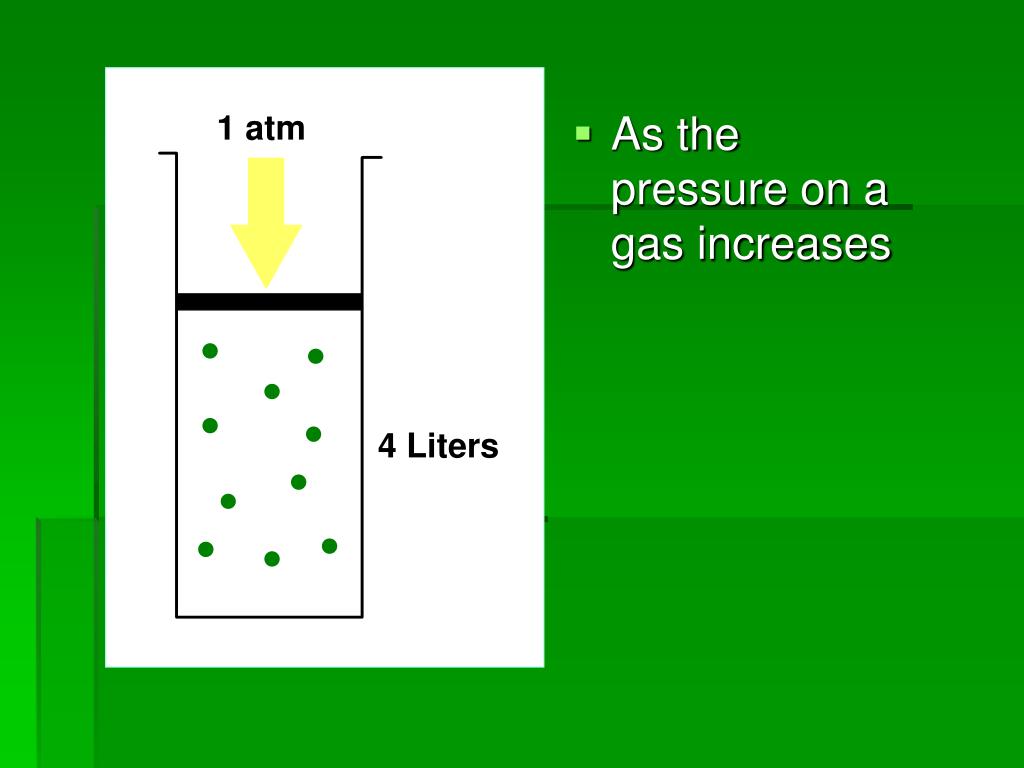

  36. 1 atm • As the pressure on a gas increases 4 Liters

  37. 2 atm • As the pressure on a gas increases the volume decreases • Pressure and volume are inversely related 2 Liters

  38. P V

  39. Examples • A balloon is filled with 25 L of air at 1.0 atm pressure. If the pressure is change to 1.5 atm what is the new volume? • A balloon is filled with 73 L of air at 1.3 atm pressure. What pressure is needed to change to volume to 43 L?

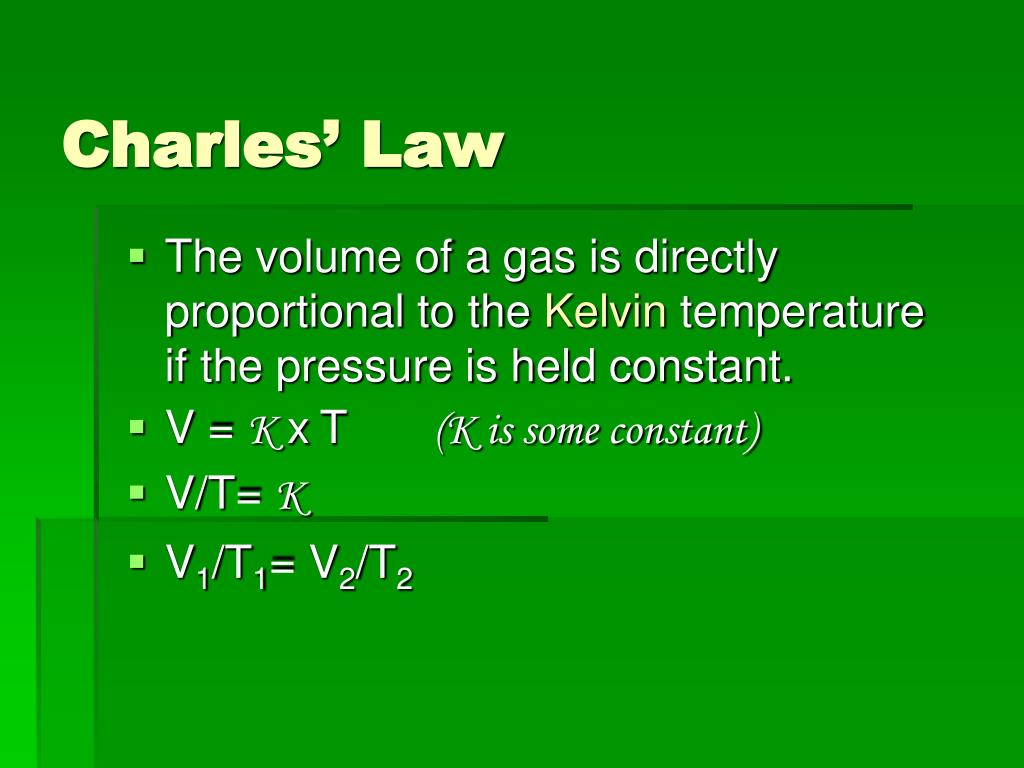

  40. Charles’ Law • The volume of a gas is directly proportional to the Kelvin temperature if the pressure is held constant. • V = K xT (K is some constant) • V/T= K • V1/T1= V2/T2

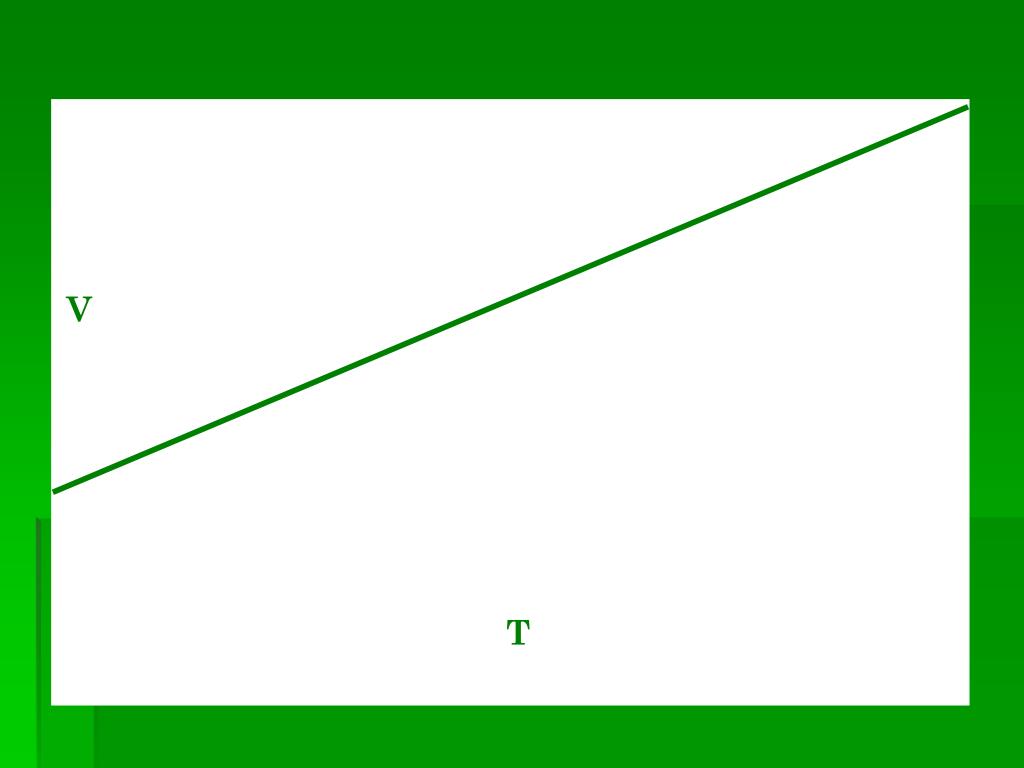

  41. V T

  42. Examples • What is the temperature of a gas that is expanded from 2.5 L at 25ºC to 4.1L at constant pressure. • What is the final volume of a gas that starts at 8.3 L and 290 K and is heated to 369 K?

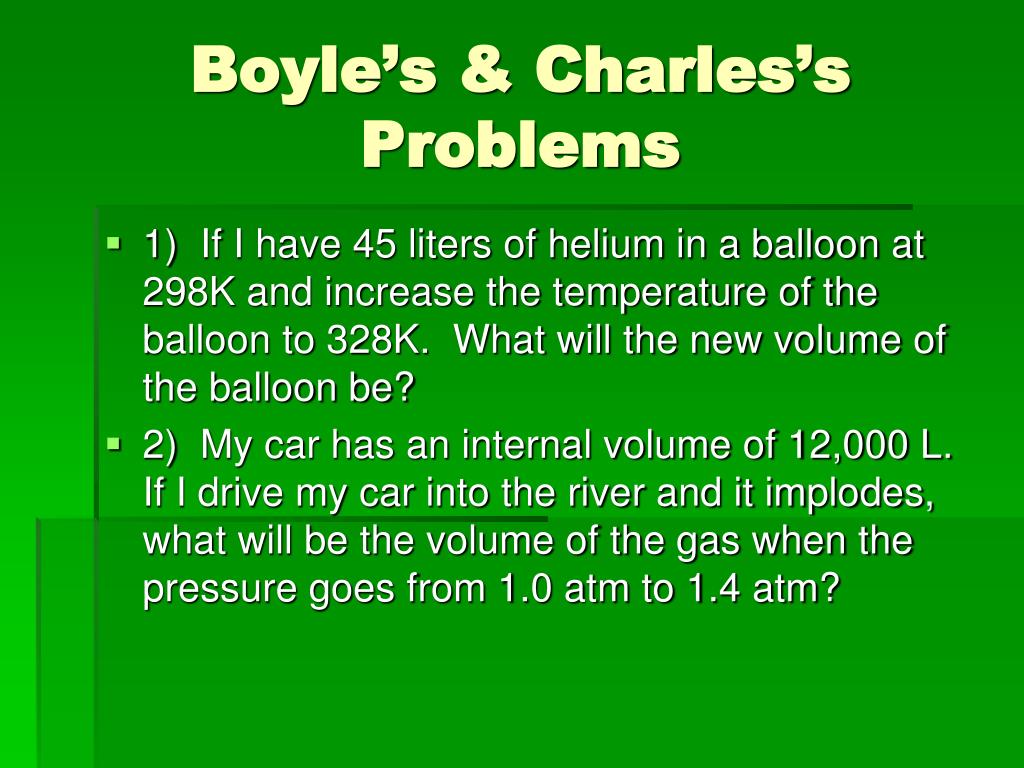

  43. Boyle’s & Charles’s Problems • 1) If I have 45 liters of helium in a balloon at 298K and increase the temperature of the balloon to 328K. What will the new volume of the balloon be? • 2) My car has an internal volume of 12,000 L. If I drive my car into the river and it implodes, what will be the volume of the gas when the pressure goes from 1.0 atm to 1.4 atm?

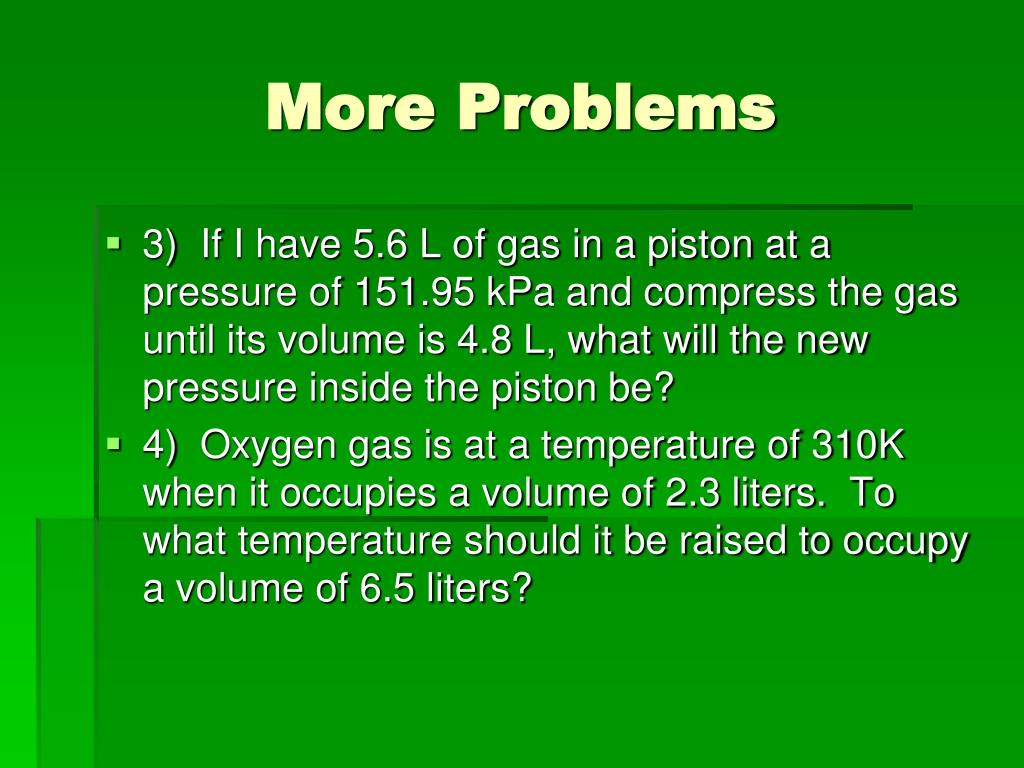

  44. More Problems • 3) If I have 5.6 L of gas in a piston at a pressure of 151.95 kPa and compress the gas until its volume is 4.8 L, what will the new pressure inside the piston be? • 4) Oxygen gas is at a temperature of 310K when it occupies a volume of 2.3 liters. To what temperature should it be raised to occupy a volume of 6.5 liters?

  45. Gay Lussac’s Law • The temperature and the pressure of a gas are directly related at constant volume. • P = K xT (K is some constant) • P/T= K • P1/T1= P2/T2

  46. Examples • What is the pressure inside a 0.250 L can of deodorant that starts at 25ºC and 1.2 atm if the temperature is raised to 100ºC? • At what temperature will the can above have a pressure of 2.2 atm?

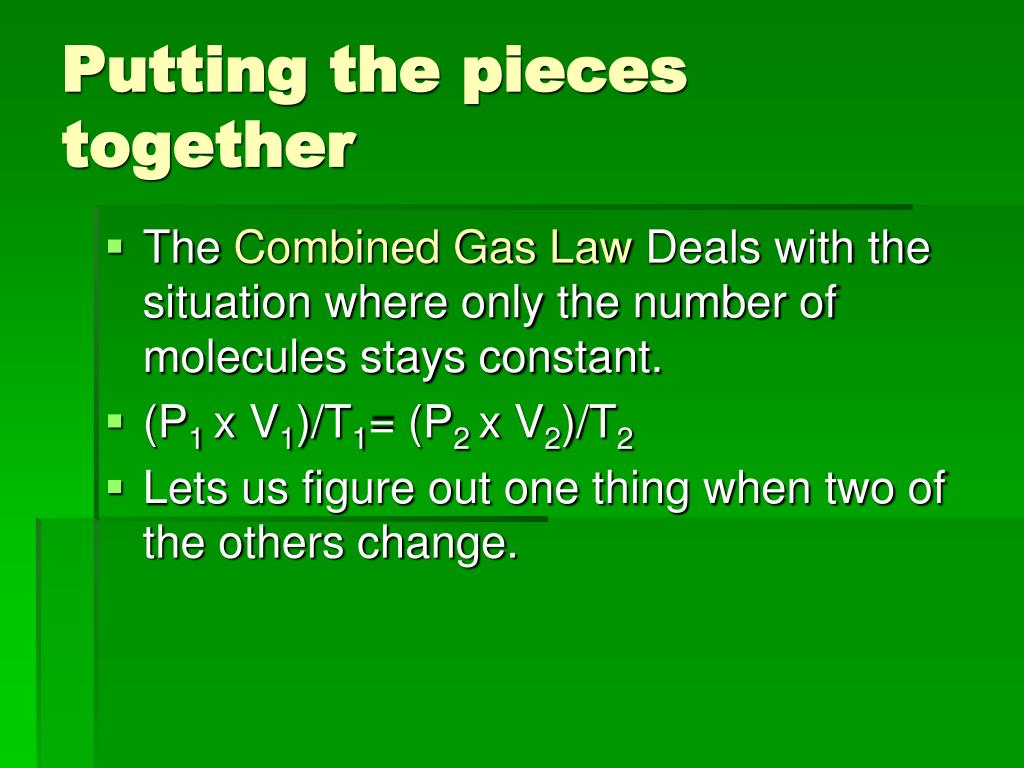

  47. Putting the pieces together • The Combined Gas Law Deals with the situation where only the number of molecules stays constant. • (P1 x V1)/T1= (P2 x V2)/T2 • Lets us figure out one thing when two of the others change.

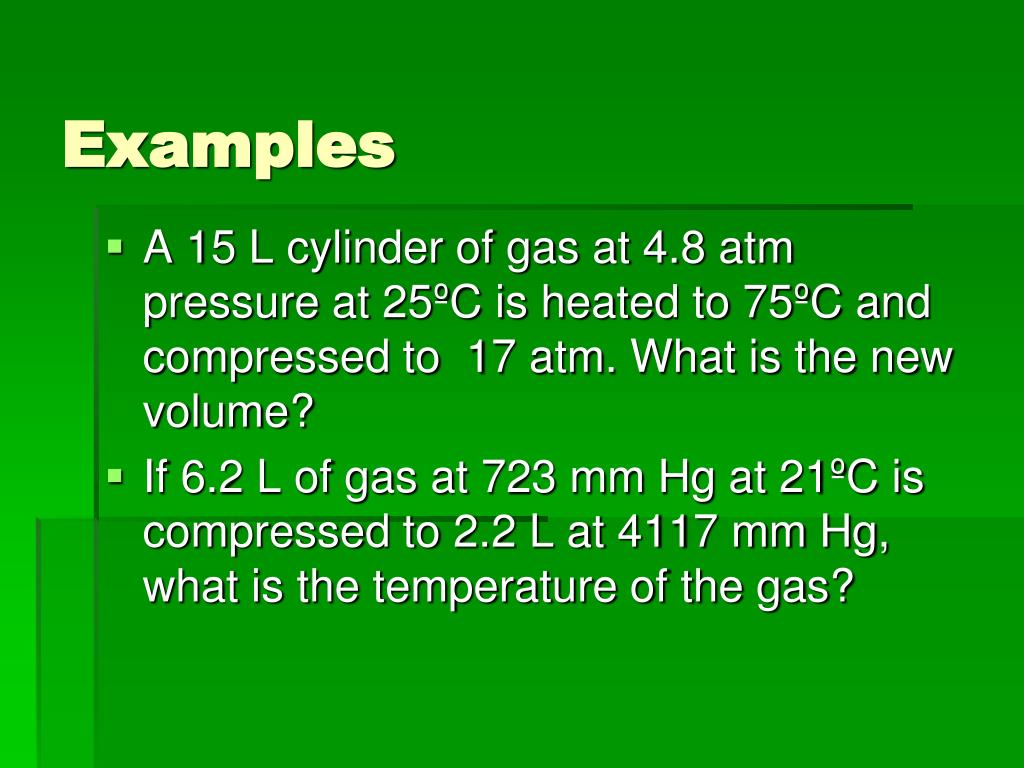

  48. Examples • A 15 L cylinder of gas at 4.8 atm pressure at 25ºC is heated to 75ºC and compressed to 17 atm. What is the new volume? • If 6.2 L of gas at 723 mm Hg at 21ºC is compressed to 2.2 L at 4117 mm Hg, what is the temperature of the gas?

  49. Melting Vaporization Freezing Condensation Phase Changes Solid Gas Liquid

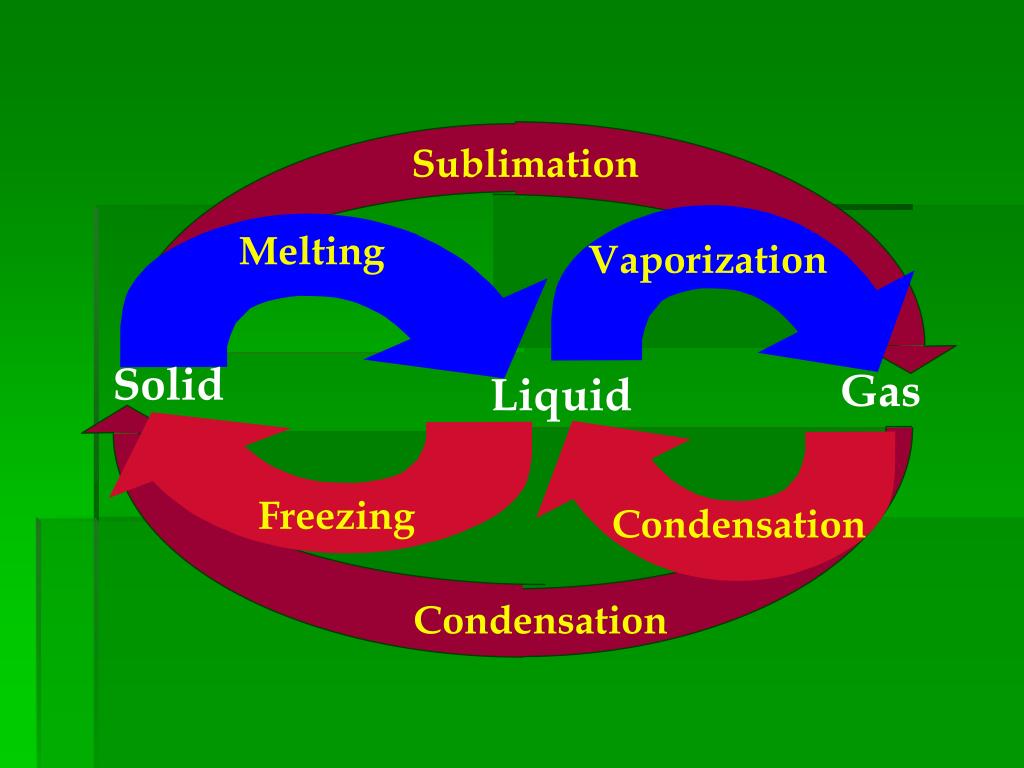

  50. Sublimation Vaporization Condensation Melting Solid Gas Liquid Freezing Condensation
