  1. SDN AND NETWORK EVOLUTIONSDN APPLICABILITY TO THE NETWORK E2E Javier MartínRodríguez Alcatel-Lucent EspañaOctober 24th 2013

  2. ALU´s Network evolution vision • Cloud and NFV Foundation: Cloudband • Challenges and Goals • Operating the distrubuted Cloud • CloudbandArchitecture • SDN for DC & Wide Area Networking • Applicability of Nuage VSP further to the Data Center • IP-Optics convergence • IP-Network evolutions towards virtualization CloudBand Management System CloudNode Carrier PaaS

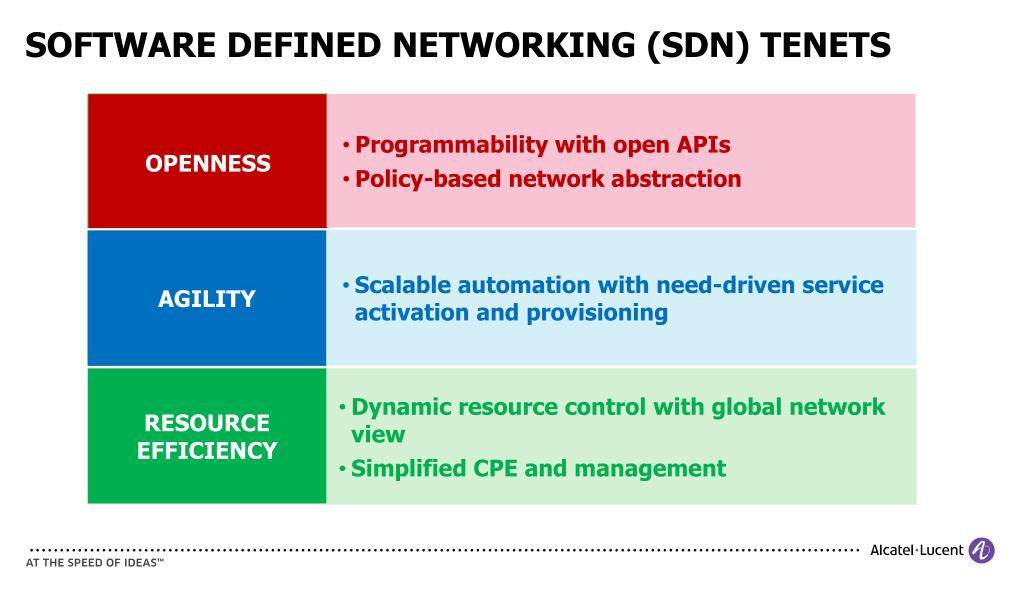

  3. SOFTWARE DEFINED NETWORKING (SDN) TENETS OPENNESS • Programmability with open APIs • Policy-based network abstraction AGILITY • Scalable automation with need-driven service activation and provisioning RESOURCE EFFICIENCY • Dynamic resource control with global network view • Simplified CPE and management

  4. ALCATEL-LUCENT “END-TO-END” SDN ARCHITETCURE PROGRAMMABILITY • Policy-based network abstraction and open APIs • Simplified representation of network to applications by service-layer abstraction of network constructs to hide underlying complexity • WAN • Data Center WEB VELOCITY & SCALE • Demand-driven service activation and provisioning • Customer trigger (packet, flow, VM creation) initiates dynamic network provisioning and service activation as directed by pre-defined policies NETWORK RESOURCE EFFICIENCY • Dynamic resource control with global network view • Extend cloud efficiency model to WAN • Leverage network statistics, multi-layer topology, dynamic virtual network state + control (slicing) to optimize end-to-end service delivery

  5. OUR VISION OF THE FUTURE:EVOLVING HLN TO A PROGRAMMABLE, CONSUMABLE CLOUD NETWORK NETWORK APPLICATIONS Virtualize NETWORK SERVICES CONTROL Software Define IP INFRASTRUCTURE MASSIVE PARADIGM SHIFT FROM CLOSED, STATIC CONFIGURATION TO OPEN, DYNAMIC ADAPTATION

  6. ALCATEL-LUCENT CLOUD IP NETWORK VISION: THE 3 PILLARS IT and Application Services Network Controlling Applications Virtualized Network Functions • Flexible Virtualized Network Functions running on an IT infrastructure (augmented by high performance dedicated functions as appropriate) • End to end automated cloud orchestration, maximizing flexibility and efficiency of applications • SDN, to enable dynamic consumption and programmability of the underlying DC network and transport infrastructure 1 1 • Cloud services & capabilities 2 • Cloud intelligence & control Network Virtualization & Automation(Nuage Networks) Cloud Orchestration & Automation (CloudBand) 2 3 3 • Open, distributed cloud infrastructure SDN • Enterprise DC • MAN/WAN • Network DC • Customers DELIVERING NEW VALUE TRINITY: AUTOMATED, SCALABLE, MULTI-TENANT COMPUTE, STORAGE & NETWORKING

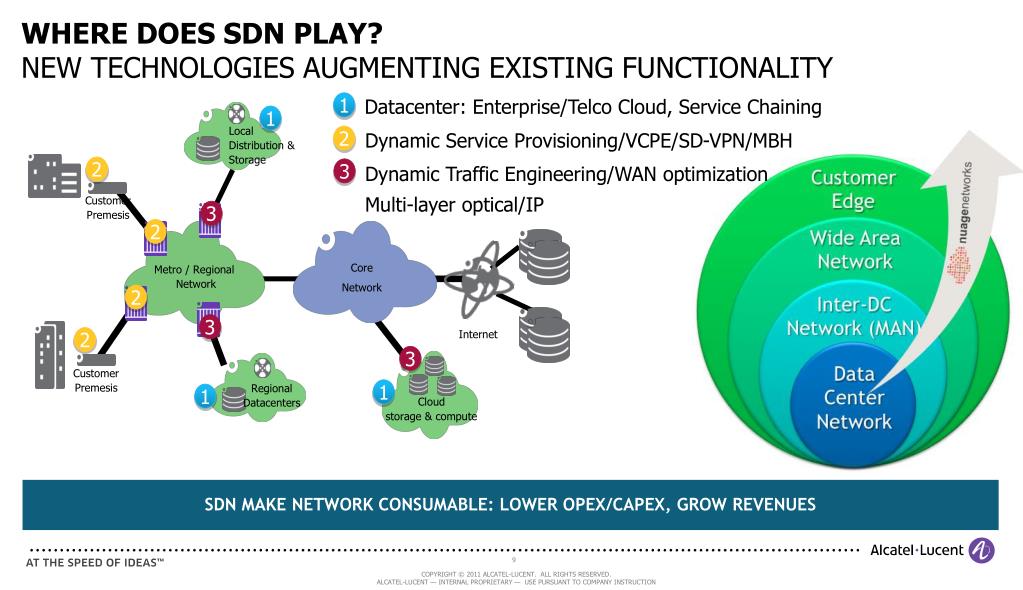

  7. WHERE DOES SDN PLAY?NEW TECHNOLOGIES AUGMENTING EXISTING FUNCTIONALITY Datacenter: Enterprise/Telco Cloud, Service Chaining 1 Dynamic Service Provisioning/VCPE/SD-VPN/MBH 1 2 Local Distribution & Storage 2 Dynamic Traffic Engineering/WAN optimizationMulti-layer optical/IP 3 3 Customer Premesis 2 Core Network Metro / Regional Network 2 3 2 Internet 3 1 Cloud storage & compute 1 Customer Premesis SDN MAKE NETWORK CONSUMABLE: LOWER OPEX/CAPEX, GROW REVENUES Regional Datacenters

  8. OVERALL NETWORK PRINCIPLES LEVERAGED IN THE SDN CTXT • End-to-end Principle • Policy • Network of networks BGP • Service Federation • Simple core • Intelligent edges • Policy Driven • Soft Handoff • State distribution

  9. Virtualized Services Platform – 2nd Generation SDN Solution Nuage Networks VSP Current (1st Gen) Within one datacenter (partial or full) Across multiple datacenters Manual Seamless, Automated L2 with L3/L4 support Integrated L2-L4 Proprietary Open/Standards based (MP-BGP) Basic Policy-based provisioning, abstraction and analytics

  10. ALU Virtual Services Platform Reference view Value Proposition • Reduces up to 40% of datacenter traffic • Increases server utilization by 30% • Plug and play Networking with full network abstraction • Seamless connectivity to enterprise VPNs, across datacenters • Federation of Cloud Orchestration (Openstack, Cloudstack, Vcloud, etc) • Hypervisor independence • Scales by leveraging 10y field proven control-plane function in SROS Virtualized Services Directory (VSD) Internet VPN Cloud Service Management Plane Domain Virtualized Services Controller (VSC) Policies Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Zones Virtual Routing & Switching (VRS) Subnets Datacenter Control Plane Datacenter 1 Datacenter 2 Datacenter Data Plane

  11. Bell Labs Modeling SDN BENEFIT ANALYSIS: DATA CENTER NETWORKING Avoidance of traffic “tromboning” eliminates redundant flows over capacitated DC links 1st Gen SDN 2nd Gen SDN 1G SDN Reduction in required link capacity Increase in maximum possible server utilization Reduction in traffic hops Server Link Utilization 1.0 Gbps / VM 100% 1.0 Gbps / VM 80% 6 2G SDN 200% 2G SDN 1G SDN 60% 4 Additional DC LAN Capacity Required 40% 1G SDN 100% 2G SDN 2 20% 0% 0% 10% 30% 50% 70% 90% 0 Max DC Server Utilization DC Server Utilization

  12. SERVICE CHAININGSIMPLIFIED OPERATION TO DEPLOY SERVICES • Simplified service deployments • Models dynamic service chain per customer • Dynamically monitor Service utilization and adjust service chain policies • Use cases • Gi-LAN: FW, Video optimization, NAT, DPI, etc • DDOS Mitigation • Virtual appliances

  13. THE EVOLUTION OF ENTERPRISE NETWORK SERVICES New The cloud-ready WAN Dynamic Cloud SD-VPNs & BI • Dynamic, CPE-triggered provisioning:Zero-touch activation & provisioning of VPN and business internet services, open standardized CPE(s) Secure VPNs & BI • Threat Management System:Network-based mitigation of DDoS & related cloud threats Application-Aware VPNs & BI Value proposition • Application Assurance: Network-based monitoring and control of enterprise and hosted applications Service-AwareVPNs & BI • QoS, H-QoS, VPLS & OAMService level QoS and integrated VPN management Basic VPNs & BI • Basic L2/L2 MPLS VPNs & Business Internet: Commodity-priced network connectivity Basic WAN connectivity 2010 2013

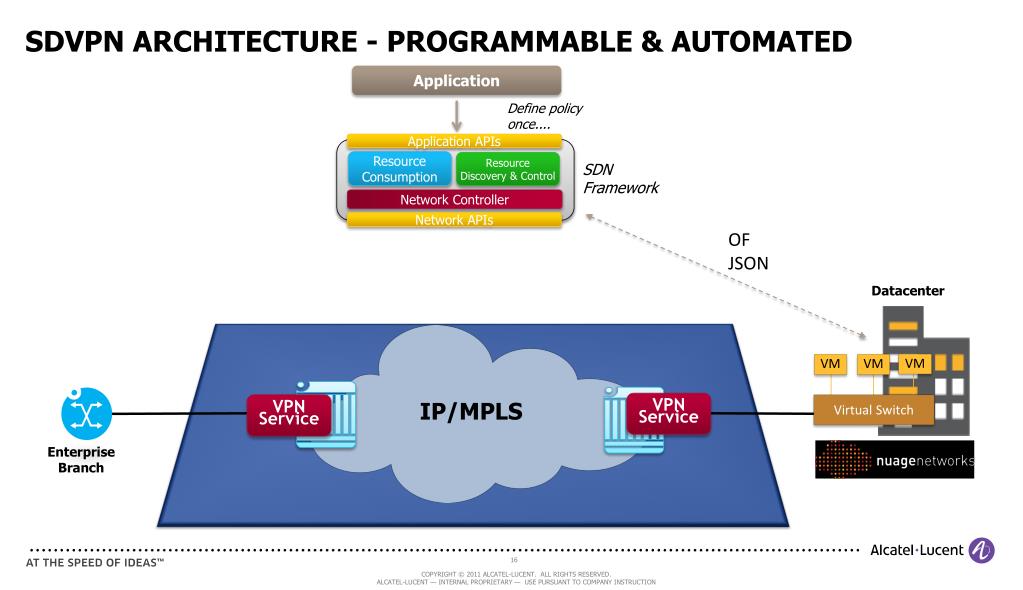

  14. SDVPN ARCHITECTURE - PROGRAMMABLE & AUTOMATED Application Define policy once.... SDN Framework OF JSON Network Controller Application APIs Resource Consumption Resource Discovery & Control Datacenter VM VM VM Virtual Switch Network APIs VPN Service VPN Service IP/MPLS Enterprise Branch

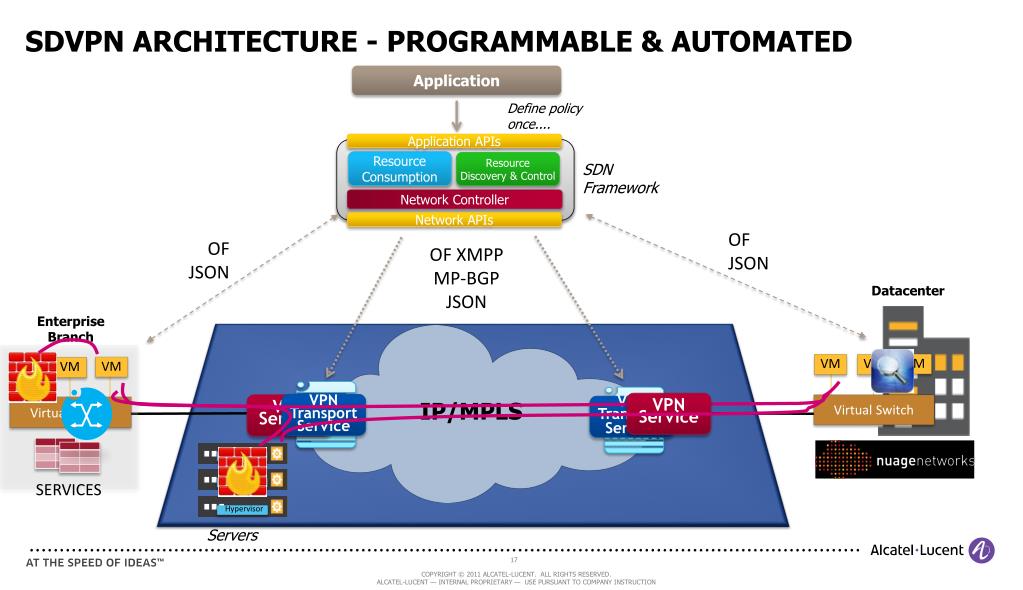

  15. SDVPN ARCHITECTURE - PROGRAMMABLE & AUTOMATED Application Define policy once.... SDN Framework OF JSON OF XMPP MP-BGP JSON OF JSON Hypervisor Hypervisor Hypervisor Network Controller Application APIs VM VM VM Resource Consumption Resource Discovery & Control Datacenter VM VM VM VPN Transport Service VPN Transport Service Virtual Switch Enterprise Branch Virtual Switch Network APIs SERVICES VPN Service VPN Service IP/MPLS Servers

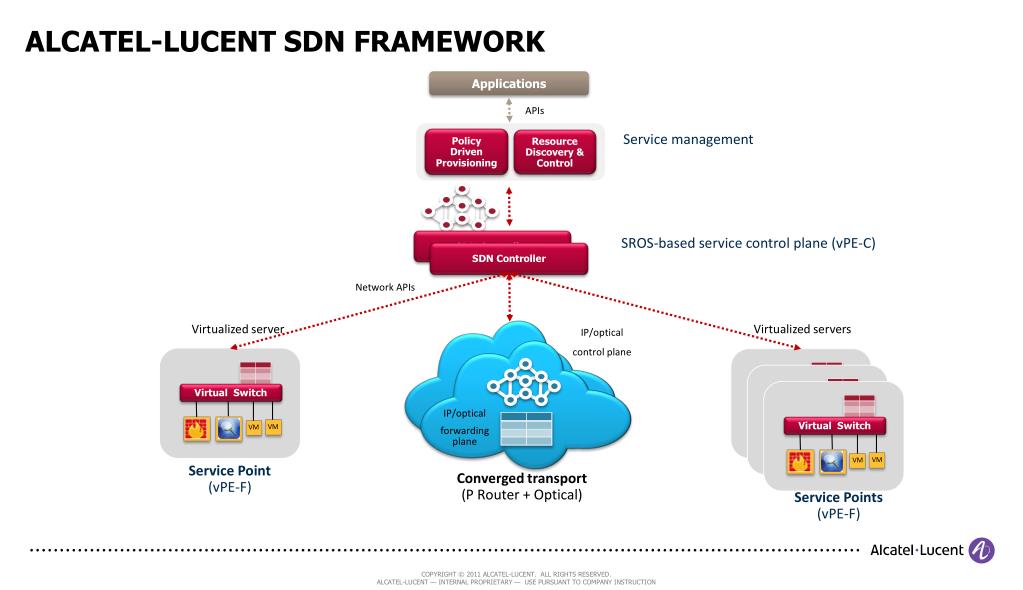

  16. ALCATEL-LUCENT SDN FRAMEWORK Applications PolicyDriven Provisioning Resource Discovery & Control APIs Service management SROS-based service control plane (vPE-C) SDN Controller SDN Controller Virtual Switch Virtual Switch Virtual Switch Virtual Switch Network APIs VM VM VM VM VM VM VM VM Virtualized server Virtualized servers IP/optical control plane IP/optical forwarding plane Service Point(vPE-F) Converged transport(P Router + Optical) Service Points(vPE-F)

  17. ALCATEL-LUCENT SDN CUSTOMER BENEFITS Applications • Open: the network to applications PolicyDriven Provisioning Resource Discovery & Control APIs • Cloud economics: Increase network efficiency & utilization • Agility & scale: Automate the network services layer • Cloud economics: Simplify the customer edge SDN Controller • Agility & scale: Decouple network service & transport layers SDN Controller Virtual Switch Virtual Switch Virtual Switch Virtual Switch Network APIs VM VM VM VM VM VM VM VM Virtualized server Virtualized servers IP/MPLS UNI UNI GMPLS Service Point(vPE-F) Service Points(vPE-F) • Converged transport: IP & Optical integration for efficiency & scalability

  18. NUAGE VIRTUALIZED SERVICES CONTROL & FEDERATION VPN Internet Domain Virtualized Services Directory Subnets Policies Virtualized Services Controller Virtualized Services Controller IP / MPLS Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Hypervisor Cloud Service Management Plane Zones Federation of controllers Datacenter Control Plane Service Provider Control Plane DC WAN Router Business VPN Service Private Datacenter Service Provider Data Plane DC1 Zone 1 DC1 Zone 2 Datacenter 2` Datacenter Data Plane

  19. Realizing the value of the network through application-optimized orchestration spanning computing, storage and network resources NETWORK VISION EXPERIENCE ENABLEMENT Enterprise, 3rd Party,and SP Applications Network abstraction and exposure SDN Contollers Federation SDN Control Federation DECISION ANALYTICS NetworkOrchestration SDN Framework OPTIMIZATION CloudBand IMS SDN DC Control Customer & Network Analytics . CONTROL SDN WAN Controllers Data Center Policy/Charging IP/Optical NM/SMGMPLS Control MPLS Control Plane MPLS Control Plane Compute/storageresources DCNetwork IP/MPLS GMPLS Control Plane OTN/WDM Wireless/Wireline Access Metro Aggregation Fixed Edge / Wireless Packet Core IP-Optical Backbone SIMPLIFIED SEAMPLESS IP/MPLS/OPTICAL INTEGRATED NETWORK, LEVERAGING THE SDN CENTRALIZED SERVICE ORCHESTRATION CAPABILITIES
