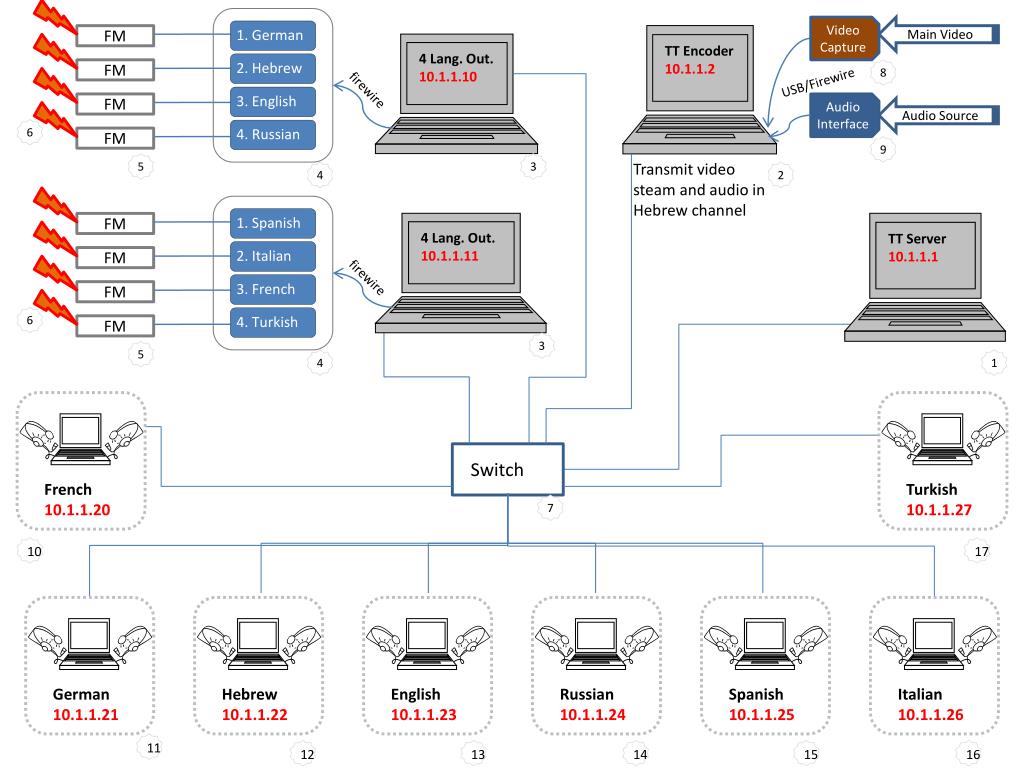

  1. Video Capture Main Video FM FM TT Encoder 10.1.1.2 4 Lang. Out. 10.1.1.10 8 FM FM USB/Firewire firewire Audio Interface FM FM Audio Source 6 FM FM 9 5 3 Transmit video steam and audio in Hebrew channel 4 2 4 Lang. Out. 10.1.1.11 TT Server 10.1.1.1 firewire 6 3 5 4 1 Switch 7 Turkish 10.1.1.27 Hebrew 10.1.1.22 English 10.1.1.23 Russian 10.1.1.24 Italian 10.1.1.26 French 10.1.1.20 Spanish 10.1.1.25 German 10.1.1.21 11 12 15 16 10 17 13 14

  2. Required equipment (not including the translation booths themselves) • 1,2) 2 x PCs (or Notebooks) for Teamtalk Encoder, and Teamtalk Server • 3) 2 x PCs (or Notebooks) with Firewire interface for running TeamTalk clients per language • 4) 2 x external 4+ channels Firewire audio interface cards • 5) 8 x FM transmitters • 6) 8 x FM antennas • 7) 1 x 16+ Ports 100Mbps LAN Switch • 8) 1 x USB or Firewire Video capture card • 9) 1 x USB or Firewire audio interface card for high quality Line-In on TeamTalk Encoder PC (optional, use Line-in instead) • 10-17) 8 x Notebook computers for translators booths • 16 x USB headsets for translators (2 per notebook) • Audio cables for audio input (for encoder) and for 8 x FM transmitters (5,9) • LAN cables. Length depending on exact placement.
