  1. On Delaying Collision Checking in PRM Planning – Application to Multi-Robot Coordination By: Gildardo Sanchez and Jean-Claude Latombe Presented by: Michael Graeb and Samir Menon

  2. Delayed Collision Checking • Motivations • Experimental Foundations: Collision checks removed from planner • Improved efficiency by 2-3 orders of magnitude • Most paths remained collision free • Most time is spent checking connections • Short connections likely to be collision-free anyway • Most collision-free connections not part of final path • Hence: Postpone testing a connection until it is absolutely needed

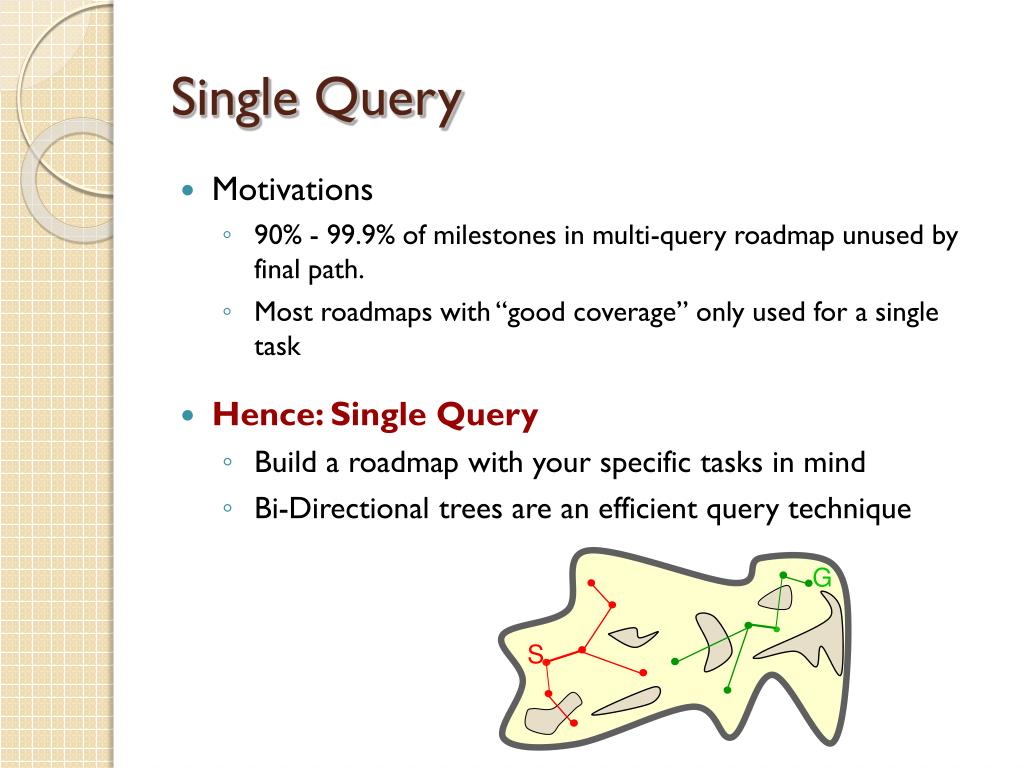

  3. G S Single Query • Motivations • 90% - 99.9% of milestones in multi-query roadmap unused by final path. • Most roadmaps with “good coverage” only used for a single task • Hence: Single Query • Build a roadmap with your specific tasks in mind • Bi-Directional trees are an efficient query technique

  4. SBL Algorithm – Overall • Start roadmap with two trees • Rooted at start and goal, one node each • Try s times…

  5. SBL Algorithm – Overall 2a) Grow a tree by one node

  6. SBL Algorithm – Overall Start Goal 2b) Find a path from start to goal • We’re not certain all edges are valid

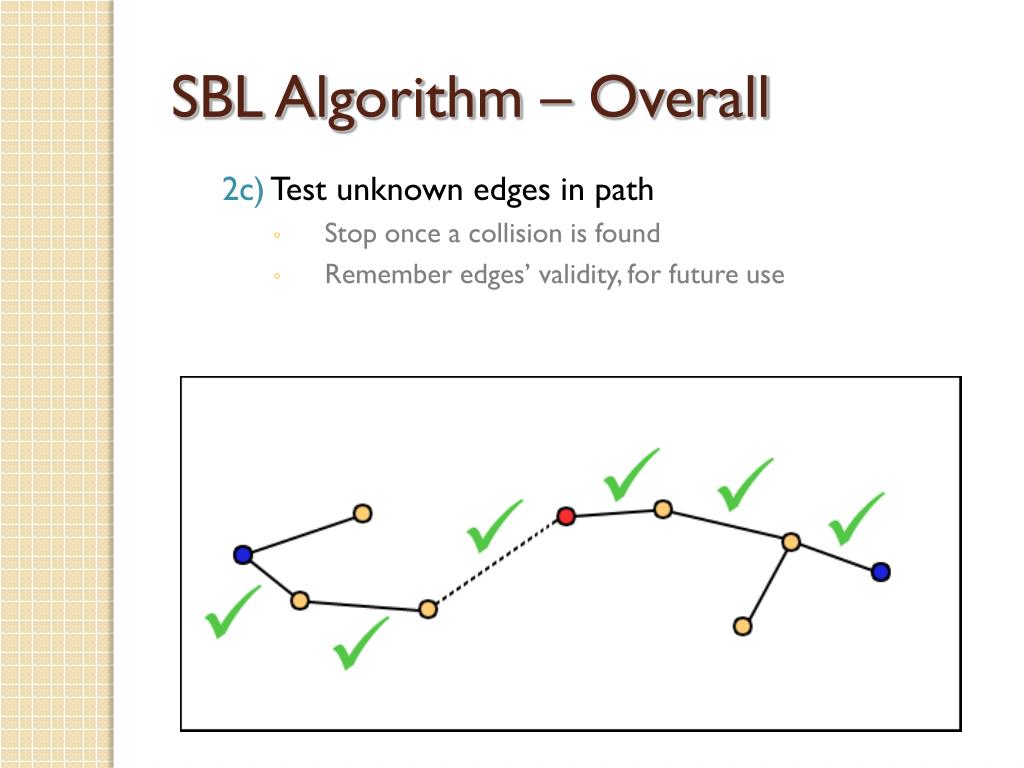

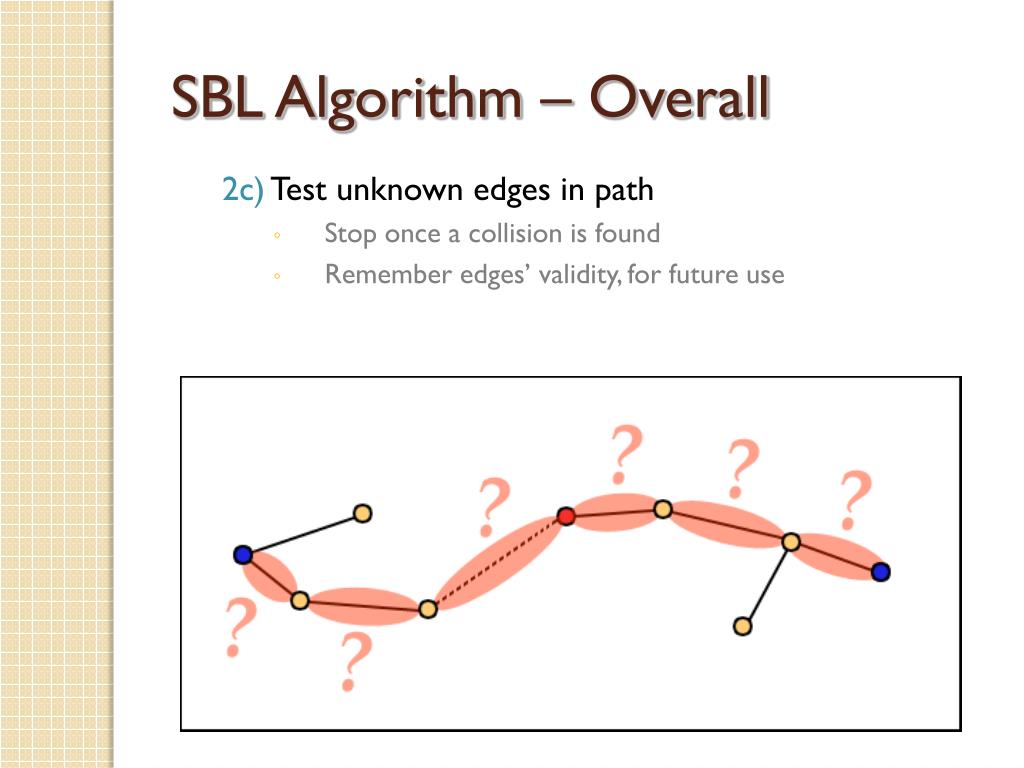

  7. SBL Algorithm – Overall 2c) Test unknown edges in path • Stop once a collision is found • Remember edges’ validity, for future use

  8. SBL Algorithm – Overall 2c) Test unknown edges in path • Stop once a collision is found • Remember edges’ validity, for future use

  9. SBL Algorithm – Overall 2d) If all edges valid, return path

  10. SBL Algorithm - EXPAND 1. Pick which tree, T, will receive new milestone • Uniformly random choice, 50/50 odds

  11. SBL Algorithm - EXPAND 2. From T, pick an existing milestone, m • Random choice, with milestones in less-dense regions more likely to be picked

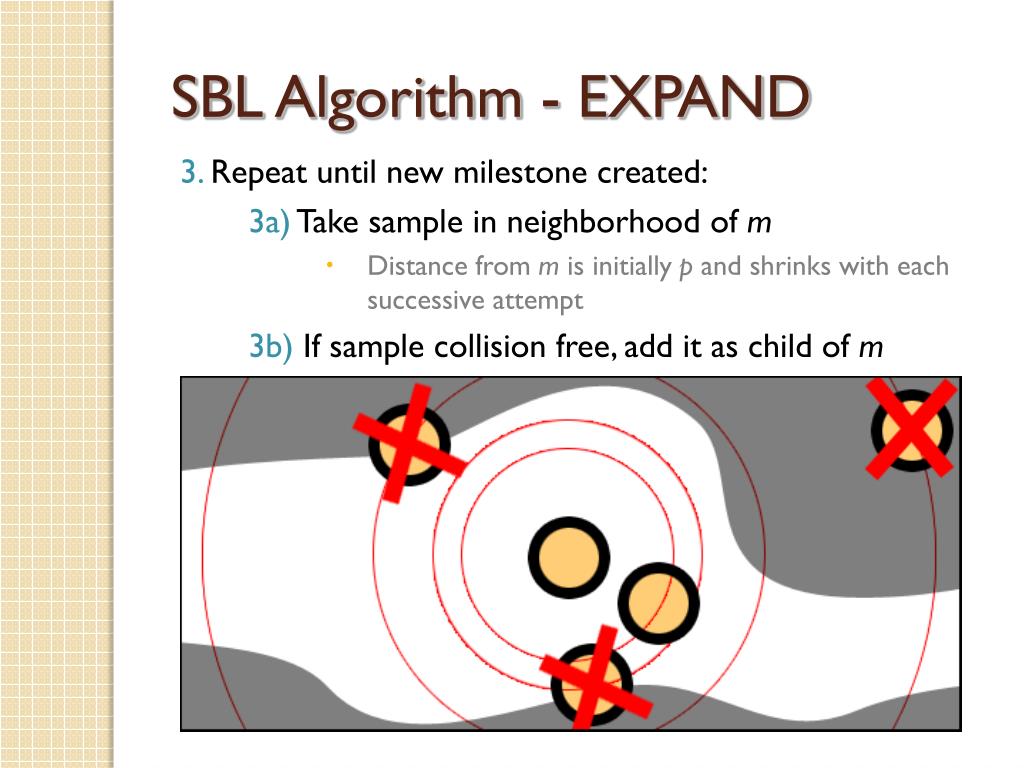

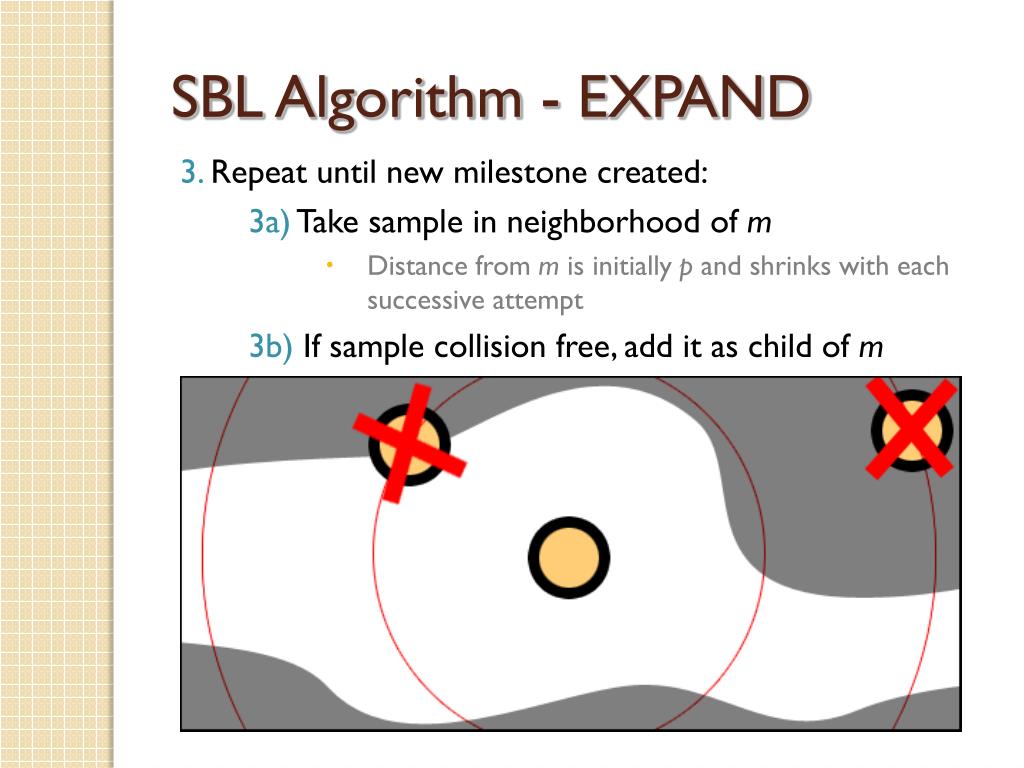

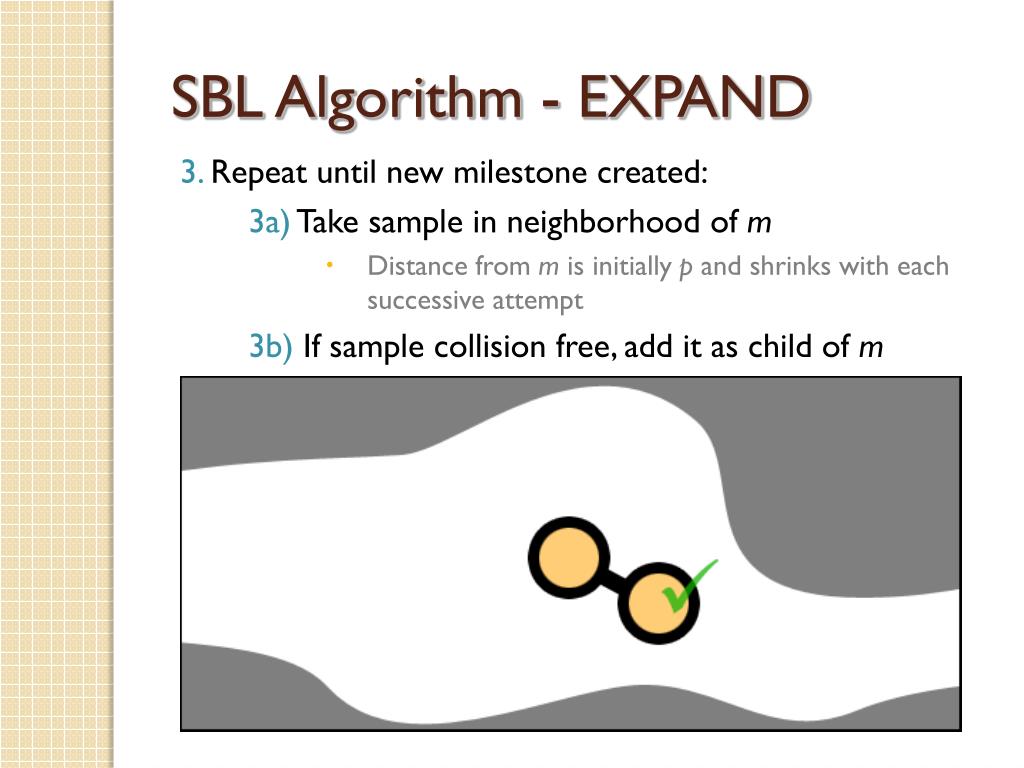

  12. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

  13. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

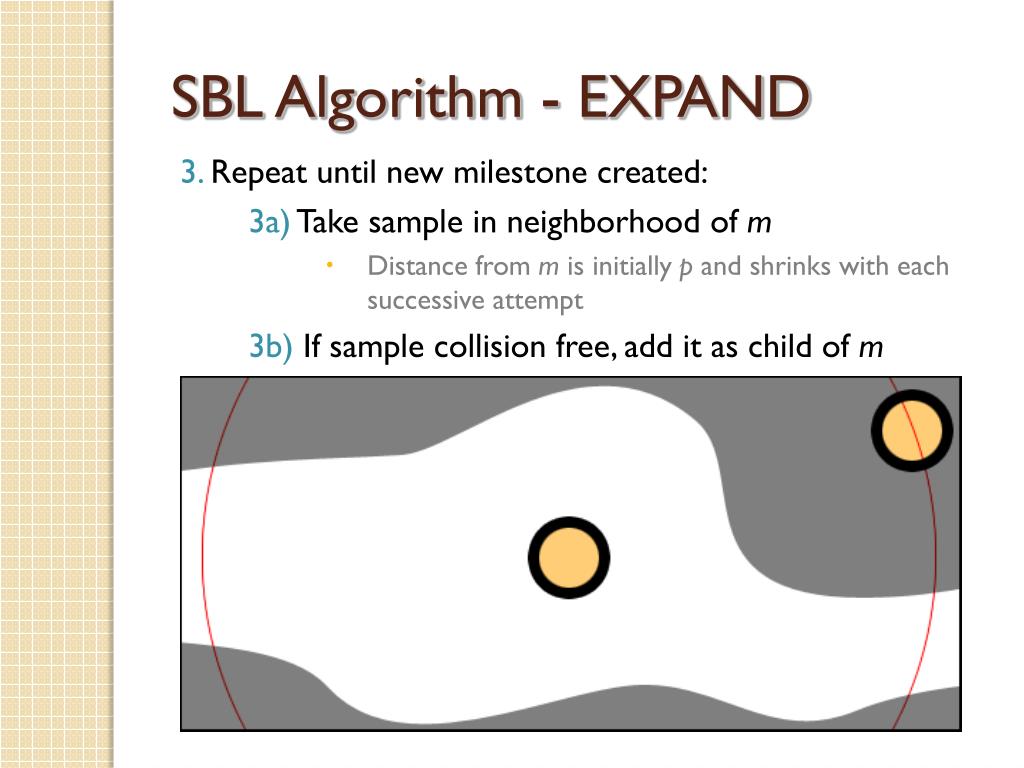

  14. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

  15. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

  16. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

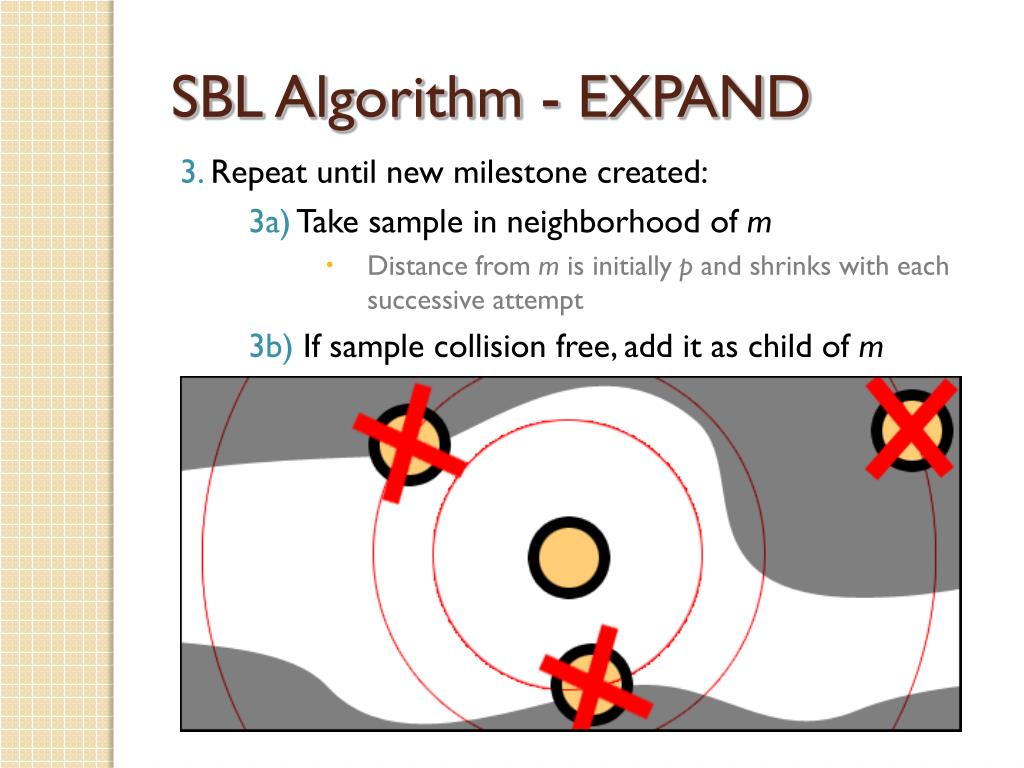

  17. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

  18. SBL Algorithm - EXPAND 3. Repeat until new milestone created: 3a) Take sample in neighborhood of m • Distance from m is initially p and shrinks with each successive attempt 3b) If sample collision free, add it as child of m

  19. SBL Algorithm - CONNECT 1.m isnew milestone 2.m’ is other tree’s nearest milestone to m

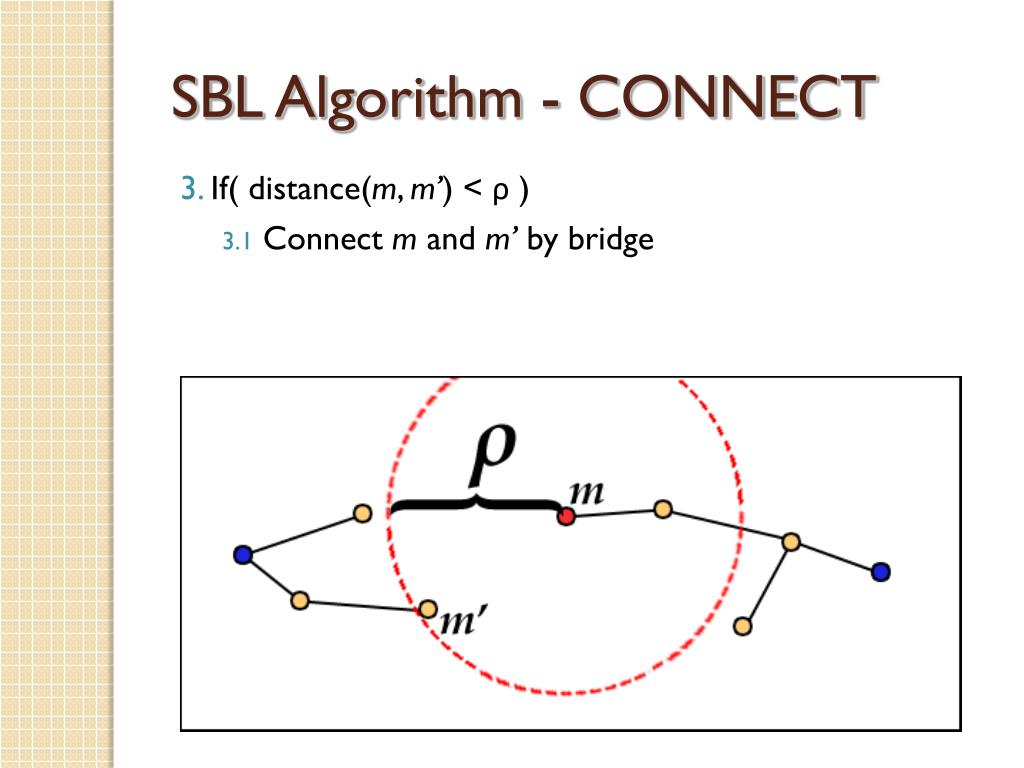

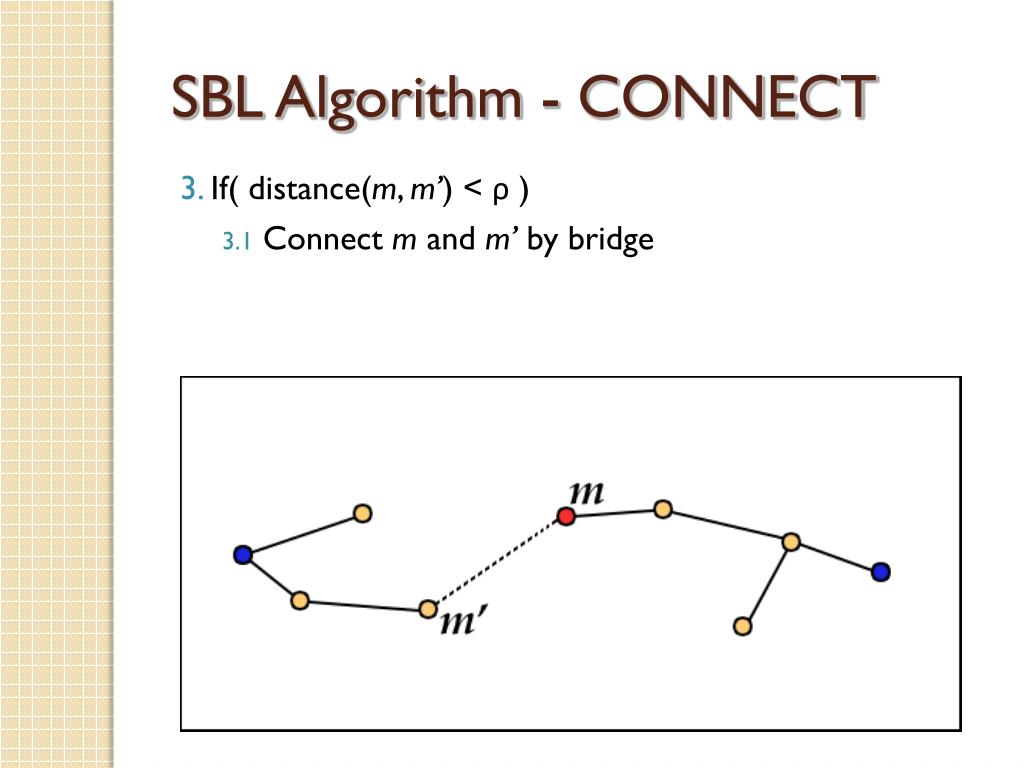

  20. SBL Algorithm - CONNECT 3. If( distance(m, m’) < ρ ) 3.1 Connect m and m’ by bridge

  21. SBL Algorithm - CONNECT 3. If( distance(m, m’) < ρ ) 3.1 Connect m and m’ by bridge

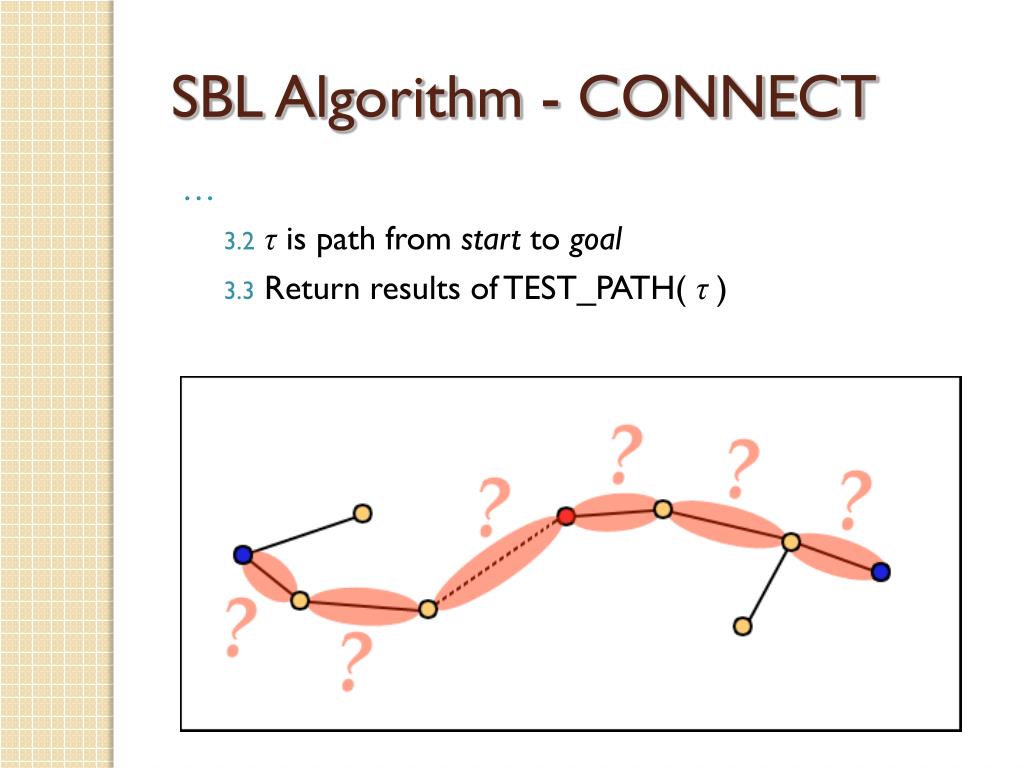

  22. SBL Algorithm - CONNECT … 3.2τis path from start to goal 3.3 Return results of TEST_PATH( τ )

  23. SBL Algorithm – TEST_PATH(path) • Continually test “most unsafe” segment until we we encounter a collision, or all segments are known to be safe. • Save results for future use.

  24. Results • Results for configuration shown in the figure

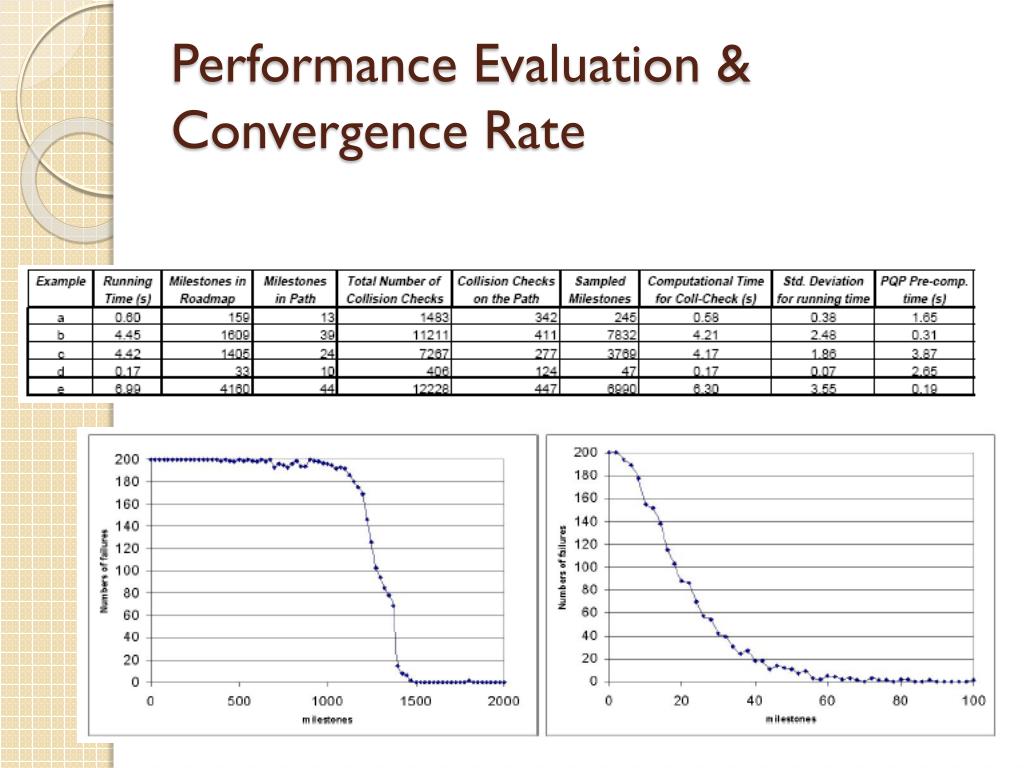

  25. Performance Evaluation & Convergence Rate

  26. Comparative Performance Evaluation • Experimental results for the full collision-check planner

  27. Discussion • Assumes two spatially close configurations in configuration space have low probability of collision • Saves time by checking collision between milestones only when part of candidate path from start to goal. • Valid assumption in practice & supported by experiments
