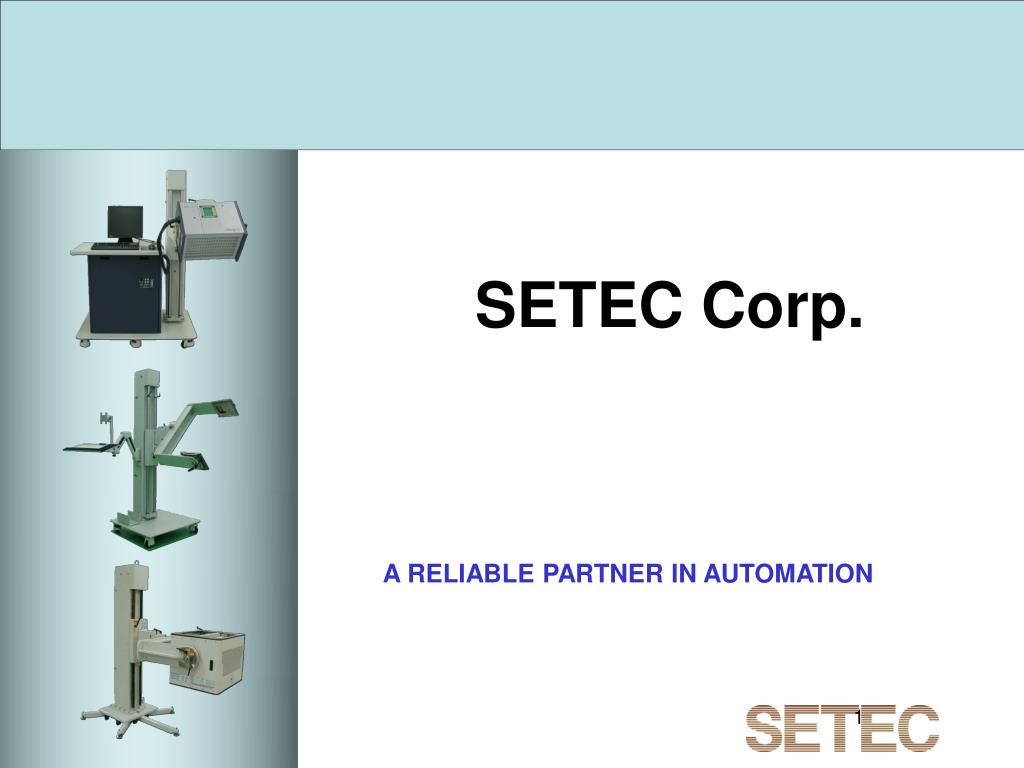

  1. SETEC Corp. A RELIABLE PARTNER IN AUTOMATION

  2. Company Profile Foundation Apr. 1987 Employee 82 Facilities 4300 m2 Capital USD$4,000,000 Our Product & Service Planning, designing, manufacturing and installation of the whole plant, the complete production line and various automatic machinery & equipment. Designing & manufacturing of special tooling, fixture & complicated/precision machinery parts.

  3. Assembling R & D Manufacturing Company Tour Guide Overview

  4. ManipulatorFeatures & benefit The Z-axis is designed with dual shafts and linear ball bush bearing for up-down motions. The counter balance weight mechanism is utilized to allow the test head to move smoothly and easily to the positioning place. Needle bearings are used for horizontal movement (X-Y axis) to minimize damages during docking and to ensure free maintenance. Reference degree scale is attached for inclined MCT handler or Prober, the scale can be preset to reduce set up time. All rotation axes/arms are equipped with secure lock made of aluminum alloy. All handles are adjust-able to ensure a suitable working condition. The base is designed with caster to make the relocation easy, and the positioning is simple. Mainframe and base plate are coated with Acrylic lacquer. Major aluminum body is made of high strength aluminum and stainless steel, and is treated with black anodized finish to make the appearance presentable and performance reliable.

  5. ManipulatorMIIIR Specifications ‧UP-DOWN MOTION Z AXIS : 700 mm ‧SIDEWAY MOTION X AXIS : 150 mm ‧IN/OUT MOTION Y AXIS : 150 mm 180° ‧ROTATION ANGLE X AXIS : 180° ‧ROTATION ANGLE Z AXIS : 360° ‧ROTATION ANGLE Y AXIS : 60 KG ‧MAX. LOAD : 700W x 1000D mm ‧FLOOR SPACE : LIGHT WEIGHT, GOOD FOR TEST HEAD UNDER 60 KG ‧CHARACTERISTICS : ‧ADAPTABLE TEST HEAD : AMIDA-3000, ANDO,CREDENCE ASL1000, EAGLE ETS300, ICT7100, KVD V2I (M2I), LTX CP-90, MOSAID 4155/4205, SCHLUMBERGER S10/S20, STS6060/6120, STS6500-60/120, T332, TERADYNE 96, TMT ASL1000, YAMADA SX1240, YOKOGAWA TS1000 …

  6. ManipulatorMIIINLR Specifications ‧UP-DOWN MOTION Z AXIS : 810 mm ‧SIDEWAY MOTION X AXIS : 150 mm ‧IN/OUT MOTION Y AXIS : 150 mm ‧ROTATION ANGLE X AXIS : 180° 180° ‧ROTATION ANGLE Z AXIS : 360° ‧ROTATION ANGLE Y AXIS : ‧MAX. LOAD : 100 KG 1300W x 960D mm ‧FLOOR SPACE : ‧ADAPTABLE TEST HEAD : CHROMA 3360P CREDENCE D10 EAGLE ETS300 … MIDDLE WEIGHT, ECONOMY TYPE ‧CHARACTERISTICS :

  7. ManipulatorMIVNR Specifications ‧UP-DOWN MOTION Z AXIS : 590 mm 150 mm ‧SIDEWAY MOTION X AXIS : ‧IN/OUT MOTION Y AXIS : 150 mm ‧ROTATION ANGLE X AXIS : 180° 180° ‧ROTATION ANGLE Z AXIS : 360° ‧ROTATION ANGLE Y AXIS : 150 KG ‧MAX. LOAD : 1100W x 1210D mm ‧FLOOR SPACE : MIDDLE WEIGHT ‧CHARACTERISTICS : ADVANTEST 5381, EAGLE ETS564D, EPOS LI110, HP9491/94000, KING TIGER KT3, M3600, MOSAID 5205, QTS C9551/G5510, SHIBASOKU WL93V, SHIBASOKU 93α, YAMADA SX2540 … ‧ADAPTABLE TEST HEAD :

  8. ManipulatorM200R Specifications ‧UP-DOWN MOTION Z AXIS : 880 mm 150 mm ‧SIDEWAY MOTION X AXIS : ‧IN/OUT MOTION Y AXIS : 150 mm 180° ‧ROTATION ANGLE X AXIS : 180° ‧ROTATION ANGLE Z AXIS : 360° ‧ROTATION ANGLE Y AXIS : 200 KG ‧MAX. LOAD : 1080W x 1170D mm ‧FLOOR SPACE : CREDENCE LTX TR-6600 … ‧ADAPTABLE TEST HEAD : ‧CHARACTERISTICS : MIDDLE WEIGHT

  9. ManipulatorM300SR Specifications ‧UP-DOWN MOTION Z AXIS : 820 mm 150 mm ‧SIDEWAY MOTION X AXIS : ‧IN/OUT MOTION Y AXIS : 150 mm 360° ‧ROTATION ANGLE X AXIS : 180° ‧ROTATION ANGLE Z AXIS : 360° ‧ROTATION ANGLE Y AXIS : 300 KG ‧MAX. LOAD : 1200W x 1400D mm ‧FLOOR SPACE : ‧ADAPTABLE TEST HEAD : EAGLE ETS364 HITACHI 7070 QTS G5000 TERADYNE J750 … HEAVY DUTY, ECONOMY TYPE ‧CHARACTERISTICS :

  10. ManipulatorM300R Specifications ‧UP-DOWN MOTION Z AXIS : 750 mm 150 mm ‧SIDEWAY MOTION X AXIS : ‧IN/OUT MOTION Y AXIS : 150 mm ‧ROTATION ANGLE X AXIS : 360° 180° ‧ROTATION ANGLE Z AXIS : 360° ‧ROTATION ANGLE Y AXIS : 300 KG ‧MAX. LOAD : 1200W x 1400D mm ‧FLOOR SPACE : ‧ADAPTABLE TEST HEAD : ADVANTEST 6671 ADVANTEST 6682 ADVANTEST 6672 ADVANTEST 6573 TERADYNE J750 … WITH HAND WHEEL, EASY FOR POSITIONING, GOOD FOR HEAVY TEST HEAD ‧CHARACTERISTICS :

  11. Positioner Specifications ‧STROKE : 160 mm (MANUAL DRIVE) 360° (PNEUMATIC CYLINDER DRIVE) ‧ROTATION ANGLE : GAS SPRING, 50~70KG (TOTAL 2PCS) ‧BALANCE WEIGHT : ‧POSITIONING METHOD : PNEUMATIC CYLINDER DRIVE STOP PIN USING ADAPTER ‧CONNECTING BETWEEN POSITIONER AND HANDLER: USING DOCKING PIN AND TOGGLE CLAMP ‧CONNECTING BETWEEN TESTER AND HANDLER: SINGLE PHASE/AC200V/5A ‧POWER SUPPLY : 5KG/CM2 ↑ ‧AIR SUPPLY : PLC SEQUENCE CONTROL UNIT ‧CONTROL UNIT : ‧PRESSURE ADJUSTMENT UNIT : PRESSURE REGULATOR AND SENSOR 200 KG ‧MAX. LOAD : ‧FLOOR SPACE : 1430W x 1200D mm ‧ADAPTABLE TEST HEAD : KING TIGER KT3

  12. Contact Us 11, Jen-Ai Rd, Hsin Chu Industrial Park, Hsin Chu, Taiwan, R.O.C Tel : +886-3-5979090 Fax: +886-3-5971010 Email: sales@setec.com.tw
