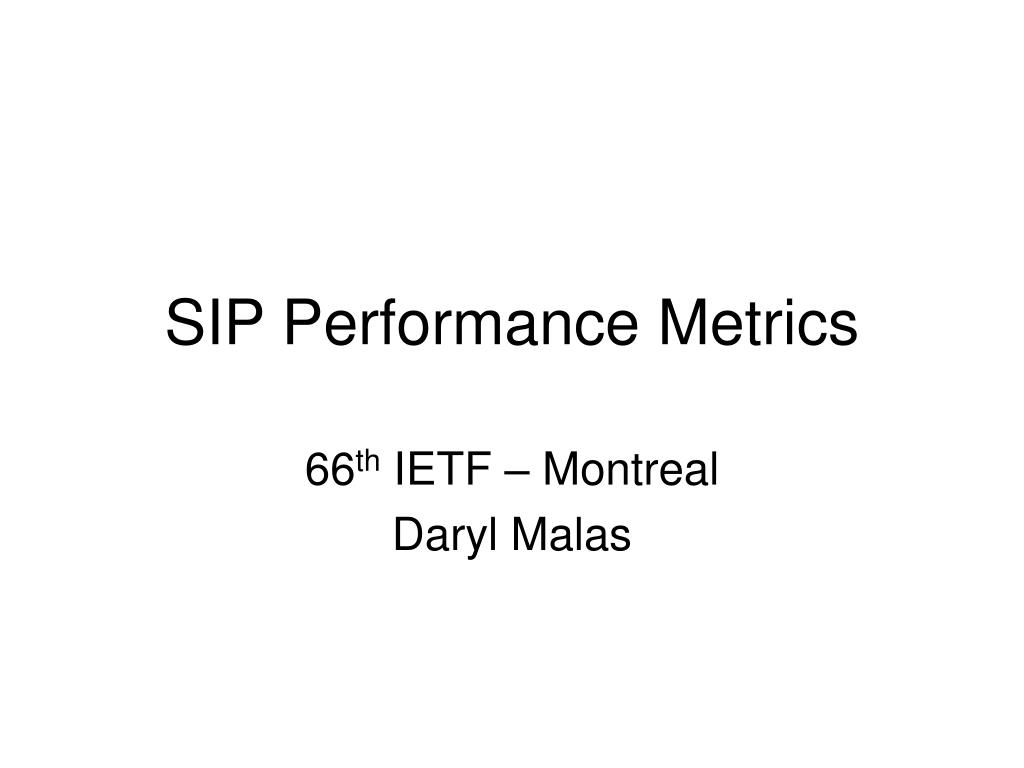

  1. SIP Performance Metrics 66th IETF – Montreal Daryl Malas

  2. Motivation • With widespread implementation of SIP the following problems have surfaced: • No standard performance terms • No standard performance metrics • No standard methods • No standards between vendors and operators • Current reliance on PSTN metrics • Operator and vendor problem!!!

  3. Industry Acknowledgment & Relevance • SIPPING WG develops standard to benchmark end-to-end SIP application performance • BMWG develops standard to benchmark SIP networking device performance • SPEC to develop industry-available test code for SIP benchmarking in accordance with IETF’s BMWG and SIPPING standards. • ITU-T (Study Group 12) focused on detailed failure/success scenarios and end-to-end benchmark guidance.

  4. SIPPING vs. BMWG • -----Original Message-----From: Poretsky, Scott Sent: Thursday, June 22, 2006 8:00 PMTo: 'Malas, Daryl'; acmorton@att.com; gonzalo.camarillo@ericsson.com; mary.barnes@nortel.comCc: vkg@lucent.com; Poretsky, ScottSubject: RE: (BMWG/SippingWG) SIP performance metricsYes Daryl.  I absolutely agree.  The item posted to BMWG focuses on single DUT benchmarking of SIP performance.  Your work in SIPPING is focused on end-to-end application benchmarking.  It would be great (and I would even say a requirement) that the Terminologies for these two work items remain consistent with each other.

  5. Proposed Metrics (Solution) • Create standard metrics with consistent terms and methods of calculations • The metrics: • Session Request Delay • Measures time from the initiation request to an acknowledgment • Session Completion Delay • Measures time from a completion request to an acknowledgment • Average Hops per INVITE • Measures the average hops an INVITE takes to traverse the network • Average Hops per Session • Measures the average hops of origination messages, associated with a session, taken to traverse the network • Session Duration Time • Measures time from the initiation message to the completion message • Session Establishment Rate • Ratio of number of initiation requests to established sessions

  6. Metrics Cont’d • Session Defects • Identifies the number of persistent failures “defects” in dialog processing • Ineffective Session Attempts • Identify attempts described as ineffective due to failure or congestion • Session Disconnect Failures • Identify issues causing sessions to fail after they were established • Session Completion Rate • Measures the number of sessions completed without failure due to timeouts • Session Success Rate • Identifies the number of successful calls by removing the percentage of Ineffective Session Attempts and Session Disconnect Failures

  7. Feedback and Next Steps • Interest in making a working group item? • Should end-to-end media performance metrics be included? • Should terminology be extracted and included only in BMWG terminology draft? • Additional metrics? • Reduce number of metrics? • SIP MIB incorporation?
