Automatic Generation of Initial Surfaces for Implicit Snakes

This paper presents a methodology for the automatic generation of initial surfaces for implicit snakes, aimed at 3D surface reconstruction from medical imaging data (e.g., CT, MRI). Traditional methods rely heavily on manual initialization and landmark detection, which are often impractical or ineffective. Our approach utilizes multi-part global shape models constructed from sample images, improving robustness against noise and occlusion. By matching image features with composite models, we achieve a reliable automatic initialization process, enhancing efficiency and accuracy in medical imaging applications.

edison
Télécharger la présentation

Automatic Generation of Initial Surfaces for Implicit Snakes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Automatic Generation ofInitial Surfaces for Implicit Snakes P. Rodríguez, R. Dosil, X. M. Pardo, V. Leborán Grupo de Visión ArtificialDepartamento de Electrónica e ComputaciónUniversidade de Santiago de Compostela

  2. Introduction Global Shape Model CSG Model Superquadric primitives Methodology Prior Model Construction Image Feature Extraction Matching Results and Conclusions Outline

  3. Introduction • 3D surface reconstruction: Segmentation with deformable models • Good local approximation • Need of good initial estimation

  4. Introduction • Previous Solutions • Manual initialization: • is not practical in 3D • Landmark registration: • landmarks are not always identifiable • Part decomposition techniques • need of joint detection or part recovery • lack of robustness when data is incomplete or noisy

  5. Introduction • Objectives • Automatic initialization of 3D medical images(CT, MRI, …) • No use of landmarks • Application to multi-part objects • Robustness to noise and presence of other objects

  6. Introduction • Proposal:matching with multi-part prior models • Initialization by matching with prior models • Robustness • No need of part or joint detection • Use of composite global shape models • Multi-part models: CSG • Primitives: Superquadrics • Image features are image surface points • No use of landmarks

  7. Matching between surface model and object surface points • Prior model construction from sample images • Object surface points extraction Volume Data Average Surface II. Preprocessing I. Modeling Surface Patches Prior Model III. Matching Initial Model Introduction

  8. Global Shape Model • Constructive Solid Geometry (CSG) • Binary tree • Leaf nodes: solid primitives • Internal nodes: Boolean operations • Arcs: rigid transformations • Primitives: Superquadrics with global deformations

  9. Global Shape Model • Superquadrics with global deformations • Few parameters bring structural information • Global Deformations: asymmetry • Implicit equation

  10. Average Surface I. Modeling Prior Model Methodology • Prior model construction from sample images • Manual part decomposition • Individual modeling of object parts • Shape parameters • Relative spatial distribution parameters

  11. Average Surface I. Modeling Prior Model Methodology • Prior model construction from sample images • Optimization with Genetic Algorithms • Minimization of error function: where and

  12. Volume Data II. Preprocessing Surface Patches Methodology • Image feature extraction • Smoothing by anisotropic diffusion • Non gradient maxima suppression • Hysteresis thresholding

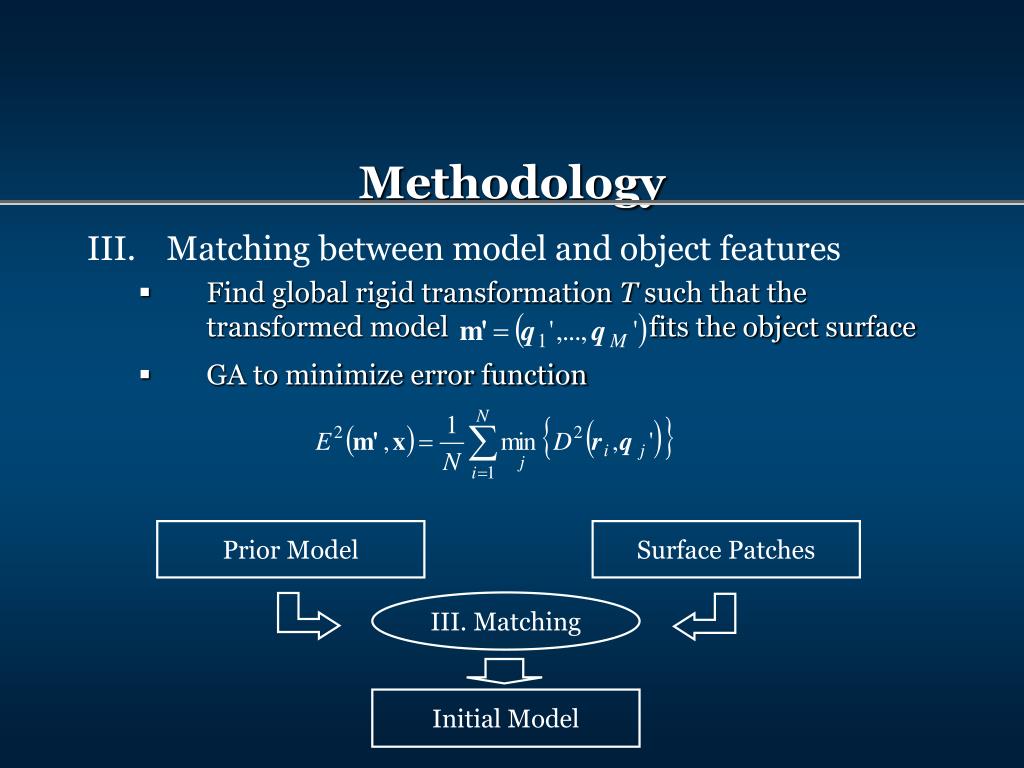

  13. Prior Model Surface Patches III. Matching Initial Model Methodology • Matching between model and object features • Find global rigid transformation T such that the transformed model fits the object surface • GA to minimize error function

  14. Methodology • Matching between model and object features • Radial distance to a deformed implicit surface is difficult to calculate • The following approximation is used

  15. Results

  16. Results

  17. Conclusions • Contributions • Automatization of initialization • Easy handling of multipart shapes using a compound model • No part or joint detection • Easy optimization of the model • Future work • Introduction of fine tuning of individual part parameters • Incorporation of other Boolean operations to the CSG model to handle concavities
