Understanding Vectors in 2D: Coordinate Geometry and Distance Between Points

This lesson delves into the fundamentals of vectors in 2D coordinate geometry, focusing on vectors defined by two points, A(xA, yA) and B(xB, yB). It explores how to calculate the vector AB as the difference in coordinates, specifically AB = (xB - xA, yB - yA), and discusses the concept of vector direction and equality. Additionally, the lesson covers distance between two points using the length of the vector, denoted as |AB|. The principles presented serve as a foundation for more advanced topics in geometry.

edita
Télécharger la présentation

Understanding Vectors in 2D: Coordinate Geometry and Distance Between Points

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 15: Vectors in 2D Lesson E: Vectors in Coordinate Geometry

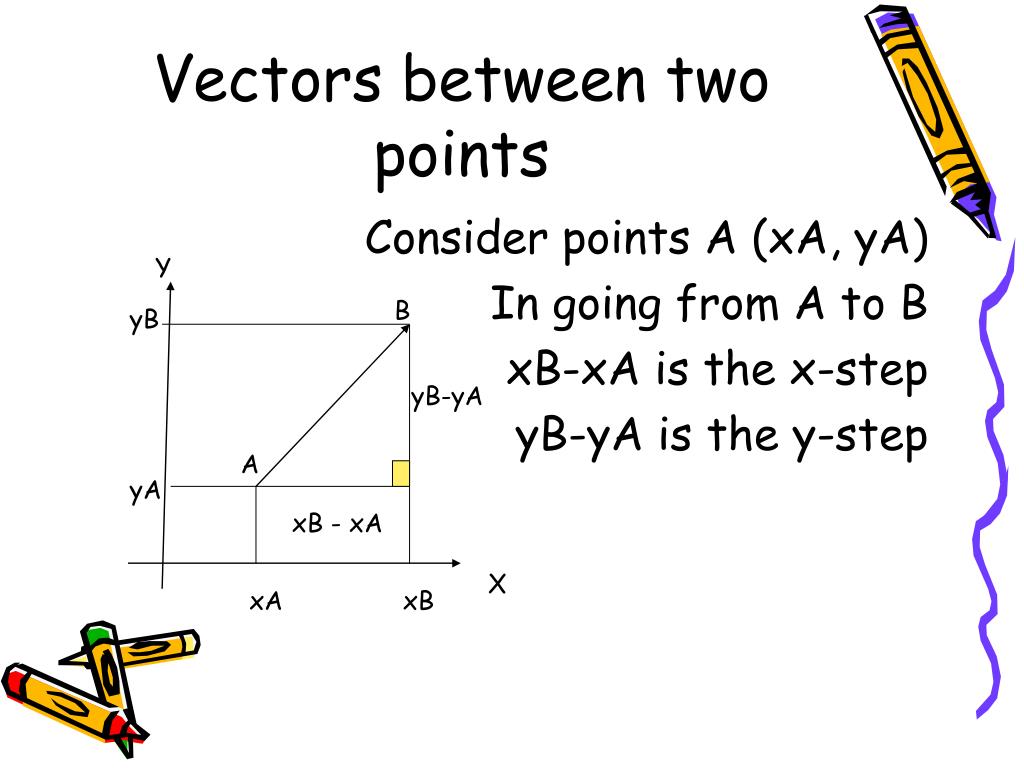

  2. Vectors between two points Consider points A (xA, yA) In going from A to B xB-xA is the x-step yB-yA is the y-step Y B yB yB-yA A yA xB - xA X xA xB

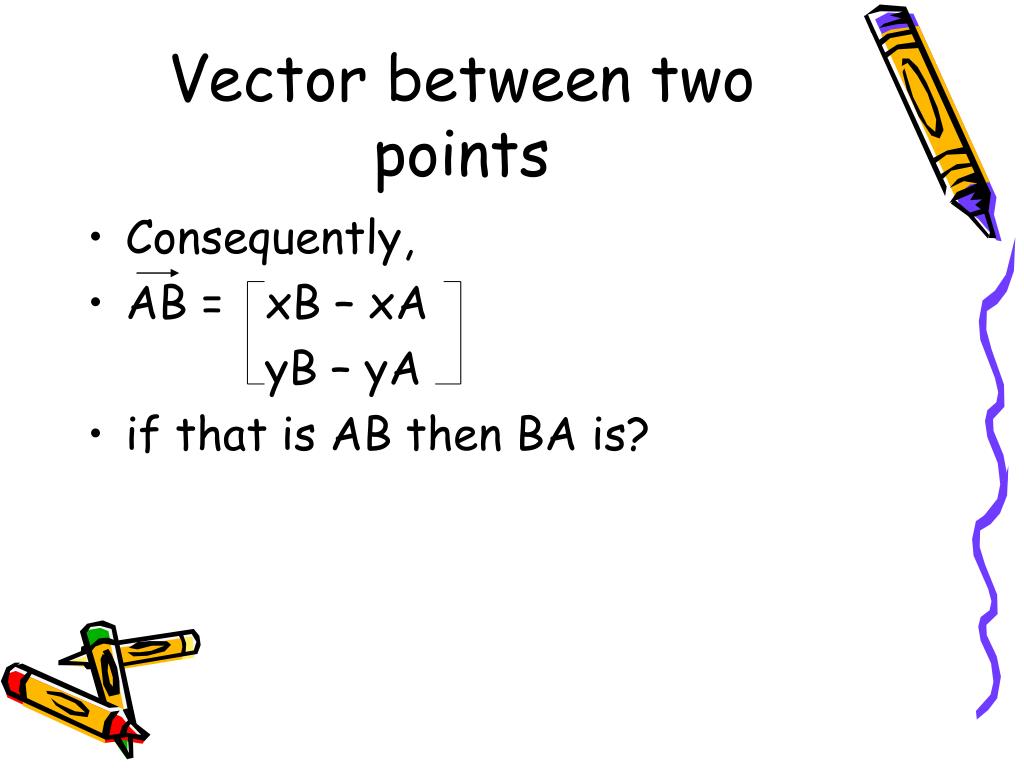

  3. Vector between two points • Consequently, • AB = xB – xA yB – yA • if that is AB then BA is?

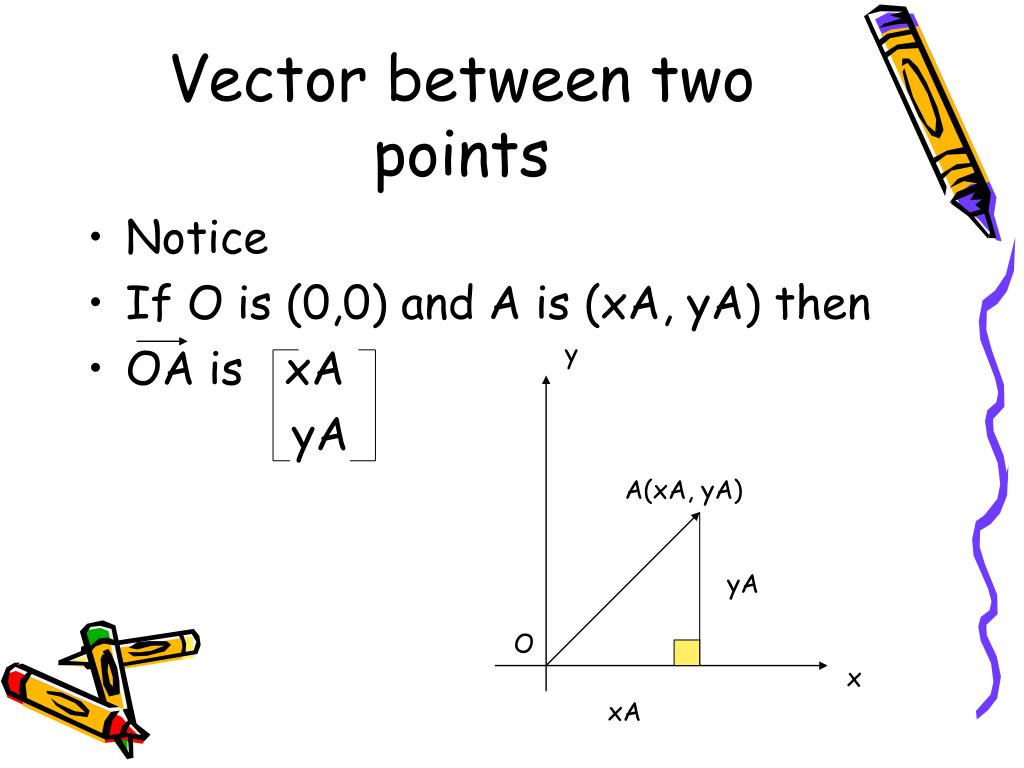

  4. Vector between two points • Notice • If O is (0,0) and A is (xA, yA) then • OA is xA yA y A(xA, yA) yA O x xA

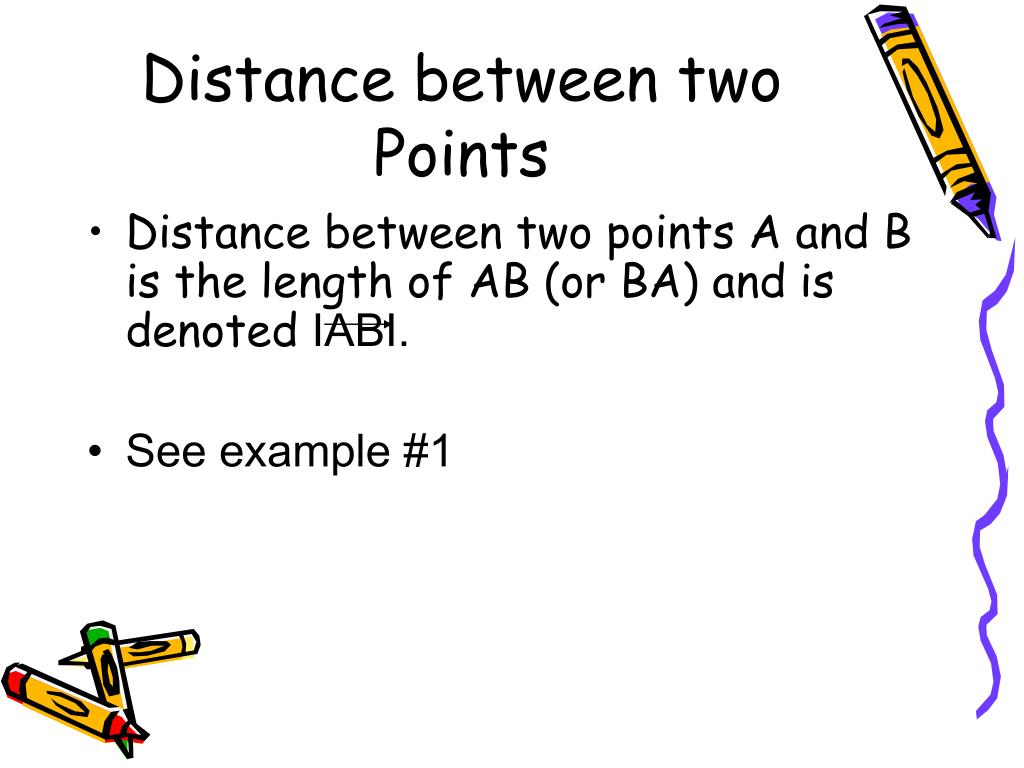

  5. Distance between two Points • Distance between two points A and B is the length of AB (or BA) and is denoted IABI. • See example #1

  6. Vector Equality • Two vectors are equal if they have the same length and direction • Thus their x-steps are equal i.e., p=r and their y-steps are equal i.e., q=s p r q s = q s p r “If and only if” p=r and q=s

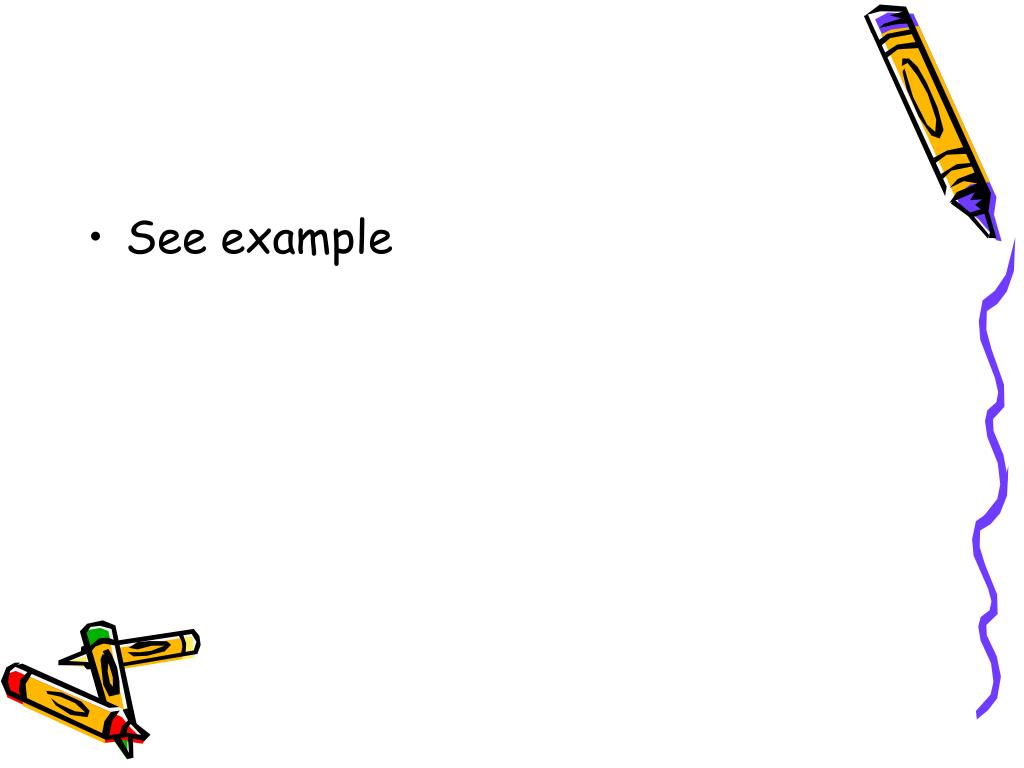

  7. See example
