  1. Building Library Mobile Web LITA National Forum 2011 October 2, 2011 St. Louis, MS

  2. Some statistics • Mobile Device Usage in US • 44% of Americans had accessed the Internet using a mobile device by May 2011* • For age group 18 – 29, the number is 64%* • Morgan Stanley analysts predict that the mobile web usage will be bigger than desktop Internet usage by 2015 *Source: Pew Research Center: Pew Internet & American Life Project: “American and Their Cell Phones”. September 2011.

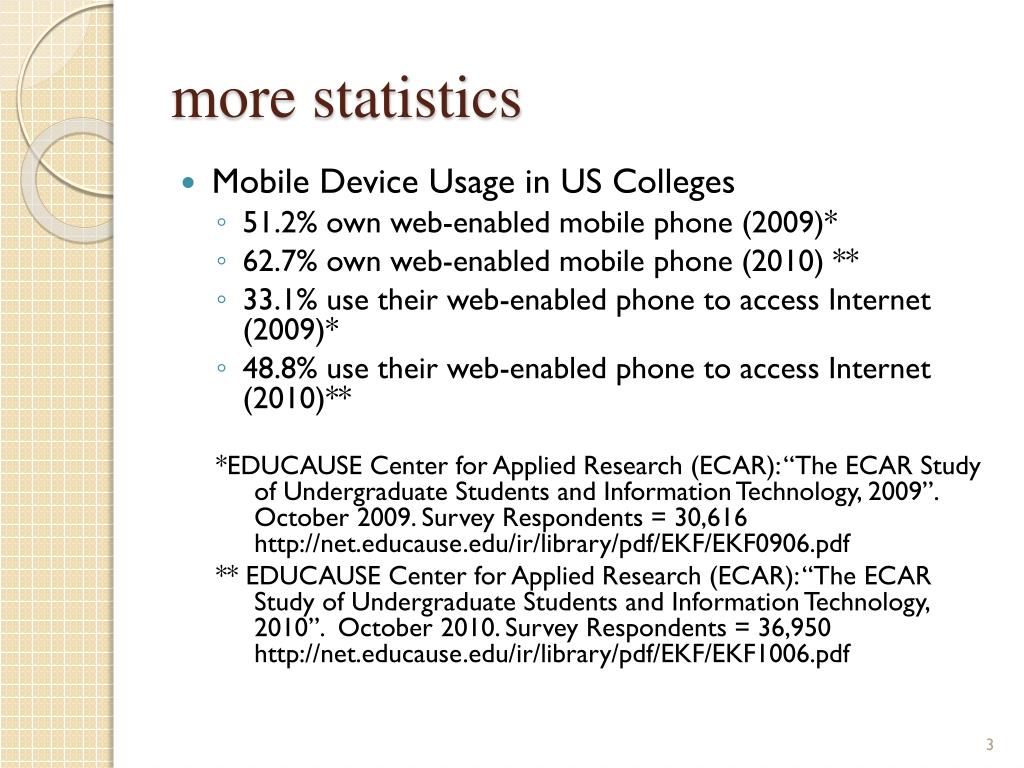

  3. more statistics • Mobile Device Usage in US Colleges • 51.2% own web-enabled mobile phone (2009)* • 62.7% own web-enabled mobile phone (2010) ** • 33.1% use their web-enabled phone to access Internet (2009)* • 48.8% use their web-enabled phone to access Internet (2010)** *EDUCAUSE Center for Applied Research (ECAR): “The ECAR Study of Undergraduate Students and Information Technology, 2009”. October 2009. Survey Respondents = 30,616 http://net.educause.edu/ir/library/pdf/EKF/EKF0906.pdf ** EDUCAUSE Center for Applied Research (ECAR): “The ECAR Study of Undergraduate Students and Information Technology, 2010”. October 2010. Survey Respondents = 36,950 http://net.educause.edu/ir/library/pdf/EKF/EKF1006.pdf

  4. Mobile Access to TCNJ Library Website

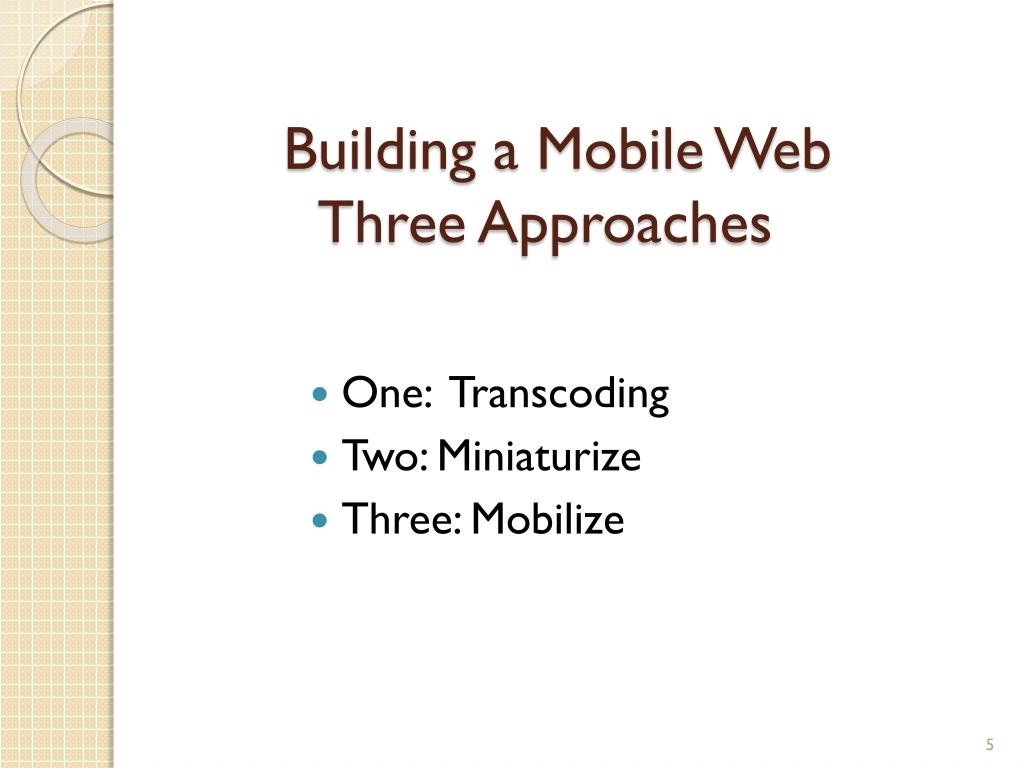

  5. Building a Mobile Web Three Approaches • One: Transcoding • Two: Miniaturize • Three: Mobilize

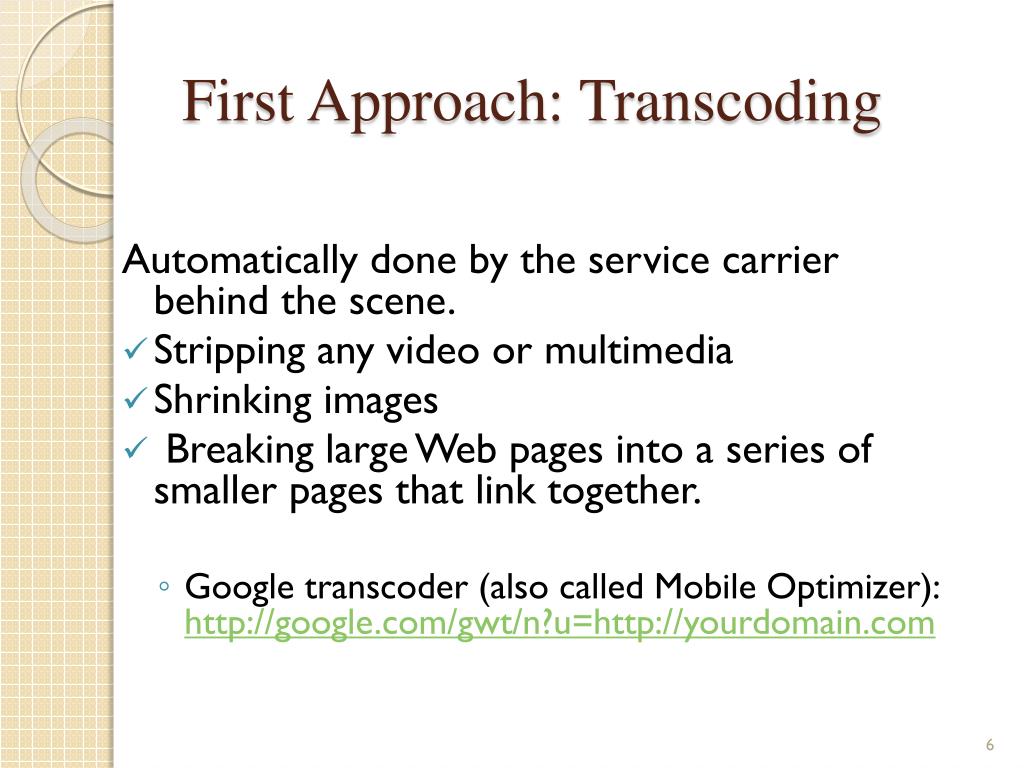

  6. First Approach: Transcoding Automatically done by the service carrier behind the scene. • Stripping any video or multimedia • Shrinking images • Breaking large Web pages into a series of smaller pages that link together. • Google transcoder (also called Mobile Optimizer): http://google.com/gwt/n?u=http://yourdomain.com

  7. Second Approach – Miniaturize • Some Freebies • Wirenode (free with ads): http://www.wirenode.com • Wapple (free) : http://wapple.net/ • CMS Mobile Theme • WordPress Mobile Theme • Drupul Mobile Edition

  8. Third Approach – The Right Approach MOBILIZE • Four Methods • Single Design without Auto-Detection • Single Design with Auto-Detection • Multiple Designs with Auto-Detection • Content Adaptation

  9. Mobile Web Design Guideline • Keep it simple • Your mobile web should serve users as maximum as possible. Only 42% of mobile phones are smartphone. * • That means more than half of mobile phones doesn’t support Javascript and CSS. • Avoid one-page design because it always uses Javascript. • Common characteristics of web-enabled phones • Small Screen • Difficult to scroll and input • Limited resources • Mobile users are always on the go • Some design guidelines: • Each file size not bigger than 25K • Three clicks rule still apply • Do not use <table> if possible • Standards: Use XHTML - MP 1.1 or 1.2 or XHTML Basic 1.0 • You can use CSS but don’t rely on CSS *Source: Pew Research Center: Pew Internet & American Life Project: “Smartphone Adoption and Usage”, July 11, 2011

  10. Content Suggestions • Hours • Contacts • Click to Call • Ask Us – SMS, IM, Tel, Email • Direction to the library • Mobile Catalog (mobile skin for Voyager is out there) • Recommend: by Denise Dunham from University of Rochester and Michael Doran from University of Texas at Arlington. Both are available at El Commons) • Mobile E-Collection: mobile pubmed, etc, • Third Party Hosting – YouTube • Link to full library website

  11. 1. Single Design Without Auto-Detection • This is the most easiest to do: • Some basic HTML knowledge • Access to your library web server

  12. Single Design without Auto-Detection • Step One: Determine Your Content • If you have no idea, take a look at other library’s mobile web. • Usually: Hours, Contacts, Ask Us, FAQ, Directions, News & Events, Mobile OPAC, Mobile E-Collections • Step Two: Write the Code • Use some tools such as Dreamweaver • Or use a text editor

  13. A Prototype

  14. Code: index.html • <!DOCTYPE html PUBLIC "-//WAPFORUM//DTD XHTML Mobile 1.1//EN" "http://www.wapforum.org/DTD/xhtml-mobile10.dtd"> • <html xmlns="http://www.w3.org/1999/xhtml"> • <head> • <meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1" /> • <meta name="HandheldFriendly" content="True" /> • <title>TCNJ Library Mobile Web</title> • </head> • <body> • <div><h1><a href="http://www.tcnj.edu/~library">View Full Web Site</a></h1><hr/><br/> • </div> • <h1>1. <a href="hours.html" title="library hours">Library Hours</a></h1> <br/> • <h1>2. <a href="ask.html" title="ask us">Ask Us</a></h1> <br/> • <h1>3. <a href="faq.html" title="freguent question">FAQs</a></h1> <br/> • <h1>4. <a href="direction.html" title="direction">Directions</a></h1> <br/> • <div><p><h1><strong>5. Click to Call: <a href="tel:123-456-7890">123-456-7890</a></strong></h1></p></div><br/> • <h1>6. <a href="catalog.html" title="catalog">Library Catalog</a></h1> • <br/><br/> • <p>The College of New Jersey Library<br/> • 2000 Pennington Road<br/> • Ewing, NJ 08628</p> • </body> • </html>

  15. Three More Steps • Create a subfolder under document root: for example: /m • Publish or ftp the previous file (index.html ) to the subfolder: /m • Point the browser to it: http://yourlibrary.org/m

  16. 2. Single Design with Auto-Detection • What is auto-detection? One url serves either desktop web or mobile web based on the requesting device (PC? Or Mobile Device?) (http://yourlibrary.org) • Write or borrow a program: any of these php, asp, or jsp, etc (easy to do) • Configure the web server (hard to do)

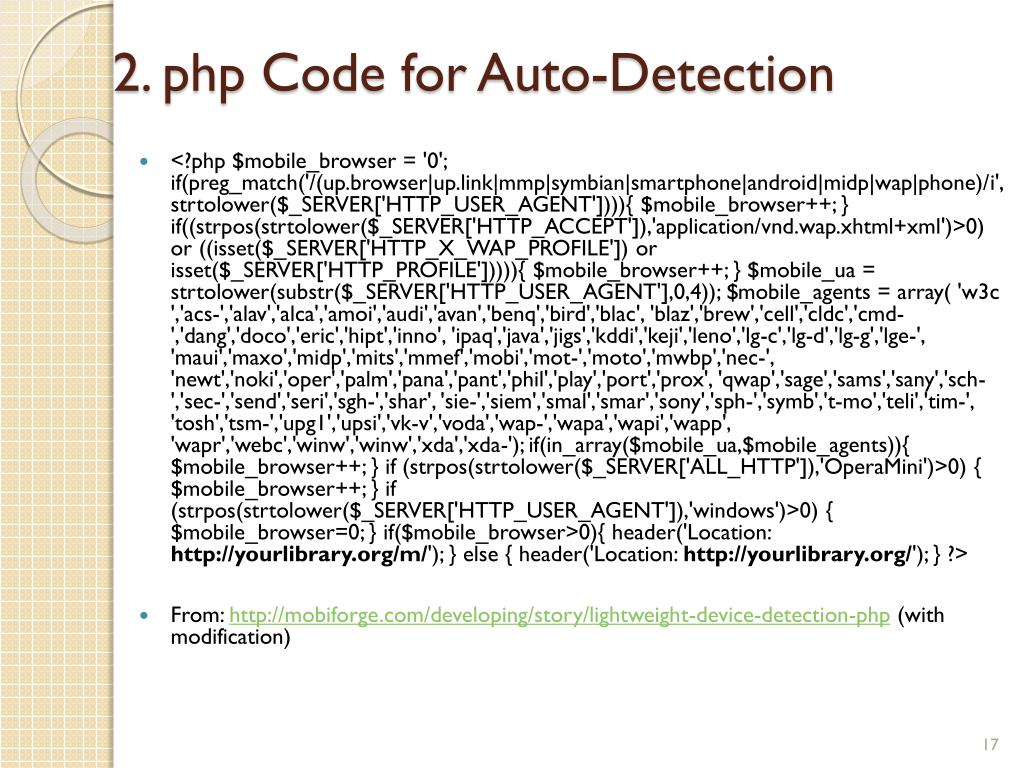

  17. 2. phpCode for Auto-Detection • <?php $mobile_browser = '0'; if(preg_match('/(up.browser|up.link|mmp|symbian|smartphone|android|midp|wap|phone)/i', strtolower($_SERVER['HTTP_USER_AGENT']))){ $mobile_browser++; } if((strpos(strtolower($_SERVER['HTTP_ACCEPT']),'application/vnd.wap.xhtml+xml')>0) or ((isset($_SERVER['HTTP_X_WAP_PROFILE']) or isset($_SERVER['HTTP_PROFILE'])))){ $mobile_browser++; } $mobile_ua = strtolower(substr($_SERVER['HTTP_USER_AGENT'],0,4)); $mobile_agents = array( 'w3c ','acs-','alav','alca','amoi','audi','avan','benq','bird','blac', 'blaz','brew','cell','cldc','cmd-','dang','doco','eric','hipt','inno', 'ipaq','java','jigs','kddi','keji','leno','lg-c','lg-d','lg-g','lge-', 'maui','maxo','midp','mits','mmef','mobi','mot-','moto','mwbp','nec-', 'newt','noki','oper','palm','pana','pant','phil','play','port','prox', 'qwap','sage','sams','sany','sch-','sec-','send','seri','sgh-','shar', 'sie-','siem','smal','smar','sony','sph-','symb','t-mo','teli','tim-', 'tosh','tsm-','upg1','upsi','vk-v','voda','wap-','wapa','wapi','wapp', 'wapr','webc','winw','winw','xda','xda-'); if(in_array($mobile_ua,$mobile_agents)){ $mobile_browser++; } if (strpos(strtolower($_SERVER['ALL_HTTP']),'OperaMini')>0) { $mobile_browser++; } if (strpos(strtolower($_SERVER['HTTP_USER_AGENT']),'windows')>0) { $mobile_browser=0; } if($mobile_browser>0){ header('Location: http://yourlibrary.org/m/'); } else { header('Location: http://yourlibrary.org/'); } ?> • From: http://mobiforge.com/developing/story/lightweight-device-detection-php (with modification)

  18. Three More Steps • Save the previous file as index.php • Publish or ftp it to document root • Point your browser to http://yourlibrary.org/index.php

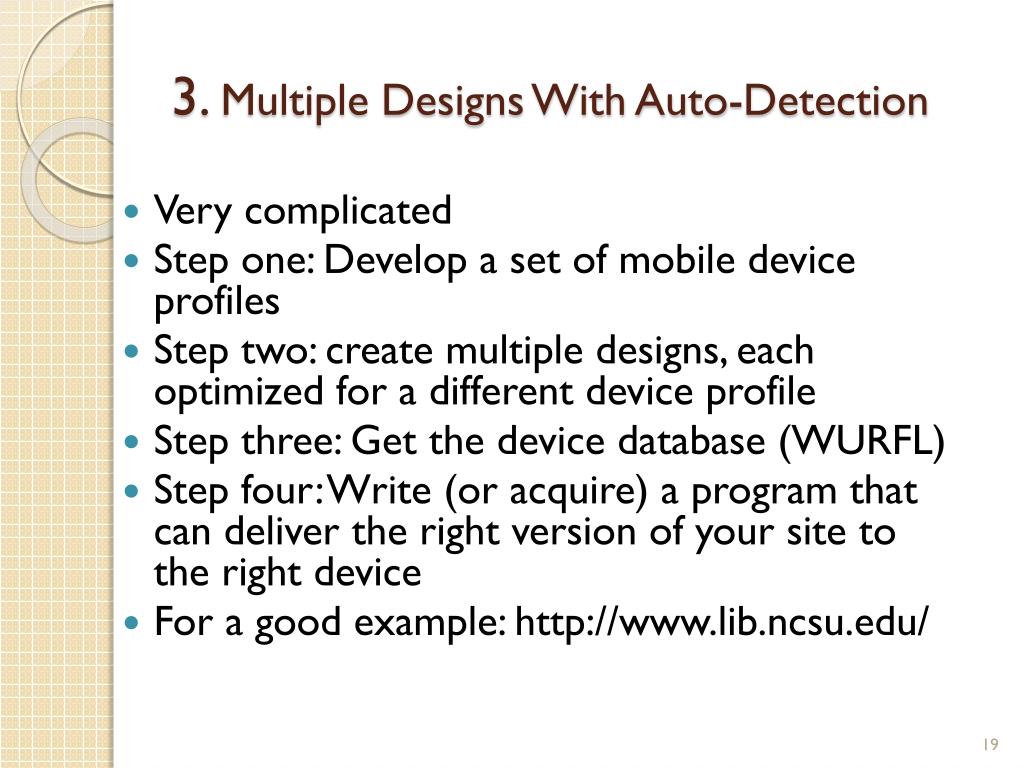

  19. 3. Multiple Designs With Auto-Detection • Very complicated • Step one: Develop a set of mobile device profiles • Step two: create multiple designs, each optimized for a different device profile • Step three: Get the device database (WURFL) • Step four: Write (or acquire) a program that can deliver the right version of your site to the right device • For a good example: http://www.lib.ncsu.edu/

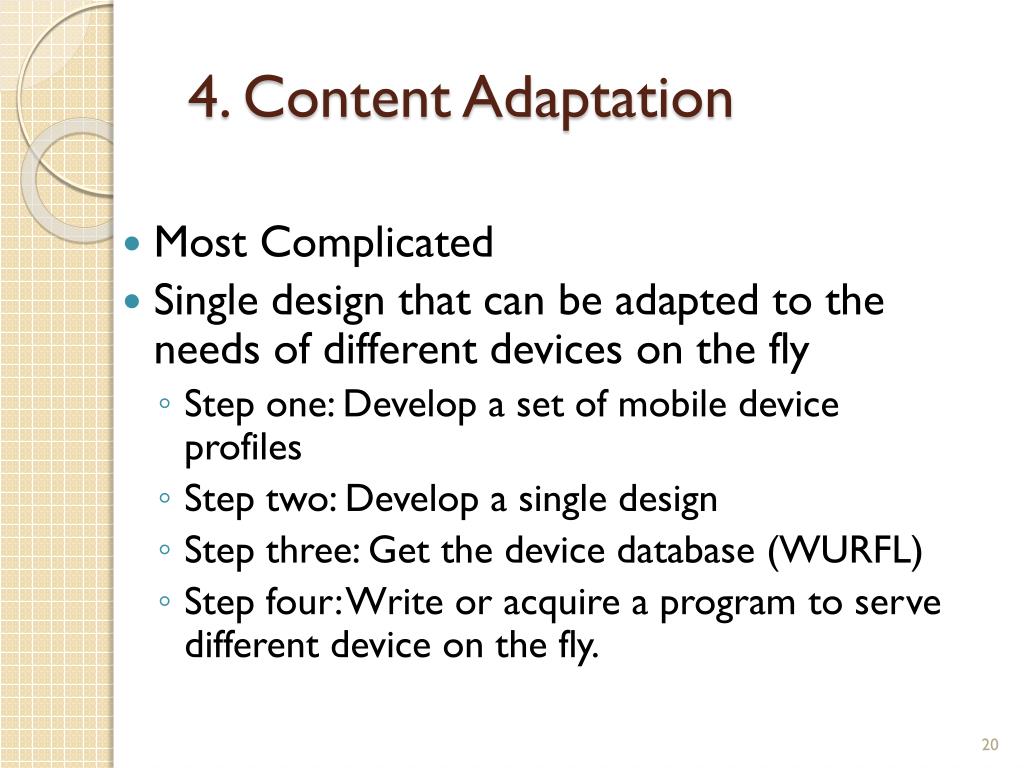

  20. 4. Content Adaptation • Most Complicated • Single design that can be adapted to the needs of different devices on the fly • Step one: Develop a set of mobile device profiles • Step two: Develop a single design • Step three: Get the device database (WURFL) • Step four: Write or acquire a program to serve different device on the fly.

  21. Naming Convention • Mobile Site URL: Sub domain? Or Sub Folder • Sub domain is slightly better than sub folder but you need to have the privilege and know how to configure the web server • Example of sub domain: • http://m.yourlibrary.org/ • Example of sub folder: • http://yourlibrary.org/m/

  22. Testing Your Mobile Web • You have all the devices (Impossible) • Emulator: Provided by device vendor. (cumbersome) • Firefox Add-on (great tool and easy to use) • W3C Mobile Validator: For rule compliance : http://validator.w3.org/mobile/

  23. 2 Firefox Add-On(Plug-in) • Great tools to help mobile web development • Small Screen Rendering • https://addons.mozilla.org/en-US/firefox/addon/526/ • User Agent Switcher (see next slide for an example) • https://addons.mozilla.org/en-US/firefox/addon/59/ • User Agent Switcher Configuration File: • download useragentswitcher.xml_.txt from: • http://mobiforge.com/developing/blog/user-agent-switcher-config-file/

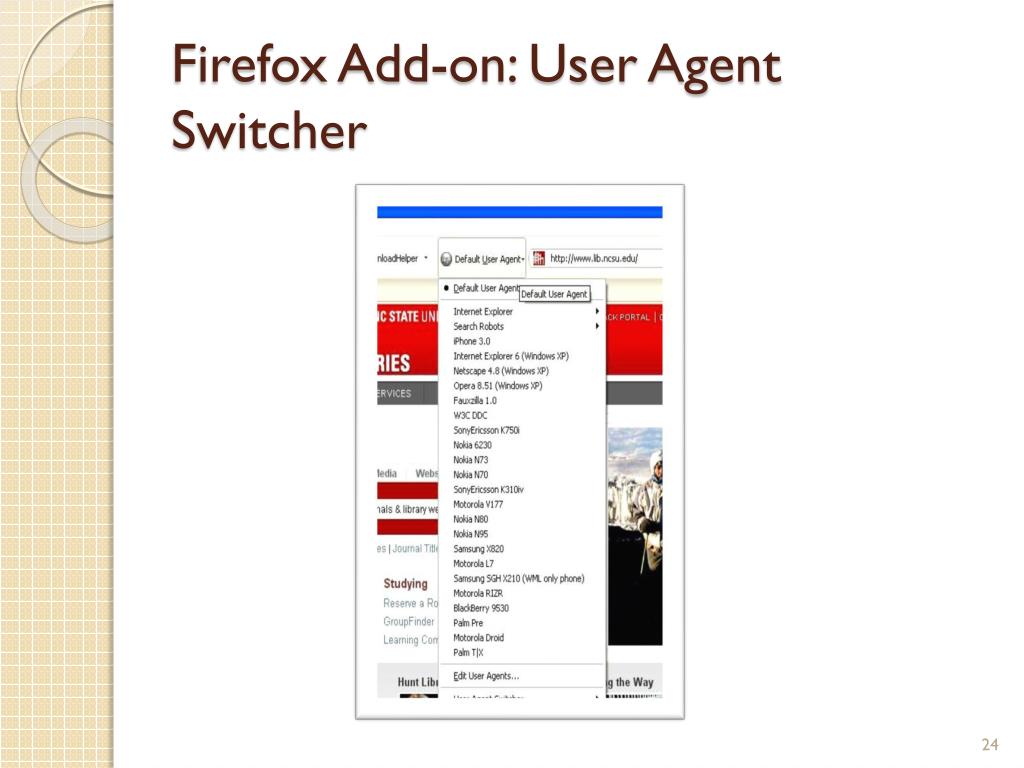

  24. Firefox Add-on: User Agent Switcher

  25. http://www.lib.ncsu.edu/

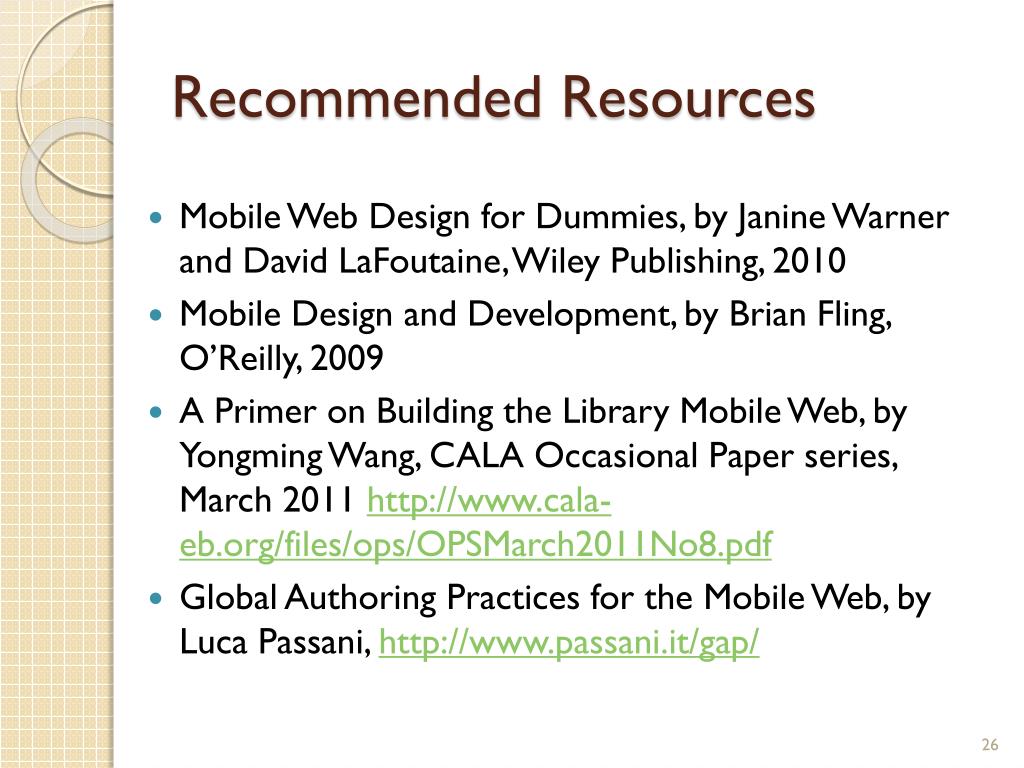

  26. Recommended Resources • Mobile Web Design for Dummies, by Janine Warner and David LaFoutaine, Wiley Publishing, 2010 • Mobile Design and Development, by Brian Fling, O’Reilly, 2009 • A Primer on Building the Library Mobile Web, by Yongming Wang, CALA Occasional Paper series, March 2011 http://www.cala-eb.org/files/ops/OPSMarch2011No8.pdf • Global Authoring Practices for the Mobile Web, by Luca Passani, http://www.passani.it/gap/

  27. Thank You Questions? • Yongming Wang, The College of New Jersey wangyo@tcnj.edu • JiaMi, The College of New Jersey • jmi@tcnj.edu
