Another Performance Evaluation of Memory Hierarchy in Embedded Systems

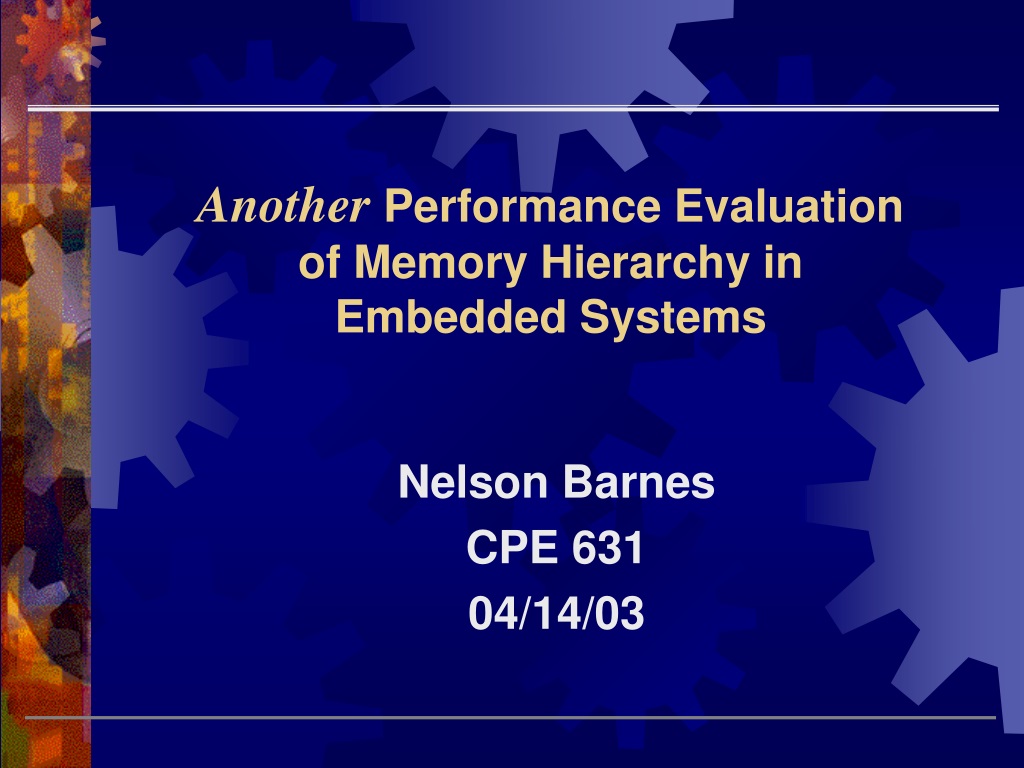

1. Another Performance Evaluation of Memory Hierarchy in Embedded Systems Nelson Barnes CPE 631 04/14/03

2. Outline • Introduction • Related Work • Problem Statement • Proposed Solutions • Experimental Setup • Experimental Results • Conclusions UAH, ECE

3. Introduction Why is cache design so important in embedded systems? UAH, ECE

4. Cache Design Parameters • Cache organization • Unified vs. Split (Instruction + Data) caches • Cache size • Cache block (line) size • Block placement policy • Direct-mapped, fully-associative, set-associative • Block replacement policy • Random, Least-Recently Used (LRU), Round-robin, Pseudo-LRU, OPT (Optimal) UAH, ECE

5. Related Work Mibench vs. NetBench UAH, ECE

6. Problem Statement • Comprehensive performance evaluation of cache design issues in embedded systems • Split versus unified cache • Cache placement and size • Cache block size • Block replacement policy • Performance metrics • Static measure: the number of cache misses per 1K instructions executed - measured at the end of application execution • Dynamic measure: The number of cache misses per 1K instructions executed - measured on every 100K instructions executed UAH, ECE

7. Proposed Solution Why use NetBench? UAH, ECE

8. Experimental Setup • ARM version of the SimpleScalar toolset • Sim-cache • Sim-cheetah • NetBench Applications include: • Micro-Level Programs • CRC – Checksum calculation • TL – Table lookup • IP-Level Programs • Route – IPv4 routing • DRR – Deficit round robin • Application-Level Programs • DH – Public key encryption/decryption • MD5 – Message digest algorithm (secure signature) UAH, ECE

9. Experimental Setup • Cache memory setup • Split first level instruction and data • Unified first level cache • Cache parameters • Cache size  ranging from 0.5KB to 32KB • Cache associativity  direct mapped, 2-way, 4-way, and 8-way set associative • Cache replacement policies FIFO, Random, LRU, pLRUt, pLRUm, and Optimal • Cache block size  32B, 64B UAH, ECE

10. Experimental Setup (cont’d) Instructions ARM Core L1I $ Data L1D $ ARM Core L1U $ Instructions& Data UAH, ECE

11. MiBench Experimental Results

12. Data Cache Misses UAH, ECE

13. Instruction Cache Misses UAH, ECE

14. Unified Cache Misses UAH, ECE

15. Dynamic Behavior UAH, ECE

16. Dynamic Behavior UAH, ECE

17. Replacement Policies UAH, ECE

18. Experimental Results NetBench Discussion UAH, ECE

19. Conclusions • Split caches outperform the equivalent unified cache for relatively small direct mapped caches • Unified cache almost always outperforms the split caches for set-associative caches UAH, ECE
