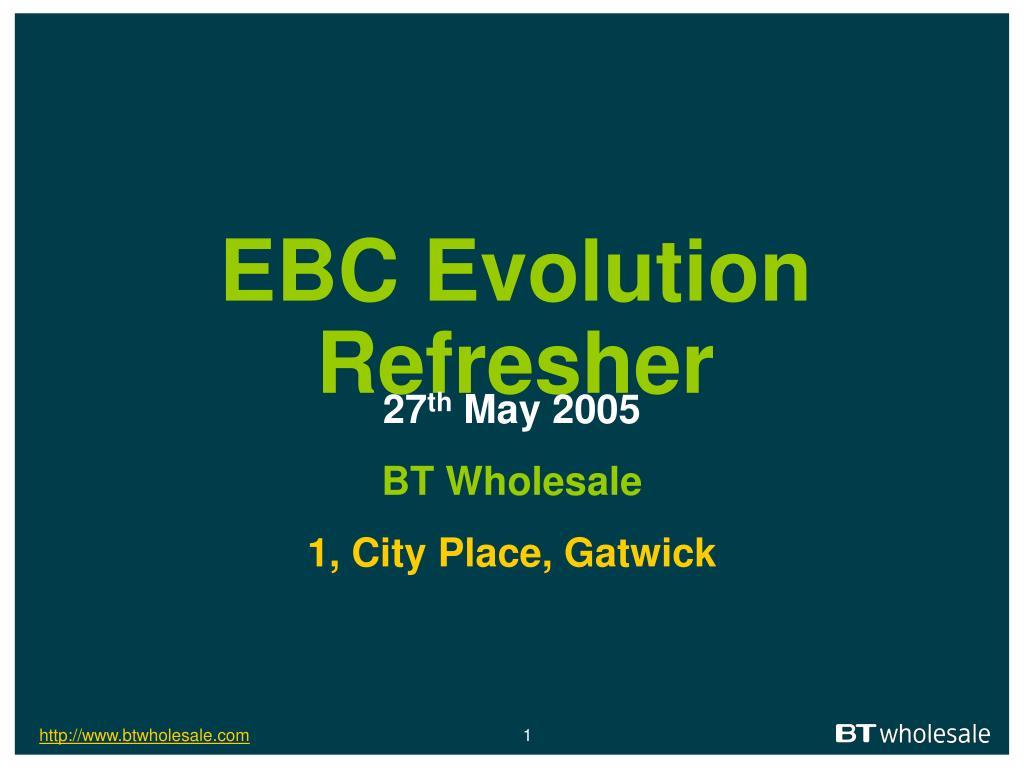

  1. EBC Evolution Refresher 27th May 2005 BT Wholesale 1, City Place, Gatwick

  2. EBC Evolution Refresher Introduction and Welcome

  3. Objectives of the day • Understand the drivers behind EBC Evolution • Understand EBC Evolution • Understand where we are today and what you should do

  4. Agenda • 10.00 Coffee and Registration • 10.30 Introduction & Welcome • 10:40 Brief history of EBC • Why EBC Evolution ? • EBC evolution - workshops with OfCom and Industry involvement • What is EBC Evolution ? • The importance of your Routing Plans • The new EBC files • Important next steps • 11.45 Questions • 12.15 Summary • 12:25 Introduction to a new BT Interconnect Telephony Tool – “SIMPLE” • 12:40 Lunch

  5. Brief history of EBC 1/5 • Before 1993 Conveyance charges based on retail model • 1994 - Consultation with the Industry • 1994 - System trialled by some Operators • 1996 - Distance component added in • 1997 - All Operator charges based on EBC methodology • Charging scenarios catered for are: • BT terminated geographic calls • Transit calls • BT originated IA,CPS,118DQ,NTS (CLI model).

  6. Brief history of EBC 2/5 • Based on least cost path principle • Derived from network and number data • Based on switches and distance • Updated quarterly using network snapshot 1 month before the live date.

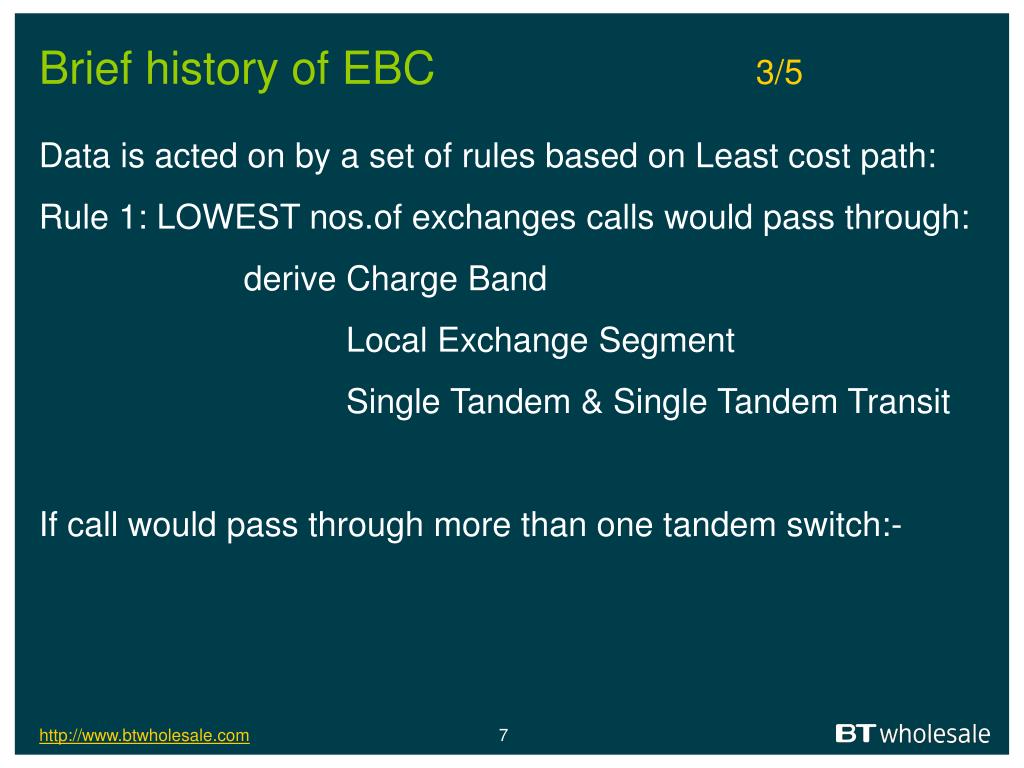

  7. Brief history of EBC 3/5 • Data is acted on by a set of rules based on Least cost path: • Rule 1: LOWEST nos.of exchanges calls would pass through: • derive Charge Band • Local Exchange Segment • Single Tandem & Single Tandem Transit • If call would pass through more than one tandem switch:-

  8. Brief history of EBC 4/5 • For Double Plus Tandem & Double Plus Tandem Transit • Rule 2: SHORTEST TOTAL distance from POC to Dest’n switch. • Once shortest path is chosen then derive charge band. • Use inter-tandem distance to determine:- • <100km - Short 100km<200km - Medium 200+km - Long.

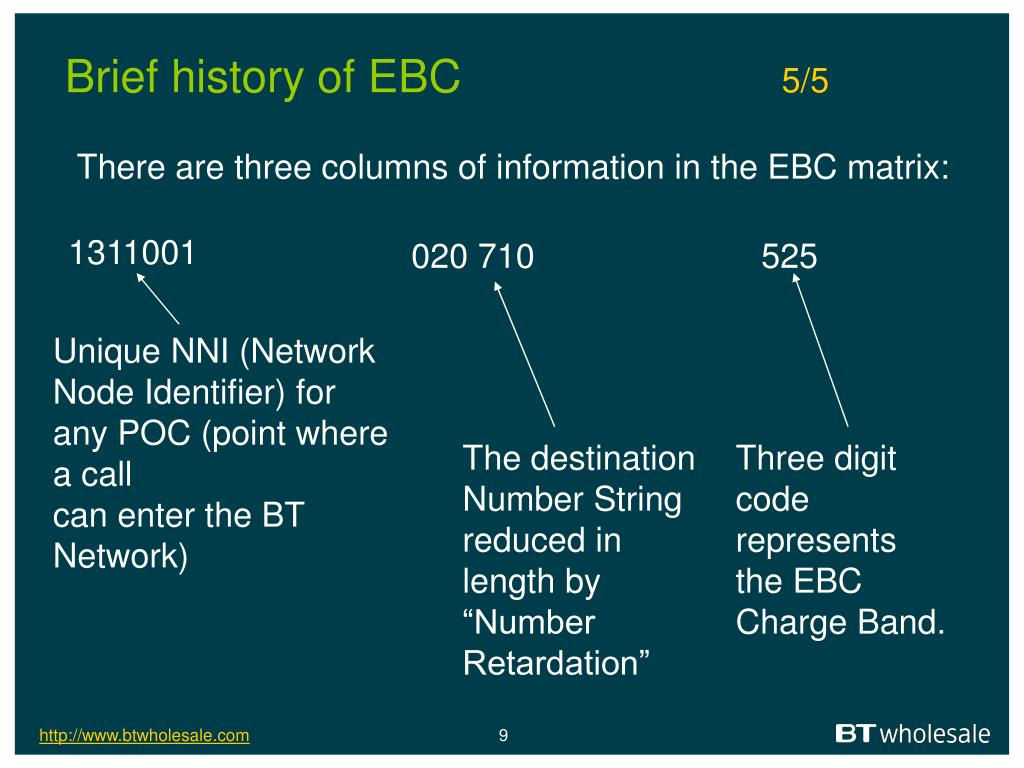

  9. 1311001 020 710 525 Unique NNI (Network Node Identifier) for any POC (point where a call can enter the BT Network) The destination Number String reduced in length by “Number Retardation” Three digit code represents the EBC Charge Band. Brief history of EBC 5/5 There are three columns of information in the EBC matrix:

  10. Why EBC Evolution? • Large • Complex • Customer charging queries often received • Uncontractual routeings shown • Difficult to explain the different charging algorithms • Result of many Industry workshops to address the above

  11. What is EBC Evolution? 1/2 • Removal of disallowed routing from EBC • Instead of calculating where calls will exit the BT network, agreed EXIT POCs - as held in CP’s routing plans - will be used • Creation of a new database to store routing plans • Provide on-line access for updates to routing plans • Provide two new files for CPs to use to decide where best to send and receive calls to BT

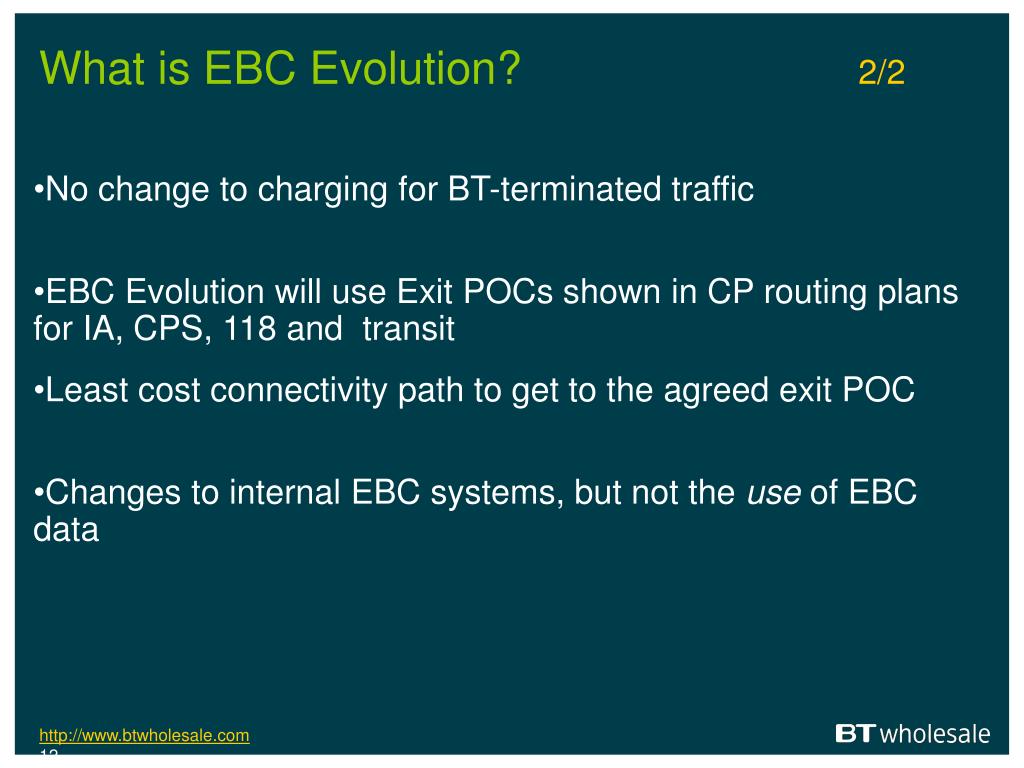

  12. What is EBC Evolution? 2/2 • No change to charging for BT-terminated traffic • EBC Evolution will use Exit POCs shown in CP routing plans for IA, CPS, 118 and transit • Least cost connectivity path to get to the agreed exit POC • Changes to internal EBC systems, but not the use of EBC data

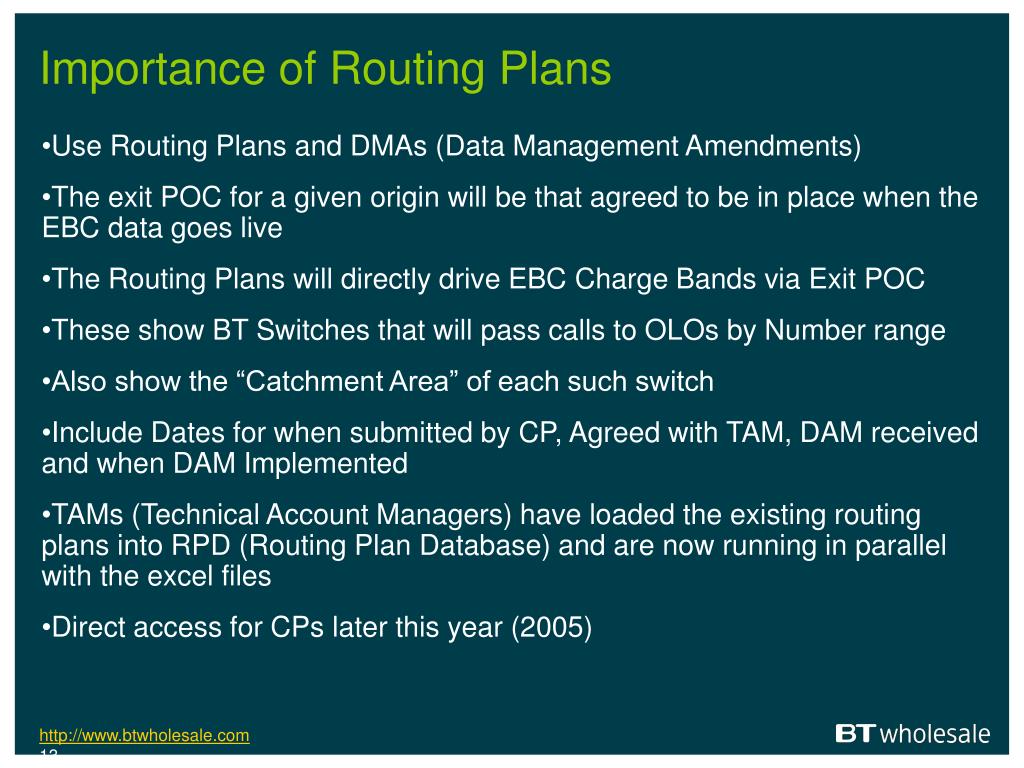

  13. Importance of Routing Plans • Use Routing Plans and DMAs (Data Management Amendments) • The exit POC for a given origin will be that agreed to be in place when the EBC data goes live • The Routing Plans will directly drive EBC Charge Bands via Exit POC • These show BT Switches that will pass calls to OLOs by Number range • Also show the “Catchment Area” of each such switch • Include Dates for when submitted by CP, Agreed with TAM, DAM received and when DAM Implemented • TAMs (Technical Account Managers) have loaded the existing routing plans into RPD (Routing Plan Database) and are now running in parallel with the excel files • Direct access for CPs later this year (2005)

  14. Importance of Routing Plans • The information in your routeing plans will affect your invoice • They should be reviewed regularly

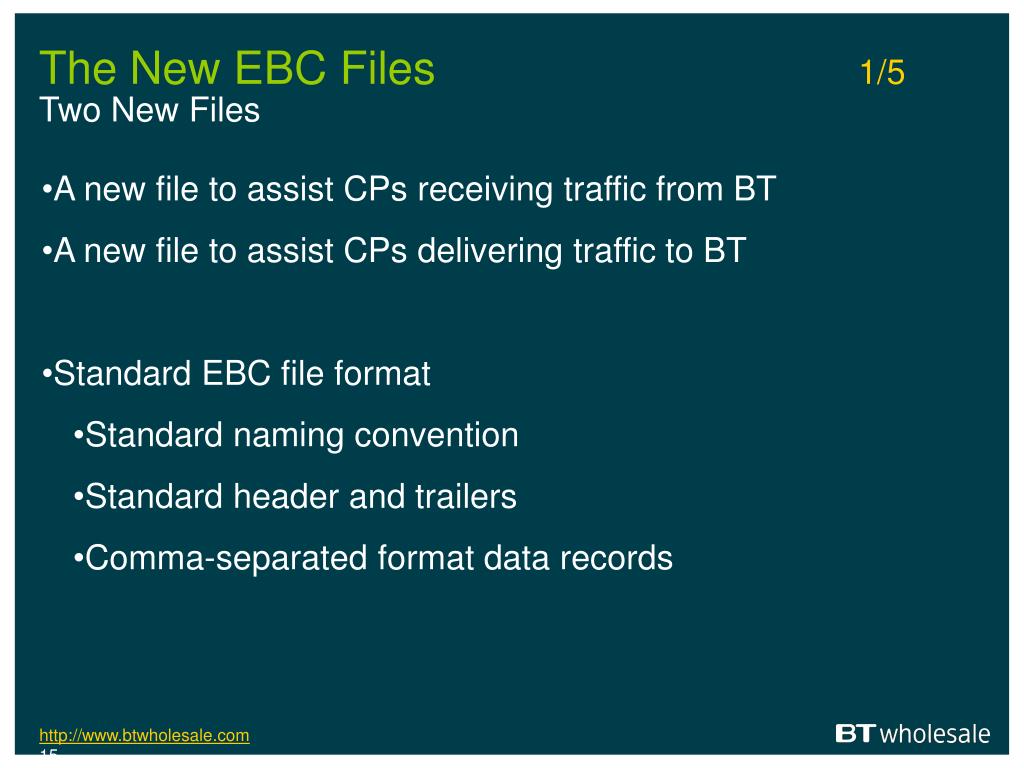

  15. The New EBC Files 1/5Two New Files • A new file to assist CPs receiving traffic from BT • A new file to assist CPs delivering traffic to BT • Standard EBC file format • Standard naming convention • Standard header and trailers • Comma-separated format data records

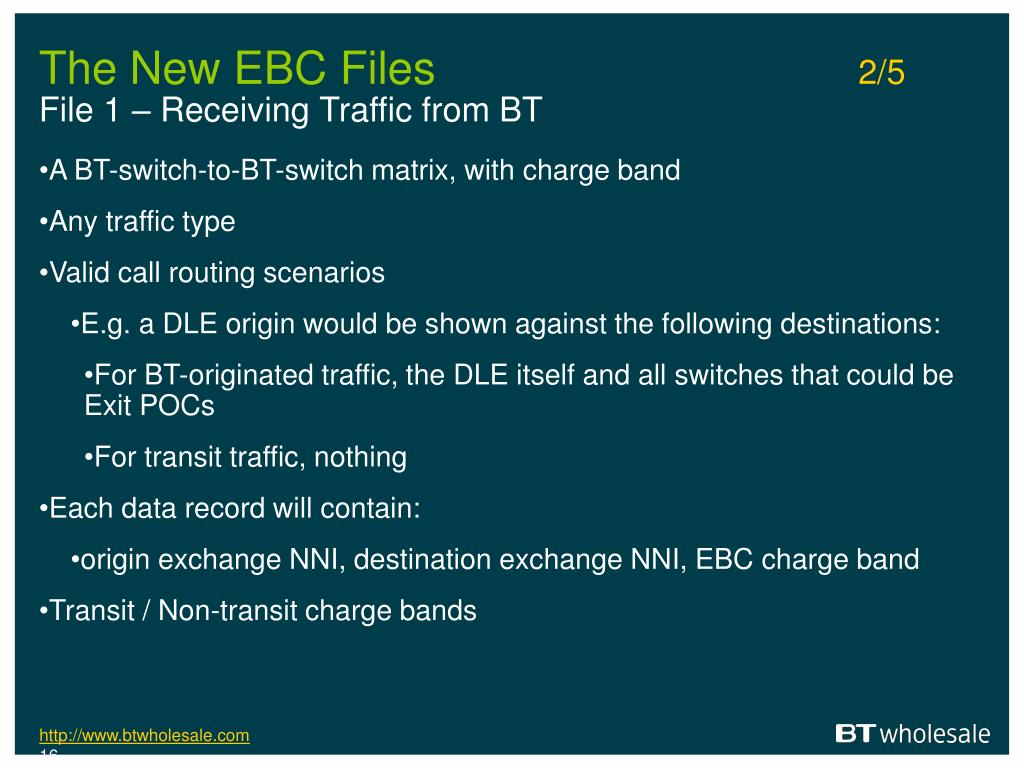

  16. The New EBC Files 2/5File 1 – Receiving Traffic from BT • A BT-switch-to-BT-switch matrix, with charge band • Any traffic type • Valid call routing scenarios • E.g. a DLE origin would be shown against the following destinations: • For BT-originated traffic, the DLE itself and all switches that could be Exit POCs • For transit traffic, nothing • Each data record will contain: • origin exchange NNI, destination exchange NNI, EBC charge band • Transit / Non-transit charge bands

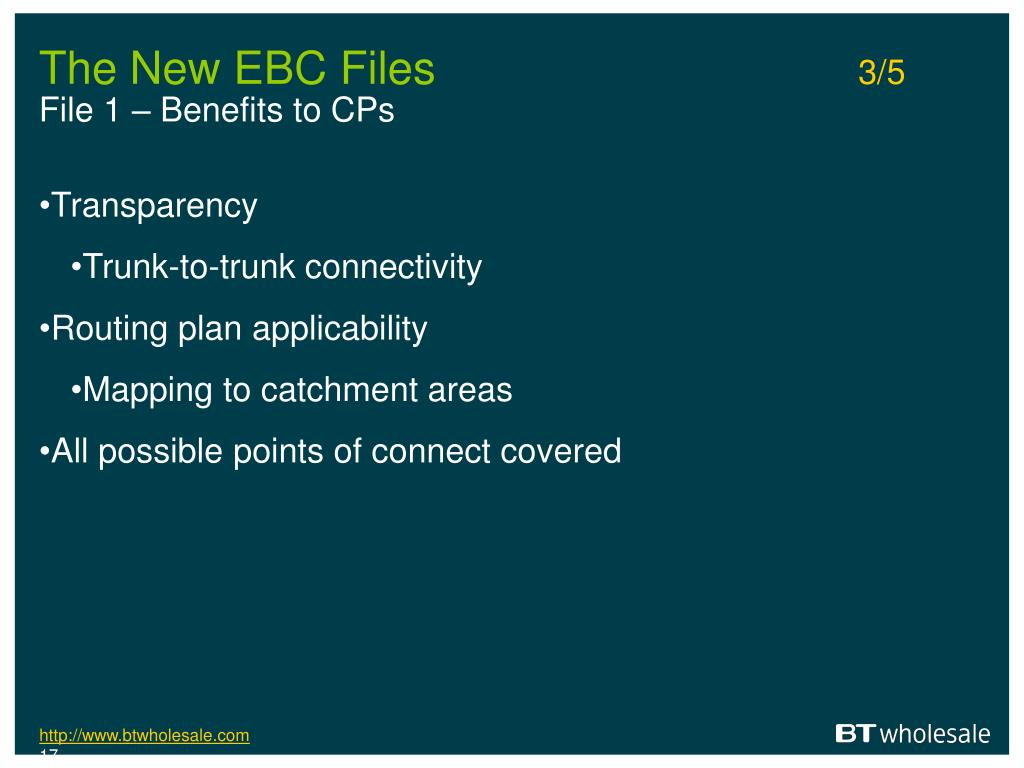

  17. The New EBC Files 3/5File 1 – Benefits to CPs • Transparency • Trunk-to-trunk connectivity • Routing plan applicability • Mapping to catchment areas • All possible points of connect covered

  18. The New EBC Files 4/5File 2 – Delivering Traffic to BT • Point of connect to number block, with EBC charge band • Full-length number blocks • Valid call routing scenarios • E.g. a WAT origin would be shown against the following destination number blocks: • BT number blocks hosted on directly connected DLEs • CP number blocks accepted at this WAT • Each data record will contain: • origin exchange NNI, destination number block (unretarded, charging level), EBC charge band

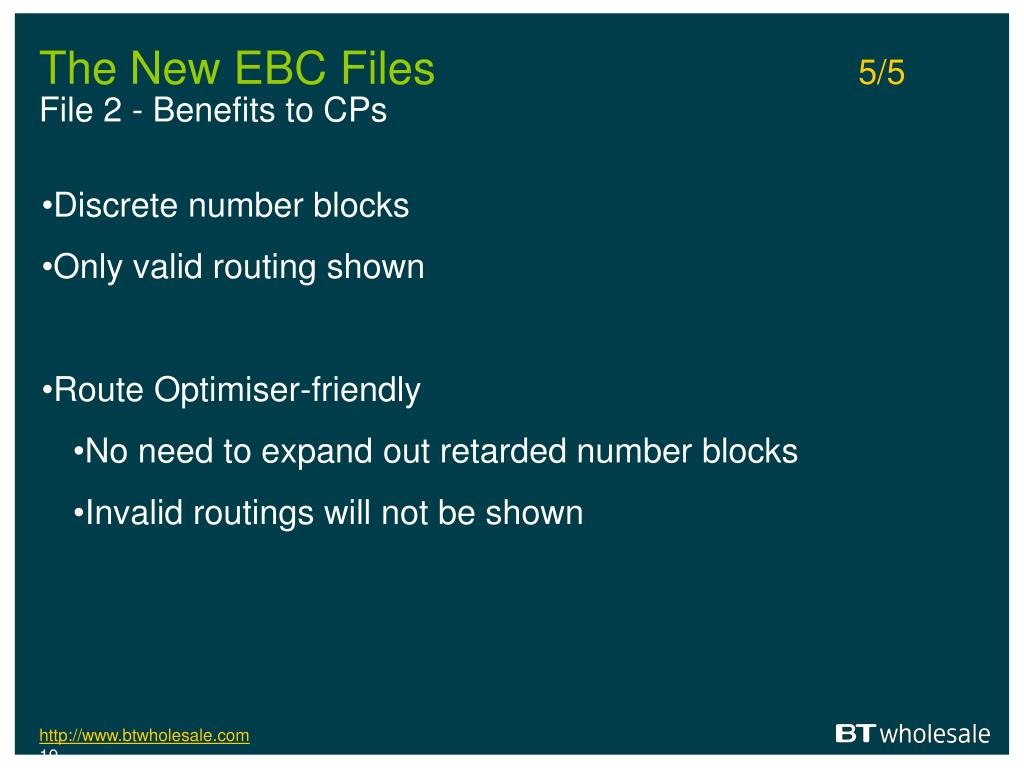

  19. The New EBC Files 5/5File 2 - Benefits to CPs • Discrete number blocks • Only valid routing shown • Route Optimiser-friendly • No need to expand out retarded number blocks • Invalid routings will not be shown

  20. Important Next Steps • Next EBC matrix will use EBC Evolution • You must review your routing plans as these will affect your bill • When published run checks • Open up new connections as necessary • Use the two new files: • Switch to switch file - where to receive calls • POC to Number Block file - where to deliver calls to BT • Talk to your TAMs

  21. EBC Evolution Refresher - Summary • Brief History of EBC • Why EBC Evolution • What is EBC Evolution • Routing Plans • New files • Important next steps

  22. EBC Evolution Refresher Any Questions?

  23. EBC Evolution Refresher Thank you.

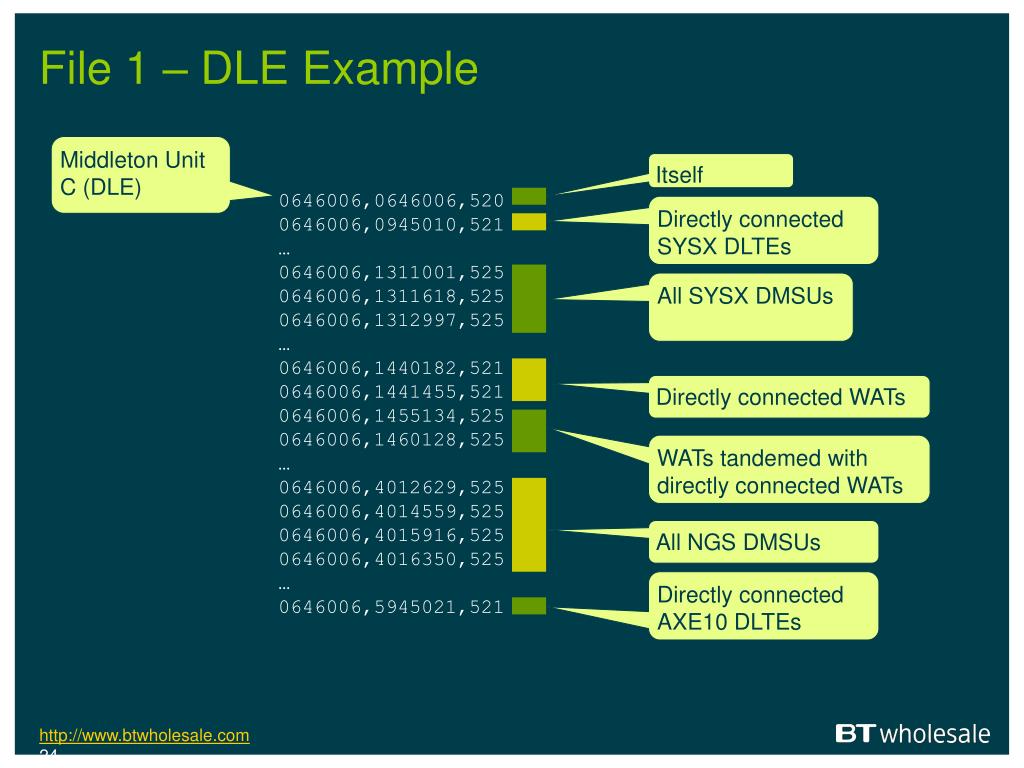

  24. File 1 – DLE Example • 0646006,0646006,520 • 0646006,0945010,521 • … • 0646006,1311001,525 • 0646006,1311618,525 • 0646006,1312997,525 • … • 0646006,1440182,521 • 0646006,1441455,521 • 0646006,1455134,525 • 0646006,1460128,525 • … • 0646006,4012629,525 • 0646006,4014559,525 • 0646006,4015916,525 • 0646006,4016350,525 • … • 0646006,5945021,521 Middleton Unit C (DLE) Itself Directly connected SYSX DLTEs All SYSX DMSUs Directly connected WATs WATs tandemed with directly connected WATs All NGS DMSUs Directly connected AXE10 DLTEs

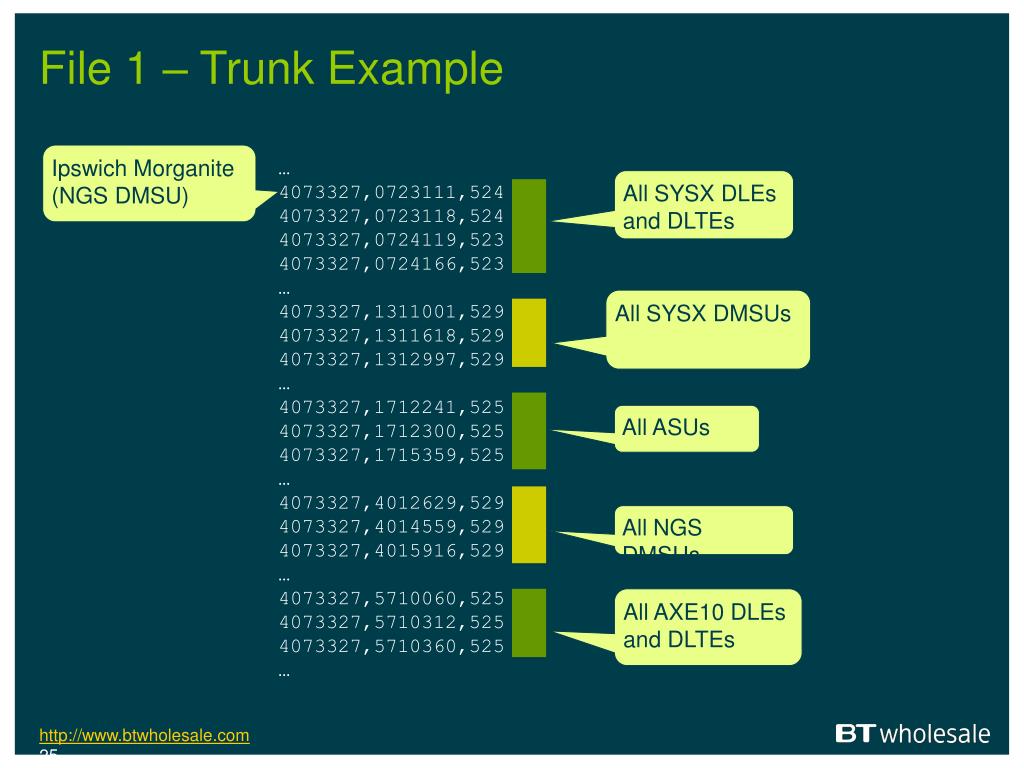

  25. File 1 – Trunk Example • … • 4073327,0723111,524 • 4073327,0723118,524 • 4073327,0724119,523 • 4073327,0724166,523 • … • 4073327,1311001,529 • 4073327,1311618,529 • 4073327,1312997,529 • … • 4073327,1712241,525 • 4073327,1712300,525 • 4073327,1715359,525 • … • 4073327,4012629,529 • 4073327,4014559,529 • 4073327,4015916,529 • … • 4073327,5710060,525 • 4073327,5710312,525 • 4073327,5710360,525 • … Ipswich Morganite (NGS DMSU) All SYSX DLEs and DLTEs All SYSX DMSUs All ASUs All NGS DMSUs All AXE10 DLEs and DLTEs

  26. File 2 – DLE Example • 0973004,0120671,520 • 0973004,01206760,520 • 0973004,01206761,520 • … • 0973004,01394380,520 • 0973004,01394385,520 • 0973004,01394389,520 • 0973004,01394600,520 • … • 0973004,01473106,520 • 0973004,0147321,520 • 0973004,0147322,520 • 0973004,01473230,520 • 0973004,01473231,520 • 0973004,01473232,520 • … • 0973004,0172845,520 • 0973004,0172860,520 • 0973004,01728633,520 • … • 0973004,01787220,520 • 0973004,01787221,520 • 0973004,01787222,520 Ipswich Unit B (DLE) Unretarded BT number blocks hosted on DLE
