ACCESS CONTROL MANAGEMENT

1. PROJECT GROUP # 3 ACCESS CONTROL MANAGEMENT Poonam Gupta Sowmya Sugumaran

2. Overview • Goal of the project • Project Progress • Closer look at the TGTs • Few security issues in Kerberos • Brief intro to Kerberos commands • Few screen shots • Immediate tasks ahead

3. Goal of the Project • The goal of the project is to allow clients access the service servers in a secure and controlled manner using Kerberos

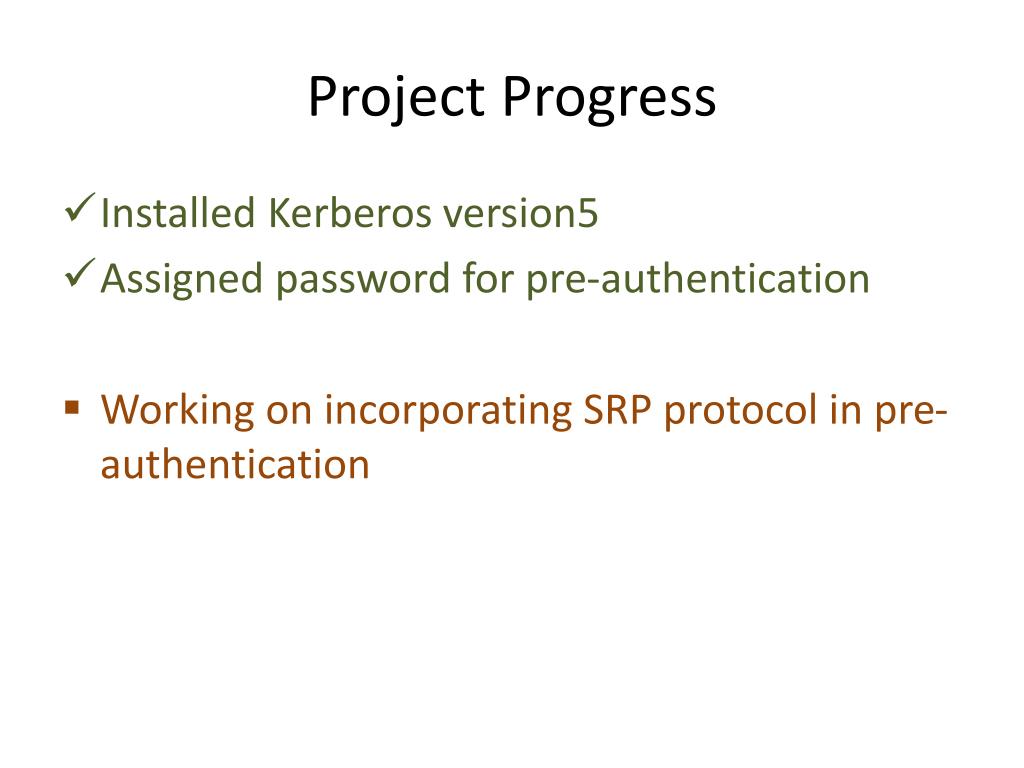

4. Project Progress • Installed Kerberos version5 • Assigned password for pre-authentication • Working on incorporating SRP protocol in pre-authentication

5. Closer look at the TGT • TGT : Ticket-to-get-Ticket(between client and authentication server to get access to get access to Ticket Granting Server) • There are 9 field in a TGT request TGT Request Format

6. Contd.. • The server can’t authenticate the TGT packet • An intruder can construct a similar looking packet • It can be indistinguishable from the legitimate packet

7. Contd.. • Kerberos authenticates the client by sending back an encrypted packet • The packet is encrypted using the key from the user’s password • If the user enters the correct password upon logging in, the client can decrypt the packet to obtain the valid TGT • Unauthorized users get random useless bits

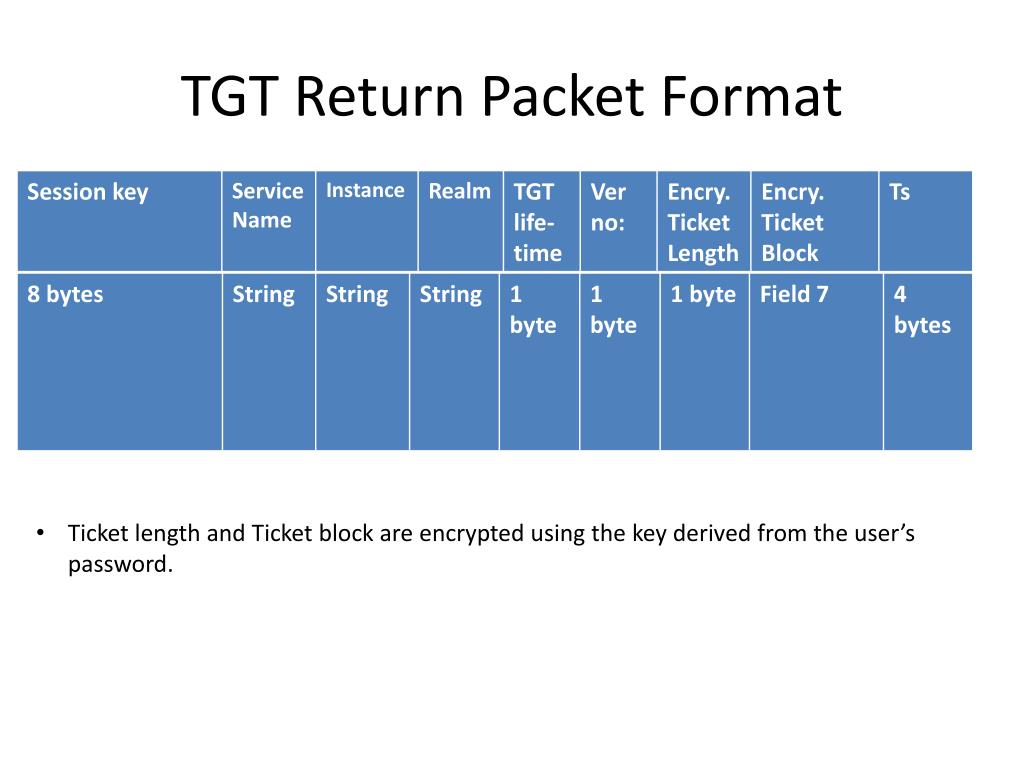

8. TGT Return Packet Format • Ticket length and Ticket block are encrypted using the key derived from the user’s password.

9. In Enemy Hands • Prone to Dictionary Attack –Password cracker • Intruder sends a fake TGT request and saves the encrypted TGT to a file • He then trial tests the password(P) • Convert P to DES key(K): K=string-to-key(P) • Decrypt TGT with K and check if it is the valid TGT • If so, P is the user’s password

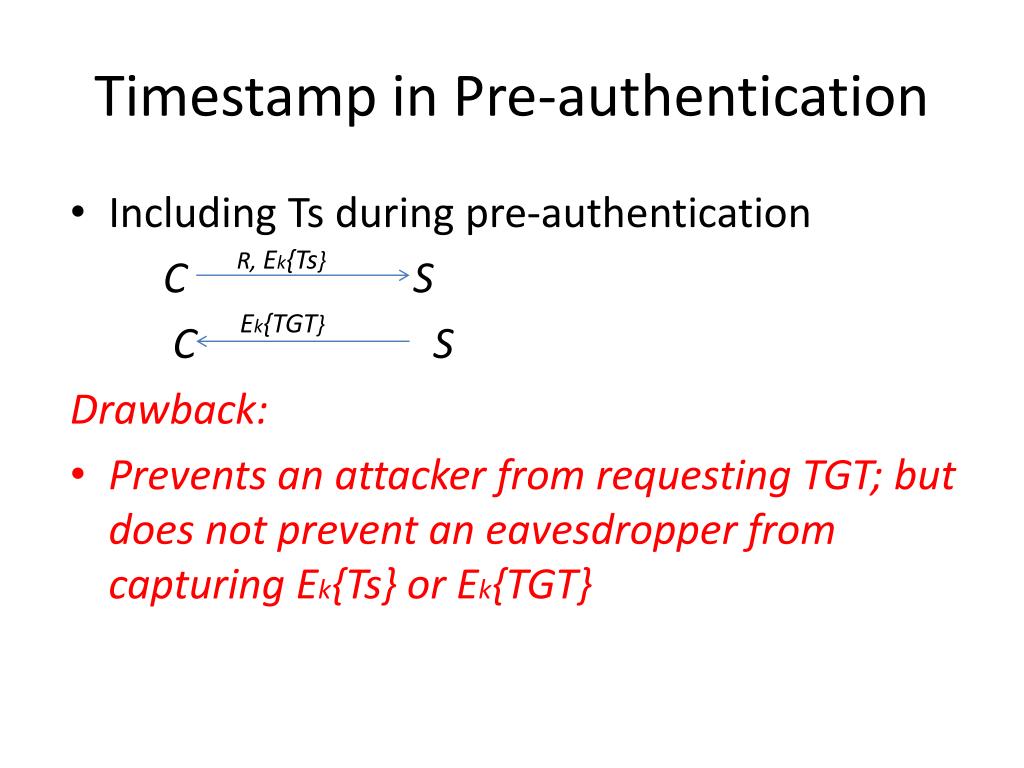

10. Timestamp in Pre-authentication • Including Ts during pre-authentication C S C S Drawback: • Prevents an attacker from requesting TGT; but does not prevent an eavesdropper from capturing Ek{Ts} or Ek{TGT} R, Ek{Ts} Ek{TGT}

11. Solution: Stronger Cryptography • A variant of public-key cryptography • Secure Remote Password(SRP) • Properties: Resistant to dictionary attack Secure even if the password is of low entropy Only one password can be guessed per attempt in SRP 6 • SRP can be incorporated into Krb v5 as a pre- authentication mechanism

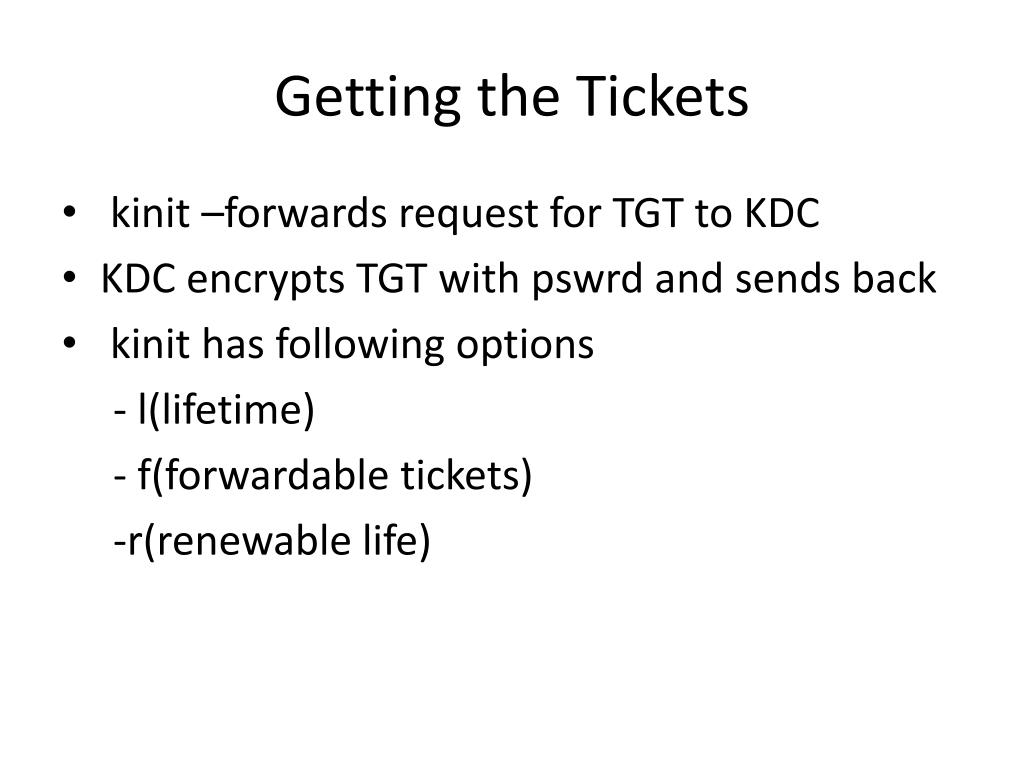

12. Getting the Tickets • kinit –forwards request for TGT to KDC • KDC encrypts TGT with pswrd and sends back • kinit has following options - l(lifetime) - f(forwardable tickets) -r(renewable life)

13. Listing the Tickets • klist – lists the tickets of the authenticated user. output of an unsuccessful authentication is: klist: No credentials cache file found (ticket cache /tmp/krb5cc_1234)

14. Contd.. • klist provides: • Information of all tickets • Expiration time of each ticket • Flags that apply to the ticket Example: Ticket cache: /tmp/krb5cc_1234 Valid starting Expires 29 Jul 98 11:25:47 30 Jul 98 12:25:42

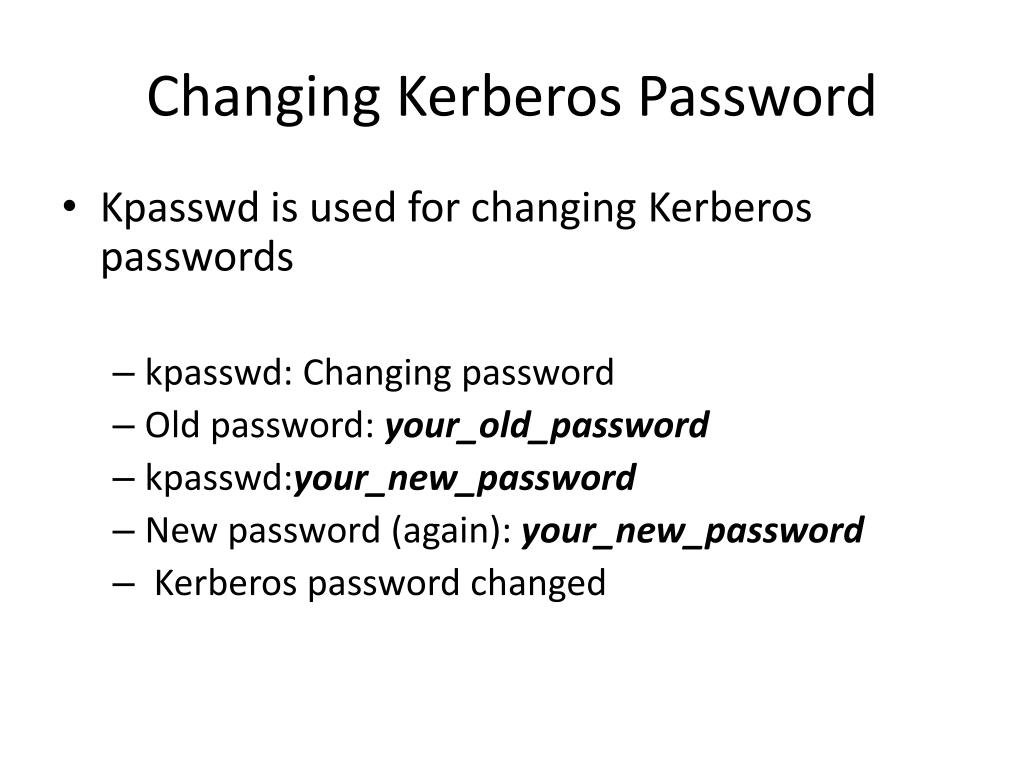

15. Changing Kerberos Password • Kpasswd is used for changing Kerberos passwords • kpasswd: Changing password • Old password: your_old_password • kpasswd:your_new_password • New password (again): your_new_password • Kerberos password changed

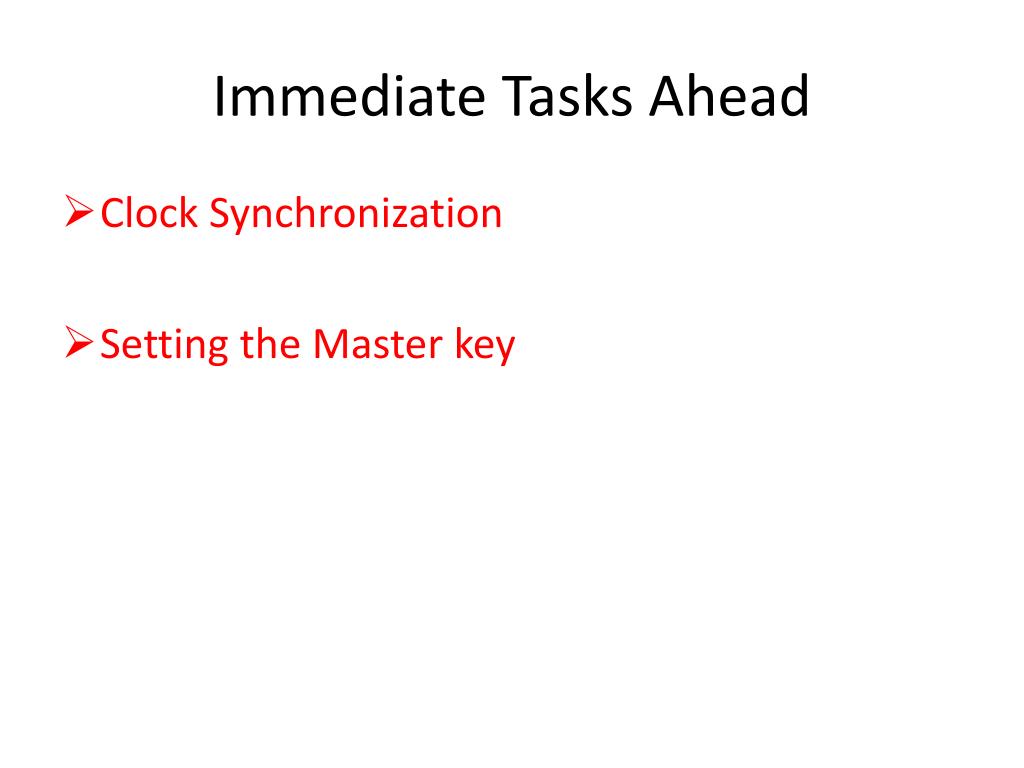

19. Immediate Tasks Ahead • Clock Synchronization • Setting the Master key

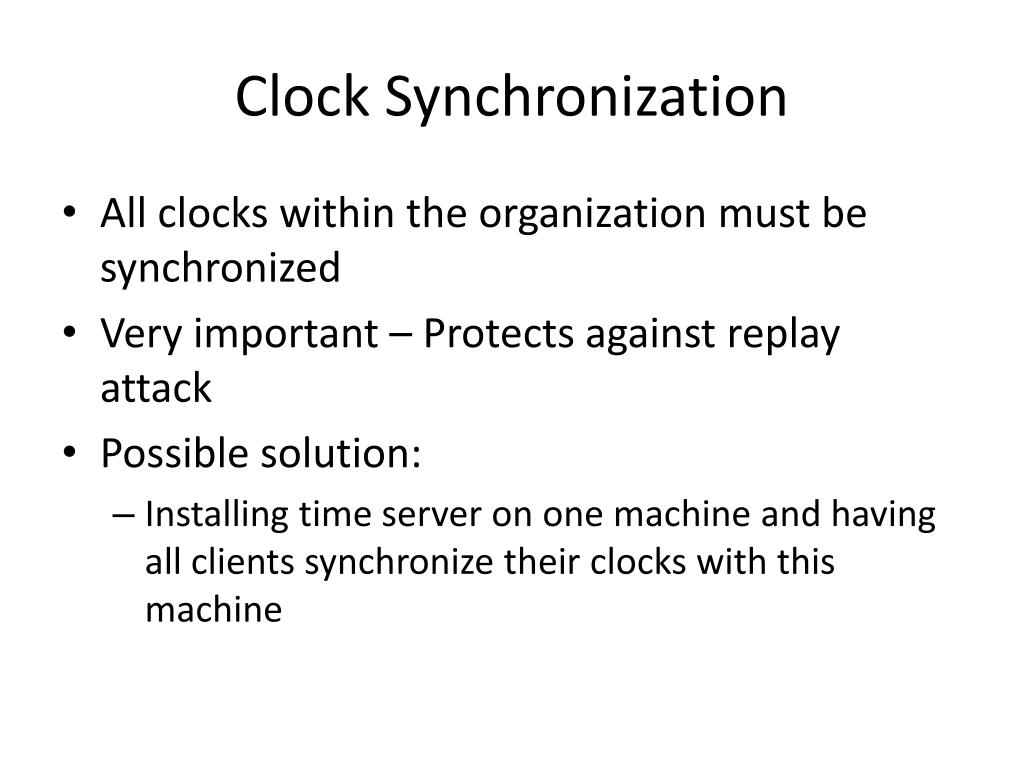

20. Clock Synchronization • All clocks within the organization must be synchronized • Very important – Protects against replay attack • Possible solution: • Installing time server on one machine and having all clients synchronize their clocks with this machine

21. Setting the Master Key • Database master key – protects from accidental disclosure • Derived from pass phrase and stored in stash file • Don’t back up stash file while making backups of database in a tape • Master key:<enter pass phrase> Verifying password – Master key:<enter pass phrase again>

22. References • http://en.wikipedia.org/wiki/Kerberos_(protocol) • http://www.isoc.org/isoc/conferences/ndss/99/proceedings/papers/wu.pdf

23. Thank You!
