  1. Ch. 3Atoms: The Building Blocks of Matter

  2. Chapter 3 Atoms: The Building Blocks of Matter Table of Contents Section 1The Atom: From Philosophical Idea to Scientific Theory Section 2The Structure of the Atom Section 3Counting Atoms

  3. Theories Vs. Opinions • Young people should not smoke. • Smoking at an early age may make it more difficult to quit smoking later. • Which of the above statements is an opinion and which is a theory?

  4. Democritus (460 BC) Can matter be divided forever?

  5. Atom From the Greek word atomos “Not to be cut” “Indivisible”

  6. Chemical Reactions Process in which the physical and chemical properties of the original substances change as new substances with different physical and chemical properties are formed. What could be a shorter definition?

  7. The Law of Conservation of Mass *Mass can be neither created nor destroyed during a chemical reaction.

  8. Law of Definite Proportions • Law of definite proportions:compounds contain the same elements in exactly the same proportions by mass • Example: Sodium Chloride – NaCl • 39.34% sodium and 60.66% chlorine

  9. Law of Multiple Proportions The ratio of the masses of the second element combined with a certain mass of the first element is always a ratio of small whole numbers

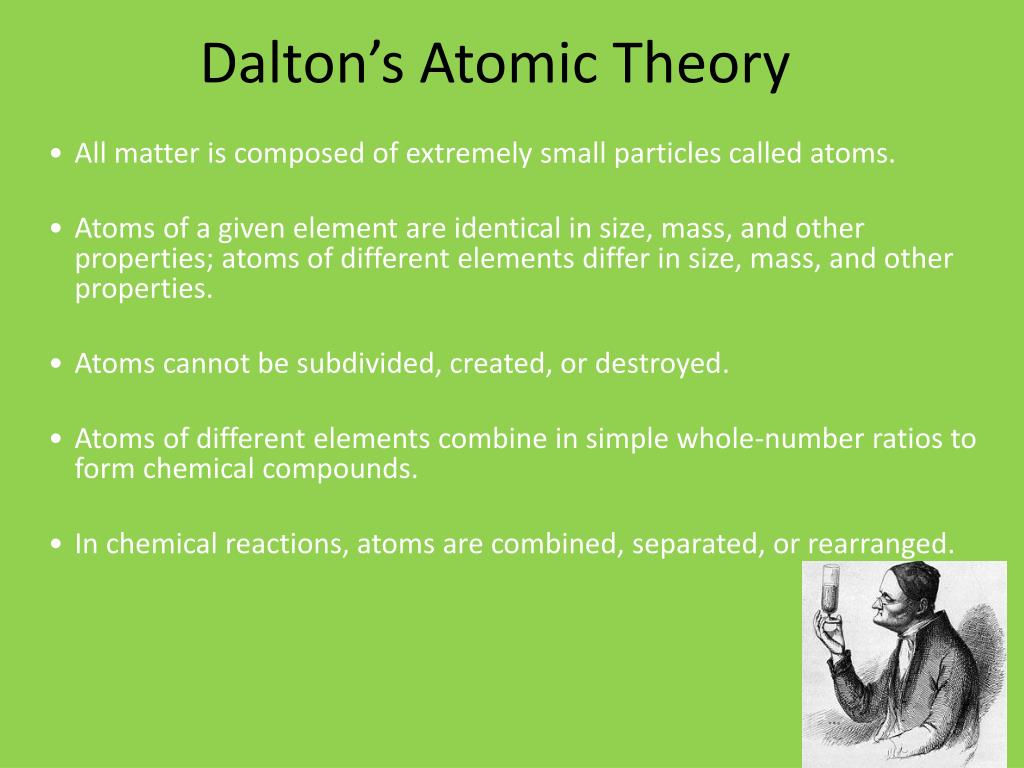

  10. Dalton’s Atomic Theory • All matter is composed of extremely small particles called atoms. • Atoms of a given element are identical in size, mass, and other properties; atoms of different elements differ in size, mass, and other properties. • Atoms cannot be subdivided, created, or destroyed. • Atoms of different elements combine in simple whole-number ratios to form chemical compounds. • In chemical reactions, atoms are combined, separated, or rearranged.

  11. Modern Atomic Theory Not all aspects of Dalton’s atomic theory have proven to be correct. We now know that: • Atoms are divisible into even smaller particles. • A given element can have atoms with different masses. Some important concepts remain unchanged. • All matter is composed of atoms. • Atoms of any one element differ in properties from atoms of another element.

  12. Structure of an atom • Subatomic particles • Smaller than an atom • 1. Proton + • 2. Neutron = • 3. Electron -

  13. In search of giants video http://www.youtube.com/watch?v=-FWxd78sOZ8

  14. Discovery of the Electron • *1897 English physicist Joseph John Thomson • *Performed cathode ray tube experiments and discovered electron • a. Cathode ray tube produces a ray with a constant charge to mass ratio • b. All cathode rays are composed of identical negatively charged particles (electrons)

  15. Inferences from the properties of electrons You know = 1. Atoms are neutral 2. Electrons are negative 3. Electrons have little mass • What does this mean for the rest of the atom?

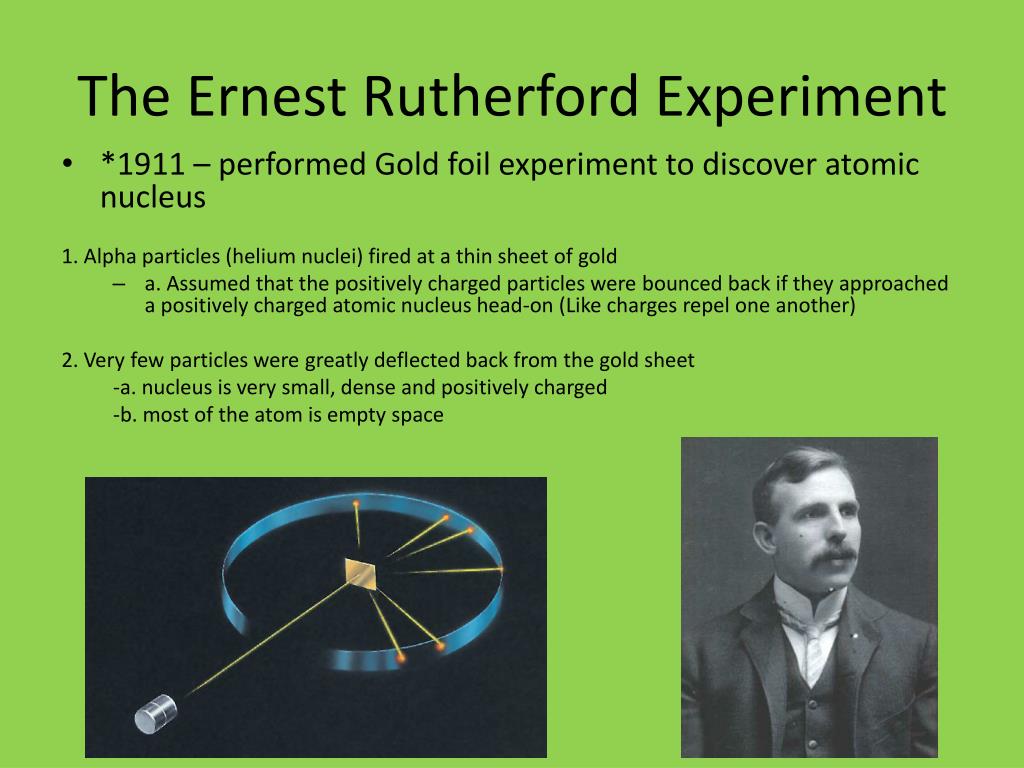

  16. The Ernest Rutherford Experiment • *1911 – performed Gold foil experiment to discover atomic nucleus 1. Alpha particles (helium nuclei) fired at a thin sheet of gold • a. Assumed that the positively charged particles were bounced back if they approached a positively charged atomic nucleus head-on (Like charges repel one another) 2. Very few particles were greatly deflected back from the gold sheet -a. nucleus is very small, dense and positively charged -b. most of the atom is empty space

  17. Question • Electrons are attracted to the positive nucleus. • How does the nucleus hold together if it is a bunch of positive charges?

  18. Composition of the Atomic Nucleus When two protons are extremely close to each other, there is a strong attraction between them. Forces in the Nucleus A similar attraction exists when neutrons are very close to each other or when protons and neutrons are very close together. *nuclear forces – hold the protons and neutrons together

  19. 2.3 Counting Atoms • 1. Atomic Number • 2. Isotopes • 3. Mass Number • 4. Designating Isotopes

  20. Atomic Number • the number of protons of each atom of that element.

  21. Isotopes • Isotopes are atoms of the same element that have different masses. • Different number of ______________ • Nuclideis a general term for a specific isotope of an element.

  22. Mass Number • total number of protons and neutrons that make up the nucleus of an isotope.

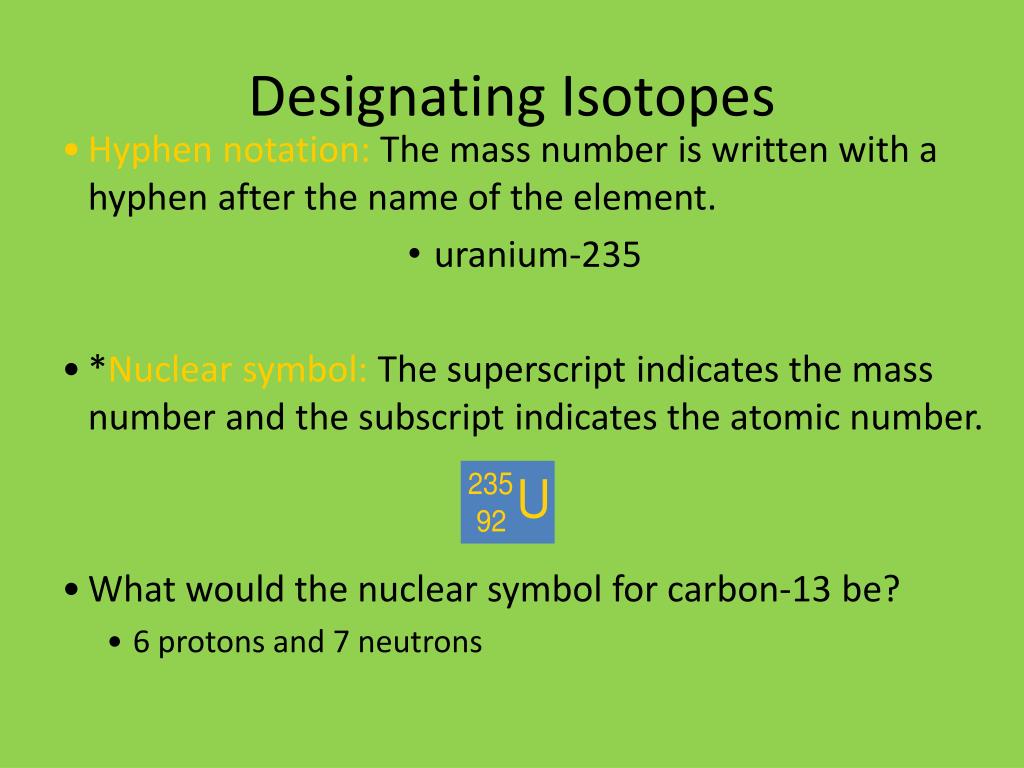

  23. Designating Isotopes • Hyphen notation: The mass number is written with a hyphen after the name of the element. • uranium-235 • *Nuclear symbol: The superscript indicates the mass number and the subscript indicates the atomic number. • What would the nuclear symbol for carbon-13 be? • 6 protons and 7 neutrons

  24. Calculating Protons, Electrons and Neutrons • General Rules Atomic number = number of protons = number of electrons Mass number = number of neutrons + number of protons

  25. Announcements • Vocab Quiz Today

  26. Ch. 3 ArticleTwo New Elements Join the Periodic Table • 5 sentence summary – 10 points • Includes topic sentence and 4 key points • 4 sentence opinion – 10 points • Should elements that are only around for less than a second be added to the table? • Why? Why not? • Since I did not ask you a personal question (I didn’t use you) you are not allowed to use I in the paragraph. • MLA format • Align left • Name • Teacher Name • Class • Date 9 October 2012

  27. Article Discussion • Who agreed? • Who disagreed?

  28. Relative Atomic Mass Mass of an atom in grams is very small so we use a standard measurement. *1 atomic mass unit (amu),is exactly 1/12 the mass of a carbon-12 atom. The atomic mass of any atom is determined by comparing it with the mass of the carbon-12 atom.

  29. Average Atomic Mass *the weighted average of the atomic masses of the naturally occurring isotopes of an element.

  30. Calculating Average Atomic Mass • Copper consists of 69.15% copper-63, which has an atomic mass of 62.929 601 amu, and 30.85% copper-65, which has an atomic mass of 64.927 794 amu. The average atomic mass of copper can be calculated by multiplying the atomic mass of each isotope by its relative abundance (expressed in decimal form) and adding the results. • (0.6915  62.929 601 amu) + (0.3085  64.927 794 amu) =

  31. Relating Mass to Numbers of Atoms Mole (mol) • -amount of a substance that contains as many particles as there are atoms in exactly 12 g of carbon-12. SI unit for amount of substance. Avogadro’s number - 6.022 1415  1023—is the number of particles in exactly one mole of a pure substance. Molar Mass The mass of one mole of a pure substance is called the molar mass of that substance. -written in units of g/mol. -molar mass = atomic mass (amu)

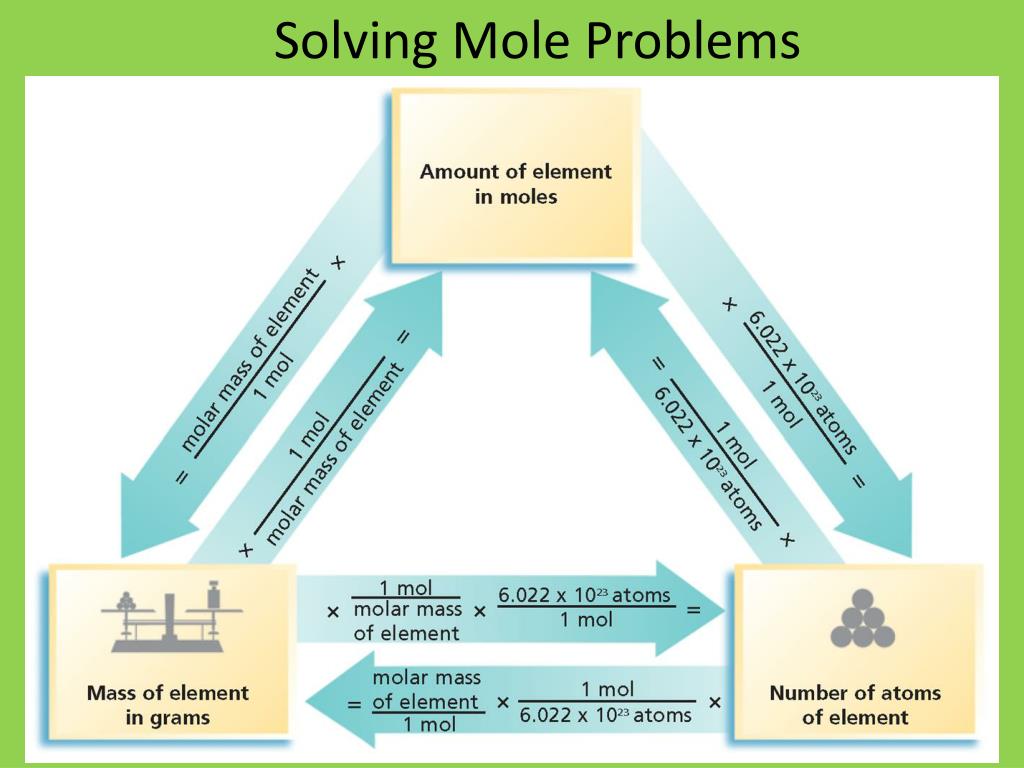

  32. Solving Mole Problems

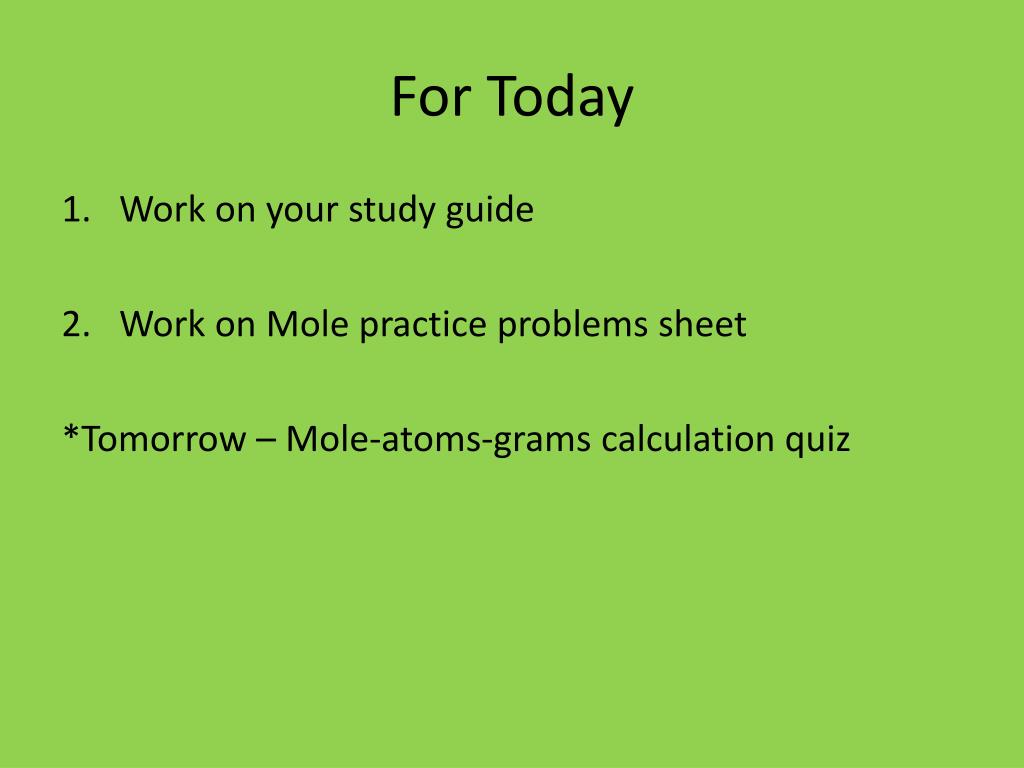

  33. For Today • Work on your study guide • Work on Mole practice problems sheet *Tomorrow – Mole-atoms-grams calculation quiz

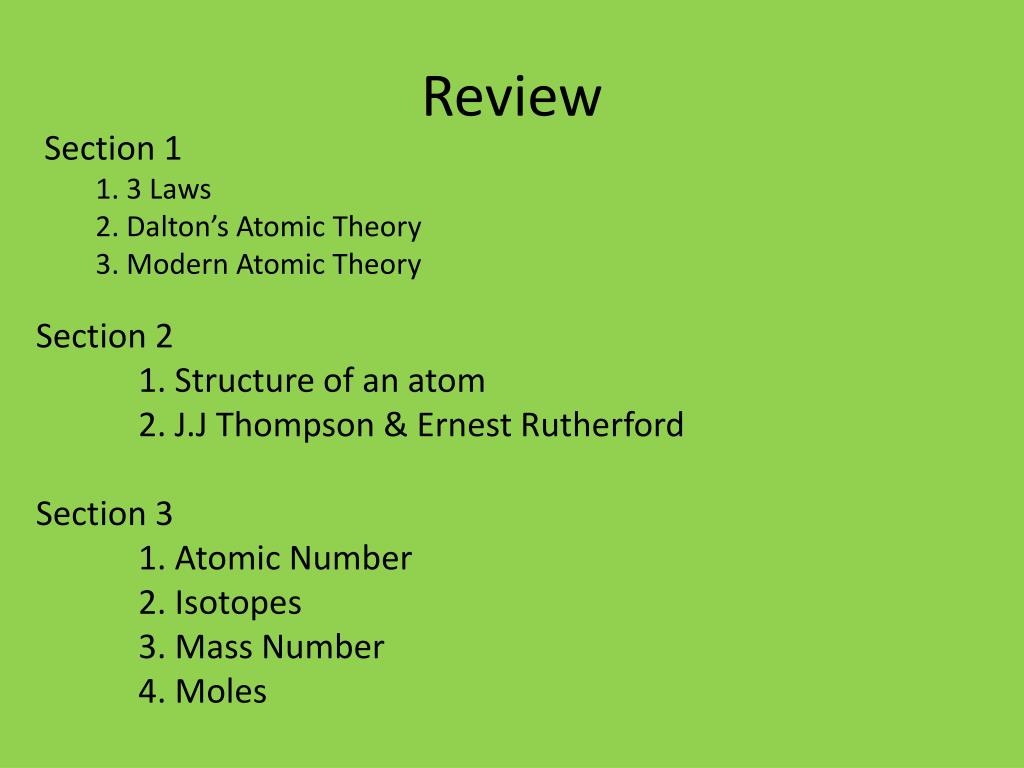

  34. Review Section 1 1. 3 Laws 2. Dalton’s Atomic Theory 3. Modern Atomic Theory Section 2 1. Structure of an atom 2. J.J Thompson & Ernest Rutherford Section 3 1. Atomic Number 2. Isotopes 3. Mass Number 4. Moles
