Securing the Internet Facing E-Business Suite

Securing the Internet Facing E-Business Suite. John Peters JRPJR, Inc. john.peters@jrpjr.com. How many of you have an Internet Facing Oracle Application Module? Or Considered Buying one? iStore iCustomers iSuppliers iSupport iRequitment iReceivables Others???

egil
Télécharger la présentation

Securing the Internet Facing E-Business Suite

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Securing the Internet Facing E-Business Suite John PetersJRPJR, Inc. john.peters@jrpjr.com John Peters, JRPJR, Inc.

  2. How many of you have an Internet Facing Oracle Application Module? Or Considered Buying one? • iStore • iCustomers • iSuppliers • iSupport • iRequitment • iReceivables • Others??? • How many of you have thought about security? John Peters, JRPJR, Inc.

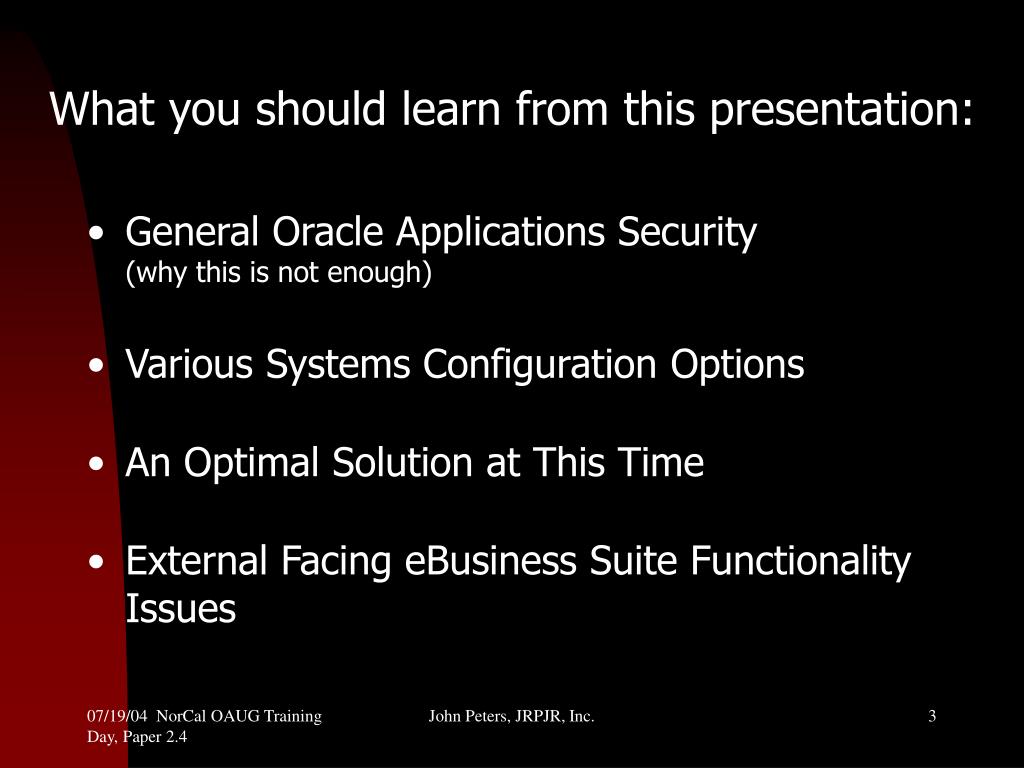

  3. What you should learn from this presentation: • General Oracle Applications Security (why this is not enough) • Various Systems Configuration Options • An Optimal Solution at This Time • External Facing eBusiness Suite Functionality Issues John Peters, JRPJR, Inc.

  4. General Oracle Applications Security • Note 189367.1, 06-JAN-2005 Best Practices for Securing the E-Business Suite*** An excellent starting point *** • Covers each applications component: • SQL*Net Listener • Database • Applications Tier • eBusiness Suite • Desktop • OS John Peters, JRPJR, Inc.

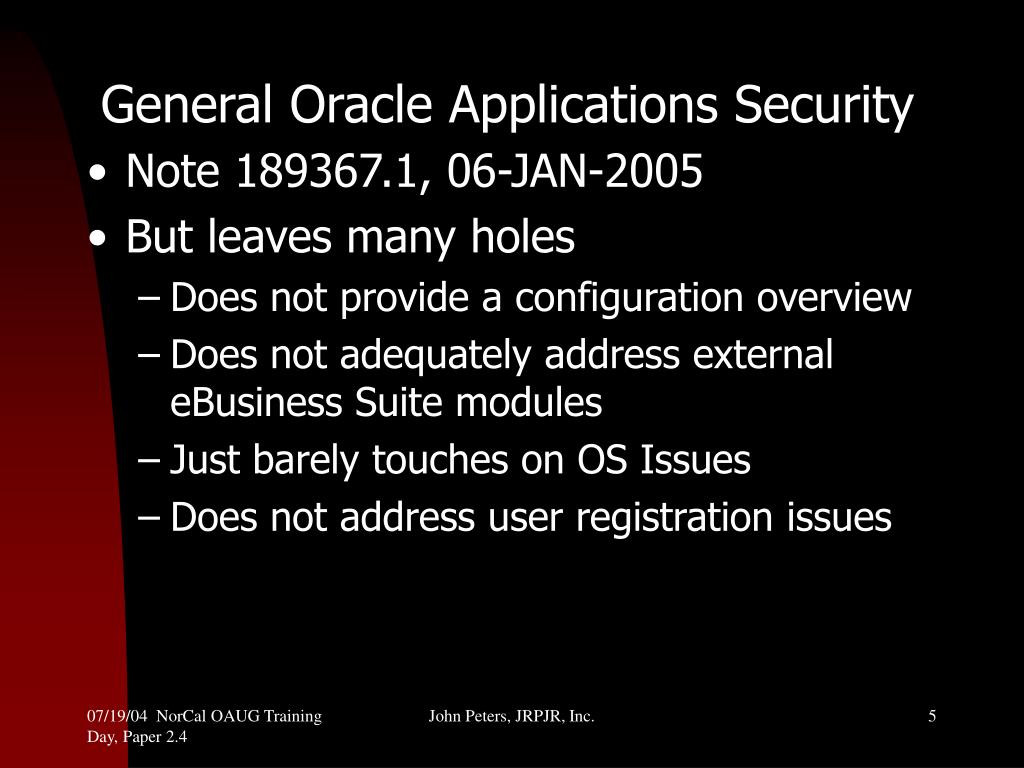

  5. General Oracle Applications Security • Note 189367.1, 06-JAN-2005 • But leaves many holes • Does not provide a configuration overview • Does not adequately address external eBusiness Suite modules • Just barely touches on OS Issues • Does not address user registration issues John Peters, JRPJR, Inc.

  6. Typical OraApps ConfigurationInternal Users Only • One or more physical servers for each Tier • Typically a router between the servers and the user • Connection between users and servers is typically non-SSL HTTP:// (not HTTPS://) John Peters, JRPJR, Inc.

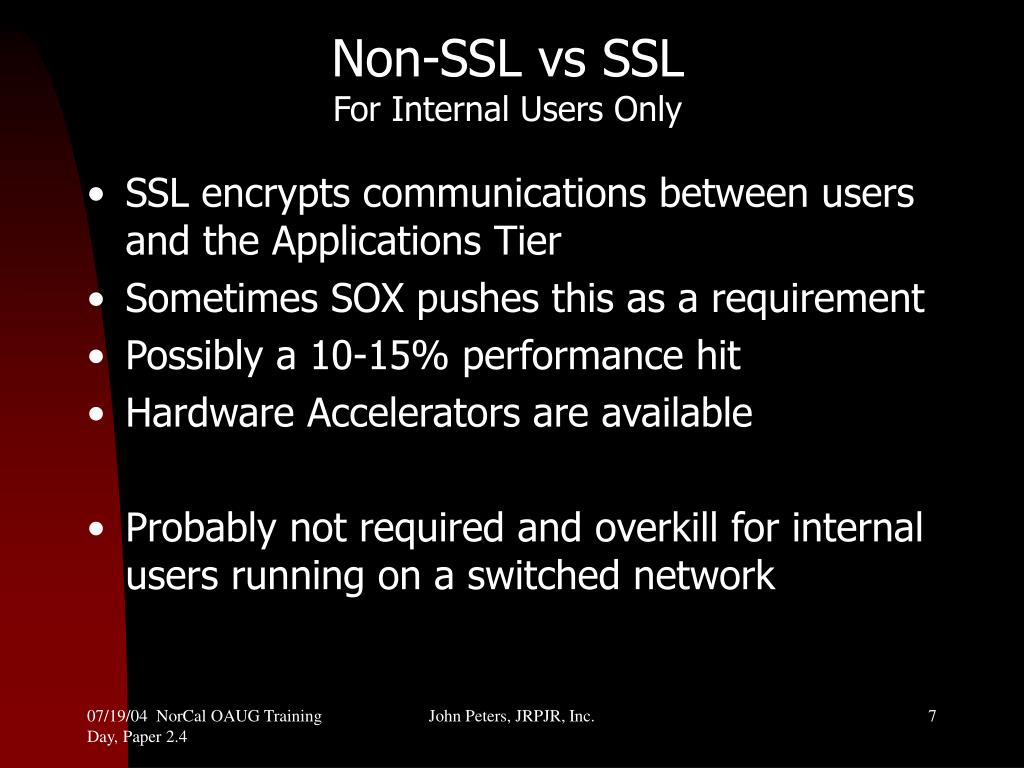

  7. Non-SSL vs SSLFor Internal Users Only • SSL encrypts communications between users and the Applications Tier • Sometimes SOX pushes this as a requirement • Possibly a 10-15% performance hit • Hardware Accelerators are available • Probably not required and overkill for internal users running on a switched network John Peters, JRPJR, Inc.

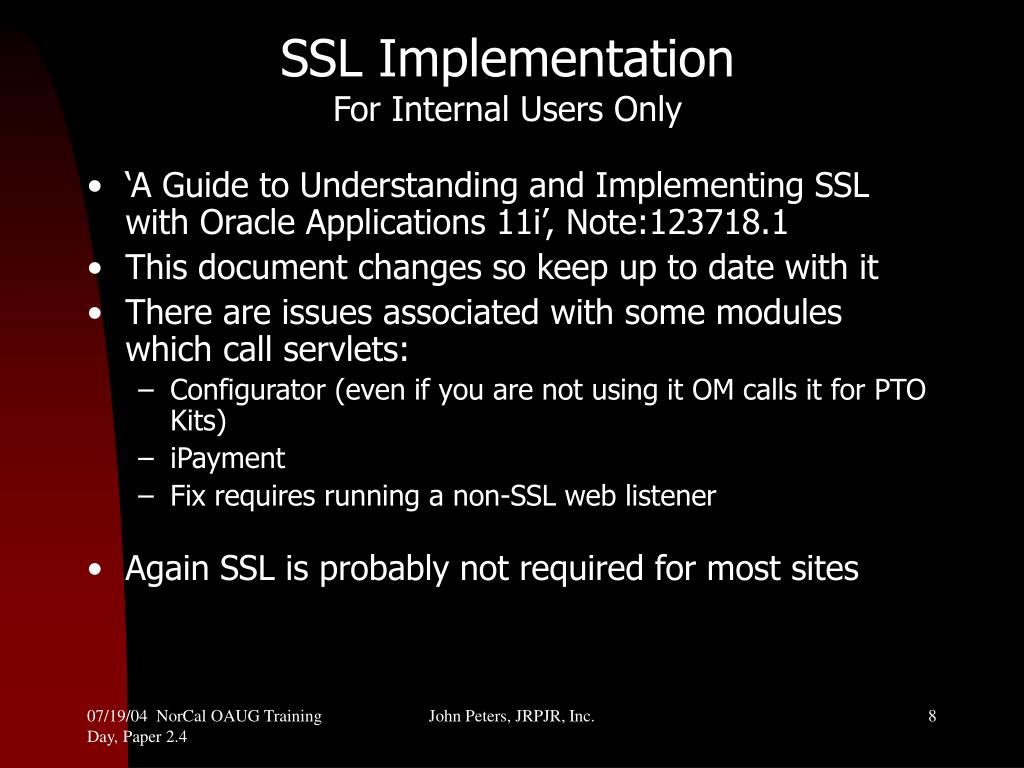

  8. SSL ImplementationFor Internal Users Only • ‘A Guide to Understanding and Implementing SSL with Oracle Applications 11i’, Note:123718.1 • This document changes so keep up to date with it • There are issues associated with some modules which call servlets: • Configurator (even if you are not using it OM calls it for PTO Kits) • iPayment • Fix requires running a non-SSL web listener • Again SSL is probably not required for most sites John Peters, JRPJR, Inc.

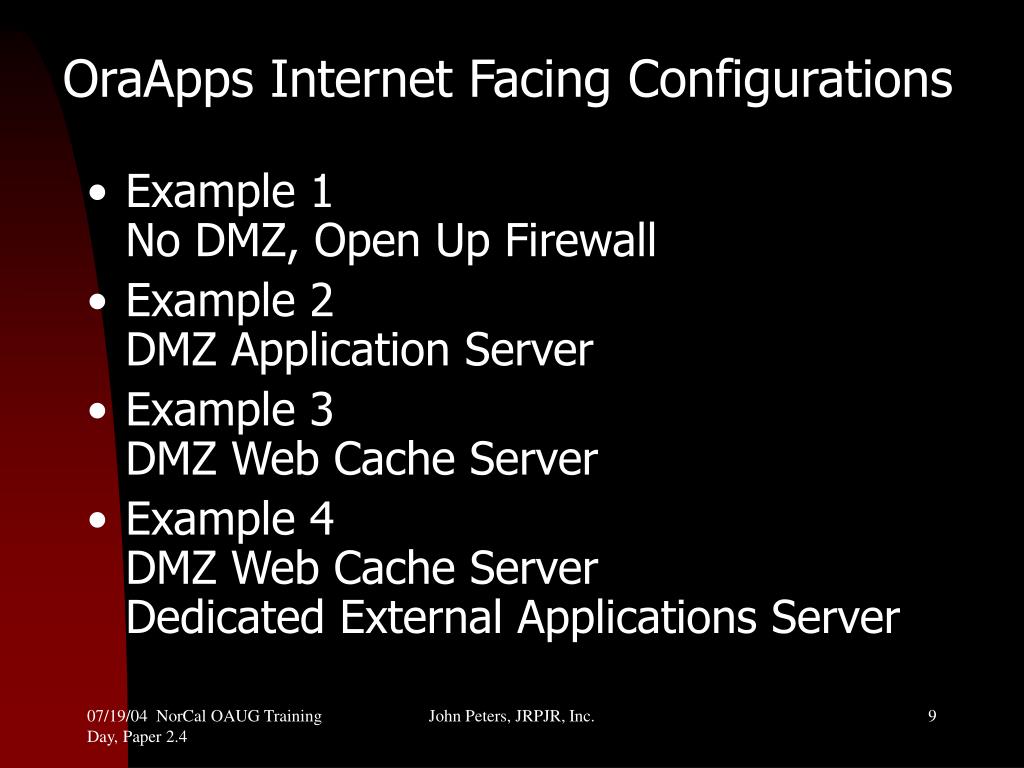

  9. OraApps Internet Facing Configurations • Example 1No DMZ, Open Up Firewall • Example 2DMZ Application Server • Example 3DMZ Web Cache Server • Example 4DMZ Web Cache ServerDedicated External Applications Server John Peters, JRPJR, Inc.

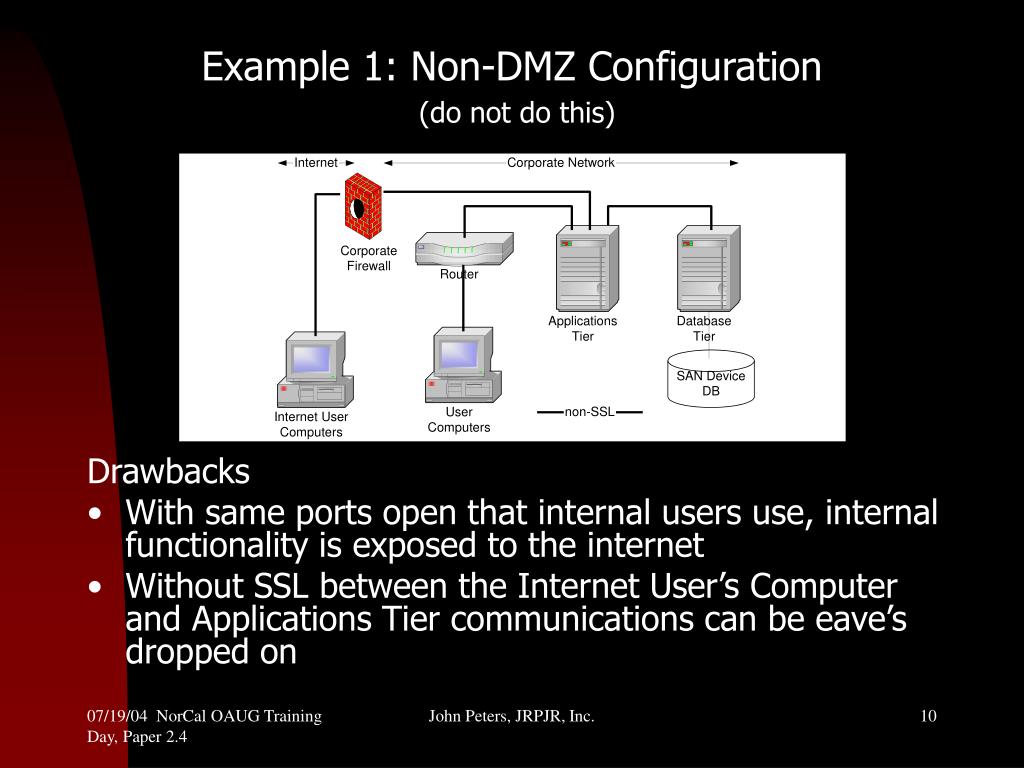

  10. Example 1: Non-DMZ Configuration(do not do this) Drawbacks • With same ports open that internal users use, internal functionality is exposed to the internet • Without SSL between the Internet User’s Computer and Applications Tier communications can be eave’s dropped on John Peters, JRPJR, Inc.

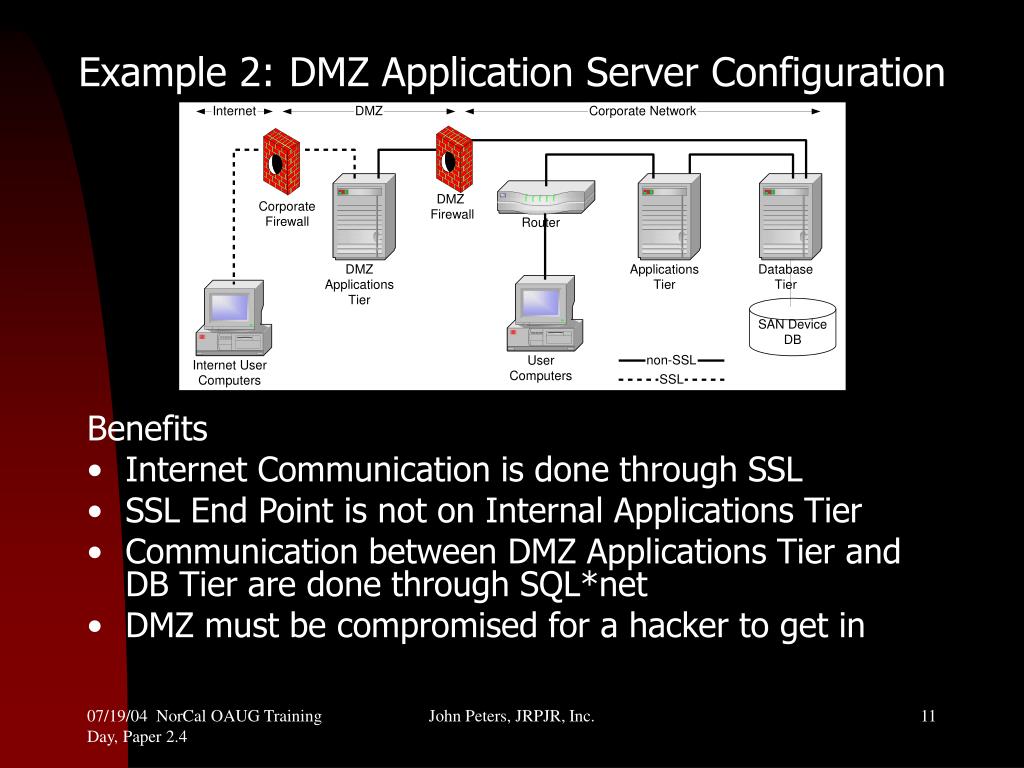

  11. Example 2:DMZ Application Server Configuration Benefits • Internet Communication is done through SSL • SSL End Point is not on Internal Applications Tier • Communication between DMZ Applications Tier and DB Tier are done through SQL*net • DMZ must be compromised for a hacker to get in John Peters, JRPJR, Inc.

  12. Example 2: DMZ Application Server Configuration Drawbacks • DMZ Applications Tier exposes too much to a possible hacker • DMZ Applications Tier must be patched and monitored • Not currently autoconfig and ad tools supported John Peters, JRPJR, Inc.

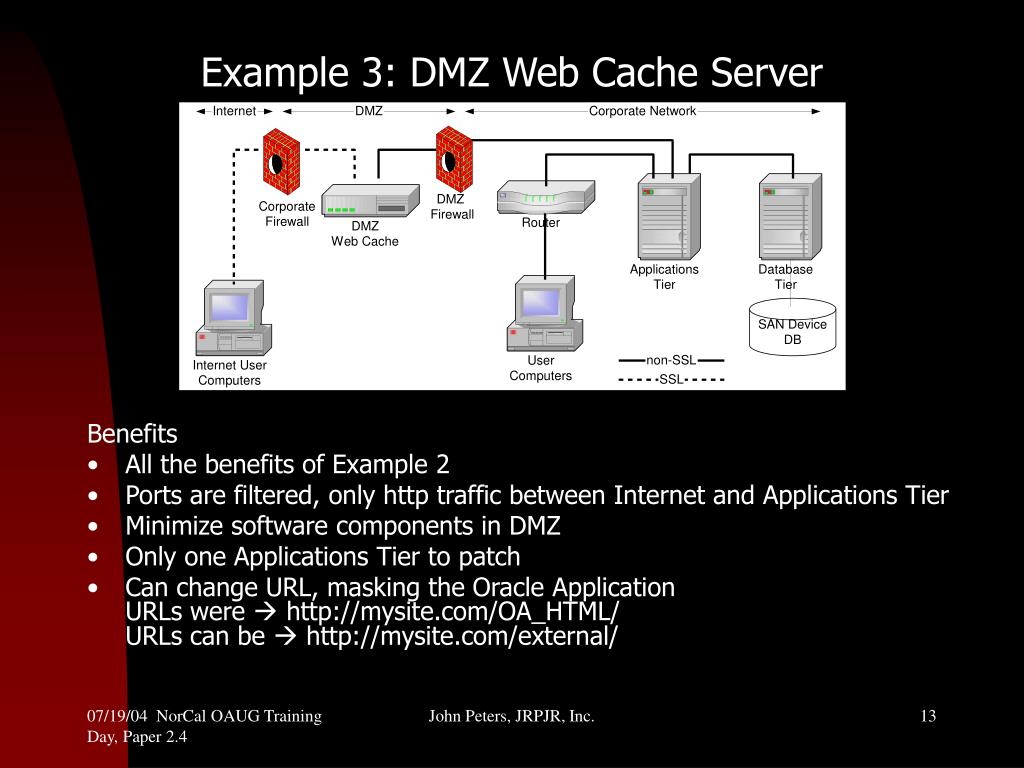

  13. Example 3: DMZ Web Cache Server Benefits • All the benefits of Example 2 • Ports are filtered, only http traffic between Internet and Applications Tier • Minimize software components in DMZ • Only one Applications Tier to patch • Can change URL, masking the Oracle ApplicationURLs were  http://mysite.com/OA_HTML/URLs can be  http://mysite.com/external/ John Peters, JRPJR, Inc.

  14. Example 3: DMZ Web Cache Server Drawbacks • Applications Tier still exposes too much to a possible hacker. You can deep link to JSP pages if you know their names. John Peters, JRPJR, Inc.

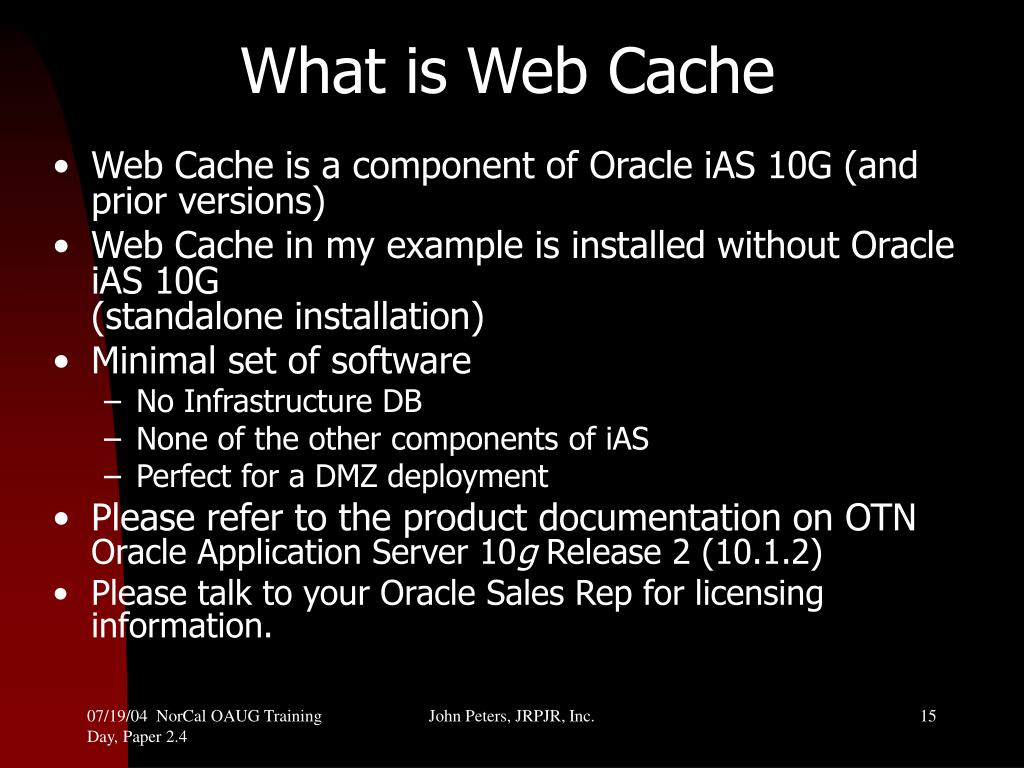

  15. What is Web Cache • Web Cache is a component of Oracle iAS 10G (and prior versions) • Web Cache in my example is installed without Oracle iAS 10G(standalone installation) • Minimal set of software • No Infrastructure DB • None of the other components of iAS • Perfect for a DMZ deployment • Please refer to the product documentation on OTNOracle Application Server 10g Release 2 (10.1.2) • Please talk to your Oracle Sales Rep for licensing information. John Peters, JRPJR, Inc.

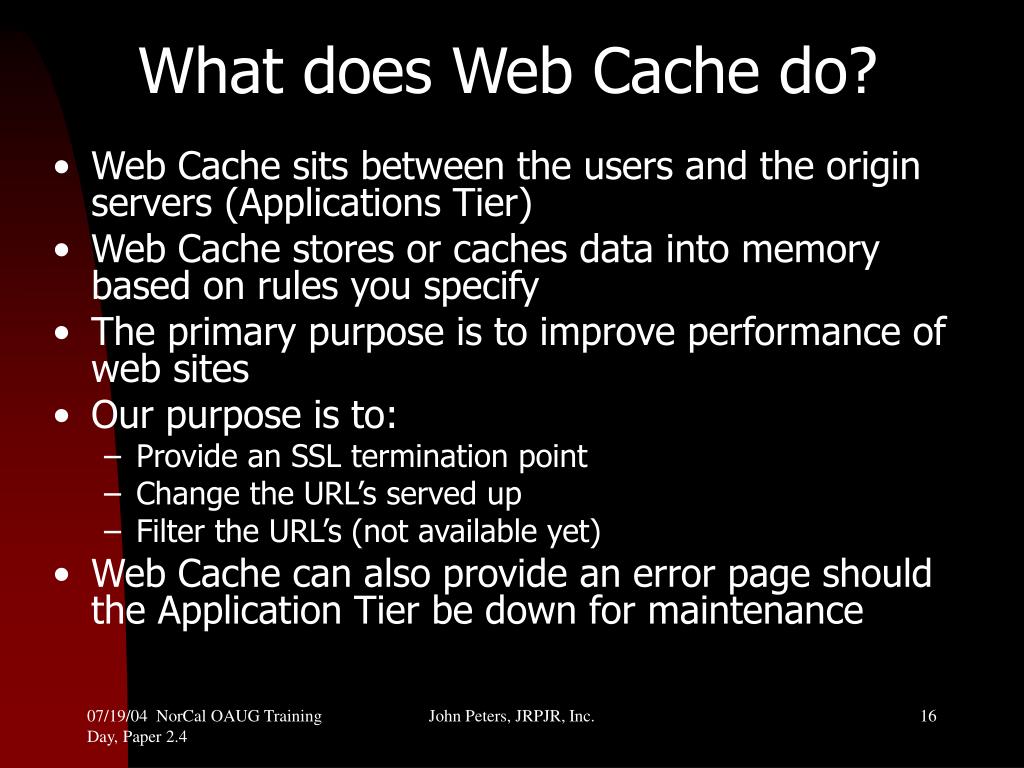

  16. What does Web Cache do? • Web Cache sits between the users and the origin servers (Applications Tier) • Web Cache stores or caches data into memory based on rules you specify • The primary purpose is to improve performance of web sites • Our purpose is to: • Provide an SSL termination point • Change the URL’s served up • Filter the URL’s (not available yet) • Web Cache can also provide an error page should the Application Tier be down for maintenance John Peters, JRPJR, Inc.

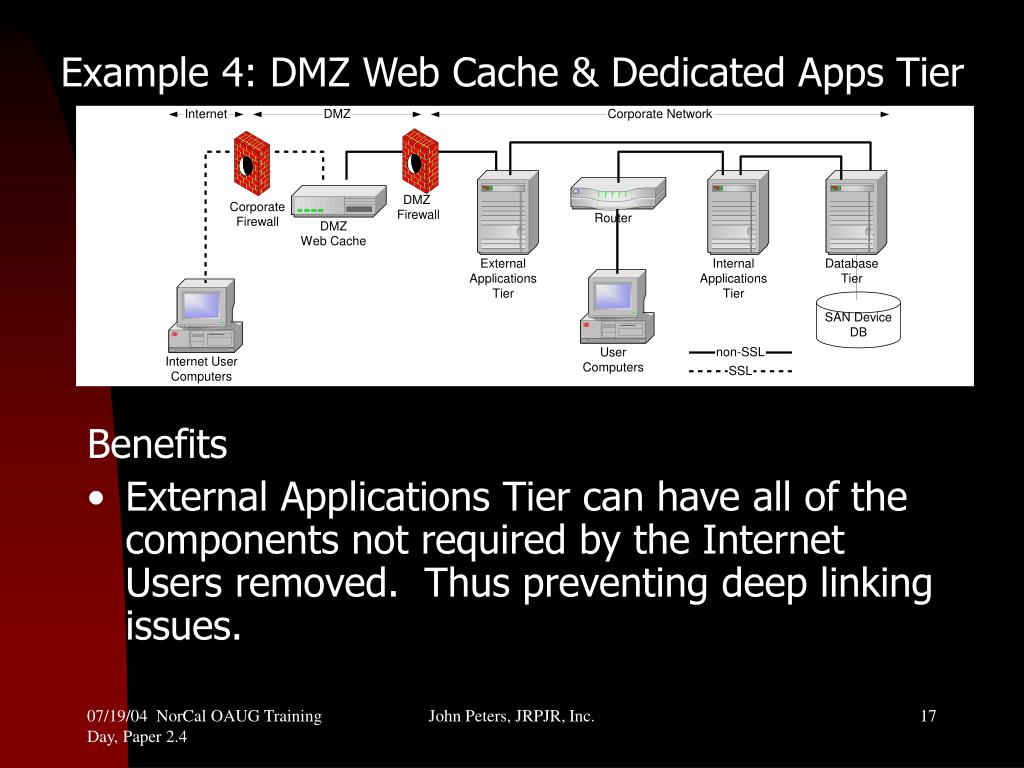

  17. Example 4: DMZ Web Cache & Dedicated Apps Tier Benefits • External Applications Tier can have all of the components not required by the Internet Users removed. Thus preventing deep linking issues. John Peters, JRPJR, Inc.

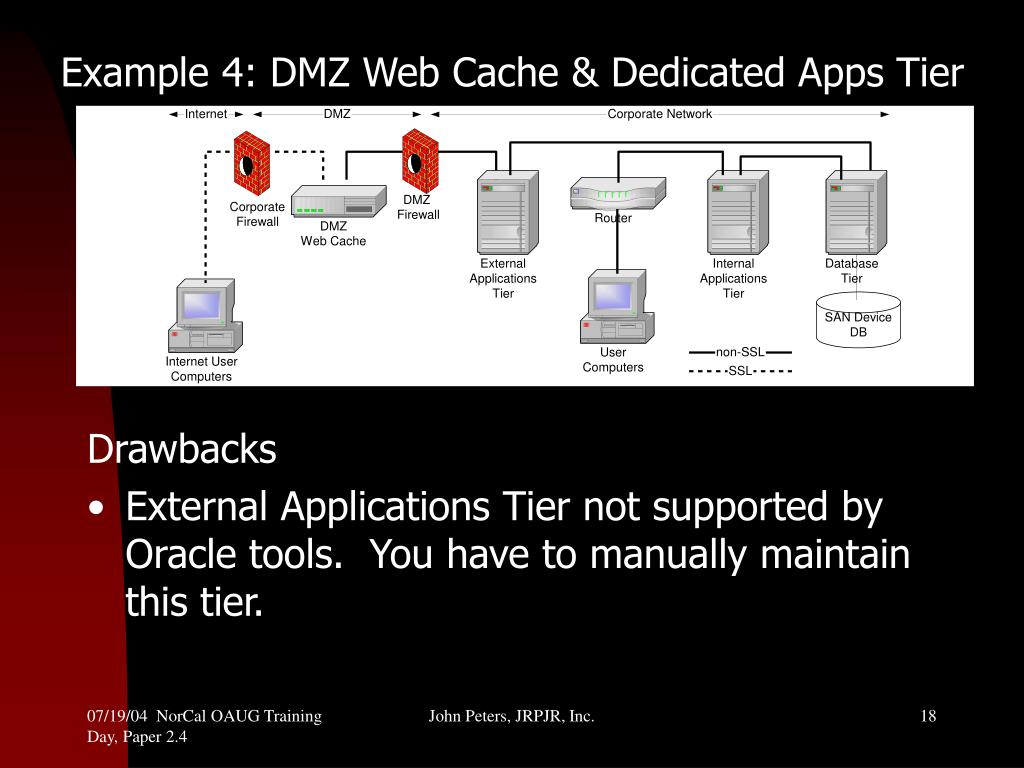

  18. Example 4: DMZ Web Cache & Dedicated Apps Tier Drawbacks • External Applications Tier not supported by Oracle tools. You have to manually maintain this tier. John Peters, JRPJR, Inc.

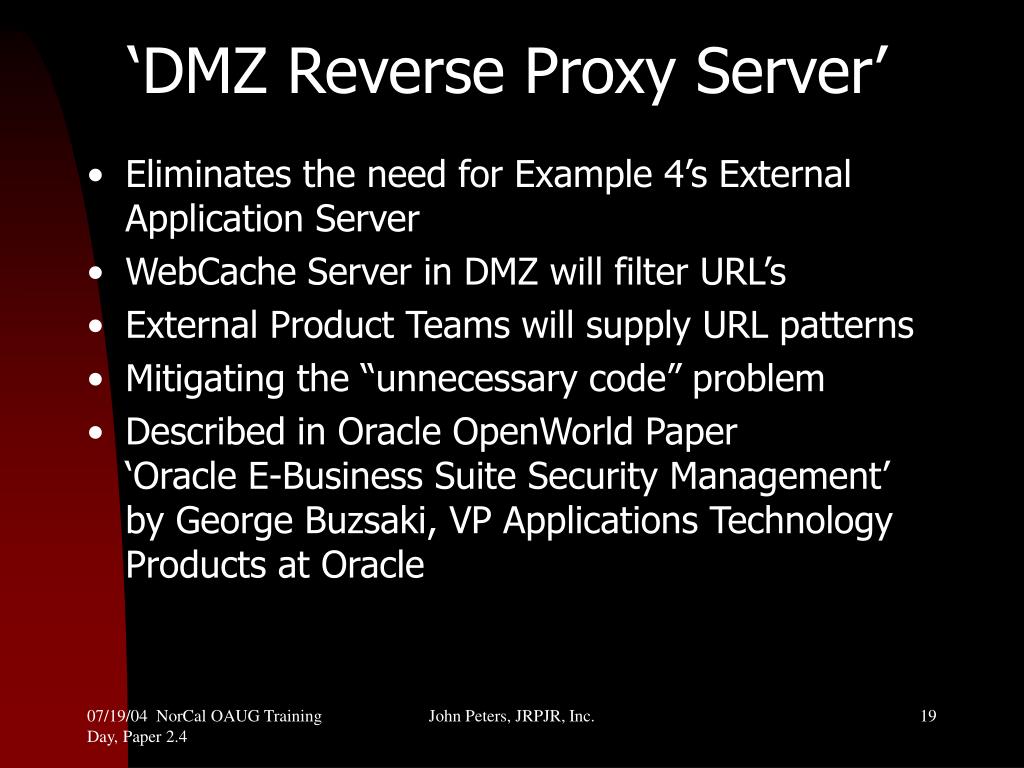

  19. ‘DMZ Reverse Proxy Server’ • Eliminates the need for Example 4’s External Application Server • WebCache Server in DMZ will filter URL’s • External Product Teams will supply URL patterns • Mitigating the “unnecessary code” problem • Described in Oracle OpenWorld Paper ‘Oracle E-Business Suite Security Management’ by George Buzsaki, VP Applications Technology Products at Oracle John Peters, JRPJR, Inc.

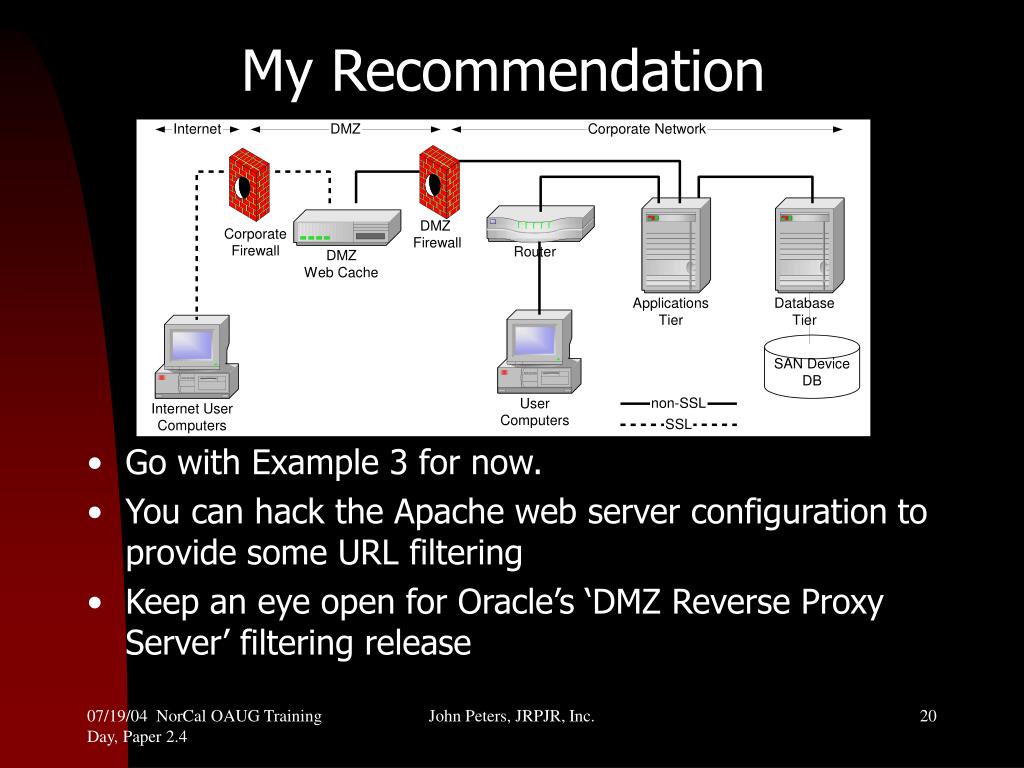

  20. My Recommendation • Go with Example 3 for now. • You can hack the Apache web server configuration to provide some URL filtering • Keep an eye open for Oracle’s ‘DMZ Reverse Proxy Server’ filtering release John Peters, JRPJR, Inc.

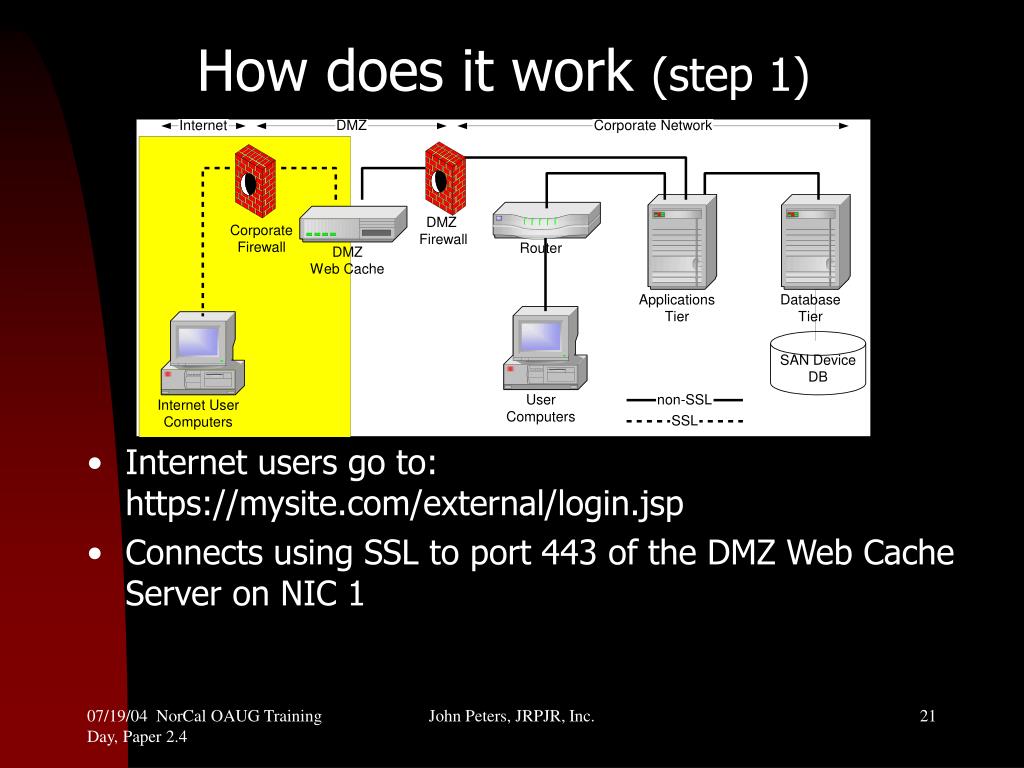

  21. How does it work (step 1) • Internet users go to:https://mysite.com/external/login.jsp • Connects using SSL to port 443 of the DMZ Web Cache Server on NIC 1 John Peters, JRPJR, Inc.

  22. How does it work (step 2) • Web Cache reviews URL request to see if page/data is cached in memory • If so it serves up page/data John Peters, JRPJR, Inc.

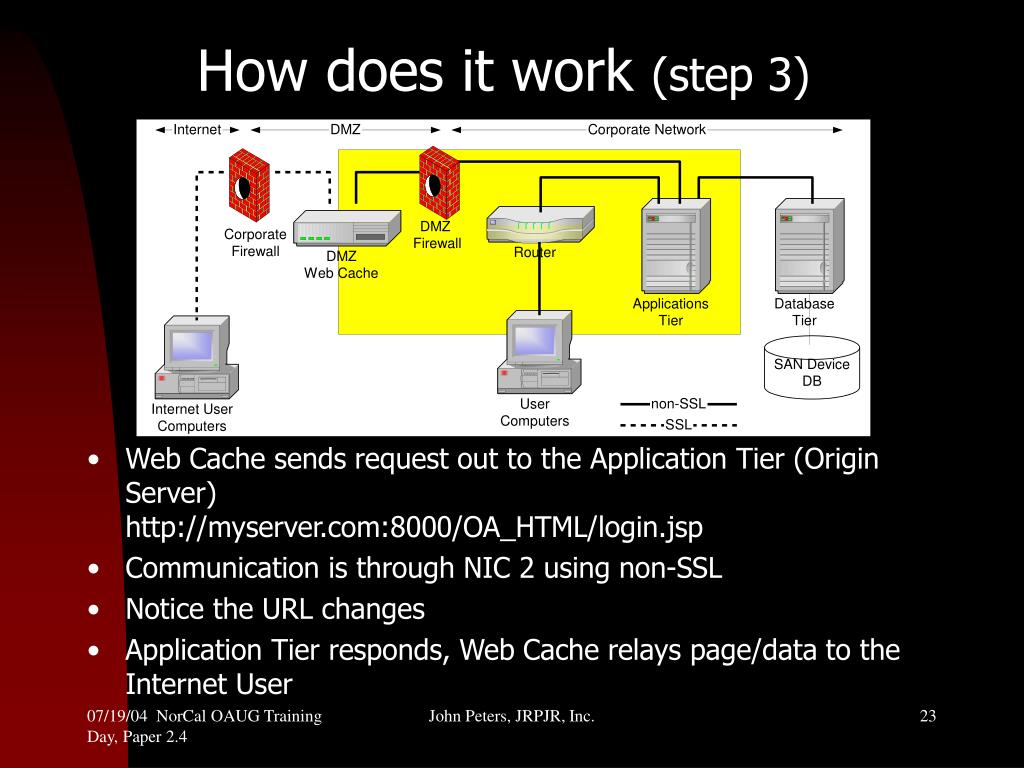

  23. How does it work (step 3) • Web Cache sends request out to the Application Tier (Origin Server) http://myserver.com:8000/OA_HTML/login.jsp • Communication is through NIC 2 using non-SSL • Notice the URL changes • Application Tier responds, Web Cache relays page/data to the Internet User John Peters, JRPJR, Inc.

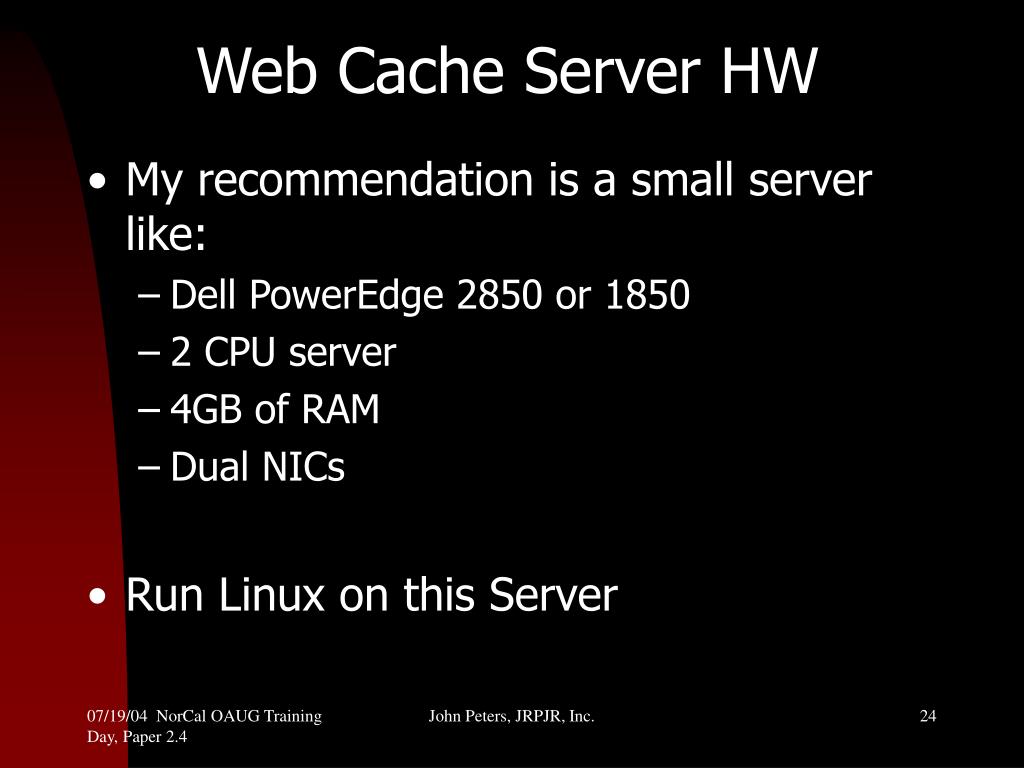

  24. Web Cache Server HW • My recommendation is a small server like: • Dell PowerEdge 2850 or 1850 • 2 CPU server • 4GB of RAM • Dual NICs • Run Linux on this Server John Peters, JRPJR, Inc.

  25. Web Cache Server NIC Configuration • Dual NIC’s allow us to configure them • One NIC Internet Facing • One NIC Application Tier Facing • We are effectively using this server to route traffic from one network to the other John Peters, JRPJR, Inc.

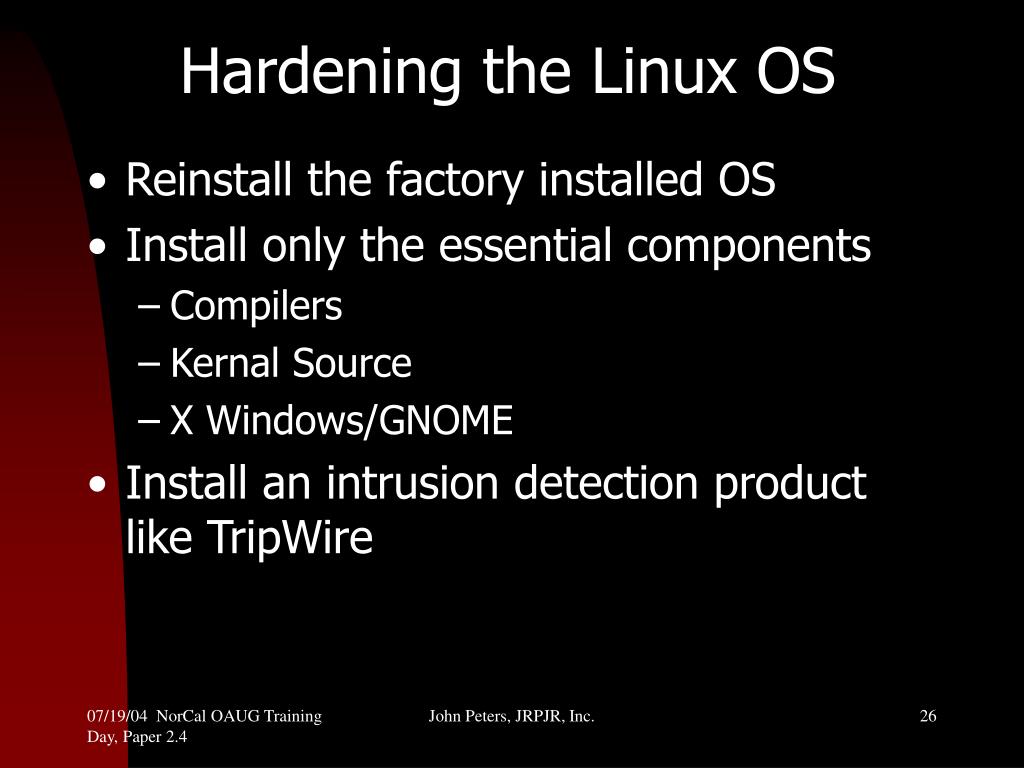

  26. Hardening the Linux OS • Reinstall the factory installed OS • Install only the essential components • Compilers • Kernal Source • X Windows/GNOME • Install an intrusion detection product like TripWire John Peters, JRPJR, Inc.

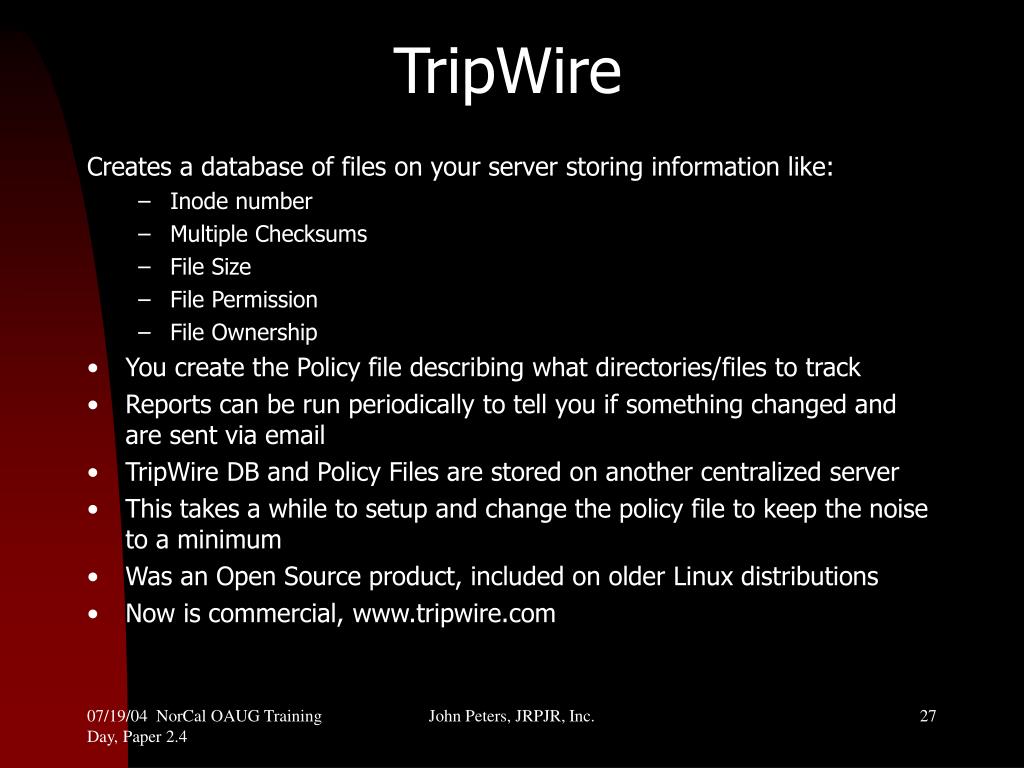

  27. TripWire Creates a database of files on your server storing information like: • Inode number • Multiple Checksums • File Size • File Permission • File Ownership • You create the Policy file describing what directories/files to track • Reports can be run periodically to tell you if something changed and are sent via email • TripWire DB and Policy Files are stored on another centralized server • This takes a while to setup and change the policy file to keep the noise to a minimum • Was an Open Source product, included on older Linux distributions • Now is commercial, www.tripwire.com John Peters, JRPJR, Inc.

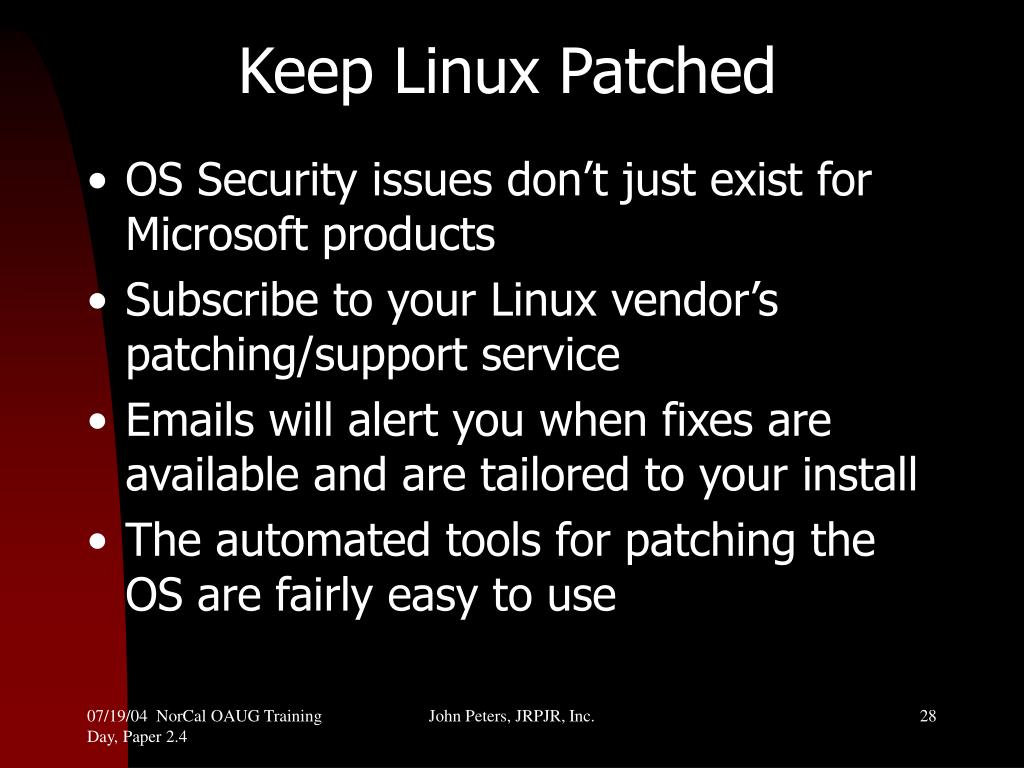

  28. Keep Linux Patched • OS Security issues don’t just exist for Microsoft products • Subscribe to your Linux vendor’s patching/support service • Emails will alert you when fixes are available and are tailored to your install • The automated tools for patching the OS are fairly easy to use John Peters, JRPJR, Inc.

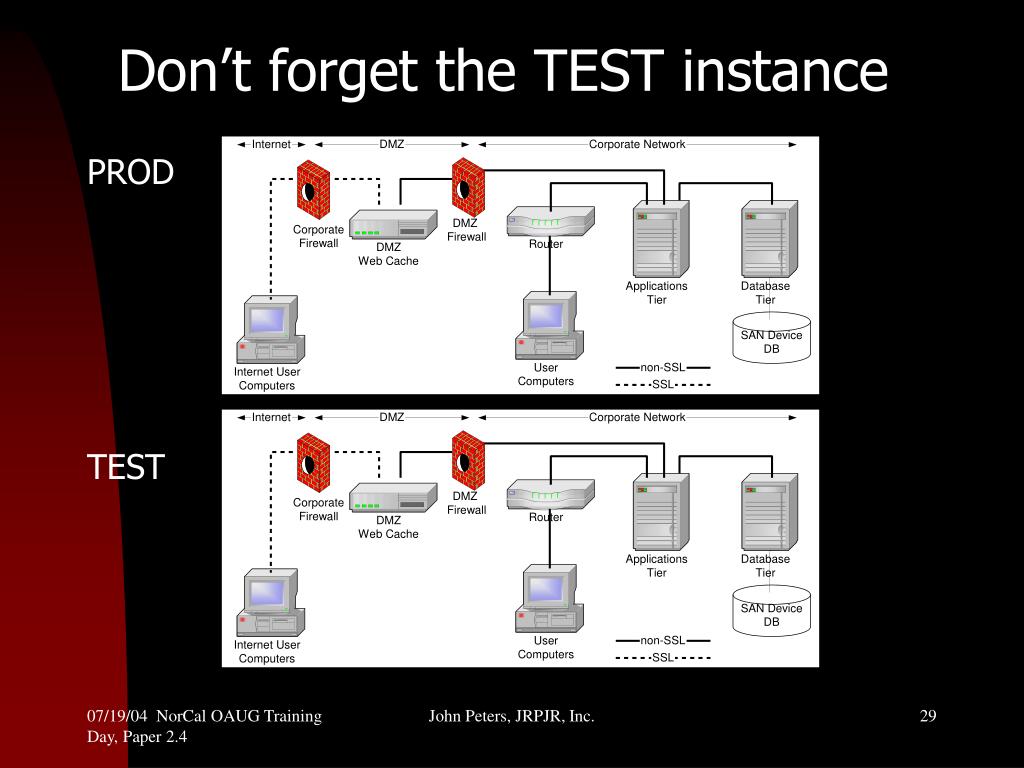

  29. Don’t forget the TEST instance PROD TEST John Peters, JRPJR, Inc.

  30. Support Issues • Down time for patching is now a bigger deal with External Users • Web Cache can serve up “System Down For Maintenance” messages to External Users, rather than no server found browser errors • What was 6am to 6pm support, now turns into 24x7 • Who do external users contact for support? John Peters, JRPJR, Inc.

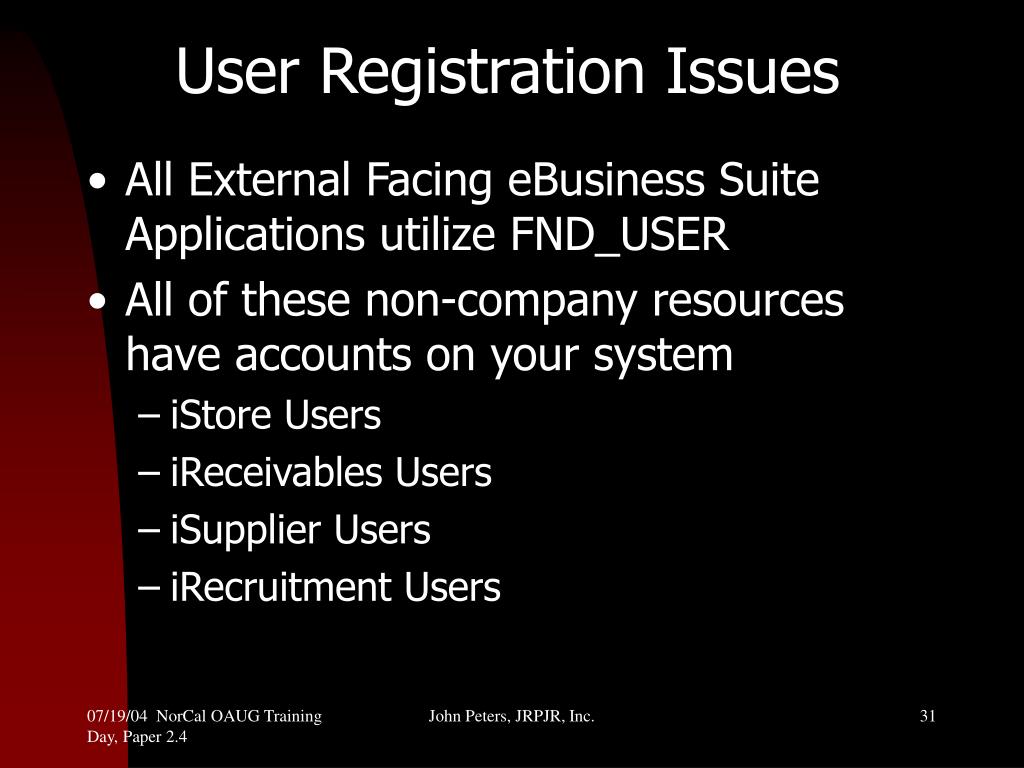

  31. User Registration Issues • All External Facing eBusiness Suite Applications utilize FND_USER • All of these non-company resources have accounts on your system • iStore Users • iReceivables Users • iSupplier Users • iRecruitment Users John Peters, JRPJR, Inc.

  32. How to know who is who • Come up with a Userid Standard for both classes of users: • Internal Users • External Users • Internal Users<first name initial><last name><windows login>jsmith • External Users<email address>joe.smith@mycustomer.com John Peters, JRPJR, Inc.

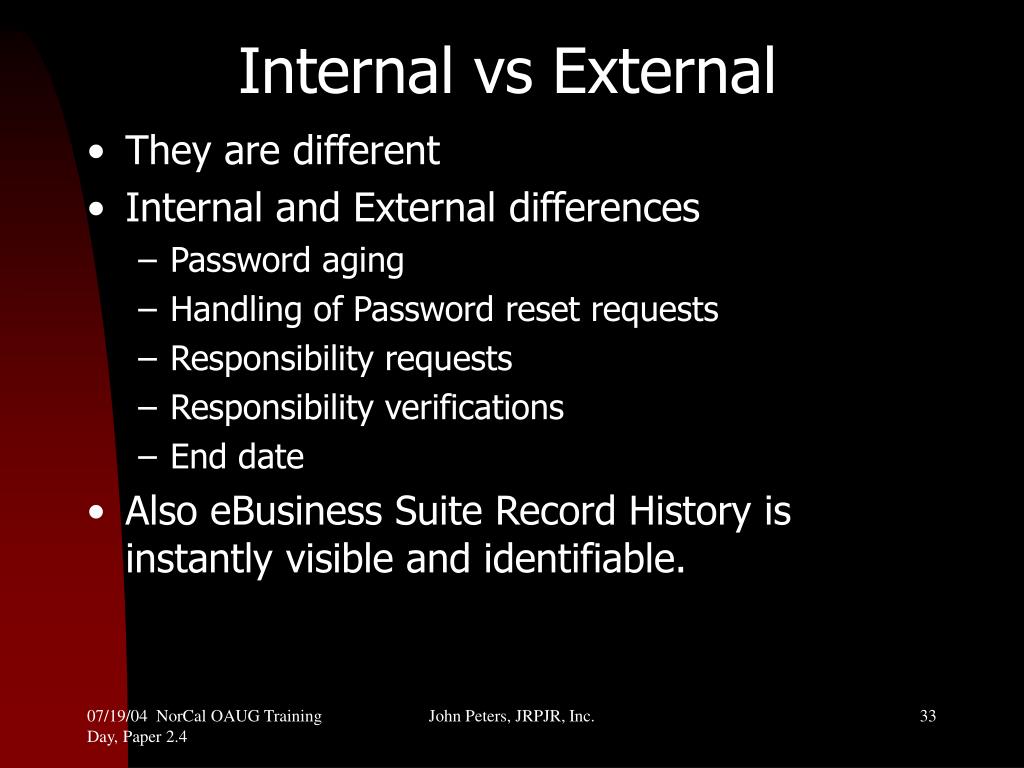

  33. Internal vs External • They are different • Internal and External differences • Password aging • Handling of Password reset requests • Responsibility requests • Responsibility verifications • End date • Also eBusiness Suite Record History is instantly visible and identifiable. John Peters, JRPJR, Inc.

  34. User Registration Page Issues • iStore’s user registration page inserts FND_USER records • User records can not be purged • Internal and External Users are mixed together (use a convention of email address for external users) • They are routed for approval but if denied they are unusable forever • Approval process is really insufficient for most business cases John Peters, JRPJR, Inc.

  35. User Registration Page Issues (cont.) • iStore’s user registration page requests the Party Number from the customer registering. • How many customers know they are 123456 • If they enter 123465 they are linked to a completely different customer • Once incorrectly linked it is almost impossible to correct in CRM, FND_USER, TCA • FND_USER record is lost for further use John Peters, JRPJR, Inc.

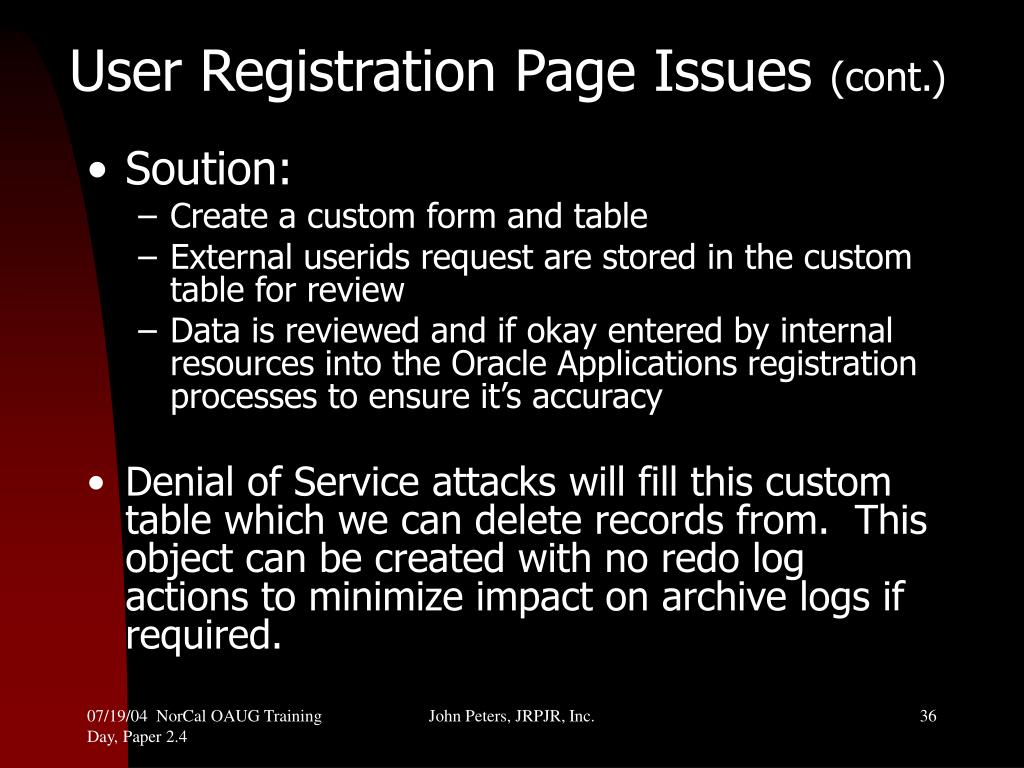

  36. User Registration Page Issues (cont.) • Soution: • Create a custom form and table • External userids request are stored in the custom table for review • Data is reviewed and if okay entered by internal resources into the Oracle Applications registration processes to ensure it’s accuracy • Denial of Service attacks will fill this custom table which we can delete records from. This object can be created with no redo log actions to minimize impact on archive logs if required. John Peters, JRPJR, Inc.

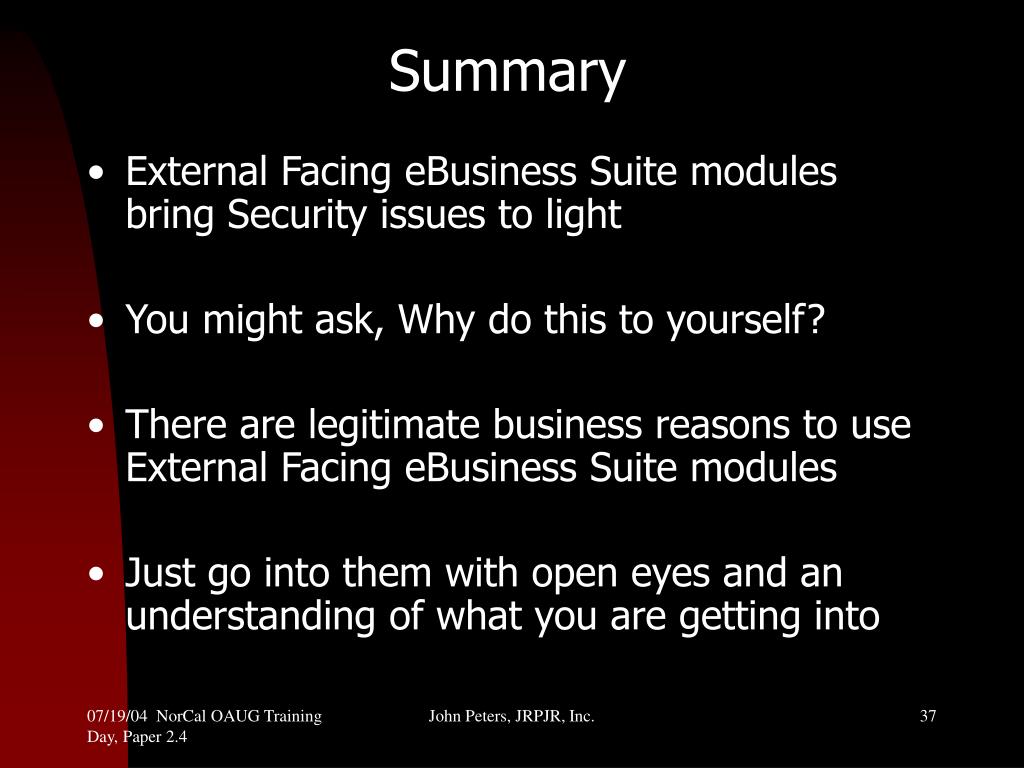

  37. Summary • External Facing eBusiness Suite modules bring Security issues to light • You might ask, Why do this to yourself? • There are legitimate business reasons to use External Facing eBusiness Suite modules • Just go into them with open eyes and an understanding of what you are getting into John Peters, JRPJR, Inc.

  38. Additional References • Note:189367.1, 06-JAN-2005 Best Practices for Securing the E-Business Suite • Note:243324.1, 08-JUL-2003 Securing Oracle E-Business Suite for Internet Access by Suppliers • Note:229335.1, 19-MAY-2004 Best Practices for Securing Oracle E-Business Suite for Internet Access John Peters, JRPJR, Inc.

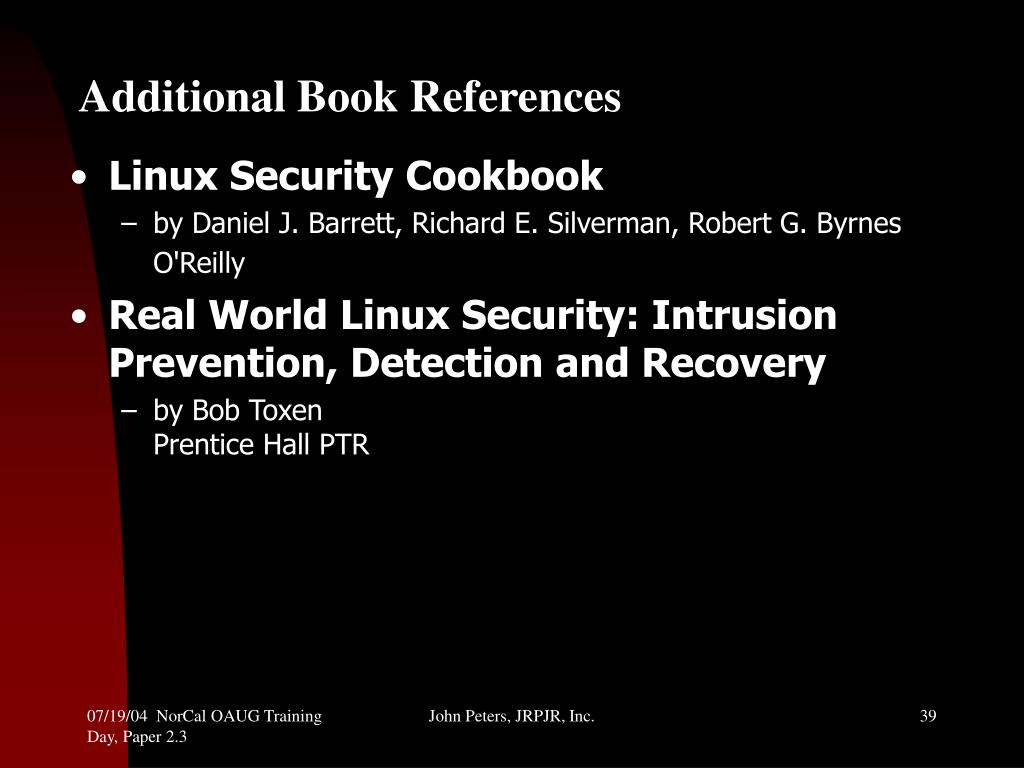

  39. Additional Book References • Linux Security Cookbook • by Daniel J. Barrett, Richard E. Silverman, Robert G. Byrnes O'Reilly • Real World Linux Security: Intrusion Prevention, Detection and Recovery • by Bob ToxenPrentice Hall PTR John Peters, JRPJR, Inc.

  40. My contact information: John Petersjohn.peters@jrpjr.com http://www.jrpjr.com • Additional reference papers can be found at:http://www.norcaloaug.org http://www.jrpjr.com John Peters, JRPJR, Inc.
