Off-the-Record Communication, or, Why Not To Use PGP

1. Off-the-Record Communication, or, Why Not To Use PGP Slides by Su Zhang Nov 8th, 2010

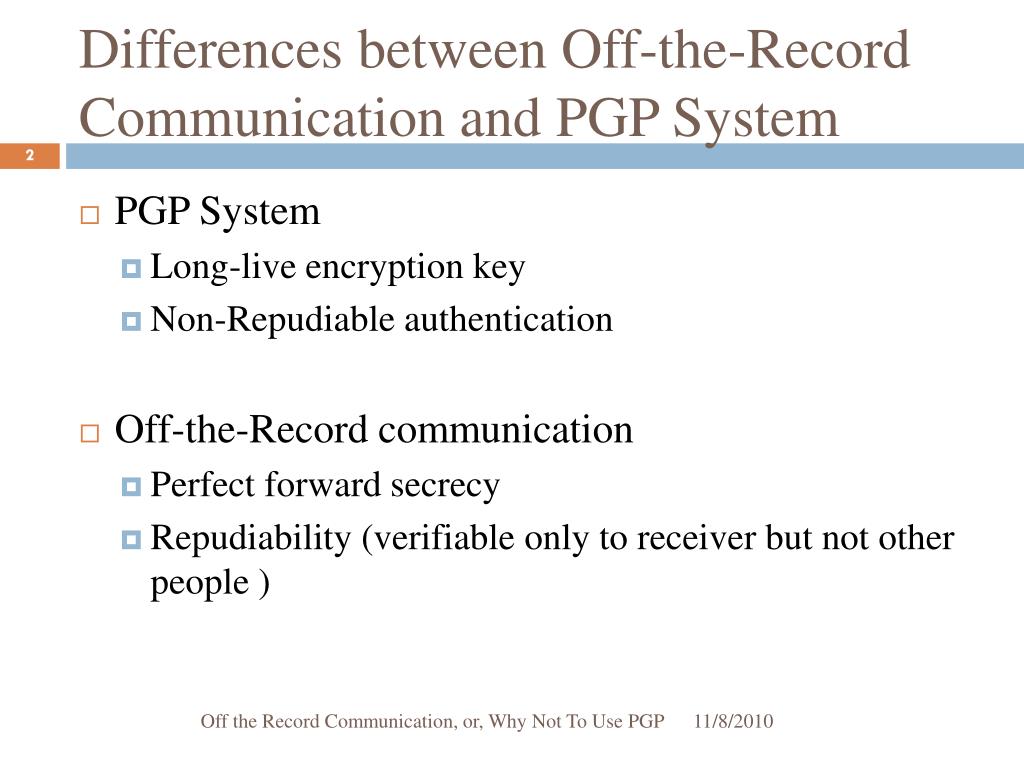

2. Differences between Off-the-Record Communication and PGP System • PGP System • Long-live encryption key • Non-Repudiable authentication • Off-the-Record communication • Perfect forward secrecy • Repudiability (verifiable only to receiver but not other people ) Off the Record Communication, or, Why Not To Use PGP

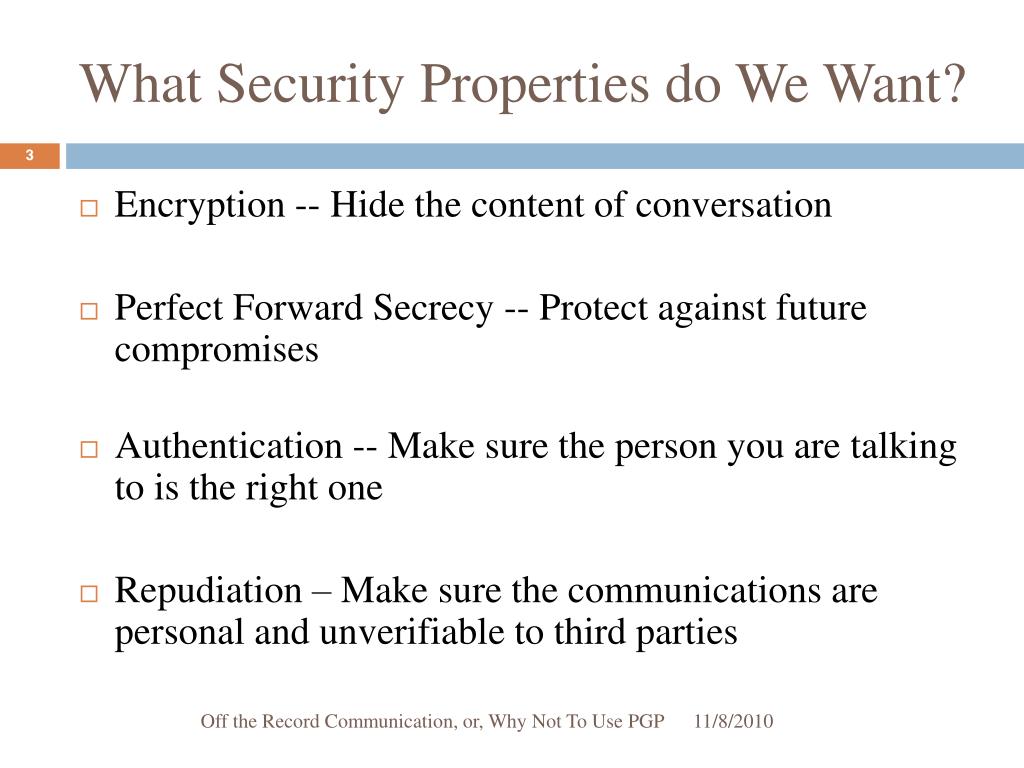

3. What Security Properties do We Want? • Encryption -- Hide the content of conversation • Perfect Forward Secrecy -- Protect against future compromises • Authentication -- Make sure the person you are talking to is the right one • Repudiation – Make sure the communications are personal and unverifiable to third parties Off the Record Communication, or, Why Not To Use PGP

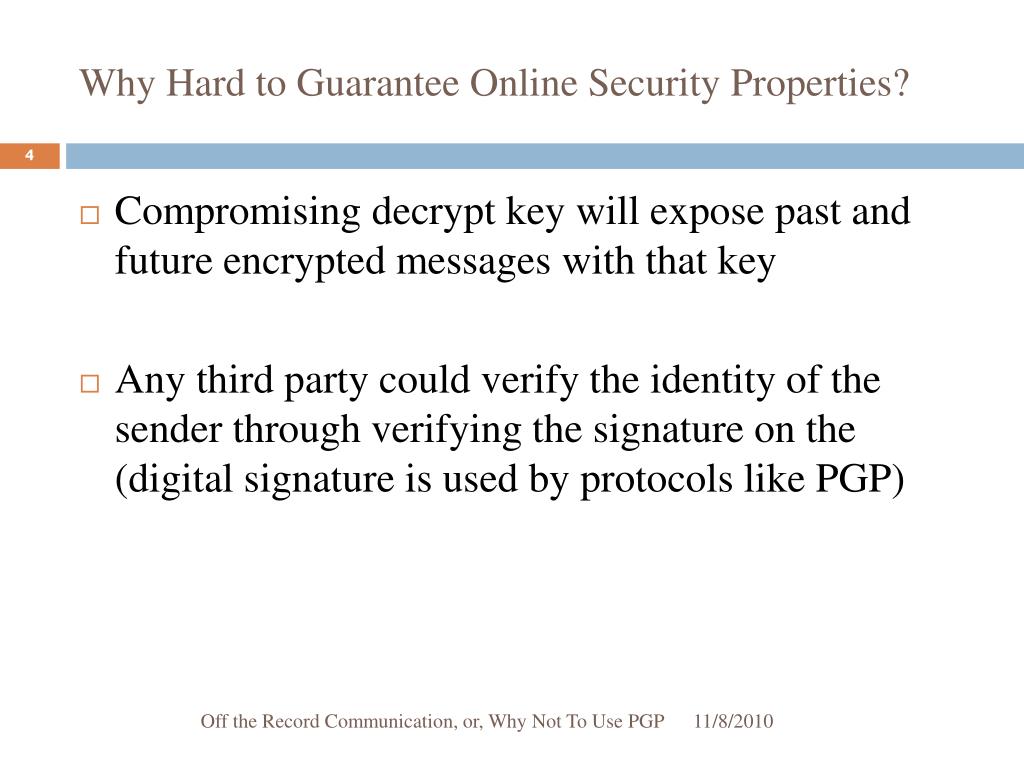

4. Why Hard to Guarantee Online Security Properties? • Compromising decrypt key will expose past and future encrypted messages with that key • Any third party could verify the identity of the sender through verifying the signature on the (digital signature is used by protocols like PGP) Off the Record Communication, or, Why Not To Use PGP

5. Perfect Forward Secrecy • Using short-lived encryption/decryption keys • Impossible to re-derive from their long-term keys • No one (including sender and receiver) couldn’t re-construct the key • Keys are generated through Diffie-Hellman key agreement protocol Off the Record Communication, or, Why Not To Use PGP

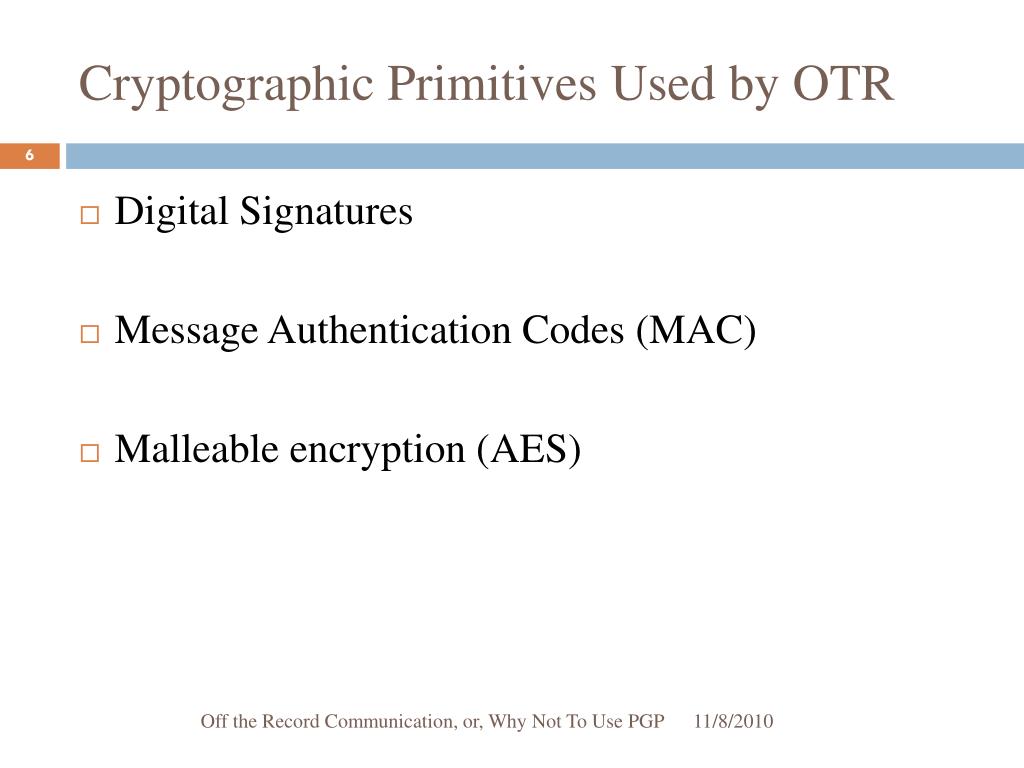

6. Cryptographic Primitives Used by OTR • Digital Signatures • Message Authentication Codes (MAC) • Malleable encryption (AES) Off the Record Communication, or, Why Not To Use PGP

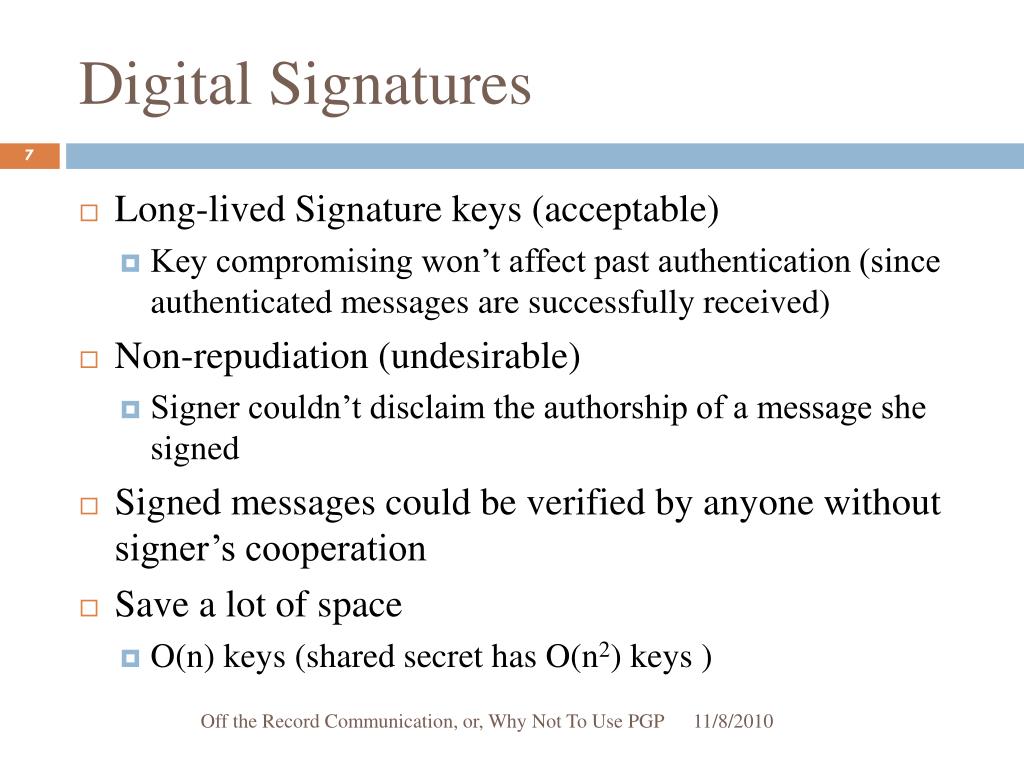

7. Digital Signatures • Long-lived Signature keys (acceptable) • Key compromising won’t affect past authentication (since authenticated messages are successfully received) • Non-repudiation (undesirable) • Signer couldn’t disclaim the authorship of a message she signed • Signed messages could be verified by anyone without signer’s cooperation • Save a lot of space • O(n) keys (shared secret has O(n2) keys ) Off the Record Communication, or, Why Not To Use PGP

8. Message Authentication Code • MAC can check the integrity of the message • Cannot provide Non repudiation (repudiable) • Two parties could authenticate each other (by using their shared secret) but others couldn’t Off the Record Communication, or, Why Not To Use PGP

9. Malleable Encryption and Forgeability • Everyone could have changed the message before it arrive at the receiver end (or before attacker get it) • Modifying some cipher text could change the meaning of plain text even without knowing encryption key. (e.g. stream cipher) • Attacker could choose another message which could have a same length of cipher text then replace it with original one • This is to show that anyone could have modified the message so nobody (except Bob) could find any clue about Alice from the message she sent. Off the Record Communication, or, Why Not To Use PGP

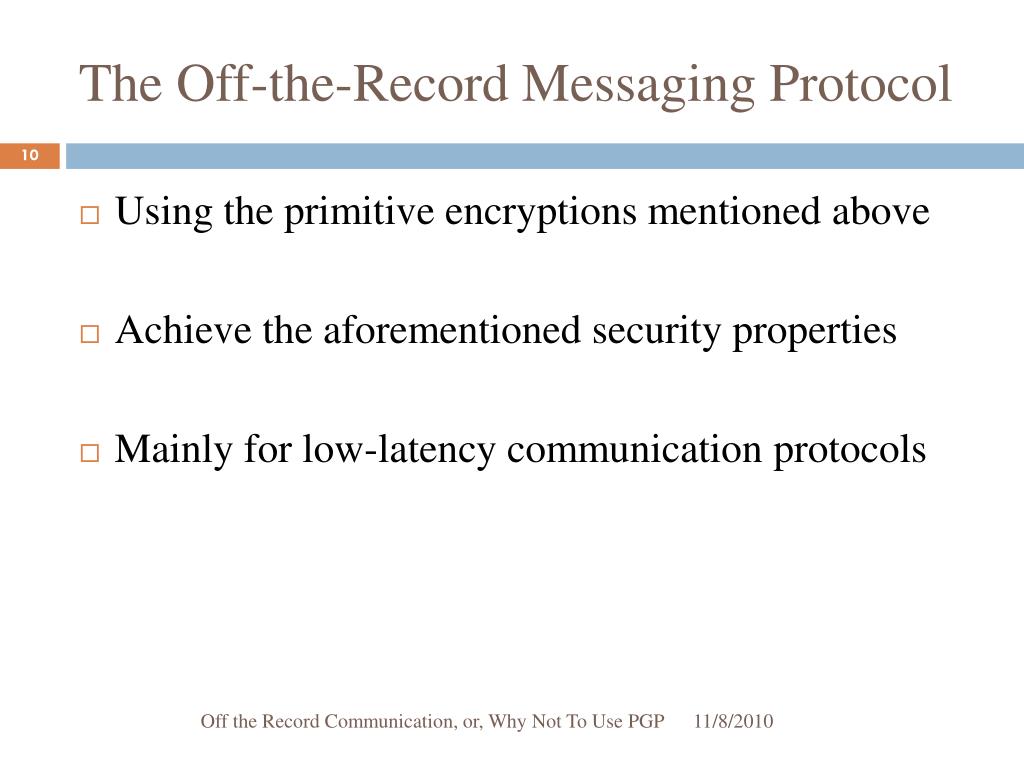

10. The Off-the-Record Messaging Protocol • Using the primitive encryptions mentioned above • Achieve the aforementioned security properties • Mainly for low-latency communication protocols Off the Record Communication, or, Why Not To Use PGP

11. Off-the-Record -- Encryption • Encryption algorithm—AES (Malleable) • Encryption key – Generated through Diffie-Hellman agreement • Short-term key (forward secrecy): re-generated keys frequently Off the Record Communication, or, Why Not To Use PGP

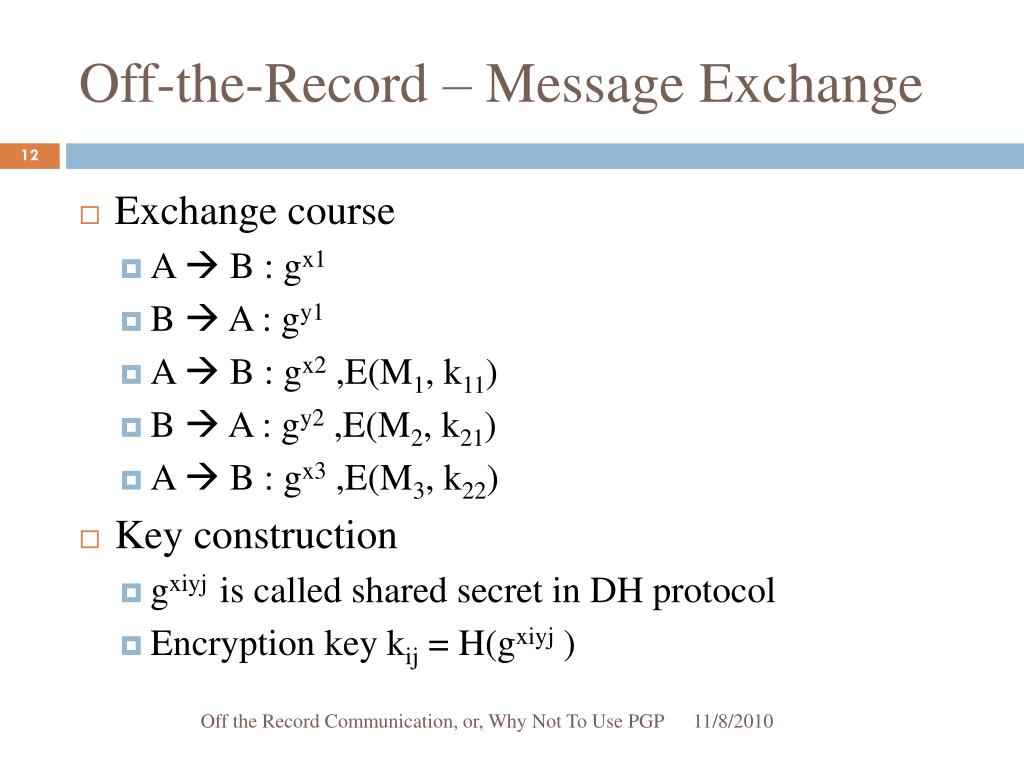

12. Off-the-Record – Message Exchange • Exchange course • A  B : gx1 • B  A : gy1 • A  B : gx2 ,E(M1, k11) • B A : gy2 ,E(M2, k21) • A  B : gx3 ,E(M3, k22) • Key construction • gxiyjis called shared secret in DH protocol • Encryption key kij = H(gxiyj ) Off the Record Communication, or, Why Not To Use PGP

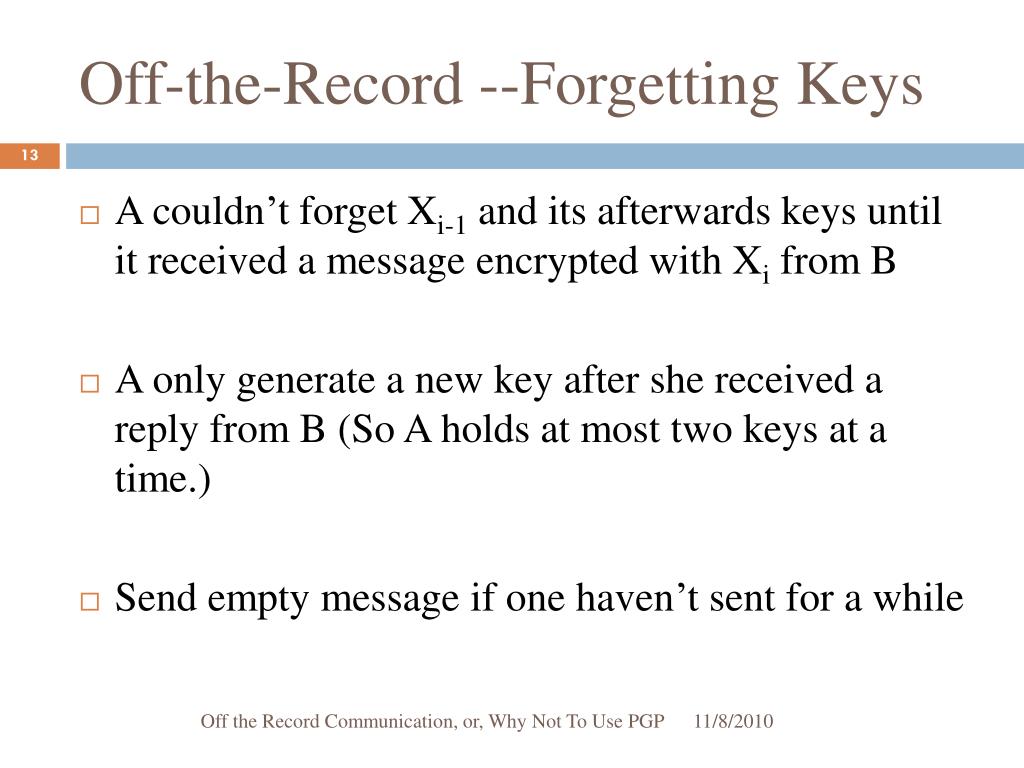

13. Off-the-Record --Forgetting Keys • A couldn’t forget Xi-1 and its afterwards keys until it received a message encrypted with Xi from B • A only generate a new key after she received a reply from B (So A holds at most two keys at a time.) • Send empty message if one haven’t sent for a while Off the Record Communication, or, Why Not To Use PGP

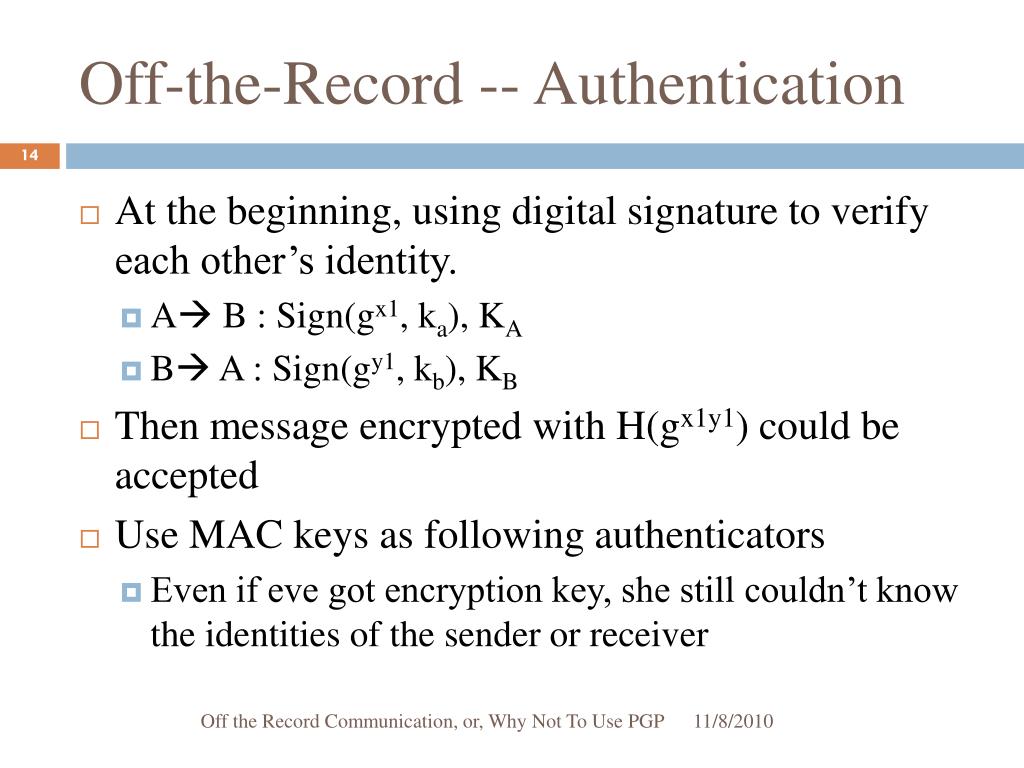

14. Off-the-Record -- Authentication • At the beginning, using digital signature to verify each other’s identity. • A B : Sign(gx1, ka), KA • B A : Sign(gy1, kb), KB • Then message encrypted with H(gx1y1) could be accepted • UseMAC keys as following authenticators • Even if eve got encryption key, she still couldn’t know the identities of the sender or receiver Off the Record Communication, or, Why Not To Use PGP

15. Off-the-Record – Authentication (cont) • Following protocol message: • gx(i+1), E(Mk, kij ), MAC({gx(i+1), E(Mk, kij )}, H(kij)) • MAC key: H(kij) =H( H(gxiyj )) • Both message and the encryption key are authenticated Off the Record Communication, or, Why Not To Use PGP

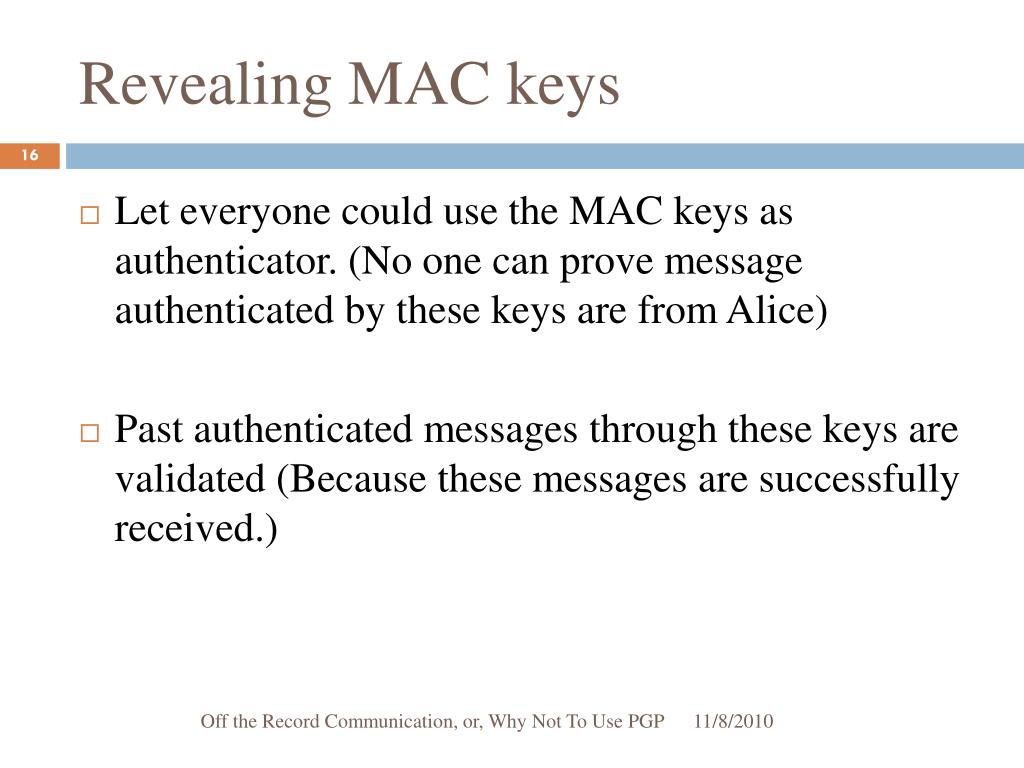

16. Revealing MAC keys • Let everyone could use the MAC keys as authenticator. (No one can prove message authenticated by these keys are from Alice) • Past authenticated messages through these keys are validated (Because these messages are successfully received.) Off the Record Communication, or, Why Not To Use PGP

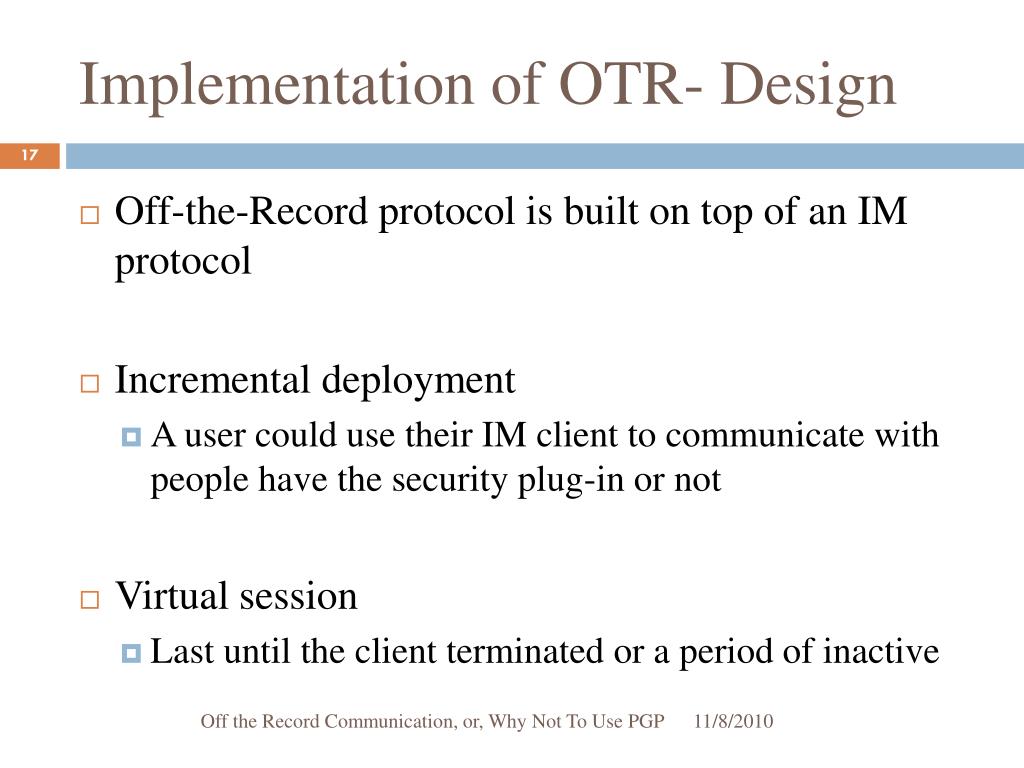

17. Implementation of OTR- Design • Off-the-Record protocol is built on top of an IM protocol • Incremental deployment • A user could use their IM client to communicate with people have the security plug-in or not • Virtual session • Last until the client terminated or a period of inactive Off the Record Communication, or, Why Not To Use PGP

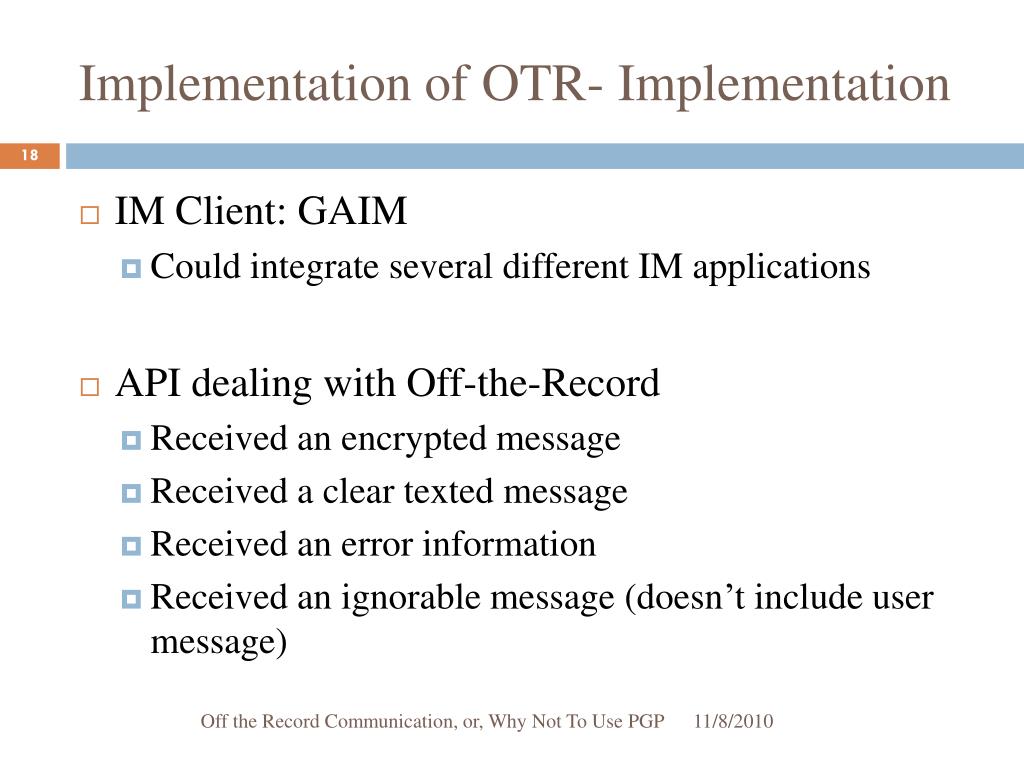

18. Implementation of OTR- Implementation • IM Client: GAIM • Could integrate several different IM applications • API dealing with Off-the-Record • Received an encrypted message • Received a clear texted message • Received an error information • Received an ignorable message (doesn’t include user message) Off the Record Communication, or, Why Not To Use PGP

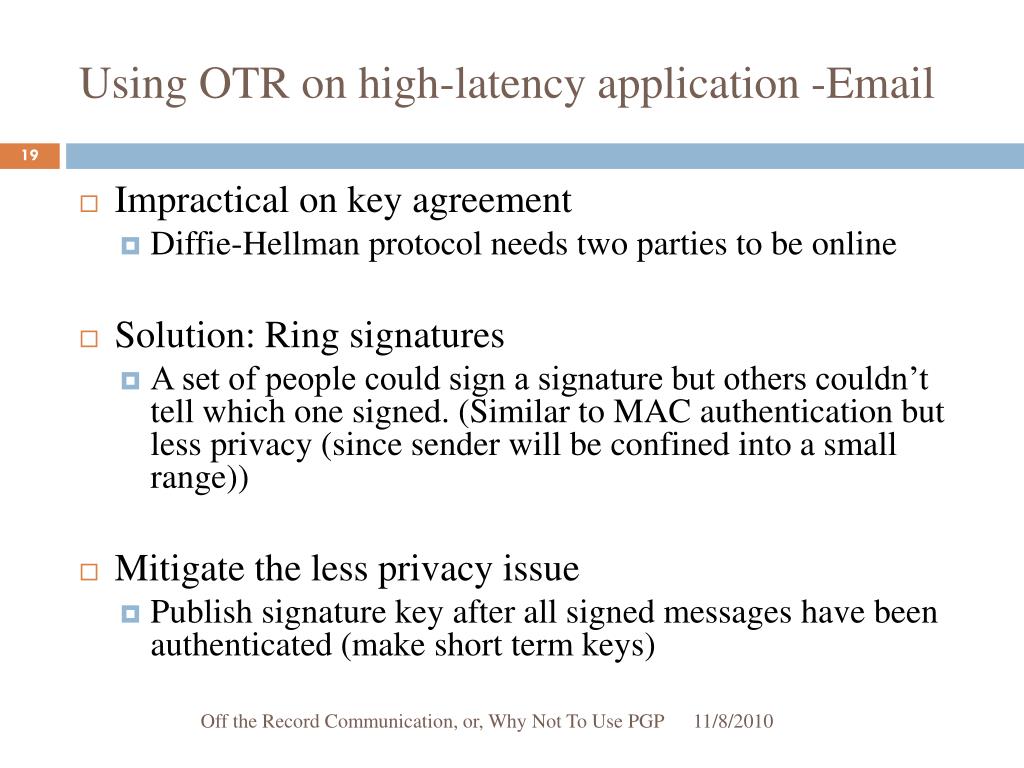

19. Using OTR on high-latency application -Email • Impractical on key agreement • Diffie-Hellman protocol needs two parties to be online • Solution: Ring signatures • A set of people could sign a signature but others couldn’t tell which one signed. (Similar to MAC authentication but less privacy (since sender will be confined into a small range)) • Mitigate the less privacy issue • Publish signature key after all signed messages have been authenticated (make short term keys) Off the Record Communication, or, Why Not To Use PGP

20. Conclusions • Off-the-Record realized ideal security properties • Repudiable online communication • Perfect forward secret manner • Maintaining confidentiality and authenticity assurances Off the Record Communication, or, Why Not To Use PGP

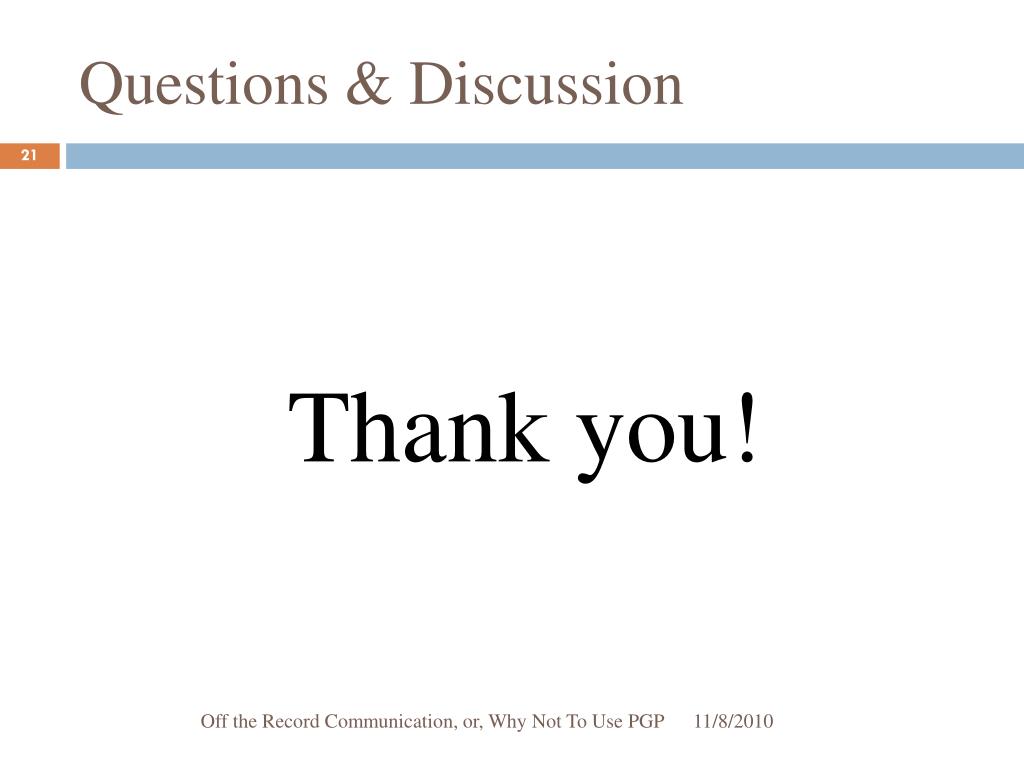

21. Questions & Discussion Thank you! Off the Record Communication, or, Why Not To Use PGP
