  1. Using Java Annotationsin Eclipse Gary Horen BEA Systems Tim Wagner BEA Systems

  2. Agenda • Background • Simple Example Demo • Mirror API and APT • Pitfalls • More Elaborate Example • Futures

  3. What are annotations? • Metadata placed directly in your source code • Standardized by JSR 175, added to Java in 1.5 • Intended to replace “xdoclet”-style programming with a modern, type-checked equivalent @MyAnnotation(num=5, str=“hi”) public class Foo { … }

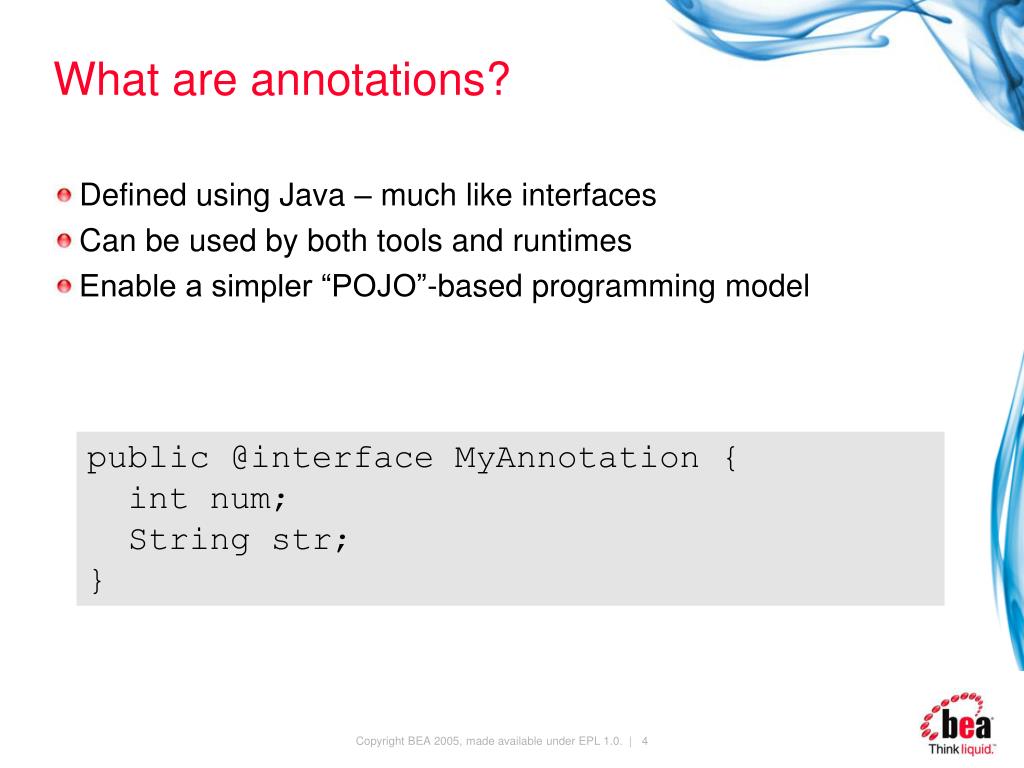

  4. What are annotations? • Defined using Java – much like interfaces • Can be used by both tools and runtimes • Enable a simpler “POJO”-based programming model public @interface MyAnnotation { int num; String str; }

  5. What can an annotation do? • Example: helping a POJO to become a web service • Annotations on user code generate helper objects • Endpoint interface: receives and parses XML message • Bindings embody the message as parameters to the POJO method Endpoint Interface generates @WebservicePublic class Foo { } XML-Java Bindings

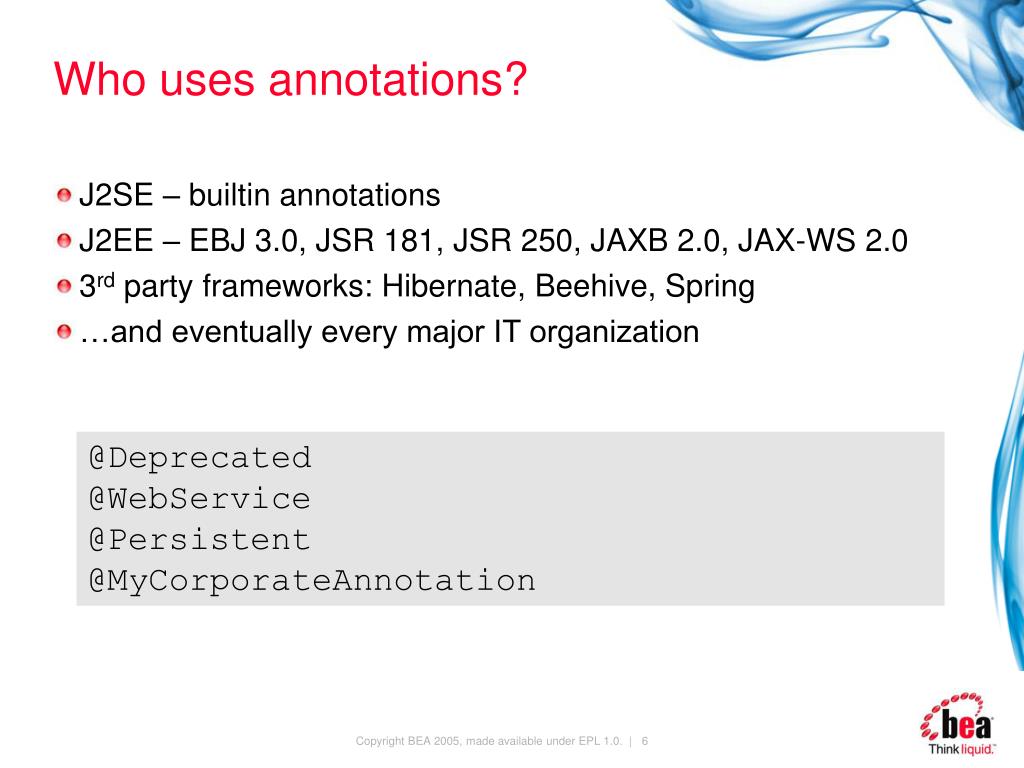

  6. Who uses annotations? • J2SE – builtin annotations • J2EE – EBJ 3.0, JSR 181, JSR 250, JAXB 2.0, JAX-WS 2.0 • 3rd party frameworks: Hibernate, Beehive, Spring • …and eventually every major IT organization @Deprecated @WebService @Persistent @MyCorporateAnnotation

  7. Build-time uses • Many annotations effects happen at build time, not run time • “I need to create a stub/skeleton that matches this interface” • “I need to inform my container that I need resource X” • “I need to verify that this method meets some constraints” • We need several things to make this useful • Something to process a set of annotations – an annotation processor • A build (compile) time container for these processors – a compiler with extra smarts • Enhanced visual tools – make Eclipse aware of the special semantics of annotations

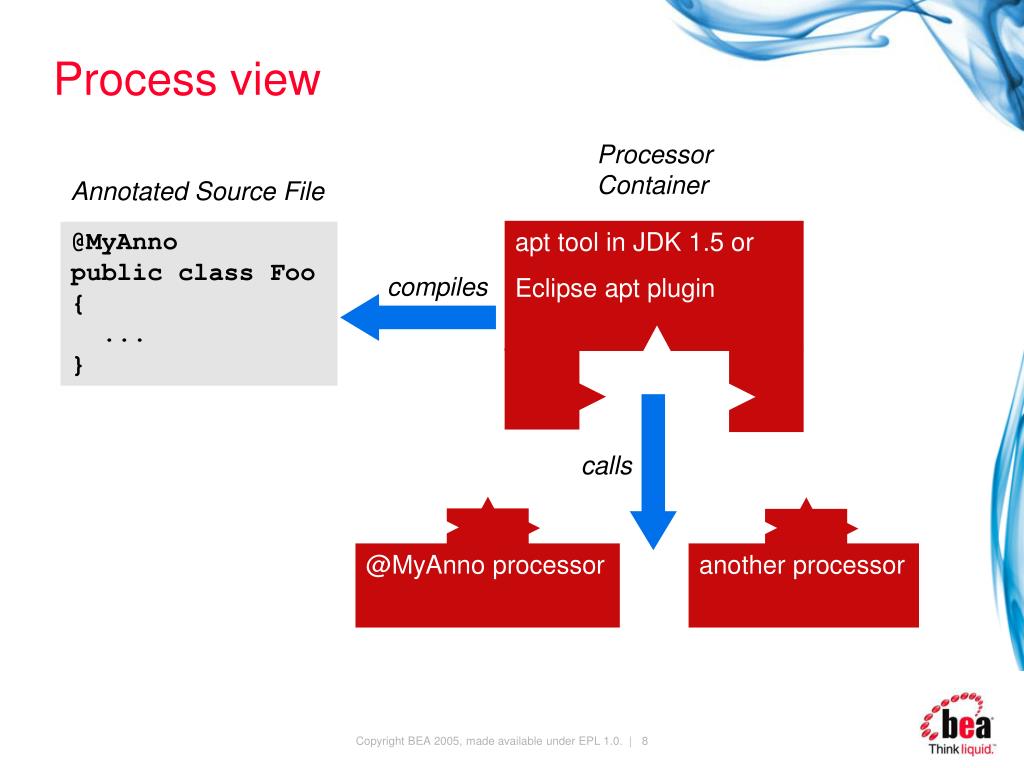

  8. Process view Processor Container Annotated Source File apt tool in JDK 1.5 or Eclipse apt plugin @MyAnno public class Foo { ... } compiles calls @MyAnno processor another processor

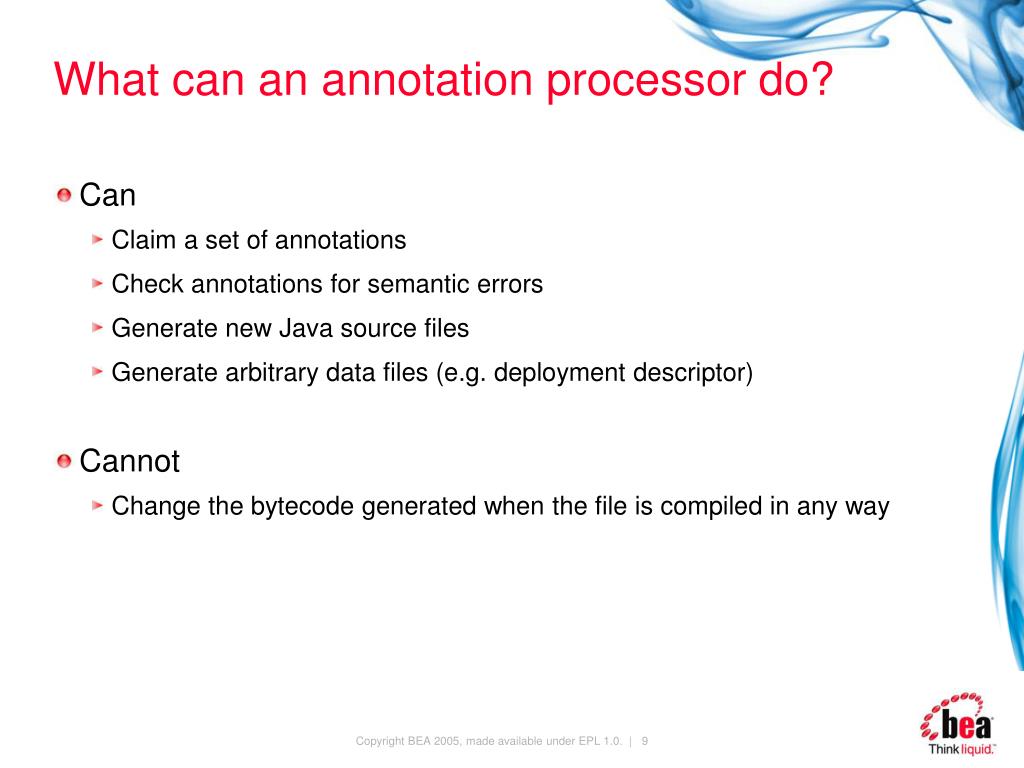

  9. What can an annotation processor do? • Can • Claim a set of annotations • Check annotations for semantic errors • Generate new Java source files • Generate arbitrary data files (e.g. deployment descriptor) • Cannot • Change the bytecode generated when the file is compiled in any way

  10. Demo • DemoAnnotation • An Annotation contains elements • Elements contain names and values • An annotation processor can check element values for correctness • TypeGeneratingAnnotation • Generates a Java source file

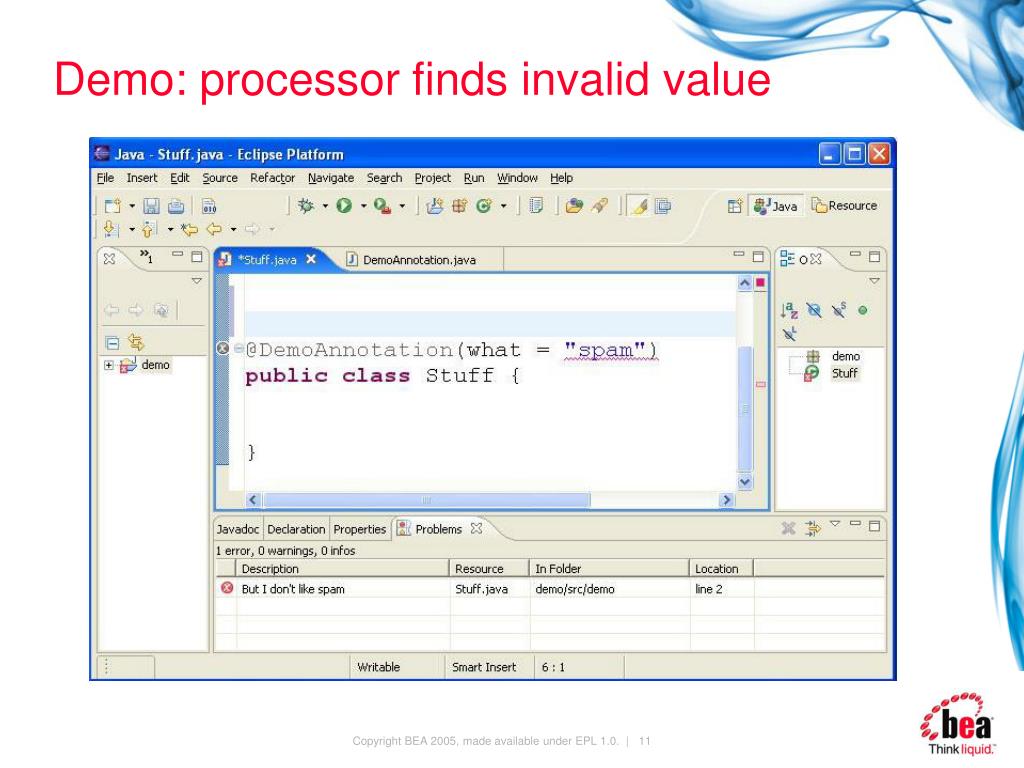

  11. Demo: processor finds invalid value

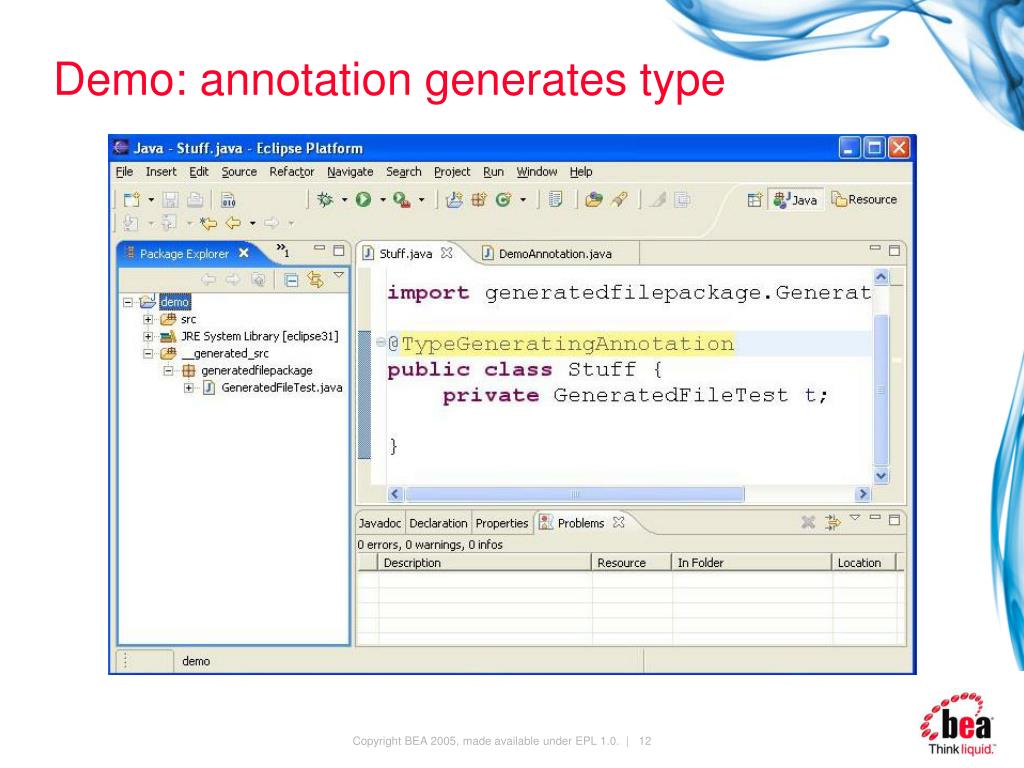

  12. Demo: annotation generates type

  13. Agenda • Background • Simple Example Demo • The mirror API and APT • Pitfalls • More Elaborate Example • Futures

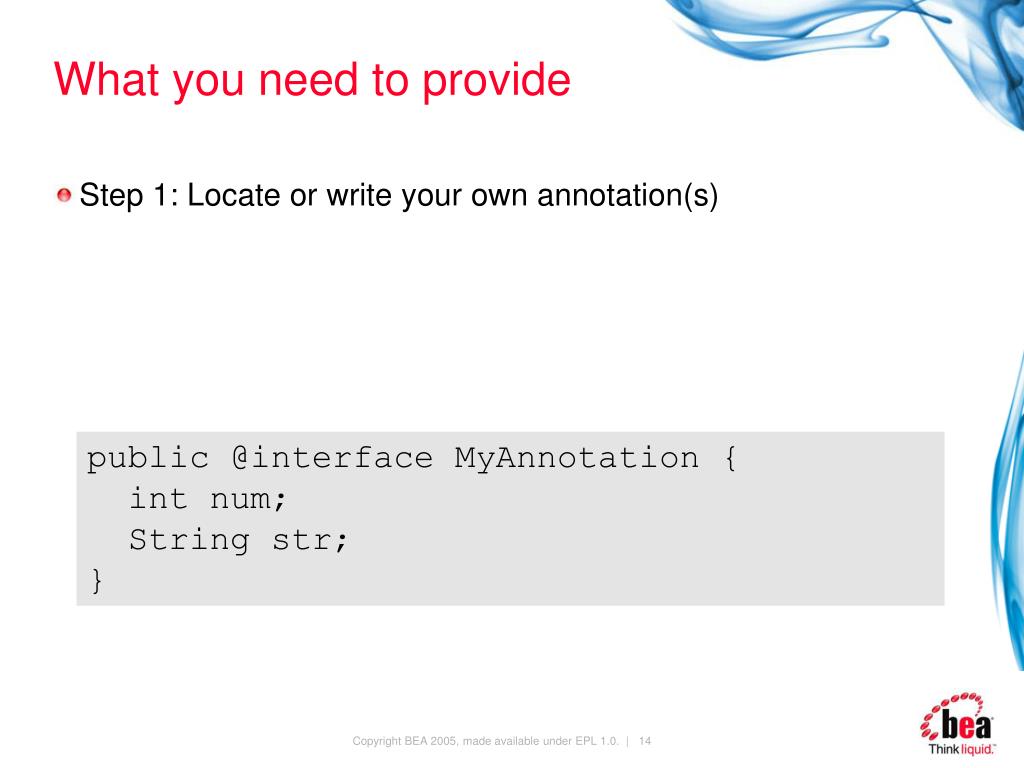

  14. What you need to provide • Step 1: Locate or write your own annotation(s) public @interface MyAnnotation { int num; String str; }

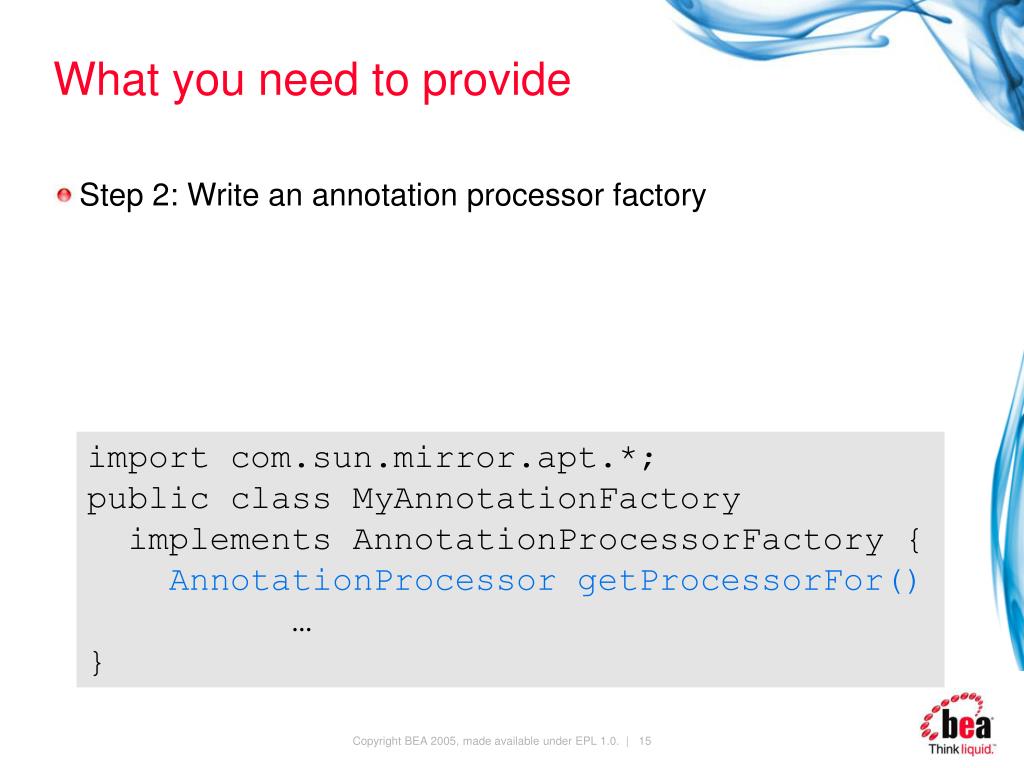

  15. What you need to provide • Step 2: Write an annotation processor factory import com.sun.mirror.apt.*; public class MyAnnotationFactory implements AnnotationProcessorFactory { AnnotationProcessor getProcessorFor() … }

  16. What you need to provide • Step 3: Write an annotation processor import com.sun.mirror.apt.*; public class MyAnnotationProcessor implements AnnotationProcessor { void process() }

  17. Packaging • You provide • The annotation declaration • An implementation of AnnotationProcessorFactory • An implementation of AnnotationProcessor • These are packaged in a jar • Processor runs inside a dispatching framework • Command line APT • org.eclipse.jdt.apt.core plugin

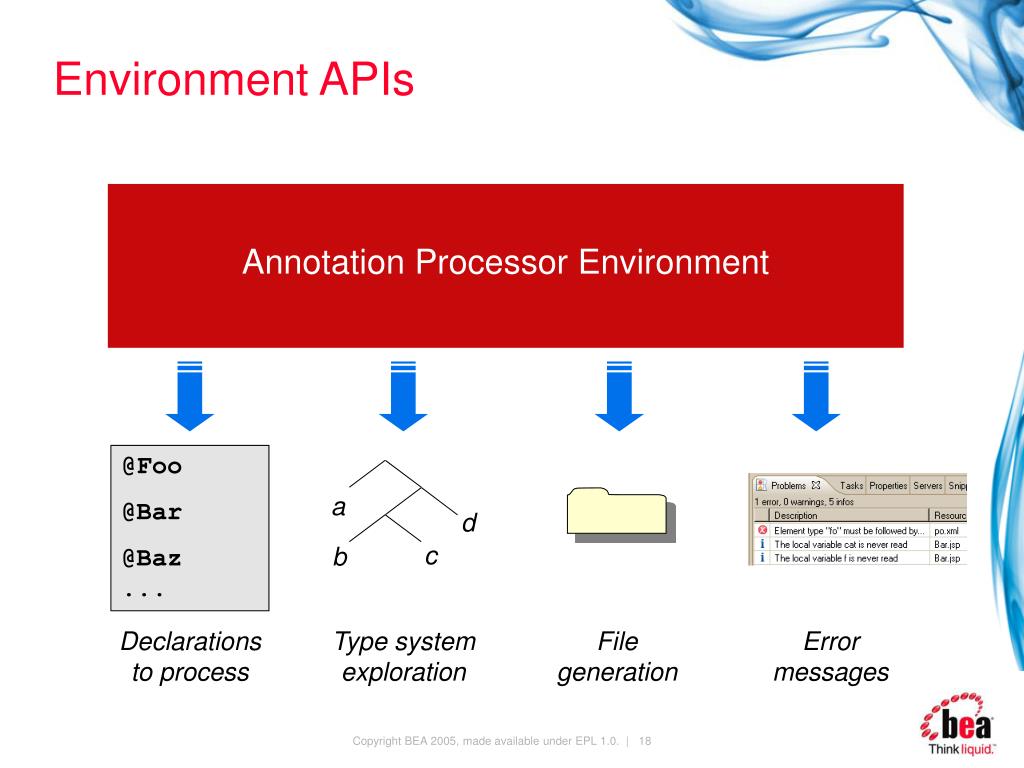

  18. Environment APIs Annotation Processor Environment @Foo @Bar @Baz ... a d c b Declarations to process Type system exploration File generation Error messages

  19. Using AnnotationProcessorEnvironment AnnotationProcessorEnvironment getDeclarationsWith(annotation) Declaration getAnnotationMirrors() AnnotationMirror getElementValues() Element map

  20. Processing rounds Round 1: Original source files Round 2: Types generated by processing original files in round 1 Round 3: Types generated in round 2

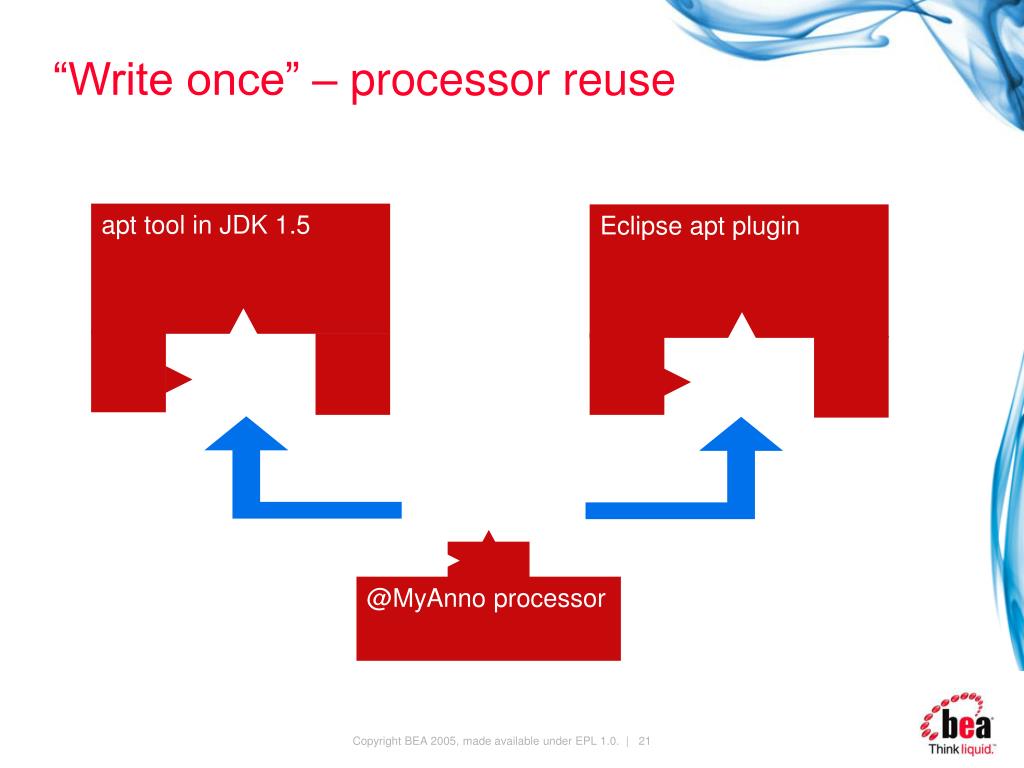

  21. “Write once” – processor reuse apt tool in JDK 1.5 or Eclipse apt plugin Eclipse apt plugin or apt tool in JDK 1.5 @MyAnno processor

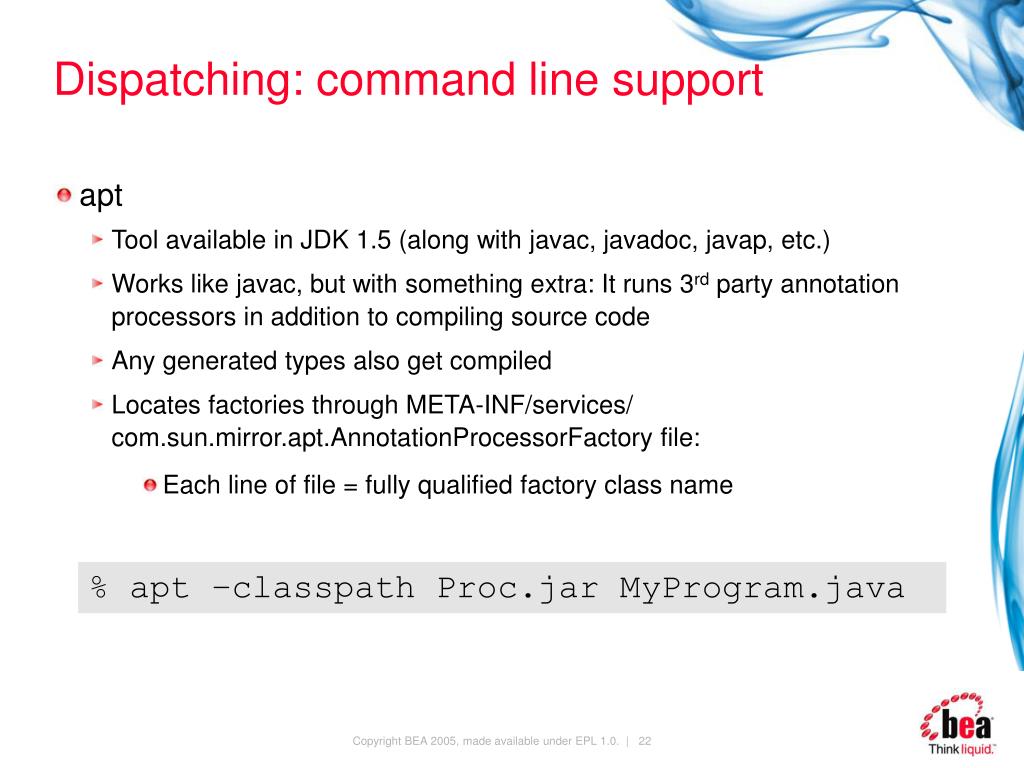

  22. Dispatching: command line support • apt • Tool available in JDK 1.5 (along with javac, javadoc, javap, etc.) • Works like javac, but with something extra: It runs 3rd party annotation processors in addition to compiling source code • Any generated types also get compiled • Locates factories through META-INF/services/com.sun.mirror.apt.AnnotationProcessorFactory file: • Each line of file = fully qualified factory class name % apt –classpath Proc.jar MyProgram.java

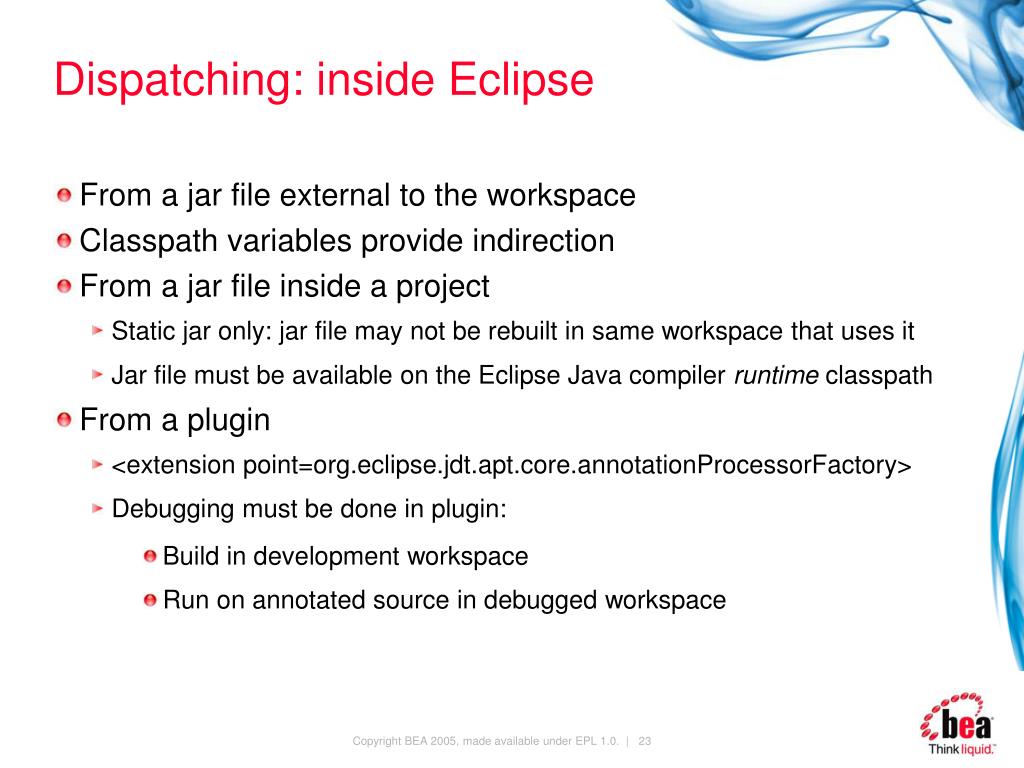

  23. Dispatching: inside Eclipse • From a jar file external to the workspace • Classpath variables provide indirection • From a jar file inside a project • Static jar only: jar file may not be rebuilt in same workspace that uses it • Jar file must be available on the Eclipse Java compiler runtime classpath • From a plugin • <extension point=org.eclipse.jdt.apt.core.annotationProcessorFactory> • Debugging must be done in plugin: • Build in development workspace • Run on annotated source in debugged workspace

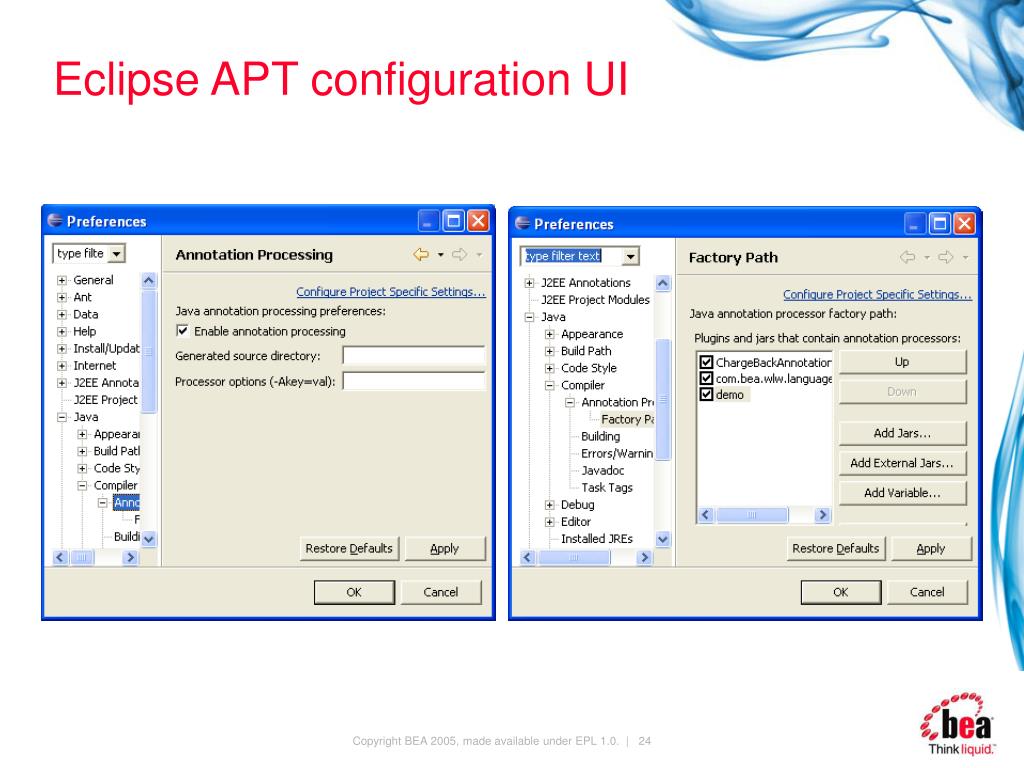

  24. Eclipse APT configuration UI

  25. Agenda • Background • Simple Example Demo • The mirror API and APT • Pitfalls • More Elaborate Example • Futures

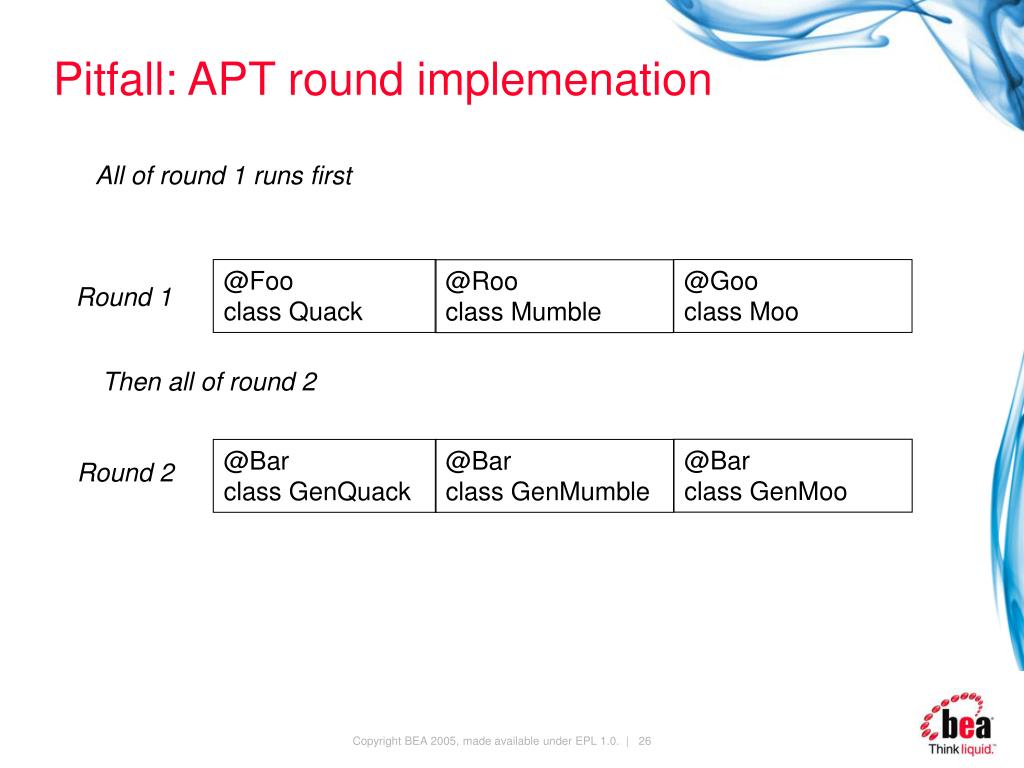

  26. Pitfall: APT round implemenation All of round 1 runs first @Fooclass Quack @Gooclass Moo @Rooclass Mumble Round 1 Then all of round 2 @Barclass GenMoo @Barclass GenQuack @Barclass GenMumble Round 2

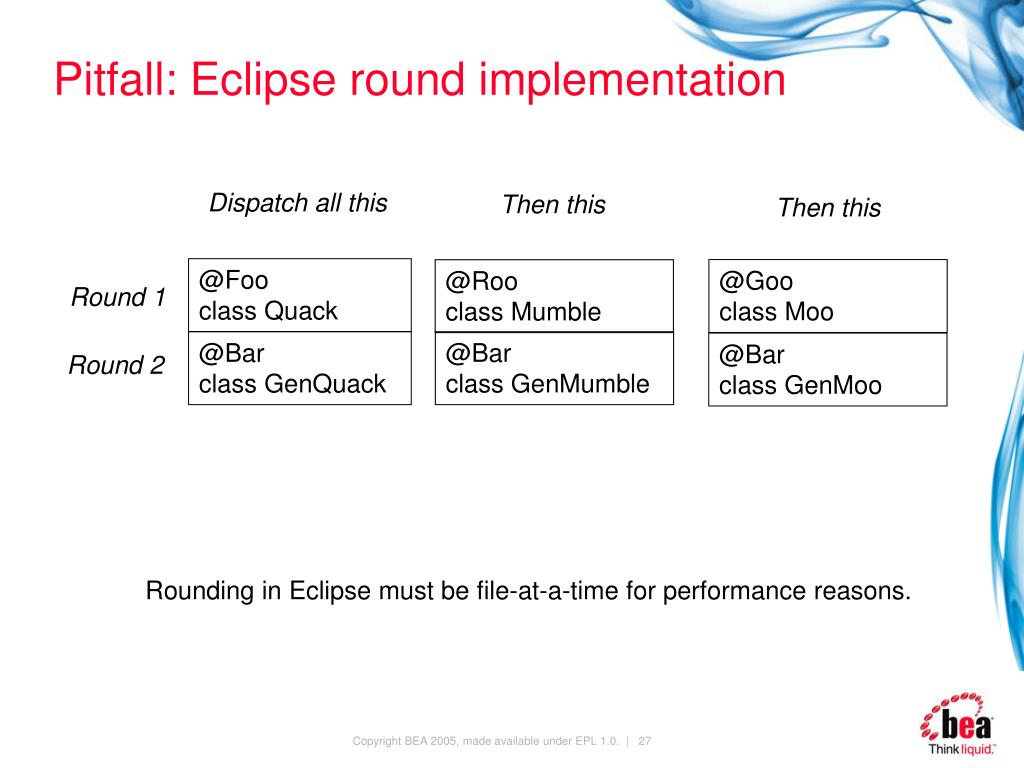

  27. Pitfall: Eclipse round implementation Dispatch all this Then this Then this @Fooclass Quack @Gooclass Moo @Rooclass Mumble Round 1 @Barclass GenQuack @Barclass GenMumble @Barclass GenMoo Round 2 Rounding in Eclipse must be file-at-a-time for performance reasons.

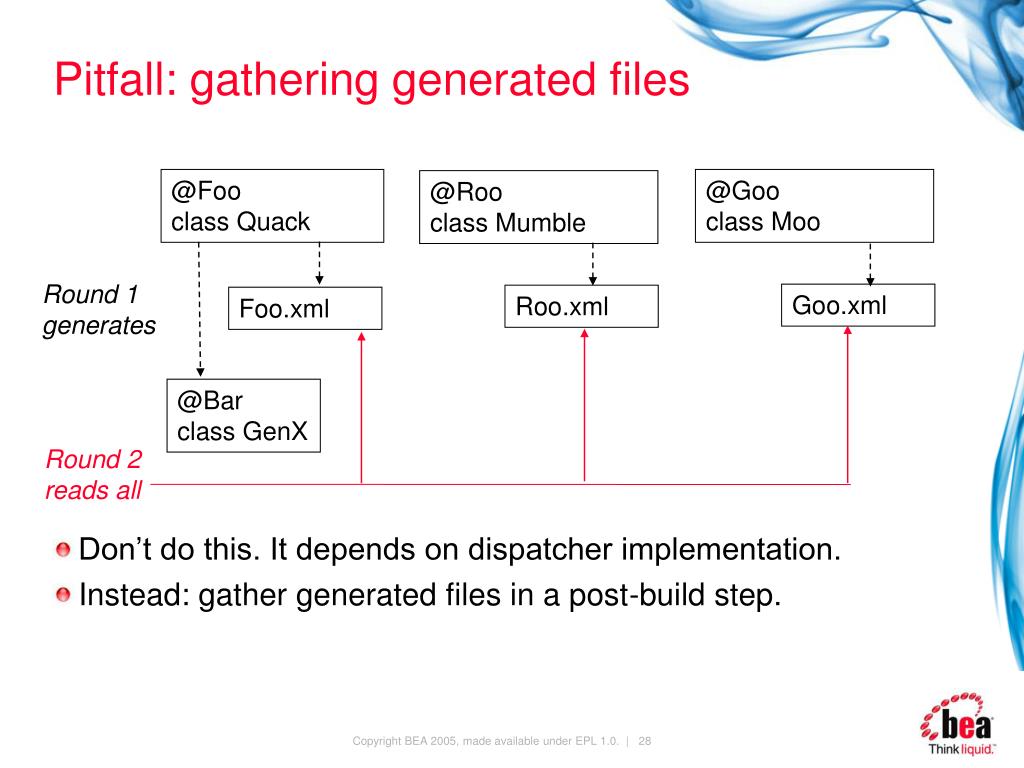

  28. Pitfall: gathering generated files @Fooclass Quack @Gooclass Moo @Rooclass Mumble • Don’t do this. It depends on dispatcher implementation. • Instead: gather generated files in a post-build step. Round 1 generates Goo.xml Roo.xml Foo.xml @Barclass GenX Round 2 reads all

  29. Pitfall: processor requests generated type @Gooclass Moo @Fooclass Quack • Don’t do this. It depends on visibility of generated types. • But: generated types can refer to other generated types. Round 1 generates @Barclass GenFoo class GenGoo Round 2 generates Anno processor requests: not OK class GenBar Generated type refers to: OK

  30. Pitfall: APT round implemenation All of round 1 runs first @Fooclass Quack @Gooclass Moo @Rooclass Mumble Round 1 Then all of round 2 @Barclass GenMoo @Barclass GenQuack @Barclass GenMumble Round 2

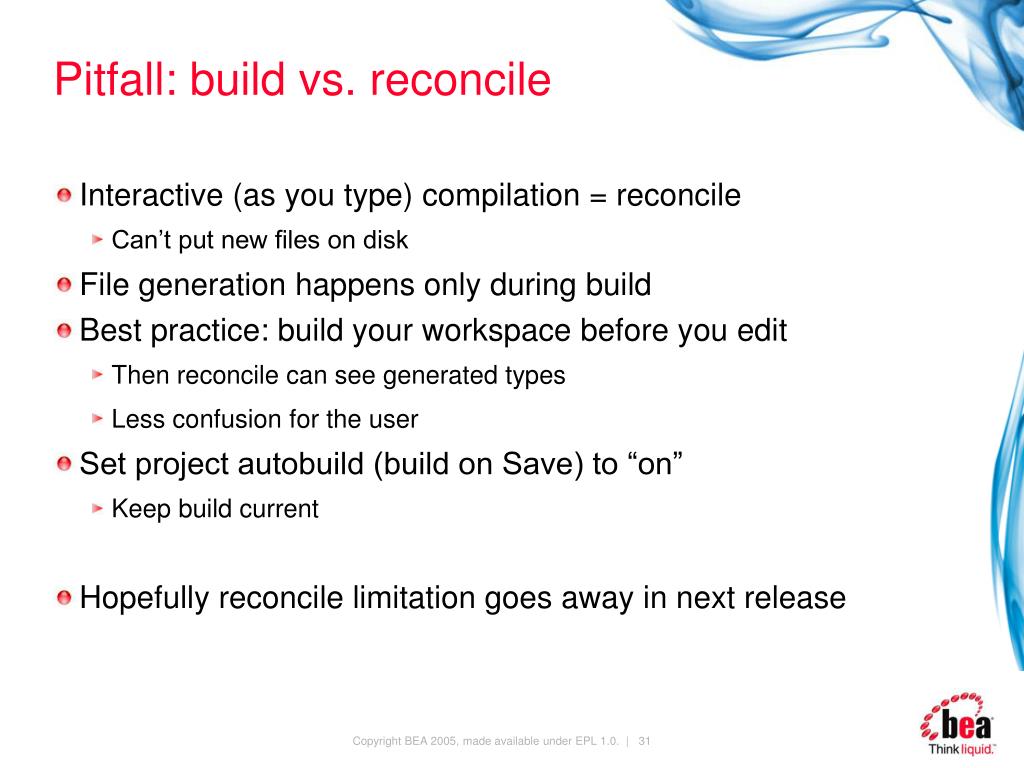

  31. Pitfall: build vs. reconcile • Interactive (as you type) compilation = reconcile • Can’t put new files on disk • File generation happens only during build • Best practice: build your workspace before you edit • Then reconcile can see generated types • Less confusion for the user • Set project autobuild (build on Save) to “on” • Keep build current • Hopefully reconcile limitation goes away in next release

  32. Agenda • Background • Simple Example Demo • The Mirror API and APT • Pitfalls • More Elaborate Example • Futures

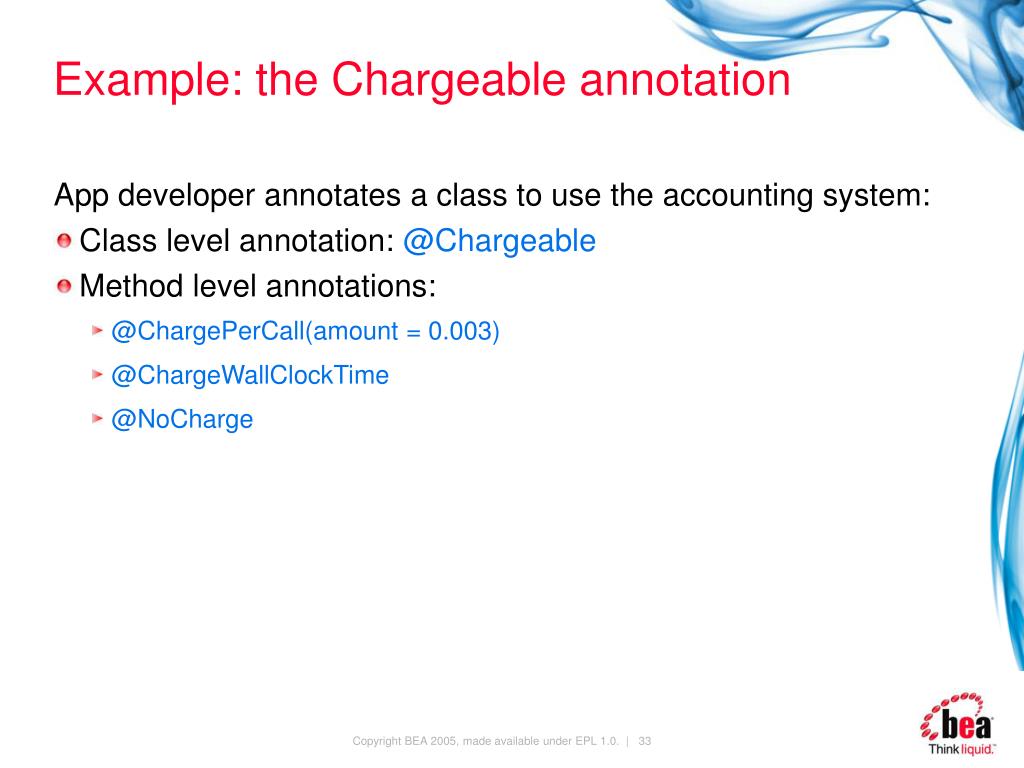

  33. Example: the Chargeable annotation App developer annotates a class to use the accounting system: • Class level annotation: @Chargeable • Method level annotations: • @ChargePerCall(amount = 0.003) • @ChargeWallClockTime • @NoCharge

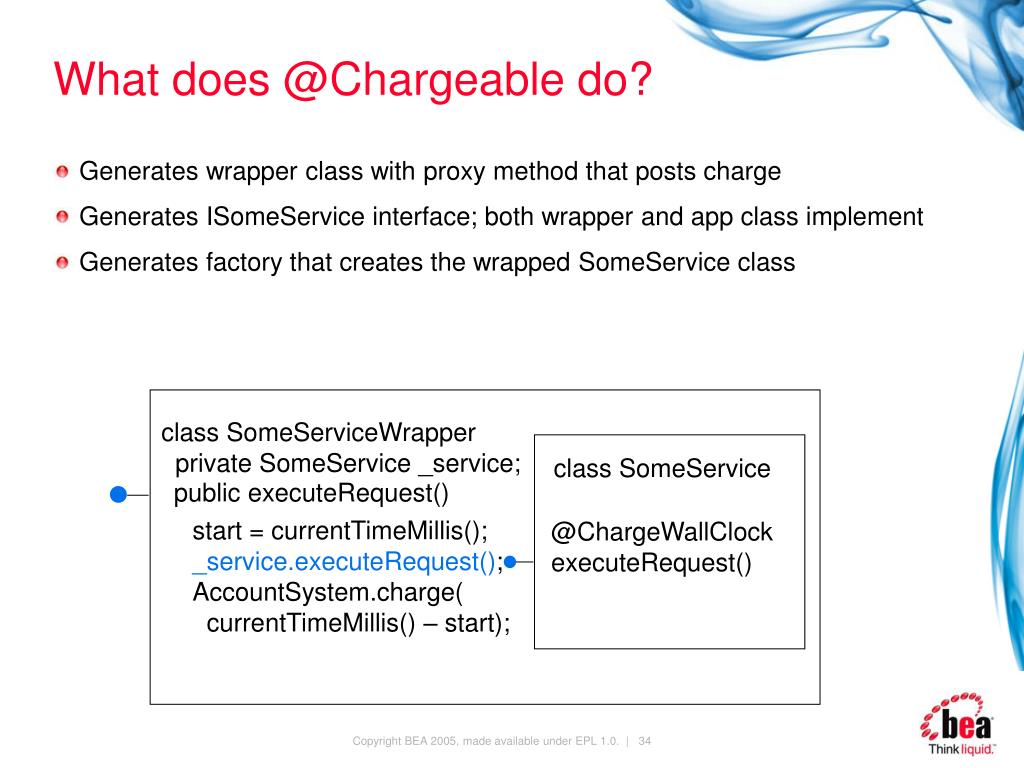

  34. What does @Chargeable do? • Generates wrapper class with proxy method that posts charge • Generates ISomeService interface; both wrapper and app class implement • Generates factory that creates the wrapped SomeService class class SomeServiceWrapper private SomeService _service; class SomeService public executeRequest() start = currentTimeMillis();_service.executeRequest();AccountSystem.charge( currentTimeMillis() – start); @ChargeWallClockexecuteRequest()

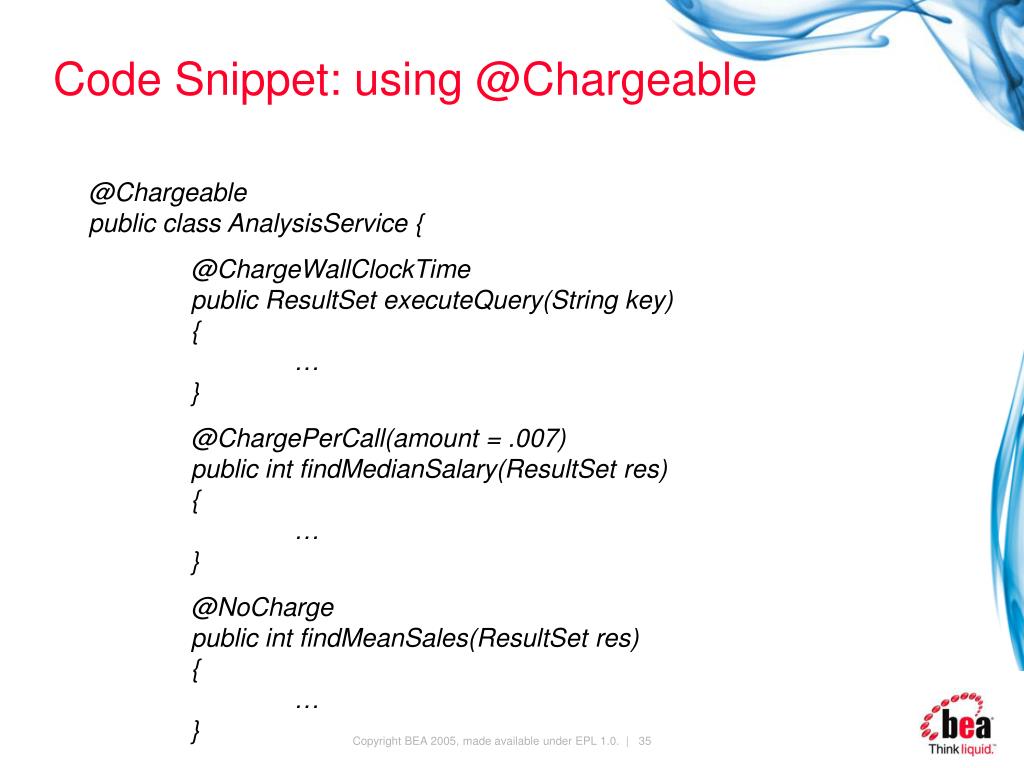

  35. Code Snippet: using @Chargeable @Chargeablepublic class AnalysisService { @ChargeWallClockTime public ResultSet executeQuery(String key) { … } @ChargePerCall(amount = .007) public int findMedianSalary(ResultSet res) { … } @NoCharge public int findMeanSales(ResultSet res) { … }

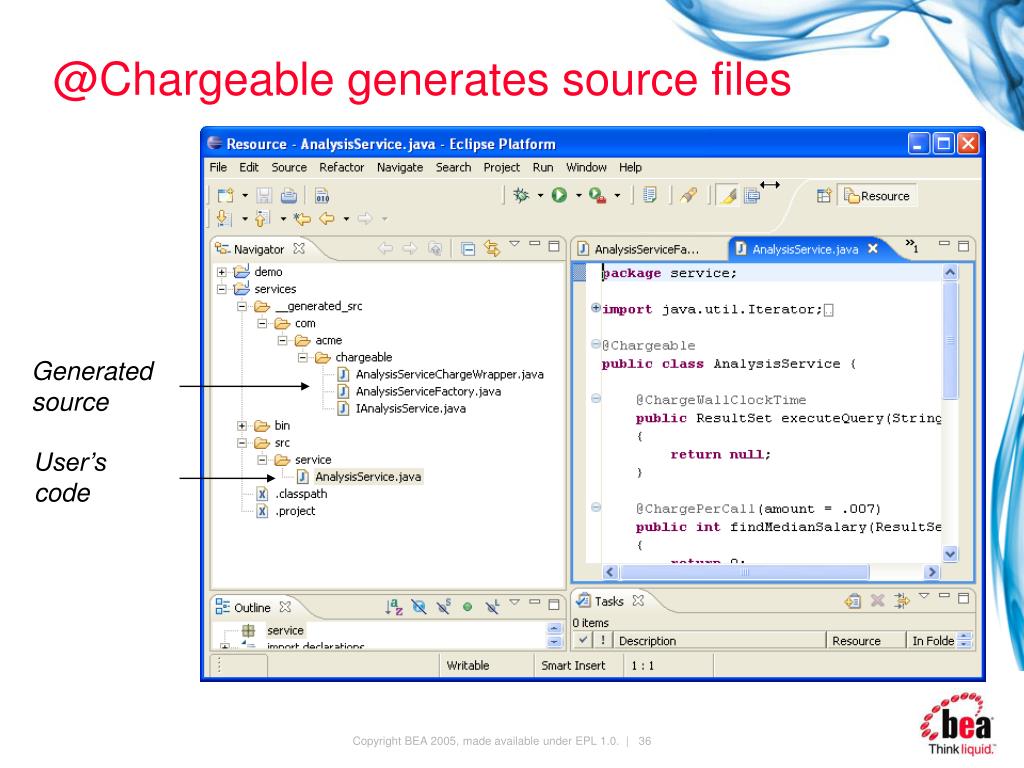

  36. @Chargeable generates source files Generated source User’s code

  37. Agenda • Background • Simple Example Demo • The Mirror API and APT • Pitfalls • More Elaborate Example • Futures • JSR 269 • UI Enhancements

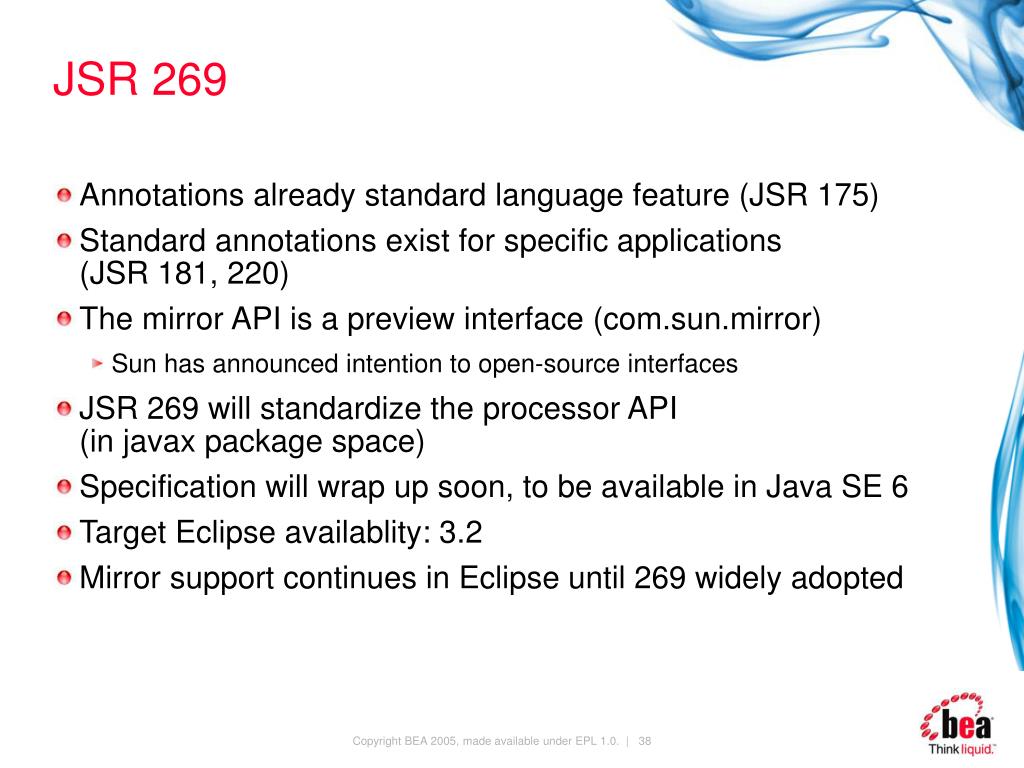

  38. JSR 269 • Annotations already standard language feature (JSR 175) • Standard annotations exist for specific applications (JSR 181, 220) • The mirror API is a preview interface (com.sun.mirror) • Sun has announced intention to open-source interfaces • JSR 269 will standardize the processor API (in javax package space) • Specification will wrap up soon, to be available in Java SE 6 • Target Eclipse availablity: 3.2 • Mirror support continues in Eclipse until 269 widely adopted

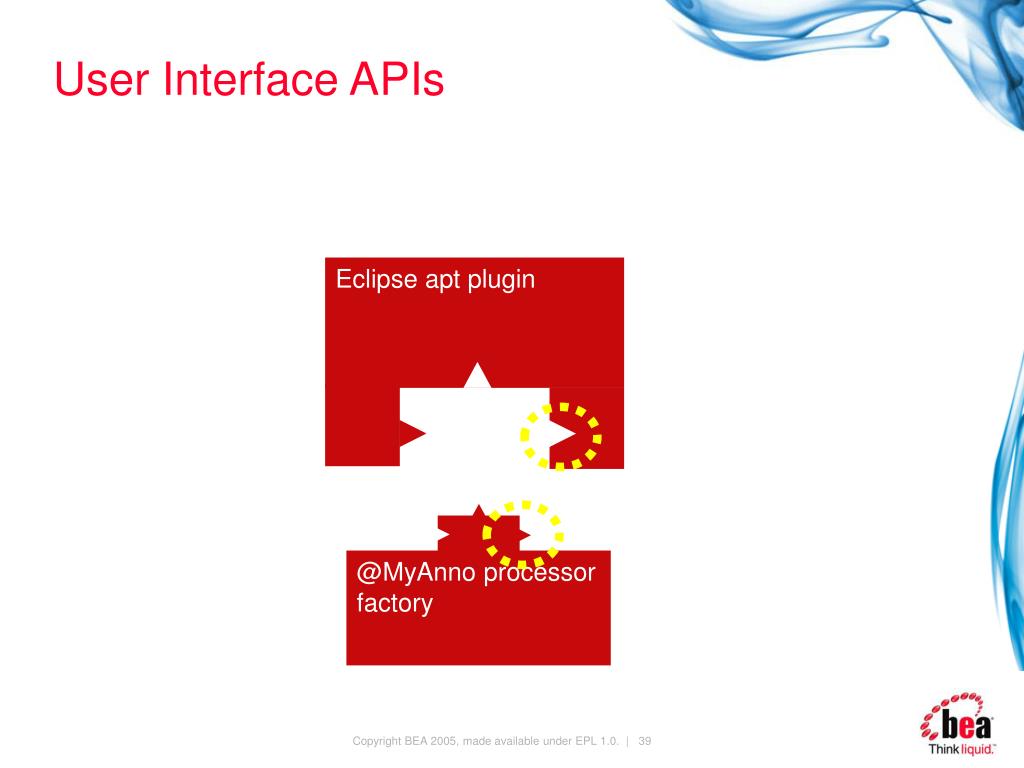

  39. User Interface APIs Eclipse apt plugin @MyAnno processor factory

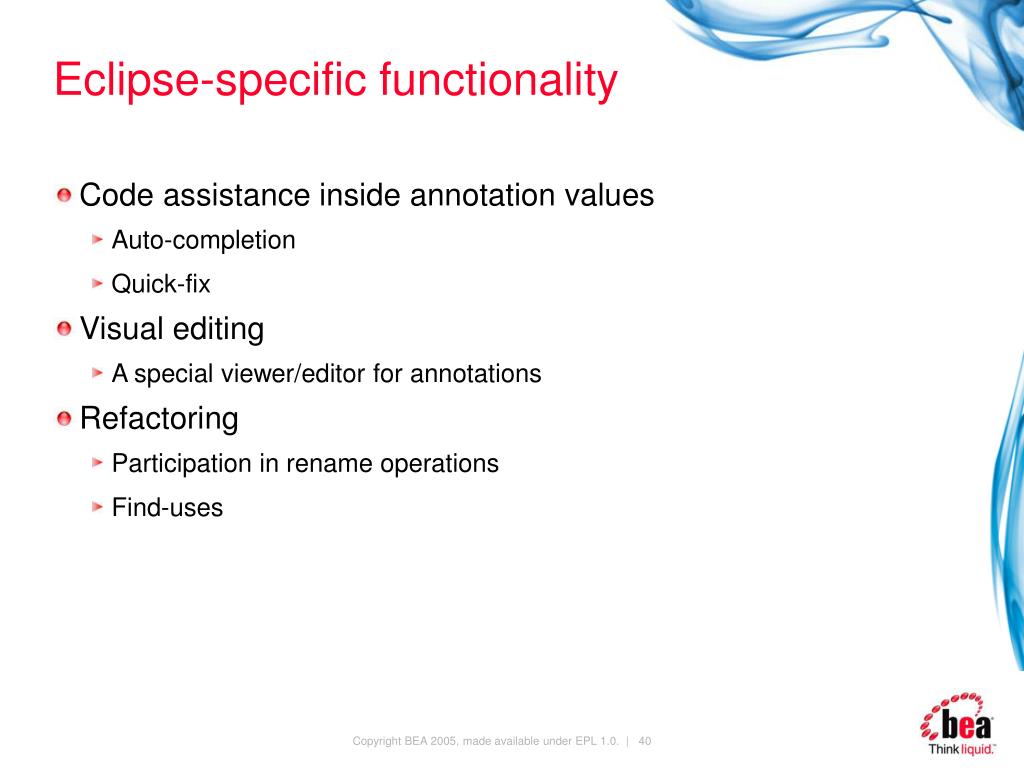

  40. Eclipse-specific functionality • Code assistance inside annotation values • Auto-completion • Quick-fix • Visual editing • A special viewer/editor for annotations • Refactoring • Participation in rename operations • Find-uses

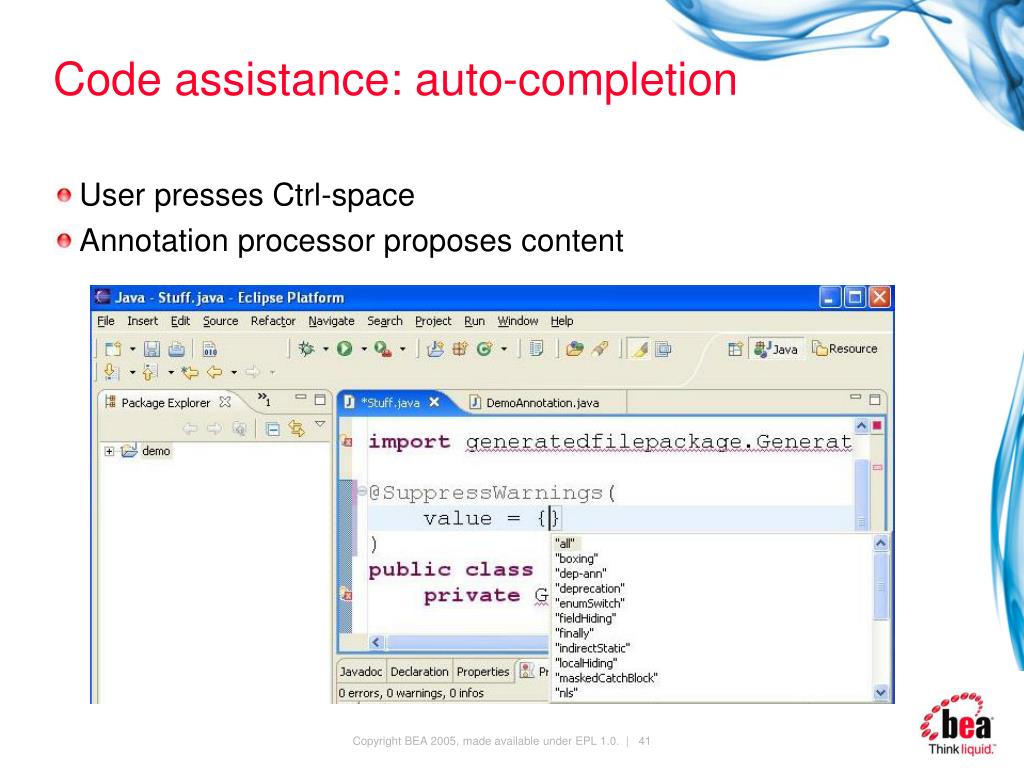

  41. Code assistance: auto-completion • User presses Ctrl-space • Annotation processor proposes content

  42. Code assistance: quick-fix • Annotation processor posts an error or warning • User presses Ctrl-1 • Annotation processor can propose fixes to the user

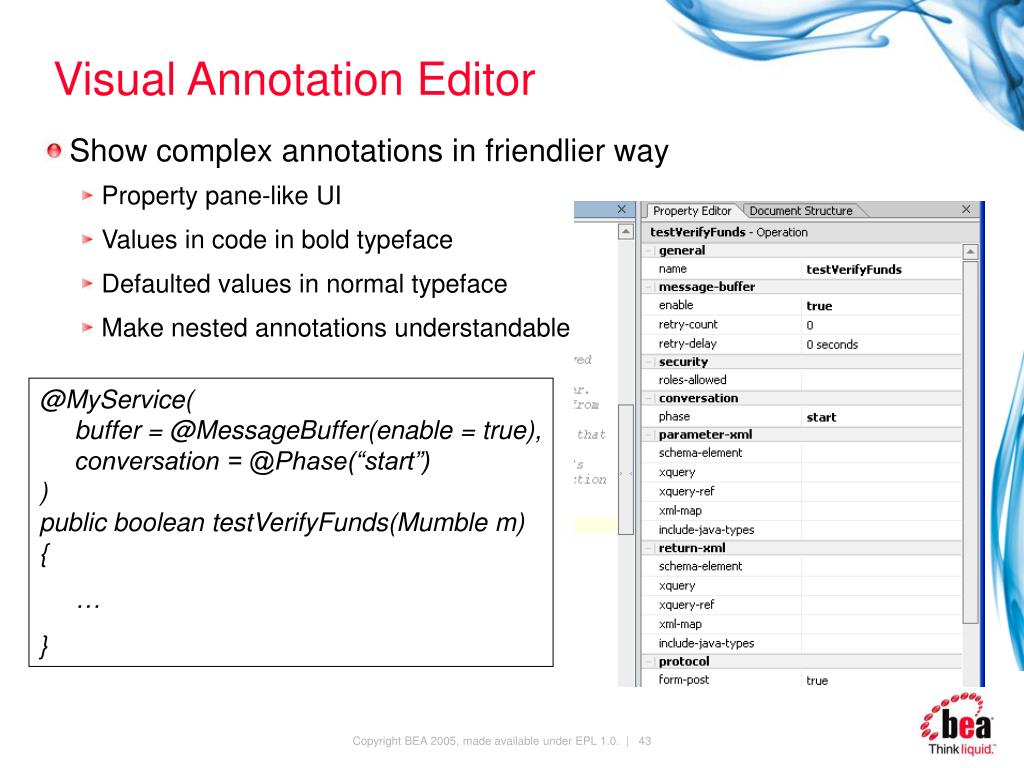

  43. Visual Annotation Editor • Show complex annotations in friendlier way • Property pane-like UI • Values in code in bold typeface • Defaulted values in normal typeface • Make nested annotations understandable @MyService( buffer = @MessageBuffer(enable = true), conversation = @Phase(“start”))public boolean testVerifyFunds(Mumble m){ … }

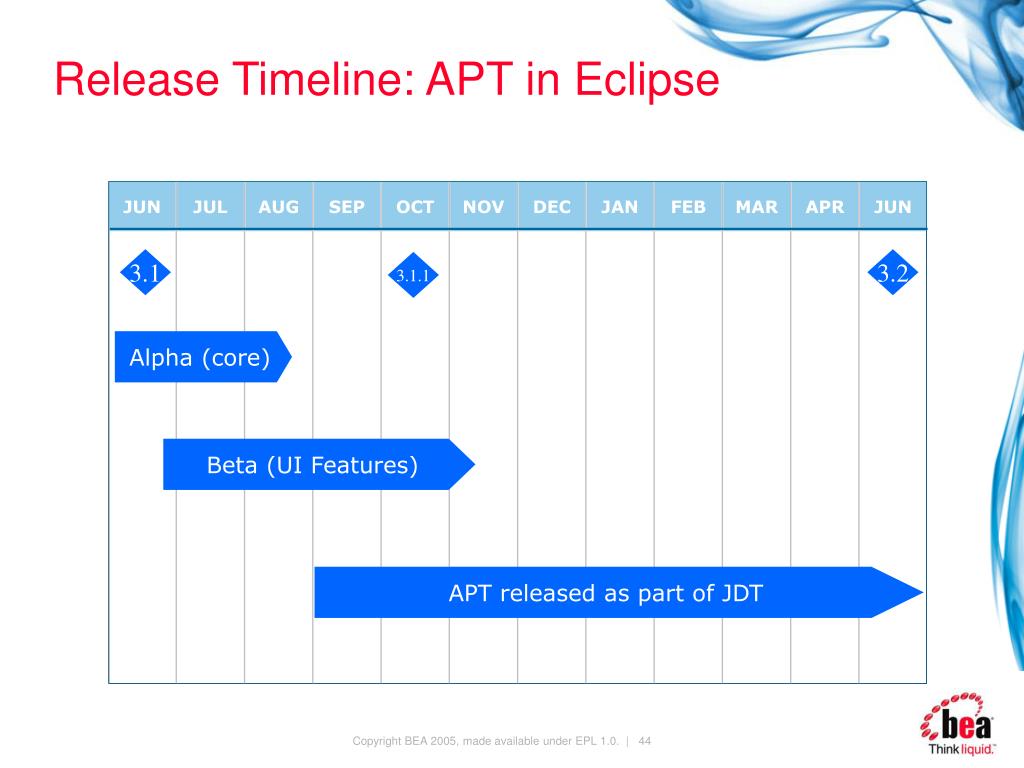

  44. Release Timeline: APT in Eclipse JUN JUL AUG SEP OCT NOV DEC JAN FEB MAR APR JUN 3.1 3.2 3.1.1 Alpha (core) Beta (UI Features) APT released as part of JDT

  45. Q & A Try it out! Download and install at:http://www.eclipse.org/jdt/apt/introToAPT.html

  46. Using Java Annotationsin Eclipse Gary Horen BEA Systems Tim Wagner BEA Systems
