  1. introducing the SF51 The worlds most innovative bar code scanner!

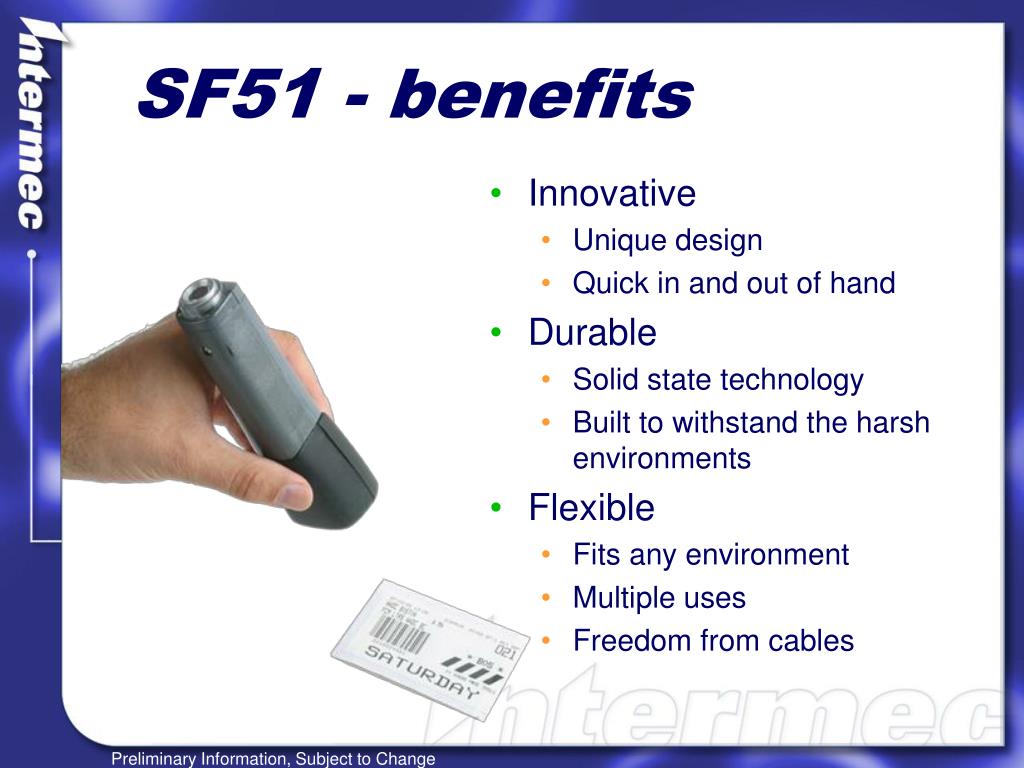

  2. SF51 - benefits • Innovative • Unique design • Quick in and out of hand • Durable • Solid state technology • Built to withstand the harsh environments • Flexible • Fits any environment • Multiple uses • Freedom from cables

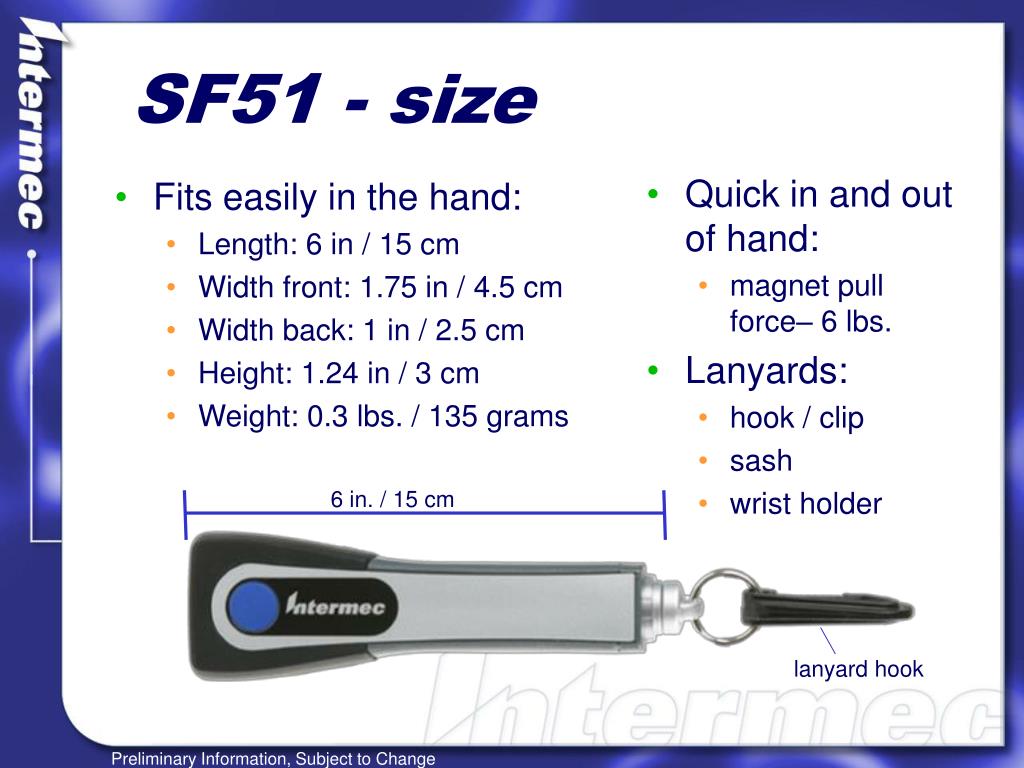

  3. SF51 - size 6 in. / 15 cm • Quick in and out of hand: • magnet pull force– 6 lbs. • Lanyards: • hook / clip • sash • wrist holder • Fits easily in the hand: • Length: 6 in / 15 cm • Width front: 1.75 in / 4.5 cm • Width back: 1 in / 2.5 cm • Height: 1.24 in / 3 cm • Weight: 0.3 lbs. / 135 grams lanyard hook

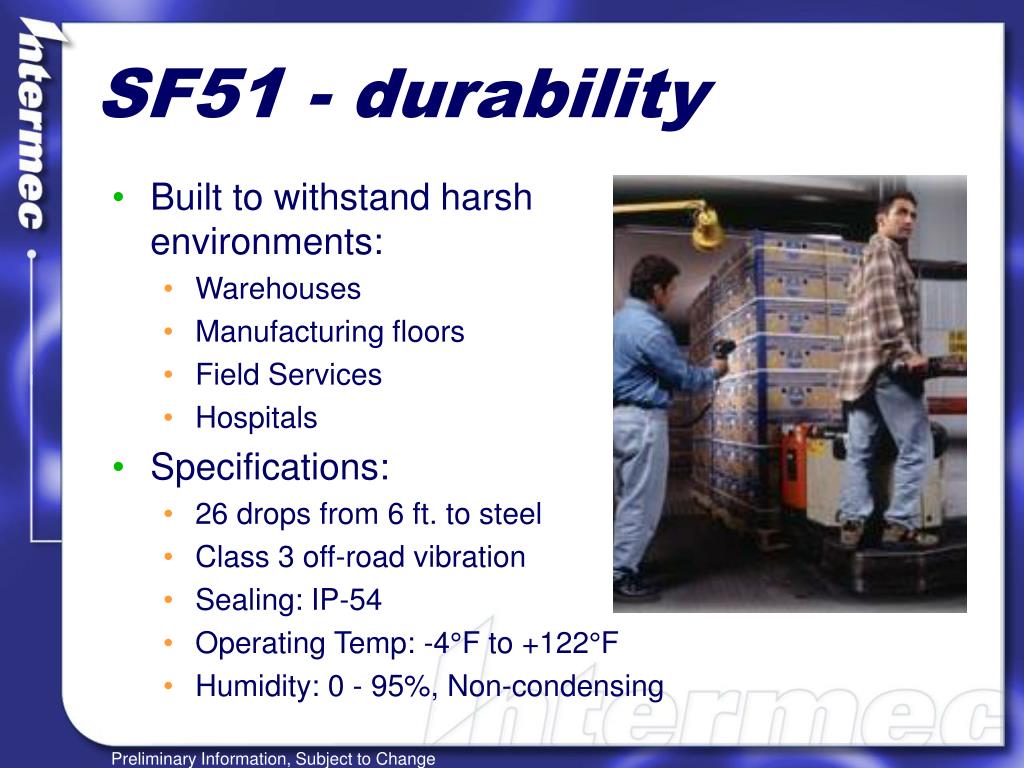

  4. SF51 - durability • Built to withstand harsh environments: • Warehouses • Manufacturing floors • Field Services • Hospitals • Specifications: • 26 drops from 6 ft. to steel • Class 3 off-road vibration • Sealing: IP-54 • Operating Temp: -4°F to +122°F • Humidity: 0 - 95%, Non-condensing

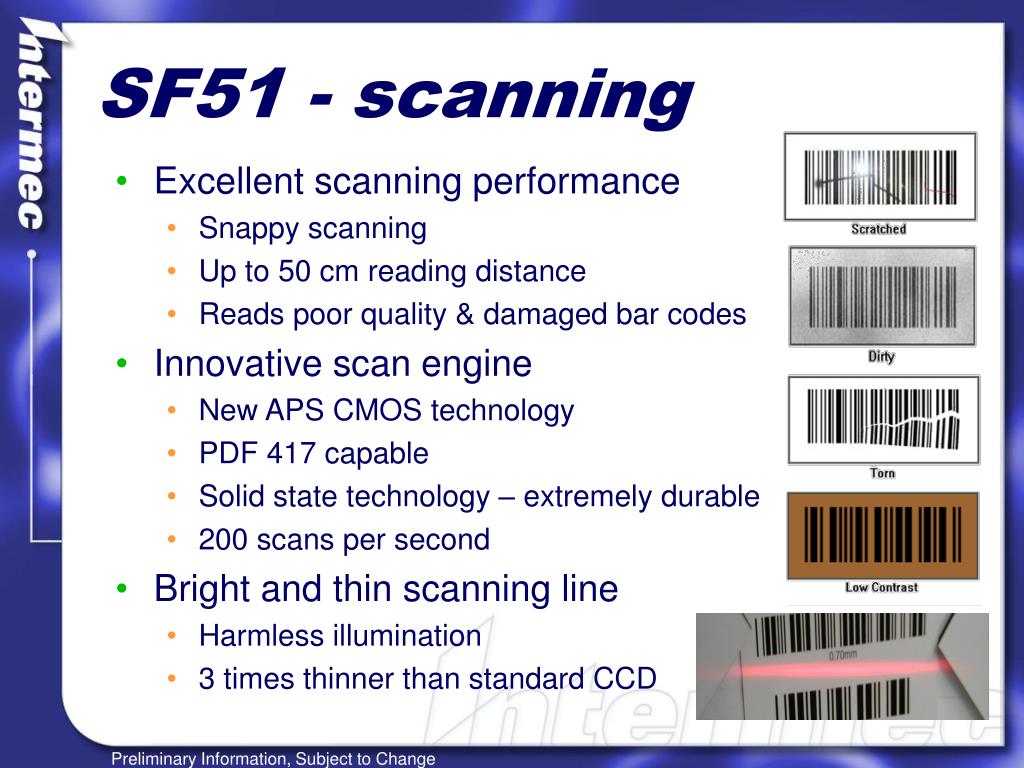

  5. SF51 - scanning • Excellent scanning performance • Snappy scanning • Up to 50 cm reading distance • Reads poor quality & damaged bar codes • Innovative scan engine • New APS CMOS technology • PDF 417 capable • Solid state technology – extremely durable • 200 scans per second • Bright and thin scanning line • Harmless illumination • 3 times thinner than standard CCD

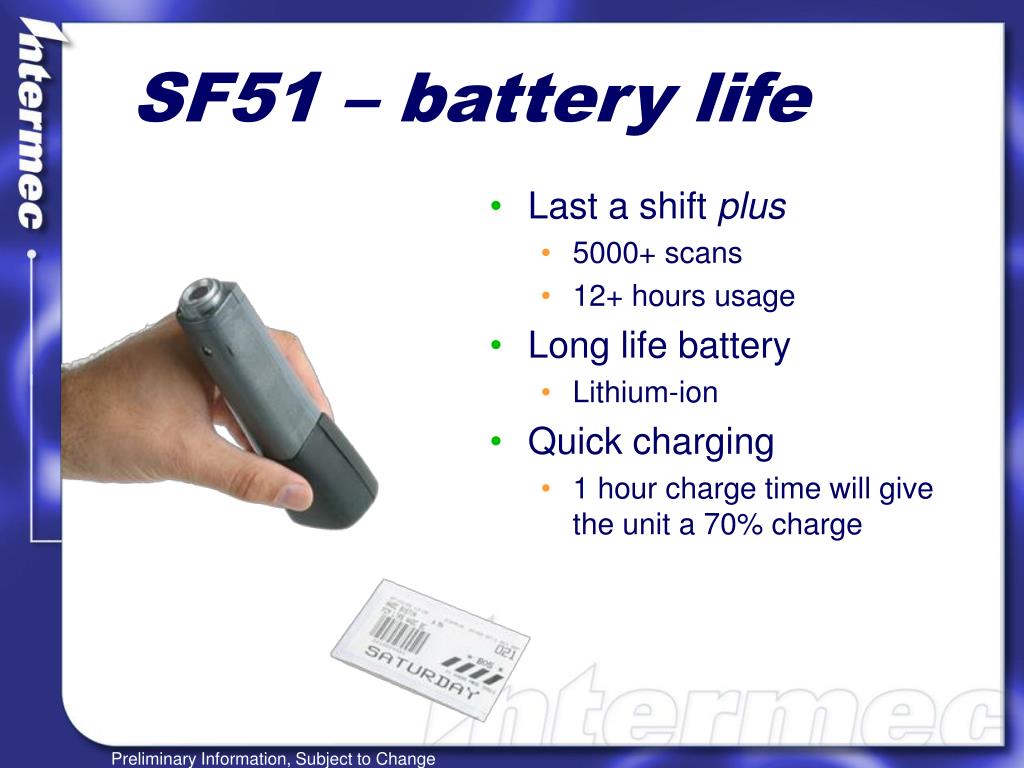

  6. SF51 – battery life • Last a shift plus • 5000+ scans • 12+ hours usage • Long life battery • Lithium-ion • Quick charging • 1 hour charge time will give the unit a 70% charge

  7. SF51 - radio • BluetoothTM (BT) radio • Class 1 radio • 100 ft. range • Will work with Class 2 radio • Version 1.2 • Adaptive Frequency Hopping (AFH) • Faster connection setup (4-6 seconds) • Backward compatible with version 1.0 and 1.1 • Communicates with Intermec BT terminals • Easy integration to applications • Emulates a serial port • Emulates a keyboard

  8. SF51 – connections • No base station needed for Intermec terminals • Bluetooth radio integrated into terminal • 700 series, CK1, CK30, CV60 • Connect to standard PC’s • With integrated Bluetooth • Via Bluetooth dongle • Via Bluetooth base station • Connect to PDA with integrated Bluetooth CV60 750 CK1 CK30 730

  9. SF51 – unique features • Quick linking of devices • Scan a bar code to establish link • Bluetooth Device Utility (BDU) • Use in noisy environments • 70db + speaker • Ultra bright good read LEDs • Vibration on good read • Intermec Readiness Indicator • Blue light to shows established link • Remote updating of configurations • Multiple SF51s to a single host • Up to 7 SF51’s to a 1 host CV60

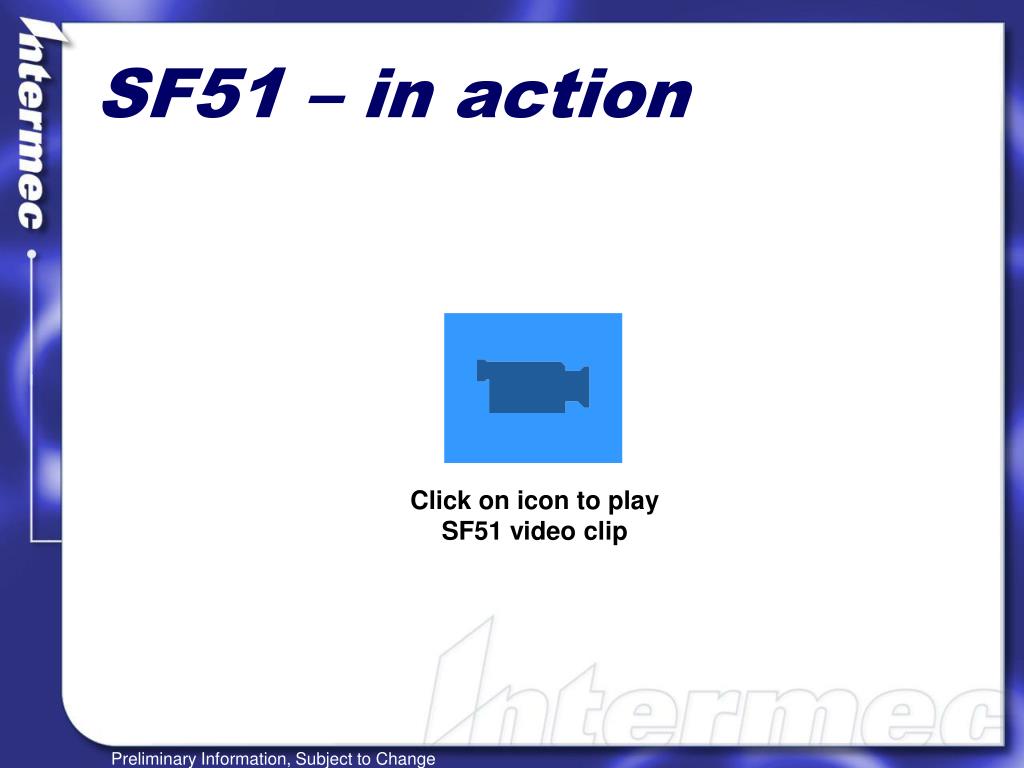

  10. SF51 – in action Click on icon to play SF51 video clip

  11. SF51 – warehouse • Cross docking / HUB • Speed process time with multiple SF51 connected to a single host • Picking • Quickly get the scanner in and out of your hand • Snappy scanning • Forklift drivers • 100 meter range from CV60 • Extremely durable

  12. SF51 – manufacturing • Work in process • Get into tight space on large scale products (trucks, planes, large appliances) • Bring the scanner to bar code • No cable to get in the way

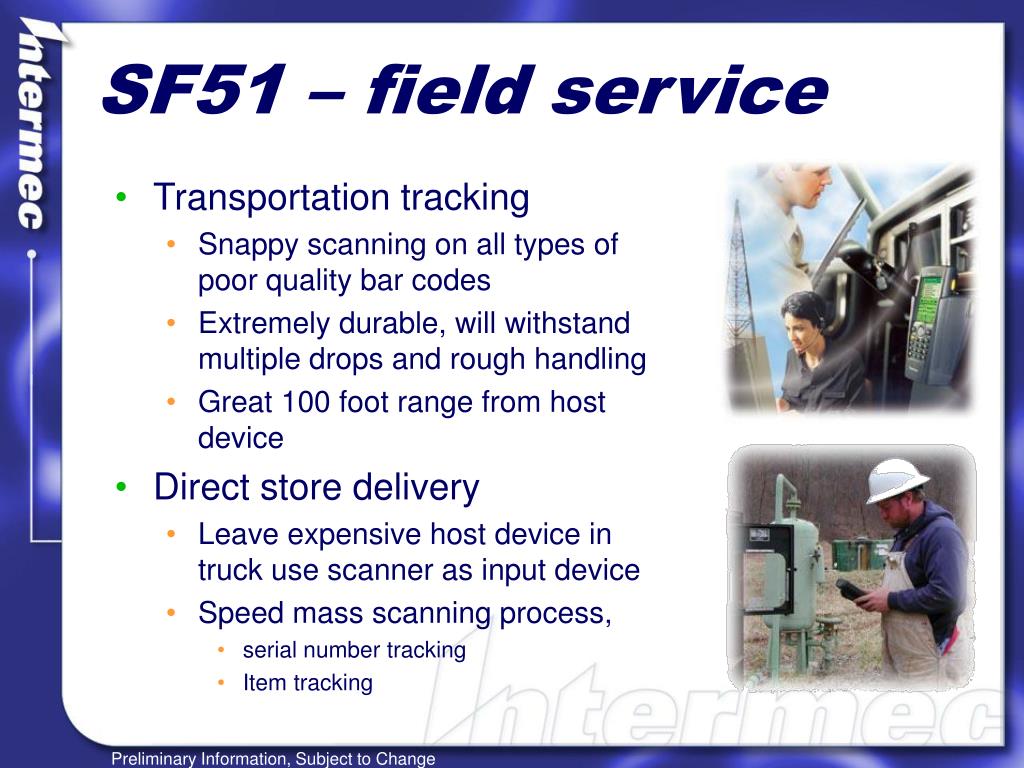

  13. SF51 – field service • Transportation tracking • Snappy scanning on all types of poor quality bar codes • Extremely durable, will withstand multiple drops and rough handling • Great 100 foot range from host device • Direct store delivery • Leave expensive host device in truck use scanner as input device • Speed mass scanning process, • serial number tracking • Item tracking

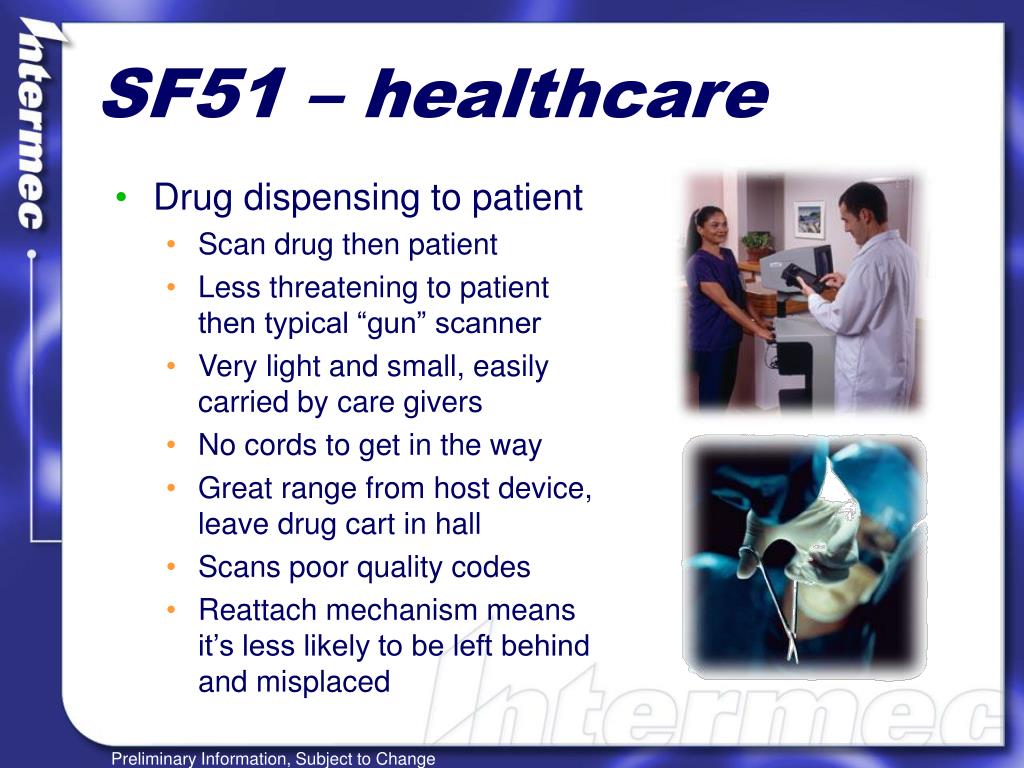

  14. SF51 – healthcare • Drug dispensing to patient • Scan drug then patient • Less threatening to patient then typical “gun” scanner • Very light and small, easily carried by care givers • No cords to get in the way • Great range from host device, leave drug cart in hall • Scans poor quality codes • Reattach mechanism means it’s less likely to be left behind and misplaced

  15. SF51 – retail • Speed checkout • Clerks wear the SF51 and come to large products versus trying to bring them to the scanner • Automate restocking/re-pricing • Working with a BT power cart quickly move through store; can also work as a portable check out station • CD shops • Give a scanner and BT headset so customers can scan CD and listen to songs • Gift registry

  16. SF51 - accessories • Chargers • 1 bay charger • 8 bay charger • Lanyards • Belt mount holder • Chest mount holder • Back of wrist mount holder • Base Station • USB Bluetooth Dongle • Class 1 version 1.2

  17. SF51 – price • Time line • Official launch: Frontline Sept. ‘04 • Pilot units: October ‘04 • PQA: Nov./Dec. ‘04 • Warranty • 1 year
