SWR Meter Session 3 Learn about Transformers and SWR Meters

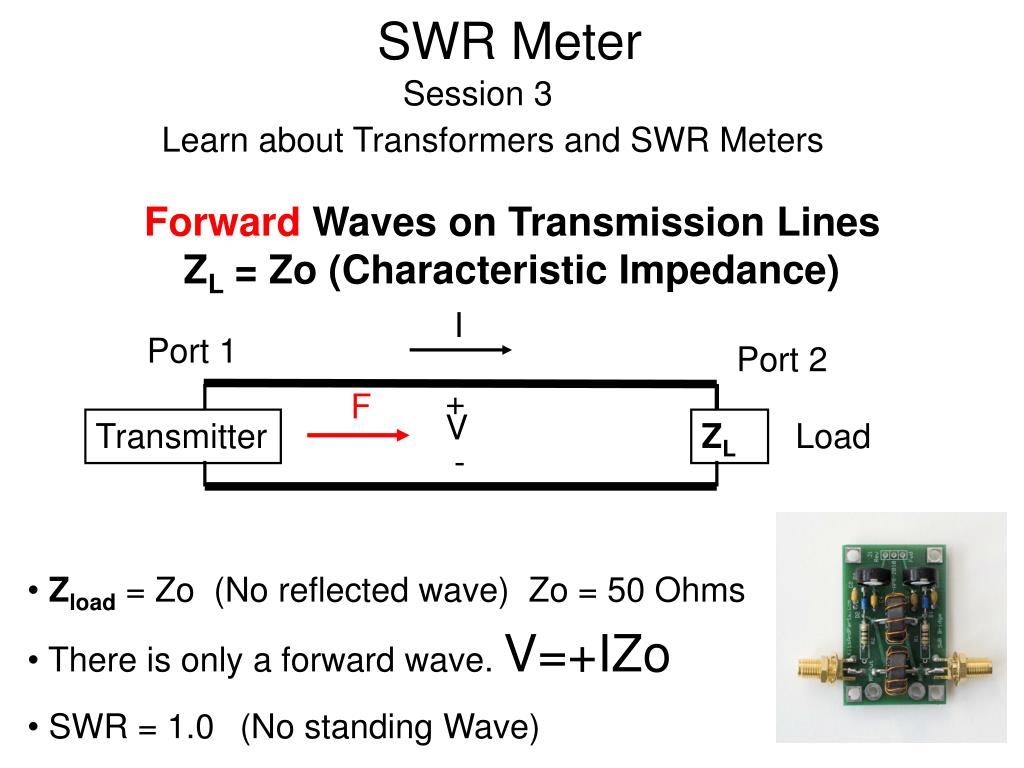

SWR Meter Session 3 Learn about Transformers and SWR Meters. I. Port 1. Port 2. +. F. V. Forward Waves on Transmission Lines Z L = Zo (Characteristic Impedance). Transmitter. Z L. Load. -. Z load = Zo (No reflected wave) Zo = 50 Ohms There is only a forward wave. V=+IZo

elewa
Télécharger la présentation

SWR Meter Session 3 Learn about Transformers and SWR Meters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SWR MeterSession 3 Learn about Transformers and SWR Meters I Port 1 Port 2 + F V Forward Waves on Transmission Lines ZL = Zo (Characteristic Impedance) Transmitter ZL Load - Zload= Zo (No reflected wave) Zo = 50 Ohms There is only a forward wave. V=+IZo SWR = 1.0(No standing Wave)

  2. SWR Meter I Port 1 Port 2 + R V ReverseWaves on Transmission Lines ZL = Zo (Characteristic Impedance) ZL Transmitter - • Here, ZL= Zo • There is only a reverse wave V=-IZo • SWR = 1.0 Current now reversed

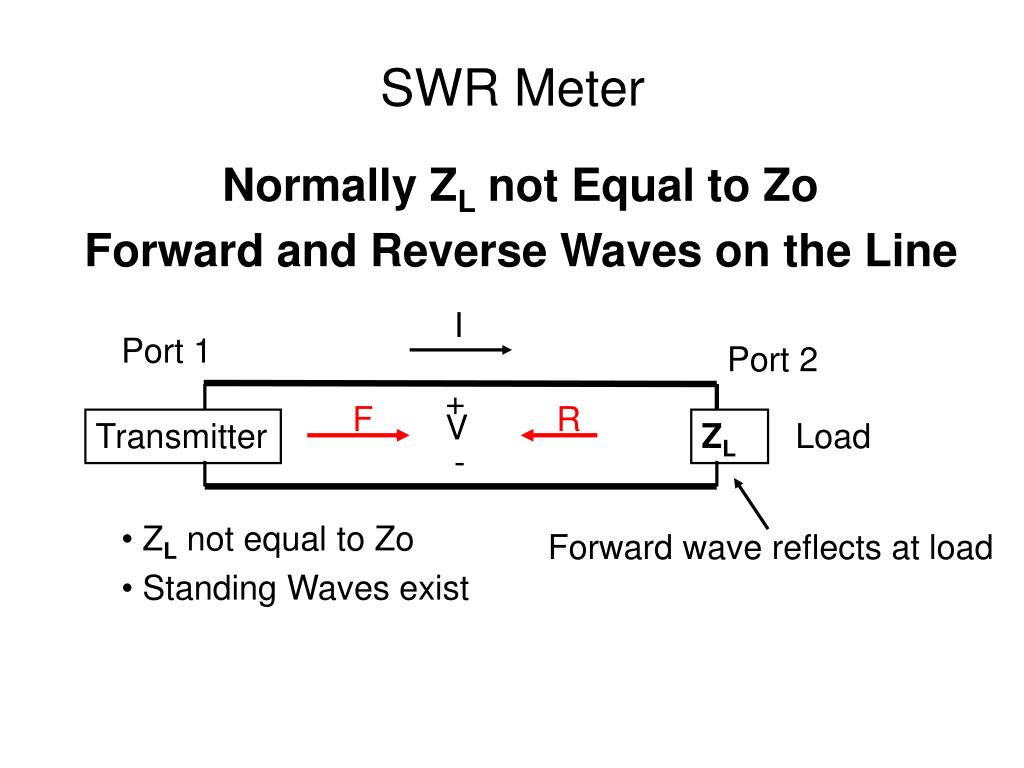

  3. SWR Meter I Port 1 Port 2 + F R V Normally ZL not Equal to Zo Forward and Reverse Waves on the Line Transmitter ZL Load - • ZL not equal to Zo • Standing Waves exist Forward wave reflects at load

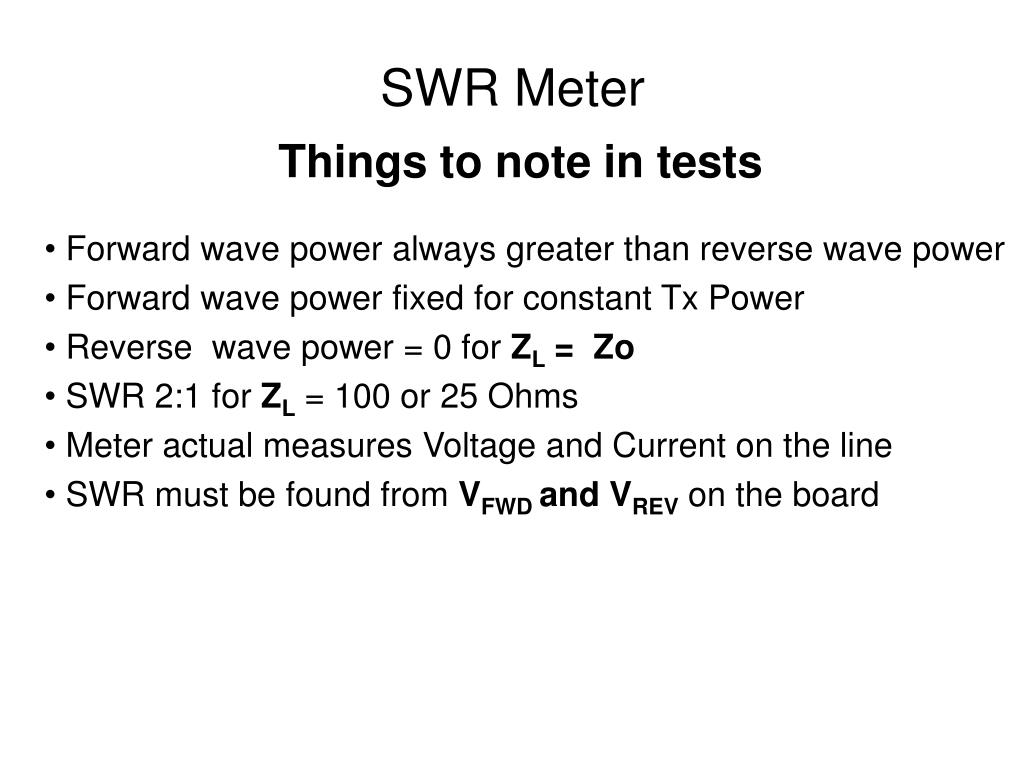

  4. SWR Meter • Forward wave power always greater than reverse wave power • Forward wave power fixed for constant Tx Power • Reverse wave power = 0 for ZL = Zo • SWR 2:1 for ZL= 100 or 25 Ohms • Meter actual measures Voltage and Current on the line • SWR must be found from VFWD and VREVon the board Things to note in tests

  5. Kits and Parts “meter” • T1 samples current • T2 samples voltage • RF appears at Diodes • Diodes act as detectors • Vrev and Vfwd measured • SWR Calculated or Meters Calibrated

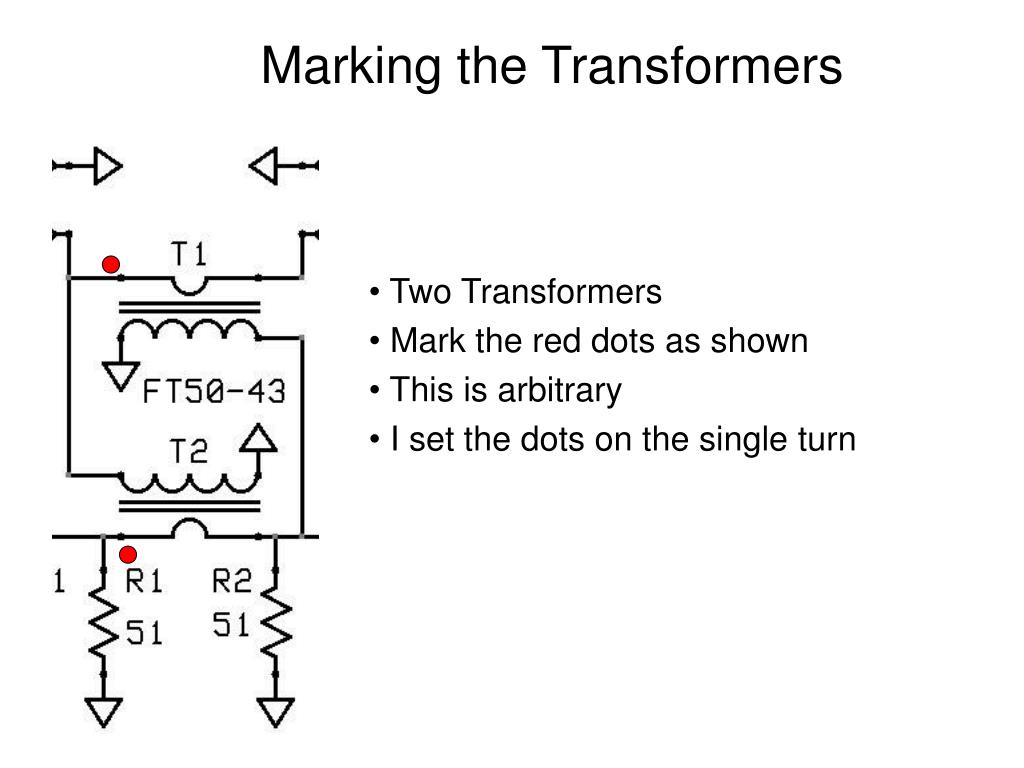

  6. Marking the Transformers Two Transformers Mark the red dots as shown This is arbitrary I set the dots on the single turn

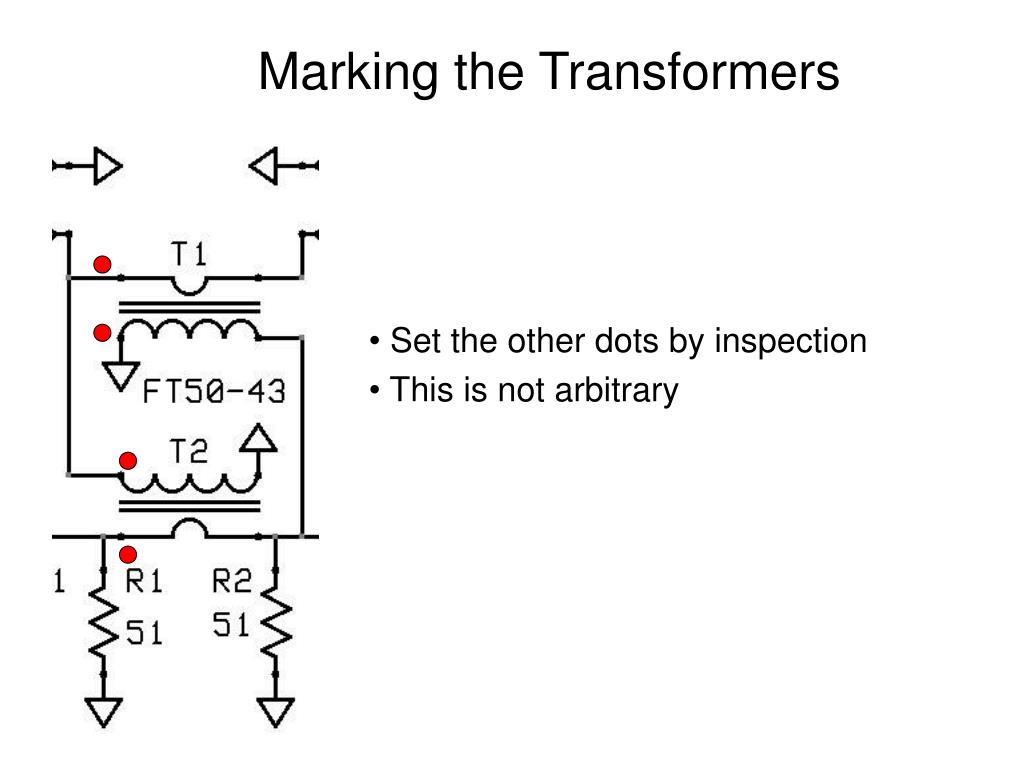

  7. Marking the Transformers • Set the other dots by inspection • This is not arbitrary

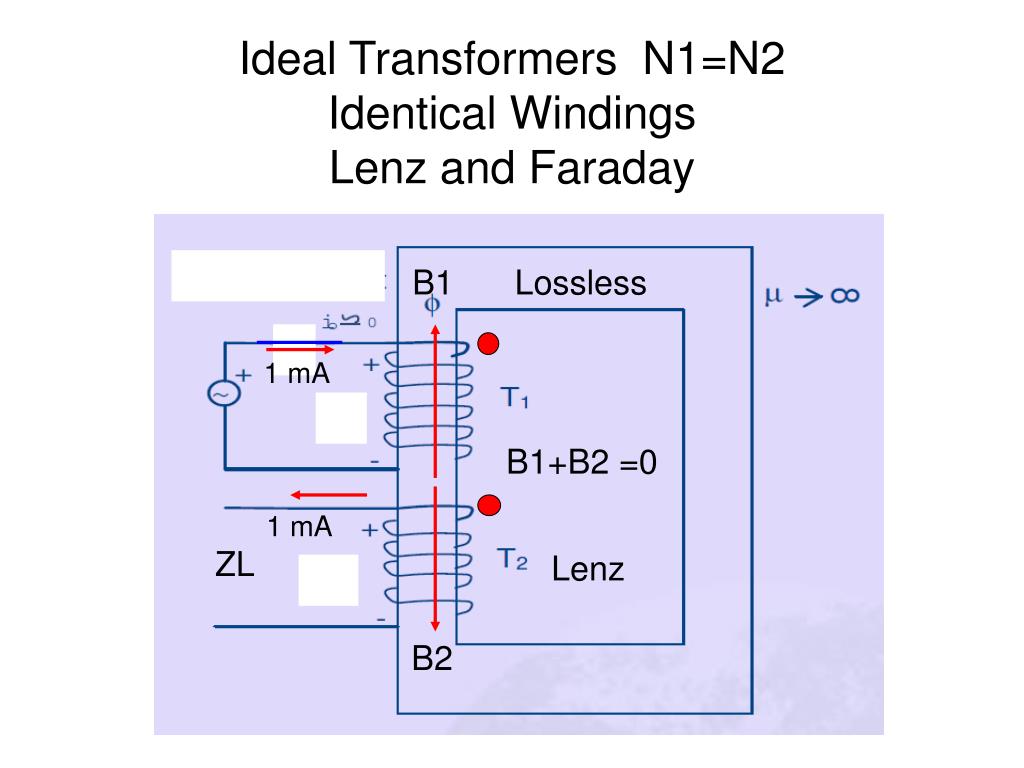

  8. Ideal Transformers N1=N2Identical WindingsLenz and Faraday B1 Lossless 1 mA B1+B2 =0 1 mA ZL Lenz B2

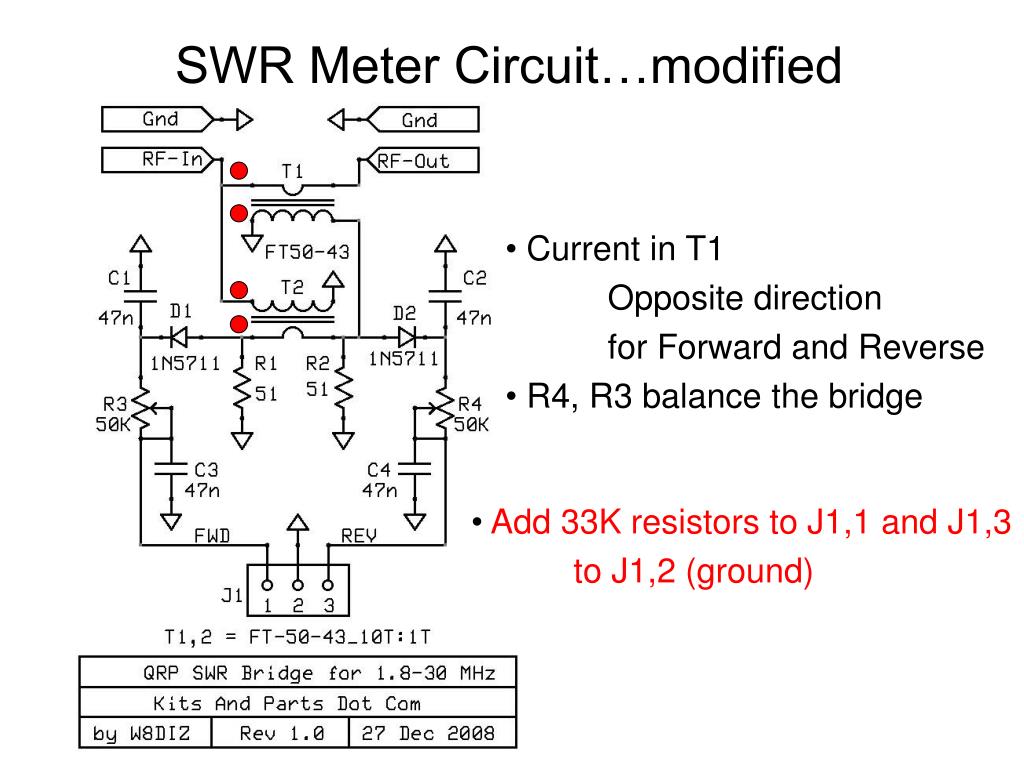

  9. SWR Meter Circuit…modified • Current in T1 Opposite direction for Forward and Reverse • R4, R3 balance the bridge • Add 33K resistors to J1,1 and J1,3 to J1,2 (ground)

  10. Measurements • Apply 2.5 Watts to RFin • Connect RFout to an open ckt • Note VFWD and VREV • Adjust R3 or R4 to set VFWD= VREV • Now measure VFWD and VREV For a 50,100 25 Ohm Load and a Short CKT • Record Data on supplied form Does the data make sense?

  11. Meter measures voltages and currents • SWR calculated • Good example of Ferrite Transformers • Simple circuit has many limitations • Many examples on the WEB Summary sma connector with jumper
