  1. Patterson Consulting Radical Proposal: Let’s help real problems Dave Patterson University of California at Berkeley Patterson@cs.berkeley.edu April 2001

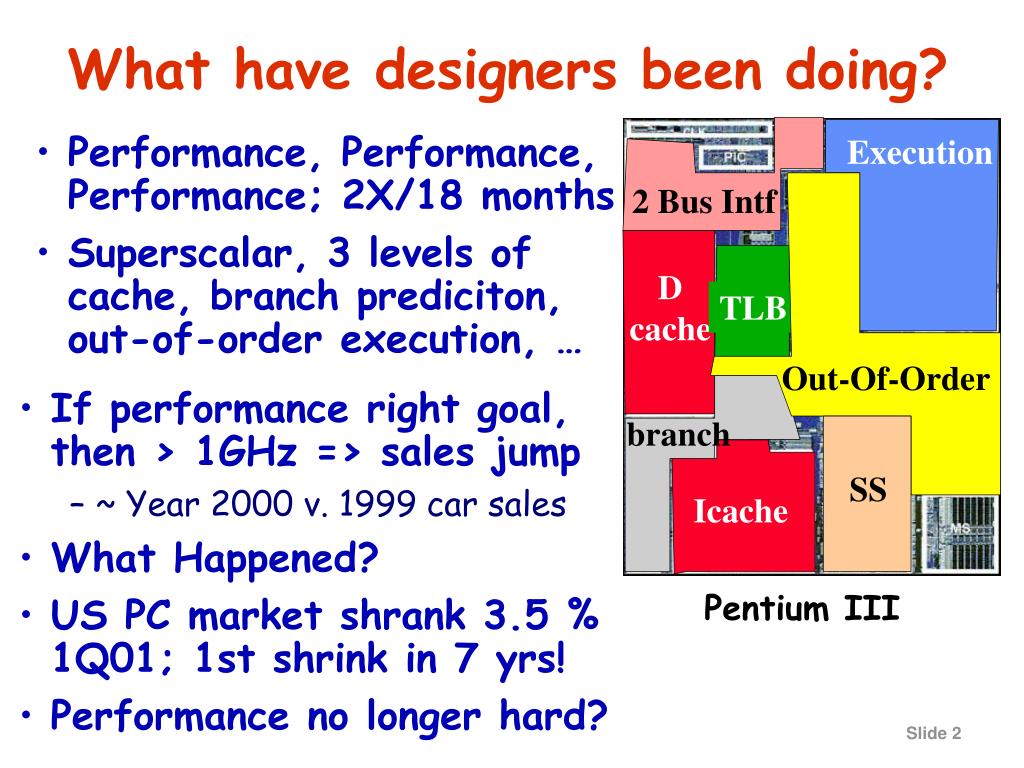

  2. Execution 2 Bus Intf D cache TLB Out-Of-Order branch SS Icache What have designers been doing? • Performance, Performance, Performance; 2X/18 months • Superscalar, 3 levels of cache, branch prediciton, out-of-order execution, … • If performance right goal, then > 1GHz => sales jump • ~ Year 2000 v. 1999 car sales • What Happened? • US PC market shrank 3.5 % 1Q01; 1st shrink in 7 yrs! • Performance no longer hard? Pentium III

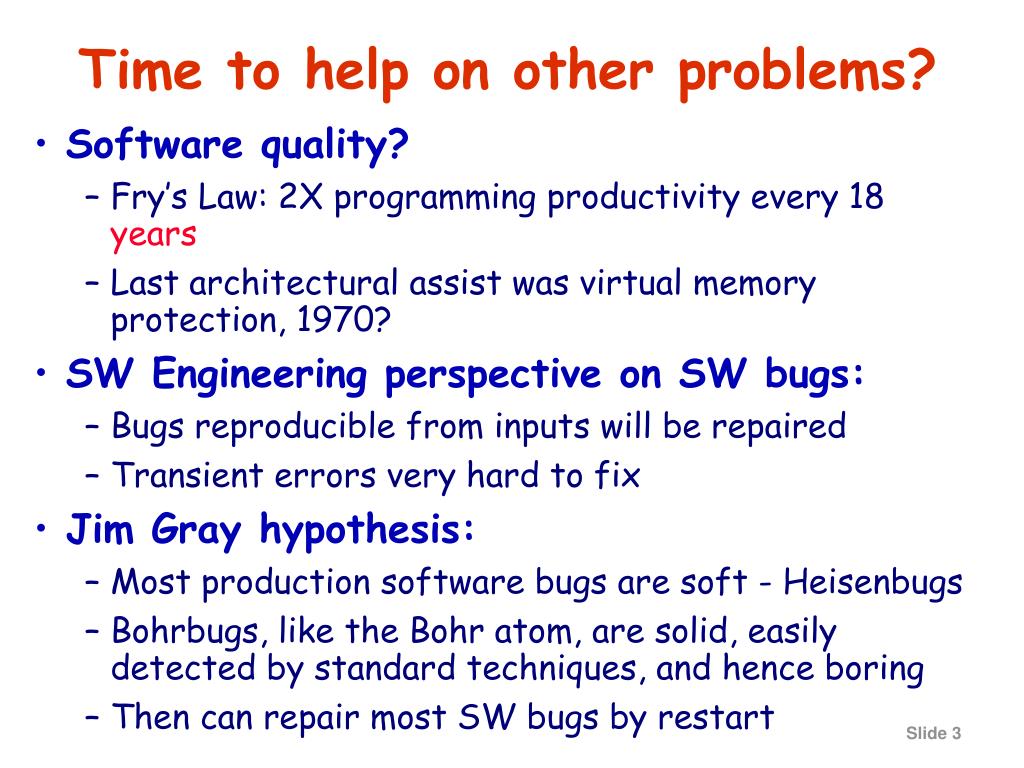

  3. Time to help on other problems? • Software quality? • Fry’s Law: 2X programming productivity every 18 years • Last architectural assist was virtual memory protection, 1970? • SW Engineering perspective on SW bugs: • Bugs reproducible from inputs will be repaired • Transient errors very hard to fix • Jim Gray hypothesis: • Most production software bugs are soft - Heisenbugs • Bohrbugs, like the Bohr atom, are solid, easily detected by standard techniques, and hence boring • Then can repair most SW bugs by restart

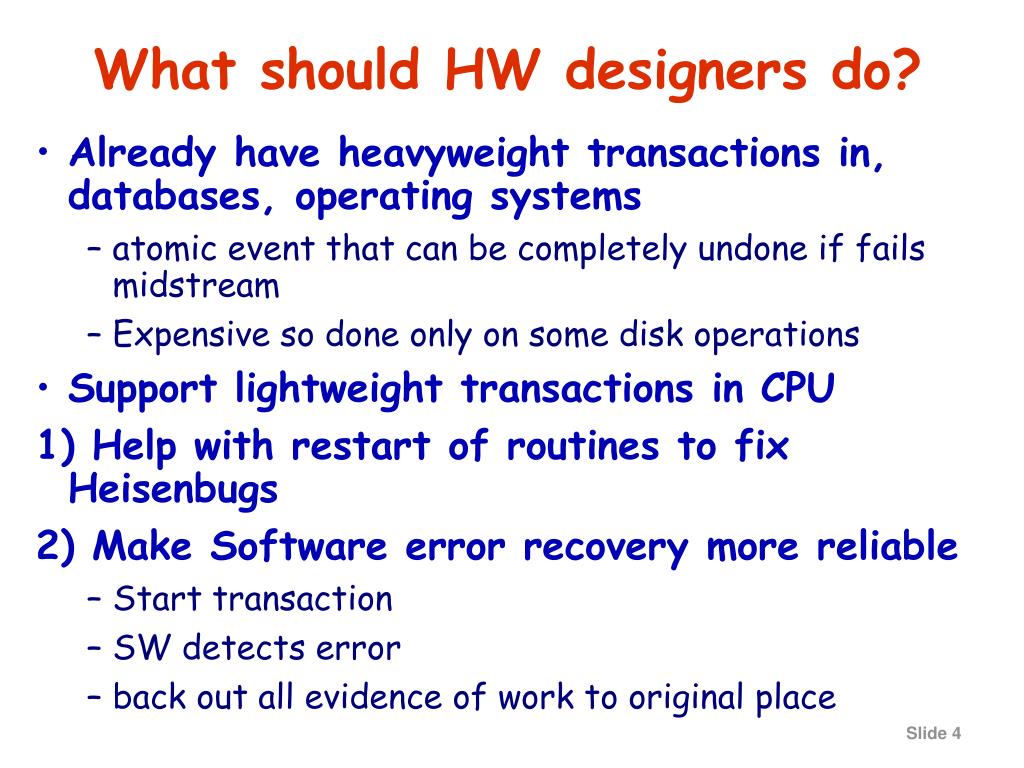

  4. What should HW designers do? • Already have heavyweight transactions in, databases, operating systems • atomic event that can be completely undone if fails midstream • Expensive so done only on some disk operations • Support lightweight transactions in CPU 1) Help with restart of routines to fix Heisenbugs 2) Make Software error recovery more reliable • Start transaction • SW detects error • back out all evidence of work to original place

  5. What will it take? • Mechanisms in modern CPUs for performance speculation lay foundation • Speculative execution via branch prediction, out-of-order execution, in-order completion allows “transactions” per branch, preserving interrupts: Reorder Buffer, Memory Buffer, Commit Table, … • Transmeta Crusoe provides • software control of Write Buffer, allowing SW to discard results of speculative SW execution; • shadowed registers so can go to old values • Expand these mechanisms to support transactions to help with SW bugs • Shadow registers, Much Bigger write buffer (100 KB?) under SW control

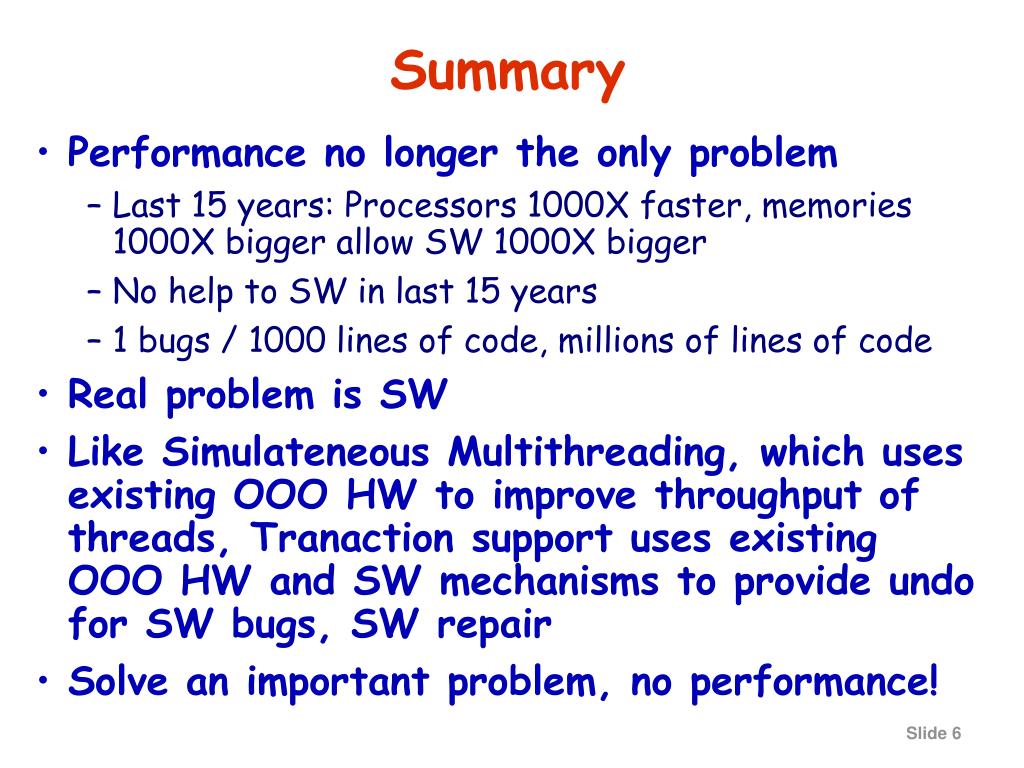

  6. Summary • Performance no longer the only problem • Last 15 years: Processors 1000X faster, memories 1000X bigger allow SW 1000X bigger • No help to SW in last 15 years • 1 bugs / 1000 lines of code, millions of lines of code • Real problem is SW • Like Simulateneous Multithreading, which uses existing OOO HW to improve throughput of threads, Tranaction support uses existing OOO HW and SW mechanisms to provide undo for SW bugs, SW repair • Solve an important problem, no performance!
