  1. Implementation of GRUU in SIP Vladut-Stefan Paiuvladut.paiu@gmail.com • Bachelor Presentation Session - July 2011

  2. Content • Introduction to SIP • Shortcomings of SIP • Solution Description • Implementation into OpenSIPS • Testing • Conclusions • Questions Bachelor Presentation Session - July2011

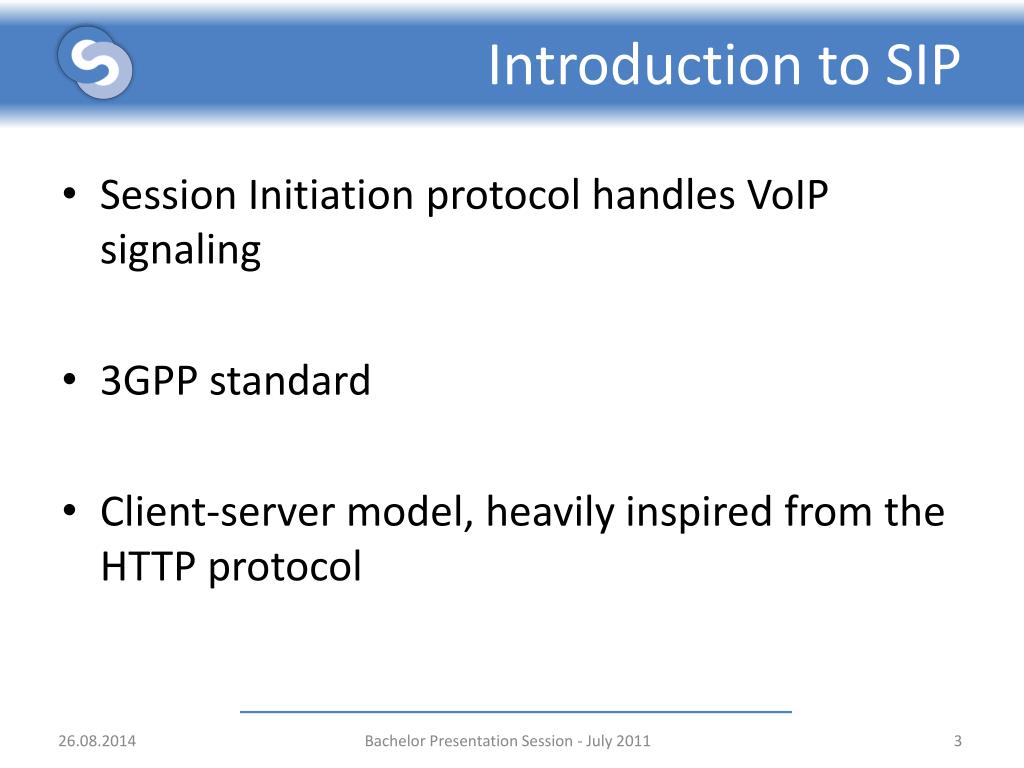

  3. Introduction to SIP • Session Initiation protocol handles VoIP signaling • 3GPP standard • Client-server model, heavily inspired from the HTTP protocol Bachelor Presentation Session - July2011

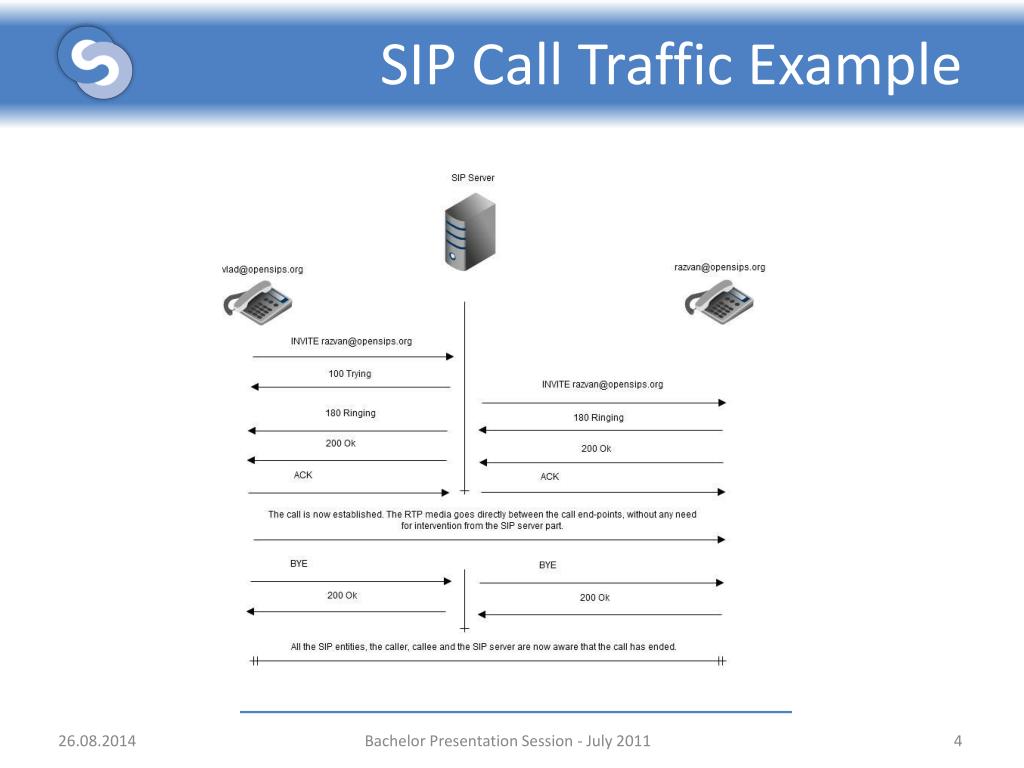

  4. SIP Call Traffic Example Bachelor Presentation Session - July 2011

  5. SIP Addressing Scheme • URI is at the core of the addressing scheme sip:<user>[:<password>]@<host>[:<port>][;<uri-parameters> • An AOR identifies the user • A username can have multiple phones registered in it’s behalf Bachelor Presentation Session - July 2011

  6. Parallel Forking Bachelor Presentation Session - July 2011

  7. Shortcomings of SIP • Multiple phones registered on behalf of same user is COOL • Not being able to address only a single phone within the set of contacts registered for an AOR is BAD • Using the IP address to contact a phone is not a solution because of NAT Bachelor Presentation Session - July 2011

  8. Scenario where SIP breaks calls Bachelor Presentation Session - July 2011

  9. GRUU • Globally Routable User Agent URIs (RFC 5627) • Routes to a specific UA instance • It can be successfully dereferenced by any user agent on the Internet • Requires collaboration between the clients and servers • Clients provide Uniquely Identifying info, servers will use it to route back to them Bachelor Presentation Session - July 2011

  10. Learning Own GRUU Bachelor Presentation Session - July 2011

  11. Learning Other’s GRUU Bachelor Presentation Session - July 2011

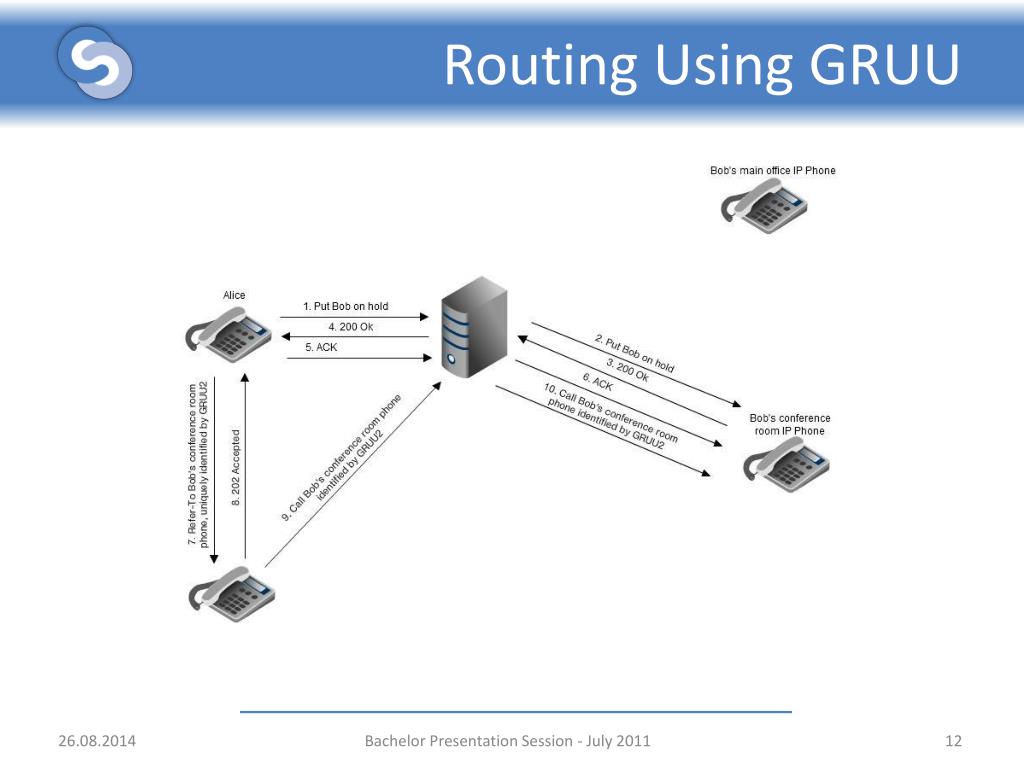

  12. Routing Using GRUU Bachelor Presentation Session - July 2011

  13. OpenSIPS Bachelor Presentation Session - July 2011

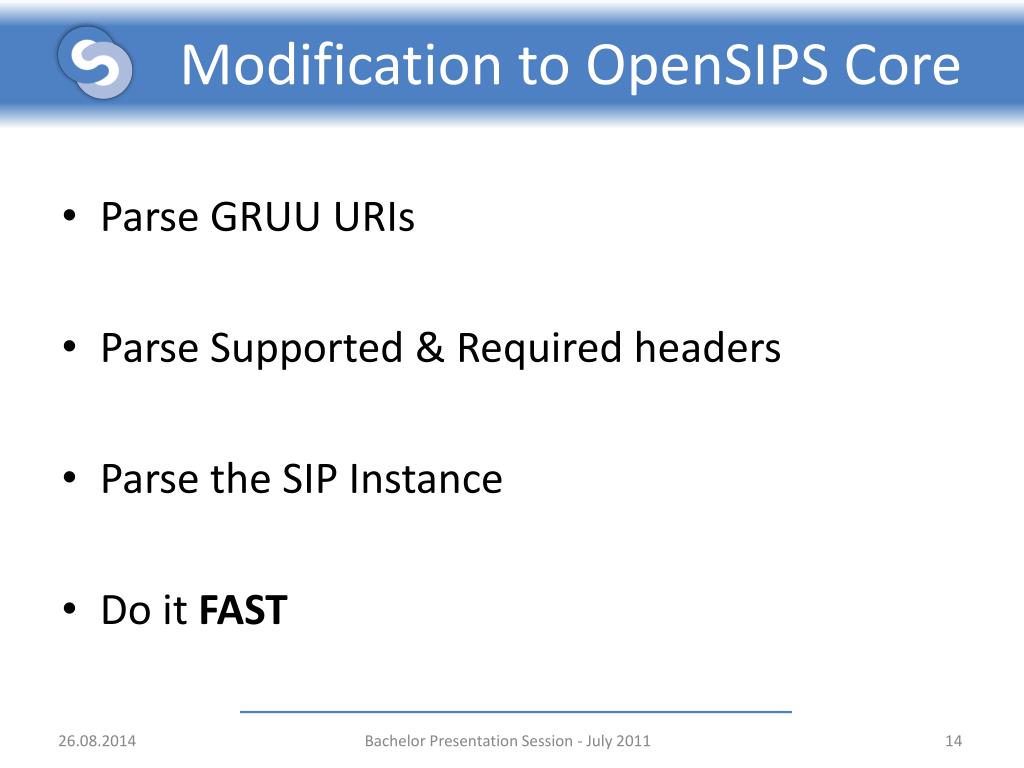

  14. Modification to OpenSIPS Core • Parse GRUU URIs • Parse Supported & Required headers • Parse the SIP Instance • Do it FAST Bachelor Presentation Session - July 2011

  15. Registrar Module • Detect GRUU supporting phones and assign GRUUs • Implement GRUUs that expose the underlying AOR, as well as GRUUs that hide it, for user privacy Bachelor Presentation Session - July 2011

  16. Bachelor Presentation Session - July 2011

  17. Bachelor Presentation Session - July 2011

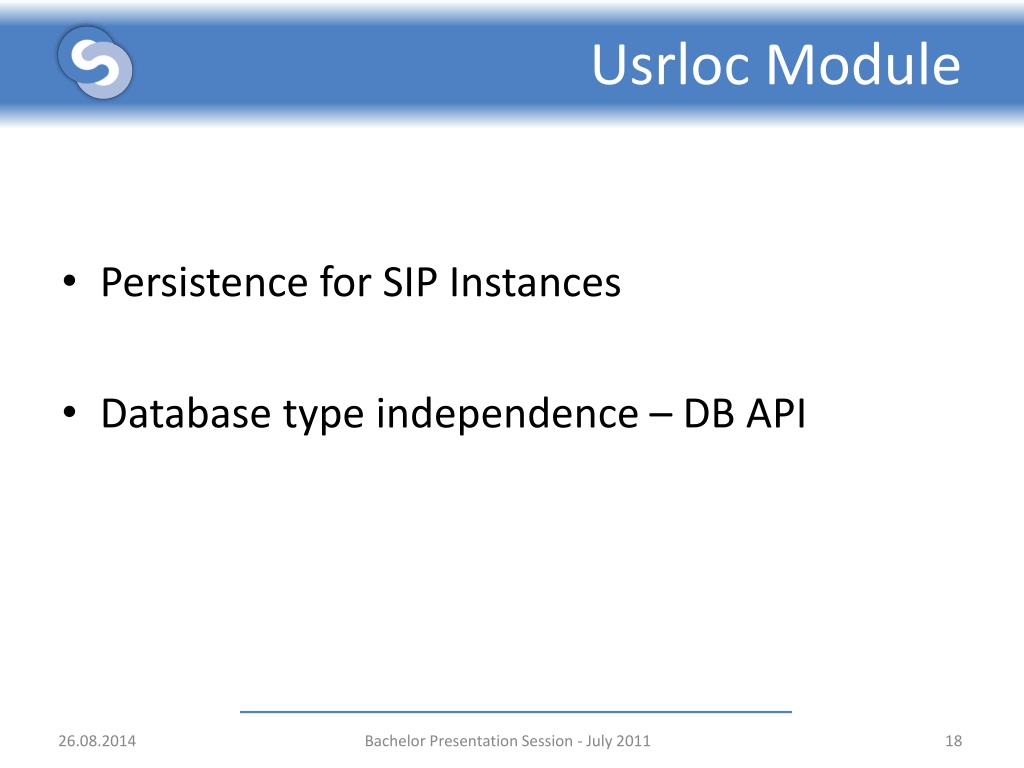

  18. Usrloc Module • Persistence for SIP Instances • Database type independence – DB API Bachelor Presentation Session - July 2011

  19. Testing • New standard – October 2009 • First GRUU implementation in an open-source SIP Proxy • Chicken or the egg ? • Open-source SIP phone developers have started to use OpenSIPS for GRUU integration Bachelor Presentation Session - July 2011

  20. Conclusions • SIP can now properly handle cases where it previously failed (conferencing and call transfering ) • Reference GRUU implementation for SIP soft-phone developers Bachelor Presentation Session - July 2011

  21. Q&A Questions ? Bachelor Presentation Session - July 2011
