Presentation Transcript

  1. The NeedThe problemOur solutionA Balcony Ltd. Presentation.

  2. The Need Growing request for clear view glass balustrades Few solutions exist for French window railings. Juliette balconies require a more modern look.

  3. The Problem Glass balconies require many vertical posts that disrupt the clear view. Bespoke solutions are considered very expensive, resulting in them being rarely used.

  4. The Solutionintroducing: Balconette. A revolution in Juliette balconies!

  5. Our Solution: Clear view no vertical posts. Balconette “ready to install”, easy to fit. 10mm clear toughened glass. Standard “off the shelf” sizes for immediate availability. No Rust! - Non maintenance materials! Suitable for corrosive and marine environments. Very competitive prices. Self manufactured products.

  6. Clearly the solution: Balconette Balustrades A revolution in Juliette balconies! No more ugly balconies.Clean & beautiful from outside.Virtually unnoticeable from inside. Unobstructed view of the scenery.

  7. Balconette Balustrades Fixed to the side of the wall.Bottom track connected underneath the sill of the window. The handrail is connected on the face of the wall past the edge of the structural opening.Balcony’s Juliette system requires NO vertical posts and can be made up to 3.2m long.Easily fitted from the outside and then glazed from the inside. Easy glass replacement if required, no need for costly scaffolding. Ideal for external use even in the most corrosive and sea environment. No corner posts. Installed around a corned without any vertical posts. General:

  8. Balconette Balustrades Technical specification: Balustrade structure: 6063 T5 extruded aluminium profilesPaint/coating: 60-100 micron Polyester powder coating in white colour, or 10-15 micron high-quality anodizing in bronze or natural satin finish. Also available our new “Royal Chrome” anodized finish. RAL colour options available for large projects only.Fixings: Extruded aluminium Wall brackets and A2 or A4 stainless steel fixingsGaskets: EPDM (ethylene-propylene rubber)Glass: 10mm Clear Toughened or toughened & laminated clear glass. Tinted glass is available for large projects. Permitted Loading: Line load 0.74 kN/m, point load to infill 1.0kN.

  9. Glass Juliette balconettes Price listFinished in White

  10. Prices Include: • Handrail and wall brackets. • Bottom rail and wall brackets, gaskets, glazing beads. • 10mm clear toughened glass. • Delivery to mainland UK within 3 days (subject to stock). Prices Exclude: • Vat • Installation • Fixings (bolts, screws for fixing to walls).

  11. Balconette Balustrades CAD details Balconette: up to 3.2m long Section:

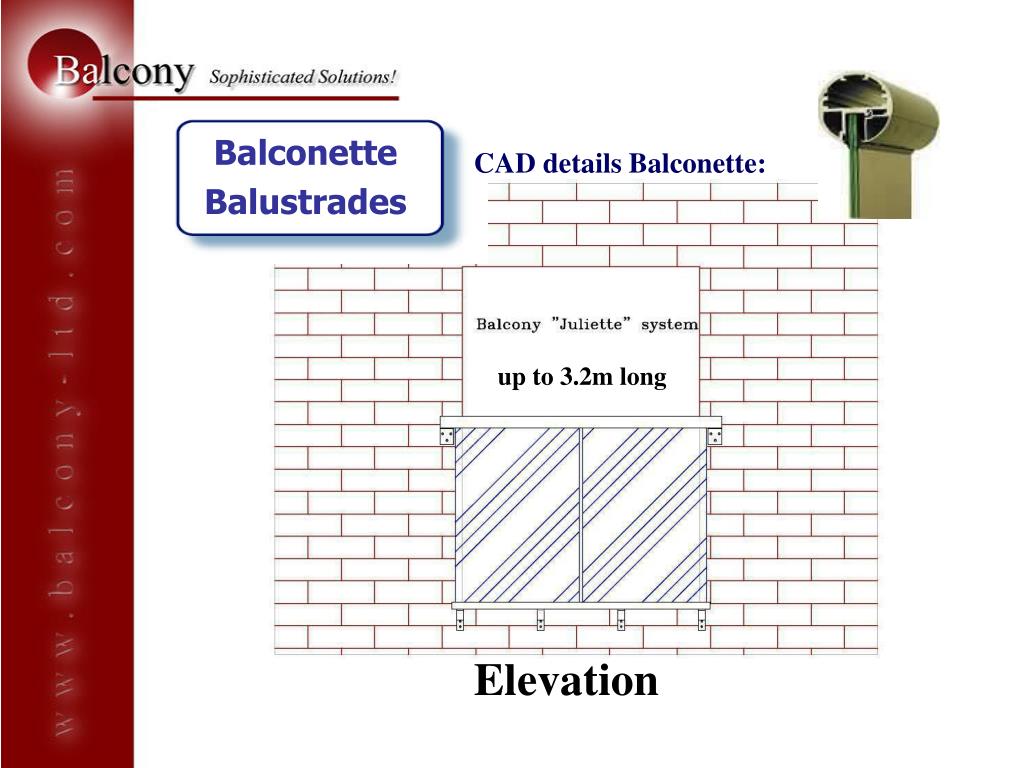

  12. CAD details Balconette: Balconette Balustrades up to 3.2m long Elevation

  13. Please visit our site at:www.balconette.co.uk Tel: 01342-410411 Fax: 01342-410412 E-mail: enquiries@balconette.co.uk Unit 5 Forest Row Business Park Station Road, Forest Row East Sussex RH18 5DW We hope now you have a Clear View
