  1. The Tenet Architecture for Tiered Sensor Networks O. Gnawali, B. Greenstein, K-Y. Jang, A. Joki, J. Paek, M. Viera, D. Estrin, R. Govindan, E. Kohler USC, UCLASenSys 2006

  2. The Tenet Two-Tier Architecture • Motes and Masters • Multi-node data fusion done on masters • Masters program motes using tasks

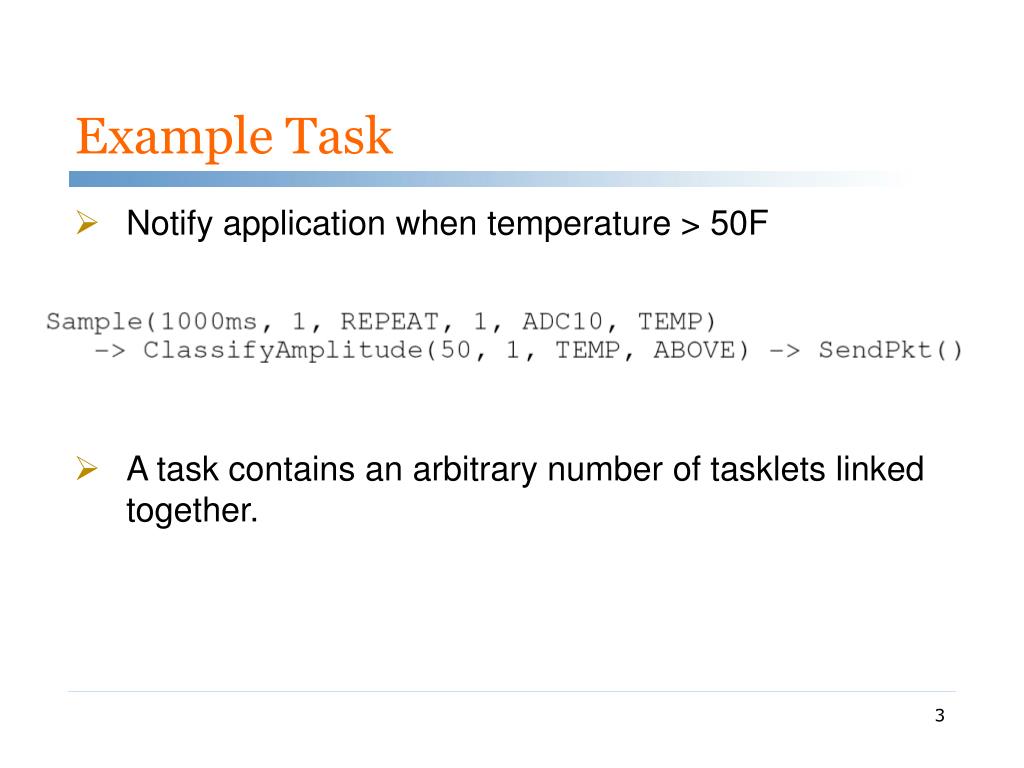

  3. Example Task • Notify application when temperature > 50F • A task contains an arbitrary number of tasklets linked together.

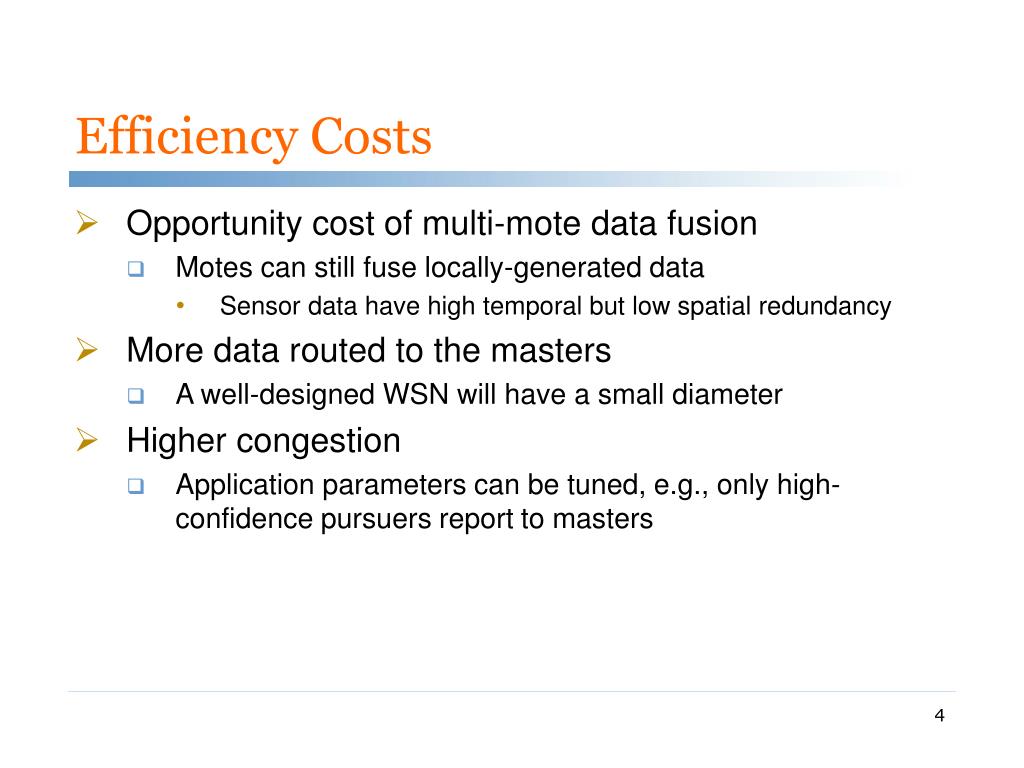

  4. Efficiency Costs • Opportunity cost of multi-mote data fusion • Motes can still fuse locally-generated data • Sensor data have high temporal but low spatial redundancy • More data routed to the masters • A well-designed WSN will have a small diameter • Higher congestion • Application parameters can be tuned, e.g., only high-confidence pursuers report to masters

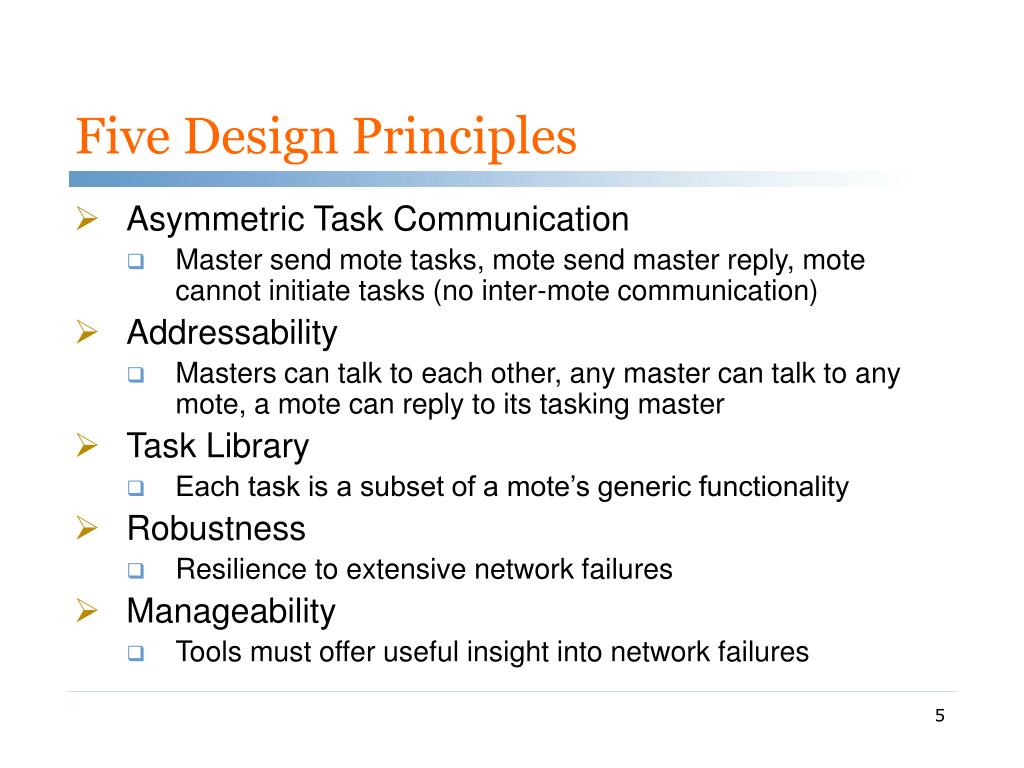

  5. Five Design Principles • Asymmetric Task Communication • Master send mote tasks, mote send master reply, mote cannot initiate tasks (no inter-mote communication) • Addressability • Masters can talk to each other, any master can talk to any mote, a mote can reply to its tasking master • Task Library • Each task is a subset of a mote’s generic functionality • Robustness • Resilience to extensive network failures • Manageability • Tools must offer useful insight into network failures

  6. Tenet Task and Task Library • Focus on simplicity rather than expressiveness • A task is composed of tasklets, which are parameterized services • Linear composition • Tasklets maximize flexibility while remaining simple • Each task has a unique ID, a list of tasklets, and their parameters • Task library composed at compile-time due to TinyOS

  7. Tasklets • Can be composed into a wide range of tasks

  8. Task Data Structure • Tasks are dynamically allocated • Active Containers hold task data • Cloned when a tasklet repeats Attributes are 3-tuples: <tag, length, value>

  9. The Mote Runtime • Task-aware queues used by services (e.g., wait) • Tenet scheduler operates at tasklet-level granularity • Allows multiple tasks to execute concurrently

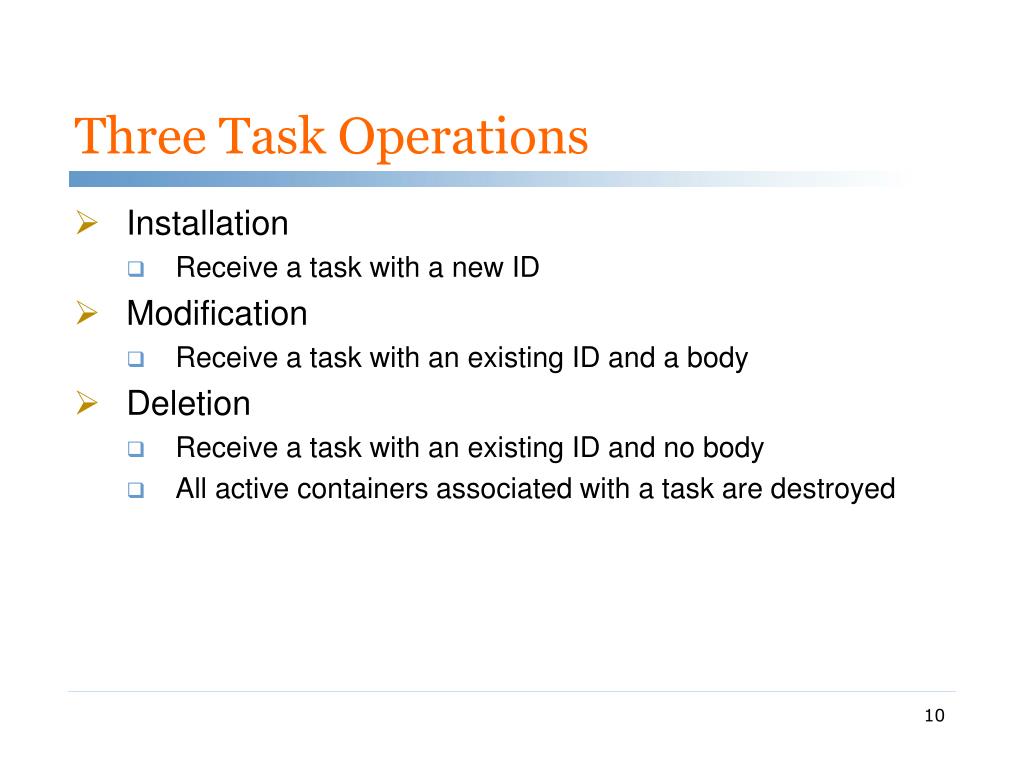

  10. Three Task Operations • Installation • Receive a task with a new ID • Modification • Receive a task with an existing ID and a body • Deletion • Receive a task with an existing ID and no body • All active containers associated with a task are destroyed

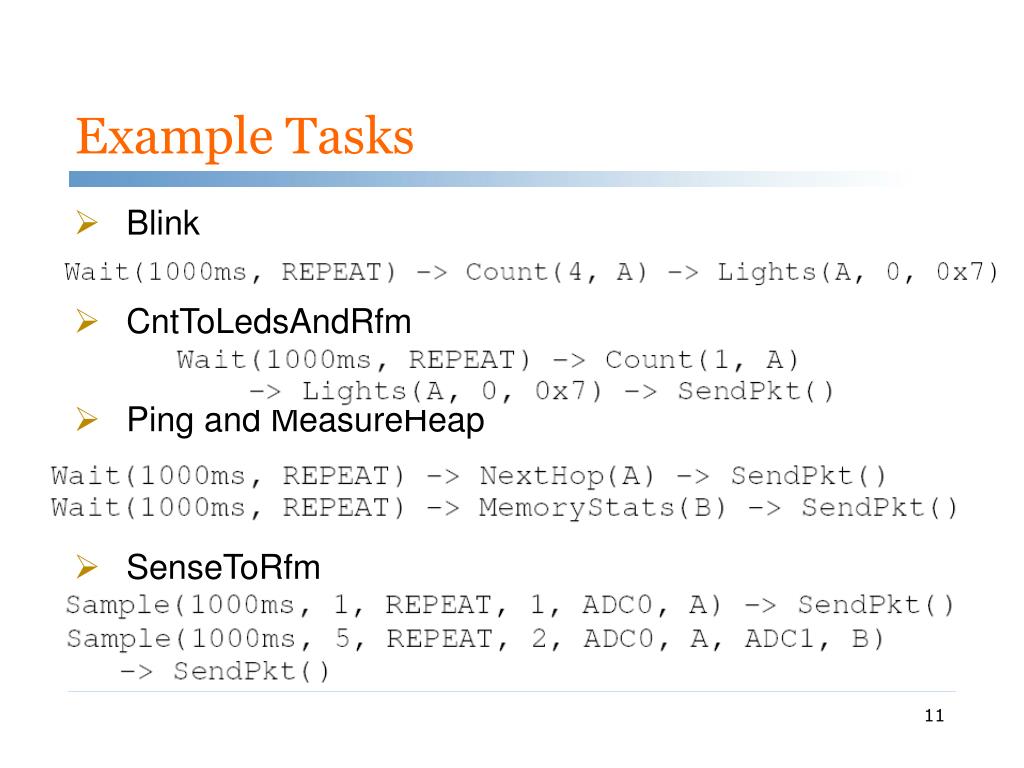

  11. Example Tasks • Blink • CntToLedsAndRfm • Ping and MeasureHeap • SenseToRfm

  12. Data Fusion Example • Take 10 samples, timestamp it • classify as interesting if 3 or more samples > 45 • calculates the deviation from the running mean • displays the sample on the LEDs • sends the statistic, timestamp, and sample if interesting

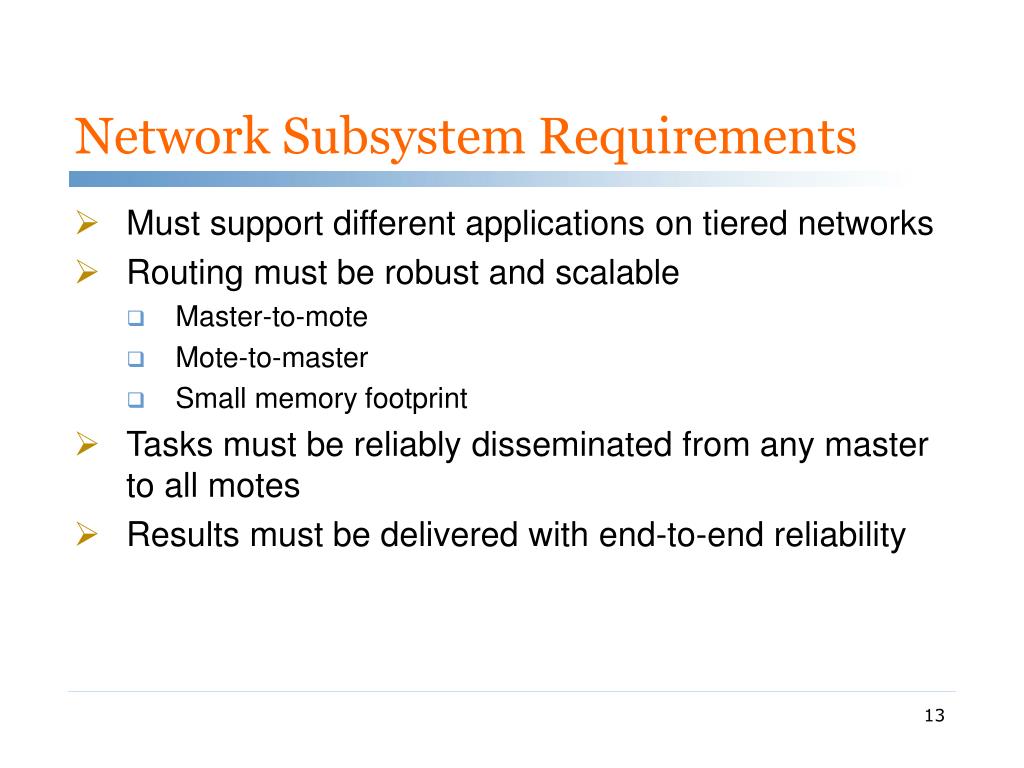

  13. Network Subsystem Requirements • Must support different applications on tiered networks • Routing must be robust and scalable • Master-to-mote • Mote-to-master • Small memory footprint • Tasks must be reliably disseminated from any master to all motes • Results must be delivered with end-to-end reliability

  14. Addressing and Routing • Every mote and master has a globally unique 16-bit address • Motes use TinyOS address • Masters use last 16-bits of IP address • Master-to-master: IP routing • Mote-to-master: tiered routing • First route to nearest master, then to destination master • Use standard WSN tree-routing protocol like MintRoute

  15. Tiered Task Dissemination • Reliably floods tasks to all motes • Partial network re-tasking achieved using a predicate tasklet • Implemented in a generic packet flooding protocol called TRD • Reliably floods packets to all nodes (both motes and masters) • Based on beaconing

  16. Reliable Transport • Transmits responses from motes to masters • Three types • Best effort • Reliable transactional • Stream transport for high data rate applications • All use hop-by-hop retransmissions • The reliable protocols use a simplified version of TCP

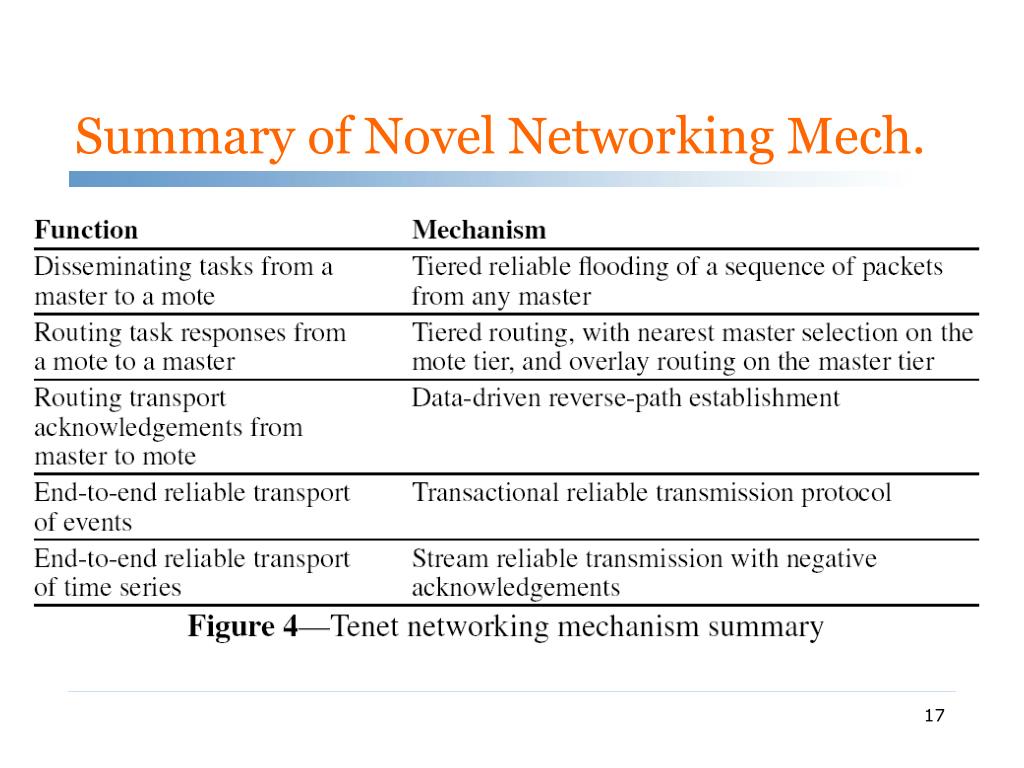

  17. Summary of Novel Networking Mech.

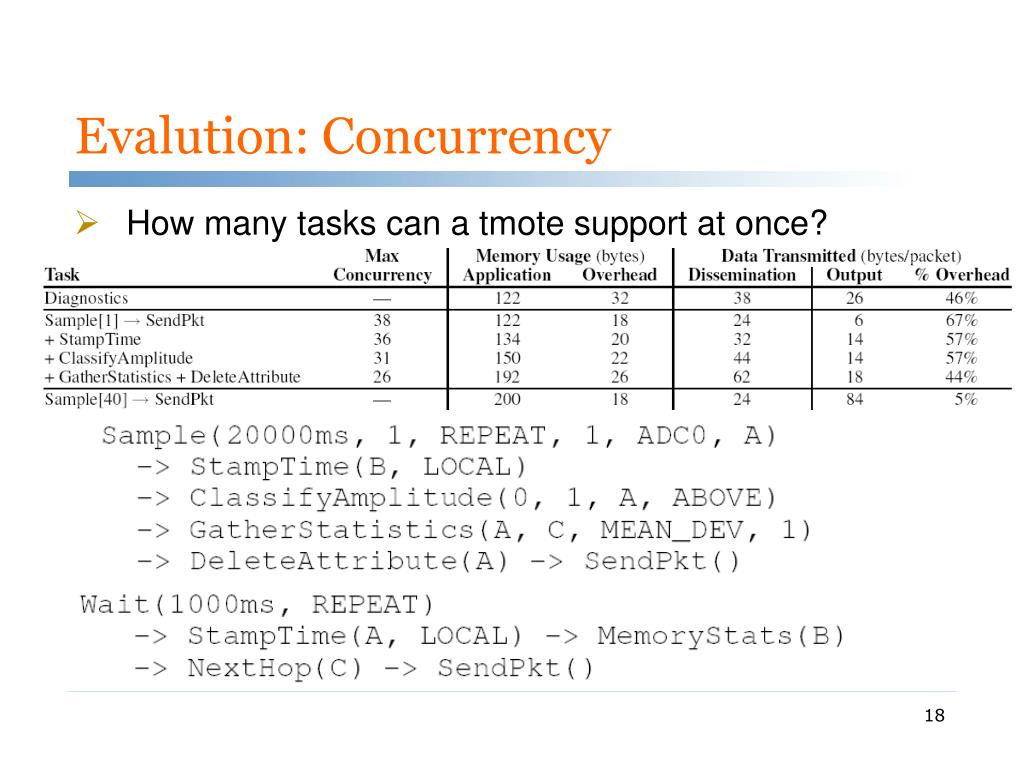

  18. Evalution: Concurrency • How many tasks can a tmote support at once?

  19. Execution Time • Most CPU-intensive tasklet, GatherStatistics, can process 1200 samples in 14.8ms • CPU-bound max sampling rate is 81,000 samples per second

  20. Application: PEG • PEG = Pursuit-Evasion Game • One or more pursuers collaborate to corral one or more evaders • Use WSN to help pursuers detect non-line-of-sight evaders • Native implementation uses a leader • Multiple nodes sense the evader, leader fuses the data • Stress tests Tenet (no mote-level fusion) • Tenet implementation adjusts the detection threshold

  21. PEG Experimental Setup • 56 tmotes, 6 stargates • Simplifications • Evader detected using RSSI • Radio transmit power limited to achieve multihop • 9-hop diameter • One evader, one stationary pursuer on central master

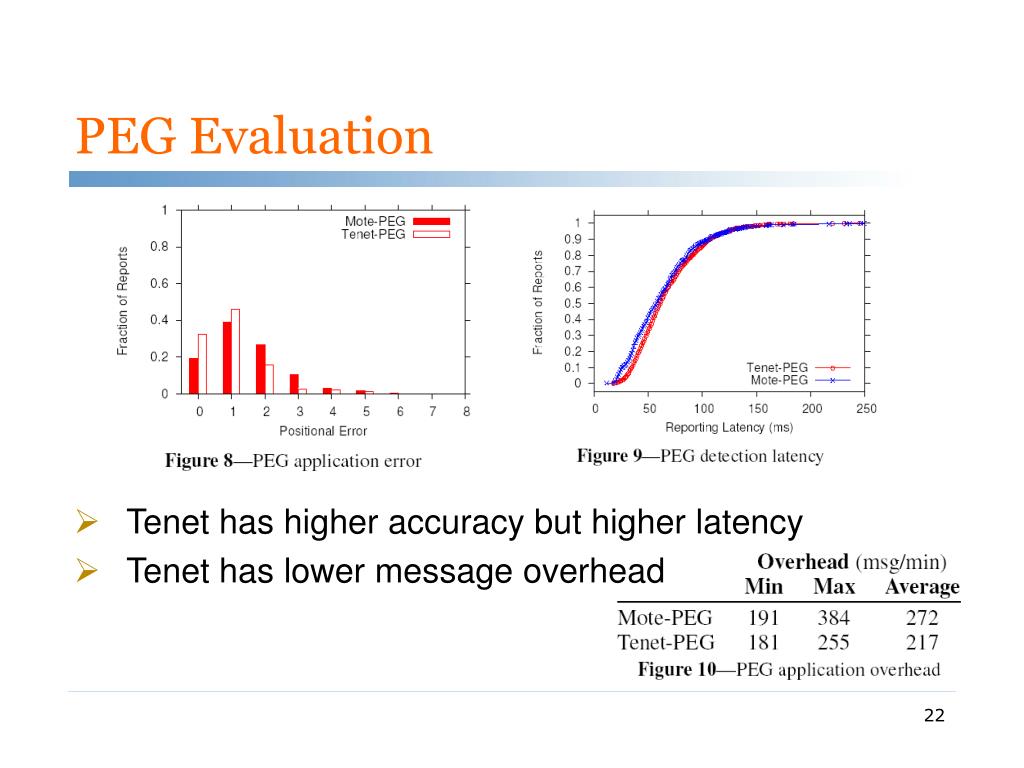

  22. PEG Evaluation • Tenet has higher accuracy but higher latency • Tenet has lower message overhead

  23. Vibration Monitoring Case Study • Tenet used to implement Wisden • DetectOnSet reduces network traffic • Tenet simplifies programming

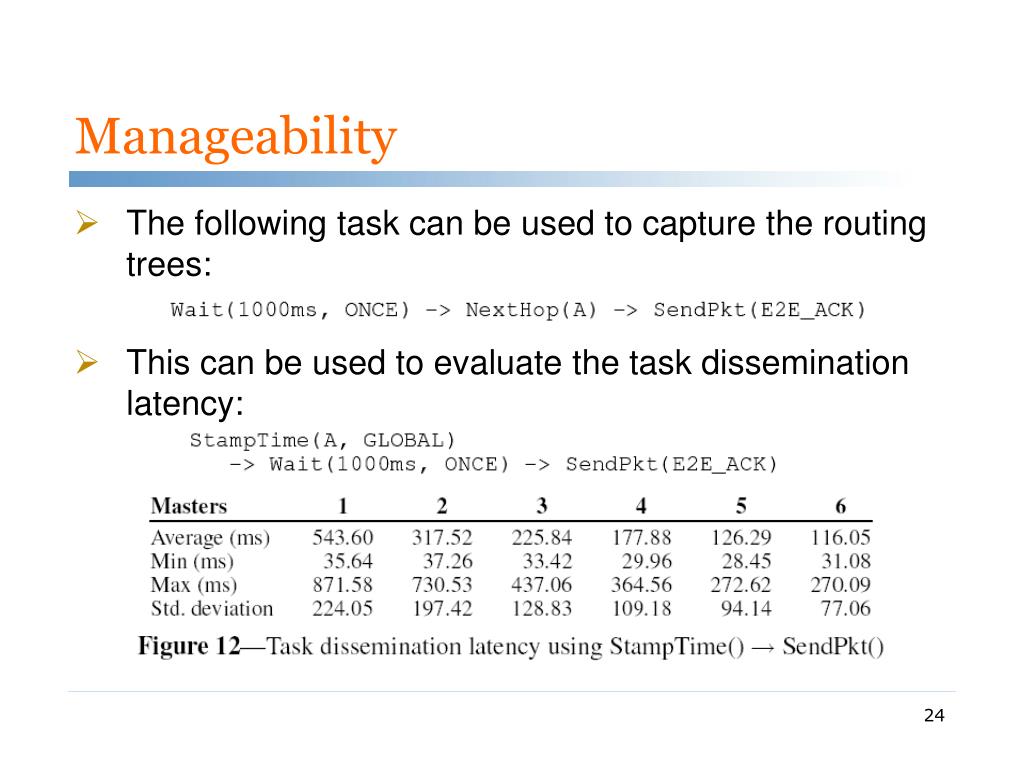

  24. Manageability • The following task can be used to capture the routing trees: • This can be used to evaluate the task dissemination latency:

  25. Robustness • Failure of a master forces routing algorithm to adjust

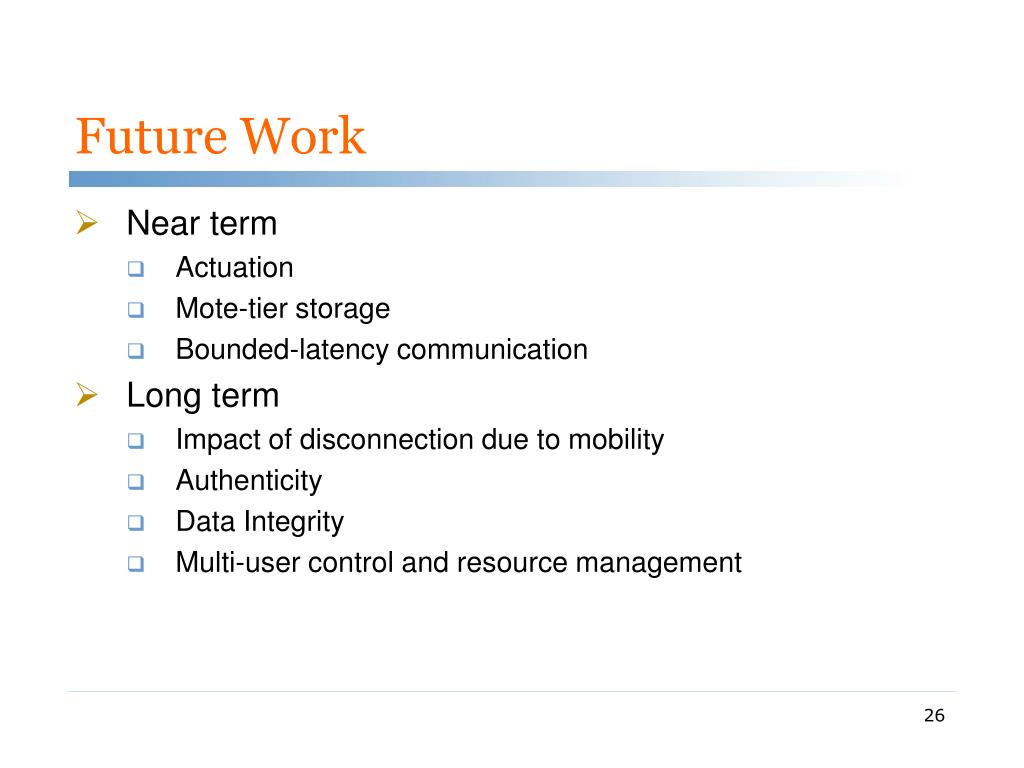

  26. Future Work • Near term • Actuation • Mote-tier storage • Bounded-latency communication • Long term • Impact of disconnection due to mobility • Authenticity • Data Integrity • Multi-user control and resource management

  27. Conclusion • Tenet simplifies programming while not significantly increasing overhead

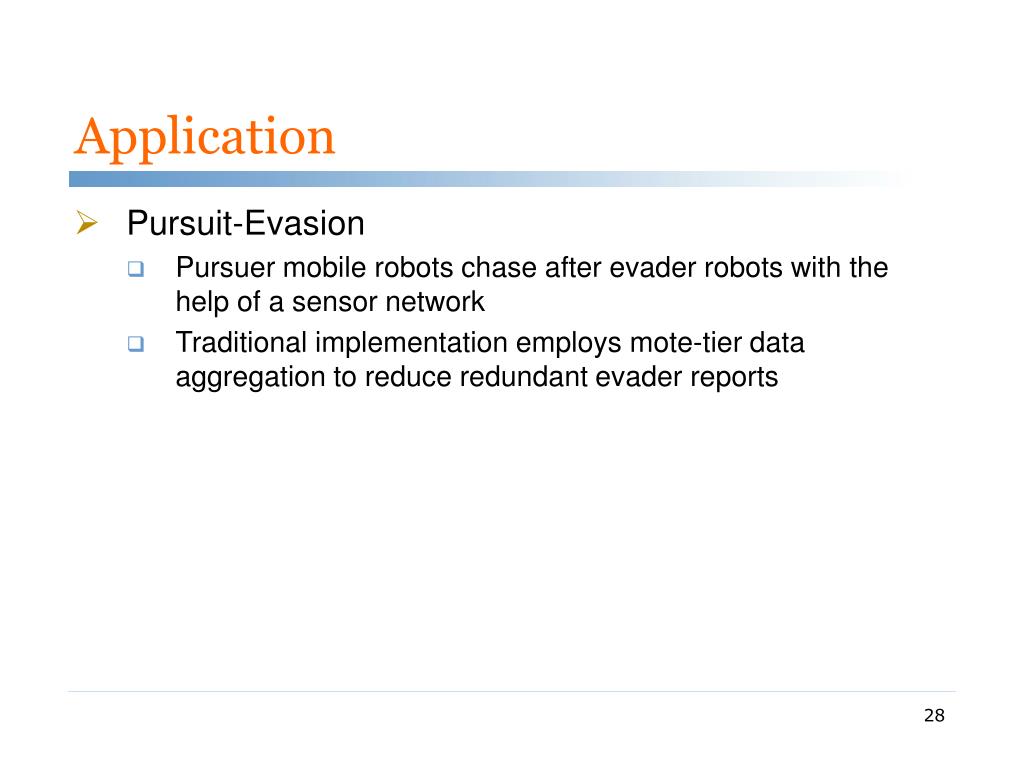

  28. Application • Pursuit-Evasion • Pursuer mobile robots chase after evader robots with the help of a sensor network • Traditional implementation employs mote-tier data aggregation to reduce redundant evader reports
