Using Clusters

In a cluster computing environment, users engage with a myriad of machines, each potentially running different software and hardware configurations. This can lead to challenges such as slow responses or machine downtimes. A portable batch system (PBS) effectively bridges the gap between users and the computing resources. Through user interfaces, job queuing, scheduling, and monitoring, users can submit tasks and manage jobs efficiently across uniform hardware and software. With components like user commands and system daemons, PBS ensures optimized resource management and task execution in interactive, batch, and parallel computing scenarios.

elinor
Télécharger la présentation

Using Clusters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Using Clusters -User Perspective

  2. Pre-cluster scenario • So many different computers: prithvi, apah, tejas, vayu, akash, agni, aatish, falaq, narad, qasid … • Different S/W on each of them • Different H/W capabilities • The desired one may be down • Only few are in the top bracket, so response may be slow

  3. Cluster • Only one machine for so many computers • Same S/W everywhere • Same H/W • Few systems down is no problem • One can use the m/c as Interactive Server, Batch Sever, Sequential m/c, Parallel m/c

  4. User Interface to Cluster • Like OS is between m/c and user • This interface is between user and a chunk of m/c s • Users Interface  m/c s

  5. Components • Q ing: Collection of user jobs/requests in the form of batch jobs • Scheduling: Selecting user jobs to run and m/c s to run on • Monitoring: Usage policy implementation, Job and m/c status track

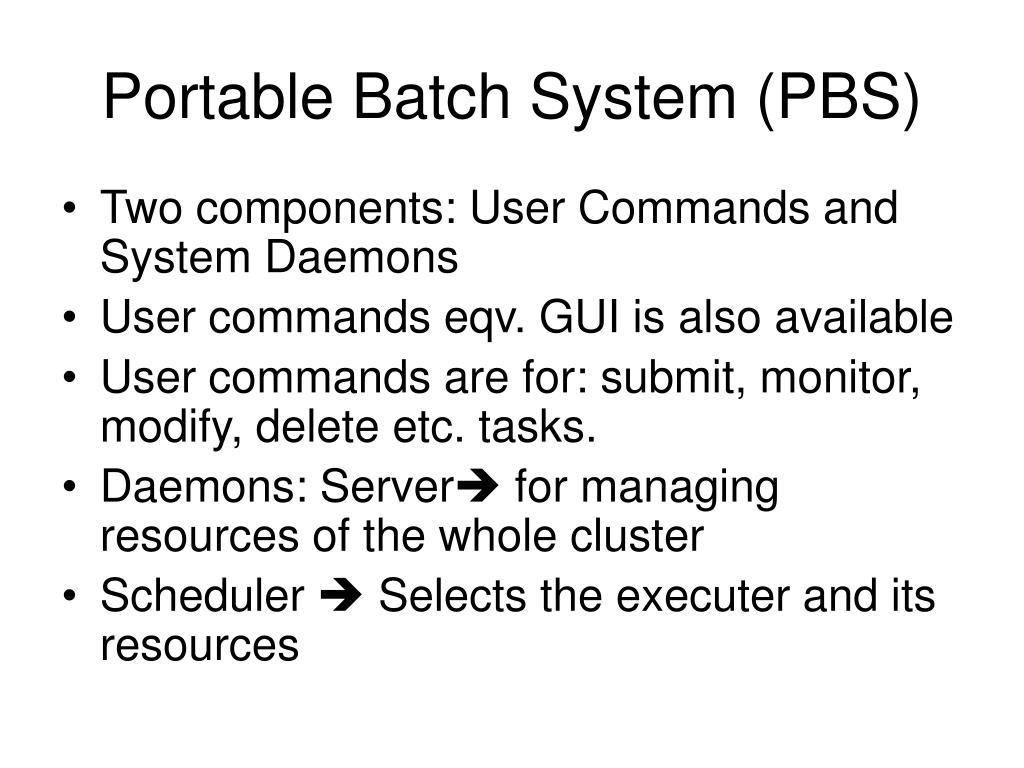

  6. Portable Batch System (PBS) • Two components: User Commands and System Daemons • User commands eqv. GUI is also available • User commands are for: submit, monitor, modify, delete etc. tasks. • Daemons: Server for managing resources of the whole cluster • Scheduler  Selects the executer and its resources

  7. Executer  some node and some processor selected by the scheduler • Running a job: • 1- Create a file having OS and PBS commands: ./a.out • #PBS –l ncpus=4 • 2- Submitting a job: Use the command qsub <file_containing_OS/PBS commands> [options]

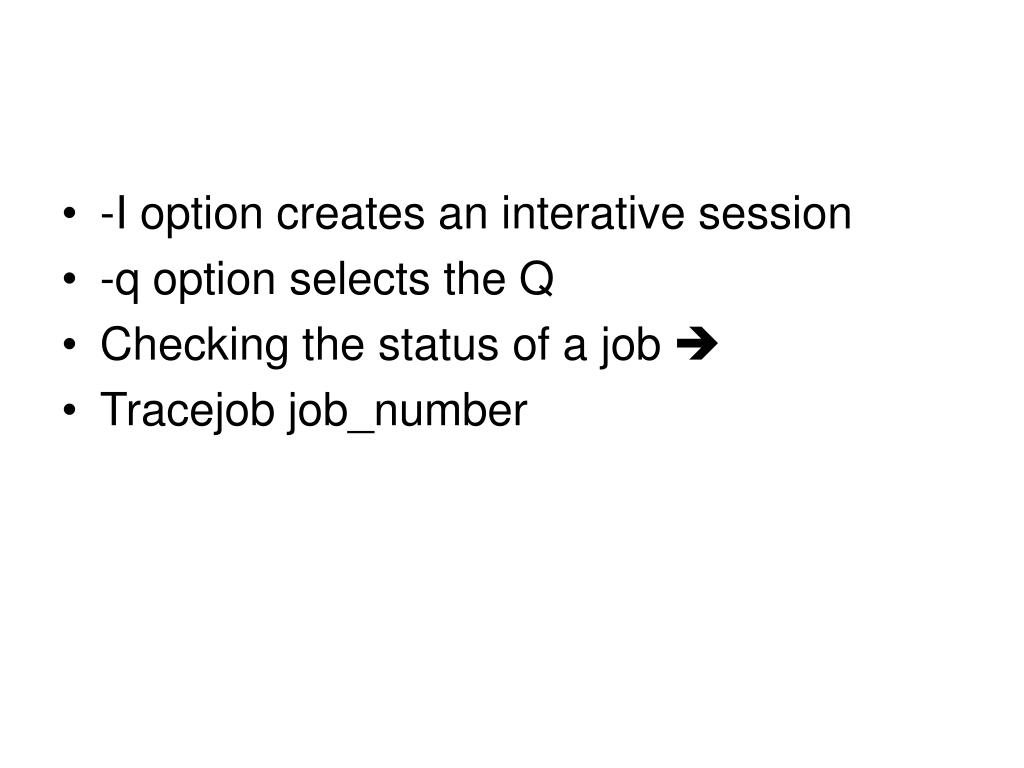

  8. -I option creates an interative session • -q option selects the Q • Checking the status of a job  • Tracejob job_number

  9. 9/05/2006 20:19:36 S Job Queued at request of santh@hncn17, owner = • santh@hncn17, job name = SCR_LB70-m5stat, queue = • workq • 9/05/2006 20:19:36 S Job Modified at request of Scheduler@hncn17 • 9/05/2006 20:19:36 S enqueuing into workq, state 1 hop 1 • 9/05/2006 20:19:36 A queue=workq • 9/05/2006 22:39:36 L Considering job to run • 9/05/2006 22:39:36 L Not enough of the right type of nodes available

  10. Modifying a job: qalter –l walltime=20:00 • Deleting a job: qdel 17 • Sending signals: qsig –s signal job_identifier • Job movement between Qs is possible • Parallel jobs are run through the command: mpirun • Check pointing is possible

  11. pbs_server, pbs_mom, pbs_scheduler are the three daemons • Compute node runs only pbs_mom
