Connectors on CIP and on DeviceNet Buscoupler. 24V, GND - twisted pair CAN Low , CAN High - twisted pair. DeviceNet Hardware WAGO - Connectors. CIP. shield. CAN high (wh). CAN low (bl). GND (bk). Microstyle Connector, 5 Pin ( refer to MV-Controller User‘s Guide for pinout).
E N D
Connectors • on CIP and • on DeviceNet Buscoupler 24V, GND - twisted pair CAN Low , CAN High - twisted pair DeviceNet Hardware WAGO - Connectors CIP shield CAN high (wh) CAN low (bl) GND (bk) Microstyle Connector, 5 Pin (refer to MV-Controller User‘s Guide for pinout) 24V (rd) Plastiknose for allingning the connector is very sensitiv !! The DeviceNet can have a maximum of 64 Nodes in total (AWC is node 0 and Master by default) On DeviceNet nodes adjust MACID, BAUDRATE by DIP switches 120 Ohm resistor between CAN high and CAN low I/O 120Ohm Connect 24V and Ground to Buscoupler and CIP ! (see overview on next page) I/O On AWC adjust LOCAL_ID statement using "config_c": MACID 0..63, BAUDRATE 125kBaud, 250kBaud, or 500kBaud I/O AWC / CIP Master (MACID:default 0)
DeviceNet Hardware WAGO - Overview Buscoupler 2 Input- Modules 2 Output- Modules End module 24V and Ground supply for DeviceNet-Master (AWC / CIP) 24V and Ground available on all modules DIP-switches for MACID and BAUDrate * 120 Ohm resistor between CANHigh und CAN Low 24V and Ground supply for DeviceNet-Bus and Bridge to 24V and GND trails (going through all modules) * There are modules for galvanic separation, that allow to apply different voltages for switching.

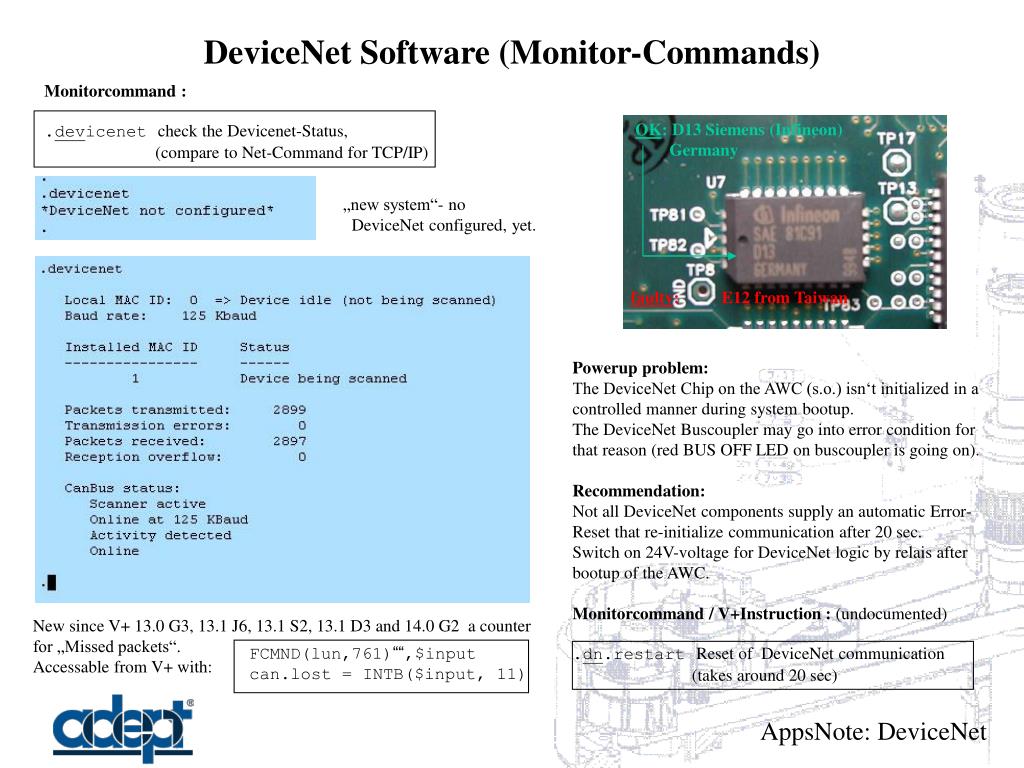

DeviceNet Software (Monitor-Commands) Monitorcommand : .devicenet check the Devicenet-Status, (compare to Net-Command for TCP/IP) OK: D13 Siemens (Infineon) Germany „new system“- no DeviceNet configured, yet. faulty: E12 from Taiwan Powerup problem: The DeviceNet Chip on the AWC (s.o.) isn‘t initialized in a controlled manner during system bootup. The DeviceNet Buscoupler may go into error condition for that reason (red BUS OFF LED on buscoupler is going on). Recommendation: Not all DeviceNet components supply an automatic Error-Reset that re-initialize communication after 20 sec. Switch on 24V-voltage for DeviceNet logic by relais after bootup of the AWC. Monitorcommand / V+Instruction : (undocumented) .dn.restart Reset of DeviceNet communication (takes around 20 sec) New since V+ 13.0 G3, 13.1 J6, 13.1 S2, 13.1 D3 and 14.0 G2 a counter for „Missed packets“. Accessable from V+ with: FCMND(lun,761)““,$input can.lost = INTB($input, 11)

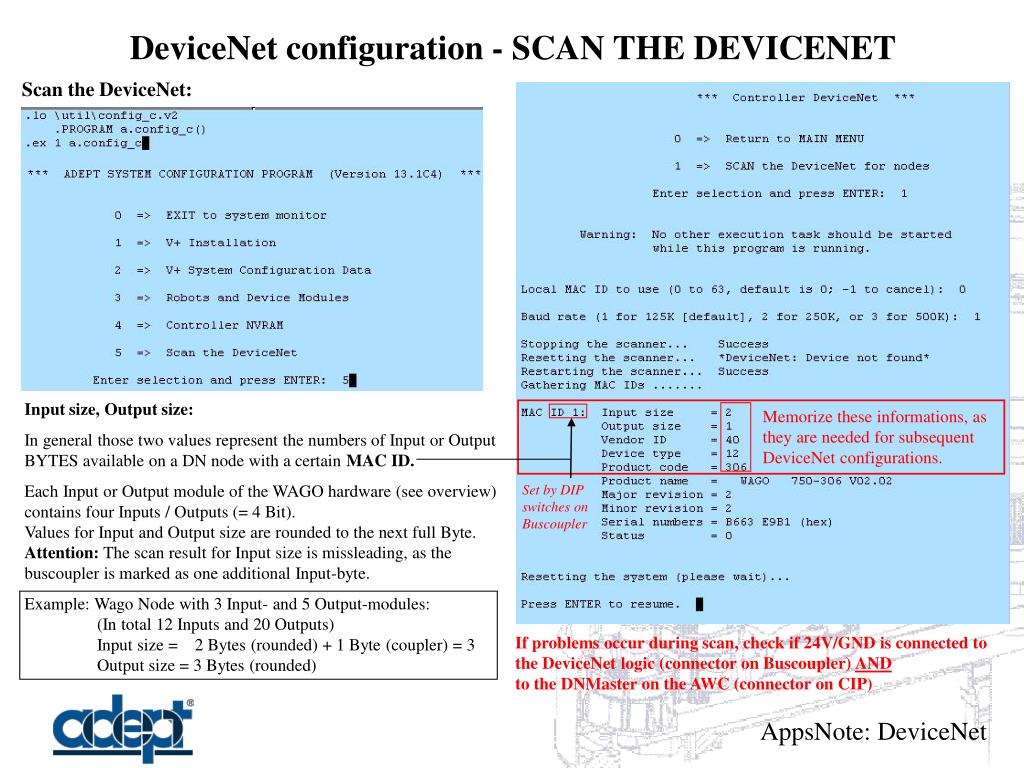

DeviceNet configuration - SCAN THE DEVICENET Scan the DeviceNet: Input size, Output size: In general those two values represent the numbers of Input or Output BYTES available on a DN node with a certain MAC ID. Each Input or Output module of the WAGO hardware (see overview) contains four Inputs / Outputs (= 4 Bit). Values for Input and Output size are rounded to the next full Byte. Attention: The scan result for Input size is missleading, as the buscoupler is marked as one additional Input-byte. Memorize these informations, as they are needed for subsequent DeviceNet configurations. Set by DIP switches on Buscoupler Example: Wago Node with 3 Input- and 5 Output-modules: (In total 12 Inputs and 20 Outputs) Input size = 2 Bytes (rounded) + 1 Byte (coupler) = 3 Output size = 3 Bytes (rounded) If problems occur during scan, check if 24V/GND is connected to the DeviceNet logic (connector on Buscoupler) AND to the DNMaster on the AWC (connector on CIP)
DeviceNet configuration - LOCAL, MACID In case of this error, the V+ errorhandling could execute the DN.RESTART instruction (only for DN components w/ automatic error reset), or switch off and on the 24V suply for the DeviceNet logic. Address (MACID) of DeviceNet Master (AWC) default=0 DeviceNet scanner speed. MUST meet the DIP switch settings of all DeviceNet nodes. If a DeviceNet Node has Inputs that are relevant for the system safety, it can be told to force a High Power Disable with this statement.. Insert results from previous DN scan here
DeviceNet configuration - I/OMapping Output-Mapping (mapping nr. 1 ): 2 x 4 Outputs 2 x 4 Inputs On DeviceNet node #1 (MACID 1), starting from Byte#1, first bit, define the next eight outputs (33 ... 40)** ** the IO mapping can be split (even within a single module). 1070 1069 1066 1065 33 34 37 Input-Mapping (mapping nr. 2 ): 38 On DeviceNet node #1 (MACID 1), starting from Data-Byte#1 *, first bit, define the next eight inputs (1065...1072)** 24V GND 1072 1071 1068 1067 35 36 *the /BYTE part of an input-mapping statement only refers to the Data-Bytes (the additional Inputbyte of the Buscoupler, shown during the scan, is disregarded here !) 39 40

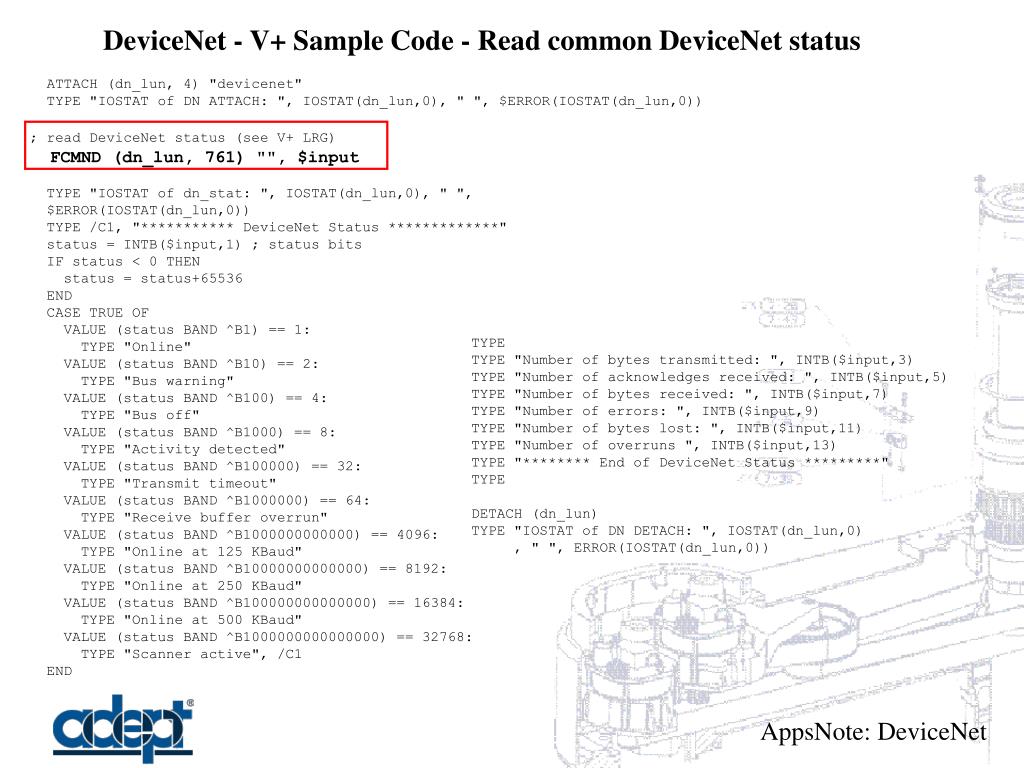

DeviceNet - V+ Sample Code - Read common DeviceNet status ATTACH (dn_lun, 4) "devicenet" TYPE "IOSTAT of DN ATTACH: ", IOSTAT(dn_lun,0), " ", $ERROR(IOSTAT(dn_lun,0)) ; read DeviceNet status (see V+ LRG) FCMND (dn_lun, 761) "", $input TYPE "IOSTAT of dn_stat: ", IOSTAT(dn_lun,0), " ", $ERROR(IOSTAT(dn_lun,0)) TYPE /C1, "*********** DeviceNet Status *************" status = INTB($input,1) ; status bits IF status < 0 THEN status = status+65536 END CASE TRUE OF VALUE (status BAND ^B1) == 1: TYPE "Online" VALUE (status BAND ^B10) == 2: TYPE "Bus warning" VALUE (status BAND ^B100) == 4: TYPE "Bus off" VALUE (status BAND ^B1000) == 8: TYPE "Activity detected" VALUE (status BAND ^B100000) == 32: TYPE "Transmit timeout" VALUE (status BAND ^B1000000) == 64: TYPE "Receive buffer overrun" VALUE (status BAND ^B1000000000000) == 4096: TYPE "Online at 125 KBaud" VALUE (status BAND ^B10000000000000) == 8192: TYPE "Online at 250 KBaud" VALUE (status BAND ^B100000000000000) == 16384: TYPE "Online at 500 KBaud" VALUE (status BAND ^B1000000000000000) == 32768: TYPE "Scanner active", /C1 END TYPE TYPE "Number of bytes transmitted: ", INTB($input,3) TYPE "Number of acknowledges received: ", INTB($input,5) TYPE "Number of bytes received: ", INTB($input,7) TYPE "Number of errors: ", INTB($input,9) TYPE "Number of bytes lost: ", INTB($input,11) TYPE "Number of overruns ", INTB($input,13) TYPE "******** End of DeviceNet Status *********" TYPE DETACH (dn_lun) TYPE "IOSTAT of DN DETACH: ", IOSTAT(dn_lun,0) , " ", ERROR(IOSTAT(dn_lun,0))

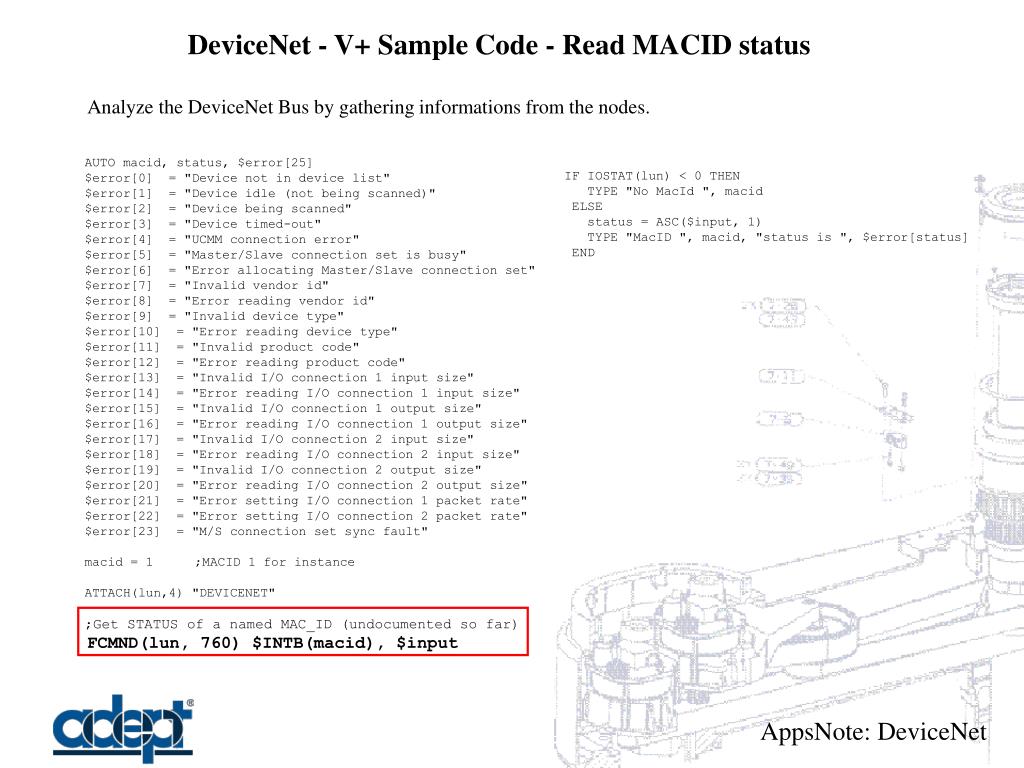

DeviceNet - V+ Sample Code - Read MACID status Analyze the DeviceNet Bus by gathering informations from the nodes. AUTO macid, status, $error[25] $error[0] = "Device not in device list" $error[1] = "Device idle (not being scanned)" $error[2] = "Device being scanned" $error[3] = "Device timed-out" $error[4] = "UCMM connection error" $error[5] = "Master/Slave connection set is busy" $error[6] = "Error allocating Master/Slave connection set" $error[7] = "Invalid vendor id" $error[8] = "Error reading vendor id" $error[9] = "Invalid device type" $error[10] = "Error reading device type" $error[11] = "Invalid product code" $error[12] = "Error reading product code" $error[13] = "Invalid I/O connection 1 input size" $error[14] = "Error reading I/O connection 1 input size" $error[15] = "Invalid I/O connection 1 output size" $error[16] = "Error reading I/O connection 1 output size" $error[17] = "Invalid I/O connection 2 input size" $error[18] = "Error reading I/O connection 2 input size" $error[19] = "Invalid I/O connection 2 output size" $error[20] = "Error reading I/O connection 2 output size" $error[21] = "Error setting I/O connection 1 packet rate" $error[22] = "Error setting I/O connection 2 packet rate" $error[23] = "M/S connection set sync fault" macid = 1 ;MACID 1 for instance ATTACH(lun,4) "DEVICENET" ;Get STATUS of a named MAC_ID (undocumented so far) FCMND(lun, 760) $INTB(macid), $input IF IOSTAT(lun) < 0 THEN TYPE "No MacId ", macid ELSE status = ASC($input, 1) TYPE "MacID ", macid, "status is ", $error[status] END
