  1. Principles of Spread Spectrum Lecture 4

  2. Objectives • List and describe the wireless modulation schemes used in IEEE WLANs • Tell the difference between frequency hopping spread spectrum and direct sequence spread spectrum • Explain how orthogonal frequency division multiplexing is used to increase network throughput

  3. Introduction Figure 4-2: OSI data flow

  4. Introduction (continued) Table 4-1: OSI layers and functions

  5. OSI model

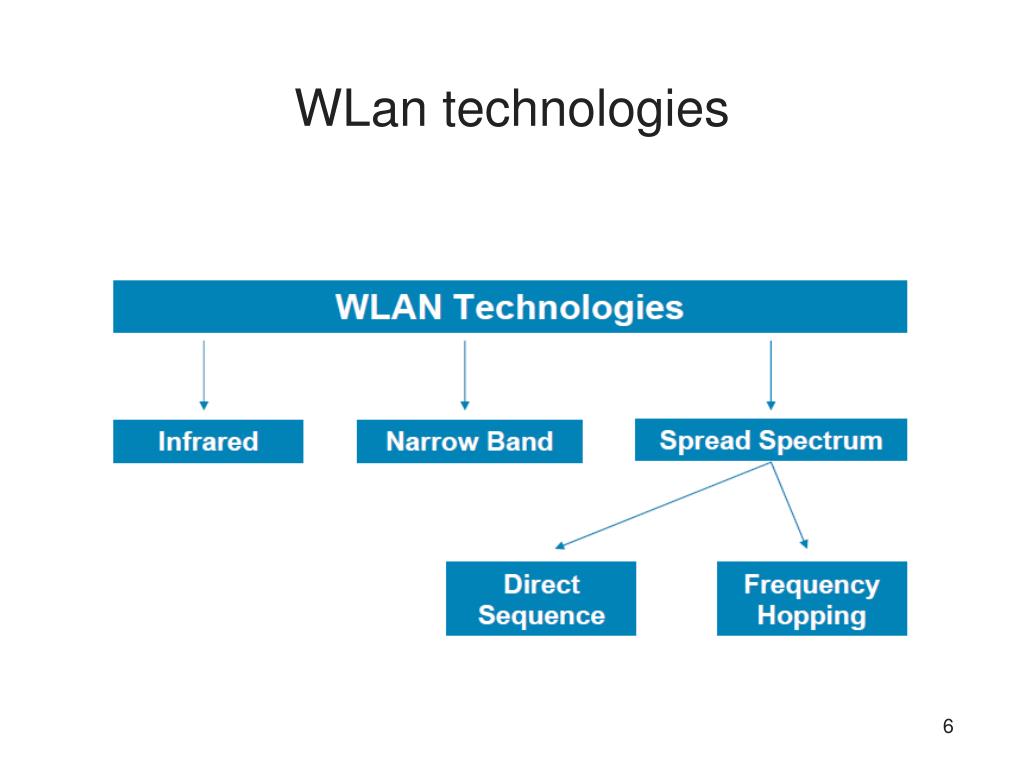

  6. WLan technologies

  7. Infrared

  8. Narrowband Transmission • Narrowband transmission used primarily by radio stations • Radio signals by nature transmit on only one radio frequency or a narrow portion of frequencies • Require more power for the signal to be transmitted • Signal must exceed noise level • Total amount of outside interference • Vulnerable to interference from another radio signal at or near same frequency • IEEE 802.11 standards do not use narrowband transmissions

  9. Narrowband Transmission (continued) Figure 4-3: Narrowband transmission

  10. Spread spectrum

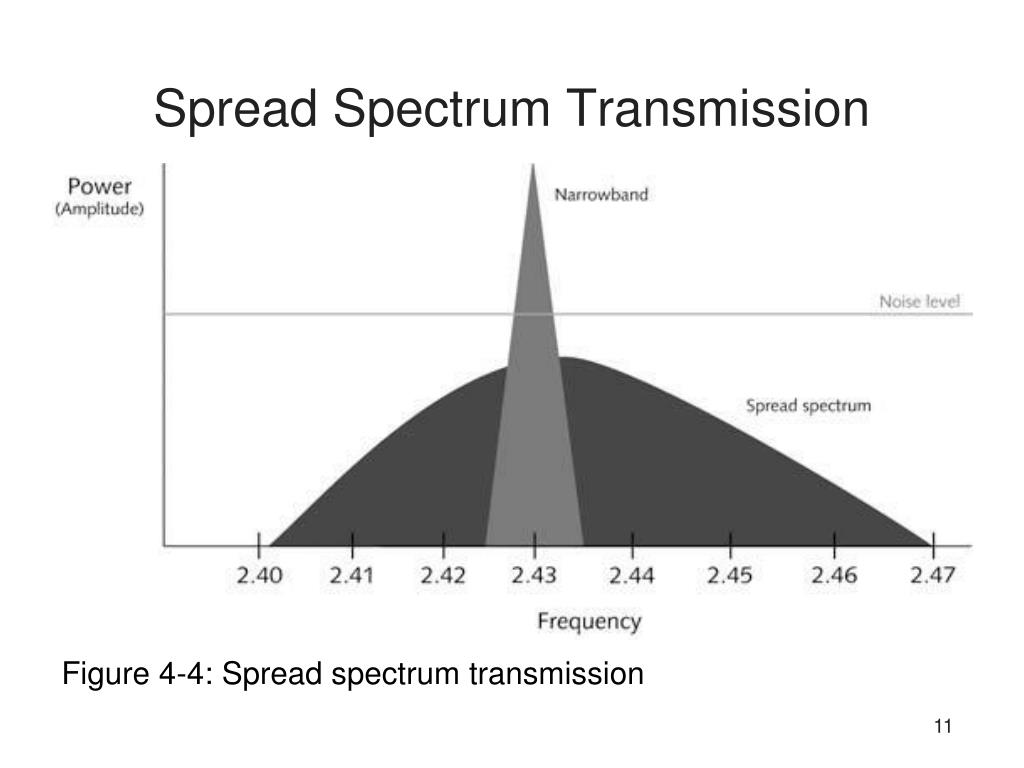

  11. Spread Spectrum Transmission Figure 4-4: Spread spectrum transmission

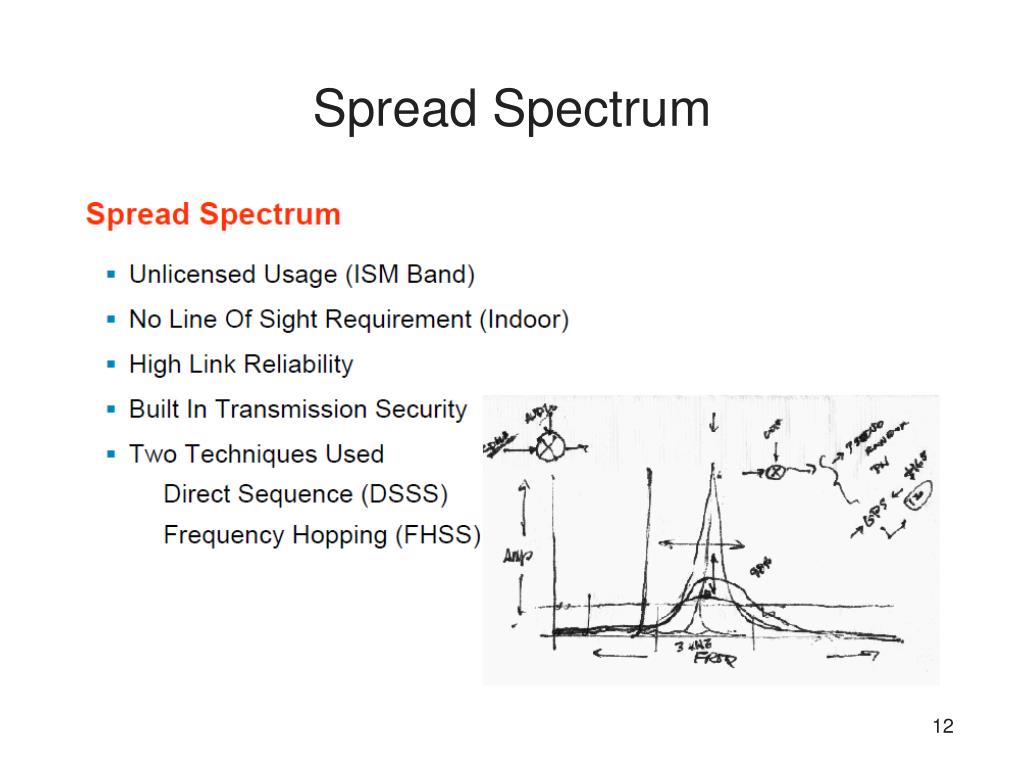

  12. Spread Spectrum

  13. Spread Spectrum Transmission (continued) • Advantages over narrowband: • Resistance to narrowband interference • Resistance to spread spectrum interference • Lower power requirements • Less interference on other systems • More information transmitted • Increased security • Resistance to multipath distortion

  14. Two approaches for SS

  15. Frequency Hopping Spread Spectrum (FHSS) • Uses range of frequencies • Change during transmission • Hopping code: Sequence of changing frequencies • If interference encountered on particular frequency then that part of signal will be retransmitted on next frequency of hopping code • FCC has established restrictions on FHSS to reduce interference • Due to speed limitations FHSS not widely implemented in today’s WLAN systems • Bluetooth does use FHSS

  16. Frequency Hopping Spread Spectrum (continued) Figure 4-6: FHSS error correction

  17. Frequency hopping

  18. Direct Sequence

  19. Direct Sequence Spread Spectrum (DSSS) • Uses expanded redundant code to transmit data bits • Chipping code: Bit pattern substituted for original transmission bits • Advantages of using DSSS with a chipping code: • Error correction • Less interference on other systems • Shared frequency bandwidth • Co-location: Each device assigned unique chipping code • Security

  20. Direct Sequence Spread Spectrum (continued) Figure 4-7: Direct sequence spread spectrum (DSSS) transmission

  21. DSS frequency change plan

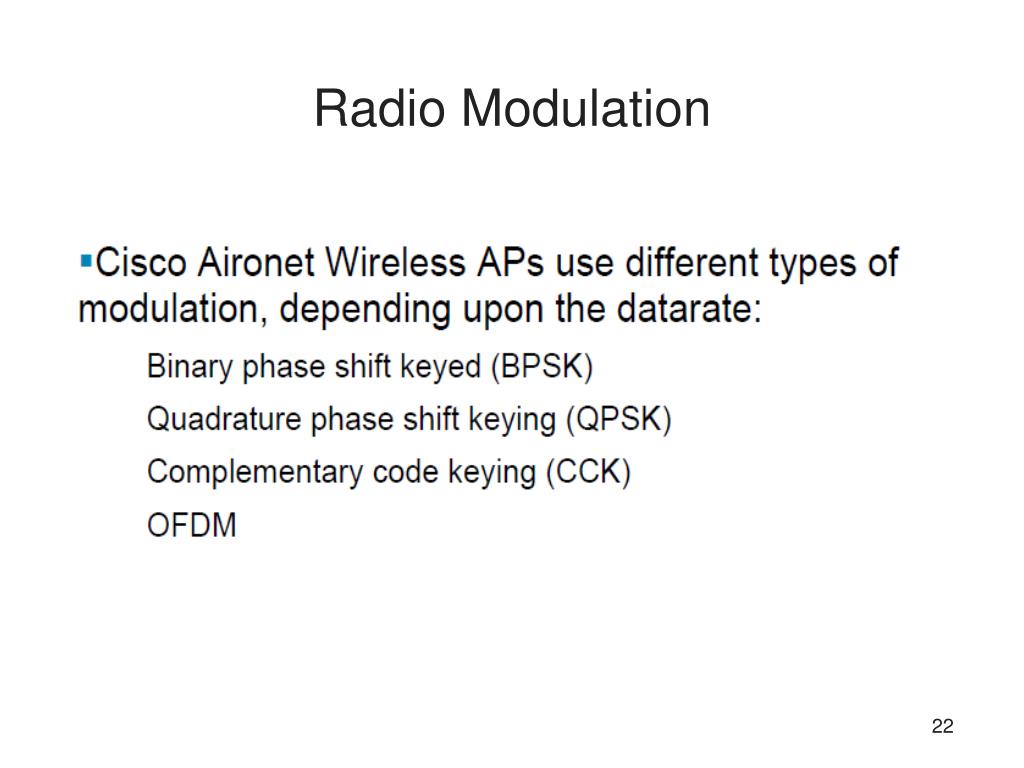

  22. Radio Modulation

  23. Orthogonal Frequency Division Multiplexing (OFDM) • With multipath distortion, receiving device must wait until all reflections received before transmitting • Puts ceiling limit on overall speed of WLAN • OFDM: Send multiple signals at same time • Split high-speed digital signal into several slower signals running in parallel • OFDM increases throughput by sending data more slowly • Avoids problems caused by multipath distortion • Used in 802.11a networks

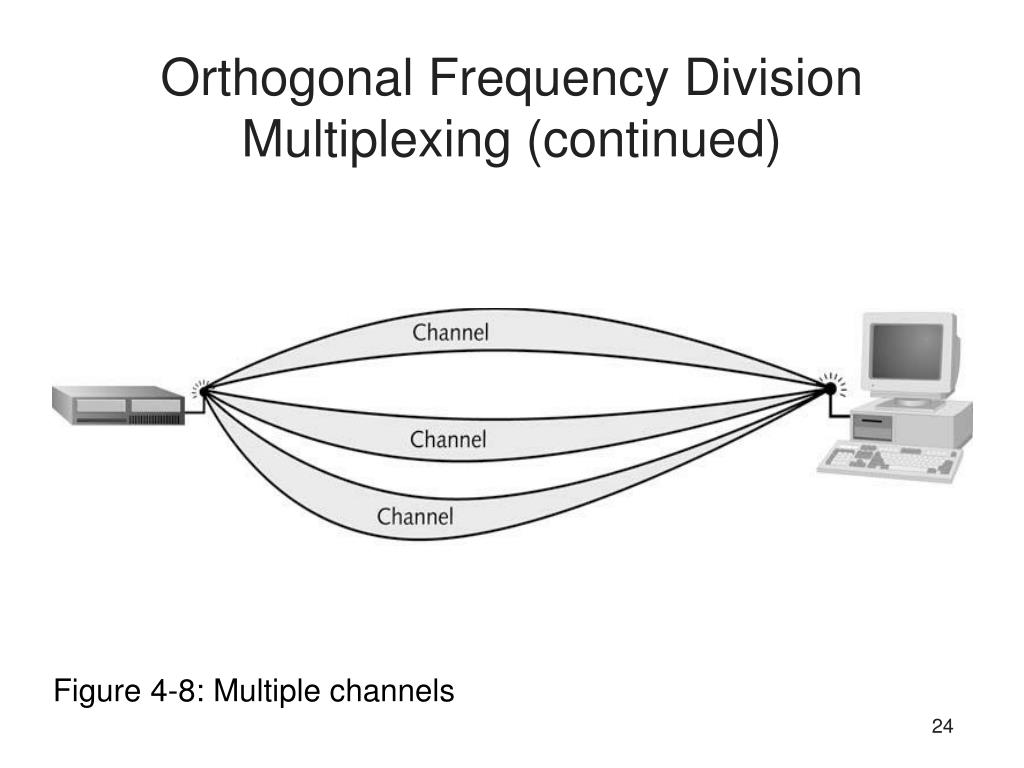

  24. Orthogonal Frequency Division Multiplexing (continued) Figure 4-8: Multiple channels

  25. Orthogonal Frequency Division Multiplexing (continued) Figure 4-9: Orthogonal frequency division multiplexing (OFDM) vs. single-channel transmissions

  26. Comparison of Wireless Modulation Schemes • FHSS transmissions less prone to interference from outside signals than DSSS • WLAN systems that use FHSS have potential for higher number of co-location units than DSSS • DSSS has potential for greater transmission speeds over FHSS • Throughput much greater for DSSS than FHSS • Amount of data a channel can send and receive

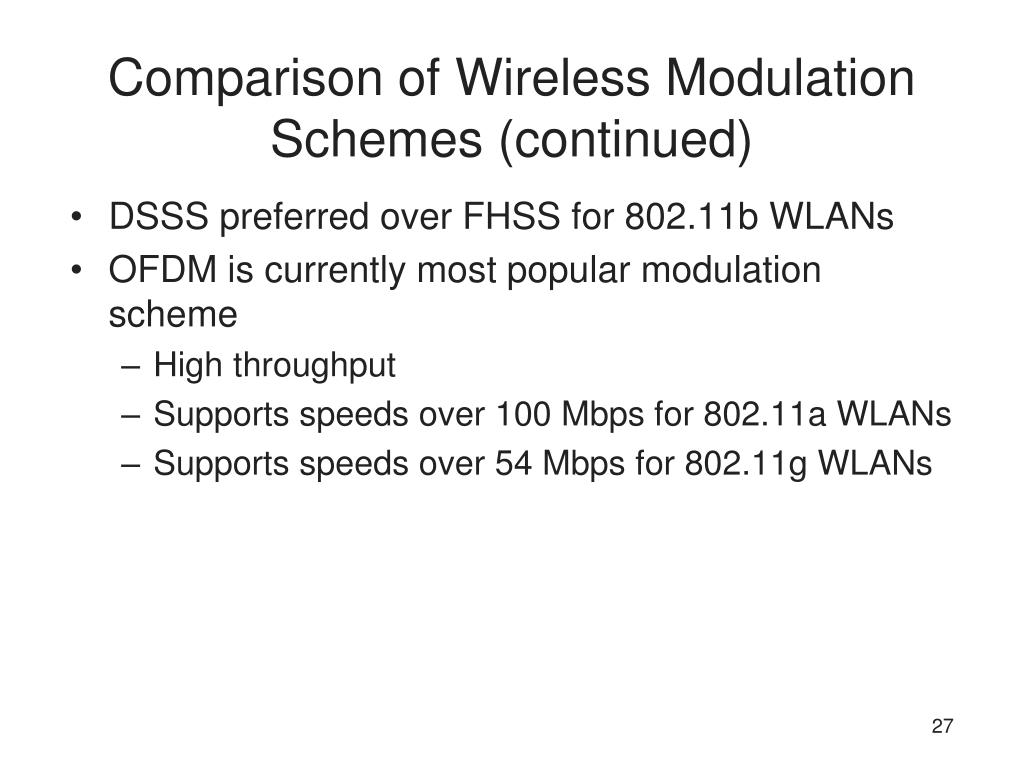

  27. Comparison of Wireless Modulation Schemes (continued) • DSSS preferred over FHSS for 802.11b WLANs • OFDM is currently most popular modulation scheme • High throughput • Supports speeds over 100 Mbps for 802.11a WLANs • Supports speeds over 54 Mbps for 802.11g WLANs

  28. Key modulation techniques

  29. Modulation techniques used by 802.11a • Modulation techniques used to encode 802.11a data vary depending upon speed • Speeds higher than 54 Mbps may be achieved using 2X modes Table 4-7: 802.11a characteristics

  30. Physical Layer Standards (continued) Figure 4-19: Phase shift keying (PSK)

  31. Physical Layer Standards (continued) Figure 4-20: Quadrature phase shift keying (QPSK)

  32. Physical Layer Standards (continued) Figure 4-21: 16-level quadrature amplitude modulation (16-QAM)

  33. Physical Layer Standards (continued) Figure 4-22: 64-level quadrature amplitude modulation (64-QAM)

  34. Summary • Three modulation schemes are used in IEEE 802.11 wireless LANs: frequency hopping spread spectrum (FHSS), direct sequence spread spectrum (DSSS), and orthogonal frequency division multiplexing (OFDM) • Spread spectrum is a technique that takes a narrow, weaker signal and spreads it over a broader portion of the radio frequency band • Spread spectrum transmission uses two different methods to spread the signal over a wider area: FHSS and DSSS

  35. Summary (continued) • OFDM splits a single high-speed digital signal into several slower signals running in parallel

  36. Lab • 3-3 • 4-1 and 4-3 from text book
