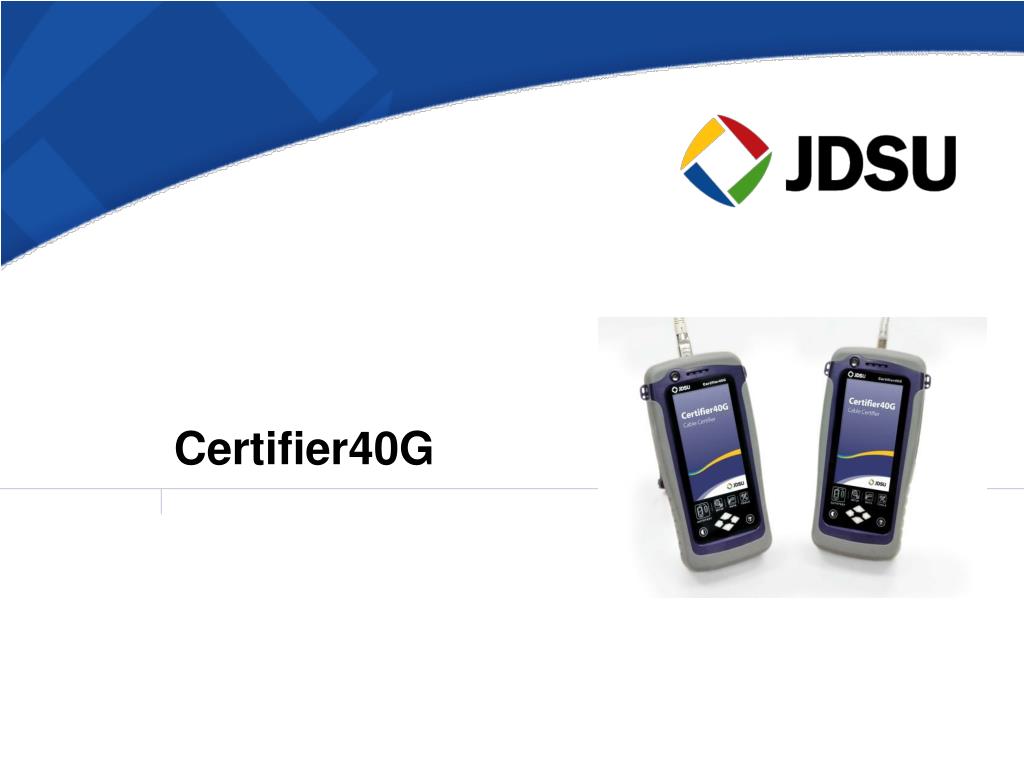

  1. Certifier40G

  2. Certifier40G at a Glance • Most modern cable certifier • Cat 6A/ Class EA, Class FA copper cable certification • Future-proof with 1600 MHz frequency range • Supports all current standards such as ISO 11801, EN 50173, TIA-568 and beyond • Exceeds TIA Level IV accuracy specifications • Touch2 system with two identical units at both ends improves operator efficiency • User friendly with vendor managed cable database and pre-defined settings • A workday of battery life • Supports Autotest and continuous measurement to fix- and-check

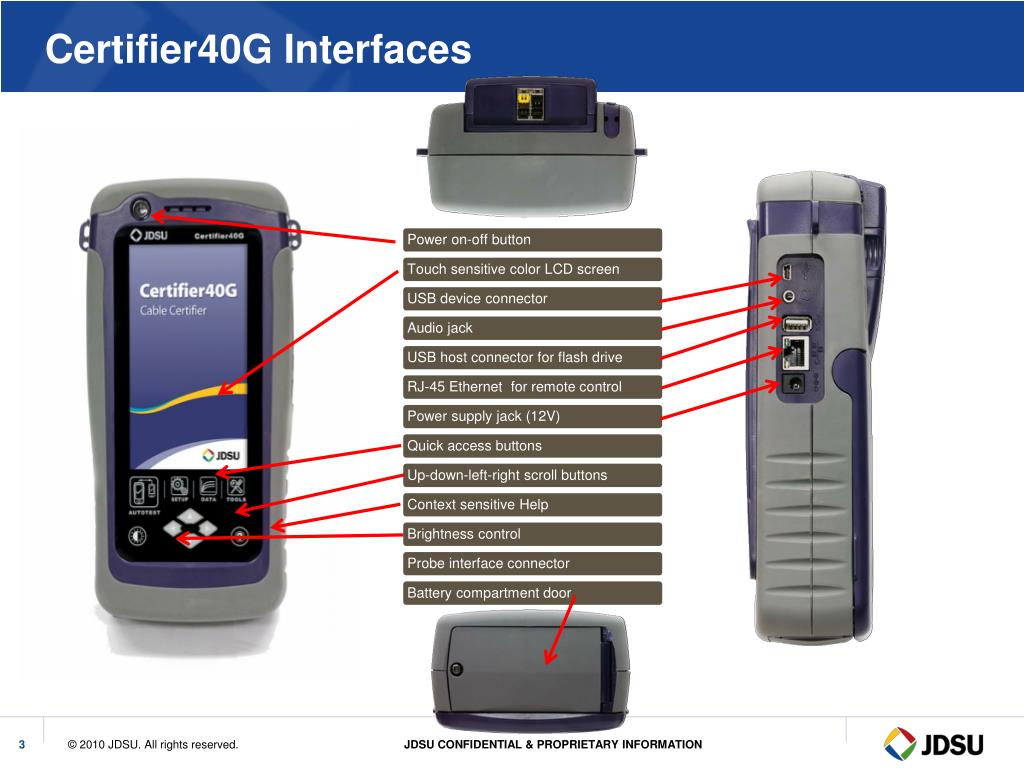

  3. Certifier40G Interfaces

  4. Is Copper Dead? • Ethernet Speeds will increase • Bandwidth requirement for cable – and cable certifiers – will increase • All major cabling vendors are pushing for higher speeds and higher bandwidth * Source Belden

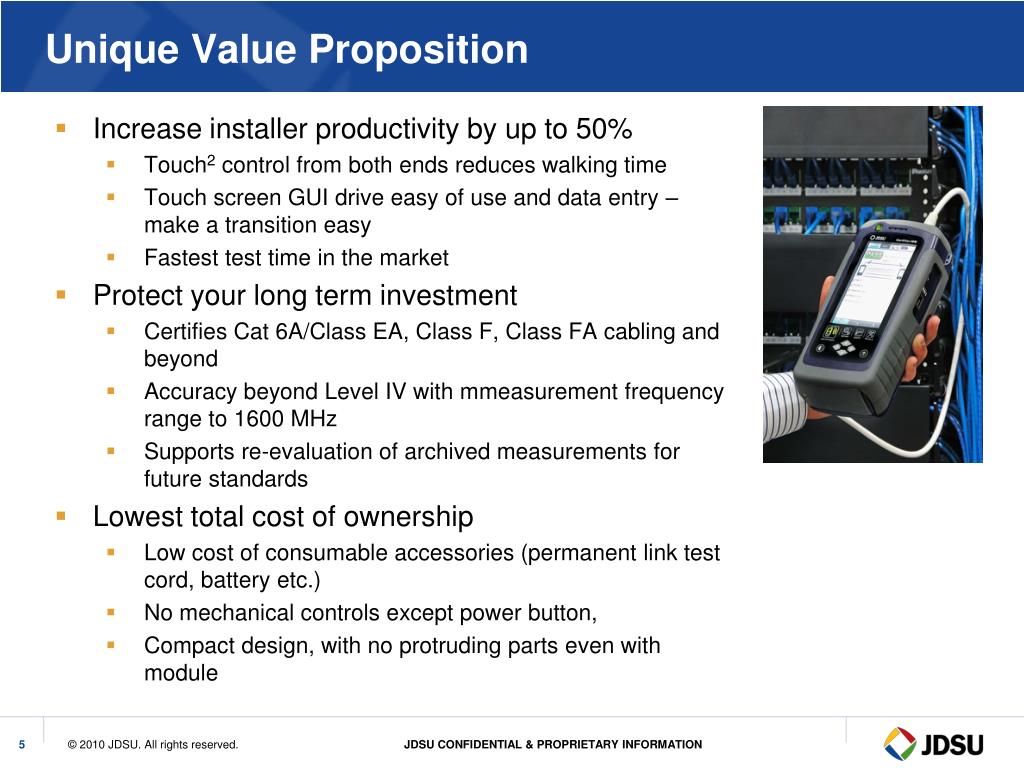

  5. Unique Value Proposition • Increase installer productivity by up to 50% • Touch2 control from both ends reduces walking time • Touch screen GUI drive easy of use and data entry – make a transition easy • Fastest test time in the market • Protect your long term investment • Certifies Cat 6A/Class EA, Class F, Class FA cabling and beyond • Accuracy beyond Level IV with mmeasurement frequency range to 1600 MHz • Supports re-evaluation of archived measurements for future standards • Lowest total cost of ownership • Low cost of consumable accessories (permanent link test cord, battery etc.) • No mechanical controls except power button, • Compact design, with no protruding parts even with module

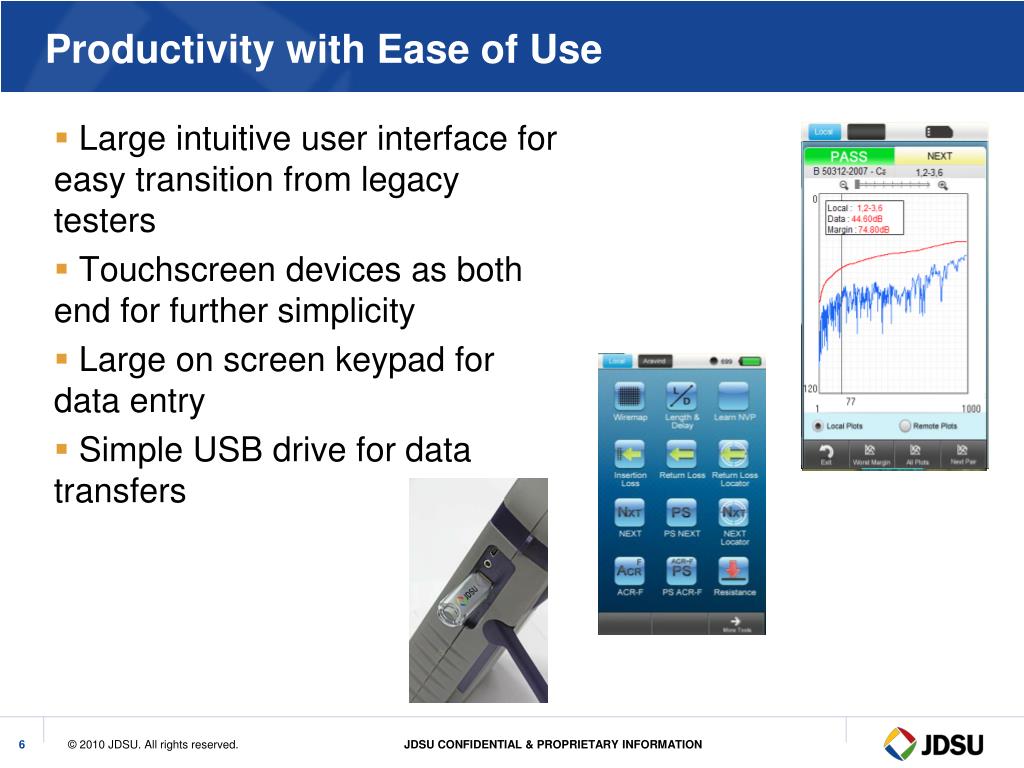

  6. Productivity with Ease of Use • Large intuitive user interface for easy transition from legacy testers • Touchscreen devices as both end for further simplicity • Large on screen keypad for data entry • Simple USB drive for data transfers

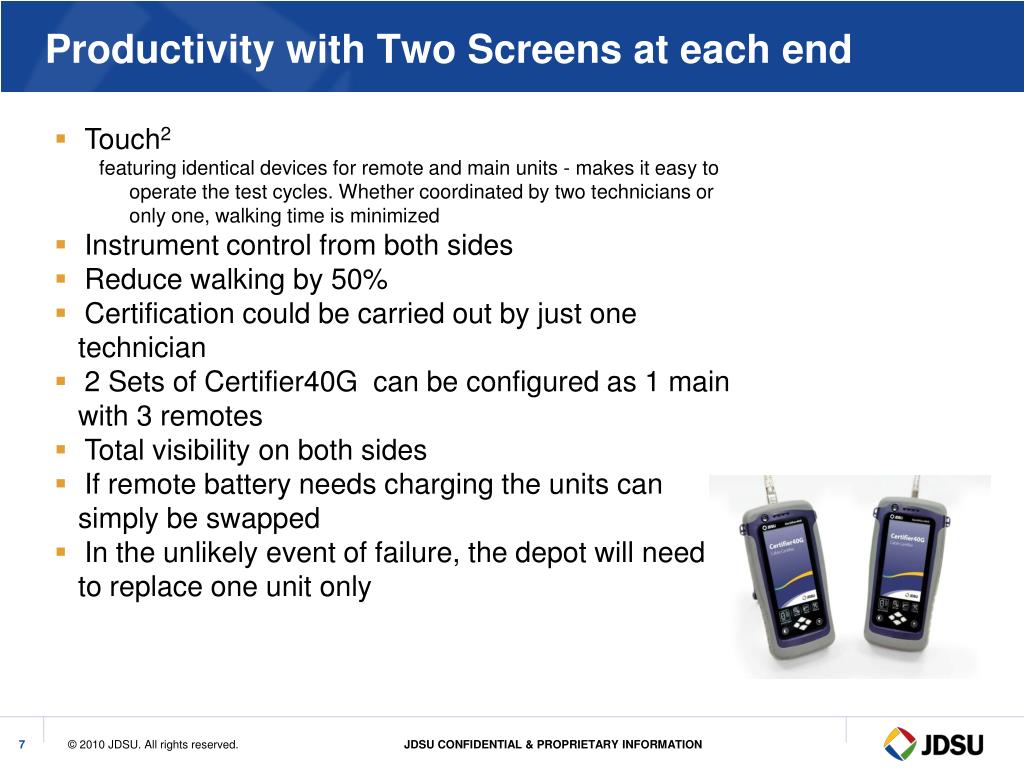

  7. Productivity with Two Screens at each end • Touch2 • featuring identical devices for remote and main units - makes it easy to operate the test cycles. Whether coordinated by two technicians or only one, walking time is minimized • Instrument control from both sides • Reduce walking by 50% • Certification could be carried out by just one technician • 2 Sets of Certifier40G can be configured as 1 main with 3 remotes • Total visibility on both sides • If remote battery needs charging the units can simply be swapped • In the unlikely event of failure, the depot will need to replace one unit only

  8. Test to 1600MHz today • Network owners will to be ready for even higher speed networks • Testing today to 1600 MHz could avoid the need for re-testing later. • Installers will provide better value to customer • no need to re-test after the system is up and running • Planners / System designers have the latest technology • certification tests to a frequency of 1600MHz ensure better quality • High technology cable & connector manufacturers can differentiate themselves from cheap products of questionable quality • there is large amount of “no-name” cables and connectivity in the market

  9. Powerful Measurement Engine • Developments in ICs allow a new approach to the measurement engine • Uses a patent pending design • Highly accurate 4 port vector analyzer • Leapfrogs legacy testers in terms of frequency performance

  10. Investment protection with Highly Reliable Test Heads • Permanent link test requires: • high accuracy reproducible measurement • that can eliminate effects of the cord between the tester and the link • Reliability degrades over time because • RJ45s need replacement as the contacts are eroded over time • Cables degrade through bending • Fluke Networks uses a design with a link adapters physically attached to the test cord, with replaceable tips • Very reliable but expensive • Does not replace cable • Ideal uses a link adapter that uses standard patch cords • Cheap but considered unreliable • JDSU uses a • Permanent link adapter with replaceable low-cost, highly reliable cord

  11. State of the Art Robust Design • Using field proven technology with replaceable touch lens, no mechanical controls (except for power button) • Touch screen concept is now widely accepted for field use (e.g. smartphones, cash registers, tablet computers, etc.) • Compact mechanical design. No protruding parts such as Link Adapters • Withstands drop test from 1.5m on concrete floor Certifier40G has no protruding parts

  12. Certifier40G – What’s in the Box

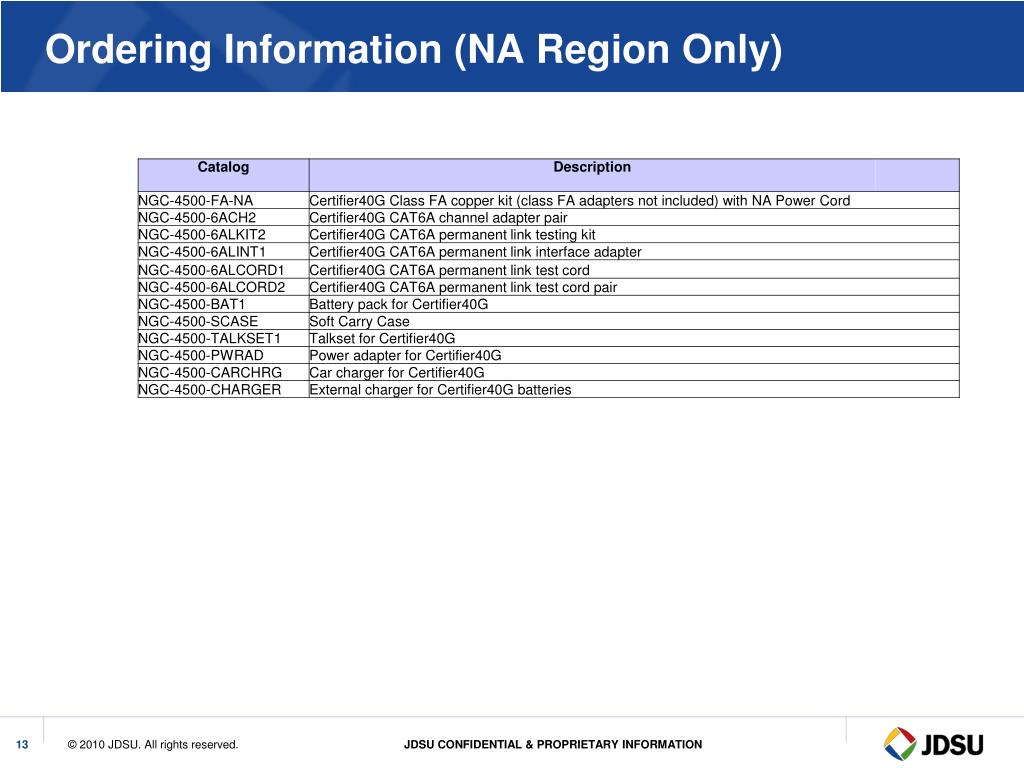

  13. Ordering Information (NA Region Only)
