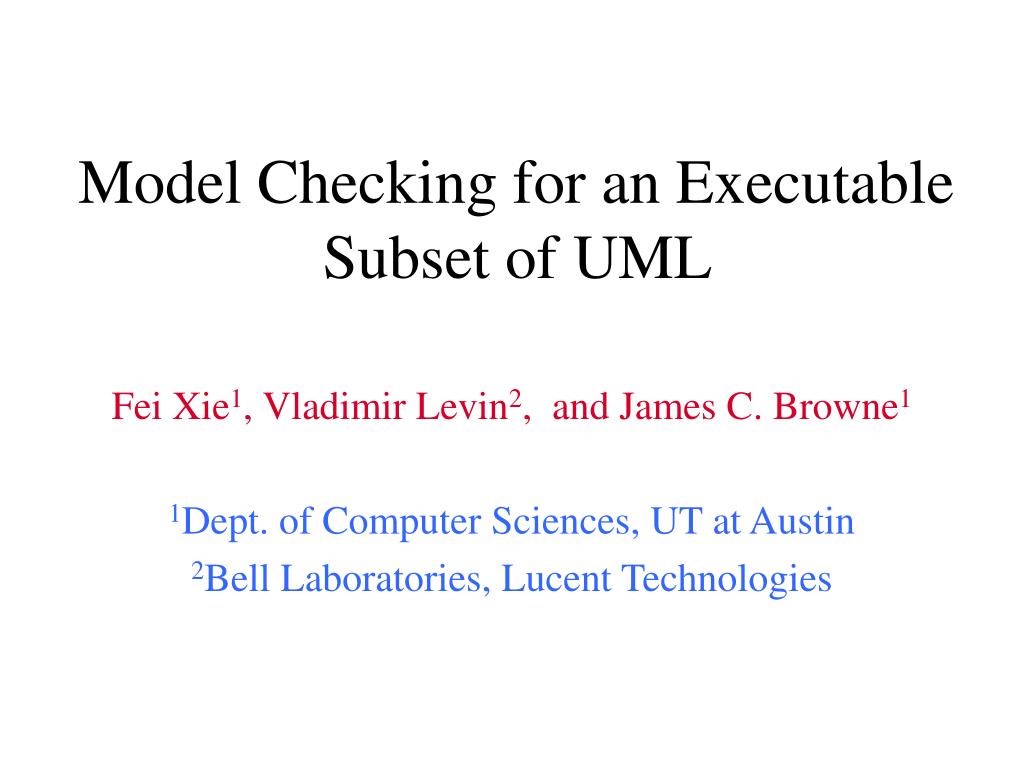

  1. Model Checking for an Executable Subset of UML Fei Xie1, Vladimir Levin2, and James C. Browne1 1Dept. of Computer Sciences, UT at Austin 2Bell Laboratories, Lucent Technologies

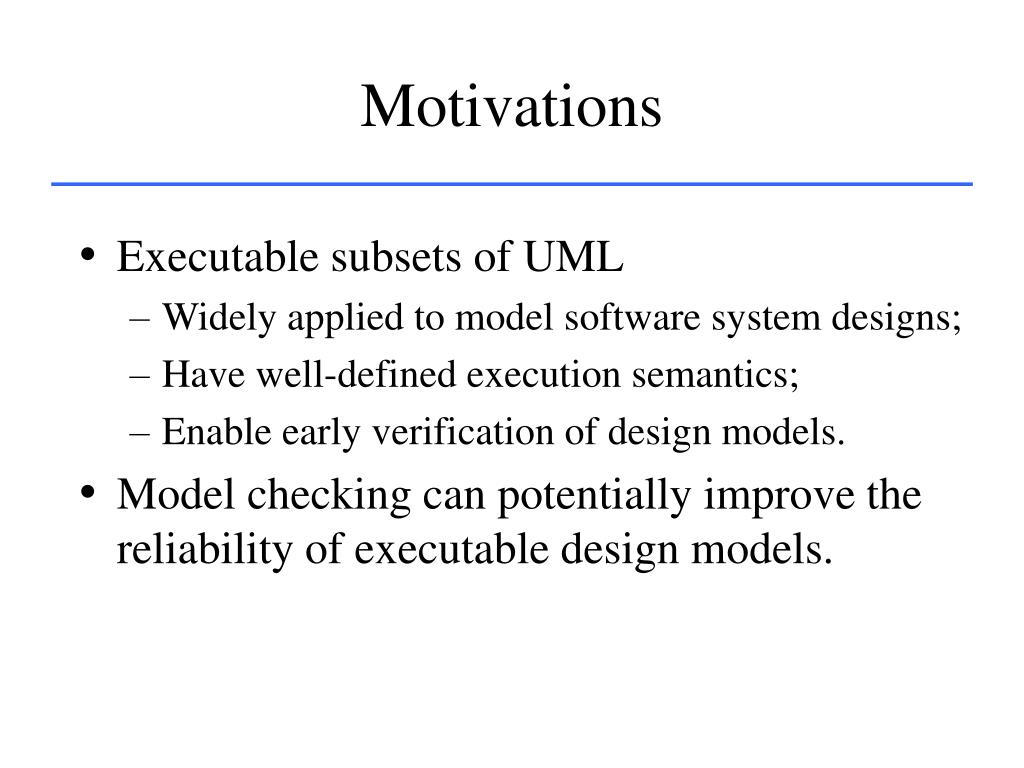

  2. Motivations • Executable subsets of UML • Widely applied to model software system designs; • Have well-defined execution semantics; • Enable early verification of design models. • Model checking can potentially improve the reliability of executable design models.

  3. xUML: An Executable Subset of UML • A system consists of interacting class instances; • Class instances communicate mainly through asynchronous message passing with buffering; • State models are extended with state actions; • State transitions are enabled by messages; • System executions follow asynchronous interleaving semantics.

  4. A Sample xUML State Model State Transition State Action Message Type State

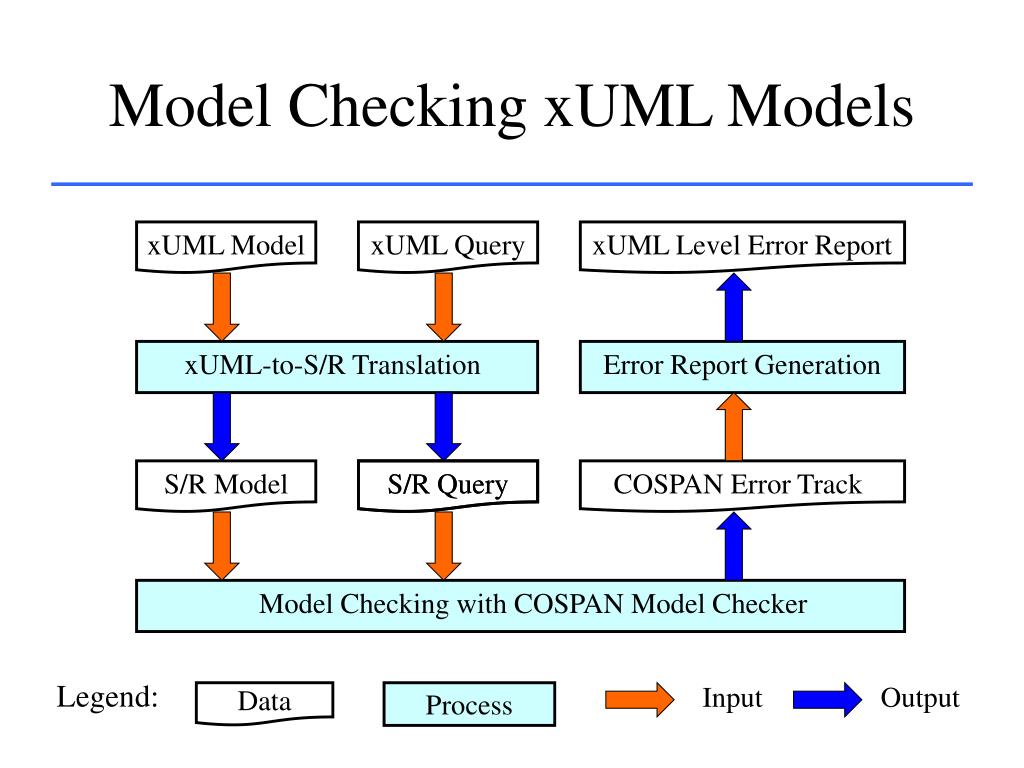

  5. Model Checking xUML Models xUML Model xUML Query xUML Level Error Report xUML-to-S/R Translation Error Report Generation S/R Model S/R Query S/R Query COSPAN Error Track Model Checking with COSPAN Model Checker Legend: Input Output Data Process

  6. COSPAN Model Checker and S/R Automaton Language • COSPAN is a synchronous model checker and inputs models and queries formulated in S/R. • In S/R, a system is a synchronous parallel composition of its components modeled as processes. Process Process Output Process Input Process State Space

  7. xUML Level Query Formulation Proposition Semantic Constructs of xUML Model DECLARE Joint_2_in_Move_EE <<Joint 2>> $Move_EE; DECLARE Recovery_Called <<Recovery 1>> recovery_status = 1; NEVER (Joint_2_in_Move_EE AND Recovery_Called); Instantiation of Temporal Template

  8. xUML-to-S/R Model Translation • Maps class instances to S/R processes; • Models asynchrony with synchrony; • An S/R process as global execution scheduler; • Message buffers by separate S/R processes; • Simulates dynamic creation of class instances; • Bounds infinite state spaces of xUML models.

  9. State Space Reductions in Model Translation • Static partial order reduction (SPOR); • Translating static attributes to constants; • Reducing the send and consumption of a self message into a single state transition; • Ranging variables to facilitate symbolic model checking (SMC).

  10. Error Trace Analysis Support • Visualize errors via simulation driven by error traces.

  11. Effectiveness of State Space Reductions • A liveness property to be checked on online ticket sale system; • xUML model translated to two S/R models with SPOR on or off; • Two S/R models checked by COSPAN with SMC on or off.

  12. Conclusions and Future Work • An approach to model checking of xUML models is defined and implemented. • Non-trivial xUML models have been checked. • A robot control system; • An online ticket sale system. • Integrated state space reduction that supports verifying larger models is being developed.
