CS 795: Code Analysis Techniques

1. CS 795: Code Analysis Techniques Slide Set 1 C. M. Overstreet Old Dominion University For CS 488, Fall 2007

2. Course objectives • At end of course, you will understand how analysis of source code can be used in several aspects of computing/ software engineering: • What’s feasible, what isn’t • Basic algorithms • Basic problems • Basic application areas

3. Lecture overview • Some motivation for code analysis • Some examples: some easy, some hard, some impossible • Some examples of where used • Assignment -- but not for CS 488

4. Example 1: elimination of infinite loops • Infinite loops are usually undesirable (but often not. Why?) • Can you write a program that checks another program for infinite loops? • Initial idea: just consider while loops: • Check loop body to see if any action modifies some loop control variables. • Does this work? • If no change, is loop infinite? • What if change is conditional? • Can one always do this? How? What about input data?

5. Example 1 (cont.) • Point: often partial solutions can be useful even if a general solution does not exist. • Question: What is the Halting Problem and why is it important?

6. Static & Dynamic Analysis • From their beginning, compilers have tried to optimize code. • Done by static analysis • Figure things out by analyzing source code • In UNIX, lint is a very early static code analyzer • Many types of useful information about code itself can only be obtained by running to code and monitoring its behaviors. • This is dynamic analysis

7. Example 3: uninitialized variables • Uninitialized variables are usually undesirable. • Should compilers make them illegal? • Can compilers make them illegal? • Can you write a program which detects uninitialized variables? Some? All? • Always? Sometimes? • Using static analysis? • i.e., uninitialized vars detected at compile time • Using dynamic analysis? • i.e. uninitialized vars detected at run time

8. Key application area: Compiler optimization • Oldest application area • Crucial concern of compiler writers when the first compiler was written • What was the first compiler? What language did it compile? • When? • Standard techniques (from 1954): for loops • Eliminate common subexpressions • if a*b occurs more than once, don’t evaluate it twice • Move code out of loop if possible • j = 3*x + 2*y need not be always be recomputed with each loop iteration • Make subscript evaluation more efficient • do an inc rather than a multiply • Usually only worry about loops. Why?

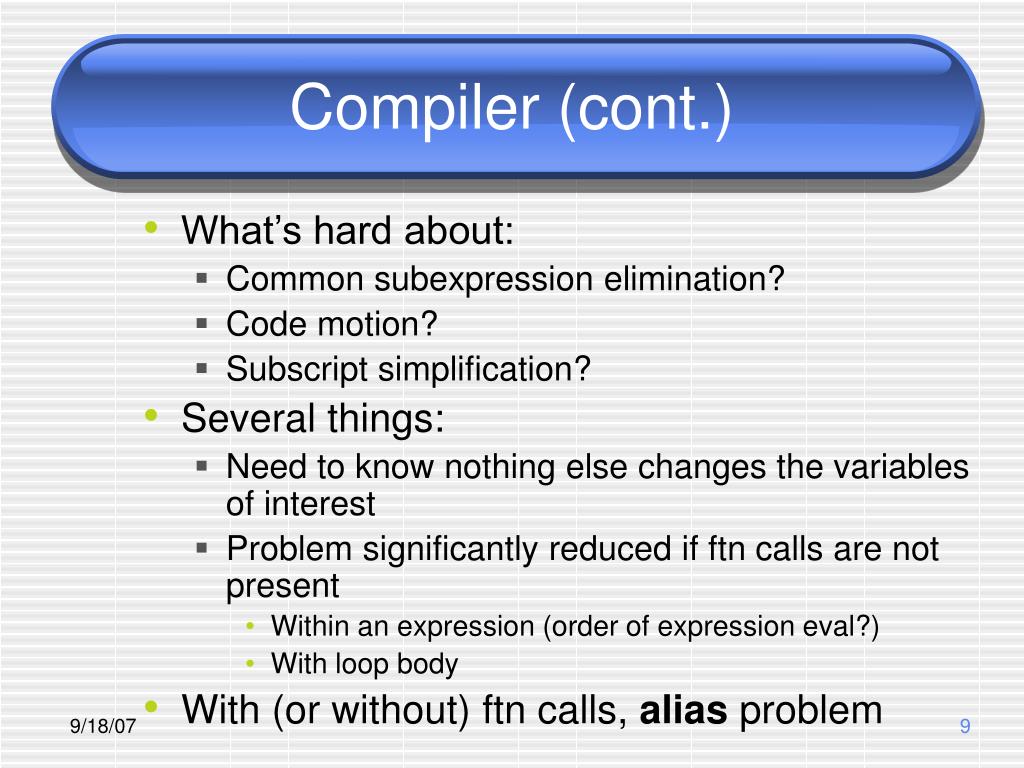

9. Compiler (cont.) • What’s hard about: • Common subexpression elimination? • Code motion? • Subscript simplification? • Several things: • Need to know nothing else changes the variables of interest • Problem significantly reduced if ftn calls are not present • Within an expression (order of expression eval?) • With loop body • With (or without) ftn calls, alias problem

10. The Alias Problem - 1 • For several things we discuss, this is a problem. • An alias exists between two or more variables when the same memory location can be accessed with each variable. The variables then are said to be aliased. • Multiple names for the same thing/place. • Some programming languages explicitly allow the programmer to give two different names to the same memory location. (Why?) • Tricky problem; the existence of aliases may depend on the loader rather than the compiler. Why? • Some aliases are easily detected, some not. • Sometimes code logic relies on aliases.

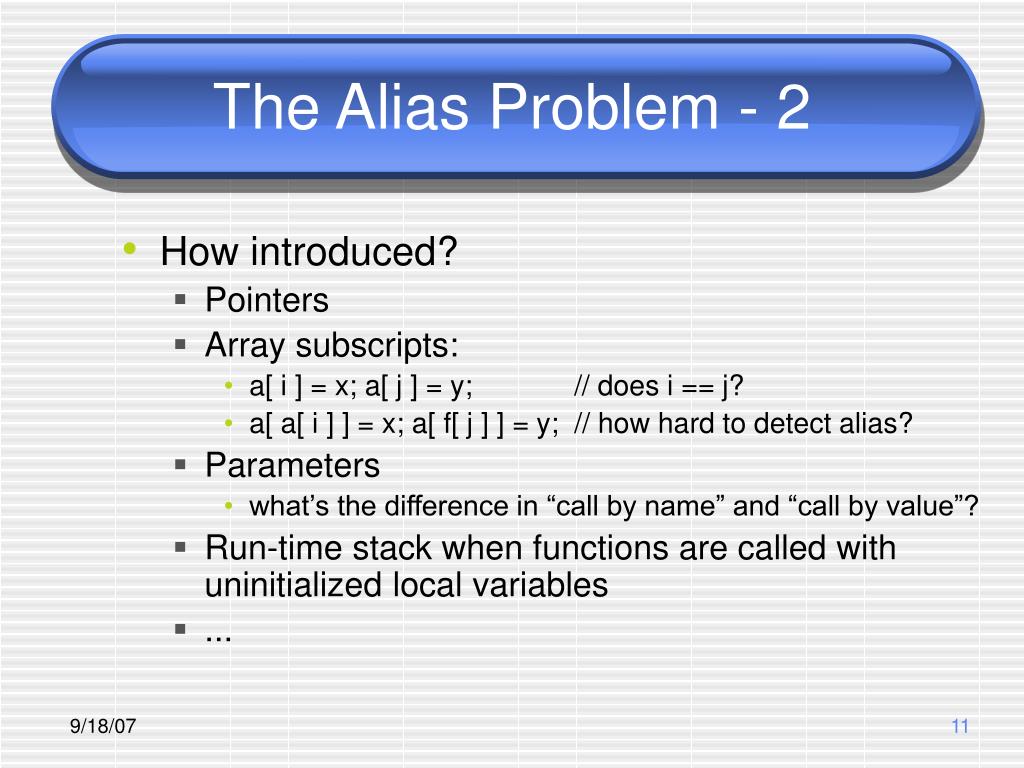

11. The Alias Problem - 2 • How introduced? • Pointers • Array subscripts: • a[ i ] = x; a[ j ] = y; // does i == j? • a[ a[ i ] ] = x; a[ f[ j ] ] = y; // how hard to detect alias? • Parameters • what’s the difference in “call by name” and “call by value”? • Run-time stack when functions are called with uninitialized local variables • ...

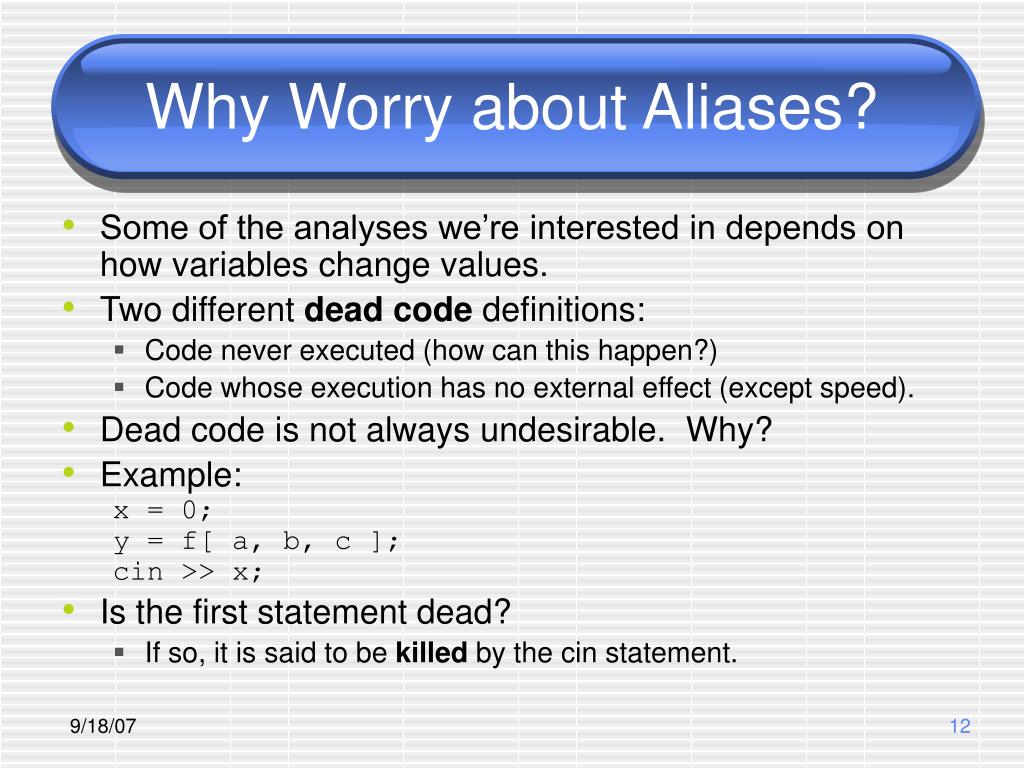

12. Why Worry about Aliases? • Some of the analyses we’re interested in depends on how variables change values. • Two different dead code definitions: • Code never executed (how can this happen?) • Code whose execution has no external effect (except speed). • Dead code is not always undesirable. Why? • Example: x = 0; y = f[ a, b, c ]; cin >> x; • Is the first statement dead? • If so, it is said to be killed by the cin statement.

13. Back to loop analysis -1 • To move a statement from inside to outside a loop, we need to check that “key” values are not changed with each loop iteration. • Example: a statement like “x=a+b” inside a loop can sometimes be moved outside a loop if neither a nor b are reassigned in the loop. • True or False? • Does it depend on how x is referenced in the loop? • Byte war story!

14. Back to loop analysis - 2 • Why can aliases cause problems with code motion? • Why can aliases cause problems with common subexpression elimination? • Why can aliases cause problems with subscript analysis?

15. Another example: side effects of function calls • Consider the statement: x = f[a,b] + a + g[a,c]; (assume this isn’t C or C++) • What if f calls a function with a side-effect? • Considered to be a dangerous statement. "Careful" programmers avoid this type of coding. • Why? • What if a is passed to f by address? • What if c is global to f and may be changed by f • I've used an language that, if requested, makes no distinction between array refs and function calls. Why might this be useful?

16. Parameter passing and aliases • Consider a ftn which modifies globals. What if that global is also passed as a parameter to the function? • What if the same variable occurs more than once in a function call’s parameter list?

17. Program Slice • Program slice: • Pick a variable and a particular statement in a program • Generate a subset of that program that produces exactly the same value for that variable in that statement. • This is called a slice • Assertion: programmers use slices when debugging. • See Weiser’s IEEE SE Program Slicing paper, July 1984.

18. Searching for papers - demo • www.acm.org, search for papers • program slice • alias problem • control flow graph • parse tree
