  1. Lecture 6 & 7 SOAP WSDL UDDI

  2. Highlights • eXtensible Markup Language (XML) • Simple Object Access Protocol (SOAP) • Web Services Description Language (WSDL) • Directory Services • Universal Description, Discovery, and Integration (UDDI) Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

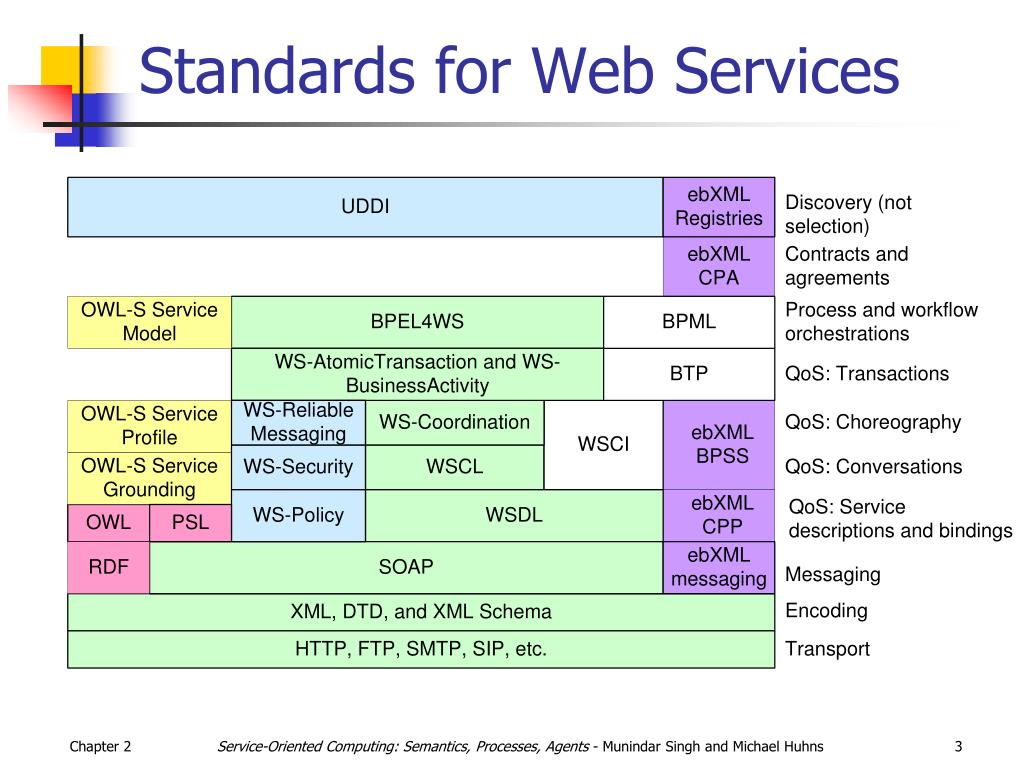

  3. Standards for Web Services Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

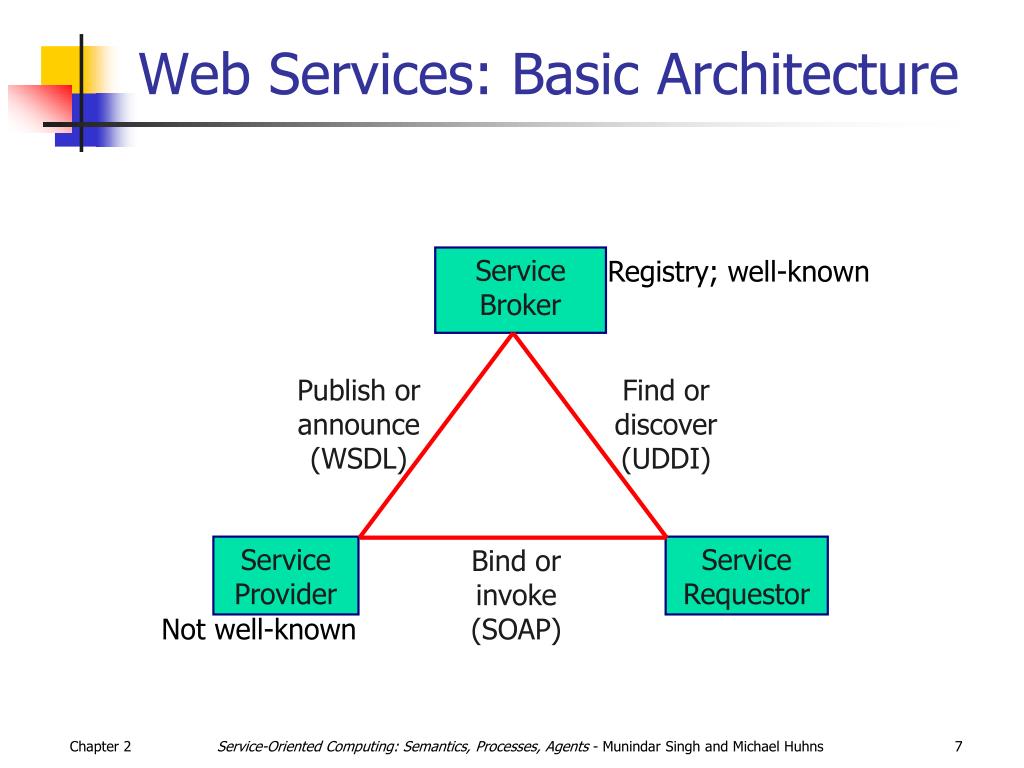

  4. Web Services: Basic Architecture Service Broker Registry; well-known Publish or announce (WSDL) Find or discover (UDDI) Service Provider Service Requestor Bind or invoke (SOAP) Not well-known Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

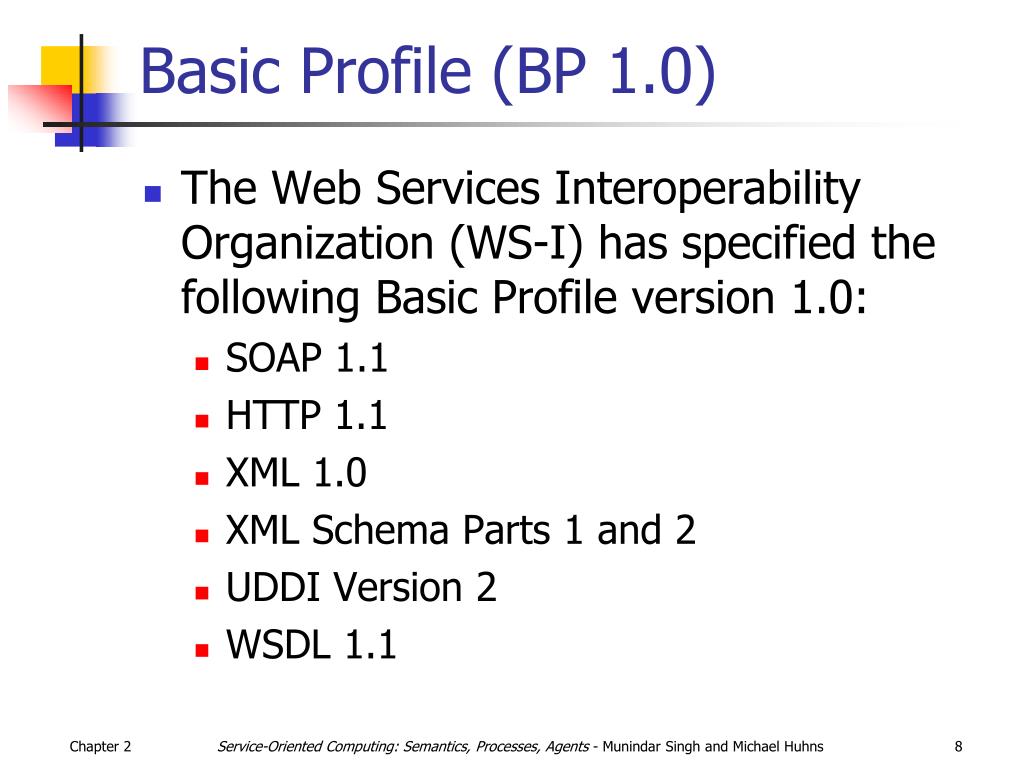

  5. Basic Profile (BP 1.0) • The Web Services Interoperability Organization (WS-I) has specified the following Basic Profile version 1.0: • SOAP 1.1 • HTTP 1.1 • XML 1.0 • XML Schema Parts 1 and 2 • UDDI Version 2 • WSDL 1.1 Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

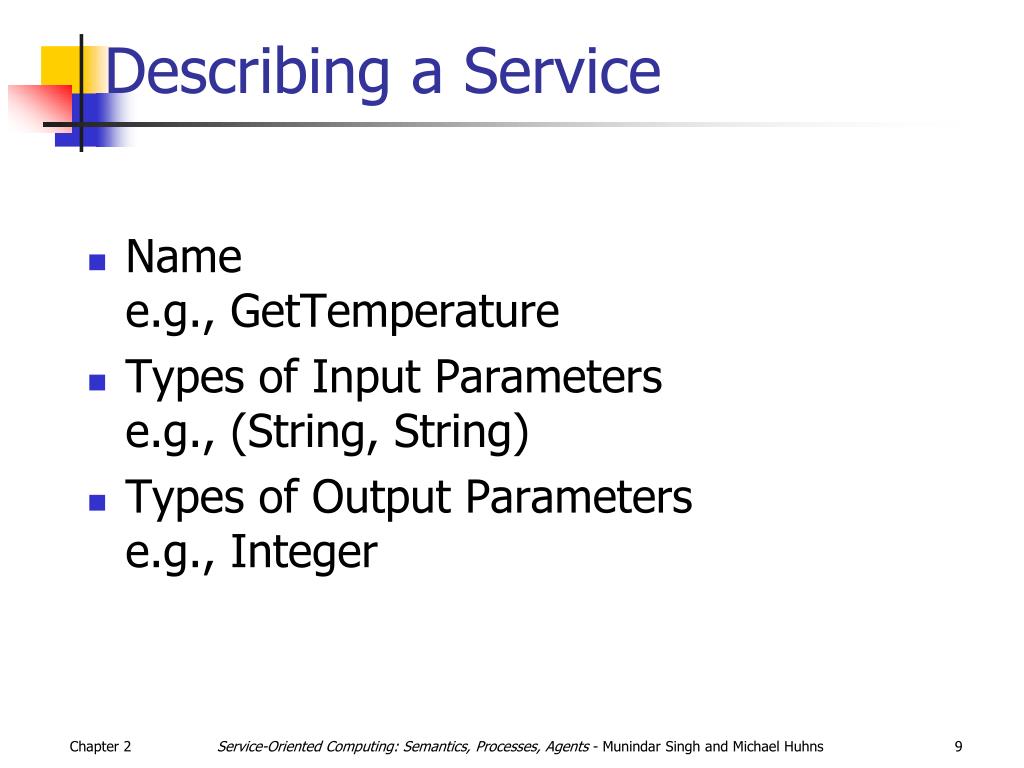

  6. Describing a Service • Namee.g., GetTemperature • Types of Input Parameterse.g., (String, String) • Types of Output Parameterse.g., Integer Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  7. SOAP (Simple Object Access Protocol) • Used to exchange messages via HTTP, SMTP, and SIP (Session Initiation Protocol for Internet telephony) • Originally designed for remote-procedure calls (RPC) • Works through firewalls on port 80 • Character-based, so easy to encrypt/decrypt and thus easy to secure • Inefficient due to character, not binary, data and large headers • Does not describe bidirectional or n-party interaction Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  8. SOAP architecture • An Envelope element that identifies the XML document as a SOAP message • A Header element that contains header information • A Body element that contains call and response information • A Fault element containing errors and status information Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

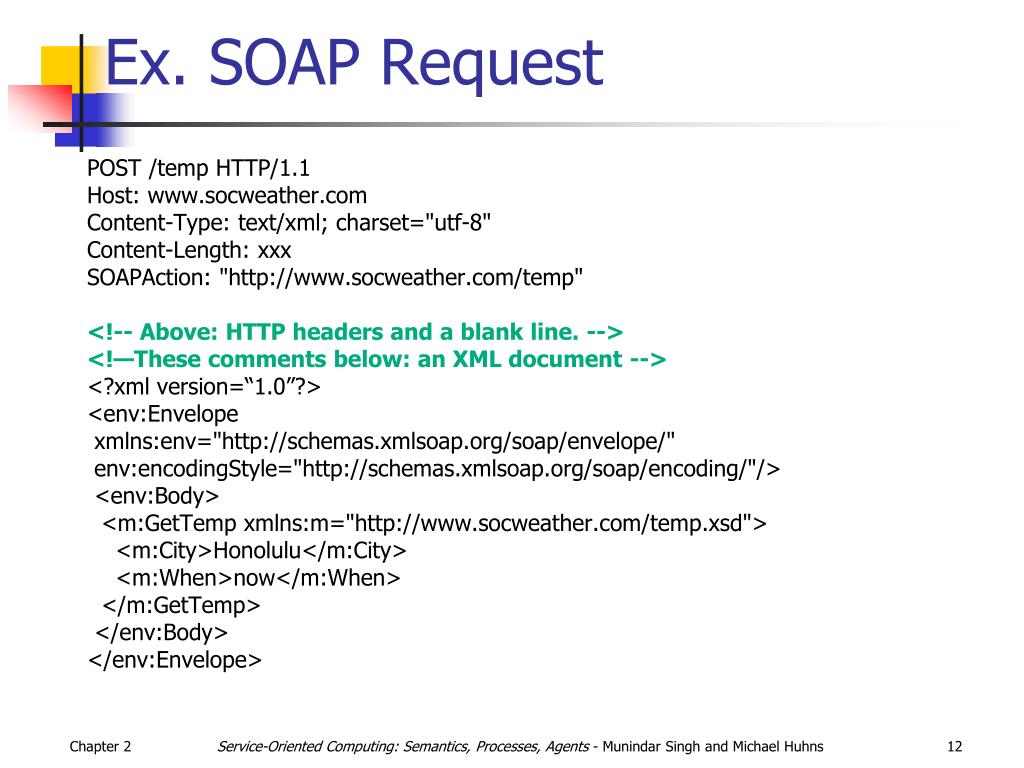

  9. Ex. SOAP Request POST /temp HTTP/1.1 Host: www.socweather.com Content-Type: text/xml; charset="utf-8" Content-Length: xxx SOAPAction: "http://www.socweather.com/temp" <!-- Above: HTTP headers and a blank line. --> <!—These comments below: an XML document --> <?xml version=“1.0”?> <env:Envelope xmlns:env="http://schemas.xmlsoap.org/soap/envelope/" env:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/> <env:Body> <m:GetTemp xmlns:m="http://www.socweather.com/temp.xsd"> <m:City>Honolulu</m:City> <m:When>now</m:When> </m:GetTemp> </env:Body> </env:Envelope> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

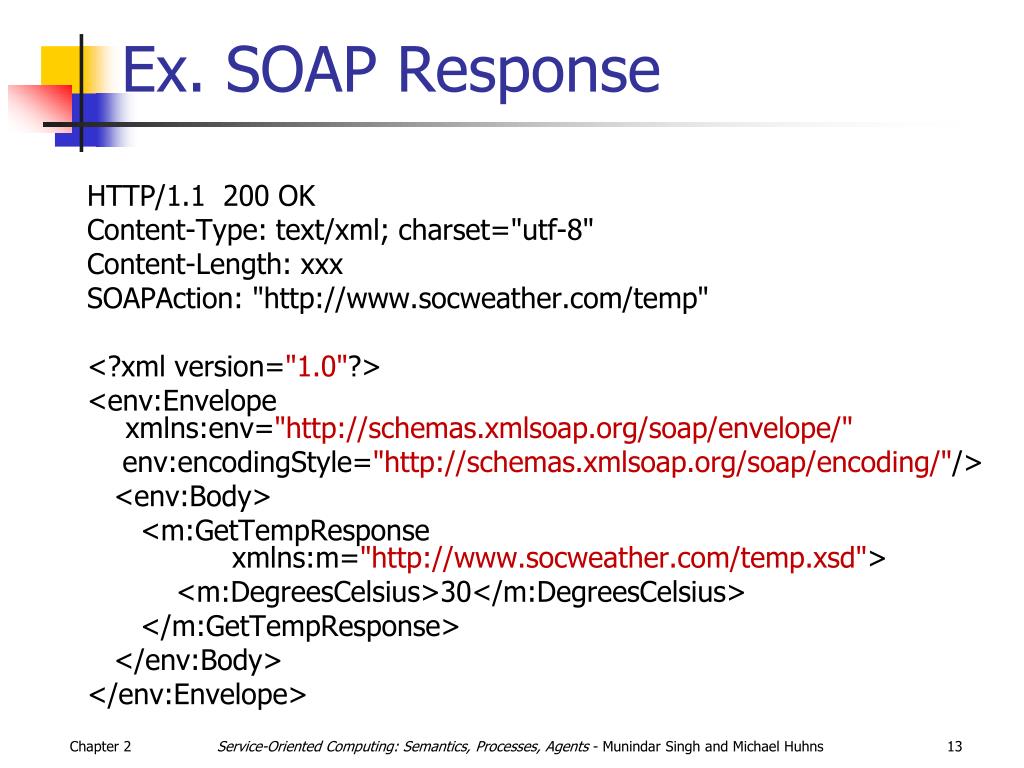

  10. Ex. SOAP Response HTTP/1.1 200 OK Content-Type: text/xml; charset="utf-8" Content-Length: xxx SOAPAction: "http://www.socweather.com/temp" <?xml version="1.0"?> <env:Envelope xmlns:env="http://schemas.xmlsoap.org/soap/envelope/" env:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/> <env:Body> <m:GetTempResponse xmlns:m="http://www.socweather.com/temp.xsd"> <m:DegreesCelsius>30</m:DegreesCelsius> </m:GetTempResponse> </env:Body> </env:Envelope> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

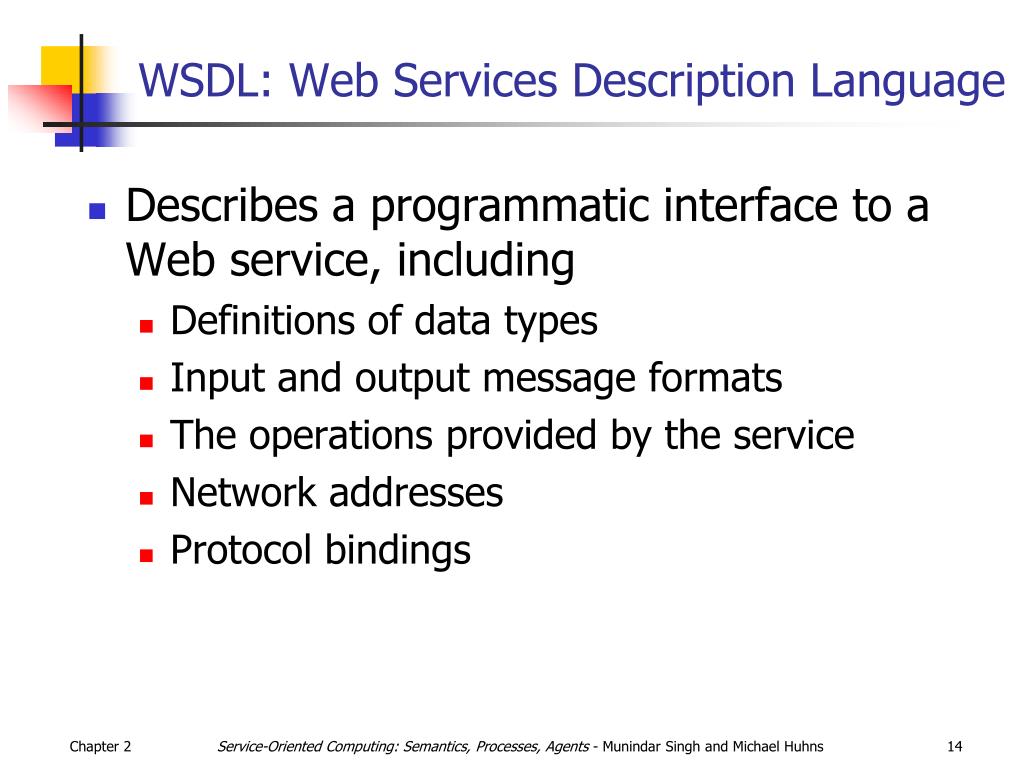

  11. WSDL: Web Services Description Language • Describes a programmatic interface to a Web service, including • Definitions of data types • Input and output message formats • The operations provided by the service • Network addresses • Protocol bindings Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  12. <?xml version="1.0"?> <!-- the root element, wsdl:definitions, defines a set of --> <!-- related services --> <wsdl:definitions name="Temperature" targetNamespace="http://www.socweather.com/schema" xmlns:ts="http://www.socweather.com/TempSvc.wsdl" xmlns:tsxsd="http://schemas.socweather.com/TempSvc.xsd" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"> <!-- wsdl:types encapsulates schema definitions of --> <!-- communication types; here using xsd --> <wsdl:types> <!-- all type declarations are expressed in xsd --> <xsd:schema targetNamespace="http://namespaces.socweather.com" xmlns:xsd="http://www.w3.org/1999/XMLSchema"> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

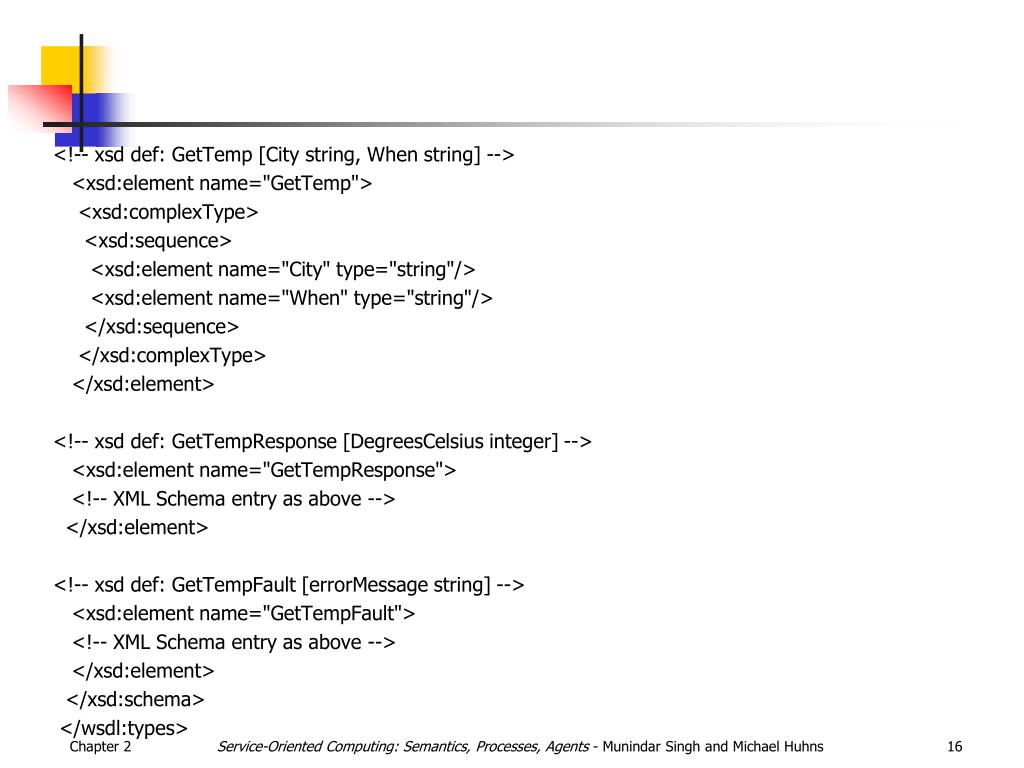

  13. <!-- xsd def: GetTemp [City string, When string] --> <xsd:element name="GetTemp"> <xsd:complexType> <xsd:sequence> <xsd:element name="City" type="string"/> <xsd:element name="When" type="string"/> </xsd:sequence> </xsd:complexType> </xsd:element> <!-- xsd def: GetTempResponse [DegreesCelsius integer] --> <xsd:element name="GetTempResponse"> <!-- XML Schema entry as above --> </xsd:element> <!-- xsd def: GetTempFault [errorMessage string] --> <xsd:element name="GetTempFault"> <!-- XML Schema entry as above --> </xsd:element> </xsd:schema> </wsdl:types> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  14. <!-- wsdl:message elements describe potential transactions --> <!-- Most messages, as here, have only one part. Multiple --> <!-- parts provide a way to aggregate complex messages --> <!-- request GetTempRequest is of type GetTemp --> <wsdl:message name="GetTempRequest"> <wsdl:part name="body" element="tsxsd:GetTemp"/> </wsdl:message> <!-- response GetTempResponse is of type GetTempResponse --> <wsdl:message name="GetTempResponse"> <wsdl:part name="body" element="tsxsd:GetTempResponse"/> </wsdl:message> <!-- wsdl:portType describes messages in an operation --> <wsdl:portType name="GetTempPortType"> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

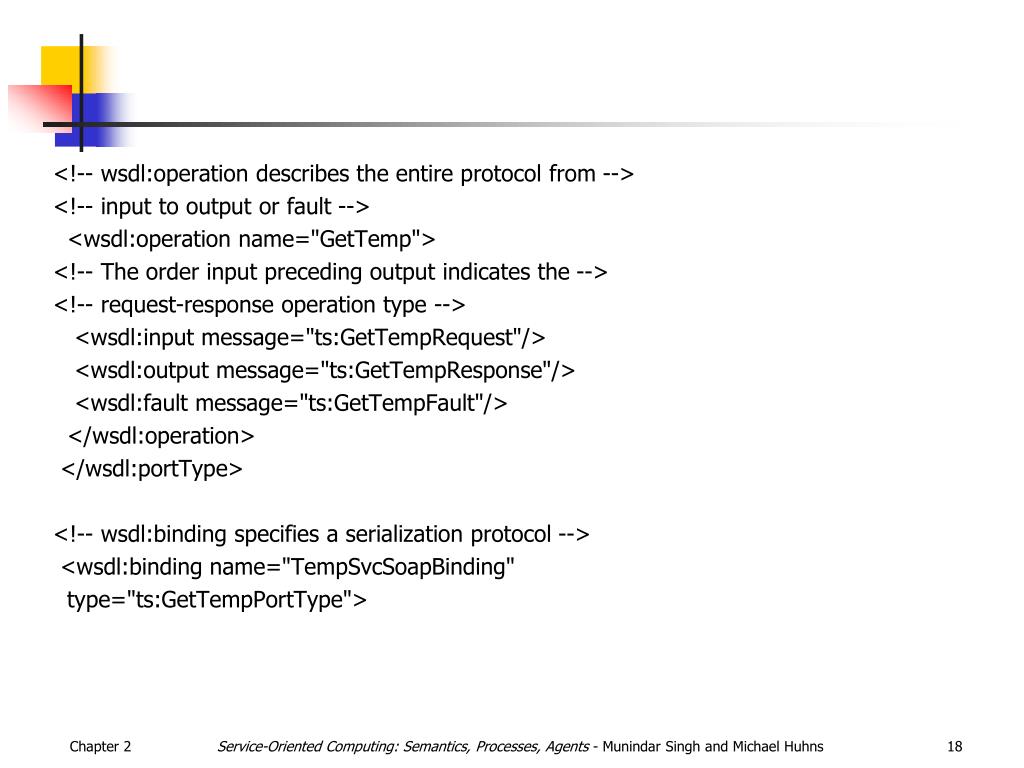

  15. <!-- wsdl:operation describes the entire protocol from --> <!-- input to output or fault --> <wsdl:operation name="GetTemp"> <!-- The order input preceding output indicates the --> <!-- request-response operation type --> <wsdl:input message="ts:GetTempRequest"/> <wsdl:output message="ts:GetTempResponse"/> <wsdl:fault message="ts:GetTempFault"/> </wsdl:operation> </wsdl:portType> <!-- wsdl:binding specifies a serialization protocol --> <wsdl:binding name="TempSvcSoapBinding" type="ts:GetTempPortType"> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

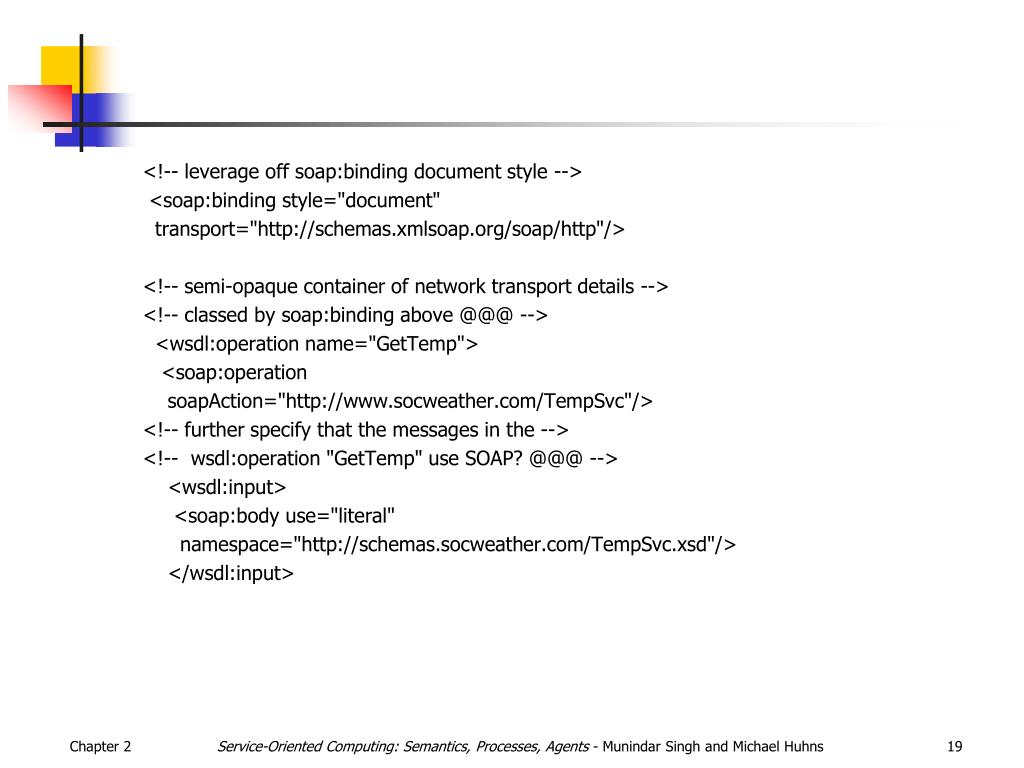

  16. <!-- leverage off soap:binding document style --> <soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/> <!-- semi-opaque container of network transport details --> <!-- classed by soap:binding above @@@ --> <wsdl:operation name="GetTemp"> <soap:operation soapAction="http://www.socweather.com/TempSvc"/> <!-- further specify that the messages in the --> <!-- wsdl:operation "GetTemp" use SOAP? @@@ --> <wsdl:input> <soap:body use="literal" namespace="http://schemas.socweather.com/TempSvc.xsd"/> </wsdl:input> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

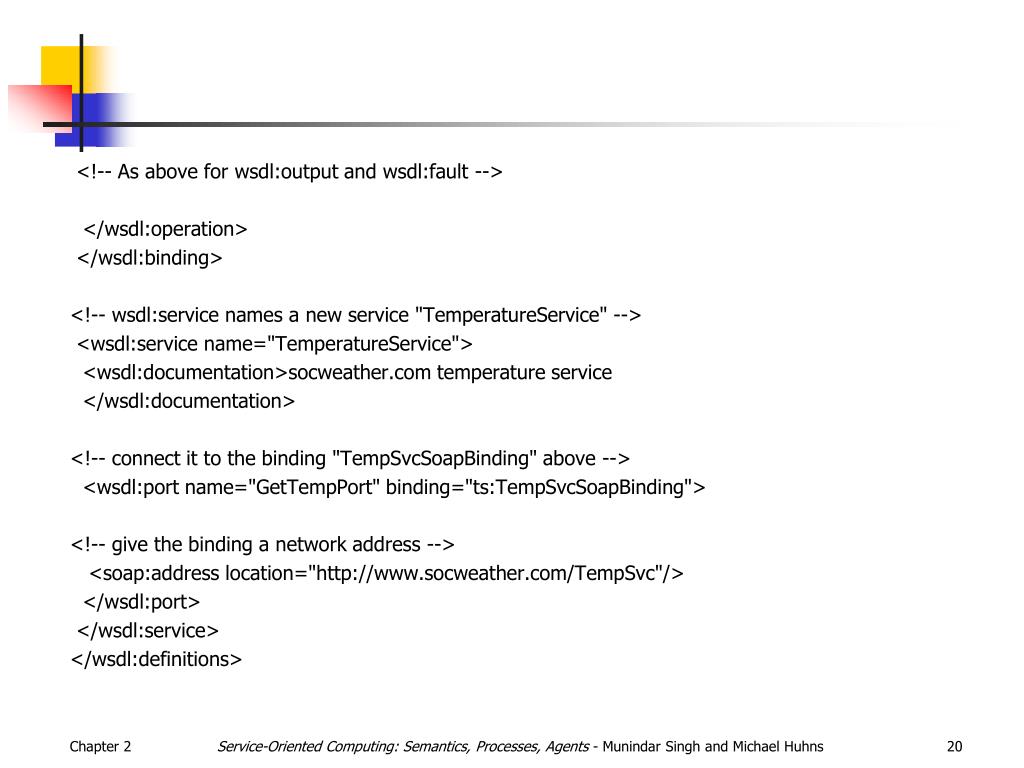

  17. <!-- As above for wsdl:output and wsdl:fault --> </wsdl:operation> </wsdl:binding> <!-- wsdl:service names a new service "TemperatureService" --> <wsdl:service name="TemperatureService"> <wsdl:documentation>socweather.com temperature service </wsdl:documentation> <!-- connect it to the binding "TempSvcSoapBinding" above --> <wsdl:port name="GetTempPort" binding="ts:TempSvcSoapBinding"> <!-- give the binding a network address --> <soap:address location="http://www.socweather.com/TempSvc"/> </wsdl:port> </wsdl:service> </wsdl:definitions> Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  18. WSDL Data Model Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  19. Directory Services • Support discovery: enable applications, agents, Web service providers, Web service requestors, people, objects, and procedures to locate each other • White pages – entries found by name • Yellow pages – entries found by characteristics and capabilities • A basic directory might be a simple database (passive) or a broker/facilitator (active, that provides alerts and recruits participants) • UDDI – both white pages and yellow pages, but passive Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

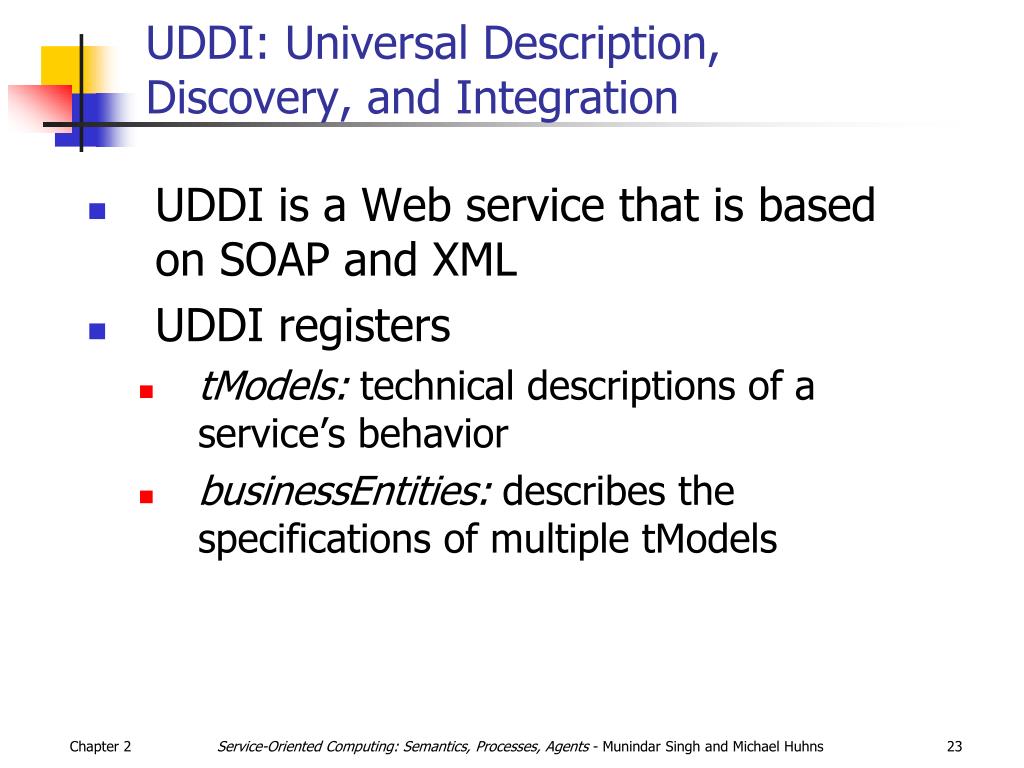

  20. UDDI: Universal Description, Discovery, and Integration • UDDI is a Web service that is based on SOAP and XML • UDDI registers • tModels: technical descriptions of a service’s behavior • businessEntities: describes the specifications of multiple tModels Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  21. Yellow, Green, and White Pages in UDDI Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  22. Data Model for UDDI Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

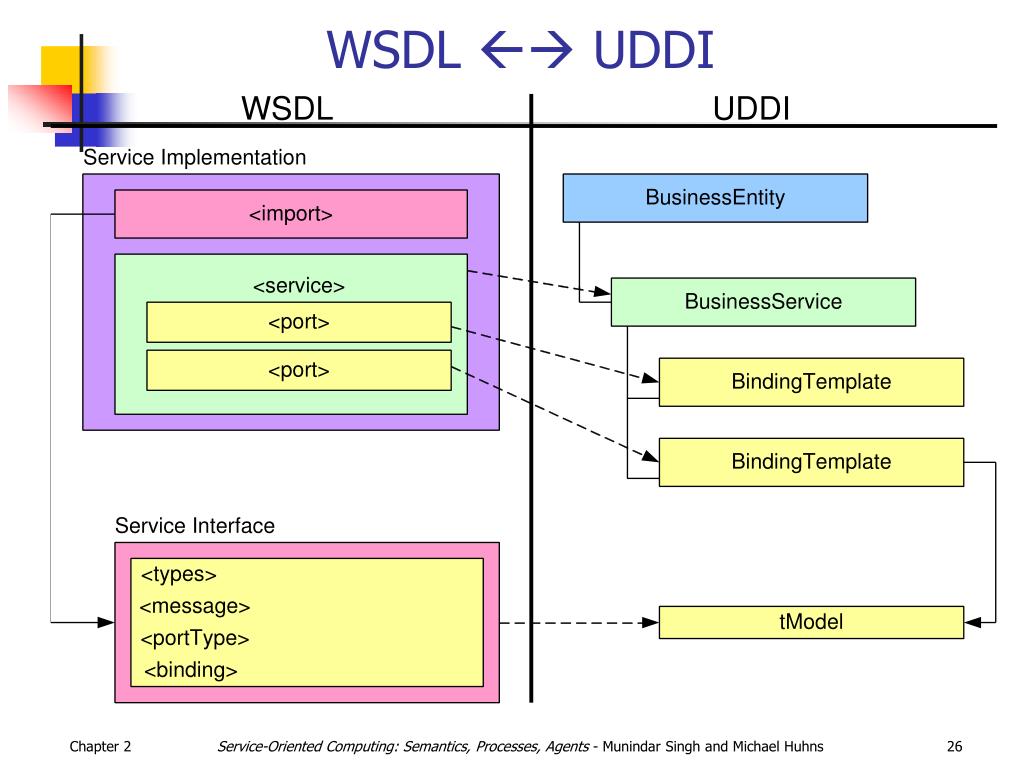

  23. WSDL  UDDI Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns

  24. Chapter 2 Summary The main triad of Web services standards • Bring together well-known ideas • SOAP: object access and messaging • WSDL: based on CORBA IDL • UDDI: based on directories • Provide necessary functionality for interoperation • Are complicated in their details • Meant for tool vendors rather than programmers • Increasingly hidden by tools Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns
