  1. Memory Management CS 470 - Spring 2002

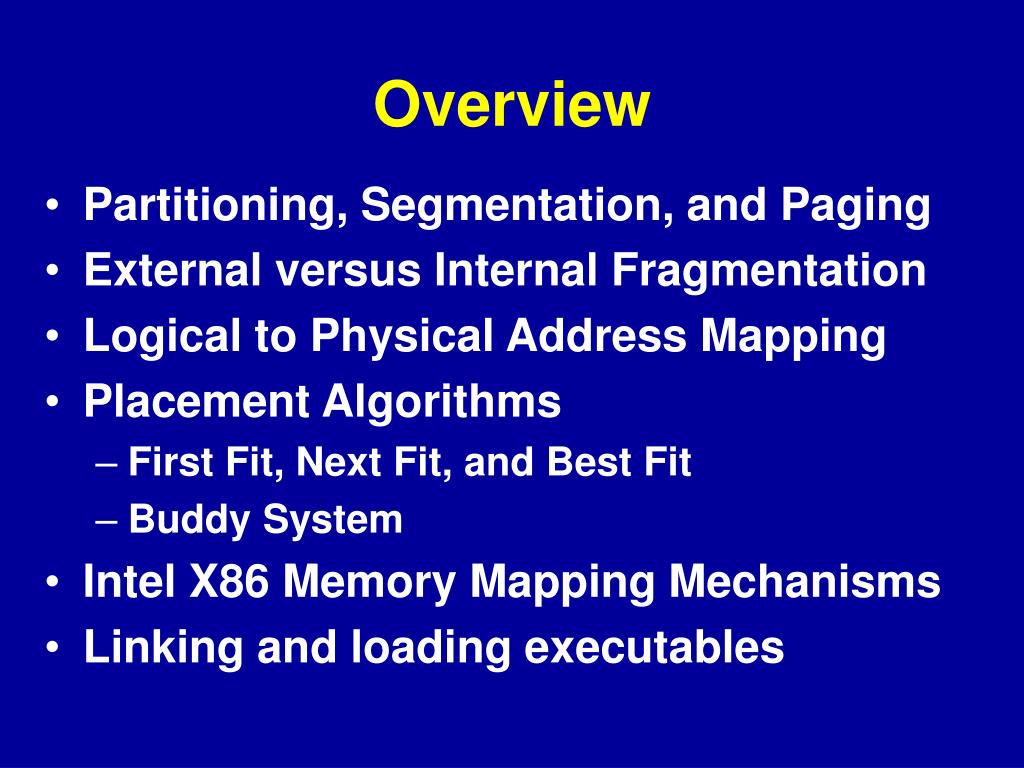

  2. Overview • Partitioning, Segmentation, and Paging • External versus Internal Fragmentation • Logical to Physical Address Mapping • Placement Algorithms • First Fit, Next Fit, and Best Fit • Buddy System • Intel X86 Memory Mapping Mechanisms • Linking and loading executables

  3. Memory Partitioning • Fixed Partitions (IBM OS/MFT) • Equal Partition Sizes • Variable but fixed Partition Sizes • Internal Fragmentation • Dynamic Partitions (IBM OS/MVT) • External Fragmentation • Need for Compaction

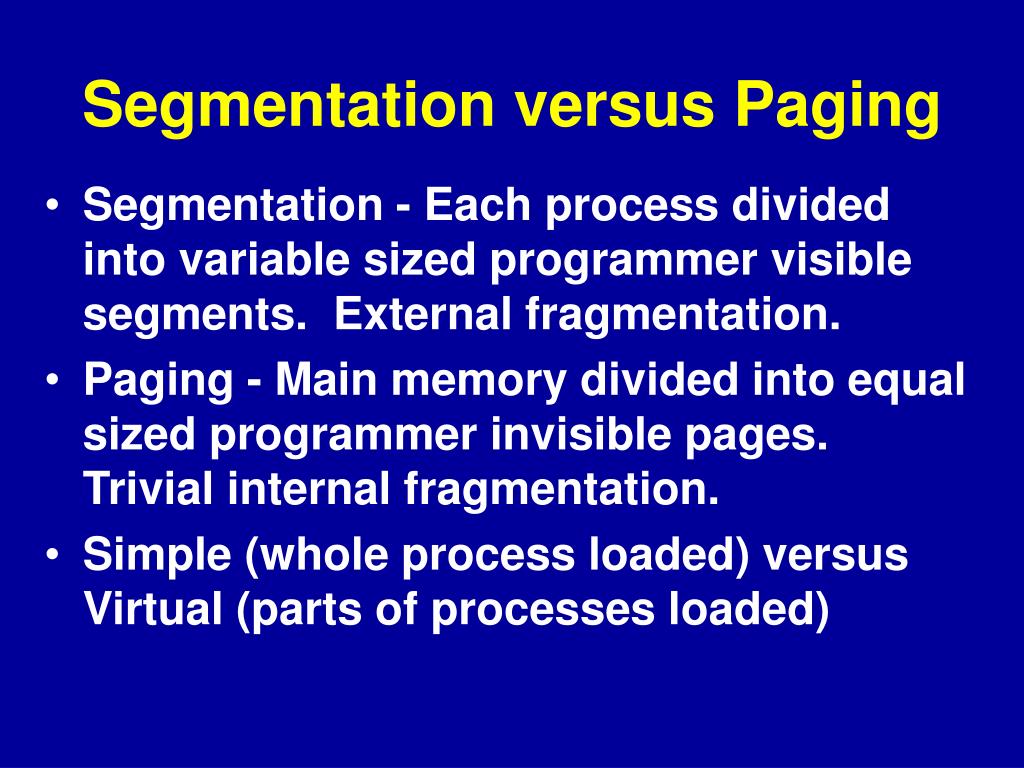

  4. Segmentation versus Paging • Segmentation - Each process divided into variable sized programmer visible segments. External fragmentation. • Paging - Main memory divided into equal sized programmer invisible pages. Trivial internal fragmentation. • Simple (whole process loaded) versus Virtual (parts of processes loaded)

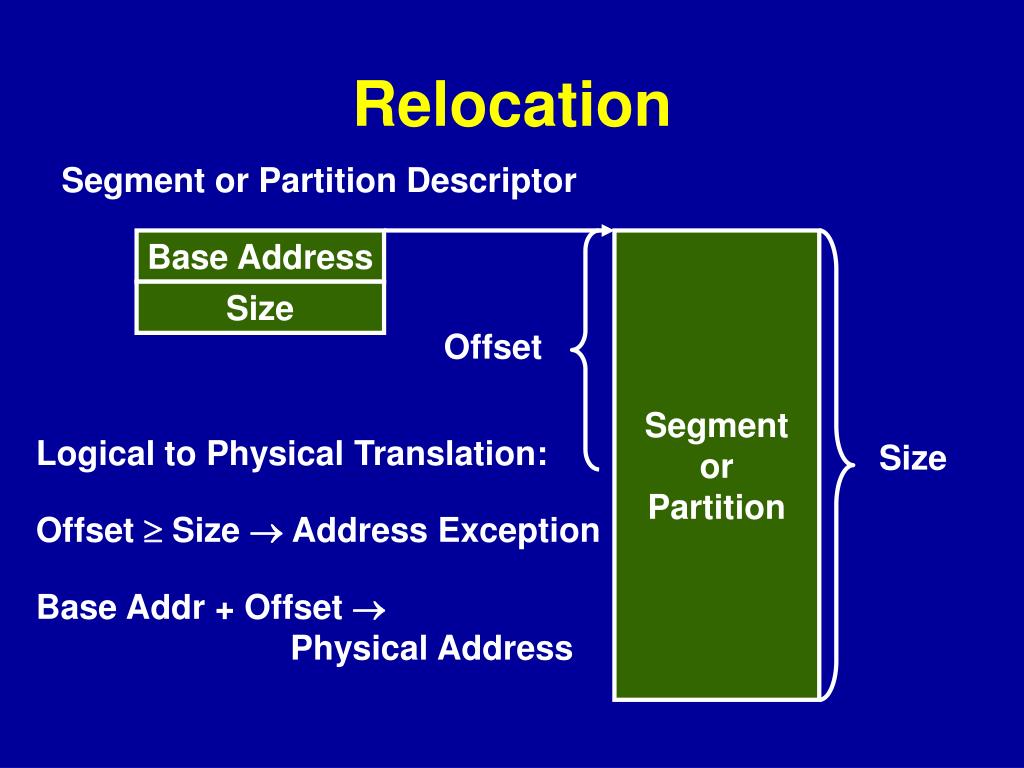

  5. Relocation Segment or Partition Descriptor Base Address Segment or Partition Size Offset Logical to Physical Translation: Size Offset  Size  Address Exception Base Addr + Offset  Physical Address

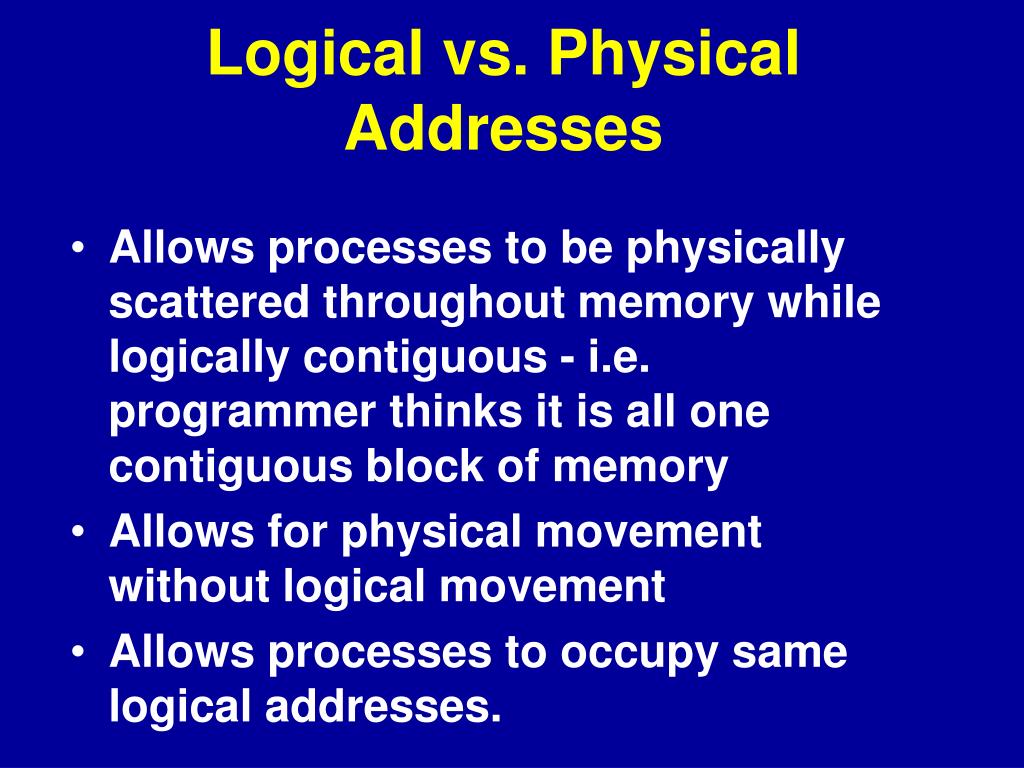

  6. Logical vs. Physical Addresses • Allows processes to be physically scattered throughout memory while logically contiguous - i.e. programmer thinks it is all one contiguous block of memory • Allows for physical movement without logical movement • Allows processes to occupy same logical addresses.

  7. Logical to Physical AddressTranslation Logical Address Page/Segment Offset 000002 012345 512 4124000 0 4096 4129000 1 Process Page or Segment Table 102400 2010000 2 2022345 8192 7212300 3 Physical Address Base Address Segment Length

  8. Inverted Page Table Logical Address Used in MacOS Page/Segment Offset 000612 012345 hash 512 4124000 2 409 4129000 -1 612 2010000 -1 2022345 27 7212300 1 Hash table Physical Address Page Nbr Base Addr Link

  9. Placement Algorithms • Trivial for allocating blocks of fixed size • Given list of free blocks/partitions and their lengths • First fit -- use first block of sufficient size • Next fit -- use first block of sufficient size after the one that was last allocated • Best fit -- use block whose size is smallest amongst those of sufficient size.

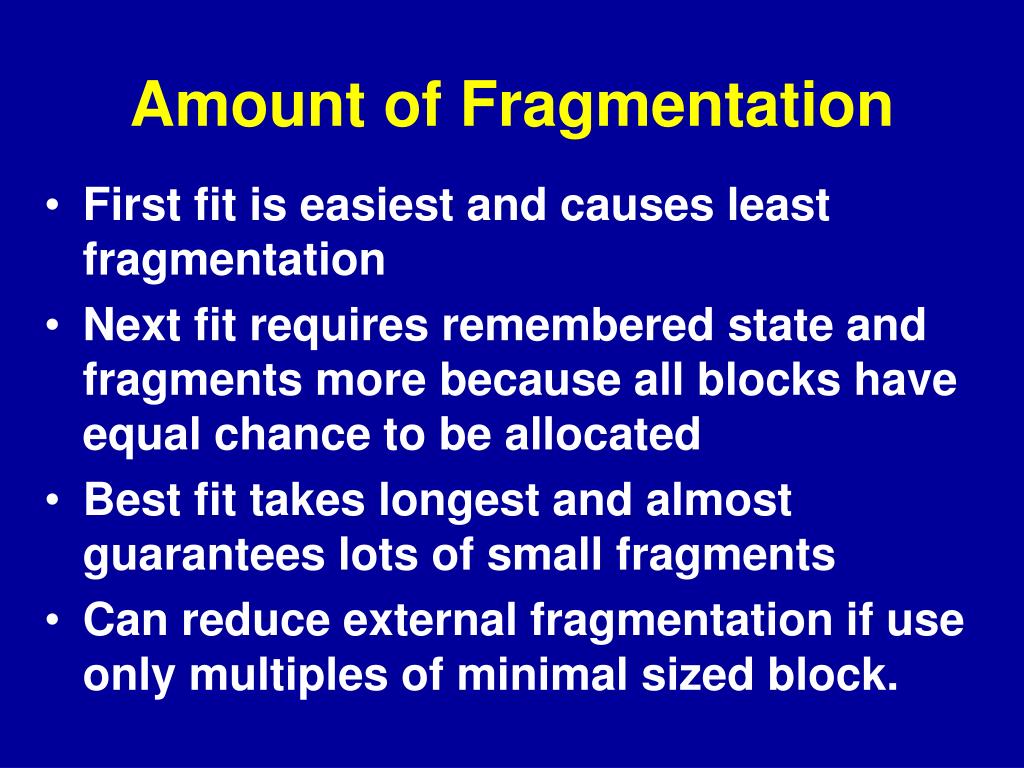

  10. Amount of Fragmentation • First fit is easiest and causes least fragmentation • Next fit requires remembered state and fragments more because all blocks have equal chance to be allocated • Best fit takes longest and almost guarantees lots of small fragments • Can reduce external fragmentation if use only multiples of minimal sized block.

  11. Buddy System • Uses blocks of fixed sizes 2i for L  i  U to reduce fragmentation • i_List of free blocks of size 2i, L  i  U . • If request is of size k where 2i-1 k  2i , allocate block of size 2i . • If none of size 2i , divide block of size 2i+1 into 2 equal buddies - repeat recursively. • Coalesce buddies recursively when freed.

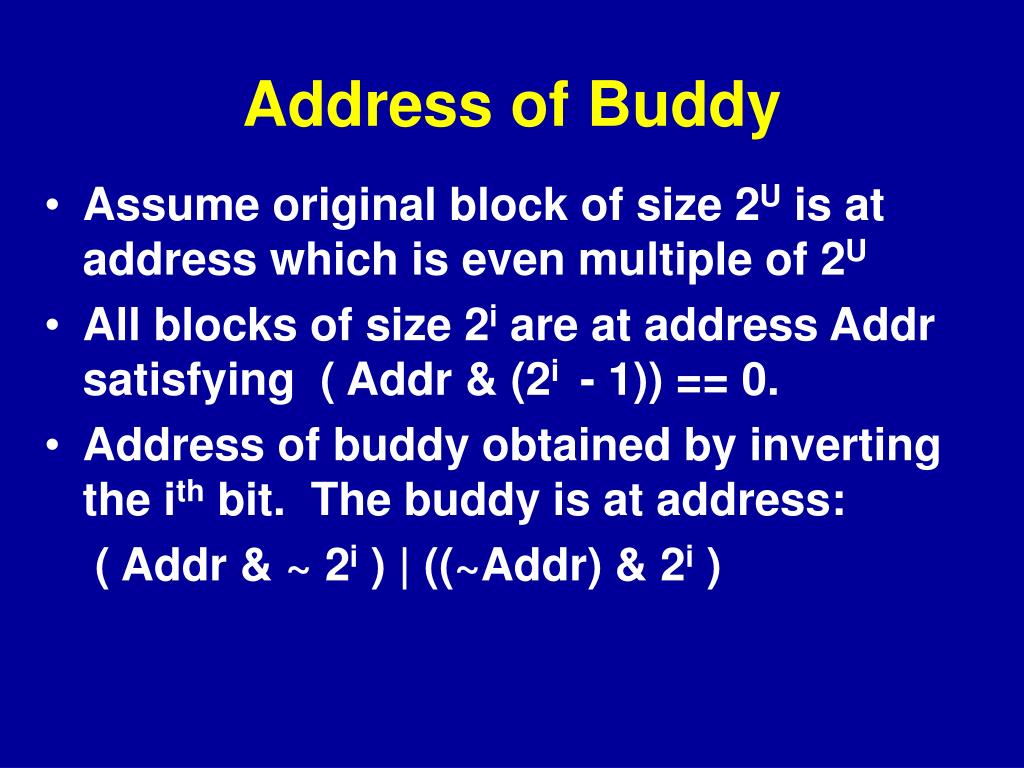

  12. Address of Buddy • Assume original block of size 2U is at address which is even multiple of 2U • All blocks of size 2i are at address Addr satisfying ( Addr & (2i - 1)) == 0. • Address of buddy obtained by inverting the ith bit. The buddy is at address: ( Addr & ~ 2i ) | ((~Addr) & 2i )

  13. Buddy Memory Allocation Free Lists 0 12 0 11 0 0 10 9 9 9 8 9 0 7 0 6 10 12 5

  14. Buddy System Blocks Free Block Allocated Block Allocator Return Value Log2N: 0 Log2N: 5 - 12 Forward Link Data Space (N - 4 bytes) Back Link N - 12 Bytes

  15. Intel X86 Memory Mapping • Supports both segmentation and paging • 16 bit segment selector • 13 bit segment number • Descriptor Tables: 0 = Global, 1 = Local • 2 bit requested privilege level • 32 bit segment offset • 64 terabyte address space for each process • Registers (GDTR, LDTR) point to descriptor tables and give their length

  16. Logical to Linear Mapping 3 2 0 31 0 15 Seg Number RPL Segment Offset Seg Desc. 31 22 12 0 Dir Page Offset Descriptor Table Linear Address

  17. Linear to Physical Mapping Linear Address Physical Address 31 0 31 22 12 0 Physical Address Dir Page Offset Page Table Page Directory Dir Entry. Pg TblEntry. CR3

  18. Page/Directory Table Entry 31 12 9 8 7 6 5 4 3 2 1 0 Page Frame Addr G L L D A C D W T U S R W V V Valid R/W Read / Write U/S User / Supervisor W/T Write through C/D Cache Disabled A Accessed D Dirty L Large page GL Global

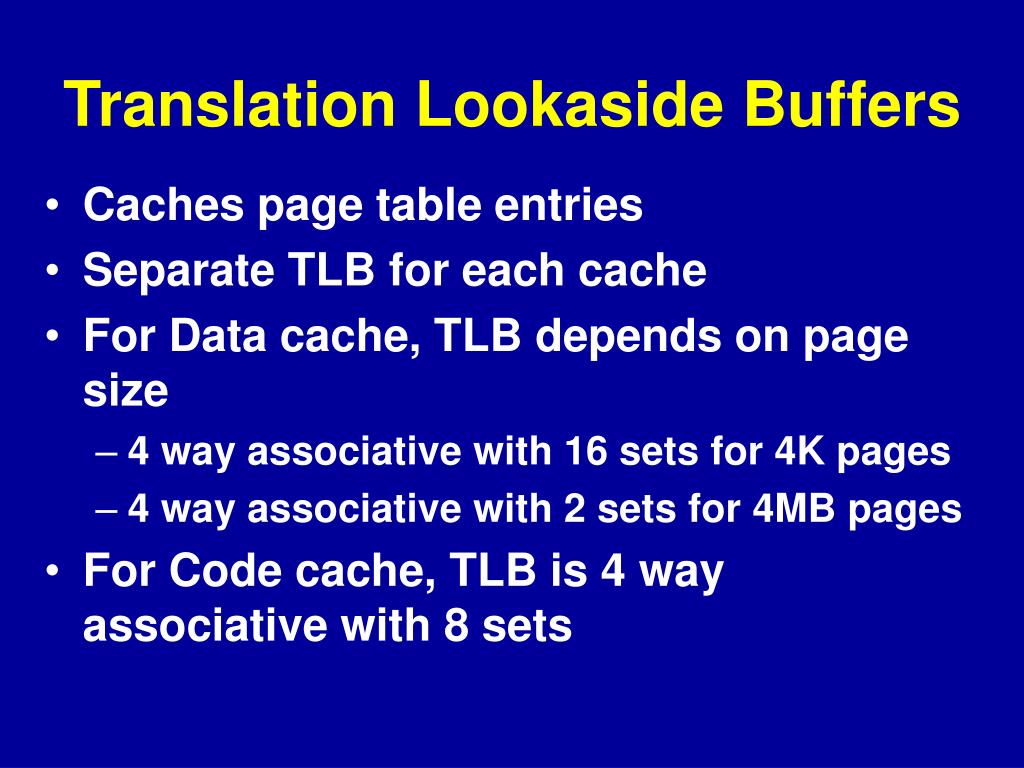

  19. Translation Lookaside Buffers • Caches page table entries • Separate TLB for each cache • For Data cache, TLB depends on page size • 4 way associative with 16 sets for 4K pages • 4 way associative with 2 sets for 4MB pages • For Code cache, TLB is 4 way associative with 8 sets

  20. Linking and Loading Module 1 Load Module Module 1 Module 2 Loader Module 3 Module 2 Library 1 Library 2 Module 3 Loaded Program Linker Library 1 Memory Library 2

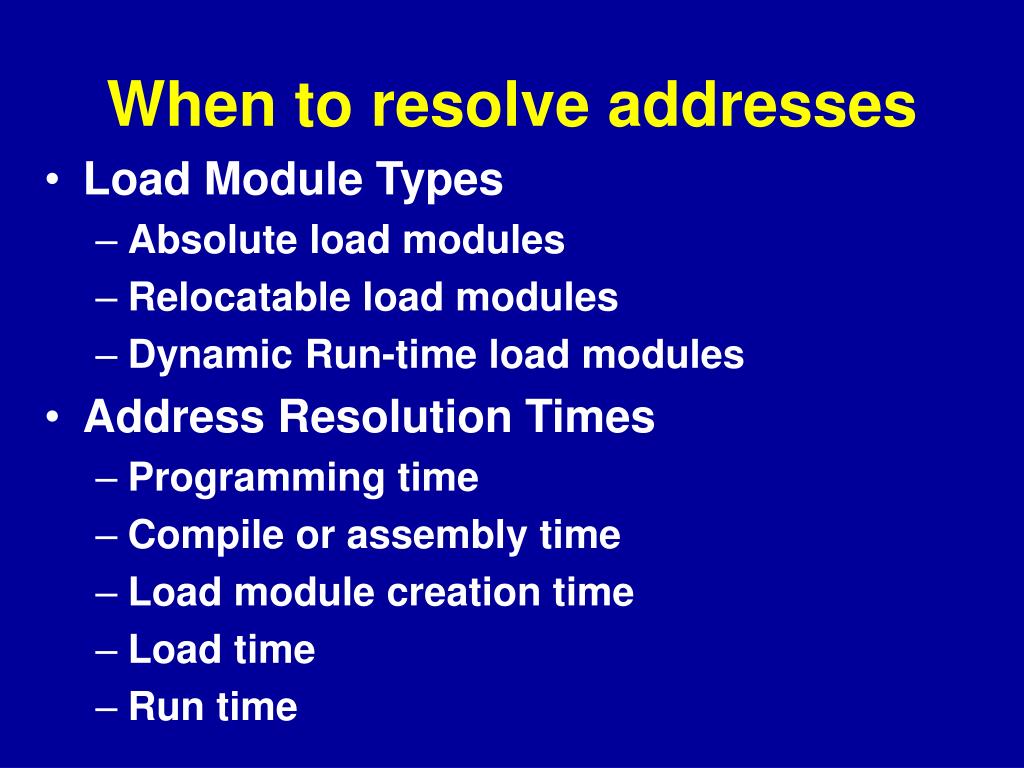

  21. When to resolve addresses • Load Module Types • Absolute load modules • Relocatable load modules • Dynamic Run-time load modules • Address Resolution Times • Programming time • Compile or assembly time • Load module creation time • Load time • Run time

  22. Dynamic Linking • Run time references to routines in external modules causes loading of that module and resolution of the reference • Advantages • Upgrade of libraries can occur without relinking all the applications • Automatic sharing of libraries • Complicates design and testing of applications
