Overview of an Answer File - unattended file / script

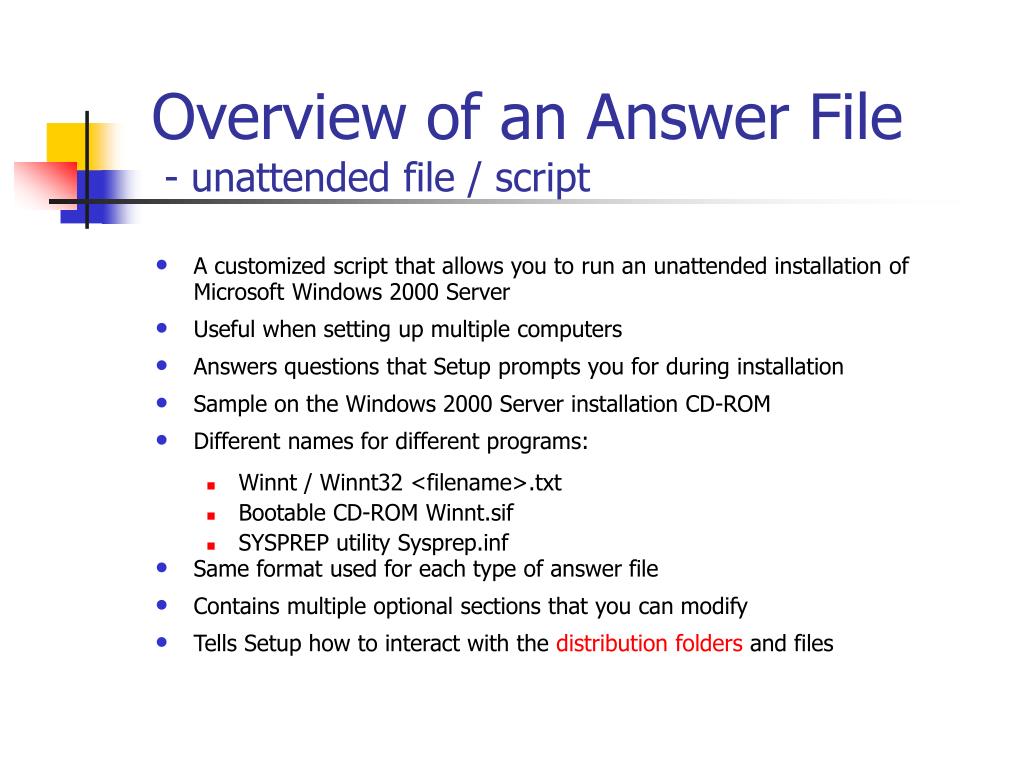

1. Overview of an Answer File - unattended file / script • A customized script that allows you to run an unattended installation of Microsoft Windows 2000 Server • Useful when setting up multiple computers • Answers questions that Setup prompts you for during installation • Sample on the Windows 2000 Server installation CD‑ROM • Different names for different programs: • Winnt / Winnt32 <filename>.txt • Bootable CD-ROM Winnt.sif • SYSPREP utility Sysprep.inf • Same format used for each type of answer file • Contains multiple optional sections that you can modify • Tells Setup how to interact with the distribution folders and files

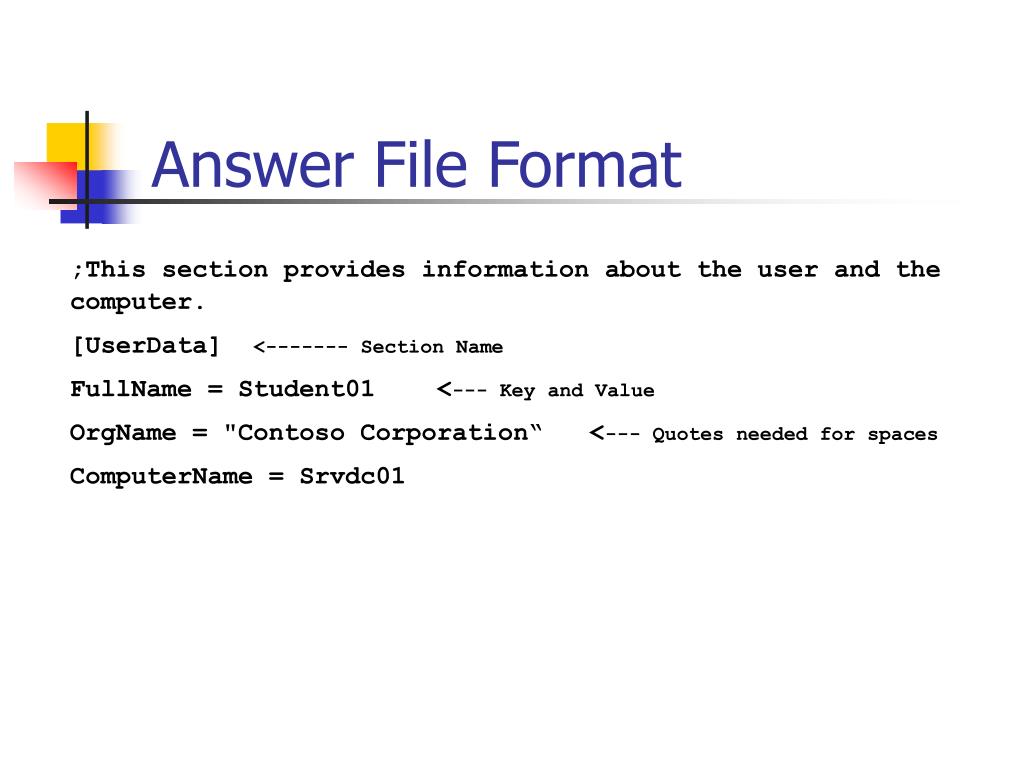

2. Answer File Format ;This section provides information about the user and the computer. [UserData] <------- Section Name FullName = Student01 <--- Key and Value OrgName = "Contoso Corporation“ <--- Quotes needed for spaces ComputerName = Srvdc01

3. Using Setup Manager • Available on the Windows 2000 Server installation CD‑ROM in the Support\Tools\Deploy.cab file • .cab file a special MS archive --- can expand with Windows Explorer • Used to perform a number of tasks • Adds consistency to the process of creating or updating the answer file • Cannot be used to specify all answer file settings or optional components, create Txtsetup.oem files, or create subfolders in the distribution folder

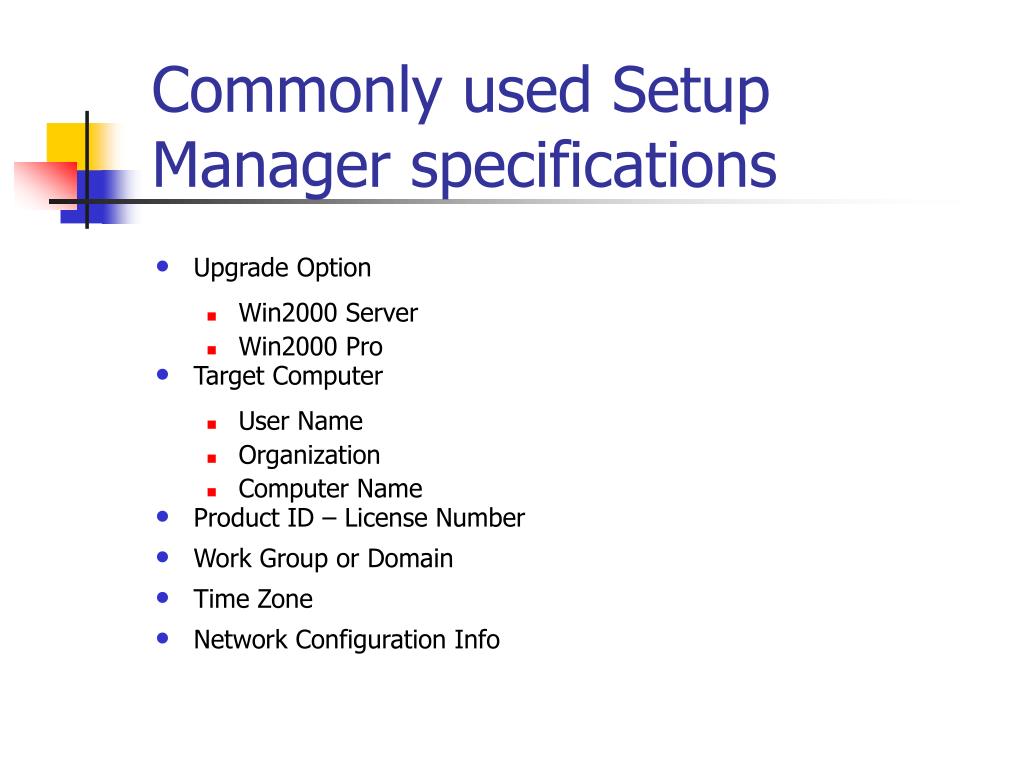

4. Commonly used Setup Manager specifications • Upgrade Option • Win2000 Server • Win2000 Pro • Target Computer • User Name • Organization • Computer Name • Product ID – License Number • Work Group or Domain • Time Zone • Network Configuration Info

5. Creating the Answer File Manually • Use a text editor such as Microsoft Notepad. • Define additional section headers. • Customize the default answer file or write a new one.

6. Distribution Folders • Contains all required WIN2000 install files • Multiple folders • Different set ups • Use folders naming convention to easily identify • Load balanacing • Winnt32 supports up to eight folders

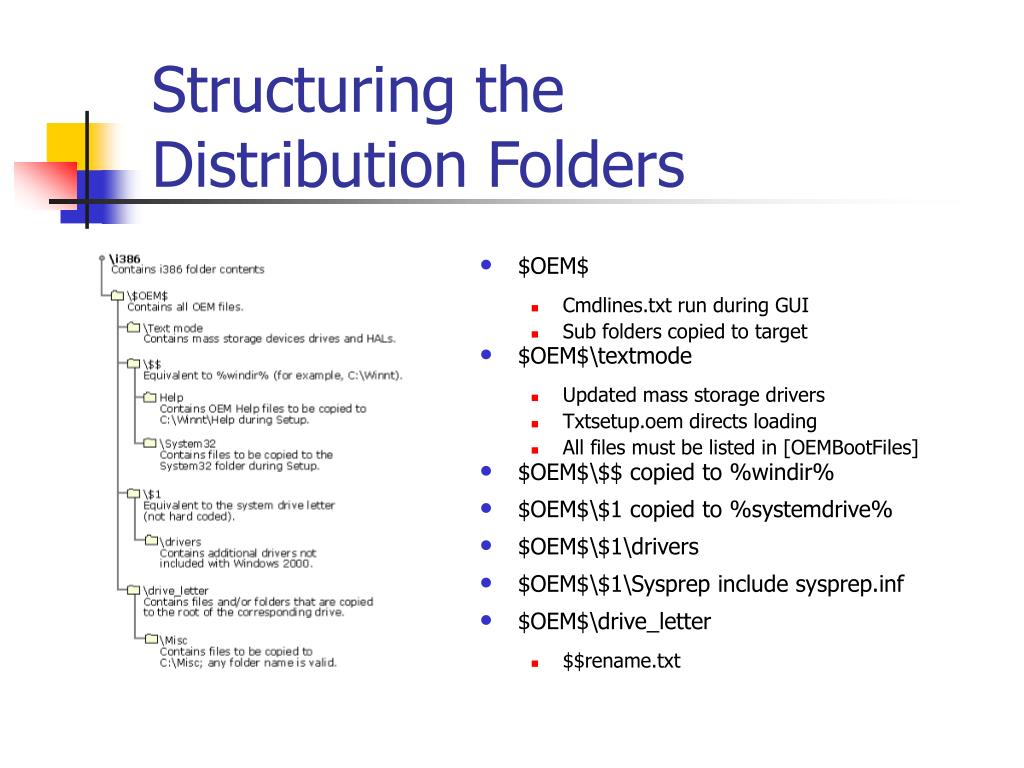

7. Structuring the Distribution Folders • $OEM$ • Cmdlines.txt run during GUI • Sub folders copied to target • $OEM$\textmode • Updated mass storage drivers • Txtsetup.oem directs loading • All files must be listed in [OEMBootFiles] • $OEM$\$$ copied to %windir% • $OEM$\$1 copied to %systemdrive% • $OEM$\$1\drivers • $OEM$\$1\Sysprep include sysprep.inf • $OEM$\drive_letter • $$rename.txt

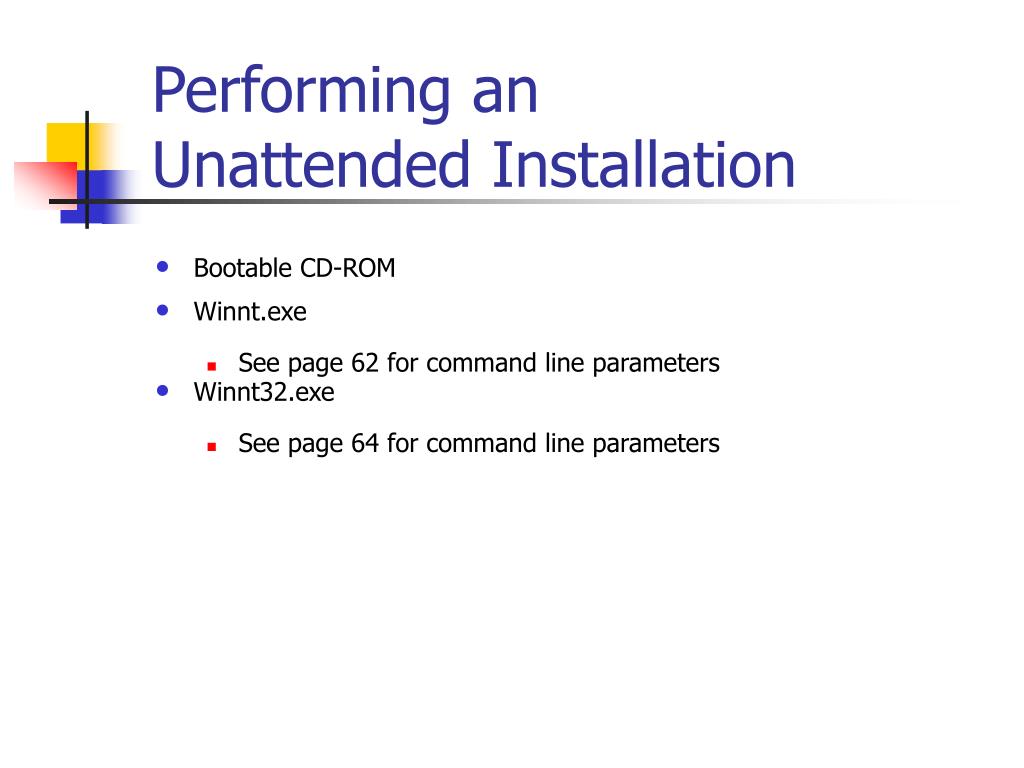

8. Performing an Unattended Installation • Bootable CD‑ROM • Winnt.exe • See page 62 for command line parameters • Winnt32.exe • See page 64 for command line parameters

9. Bootable CD‑ROM • The computer must support the El Torito Bootable CD‑ROM (no emulation mode) format to boot from the CD‑ROM drive. • The answer file must be named Winnt.sif and be placed on a floppy disk to be inserted into the floppy drive as soon as the computer boots from the CD‑ROM. • The answer file must contain a [Data] section with the required keys specified.

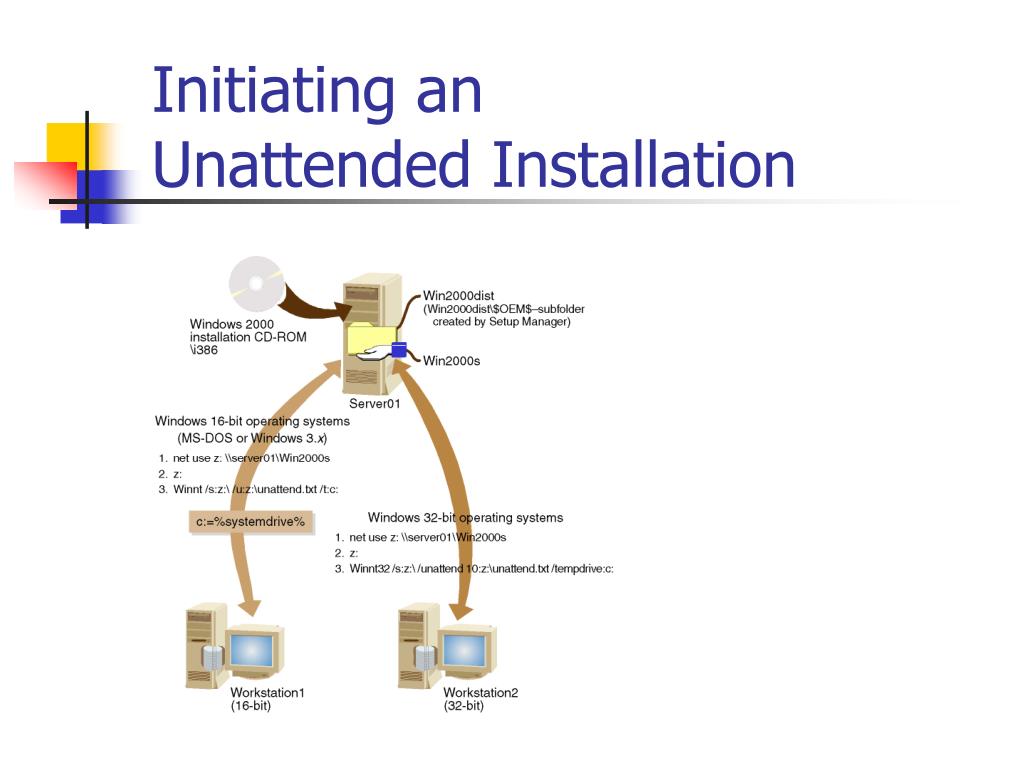

10. Initiating an Unattended Installation

11. Comparing Installation/Upgrading Methods • Syspart • Clean install dissimilar hardware • Sysprep • Clean install, nearly similar hardware, requires 3rd party imaging software • SMS • Upgrade or clean install across the network (LAN/WAN) • Bootable CD‑ROM • Clean install • RIS • Professional only • PXE boot rom on NIC or BIOS boots a server • RIS bootable disk • Clean install on existing partition preserves files ????

12. Syspart • Included as a parameter of Winnt32.exe • Used on a reference computer to complete the first phase of installation • Can be used if the reference computer and the computers on which you will complete the installation do not have similar hardware • Requires two physical disks • Can be used if you require a similar installation on hardware types in which the HALs or mass storage controllers differ • Remove disk from reference computer and install in target

13. Running Syspart winnt32 /unattend:unattend.txt /s:<install_source> /syspart:<install_target> /tempdrive:<install_target> /noreboot • Syspart and tempdrive must point to same partion • Must be a primary partition • Will automatically be marked as ACTIVE

14. Results of Running Syspart

15. Overview of Sysprep • Facilitates creating a disk image of your Windows 2000 Server installation • Prepares the hard disk on the master computer • Identical HALs, Advanced Configuration and Power Interface (ACPI) support, and mass storage devices • Allows you to configure a master image containing the necessary components for a member server • Can be used in conjunction with Syspart to create a master for each type of hardware configuration

16. The Sysprep Process • Sysprep duplication • Sysprep files • Mini-Setup wizard

17. Sysprep Duplication • Installing Windows 2000 • Disconnect from domain when building • Admin password leave blank • Configuring your computer • Logon with Admin privileges • Validating the image • Client audit • Remove residual files and logs after audit • Preparing the image for duplication • Run SYSPREP optional .inf file • Duplicating the installation • Ready to PNP detect • Create SID • Run Mini Setup Wizard

18. Sysprep Files • Sysprep.exe • Run manually • [GUIRunOnce] • Sysprep.inf • Answer file used during cloning • Setupcl.exe • Process sysprep.inf • Determine pages Mini Setup will display • All should be located in %systemdrive%\Sysprep • Can not duplicate AD components

19. Mini-Setup Wizard • The wizard starts the first time a computer boots from a disk that has been duplicated by using the Sysprep tool. • Mini-setup screens may include • EULA • Regional Settings • User name and Organization • Computer name and Admin Password • Network Settings • Time Zone • Finish/Restart • The wizard gathers information needed to customize the target computer. • You can bypass the screens in the wizard by specifying certain parameters within the Sysprep.inf file.

20. Running Sysprep Manually • Preparing the Sysprep folder • Must be created in root of %systemdrive% • Running the Sysprep utility • Running Sysprep without the -reboot switch • Ready to run 3rd party imaging software • Running Sysprep with the -reboot switch • Mini Setup wizard starts • Must rerun Sysprep w/o -reboot

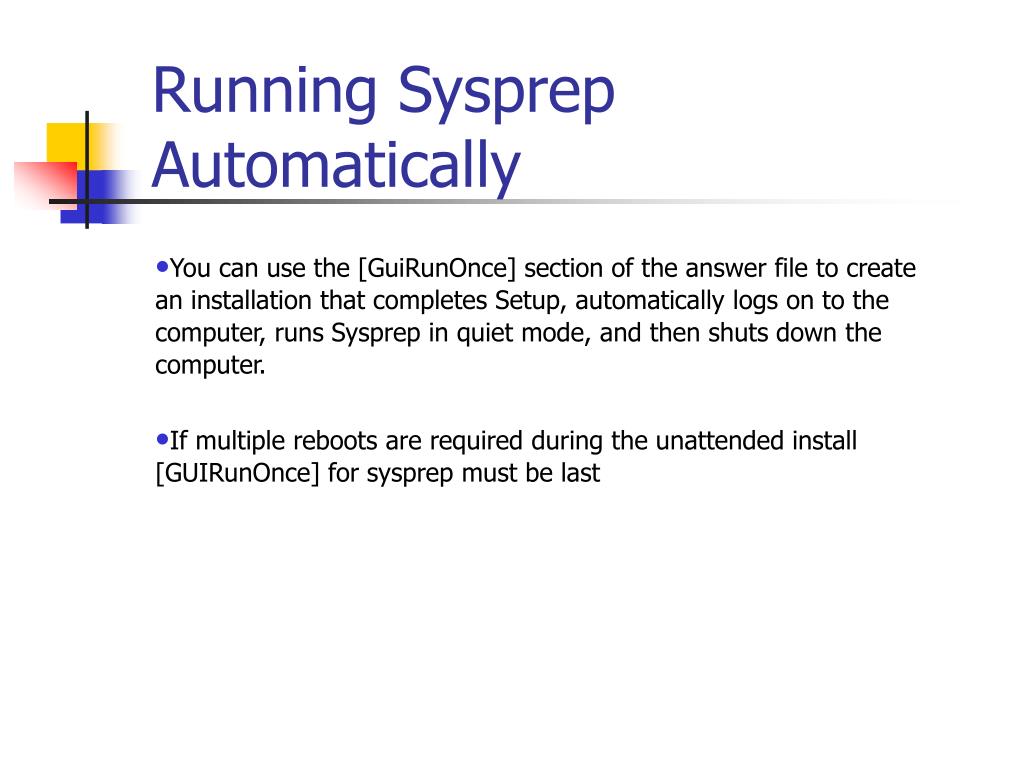

21. Running Sysprep Automatically • You can use the [GuiRunOnce] section of the answer file to create an installation that completes Setup, automatically logs on to the computer, runs Sysprep in quiet mode, and then shuts down the computer. • If multiple reboots are required during the unattended install [GUIRunOnce] for sysprep must be last

22. Using Sysprep to Extend Disk Partitions • Allows for configuring on system whose hard disk may be smaller than target • Configure the partition on the master computer hard disk to the minimum size required. • Modify the answer file used to create the master image by including the FileSystem=ConvertNTFS option in the [Unattended] section. • Install Windows 2000 Server to the master computer and create an image of the drive. • Delete pagefile.sys, setupapi.log, and hyberfil.sys from the image • Place the image on a target computer that has the same-size partition as the master computer. • After you reboot the target computer, the Mini-Setup wizard will begin and the partition will be extended.

23. Microsoft Systems Management Server (SMS) • SMS allows you to maintain control over the upgrade process. • Before you use SMS to perform an upgrade, assess your existing network infrastructure, including bandwidth, hardware, and geographical constraints. • Use SMS to perform managed upgrades of Windows 2000 Server to multiple systems. • Use SMS only for installation to computers that contain a previously installed operating system and that are running the SMS client agent.

24. Bootable CD‑ROM • Setting the BIOS order • Using a bootable CD‑ROM • Installing from a bootable CD‑ROM

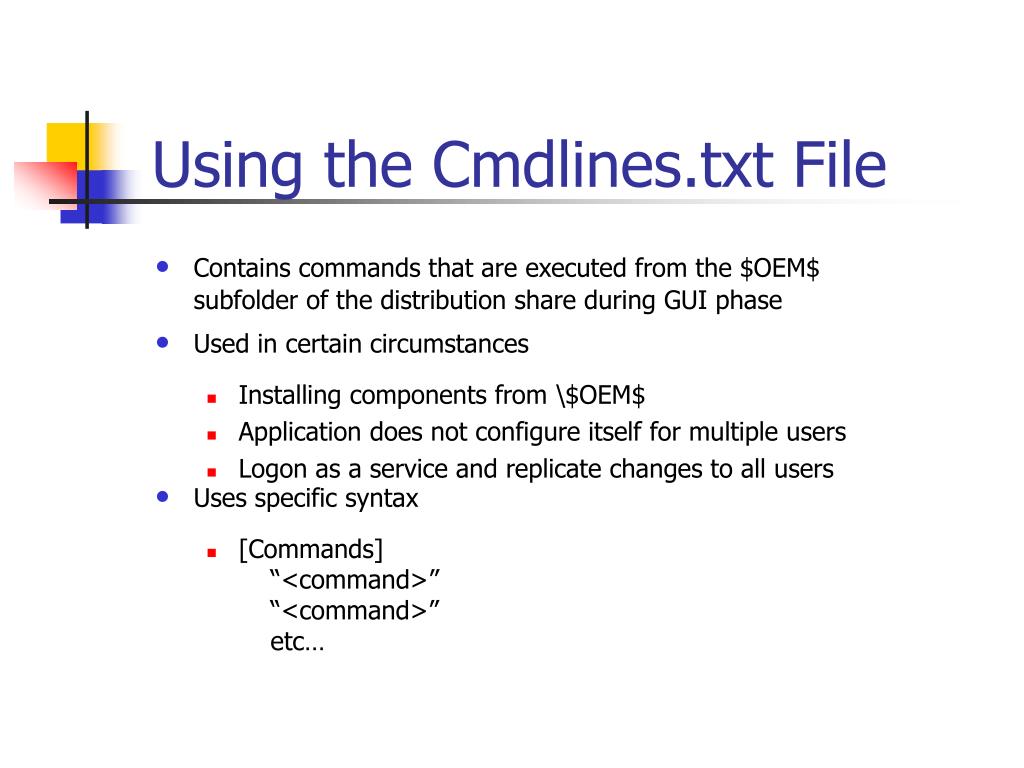

25. Using the Cmdlines.txt File • Contains commands that are executed from the $OEM$ subfolder of the distribution share during GUI phase • Used in certain circumstances • Installing components from \$OEM$ • Application does not configure itself for multiple users • Logon as a service and replicate changes to all users • Uses specific syntax • [Commands] “<command>” “<command>” etc…

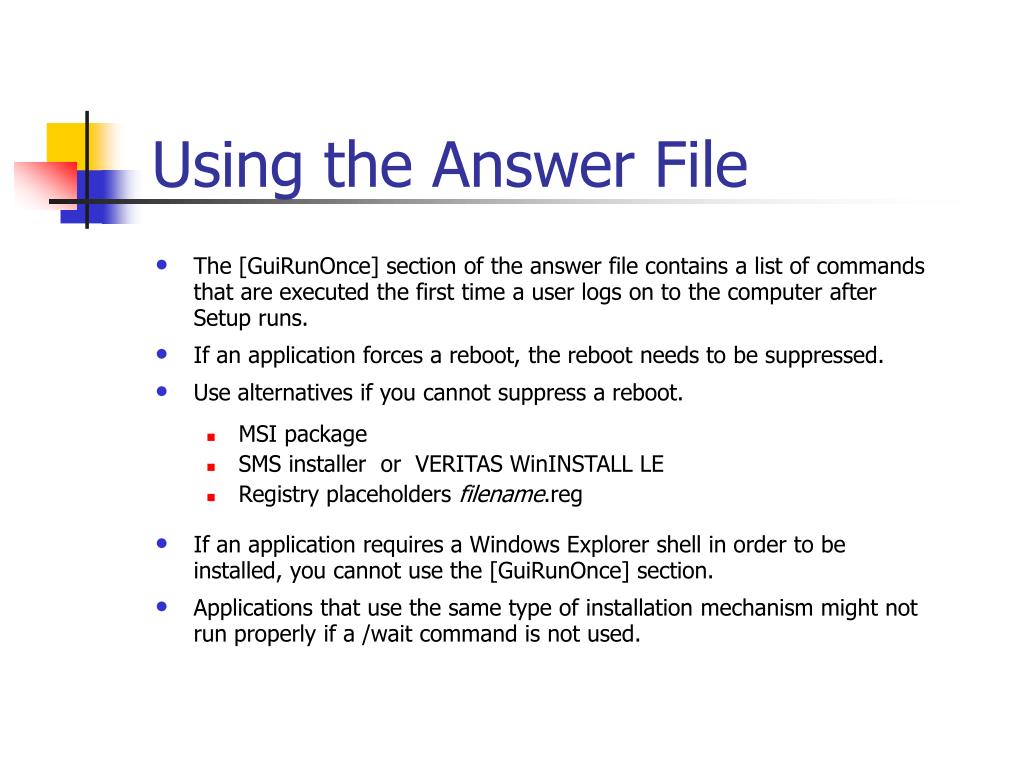

26. Using the Answer File • The [GuiRunOnce] section of the answer file contains a list of commands that are executed the first time a user logs on to the computer after Setup runs. • If an application forces a reboot, the reboot needs to be suppressed. • Use alternatives if you cannot suppress a reboot. • MSI package • SMS installer or VERITAS WinINSTALL LE • Registry placeholders filename.reg • If an application requires a Windows Explorer shell in order to be installed, you cannot use the [GuiRunOnce] section. • Applications that use the same type of installation mechanism might not run properly if a /wait command is not used.

27. Using Application Installation Programs • The preferred method for preinstalling an application is to use the installation routine supplied with the application. • The application must be able to be installed in quiet mode. • Setup parameters vary among applications.

28. Using a Batch File • Allows you to control how individual applications are installed • Can be run from the [GuiRunOnce] section of the answer file • Ensures that your applications install sequentially and that each application is fully installed before the next application begins its installation routine

29. Batch File Syntax start /wait <path>\setup_file> <parameters> start /wait <path>\setup_file> <parameters> Exit • Should be copied to distribution folder • May use the sysprep folder the automatically deleted • Add batch file to [GUIRunOnce] • .lnk ???? Copied to target computer startup???
